Model Whirlpool RS20DKXFW00 – Common Parts & Diagrams

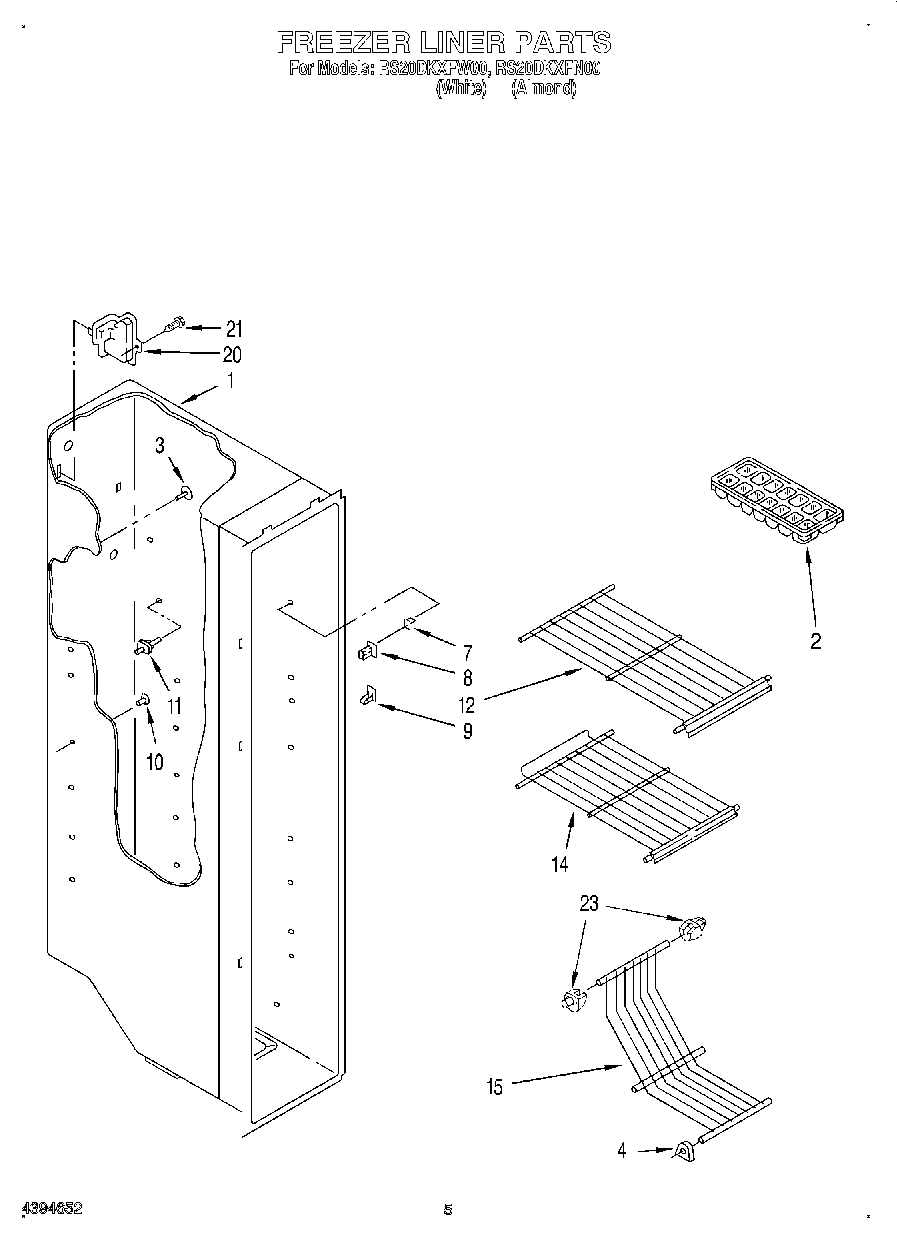

03 - FREEZER LINER

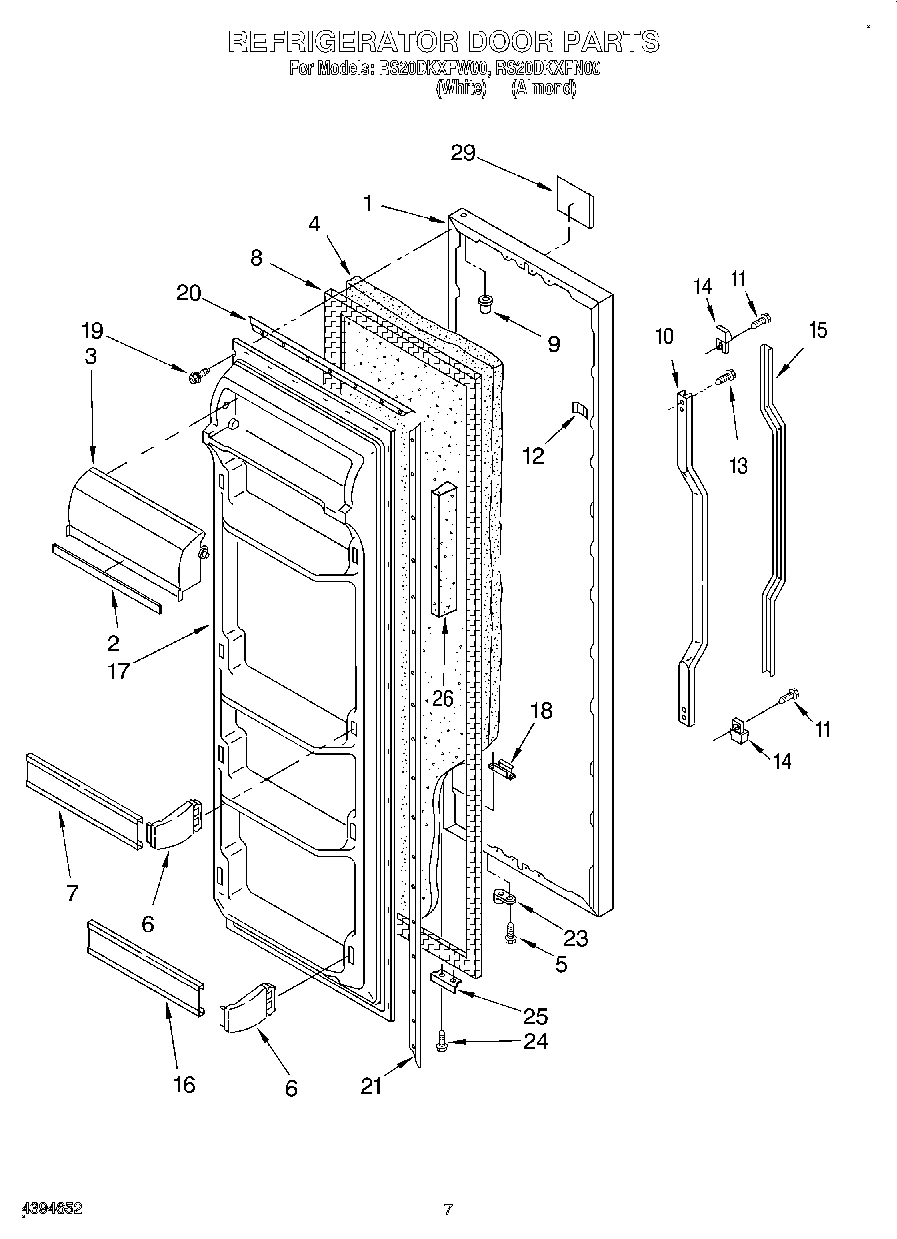

05 - REFRIGERATOR DOOR

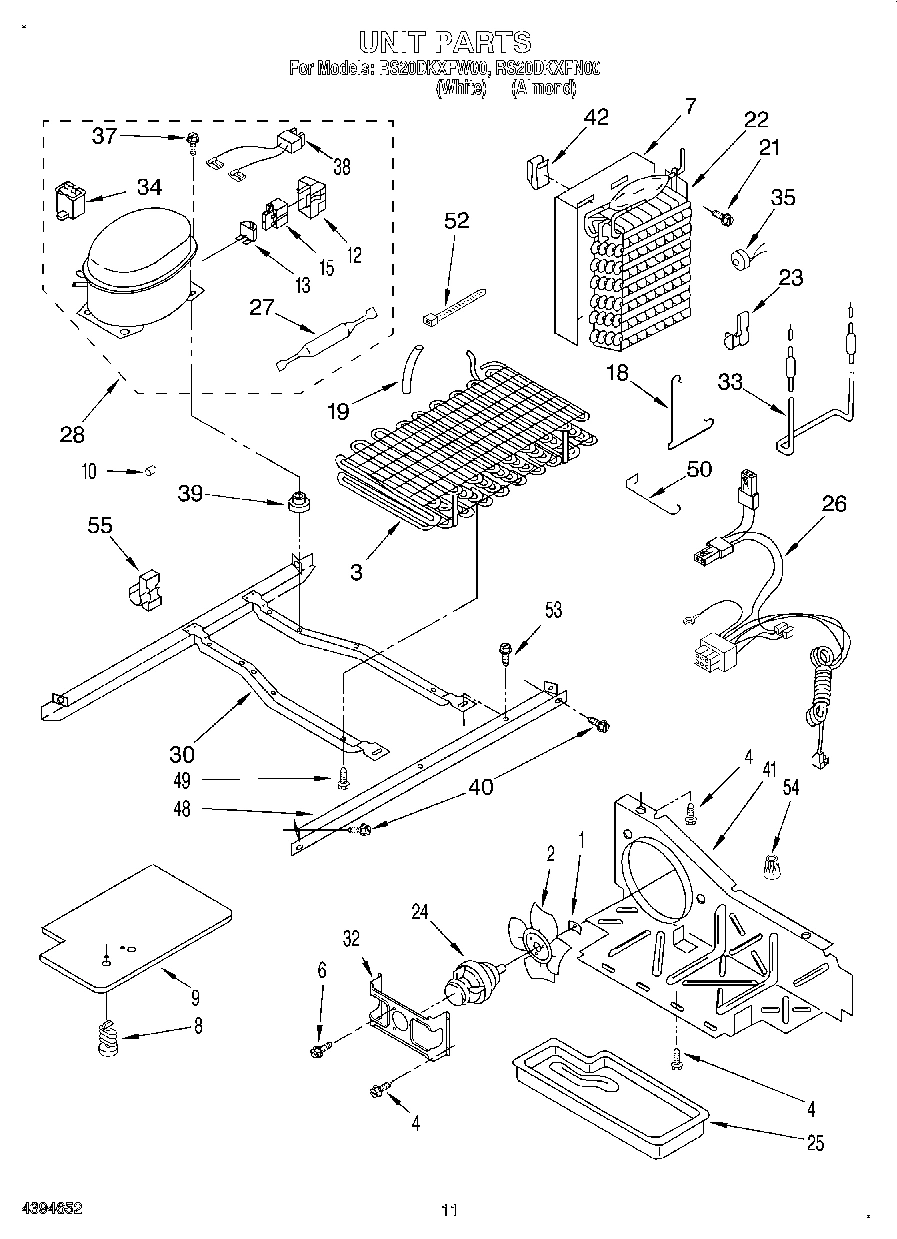

07 - UNIT
04 - AIR FLOW

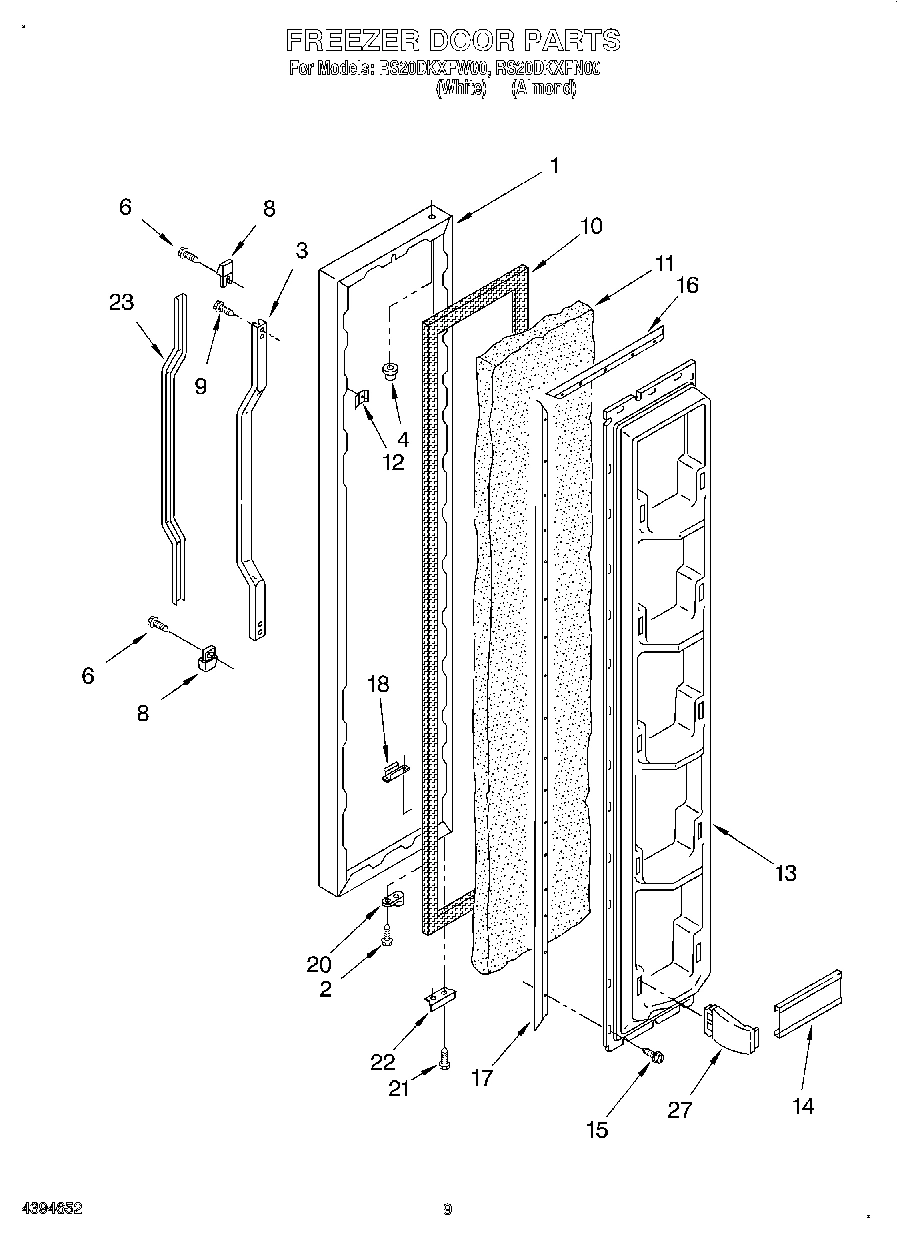

06 - FREEZER DOOR

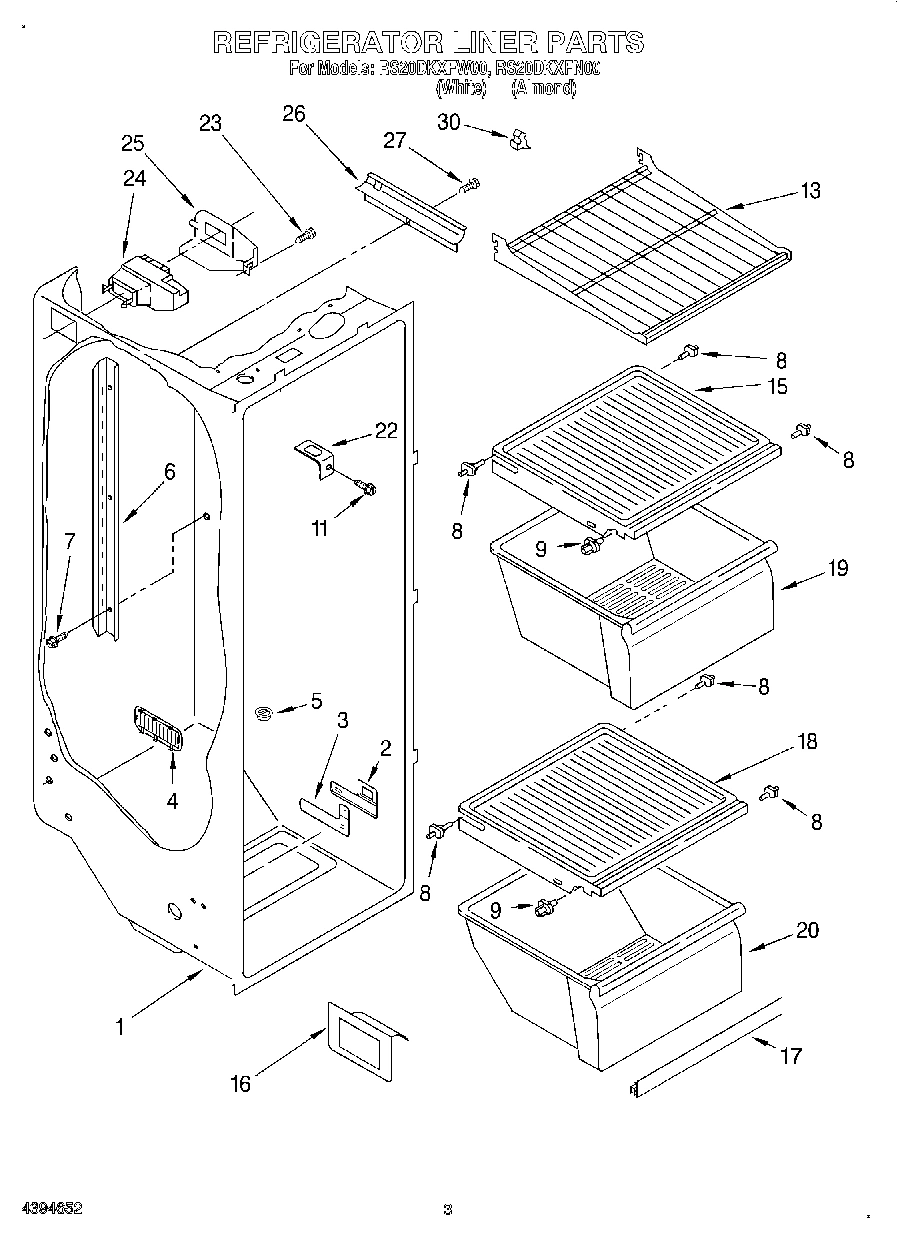

02 - REFRIGERATOR LINER

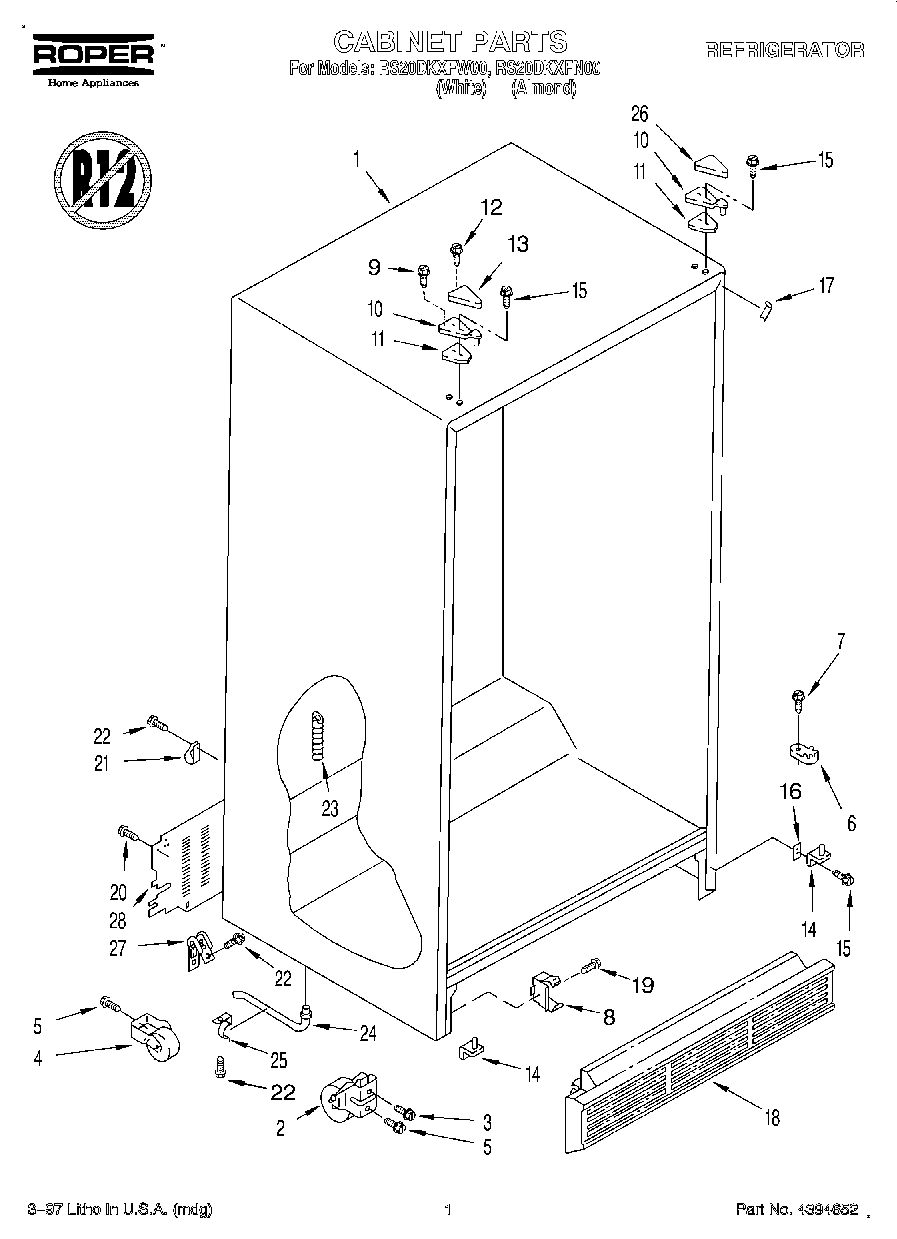

01 - CABINET

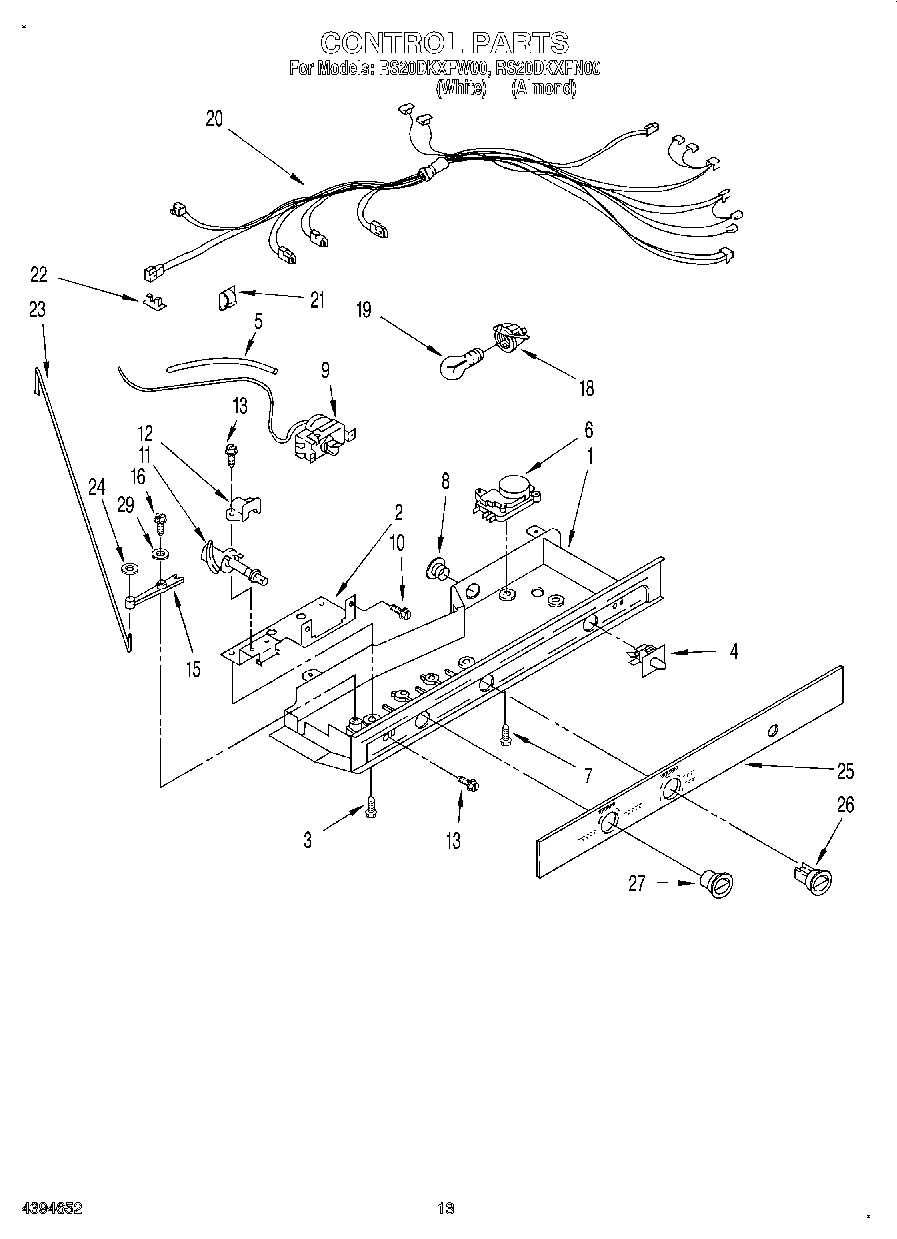

08 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool RS20DKXFW00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2194925 WPL LIT2194925 Contact Us For Availability
WPL LIT2198020 WPL LIT2198020 Contact Us For Availability
WPL LIT2198055 WPL LIT2198055 Contact Us For Availability
1
Freezer, Door Panel (Almond) WPL 2194613N Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2194613W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123848A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI123847A Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Handle, Insert WPL 2198036 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
8
Endcap WPL 2194778B Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
10
Grommet (10) WPL 2176134 Contact Us For Availability
11
Shim, Hinge (2) WPL 2171868 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Screw WPL 489284 Contact Us For Availability
13
Hinge Cover (White) WPL 1129262 Contact Us For Availability
13
Panel, Interior Door WPL 1129241 Contact Us For Availability
13
Shelf, Wire (3) WPL 2163617 Contact Us For Availability
13
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
14
Trim, Shelf (5) WPL 2195921 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Retainer, Gasket WPL 1117767 Contact Us For Availability
17
Retainer, Gasket WPL 1117766 Contact Us For Availability
17
Extension, Cover WPL 2179561 Contact Us For Availability
17
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
17
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
18
Grille WPL 2155476 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Tap, Plate WPL 2155335 Contact Us For Availability
20
Meat Pan WPL 2174418 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Insert, Handle WPL 2198037 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Bracket, Door Stop WPL 2195950 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
