Model Whirlpool RM255PXP0 – Common Parts & Diagrams
04 - MAGNETRON AND AIR FLOW

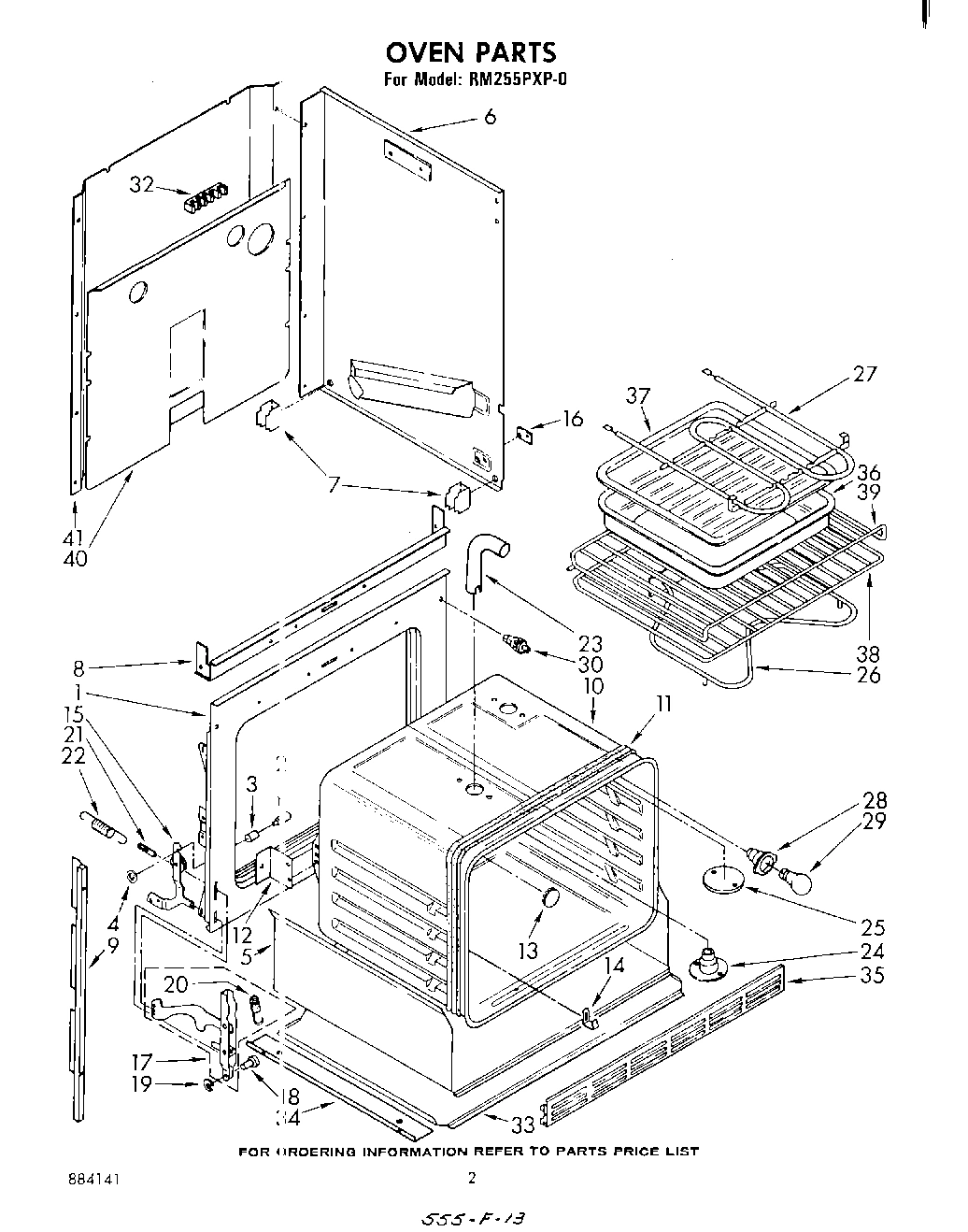

02 - OVEN

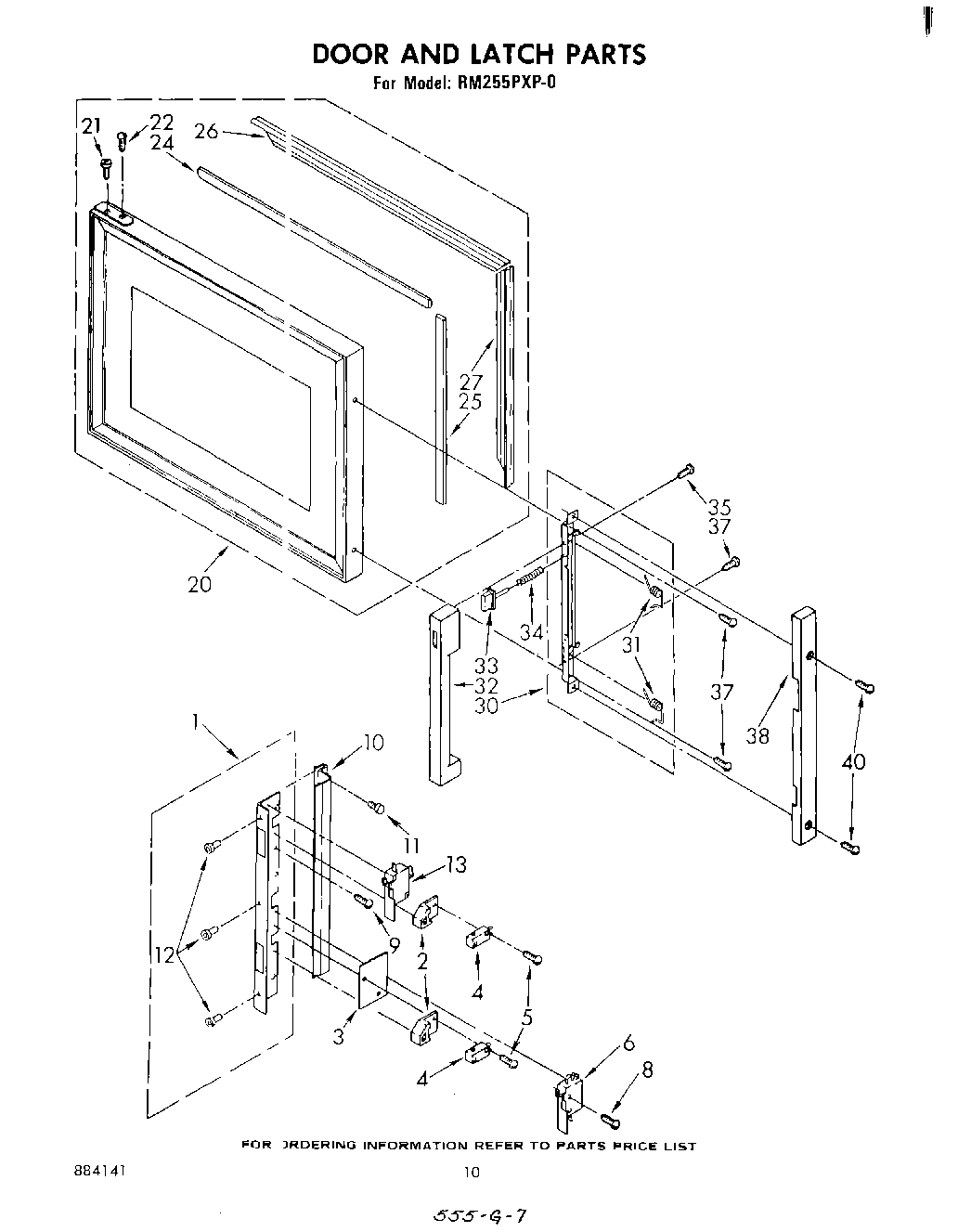

06 - DOOR AND LATCH

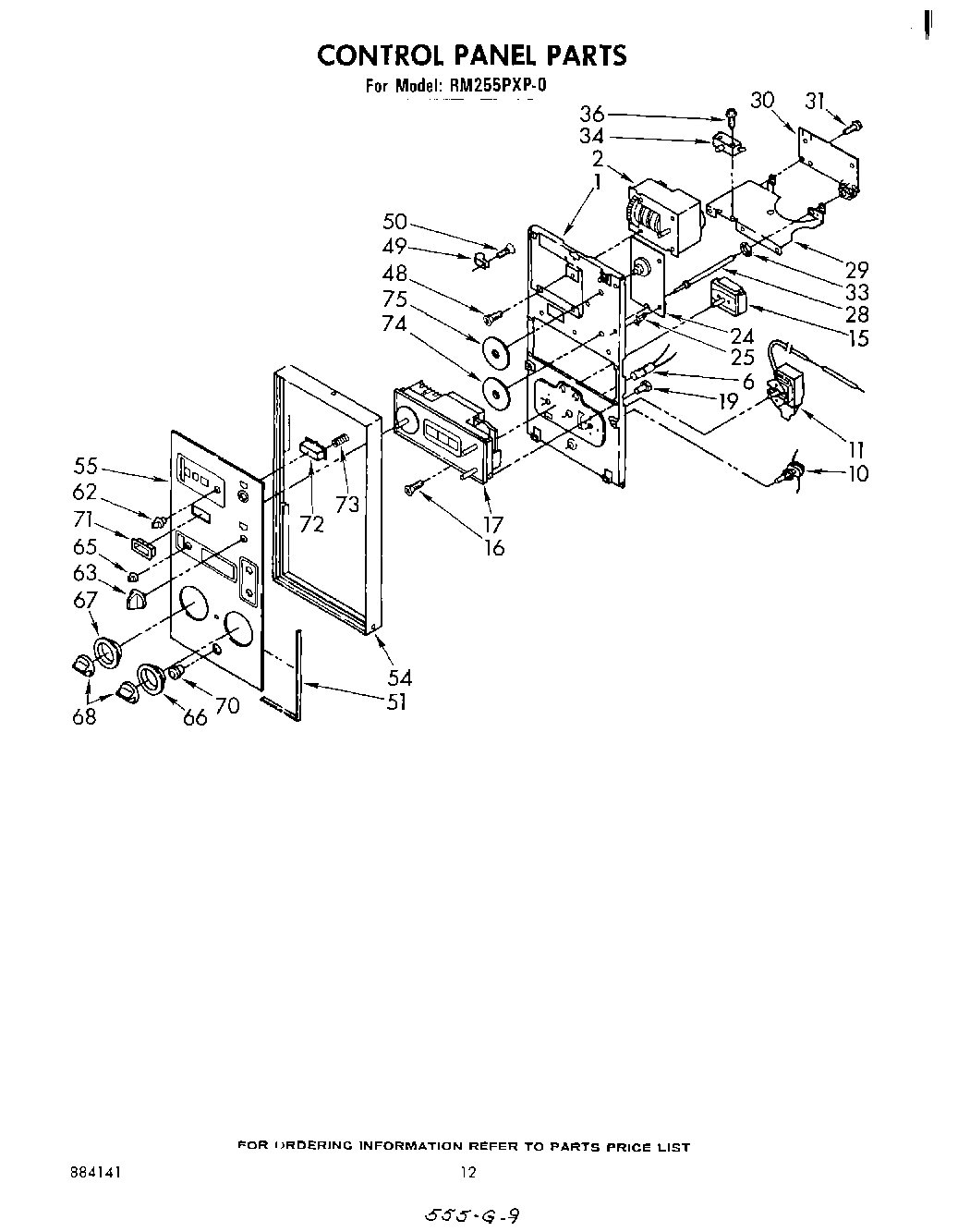

07 - CONTROL PANEL

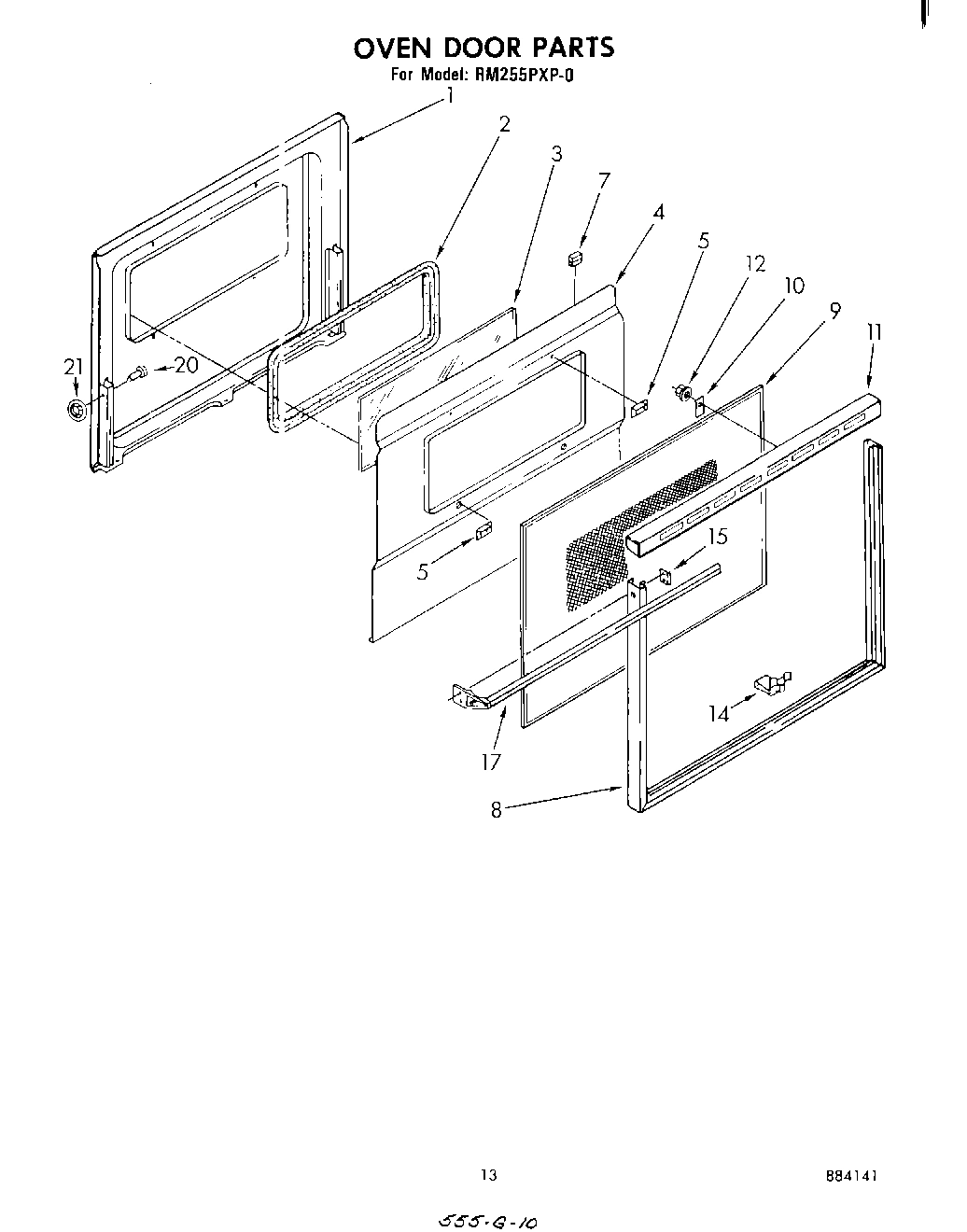

08 - OVEN DOOR

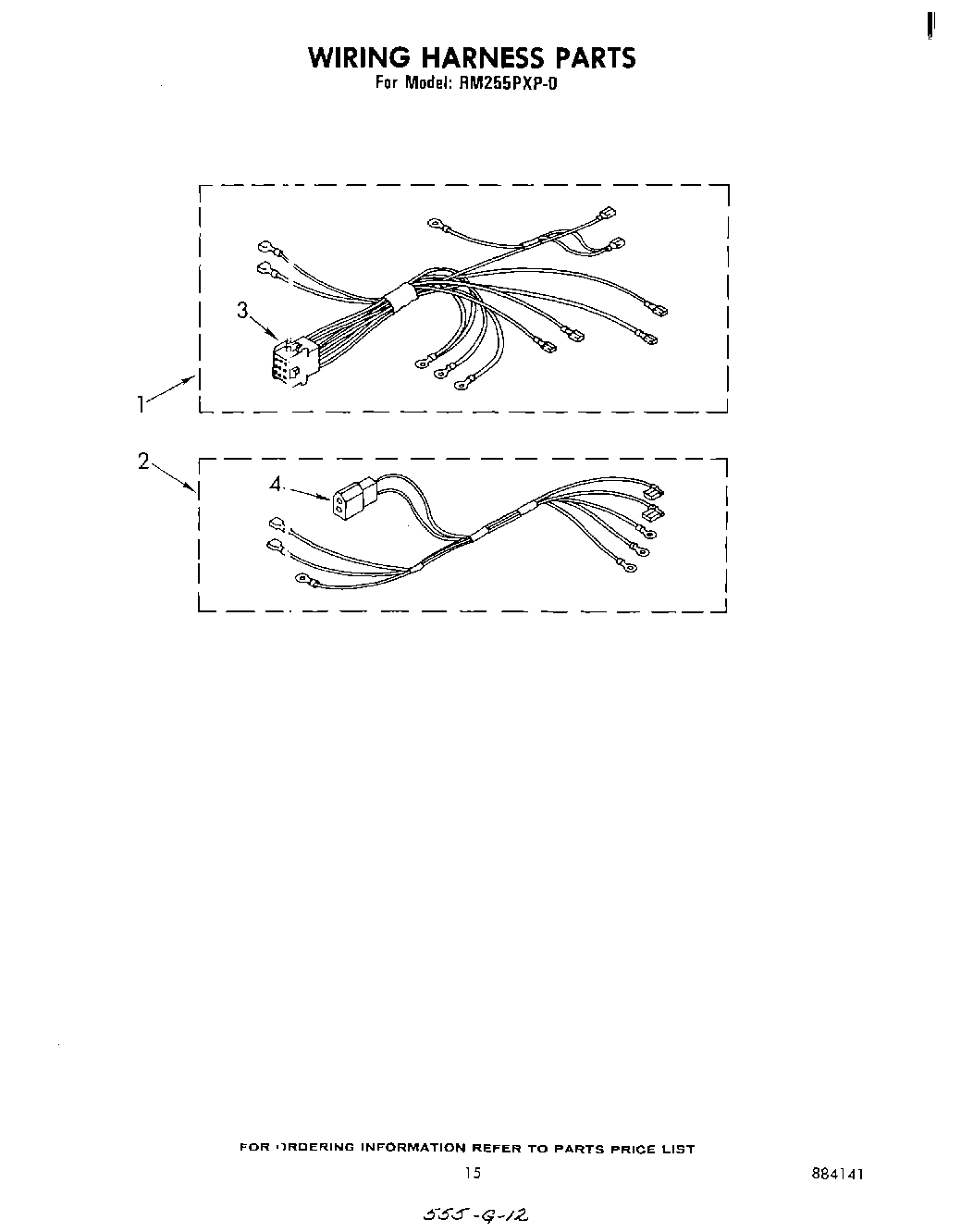

09 - WIRING HARNESS

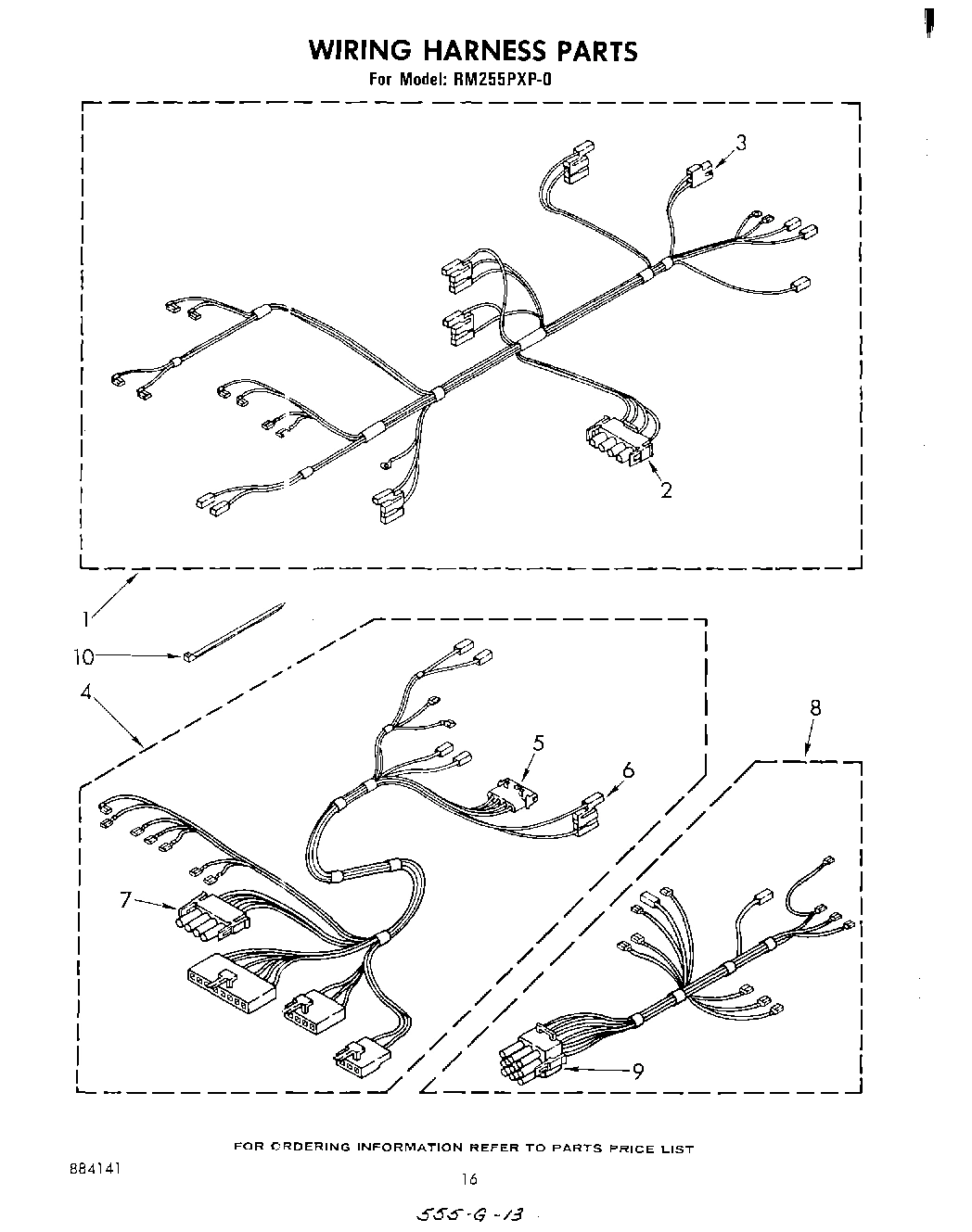

10 - LITERATURE AND OPTIONAL

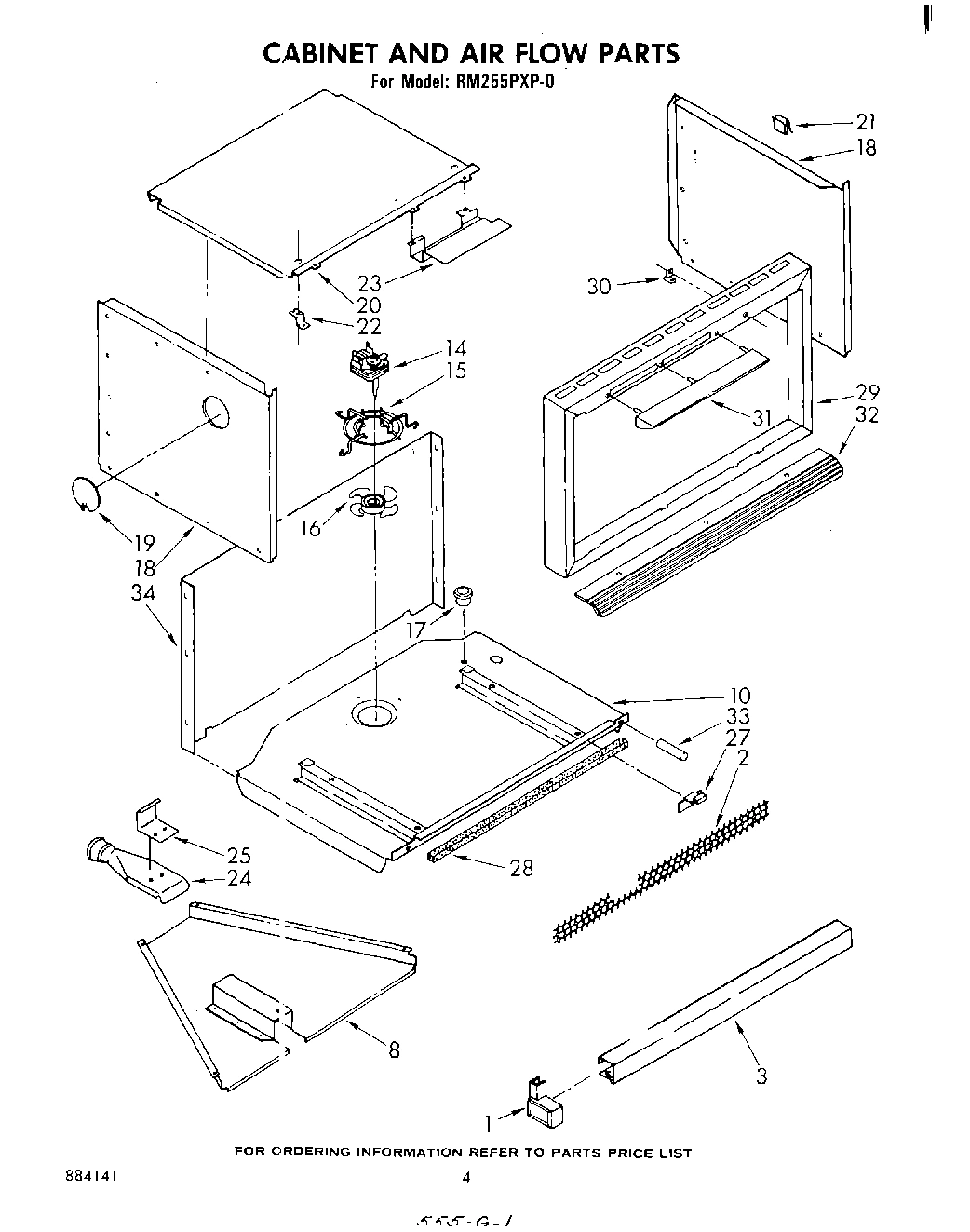

03 - CABINET AND AIRFLOW

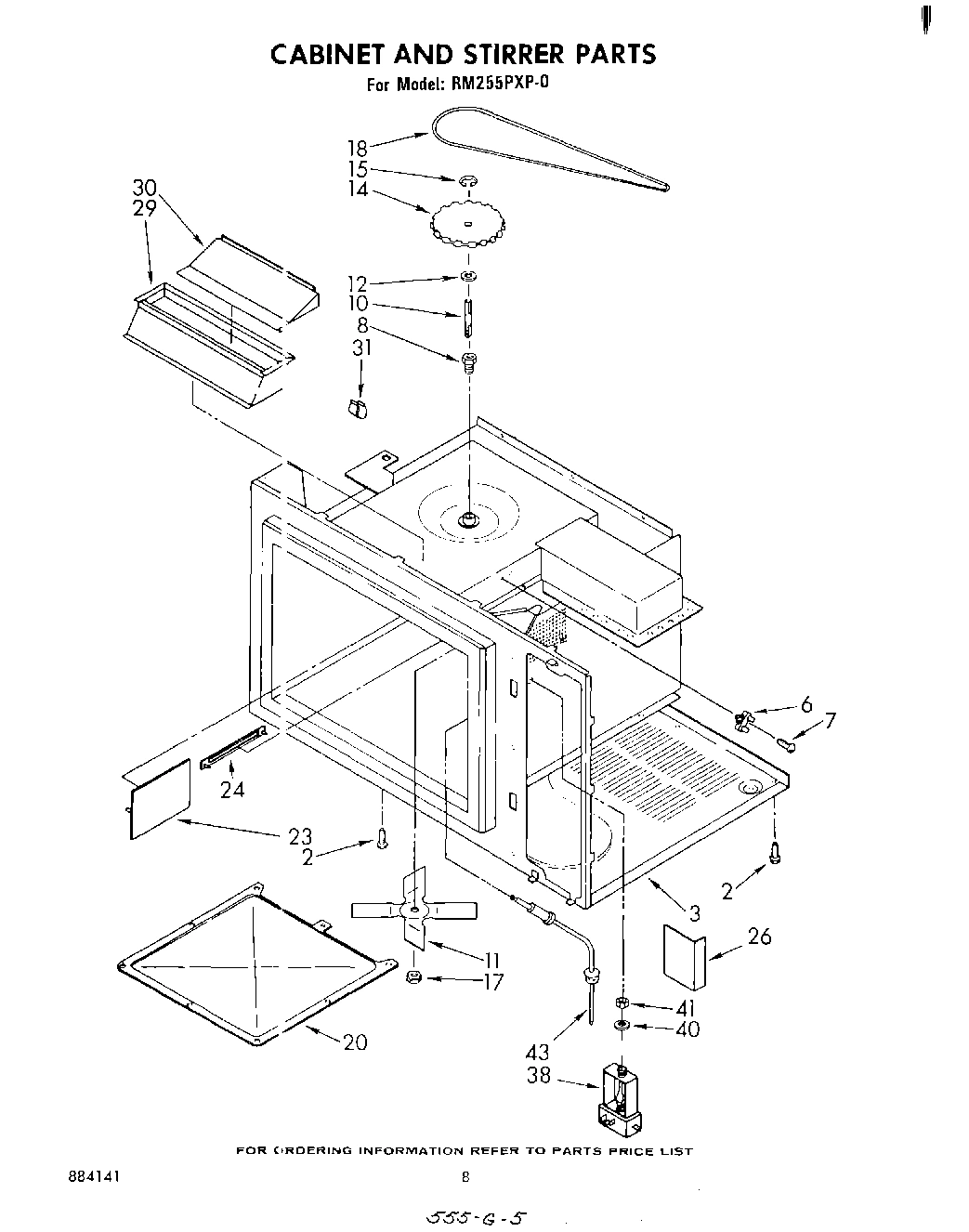

05 - CABINET AND STIRRER
Common parts from model Whirlpool RM255PXP0
WPL 308043 WPL 308043 Contact Us For Availability
WPL 312308 WPL 312308 Contact Us For Availability
Screw (2) WPL 311491 Contact Us For Availability
Installation Instructions WPL LIT311436 Contact Us For Availability
Cookbook WPL LIT311892 Contact Us For Availability
Use & Care Guide WPL LIT312873 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT312879 Contact Us For Availability
Tech Sheet WPL LIT313350 Contact Us For Availability
Book, Cooking Guide WPL LIT313358 Contact Us For Availability
List, Repair Parts WPL LIT884141 Contact Us For Availability
1
Frame, Front WPL 328747 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Screw, 8-32 x 1/2 WPL 312248 Contact Us For Availability
1
Bracket, Control Mounting WPL 313139 Contact Us For Availability
1
liner, door WPL 329685 Contact Us For Availability
1
Harness, Wiring (Main) WPL 311791 Contact Us For Availability
1
Screw, 8D x 5/16 WPL 246135 Contact Us For Availability
1
Harness, Wiring (Main) WPL 313414 Contact Us For Availability
1
Screw, 10A x 1/2 (2) WPL 309100 Contact Us For Availability
1
End Cap, L.H. WPL 311649 Contact Us For Availability
1
End Cap, R.H. WPL 311650 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
screw, 10a x 3/8 WPL 254217 Contact Us For Availability
2
Timer, Digital WPL 313015 Contact Us For Availability
2
seal, pano glass WPL 258711 Contact Us For Availability
2
Harness, Wiring (AC Supply) WPL 313465 Contact Us For Availability
2
Block, Disconnect WPL 310958 Contact Us For Availability
2
Trim, Oven Vent WPL 312432 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Insulator WPL 313126 Contact Us For Availability
3
glass, inner 30`` WPL 258988 Contact Us For Availability
3
Disconnect Block, Female WPL 309409 Contact Us For Availability
3
Block, Disconnect WPL 717252 Contact Us For Availability
3
screw (2) WPL 342043 Contact Us For Availability
3
Trim, Front WPL 312445 Contact Us For Availability
3
Base, Cabinet (Not Serviceable) WPL ARI123475A Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
baffle, insulation WPL 307924 Contact Us For Availability
4
Harness, Wiring (Control) WPL 313432 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
spacer, insulation baffle (4) WPL 258990 Contact Us For Availability
5
Block, Disconnect (Female) WPL 310960 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313076 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313124 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Light, Indicator (3) WPL 313494 Contact Us For Availability
6
Block, Disconnect WPL 353425 Contact Us For Availability
6
Thermal Fuse (Includes Illus.7) WPL 313440 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
7
Channel, Rubber (4) WPL 312783 Contact Us For Availability
7
Block, Disconnect WPL 310957 Contact Us For Availability
8
Baffle, Top Insulation WPL 310693 Contact Us For Availability
8
Screw, 4-40 x 1.0 WPL 310211 Contact Us For Availability
8
frame, door 30`` WPL 310427 Contact Us For Availability
8
Harness, Wiring (Select/Therm) WPL 313433 Contact Us For Availability
8
Box Air WPL 329829 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
9
Side Trim L.S. WPL 310685 Contact Us For Availability
9
Side Trim R.S. WPL 310689 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
9
Block, Disconnect WPL 309406 Contact Us For Availability
10
Oven, 30`` Continuous Clean WPL 328757 Contact Us For Availability
10
Shield WPL 311359 Contact Us For Availability
10
Washer WPL 311245 Contact Us For Availability
10
Switch, Push WPL 311441 Contact Us For Availability
10
hold down, glass (2) WPL 310705 Contact Us For Availability
10
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
10
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
10
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
10
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
10
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
10
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
10
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
10
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
10
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
10
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
10
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
10
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
10
Grease WPL 261582 Contact Us For Availability
10
Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability
10
Browning Tray (Micro) WPL 307677 Contact Us For Availability
10
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
10
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
10
Support Plate WPL 329828 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Fastener WPL 310423 Contact Us For Availability
11
Thermostat (Alt.) WPL 310863 Contact Us For Availability
11
Thermostat (Alt.) WPL 311497 Contact Us For Availability
11
Thermostat WPL 660582 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Stirrer Blade WPL 309976 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Switch, Miniature (Alt.) WPL 313075 Contact Us For Availability
13
Switch, Miniature (Alt.) WPL 313123 Contact Us For Availability
13
Switch, Miniature WPL 661144 Contact Us For Availability
14
clip, glass (10) WPL 310706 Contact Us For Availability
14
Nut, 6-32 Hex (2) WPL 307602 Contact Us For Availability
14
Motor Fan (Alternate) WPL 310221 Contact Us For Availability
14
Motor, Fan (Alternate) WPL 310921 Contact Us For Availability
14
Motor Fan WPL 660544 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Switch, Selector WPL 310866 Contact Us For Availability
15
Clip (2) WPL 311506 Contact Us For Availability
15
Mount, Fan Motor WPL 310420 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability
16
Blade, Fan WPL 307535 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Timer, Digtial WPL 313520 Contact Us For Availability
17
Handle, Oven Door WPL 312721 Contact Us For Availability
17
Snap Bushing WPL 308410 Contact Us For Availability
18
Side Panel, L.H. WPL 311643 Contact Us For Availability
18
Side Panel, R.H. WPL 311644 Contact Us For Availability
18
Belt, Drive WPL 311958 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
19
Nut, Extension (4) WPL 309645 Contact Us For Availability
19
Cover, Light WPL 311698 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
20
Door WPL 329629 Contact Us For Availability
20
pin, wedge (2) WPL 312223 Contact Us For Availability
20
Panel, Top WPL 313470 Contact Us For Availability
20
Clip (3) WPL 338177 Contact Us For Availability
20
Stirrer Cover WPL 313074 Contact Us For Availability
21
pushnut (2) WPL 311896 Contact Us For Availability
21
Clip (2) WPL 311311 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Bracket, Support WPL 311696 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
23
Tube, Vent WPL 312697 Contact Us For Availability
23
Probe, Shield WPL 311687 Contact Us For Availability
23
Cover WPL 307516 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
24
Seal, Top & Bottom (2) WPL 660574 Contact Us For Availability
24
P.C. Board (Temp Control) WPL 61501 Contact Us For Availability
24
Vent Tube WPL 312696 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311343 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311635 Contact Us For Availability
25
Seal, Sides WPL 660575 Contact Us For Availability
25
Support (4) WPL 313087 Contact Us For Availability
25
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Support, Vent Tube WPL 312698 Contact Us For Availability
26
Magnetron (Alt.) WPL 311992 Contact Us For Availability
26
Magnetron (Alt.) WPL 311993 Contact Us For Availability
26
Magnetron (Alt.) WPL 311994 Contact Us For Availability
26
Magnetron (Alt.) WPL 311995 Contact Us For Availability
26
Magnetron (Alt.) WPL 313034 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
26
Shield, Exhaust WPL 312577 Contact Us For Availability
27
Screw, 10-32 x 5/8 WPL 246127 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
27
Screw, 10-24 x 1/2 (4) WPL 247326 Contact Us For Availability
27
Bracket, Front Support (2) WPL 311638 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 313521 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
28
Shaft, Potentiometer WPL 313345 Contact Us For Availability
28
Seal Foam WPL 309814 Contact Us For Availability
29
Screw (2) WPL 312782 Contact Us For Availability
29
Bracket, P.C. Board WPL 313344 Contact Us For Availability
29
Frame, Outer WPL 312600 Contact Us For Availability
29
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
30
Latch Assembly WPL 329065 Contact Us For Availability
30
Board, Power Control WPL 329907 Contact Us For Availability
30
Screw, 10A x 1/2 WPL 307748 Contact Us For Availability
30
Bracket, Control Panel Mounting WPL 311697 Contact Us For Availability
30
Air Deflector WPL 311702 Contact Us For Availability
31
Screw (2) WPL 309080 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Deflector, Air WPL 309499 Contact Us For Availability
31
Pushnut, Ziptwist (3) WPL 310953 Contact Us For Availability
31
Clip, Air Cover (3) WPL 311149 Contact Us For Availability
32
Handle, Door WPL 312351 Contact Us For Availability
32
Hood, Lower Vent WPL 311700 Contact Us For Availability
33
WPL 310458 WPL 310458 Contact Us For Availability
33
Button, Door Handle WPL 312349 Contact Us For Availability
33
Palnut WPL 307640 Contact Us For Availability
33
Grommet, Plastic (2) WPL 311692 Contact Us For Availability
33
Screw, 10A x 1-5/8 (2) WPL 311699 Contact Us For Availability
34
WPL 311592 WPL 311592 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Switch, Push Start WPL 310162 Contact Us For Availability
34
Cover, Rear WPL 311651 Contact Us For Availability
35
WPL 309029 WPL 309029 Contact Us For Availability
35
WPL 310668 WPL 310668 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
36
Transmotor (Alt.) WPL 312140 Contact Us For Availability
36
Transmotor (Alt.) WPL 312613 Contact Us For Availability
36
Transmotor WPL 661003 Contact Us For Availability
36
Screw WPL 98106 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
WPL 308173 WPL 308173 Contact Us For Availability
38
End Cap WPL 312350 Contact Us For Availability
38
Jack, Probe WPL 313459 Contact Us For Availability
39
WPL 308172 WPL 308172 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
40
WPL 310459 WPL 310459 Contact Us For Availability
40
Screw, 8-32 x 5/16 Thread Form Truss Hea WPL 310210 Contact Us For Availability
40
Washer Probe WPL 313105 Contact Us For Availability
41
WPL 311012 WPL 311012 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
43
Wheel, Blower WPL 311920 Contact Us For Availability
43
Probe, Temperature WPL 313044 Contact Us For Availability
44
Screw 11-16 x 1/2 WPL 346893 Contact Us For Availability
44
Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability
44
Reed Relay (Alt.) WPL 312640 Contact Us For Availability
44
Clip WPL 312763 Contact Us For Availability
44
Reed Relay (Alt.) WPL 312784 Contact Us For Availability
44
Screw 6-32 (6) WPL 313036 Contact Us For Availability
44
Reed Relay WPL 661005 Contact Us For Availability
50
Cable, Support WPL 312764 Contact Us For Availability
51
Flange Nut (4) WPL 310300 Contact Us For Availability
51
Seal, Foam (2) WPL 308300 Contact Us For Availability
54
Jumper, High Voltage (Black 6-5/16``) WPL 313129 Contact Us For Availability
54
Screw, 8-18 x 7/8 WPL 309170 Contact Us For Availability
54
Frame, Control Panel WPL 313404 Contact Us For Availability
55
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
55
Panel, Control WPL 313402 Contact Us For Availability
58
High Voltage Lead, Gray (7-11/16``) (2) WPL 313113 Contact Us For Availability
62
Knob, Digital WPL 313047 Contact Us For Availability
63
Knob, Assembly (2) WPL 313439 Contact Us For Availability
65
Spring (3) WPL 313311 Contact Us For Availability
66
Escutcheon, Thermostat WPL 311071 Contact Us For Availability
70
Bezel Switch WPL 313030 Contact Us For Availability
71
Bezel, Start WPL 313081 Contact Us For Availability
72
Button, Start WPL 313080 Contact Us For Availability
73
Spring (2) WPL 310201 Contact Us For Availability
74
Skirt, Dial WPL 313410 Contact Us For Availability
75
Skirt, Dial WPL 313412 Contact Us For Availability
× ![]()
