Model Whirlpool RJE395PW0 – Common Parts & Diagrams
03 - OVEN

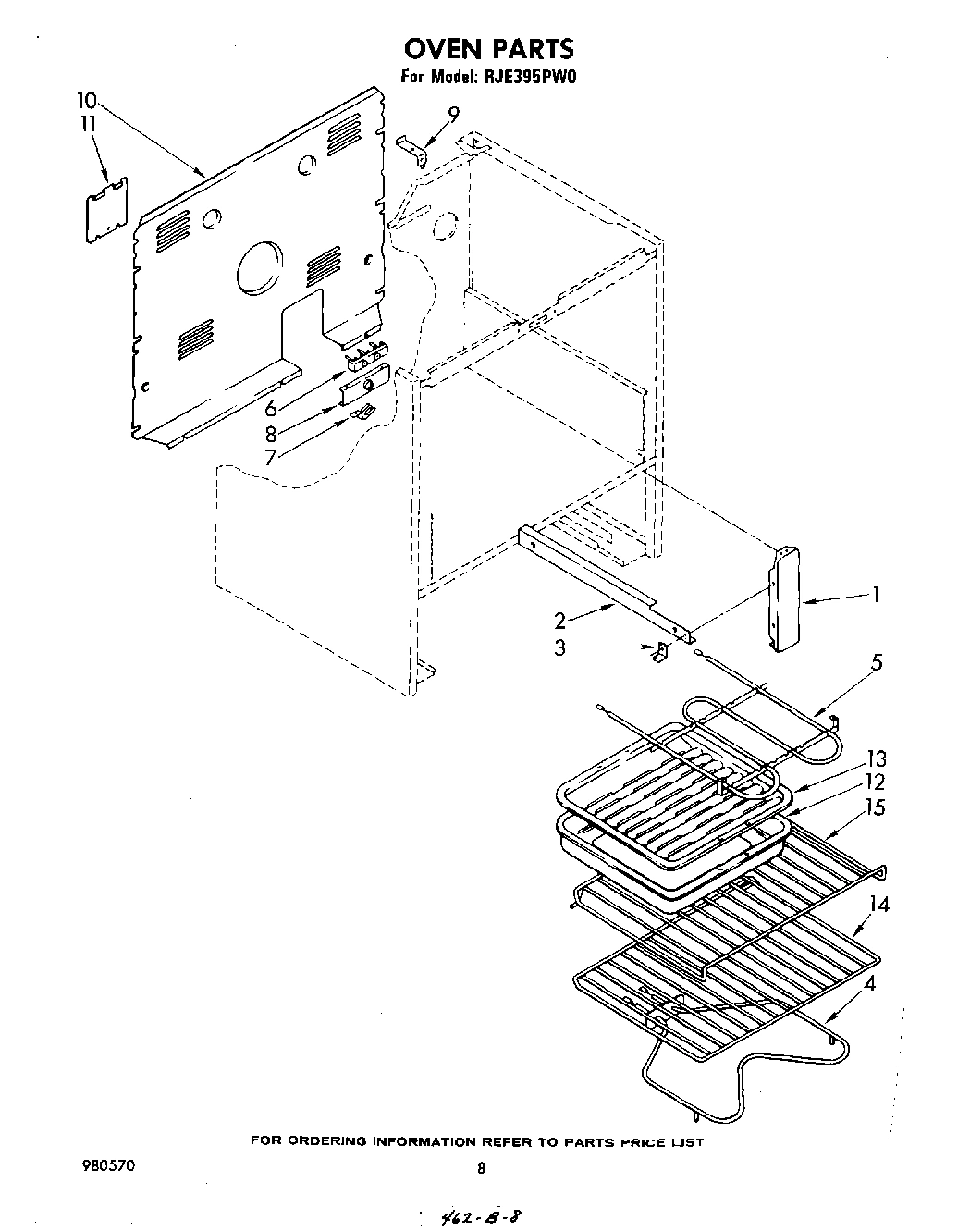

06 - OVEN , LITERATURE AND OPTIONAL

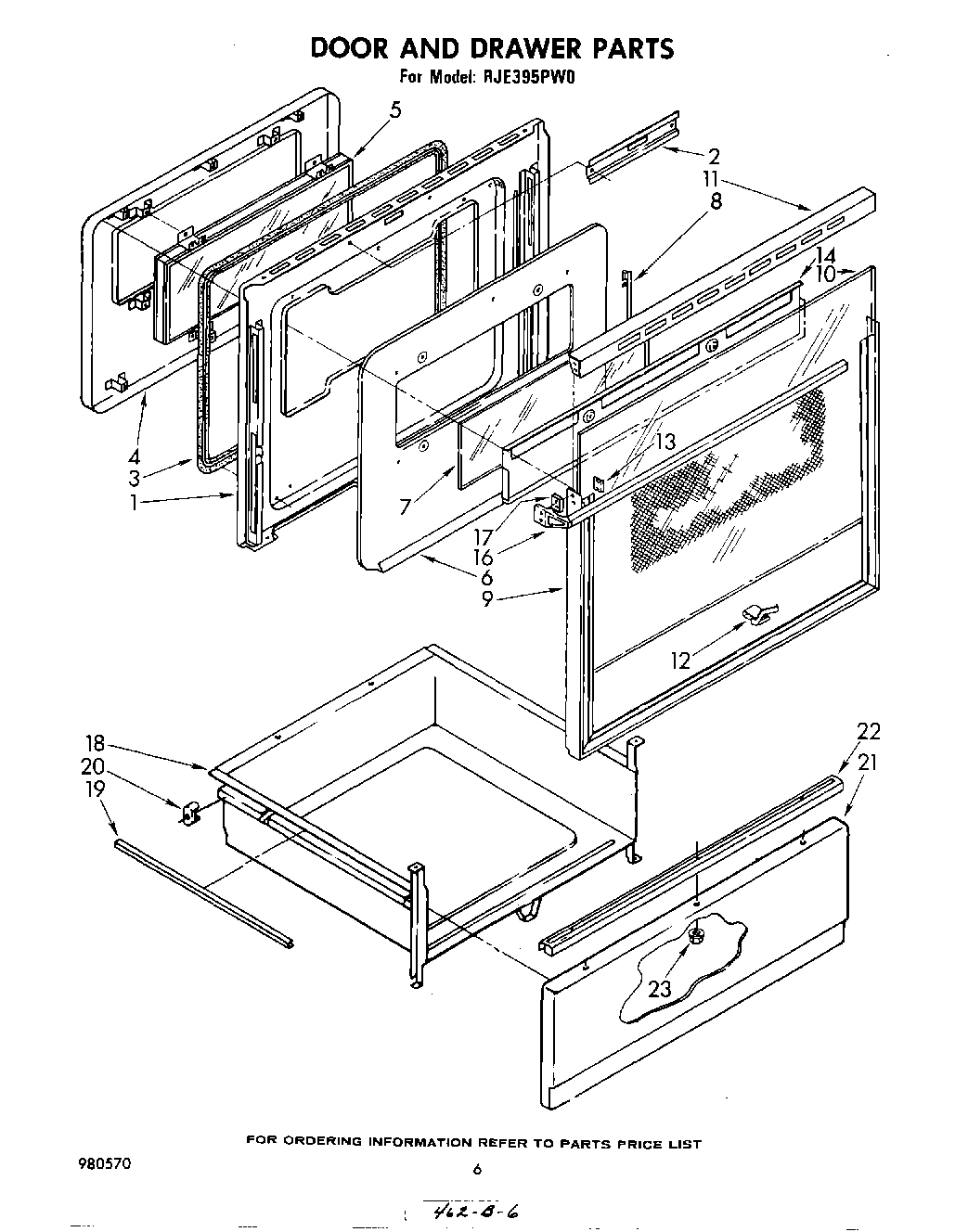

05 - DOOR AND DRAWER

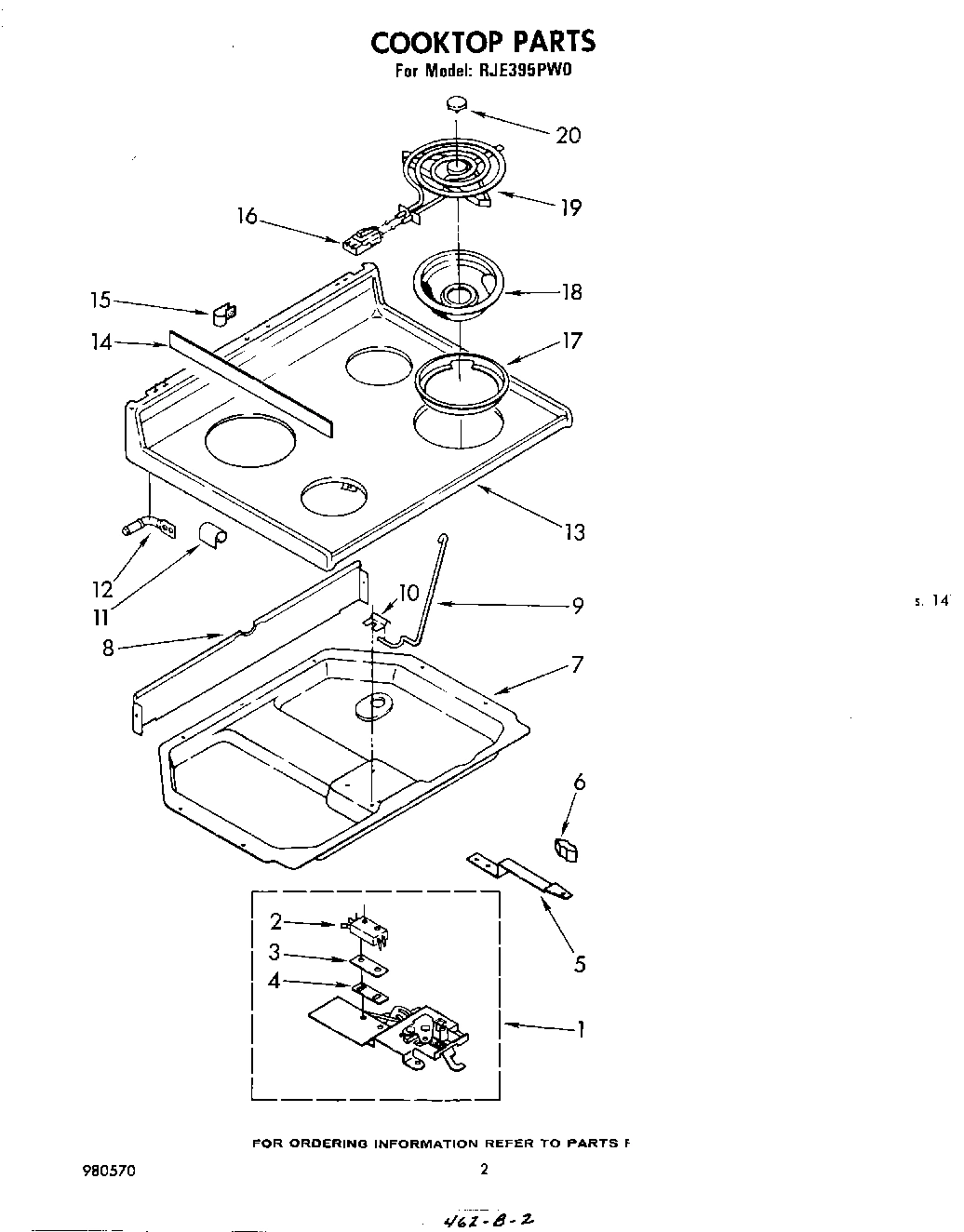

02 - COOKTOP

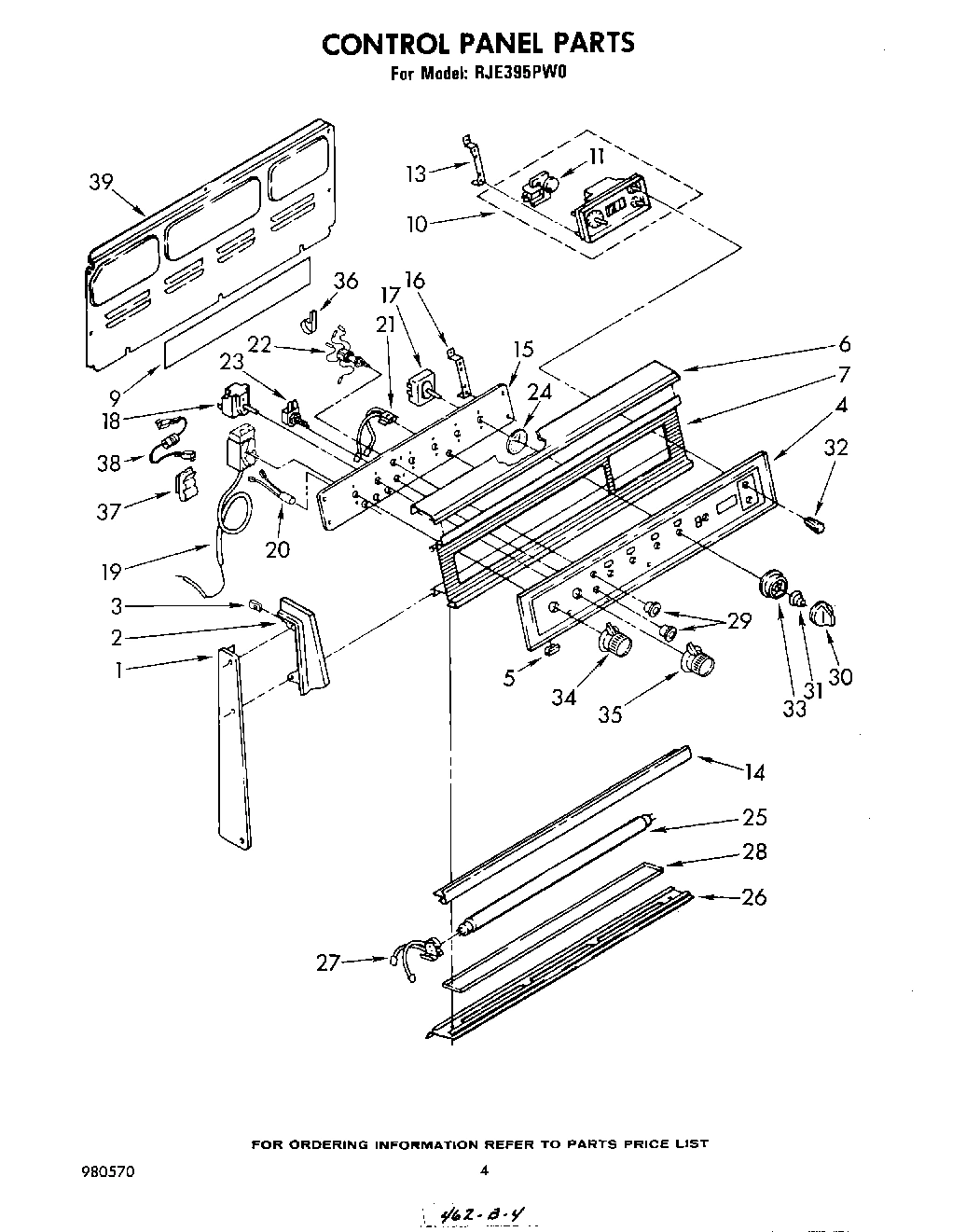

04 - CONTROL PANEL
Common parts from model Whirlpool RJE395PW0
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Liner, Door WPL 327869 Contact Us For Availability
1
``j`` clip (2) WPL 338177 Contact Us For Availability
1
Latch Assembly (Pyro) WPL 328585 Contact Us For Availability
1
End Trim, R.H. WPL 328331 Contact Us For Availability
1
End Trim, L.H. WPL 328333 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
End Cap, R.H. WPL 308470 Contact Us For Availability
2
End Cap, L.H. WPL 308472 Contact Us For Availability
3
Seal, Fiberglass WPL 310876 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Clip, End Cap (6) WPL 98084 Contact Us For Availability
4
Panel, Inner WPL 327898 Contact Us For Availability
4
Terminal WPL 310100 Contact Us For Availability
4
Control Panel, Glass WPL 311557 Contact Us For Availability
5
Unit, Broil (Screw, 10-32 x 5/8 (2)) WPL 246127 Contact Us For Availability
5
Screw (2) WPL 311056 Contact Us For Availability
5
Window Package WPL 309844 Contact Us For Availability
5
Handle, Latch WPL 307976 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Retainer, Glass WPL 308974 Contact Us For Availability
6
Retainer, Insulation WPL 308021 Contact Us For Availability
6
Knob, Latch WPL 307977 Contact Us For Availability
6
Rail, Top WPL 308579 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
7
Burner Box WPL 307929 Contact Us For Availability
7
Screw, 8A x 5/8 (4) WPL 307831 Contact Us For Availability
7
Panel, Back WPL 311925 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Retainer, Glass WPL 309843 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
9
Stand-Off (Bracket) WPL 309102 Contact Us For Availability
9
Frame, Door WPL 310427 Contact Us For Availability
9
Rod, Cooktop WPL 307968 Contact Us For Availability
9
Barrier Strip WPL 309289 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
10
Glass, Outer WPL 309069 Contact Us For Availability
10
Retainer, Cooktop WPL 307967 Contact Us For Availability
10
Timer, Digital (Includes Illus. 11) WPL 310325 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Screw, 10A x 1/2 (2) (Black) WPL 307748 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Motor, Timer WPL 308594 Contact Us For Availability
11
Palnut, Timer 10-32 (4) WPL 308846 Contact Us For Availability
12
Pan, Broiler WPL 310973 Contact Us For Availability
12
Clip, Glass (8) WPL 310706 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
13
Rack, Broiler WPL 308674 Contact Us For Availability
13
Clip (2) WPL 311506 Contact Us For Availability
13
Cooktop (Also Order Illus. No.14) (Harvest Go WPL 307863 Contact Us For Availability
13
Cooktop (Also Order Illus. No.14) (Coffee) WPL 307864 Contact Us For Availability
13
Cooktop (Also Order Illus. No.14) (New Avocad WPL 307865 Contact Us For Availability
13
Cooktop (Also Order Illus. No.14) (White) WPL 307866 Contact Us For Availability
13
Cooktop (Also Order Illus. No.14) (Almond) WPL 307871 Contact Us For Availability
13
Bracket, Timer (2) WPL 308823 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Baffle, Heat WPL 309056 Contact Us For Availability
14
Cooktop Trim R.H. WPL 328870 Contact Us For Availability
14
Cooktop Trim L.H. WPL 328871 Contact Us For Availability
14
Screw, 8BT x 1/4 (3) WPL 254225 Contact Us For Availability
14
Rail, Bottom WPL 308580 Contact Us For Availability
15
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
15
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
15
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
15
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
15
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
15
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
15
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
15
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
15
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
15
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
15
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
15
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
15
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
15
Grease WPL 261582 Contact Us For Availability
15
WPL 261810 WPL 261810 Contact Us For Availability
15
WPL 261886 WPL 261886 Contact Us For Availability
15
WPL 261888 WPL 261888 Contact Us For Availability
15
WPL 261890 WPL 261890 Contact Us For Availability
15
WPL 308172 WPL 308172 Contact Us For Availability
15
WPL 308494 WPL 308494 Contact Us For Availability
15
WPL 308500 WPL 308500 Contact Us For Availability
15
WPL 310607 WPL 310607 Contact Us For Availability
15
WPL 72108 WPL 72108 Contact Us For Availability
15
WPL 799351 WPL 799351 Contact Us For Availability
15
WPL 799832 WPL 799832 Contact Us For Availability
15
WPL 980570 WPL 980570 Contact Us For Availability
15
Plate, Control Panel WPL 311926 Contact Us For Availability
16
Vent, Oven WPL 307961 Contact Us For Availability
16
Handle, Oven Door WPL 311573 Contact Us For Availability
16
Bracket, Control Mounting WPL 308824 Contact Us For Availability
16
Screw (11) WPL 98520 Contact Us For Availability
17
Switch, Broil WPL 310643 Contact Us For Availability
17
Spacer, Door Handle (2) WPL 310707 Contact Us For Availability
18
Switch, Bake WPL 310644 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Switch, Selector (5 Position) WPL 310005 Contact Us For Availability
19
Channel, Arm (2) WPL 327892 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Thermostat, Oven Pyro WPL 310018 Contact Us For Availability
19
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
WPL 309195 WPL 309195 Contact Us For Availability
20
Light, Indicator (3) (Oven, Lock, Clean) WPL 311550 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Panel, Drawer (Screw, 8-32 (3)) WPL 307537 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (New Avocado) WPL 307936 Contact Us For Availability
21
Panel, Drawer (Coffee) WPL 307937 Contact Us For Availability
21
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel Drawer (Black) WPL 309923 Contact Us For Availability
21
Light, Indicator (1) (Surface Unit) WPL 311689 Contact Us For Availability
22
Handle, Drawer WPL 310399 Contact Us For Availability
22
Switch, Fluorescent Light WPL 308830 Contact Us For Availability
23
nut, 3/8 x 27 WPL 255912 Contact Us For Availability
23
Switch, Oven Light WPL 308829 Contact Us For Availability
24
Support, R.H. Channel WPL 309240 Contact Us For Availability
24
Support, L.H. Channel WPL 309241 Contact Us For Availability
24
Skirt, Knob WPL 308352 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
26
Ballast (Alternate) WPL 346772 Contact Us For Availability
26
Ballast (Alternate) WPL 685591 Contact Us For Availability
26
Retainer, Lamp Glass WPL 309242 Contact Us For Availability
27
Fastener, Speed Nut (2) WPL 308845 Contact Us For Availability
27
Socket, Fluorescent Light R.H. WPL 308850 Contact Us For Availability
27
Socket, Fluorescent Light L.H. WPL 308851 Contact Us For Availability
28
Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability
28
Locator, Cooktop (2) WPL 311909 Contact Us For Availability
28
Lens, Lamp WPL 308756 Contact Us For Availability
29
bezel, switch (2) WPL 308784 Contact Us For Availability
30
Knob, Control (4) WPL 308346 Contact Us For Availability
31
Spring, Knob (4) WPL 308348 Contact Us For Availability
32
K WPL 255853 Contact Us For Availability
33
WPL 308350 WPL 308350 Contact Us For Availability
34
WPL 328709 WPL 328709 Contact Us For Availability
35
WPL 328707 WPL 328707 Contact Us For Availability
37
WPL 309211 WPL 309211 Contact Us For Availability
38
WPL 328923 WPL 328923 Contact Us For Availability
39
WPL 309239 WPL 309239 Contact Us For Availability
× ![]()
