Model Whirlpool RJE302BW0 – Common Parts & Diagrams

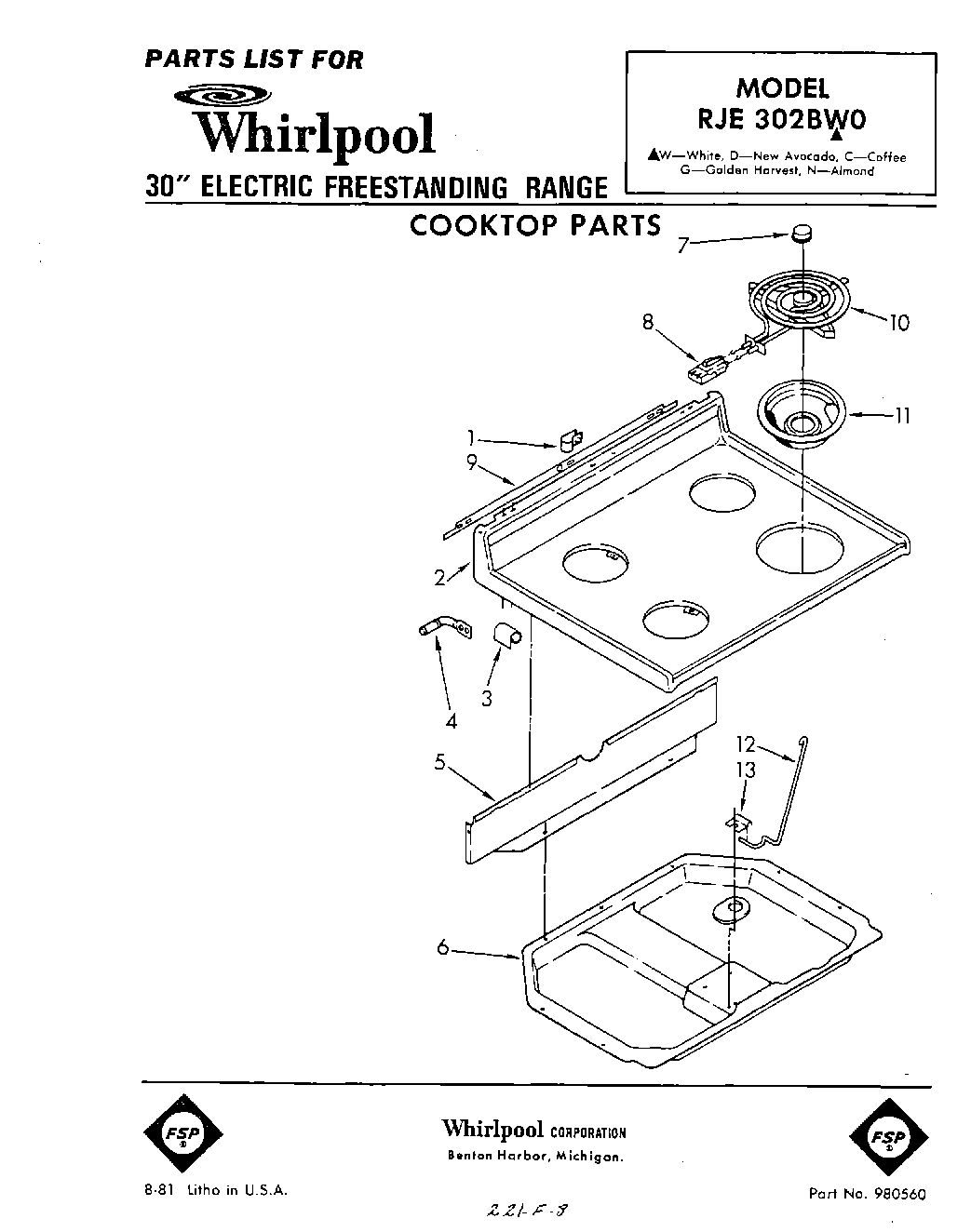

01 - COOKTOP

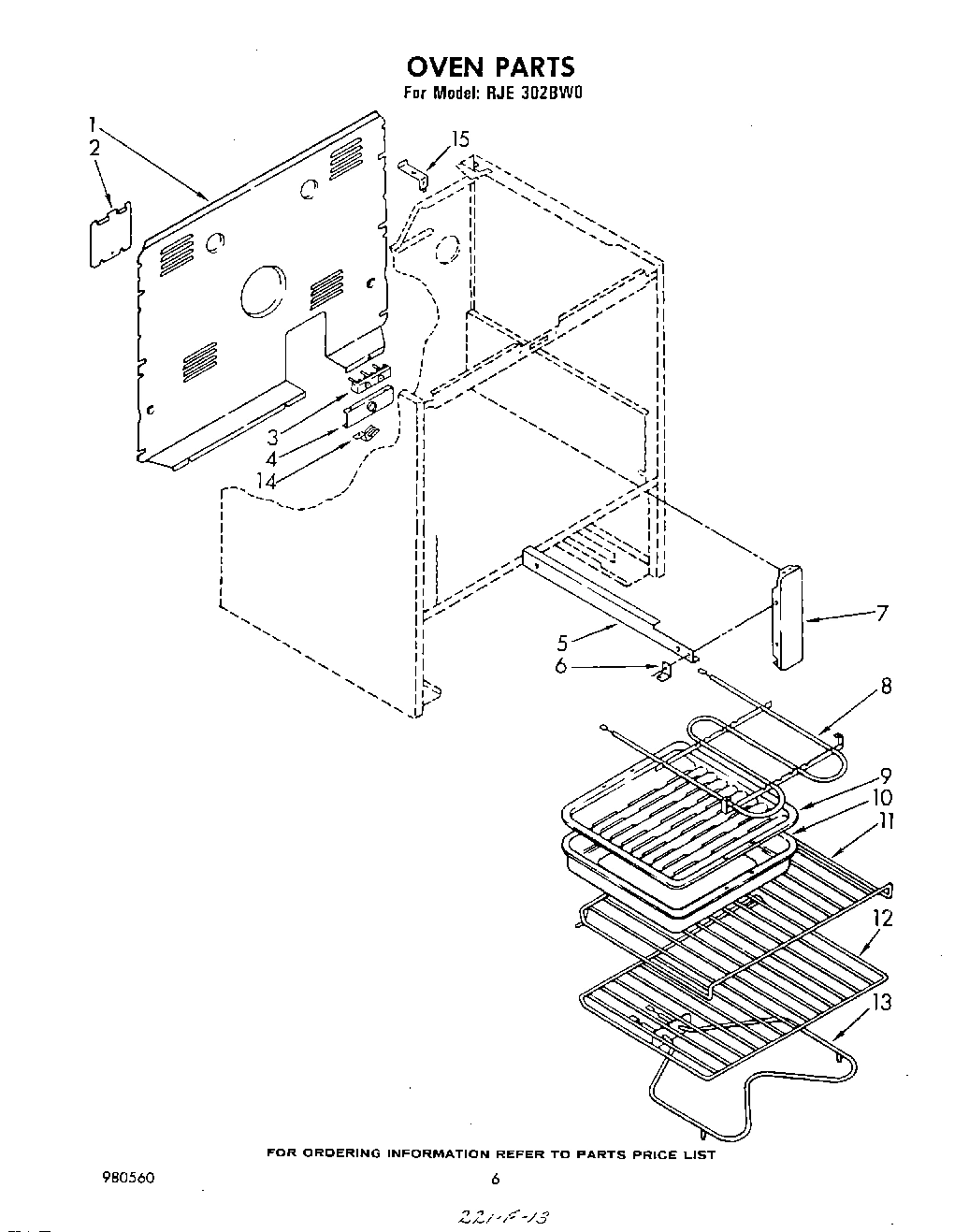

05 - SECTION

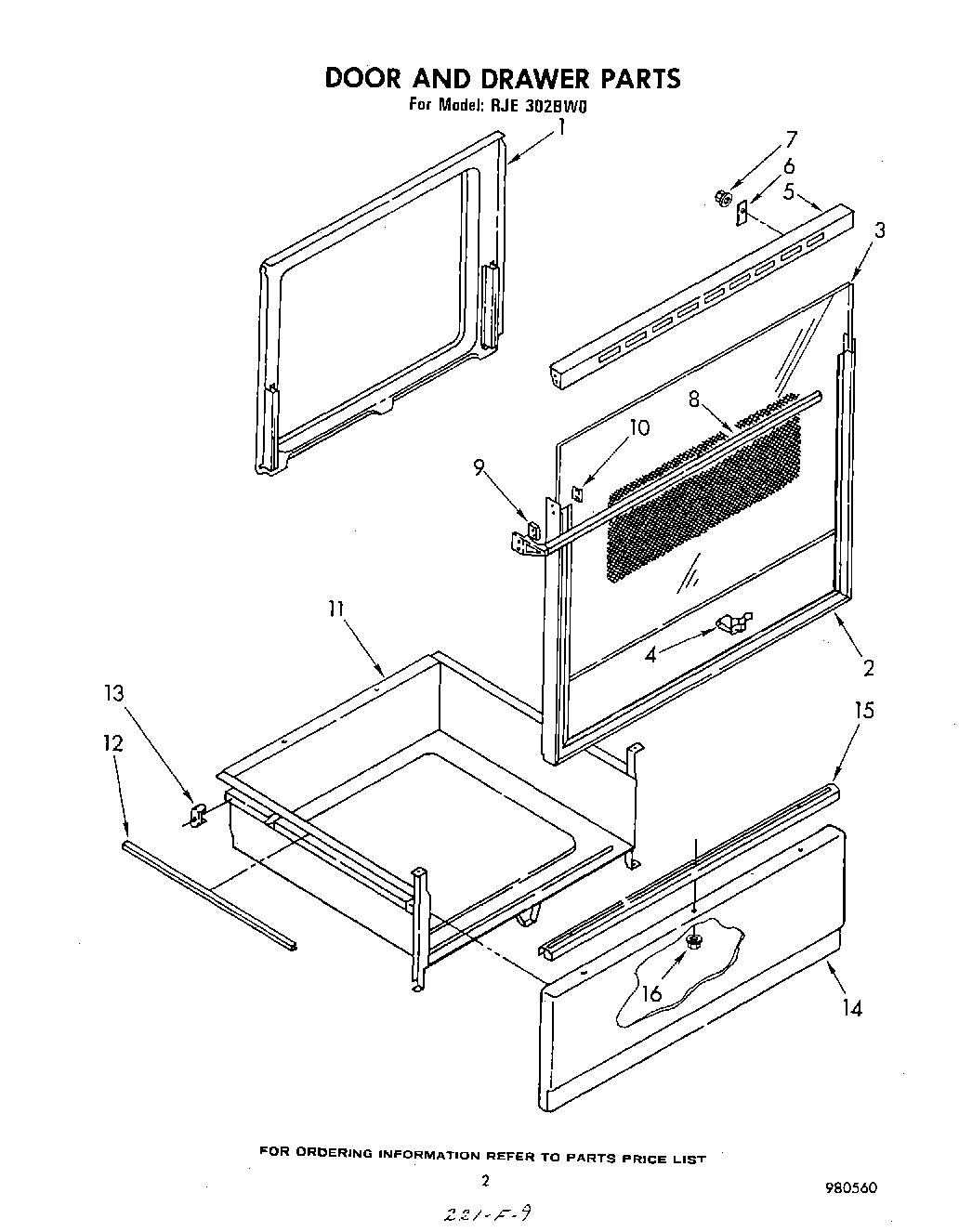

02 - DOOR AND DRAWER, LIT/OPTIONAL

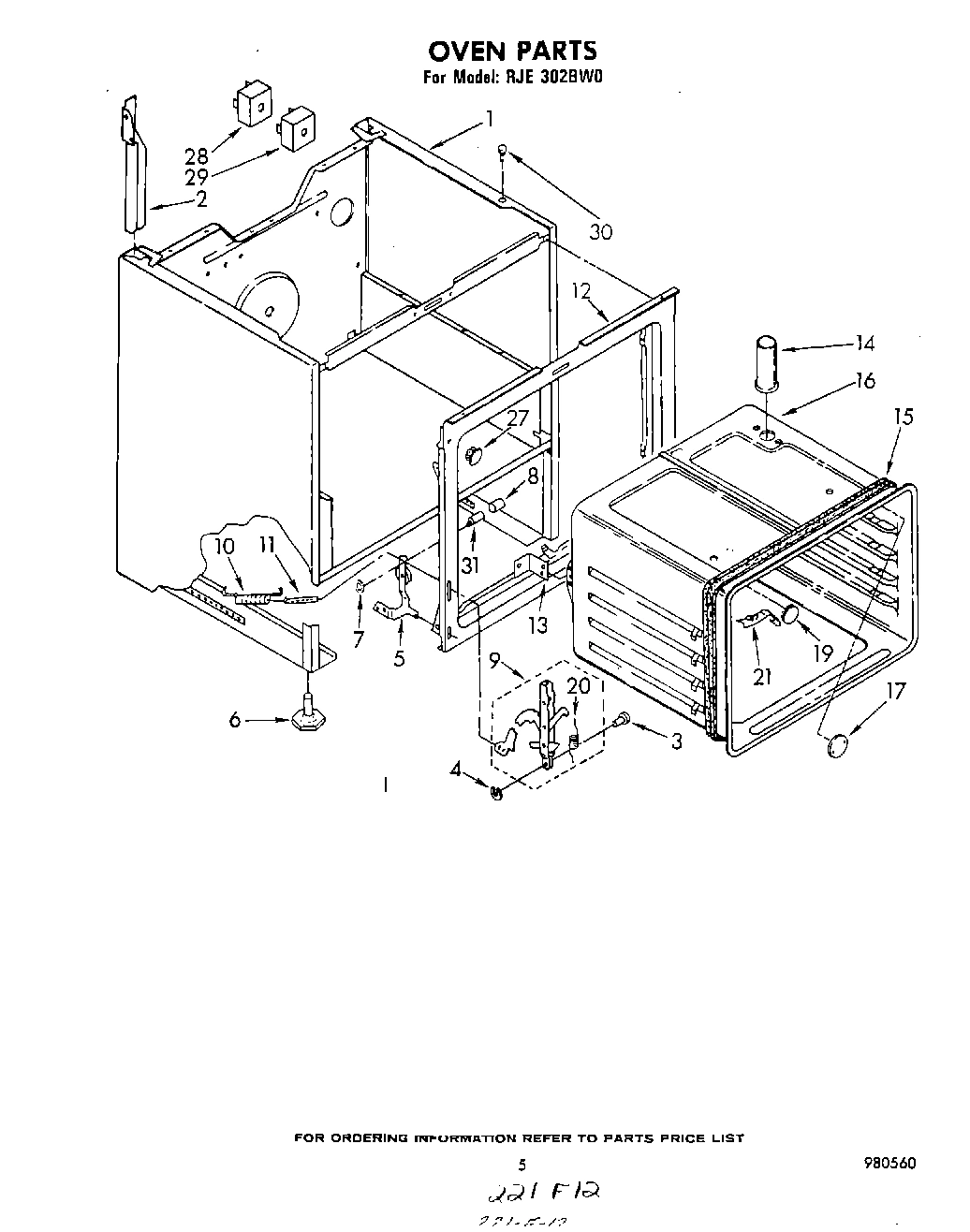

04 - OVEN

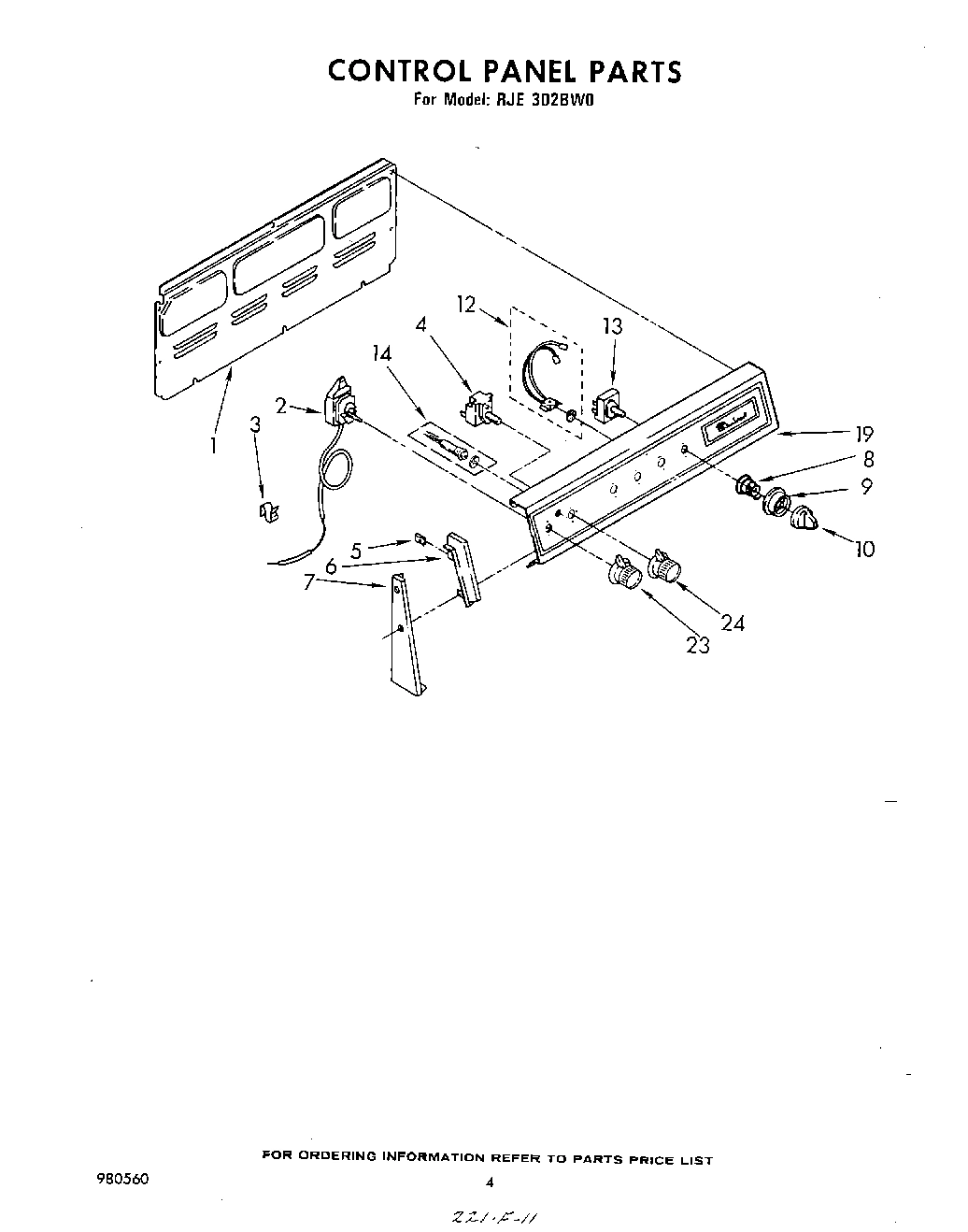

03 - CONTROL PANEL
Common parts from model Whirlpool RJE302BW0
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Cover, Rear WPL 307971 Contact Us For Availability
1
Screw, 10A x 3/8 (3) WPL 254217 Contact Us For Availability
1
Liner, Door WPL 327863 Contact Us For Availability
1
Clip WPL 338177 Contact Us For Availability
1
Main Chassis (White) WPL 327871 Contact Us For Availability
1
Main Chassis (New Avocado) WPL 327872 Contact Us For Availability
1
Main Chassis (Coffee) WPL 327873 Contact Us For Availability
1
Main Chassis (Golden Harvest) WPL 327874 Contact Us For Availability
1
main chassis (almond) WPL 327875 Contact Us For Availability
1
Cover, Rear WPL 308157 Contact Us For Availability
2
Cover, Access WPL 307972 Contact Us For Availability
2
frame, door 30`` WPL 310427 Contact Us For Availability
2
Support, Channel (R.H.) WPL 308131 Contact Us For Availability
2
Support, Channel (L.H.) WPL 308132 Contact Us For Availability
2
Thermostat, Oven (Alternate) WPL 308483 Contact Us For Availability
2
Thermostat, Oven (Alternate) WPL 308789 Contact Us For Availability
2
Thermostat, Oven (Screw, 6-32 x 1/4 (2)) WPL 487384 Contact Us For Availability
3
Glass, Outer WPL 310655 Contact Us For Availability
3
Clip, Speed WPL 309211 Contact Us For Availability
4
Bracket, Service WPL 307970 Contact Us For Availability
4
clip, glass (10) WPL 310706 Contact Us For Availability
4
Ring, Retainer WPL 307594 Contact Us For Availability
4
Switch, Selector WPL 310348 Contact Us For Availability
5
Rail, R.H. (Includes Illus. 6) WPL 307982 Contact Us For Availability
5
Rail, L.H. (Includes Illus. 6) WPL 307983 Contact Us For Availability
5
Screw WPL 307748 Contact Us For Availability
5
Top, Door WPL 310784 Contact Us For Availability
5
Hinge (R.H.) WPL 327890 Contact Us For Availability
5
Hinge (L.H.) WPL 327891 Contact Us For Availability
5
Clip, End Cap (8) WPL 98084 Contact Us For Availability
6
Glide, Front (2) WPL 307979 Contact Us For Availability
6
hold down, glass (2) WPL 310705 Contact Us For Availability
6
End Cap, R.H. WPL 308144 Contact Us For Availability
6
End Cap, L.H. WPL 308146 Contact Us For Availability
7
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
End Trim (R.H.) WPL 308854 Contact Us For Availability
7
End Trim (L.H.) WPL 308858 Contact Us For Availability
8
Handle, Door WPL 311572 Contact Us For Availability
8
Pin, Hinge (2) WPL 307985 Contact Us For Availability
8
Spring, Bezel (4) WPL 307828 Contact Us For Availability
9
Bezel, Control Knob (4) WPL 307456 Contact Us For Availability
9
Spacer, Door Handle (2) WPL 310707 Contact Us For Availability
9
Channel Arm (2) WPL 327924 Contact Us For Availability
10
Spring, Oven Door WPL 308127 Contact Us For Availability
10
Clip WPL 311506 Contact Us For Availability
11
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
11
Drawer, Utility WPL 327887 Contact Us For Availability
12
Rack, Oven WPL 308173 Contact Us For Availability
12
Protector, Drawer Slide (2) WPL 309329 Contact Us For Availability
12
Frame, Front WPL 327886 Contact Us For Availability
12
Light, Indicator (Surface Unit) (Includes Len WPL 310327 Contact Us For Availability
13
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
13
Glide, Rear (2) WPL 307980 Contact Us For Availability
13
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
13
Screw, 8-32 x 1/4 (8) WPL 309260 Contact Us For Availability
14
Ground Strap WPL 308498 Contact Us For Availability
14
Panel, Drawer (Screw, 8-32 (3)) WPL 307537 Contact Us For Availability
14
Panel Drawer (White) WPL 307935 Contact Us For Availability
14
Panel, Drawer (New Avocado) WPL 307936 Contact Us For Availability
14
Panel, Drawer (Coffee) WPL 307937 Contact Us For Availability
14
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
14
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
14
Panel Drawer (Black) WPL 309923 Contact Us For Availability
14
Vent, Oven WPL 307961 Contact Us For Availability
14
Light, Indicator (Oven) (Alternate) WPL 328682 Contact Us For Availability
14
Light, Indicator (Oven) (Alternate) WPL 328683 Contact Us For Availability
15
Seal, Oven WPL 309107 Contact Us For Availability
15
Bracket, Stand-Off (2) WPL 309102 Contact Us For Availability
15
Handle, Drawer WPL 310399 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
16
Grease WPL 261582 Contact Us For Availability
16
Coffee WPL 261886 Contact Us For Availability
16
New Avocado WPL 261888 Contact Us For Availability
16
Golden Harvest WPL 261890 Contact Us For Availability
16
WPL 308494 WPL 308494 Contact Us For Availability
16
WPL 308500 WPL 308500 Contact Us For Availability
16
WPL 310594 WPL 310594 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 799351 WPL 799351 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 980560 WPL 980560 Contact Us For Availability
16
Oven WPL 329000 Contact Us For Availability
17
Screw, 10A x 1/2 (2) WPL 311056 Contact Us For Availability
17
Cover, Plate WPL 308543 Contact Us For Availability
19
Plug Button WPL 257314 Contact Us For Availability
19
Control Panel (Screw, 8A x 1/2) WPL 307831 Contact Us For Availability
19
Control Panel (White) WPL 310650 Contact Us For Availability
19
Control Panel (New Avocado) WPL 310651 Contact Us For Availability
19
Control Panel (Golden Harvest) WPL 310652 Contact Us For Availability
19
Control Panel (Almond) WPL 310653 Contact Us For Availability
19
Control Panel (Coffee) WPL 310654 Contact Us For Availability
20
Spring, Door Stop WPL 308207 Contact Us For Availability
23
Knob, Thermostat WPL 328709 Contact Us For Availability
24
Knob, Selector WPL 328707 Contact Us For Availability
27
Plug Button WPL 308535 Contact Us For Availability
28
Switch, Broil WPL 310643 Contact Us For Availability
29
Switch, Bake WPL 310644 Contact Us For Availability
31
Snubber, Door (2) WPL 309111 Contact Us For Availability
× ![]()
