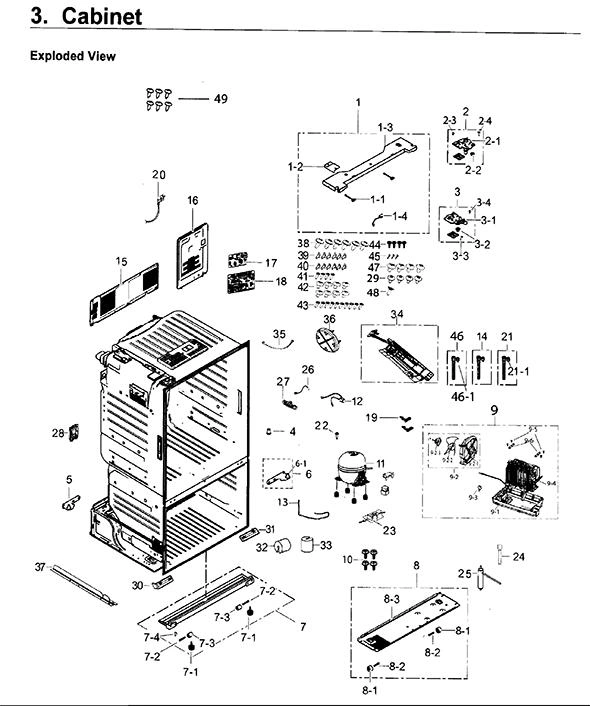

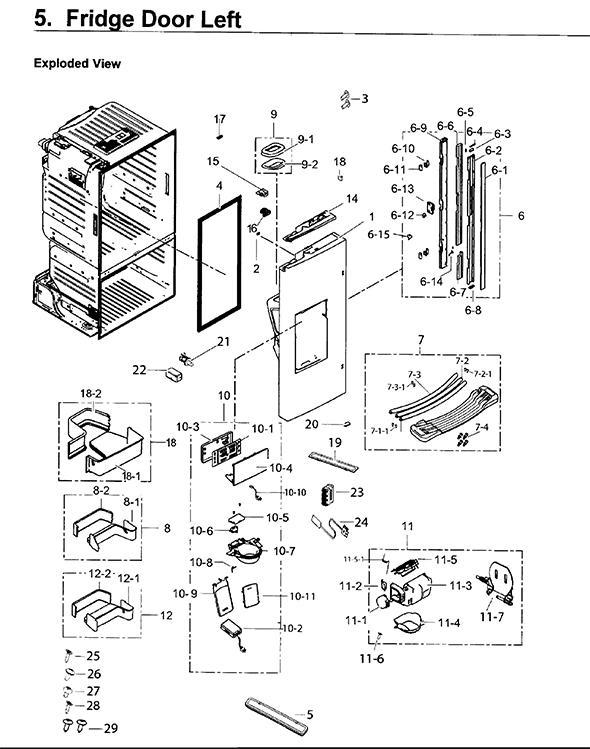

Model Samsung RF263BEAESR-AA-04 – Common Parts &amp; Diagrams

1

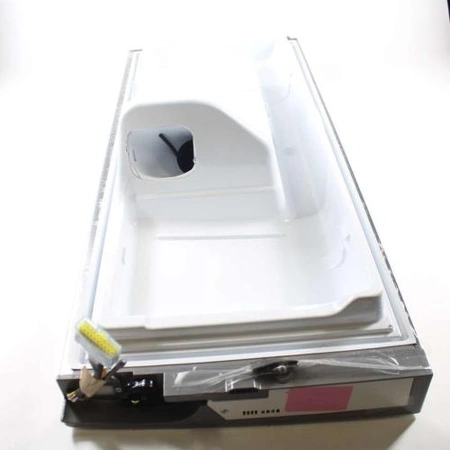

DA91-03908A Samsung Refrigerator Door Assembl Backorder SMG DA91-03908A $371.80

1

DA91-03909A Samsung Refrigerator Right Door F Backorder SMG DA91-03909A $287.30

1

DOOR-FOAM FRE Backorder SMG DA91-03910A $297.36

1

DA96-00460L Samsung Refrigerator Evaporator A Backorder SMG DA96-00460L $239.03

1

DA97-12607A Samsung Refrigerator Lamp Assembl Backorder SMG DA97-12607A $241.81

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.64

1-2

Refrigerator LED Light SMG DA41-00676G Contact Us For Availability

1-4

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $20.23

1-5

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $23.43

1-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.11

1-7

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $116.66

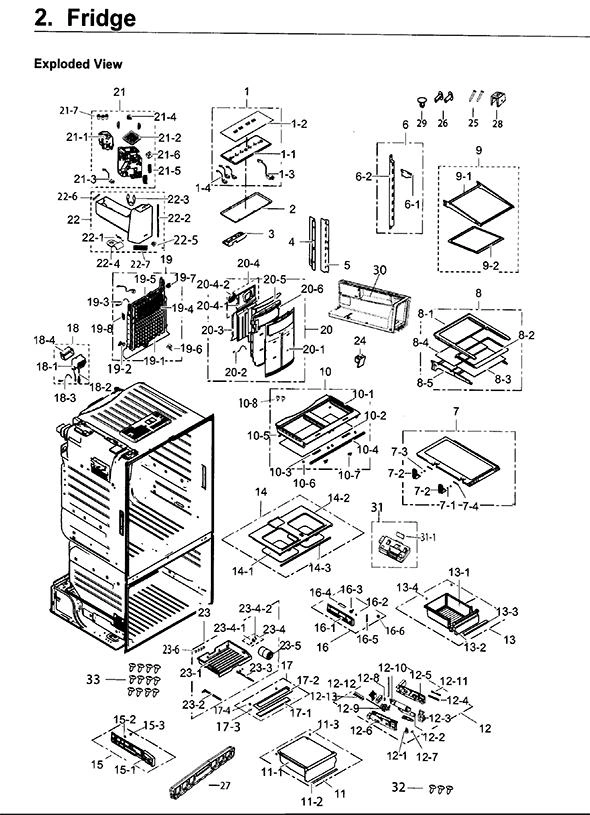

2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

2

DA63-06541D Samsung Refrigerator Freezer Door In Stock SMG DA63-06541D $154.44

2

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $77.03

2

Refrigerator Evaporator Cover SMG DA97-12617A Contact Us For Availability

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $59.18

2-2

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.04

2-6

DA96-00959D Samsung Refrigerator 12V DC Fan M Backorder SMG DA96-00959D $184.09

2-63

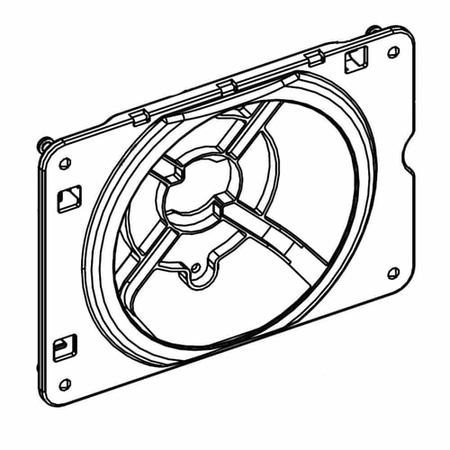

DA61-04850B Samsung Refrigerator Motor Case A Backorder SMG DA61-04850B $13.84

2-64

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

2-65

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

2-66

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.29

2-69

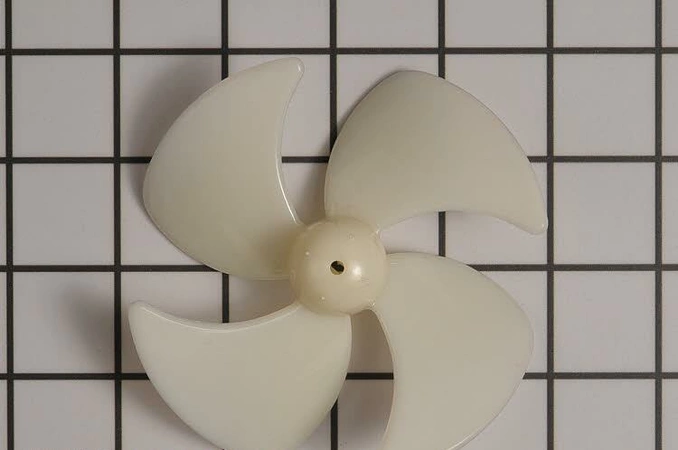

DA31-00230A Samsung Refrigerator Fan Assembly Backorder SMG DA31-00230A $81.41

3

DA61-04795A Samsung Refrigerator French Door Backorder SMG DA61-04795A $11.88

3

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

3

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $88.64

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

4-1

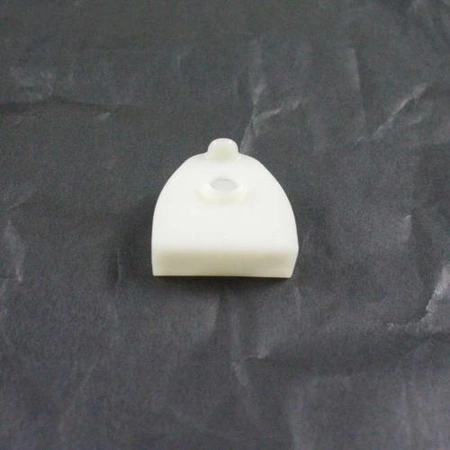

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $4.02

4-4

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $3.48

4-5

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $25.49

5

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.04

6

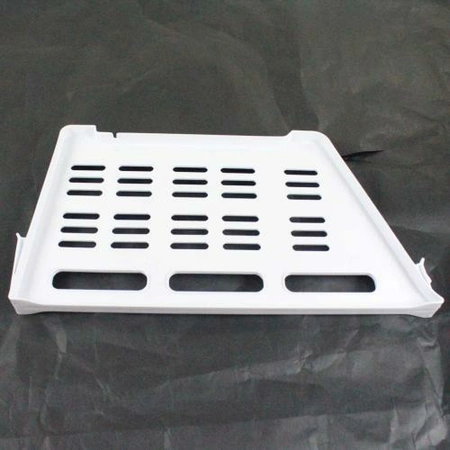

DA61-04796A Samsung Refrigerator Drawer Guide Backorder SMG DA61-04796A $52.55

6

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $85.97

6

DA63-06542A Samsung Refrigerator Door Gasket In Stock SMG DA63-06542A $135.88

6

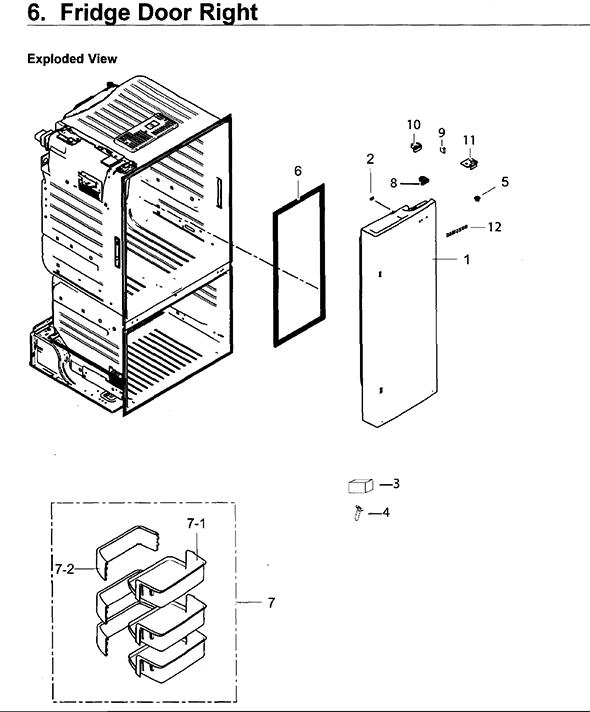

DA97-12683A Samsung Refrigerator French Door Backorder SMG DA97-12683A $199.80

6-2

DA61-08274A Samsung Refrigerator Mid Angle Sh Backorder SMG DA61-08274A $90.05

6-4

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $5.85

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

6-11

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $10.06

6-12

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $5.85

6-13

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $17.32

7

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $92.28

7

DA97-12650A Samsung Refrigerator Door Shelf B Backorder SMG DA97-12650A $142.75

7

Refrigerator Folding Shelf Assembly SMG DA97-12728A No Longer Available

7

DA99-03914C Samsung Refrigerator Handle Kit A Backorder SMG DA99-03914C $347.06

7-1

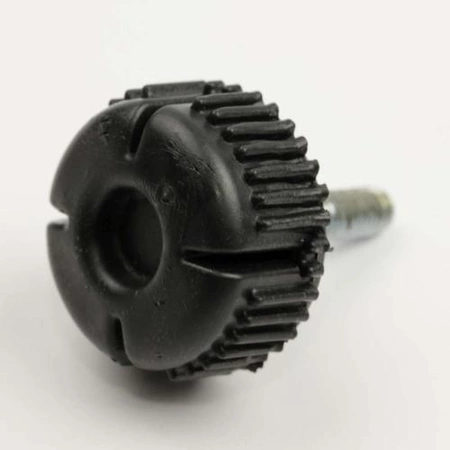

DA61-04721D Samsung Front Foot Refrigerator Backorder SMG DA61-04721D $153.32

7-1

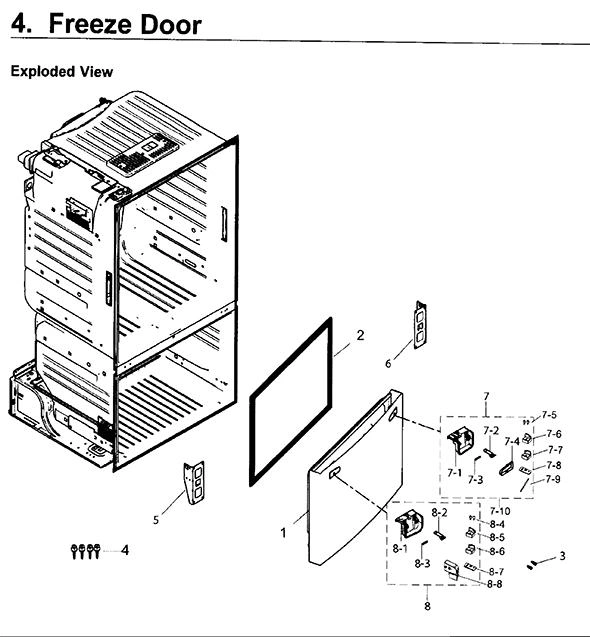

DA97-12712C Samsung Refrigerator Freezer Door Backorder SMG DA97-12712C $200.55

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

7-2

DA61-06014A Samsung Refrigerator Handle Assem Backorder SMG DA61-06014A $3.35

7-2

Refrigerator Door Handle SMG DA97-12714C Contact Us For Availability

7-3

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.66

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

7-3

Refrigerator Door Handle SMG DA97-12715C Contact Us For Availability

7-4

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $6.77

7-5

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

7-6

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.72

7-7

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.23

7-8

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.74

7-9

DA66-00579B Samsung Refrigerator Handle Cap S In Stock SMG DA66-00579B $7.82

8

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $196.29

8

DA97-12652A Samsung Refrigerator Door Bin Gua Backorder SMG DA97-12652A $156.97

8

Refrigerator Glass Shelf SMG DA97-12730A Contact Us For Availability

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

8-2

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $216.59

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

8-3

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $7.82

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $60.04

9

Refrigerator Freezer Drawer Slide Rail, Left SMG DA97-10594B Contact Us For Availability

9

Refrigerator Condenser Coil and Fan Motor Ass SMG DA97-05043L Contact Us For Availability

9-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $70.47

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $11.73

9-2

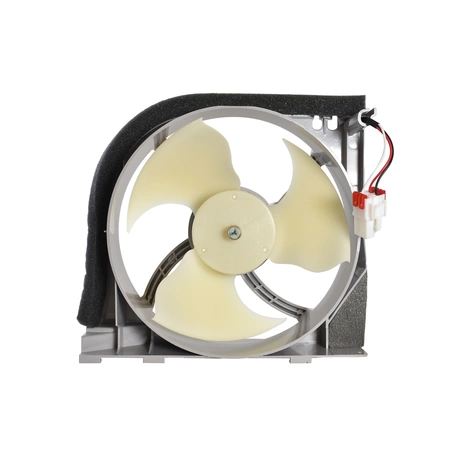

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $201.27

9-2

Refrigerator Freezer Basket Slide Rail Assemb SMG DA61-09087A Contact Us For Availability

9-3

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $6.47

9-22

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.26

9-23

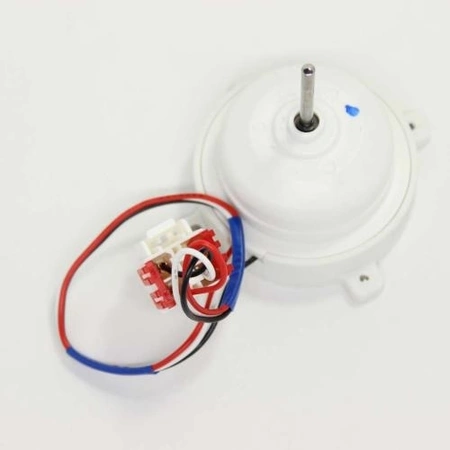

DA31-00278C Samsung Refrigerator BLDC Fan Mot Backorder SMG DA31-00278C $193.33

9-41

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

DA60-10123E Samsung Refrigerator Hex Bolt M6 Backorder SMG DA60-10123E $2.23

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $156.36

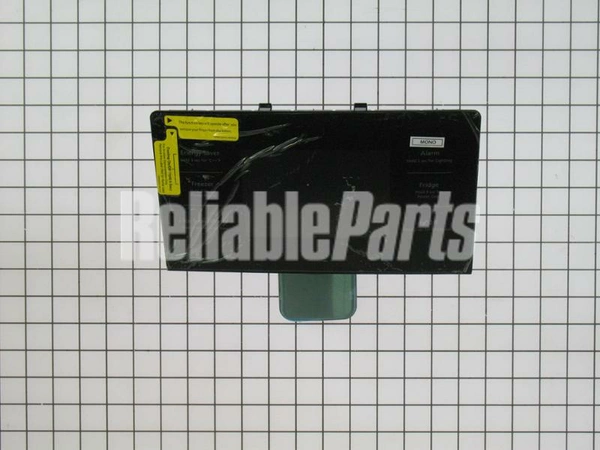

DA97-12675K Samsung Refrigerator Dispenser Co Backorder SMG DA97-12675K $271.38

DA97-12727A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12727A $229.74

10-1

Refrigerator Dispenser Control Board SMG DA92-00368B Contact Us For Availability

10-3

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.39

10-5

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $1.69

10-6

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $17.88

10-8

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $3.35

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $30.79

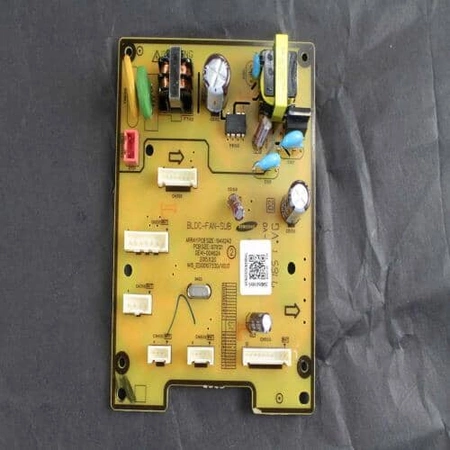

DA97-07024C Samsung Refrigerator Drawer Box T Backorder SMG DA97-07024C $199.44

Refrigerator Ice Container SMG DA97-08680G No Longer Available

DA97-12725A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-12725A $215.07

MSV172AL2J/SM1 Samsung Refrigerator Compresso Backorder SMG MSV172AL2J/SM1 $302.00

11-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $99.68

11-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

11-5

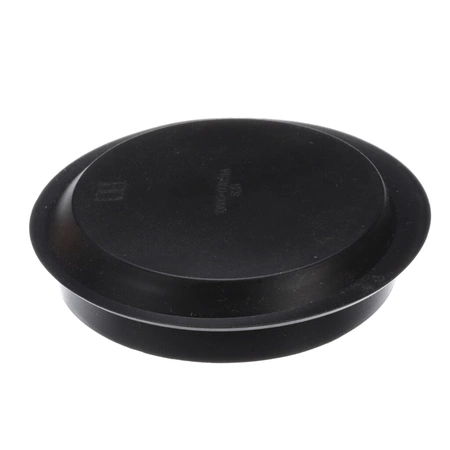

DA97-08117B Samsung Refrigerator Ice Route Co Backorder SMG DA97-08117B $75.17

11-7

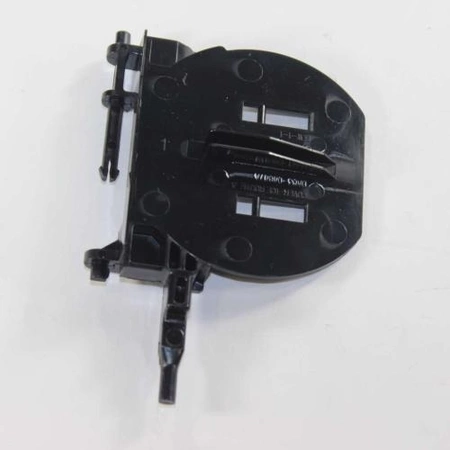

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $21.24

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $227.32

DA64-04021A Samsung Refrigerator Nameplate Ma Backorder SMG DA64-04021A $41.15

DA82-02863A Samsung Refrigerator Water Filter In Stock SMG DA82-02863A $244.53

DA97-12653A Samsung Refrigerator Door Bin Ass Backorder SMG DA97-12653A $164.42

12-1

DA97-08006D Samsung Refrigerator White Case F Backorder SMG DA97-08006D $125.94

12-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $63.71

12-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $42.61

12-7

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $22.92

12-9

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $175.15

13

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $227.57

13

DA97-12726A Samsung Refrigerator Right Vegeta Backorder SMG DA97-12726A $198.59

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $29.82

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $15.91

DA97-07015A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-07015A $234.44

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $129.98

DA61-05001C Samsung Refrigerator Door Close S Backorder SMG DA61-05001C $52.71

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $14.58

DA97-07016A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07016A $149.97

DA97-15162B Samsung Refrigerator Compressor C Backorder SMG DA97-15162B $65.85

16

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $34.81

16

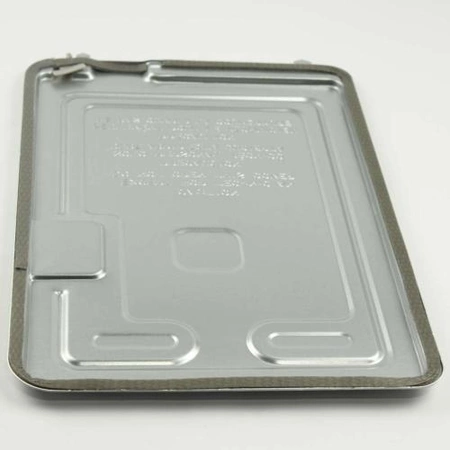

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

16

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $22.75

16-3

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $20.13

16-4

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $49.73

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $46.24

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

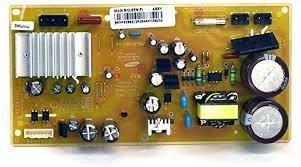

DA92-00215R Samsung Refrigerator Inverter Boa In Stock SMG DA92-00215R $258.34

DA97-07020C Samsung Refrigerator Pantry Drawe Backorder SMG DA97-07020C $169.18

18

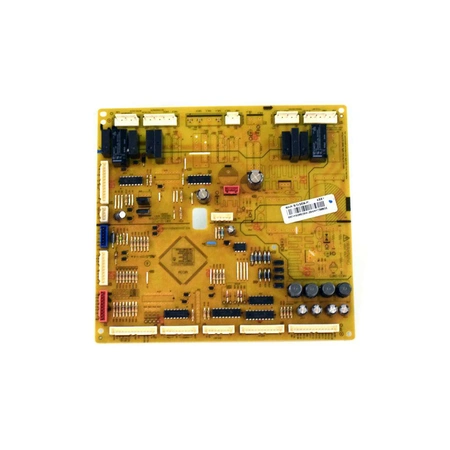

DA92-00384L Samsung Refrigerator Main PCB Ass Backorder SMG DA92-00384L $89.22

18

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $176.14

18

DA97-12651A Samsung Refrigerator Dispenser Sh Backorder SMG DA97-12651A $162.14

18-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $188.79

18-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.97

19

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

19

DA96-00660J Samsung Refrigerator Assembly Eva Backorder SMG DA96-00660J $234.36

19-2

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.39

19-3

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

19-5

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $108.72

19-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

19-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.76

20

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

20

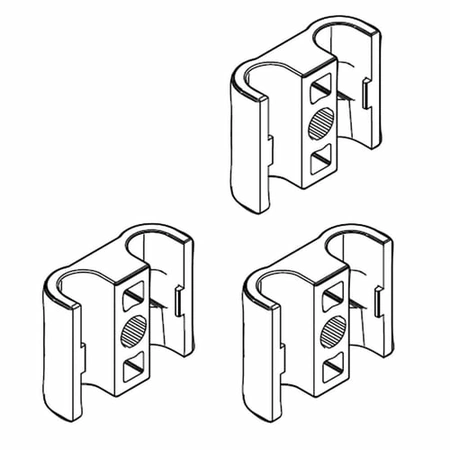

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $27.14

20-2

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $20.09

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $24.11

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

DA97-04049D Samsung Refrigerator Drain Tube C In Stock SMG DA97-04049D $25.82

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $267.70

21-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $191.13

21-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $94.45

21-3

DA96-00682D Samsung Refrigerator Auger Motor In Stock SMG DA96-00682D $112.69

21-6

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

22

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.73

22

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $182.51

22-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

22-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.35

22-5

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $4.48

23

DA27-00019H Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019H $142.65

23

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.20

23-4

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $15.09

24

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $79.96

25

6002-001432 Samsung Tapping Screw Backorder SMG 6002-001432 $1.76

26

DA32-00029U Samsung Refrigerator Temperature Backorder SMG DA32-00029U $36.10

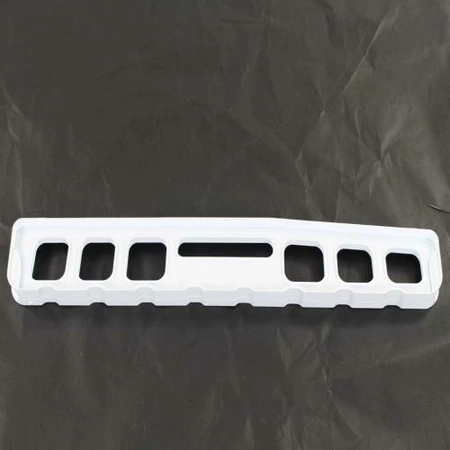

27

DA61-04794A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04794A $35.30

27

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $5.04

28

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

29

DA67-02138A Samsung Refrigerator Hinge Hole C Backorder SMG DA67-02138A $1.60

30

DA63-06389E Samsung Refrigerator Front Left C Backorder SMG DA63-06389E $4.25

30-1

DA97-13405A Samsung Refrigerator Ice Room Cas Backorder SMG DA97-13405A $320.98

31

DA63-06405D Samsung Refrigerator Front Right In Stock SMG DA63-06405D $4.25

31

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $55.20

38

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $1.69

42

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

44

6003-001727 Samsung Refrigerator Television T Backorder SMG 6003-001727 $2.23

46

DA97-04049Q Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049Q $8.04

46-1

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $8.38

48

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

49

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $1.69

1010

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $40.27

1011

DA61-07362A Samsung Refrigerator Door Plate L Backorder SMG DA61-07362A $43.57

1151

DA61-01914A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01914A $3.90

1210

DA97-11283F Samsung Refrigerator Water Tank A Backorder SMG DA97-11283F $126.94

2042

DA81-06013A Samsung Refrigerator Evaporator F Backorder SMG DA81-06013A $126.54

2610

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46
