Model Whirlpool RE963PXKT1 – Common Parts & Diagrams

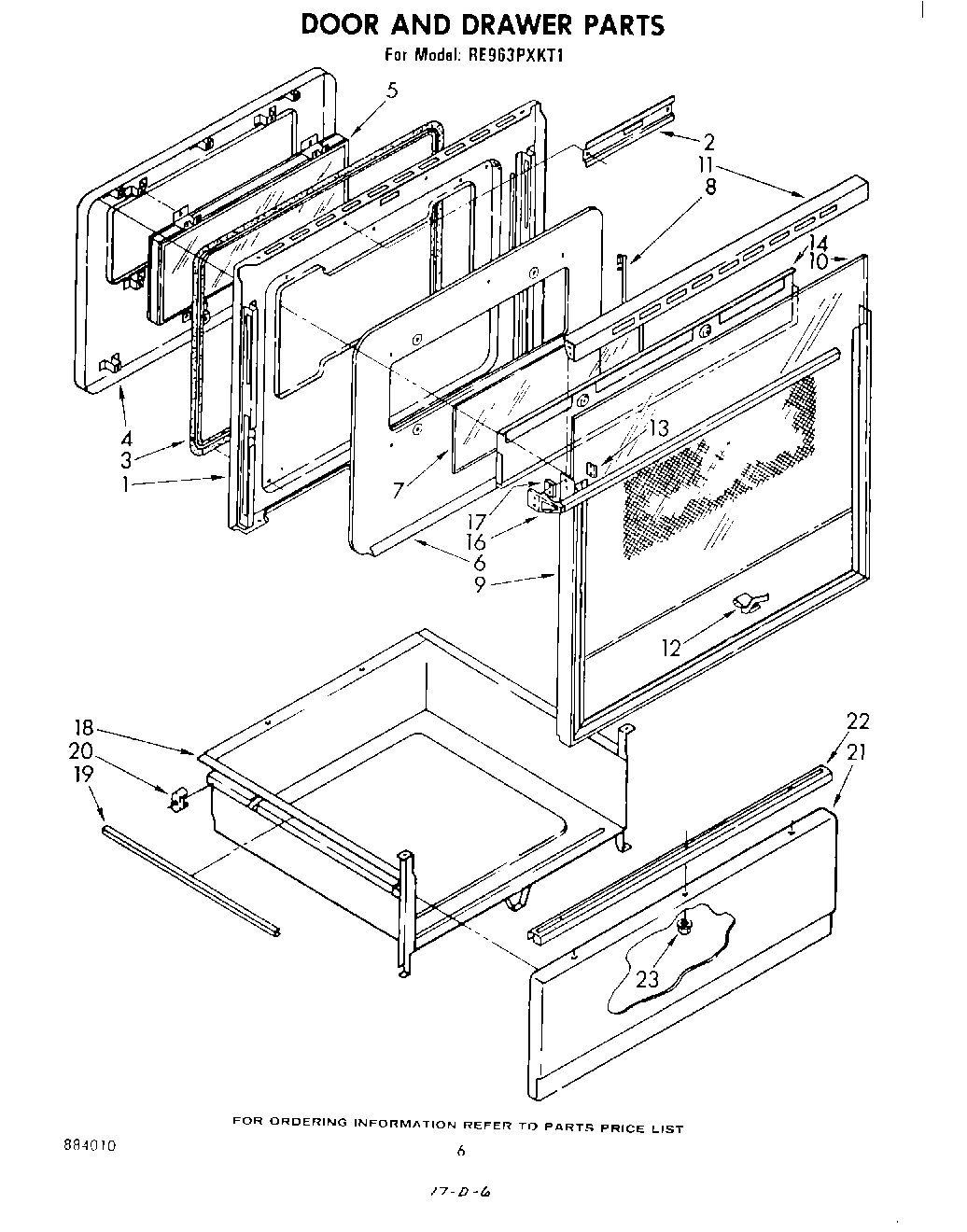

04 - DOOR AND DRAWER

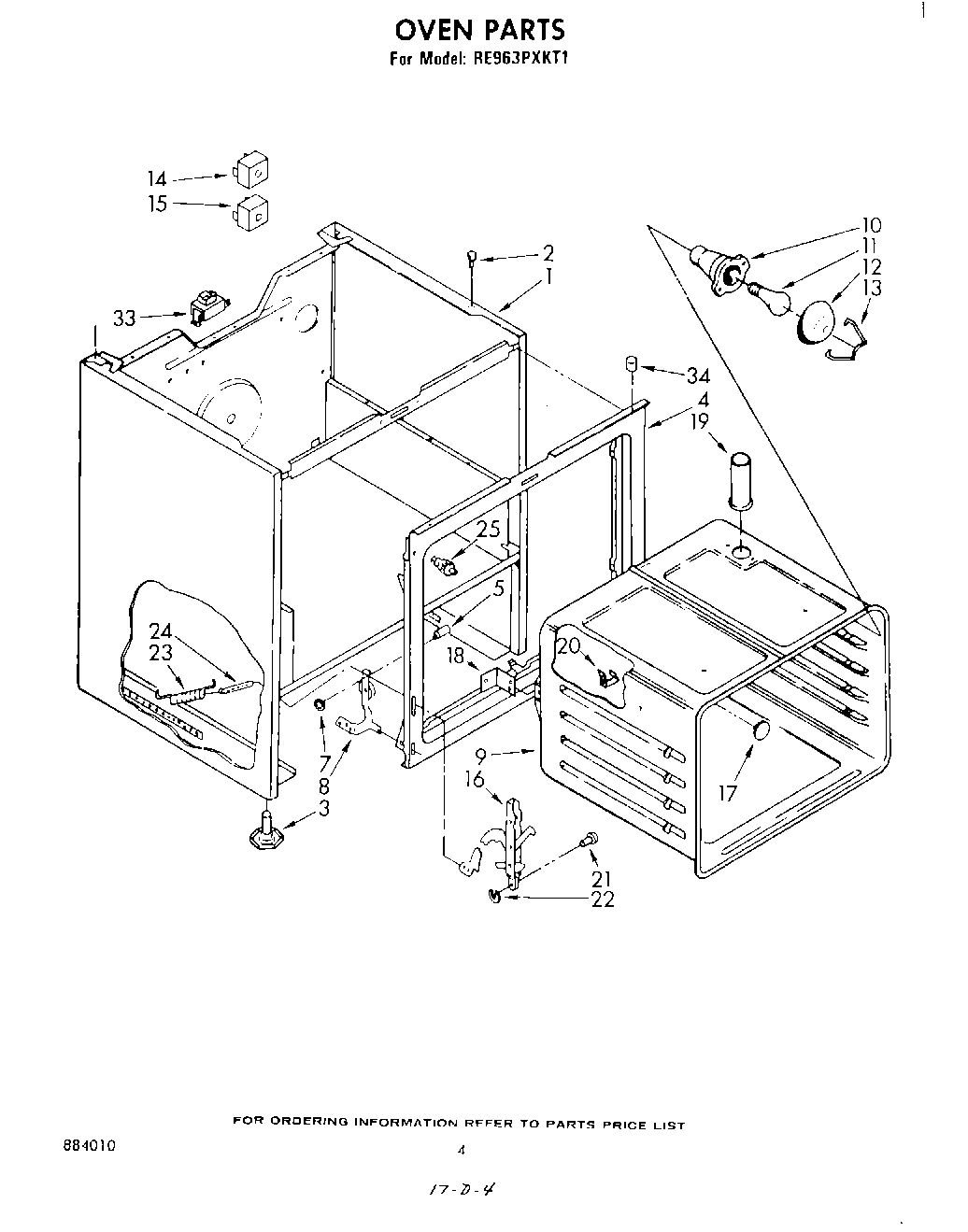

03 - OVEN

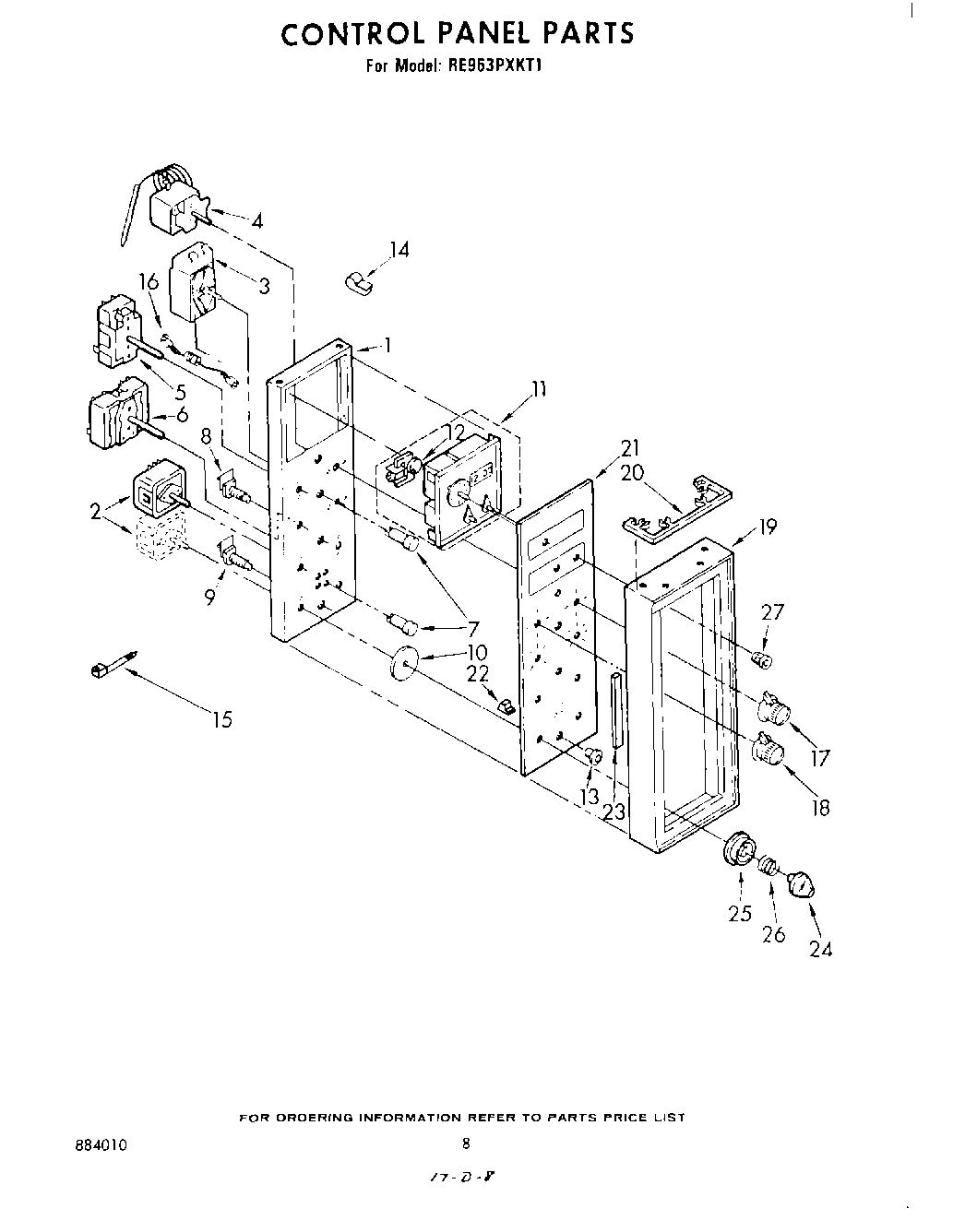

05 - CONTROL

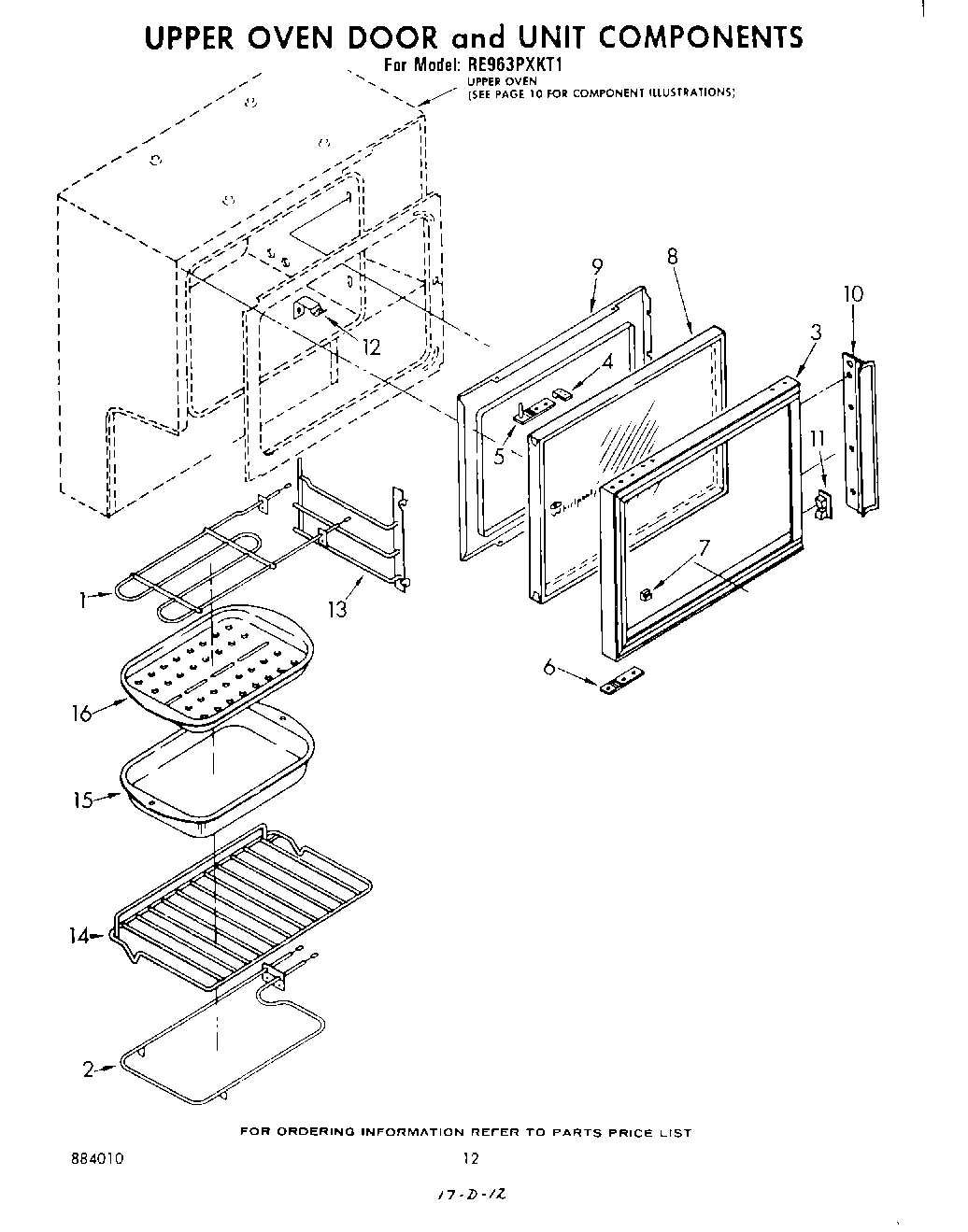

07 - UPPER OVEN DOOR AND UNIT

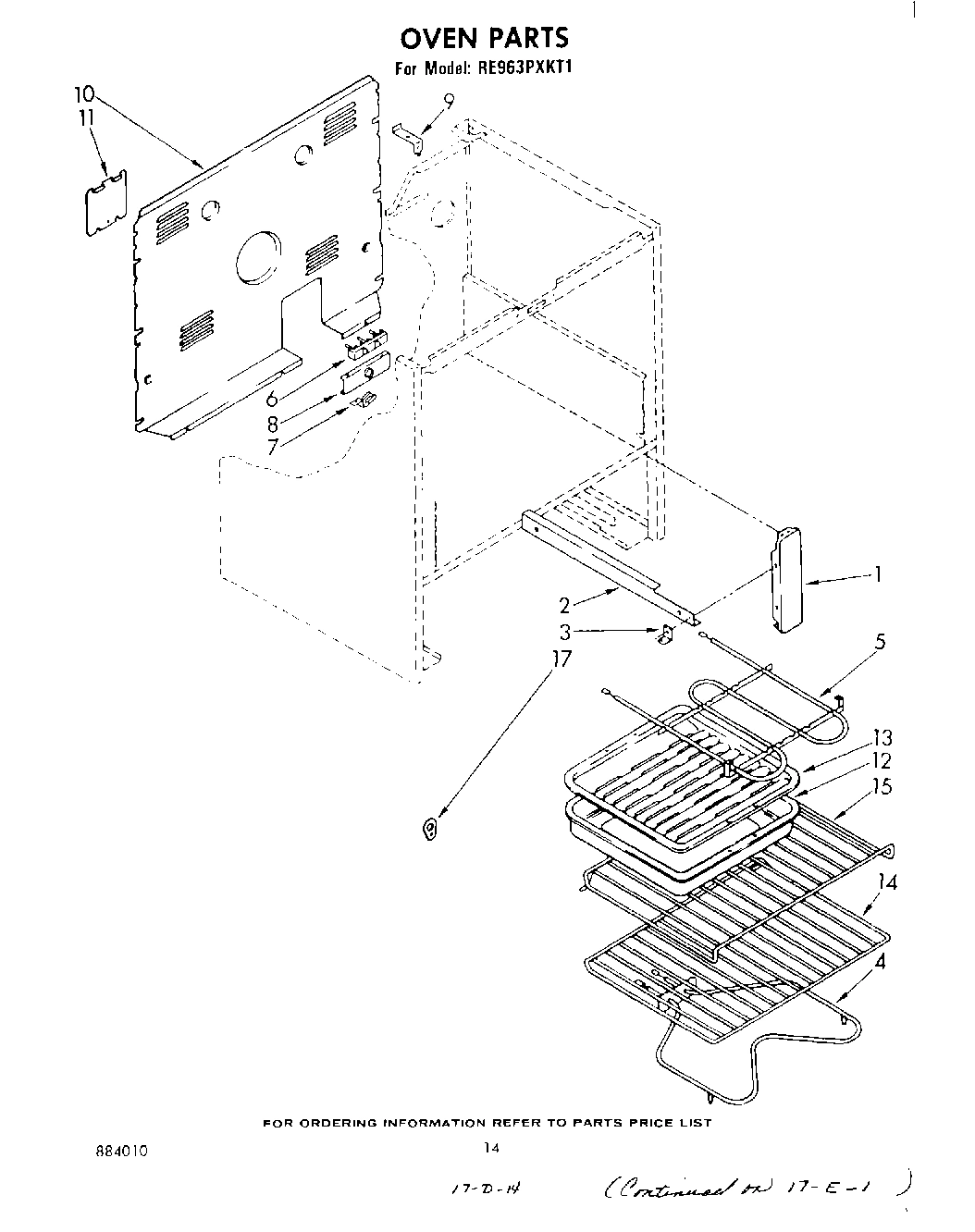

08 - OVEN , LITERATURE AND OPTIONAL

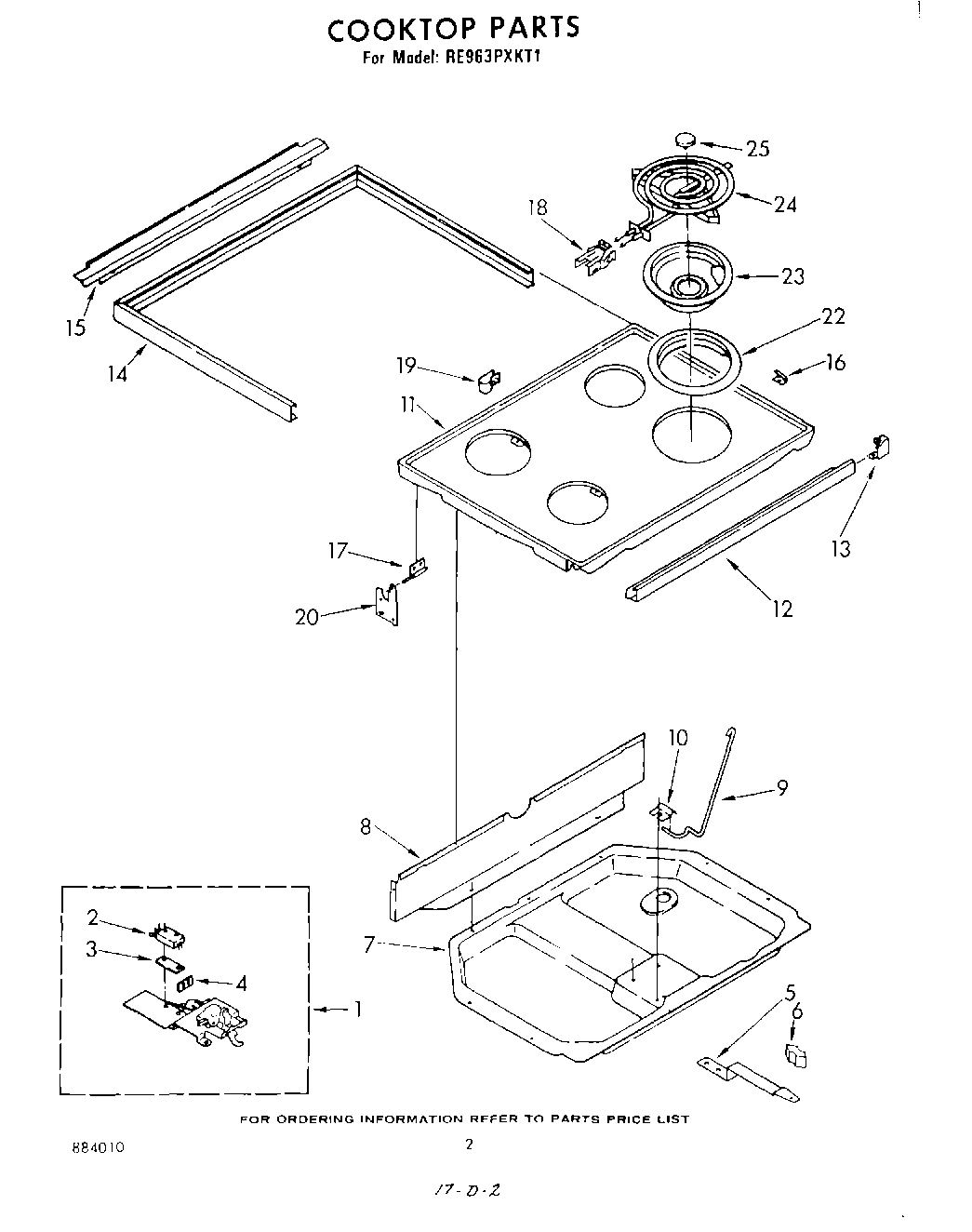

02 - COOK TOP

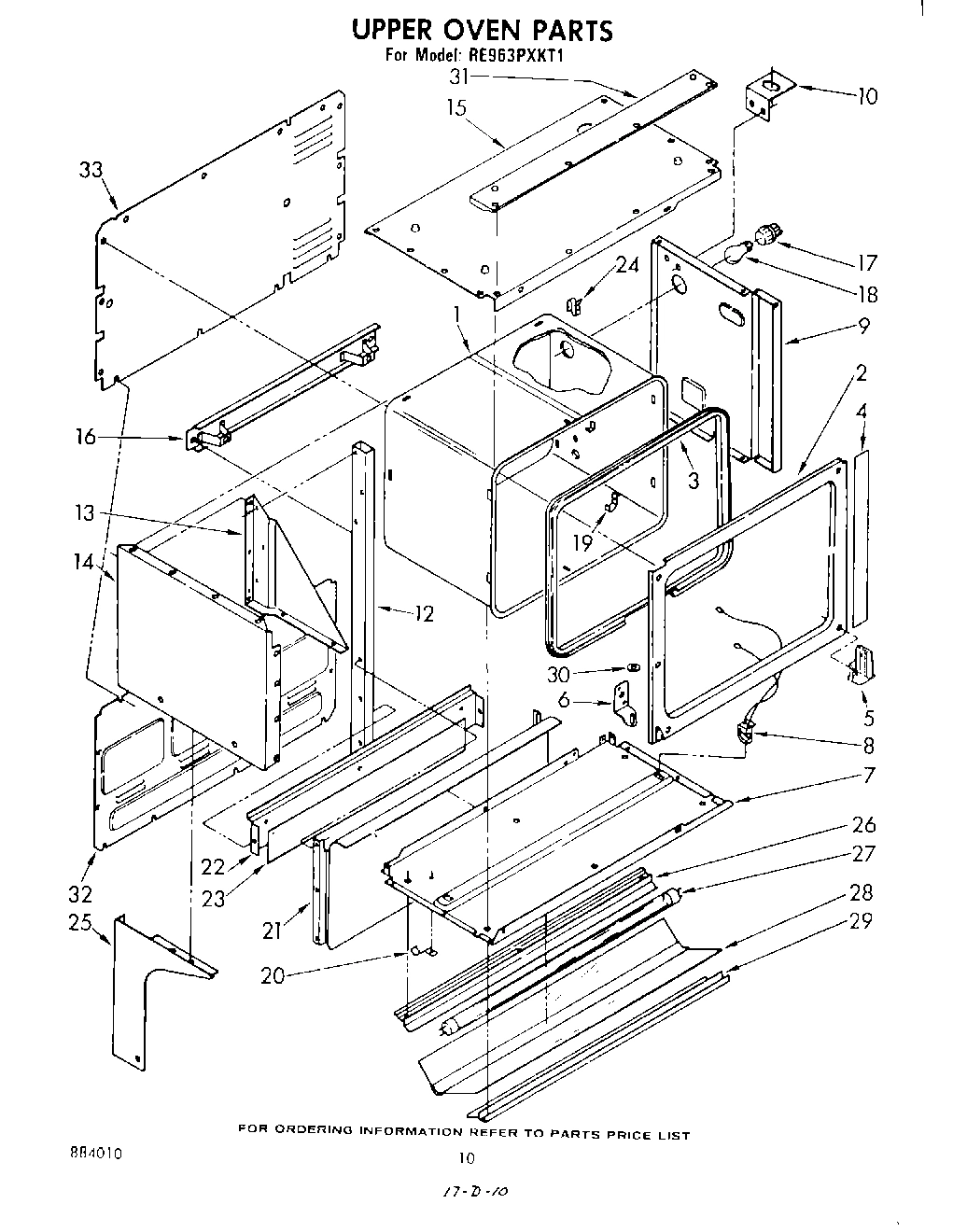

06 - UPPER OVEN
Common parts from model Whirlpool RE963PXKT1
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
main chassis (almond) WPL 327875 Contact Us For Availability
1
panel, control WPL 328247 Contact Us For Availability
1
unit, broil WPL 306138 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Latch Assembly (Pyro) WPL 328585 Contact Us For Availability
1
Oven (Continuous Clean) WPL 327903 Contact Us For Availability
2
switch, infinite (4) WPL 308475 Contact Us For Availability
2
Screw, 10-32 x 3/4 WPL 257800 Contact Us For Availability
2
unit, bake WPL 306083 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
frame, front WPL 306151 Contact Us For Availability
3
Thermostat, Oven (Pyro) WPL 310022 Contact Us For Availability
3
frame, door WPL 311598 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
seal, door WPL 311591 Contact Us For Availability
4
Frame, Front WPL 327886 Contact Us For Availability
4
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
4
Thermostat (Upper Oven) WPL 308787 Contact Us For Availability
4
Broil Stop WPL 309090 Contact Us For Availability
4
Terminal WPL 310100 Contact Us For Availability
4
shield, upper oven WPL 309246 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Screw (3) WPL 311056 Contact Us For Availability
5
Switch, Selector (4 Position) WPL 310350 Contact Us For Availability
5
plate, hinge WPL 328181 Contact Us For Availability
5
Handle, Latch WPL 308413 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
latch plate (upper oven) WPL 309536 Contact Us For Availability
6
Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability
6
Switch, Selector (Pyro) WPL 310007 Contact Us For Availability
6
Washer WPL 138479 Contact Us For Availability
6
screw, 10-24 x 3/8 (2) WPL 309059 Contact Us For Availability
6
Plate Hinge, Plated WPL 306260 Contact Us For Availability
6
Knob, Latch WPL 307977 Contact Us For Availability
6
screw, 10-24 x 3/8 (2) WPL 246076 Contact Us For Availability
6
bracket, hinge WPL 328182 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
light, indicator 250v (8) WPL 311550 Contact Us For Availability
7
cushion, window WPL 311599 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
burner box WPL 308827 Contact Us For Availability
7
bottom panel WPL 308091 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Switch, Fluorescent Light WPL 312370 Contact Us For Availability
8
Knob, Selector WPL 328707 Contact Us For Availability
8
window, oven door WPL 312517 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Shield, Wiring WPL 308968 Contact Us For Availability
8
Socket Assembly, L. H. WPL 310803 Contact Us For Availability
8
Socket Assembly, R.H. WPL 328277 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329002 Contact Us For Availability
9
nut, 3/8 x 27 WPL 255912 Contact Us For Availability
9
Switch, Oven Light WPL 308829 Contact Us For Availability
9
Speed Nut (6) WPL 306617 Contact Us For Availability
9
liner, door WPL 306178 Contact Us For Availability
9
Stand-Off (Bracket) WPL 309102 Contact Us For Availability
9
Rod, Cooktop WPL 307968 Contact Us For Availability
9
baffle WPL 308090 Contact Us For Availability
10
Skirt, Knob (4) WPL 308352 Contact Us For Availability
10
screw, 8-15 x 1/2 (2) WPL 309029 Contact Us For Availability
10
handle, connoisseur WPL 311588 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
10
Retainer, Cooktop WPL 307967 Contact Us For Availability
10
Bracket, Receptacle WPL 308839 Contact Us For Availability
11
timer, digital (includes illus. 12) WPL 310426 Contact Us For Availability
11
catch, door WPL 310979 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
cooktop, chrome WPL 311678 Contact Us For Availability
11
Clip (2) WPL 338177 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
12
Motor, Timer WPL 308594 Contact Us For Availability
12
spring, broil stop WPL 309091 Contact Us For Availability
12
trim, cooktop front WPL 311911 Contact Us For Availability
12
Support, Tubing R.H. WPL 312378 Contact Us For Availability
12
Support, Tubing L.H. WPL 312533 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
13
bezel, switch (2) WPL 308784 Contact Us For Availability
13
support, oven rack (2) WPL 306371 Contact Us For Availability
13
end cap trim l.h. WPL 308444 Contact Us For Availability
13
end cap trim r.h. WPL 308445 Contact Us For Availability
13
Screw, 8A x 3/8 (2) WPL 309051 Contact Us For Availability
13
Clip (4) WPL 98084 Contact Us For Availability
13
gusset, r.h. WPL 308875 Contact Us For Availability
13
Gusset, L.H. WPL 308877 Contact Us For Availability
13
Clip ``J`` (2) WPL 309062 Contact Us For Availability
14
Switch, Broil WPL 310643 Contact Us For Availability
14
Strain, Relief WPL 308609 Contact Us For Availability
14
Strain Relief WPL 308611 Contact Us For Availability
14
rack, upper oven WPL 306672 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
trim, cooktop side & rear WPL 308619 Contact Us For Availability
14
Panel, Side L.H. (Screw, 10A x 1/2 (2)) WPL 309100 Contact Us For Availability
14
panel, side l.h. (almond panel, side r.h.) WPL 312453 Contact Us For Availability
14
Panel, Side L.H. (Almond) WPL 312461 Contact Us For Availability
15
Switch, Bake WPL 310644 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
trim, rear WPL 308981 Contact Us For Availability
15
Panel, Top (Almond) WPL 312469 Contact Us For Availability
16
Channel, Arm (2) WPL 329710 Contact Us For Availability
16
Resistor & Terminal Assembly WPL 328923 Contact Us For Availability
16
bracket, cooktop (6) WPL 308621 Contact Us For Availability
16
bolt (2) WPL 306280 Contact Us For Availability
16
Nut, Retainer (2) WPL 306381 Contact Us For Availability
16
support, oven WPL 327917 Contact Us For Availability
17
Knob, Thermostat WPL 328709 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
socket, light (alternate) WPL 307856 Contact Us For Availability
17
socket, light (screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
17
Socket, Light (Alternate) WPL 310208 Contact Us For Availability
17
Plug Button WPL 257314 Contact Us For Availability
17
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
17
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
WPL 261582 WPL 261582 Contact Us For Availability
17
WPL 261810 WPL 261810 Contact Us For Availability
17
WPL 261881 WPL 261881 Contact Us For Availability
17
WPL 261886 WPL 261886 Contact Us For Availability
17
WPL 261888 WPL 261888 Contact Us For Availability
17
WPL 261890 WPL 261890 Contact Us For Availability
17
WPL 308494 WPL 308494 Contact Us For Availability
17
WPL 308500 WPL 308500 Contact Us For Availability
17
WPL 311982 WPL 311982 Contact Us For Availability
17
WPL 312490 WPL 312490 Contact Us For Availability
17
WPL 72108 WPL 72108 Contact Us For Availability
17
WPL 799351 WPL 799351 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 884010 WPL 884010 Contact Us For Availability
17
Hinge, Leaf Cooktop L.H. WPL 328238 Contact Us For Availability
17
Hinge, Leaf Cooktop R.H. WPL 328239 Contact Us For Availability
18
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
19
Vent, Oven WPL 309025 Contact Us For Availability
19
Screw, 10A x 2 WPL 161463 Contact Us For Availability
19
frame, control panel WPL 311602 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Screw, 8BT x 1/4 (3) WPL 254225 Contact Us For Availability
20
filler, control panel WPL 308660 Contact Us For Availability
20
hinge (2) WPL 308993 Contact Us For Availability
20
spring, glass (4) WPL 308894 Contact Us For Availability
21
Panel, Drawer (Screw, 8-32 (3)) WPL 307537 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (New Avocado) WPL 307936 Contact Us For Availability
21
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel Drawer (Black) WPL 309923 Contact Us For Availability
21
Glass, Control Panel WPL 312516 Contact Us For Availability
21
WPL 312553 WPL 312553 Contact Us For Availability
22
Handle, Drawer WPL 307956 Contact Us For Availability
22
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
retainer, glass (10) WPL 306393 Contact Us For Availability
22
WPL 308776 WPL 308776 Contact Us For Availability
23
Seal, Foam WPL 308298 Contact Us For Availability
23
WPL 254217 WPL 254217 Contact Us For Availability
23
WPL 309144 WPL 309144 Contact Us For Availability
24
knob, control WPL 308346 Contact Us For Availability
24
WPL 309211 WPL 309211 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
bezel control knob (4) WPL 308350 Contact Us For Availability
25
medallion WPL 256904 Contact Us For Availability
25
WPL 246134 WPL 246134 Contact Us For Availability
25
WPL 308980 WPL 308980 Contact Us For Availability
25
WPL 310304 WPL 310304 Contact Us For Availability
25
WPL 328150 WPL 328150 Contact Us For Availability
25
WPL 328154 WPL 328154 Contact Us For Availability
26
spring, bezel (4) WPL 308348 Contact Us For Availability
26
WPL 308896 WPL 308896 Contact Us For Availability
27
knob, timer WPL 309553 Contact Us For Availability
28
WPL 328306 WPL 328306 Contact Us For Availability
29
WPL 308897 WPL 308897 Contact Us For Availability
30
WPL 306615 WPL 306615 Contact Us For Availability
31
WPL 312331 WPL 312331 Contact Us For Availability
31
WPL 327916 WPL 327916 Contact Us For Availability
32
WPL 308112 WPL 308112 Contact Us For Availability
33
Ballast (Alternate) WPL 346772 Contact Us For Availability
33
Ballast (Alternate) WPL 685591 Contact Us For Availability
33
WPL 309507 WPL 309507 Contact Us For Availability
34
Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability
34
locator, cooktop WPL 311909 Contact Us For Availability
× ![]()
