Model Whirlpool PER5502BAT ELECTRIC RANGE – Common Parts &amp; Diagrams

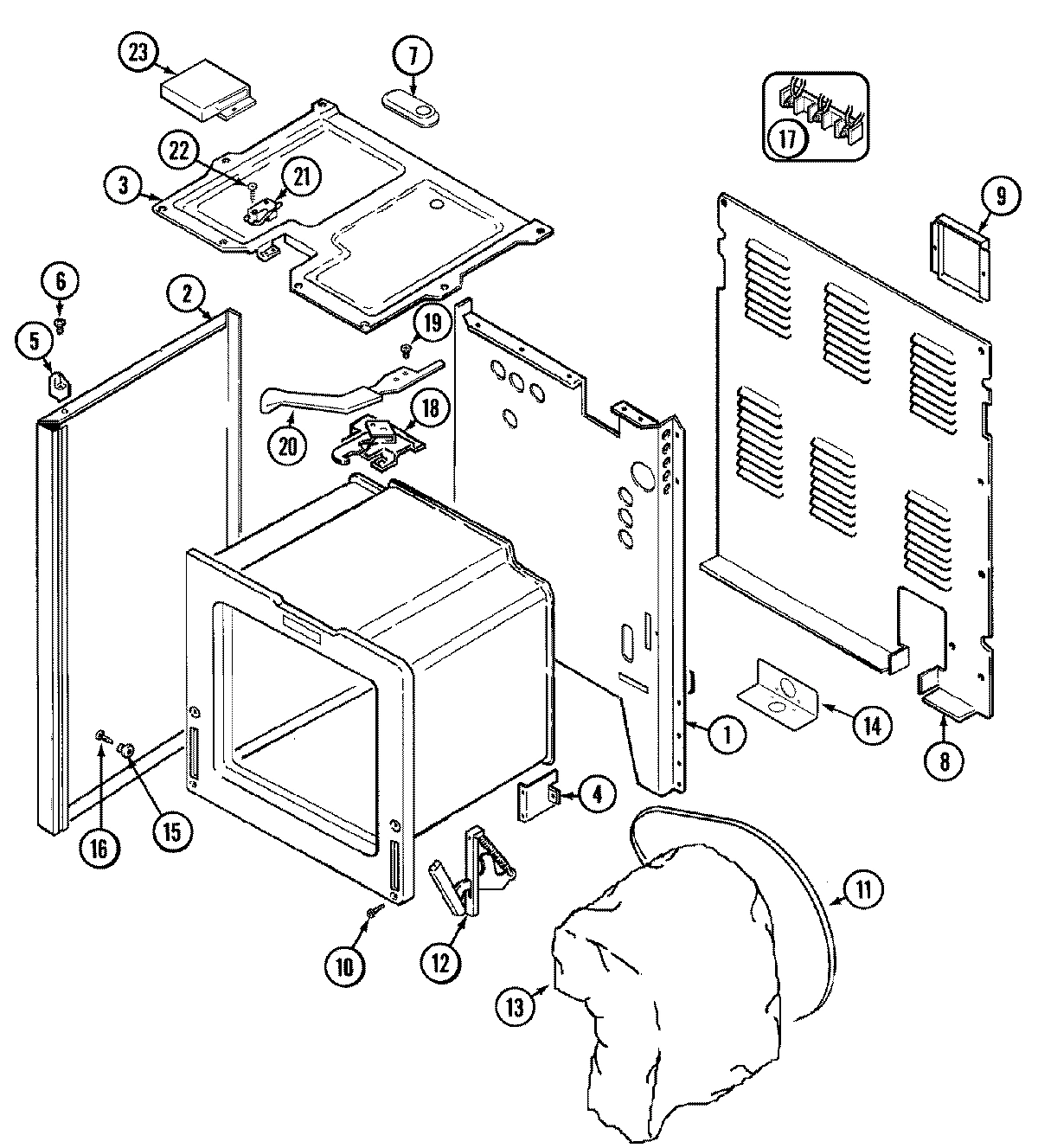

1

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

1

BACK, MAIN WPL 74006322 Contact Us For Availability

1

GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability

1

TUBE, VENT WPL 74003469 Contact Us For Availability

1

PANEL, CONTROL (BLK) WPL 74006365 Contact Us For Availability

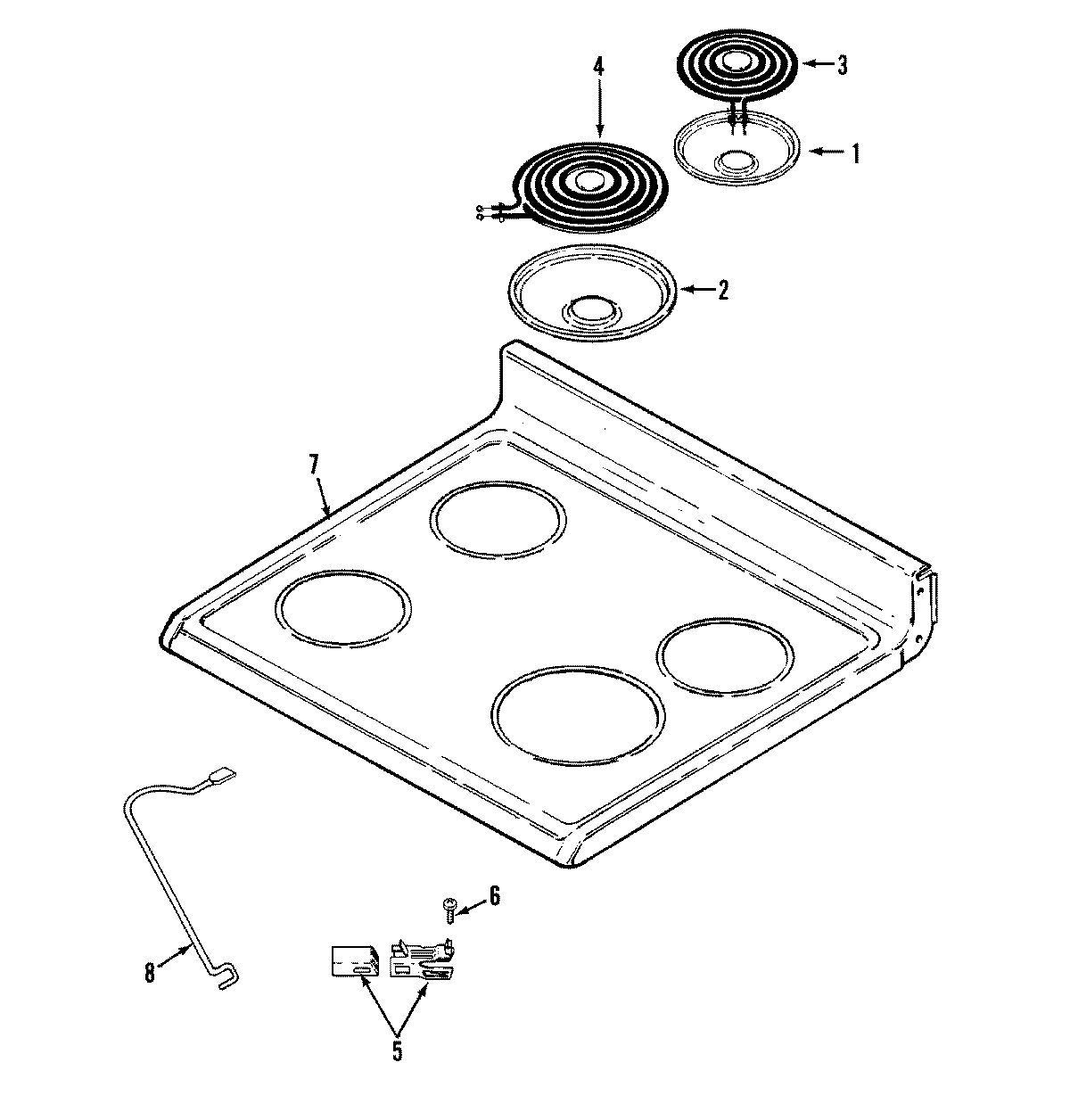

2

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $5.02

2

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $12.65

2

PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

2

CLOCK W/OVERLAY (BLK) WPL 74006235 Contact Us For Availability

3

WP12001559 Whirlpool Element Kit Backorder WPL WP12001559 $119.93

3

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $84.34

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

3

BOX, BURNER WPL 74006384 Contact Us For Availability

3

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

3

BRACKET, CLOCK WPL 74004913 Contact Us For Availability

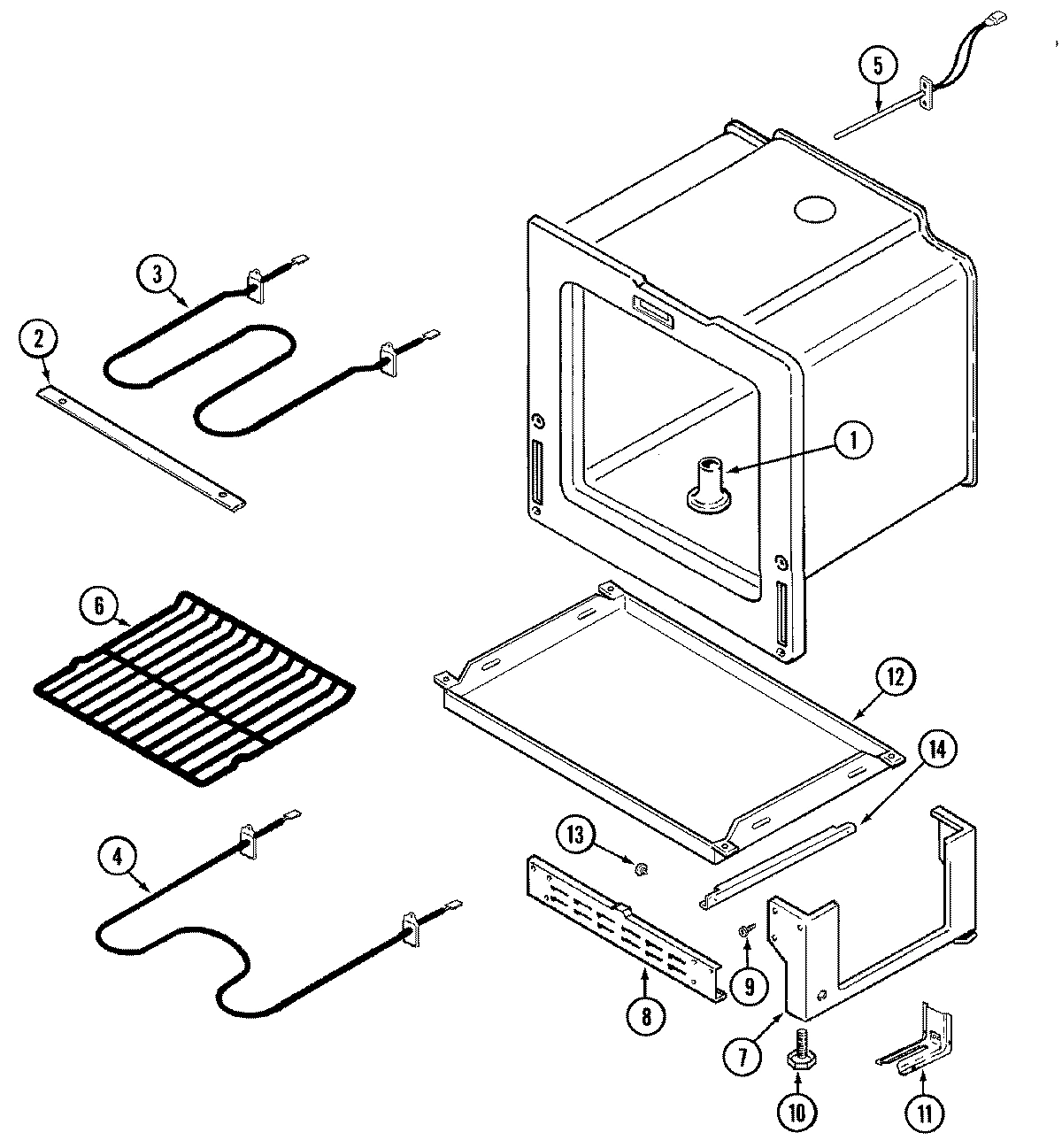

4

WP12001560 Whirlpool Surface Element Backorder WPL WP12001560 $141.27

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

WPW10345410 Whirlpool Surface Element Backorder WPL WPW10345410 $150.35

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

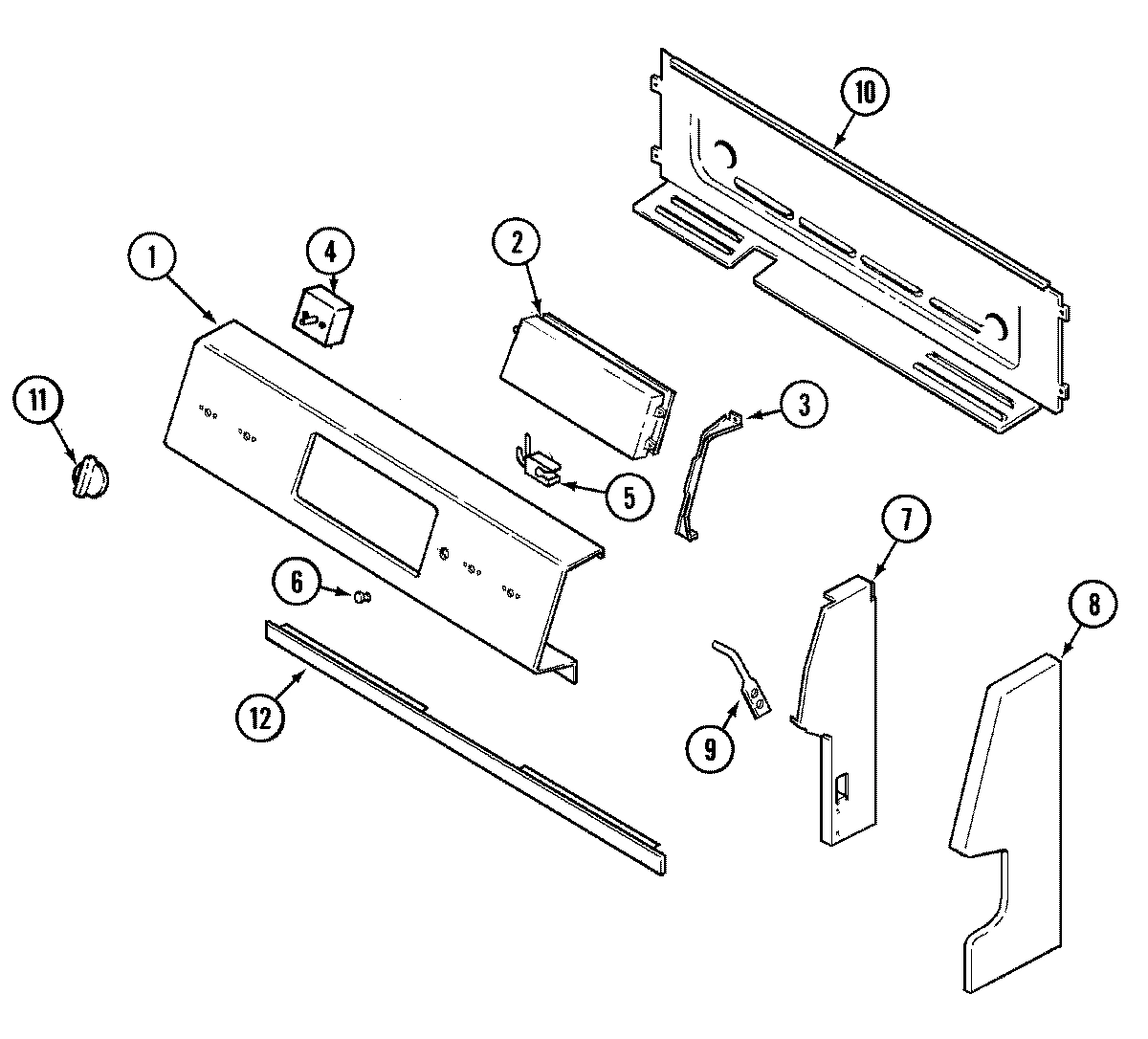

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

5

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

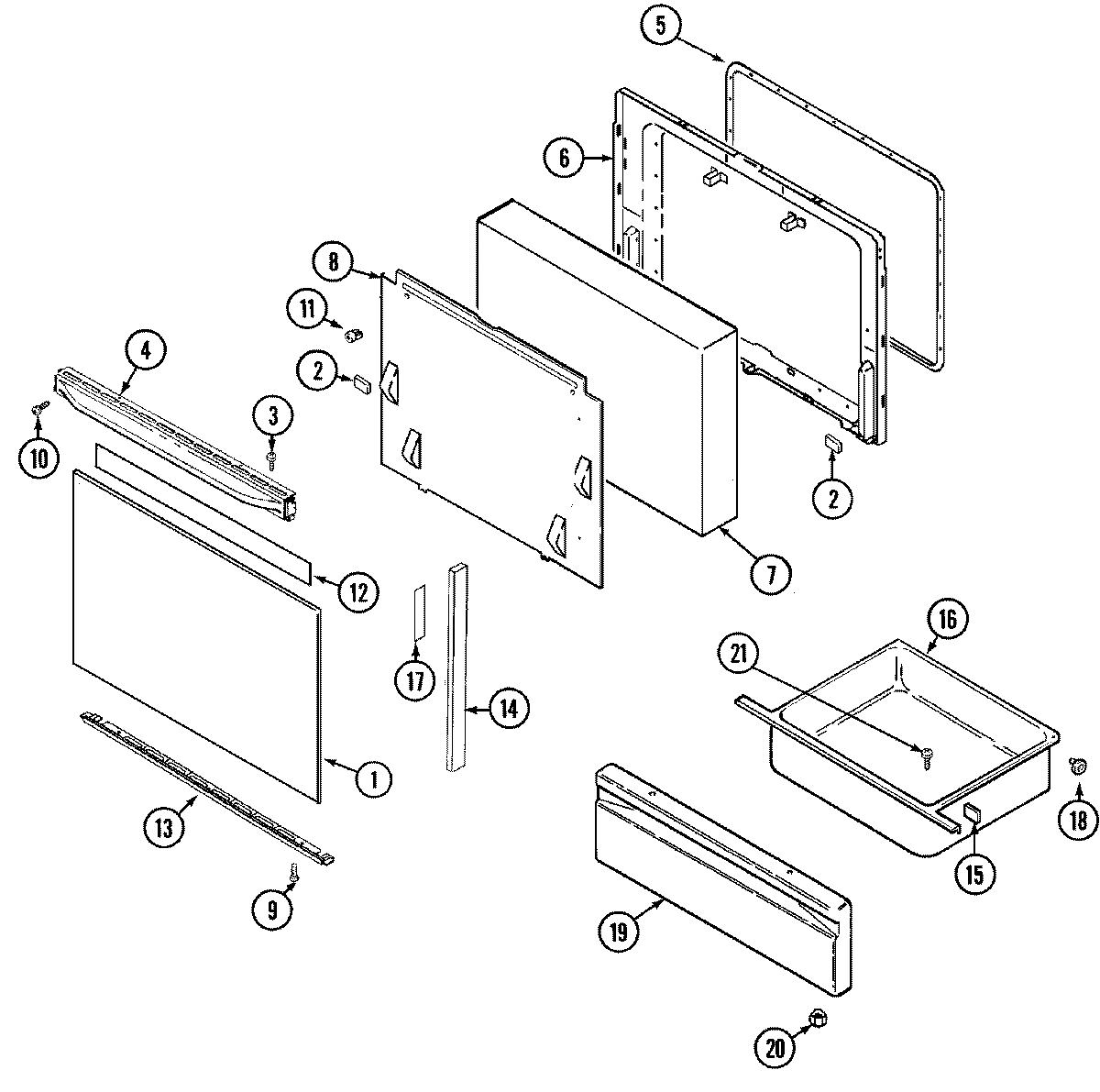

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

SCREW WPL 7118P01360 Contact Us For Availability

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

6

LINING, DOOR WPL 74003245 Contact Us For Availability

6

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

TOP, MAIN (BSQ) WPL 74005063 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

7

INSULATION, DOOR WPL 74001842 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

7

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

7

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

8

PROP ROD WPL 74004084 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

8

BAFFLE, DOOR SOLID WPL 3601F21851 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability

8

END CAP, CONTROL PNL (RT-BLK) WPL 74003367 Contact Us For Availability

8

END CAP, CONTROL PNL (LT-BLK) WPL 74003368 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

9

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

STRAP, INSULATION WPL 74003385 Contact Us For Availability

SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability

NUT, NYLON WPL 7103P04560 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

KNOB, INFINITE SWITCH (BLK) WPL 74003427 Contact Us For Availability

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $91.57

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

INSULATION, OVEN WRAP WPL 74005771 Contact Us For Availability

TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 74003468 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

MANUAL, USE & CARE WPL 71002493 Contact Us For Availability

GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

16

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

16

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

16

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

TAPE WPL 74004075 Contact Us For Availability

DOOR LATCH KIT WPL 12001943 Contact Us For Availability

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability

LATCH, DOOR WPL 74003380 Contact Us For Availability

19

SCREW, LEVER WPL 7101P23060 Contact Us For Availability

19

PANEL, DRAWER (BSQ) WPL 74005055 Contact Us For Availability

20

LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability

20

NUT, LOCK WPL 7103P13960 Contact Us For Availability

21

SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability

21

INSULATOR, SWITCH WPL 74003630 Contact Us For Availability

21

SCREW WPL 7101P07260 Contact Us For Availability

22

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

23

COVER, DOOR LATCH WPL 74003479 Contact Us For Availability

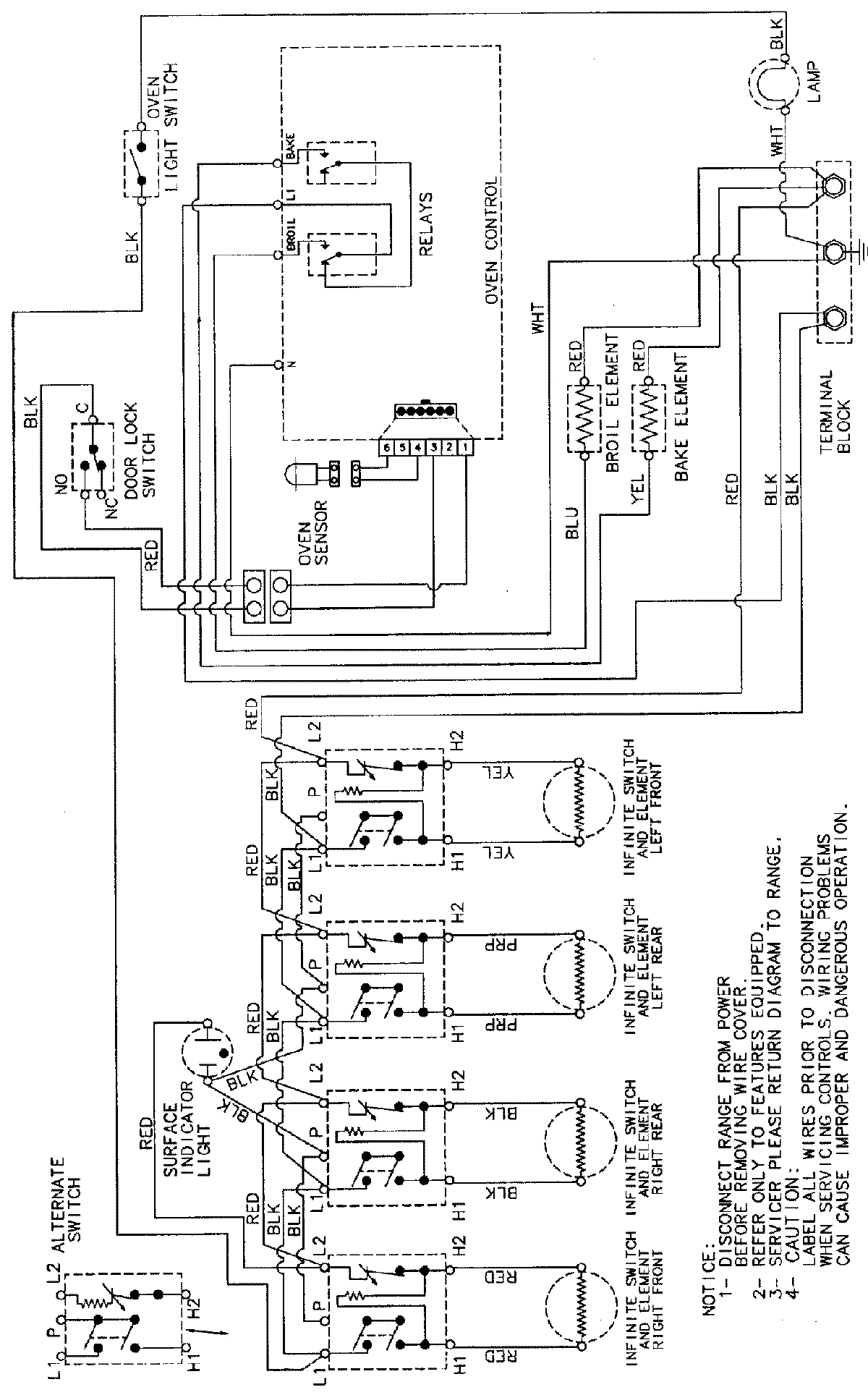

NI

WIRING INFORMATION WPL 15002232 Contact Us For Availability
