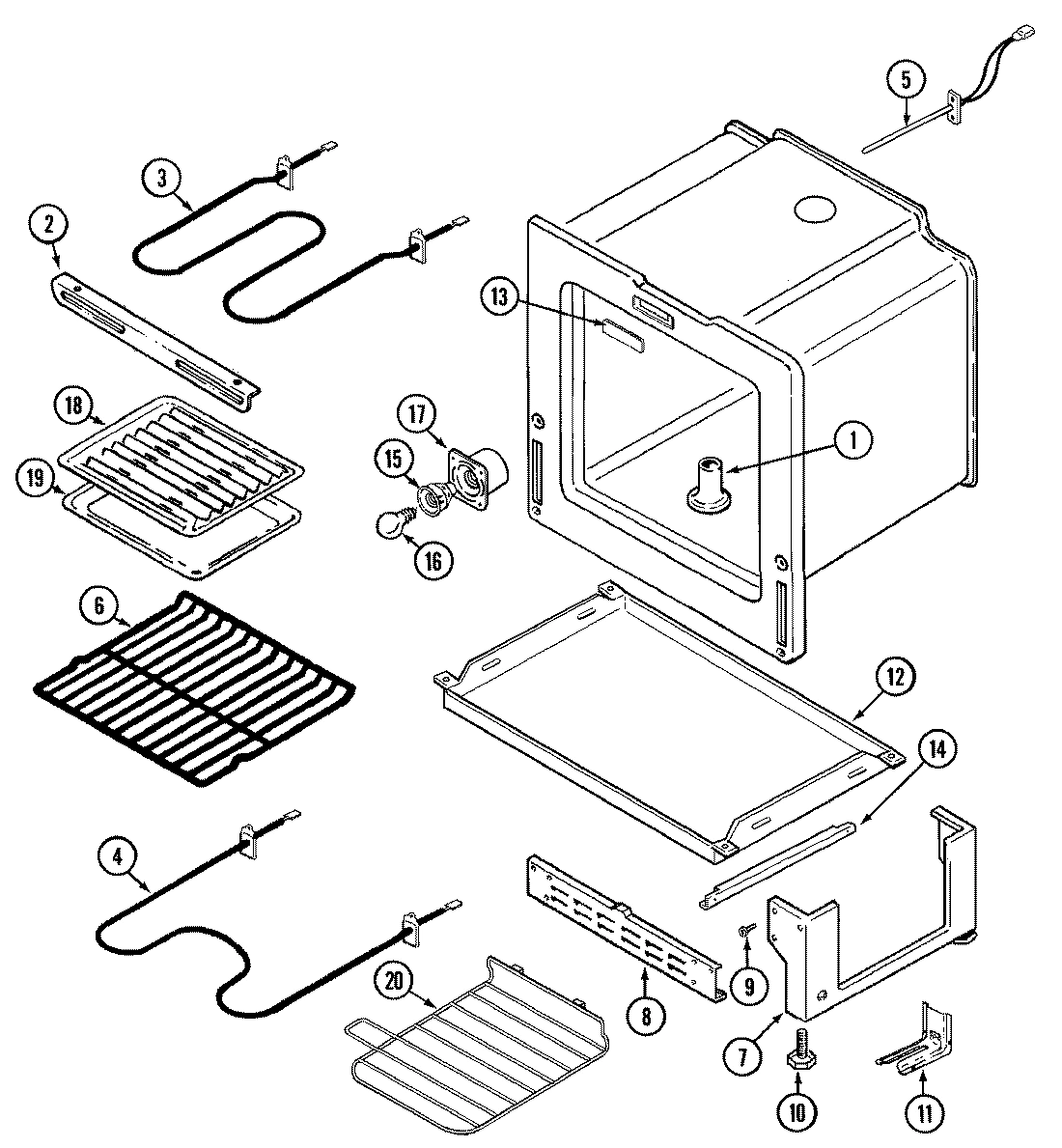

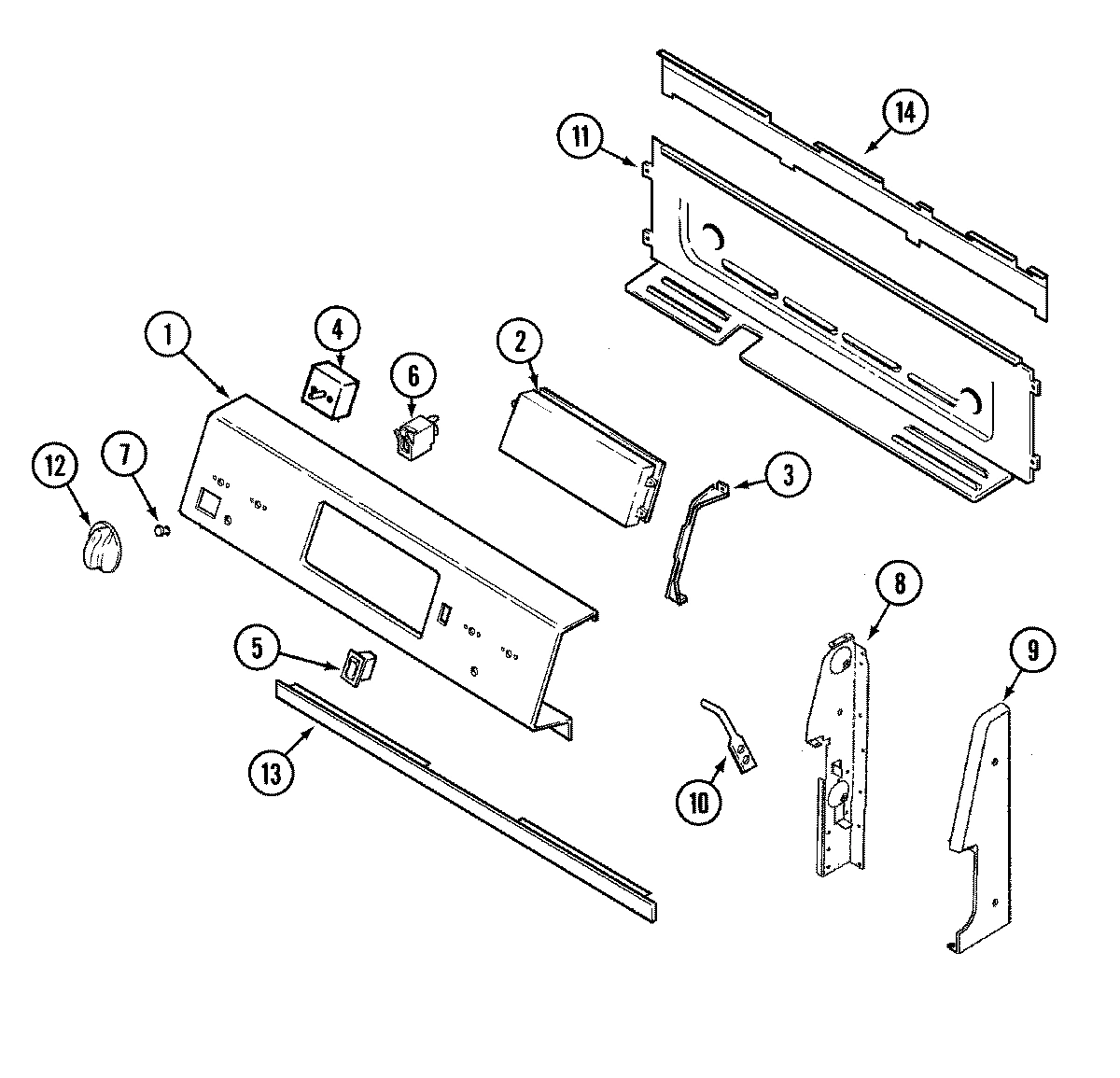

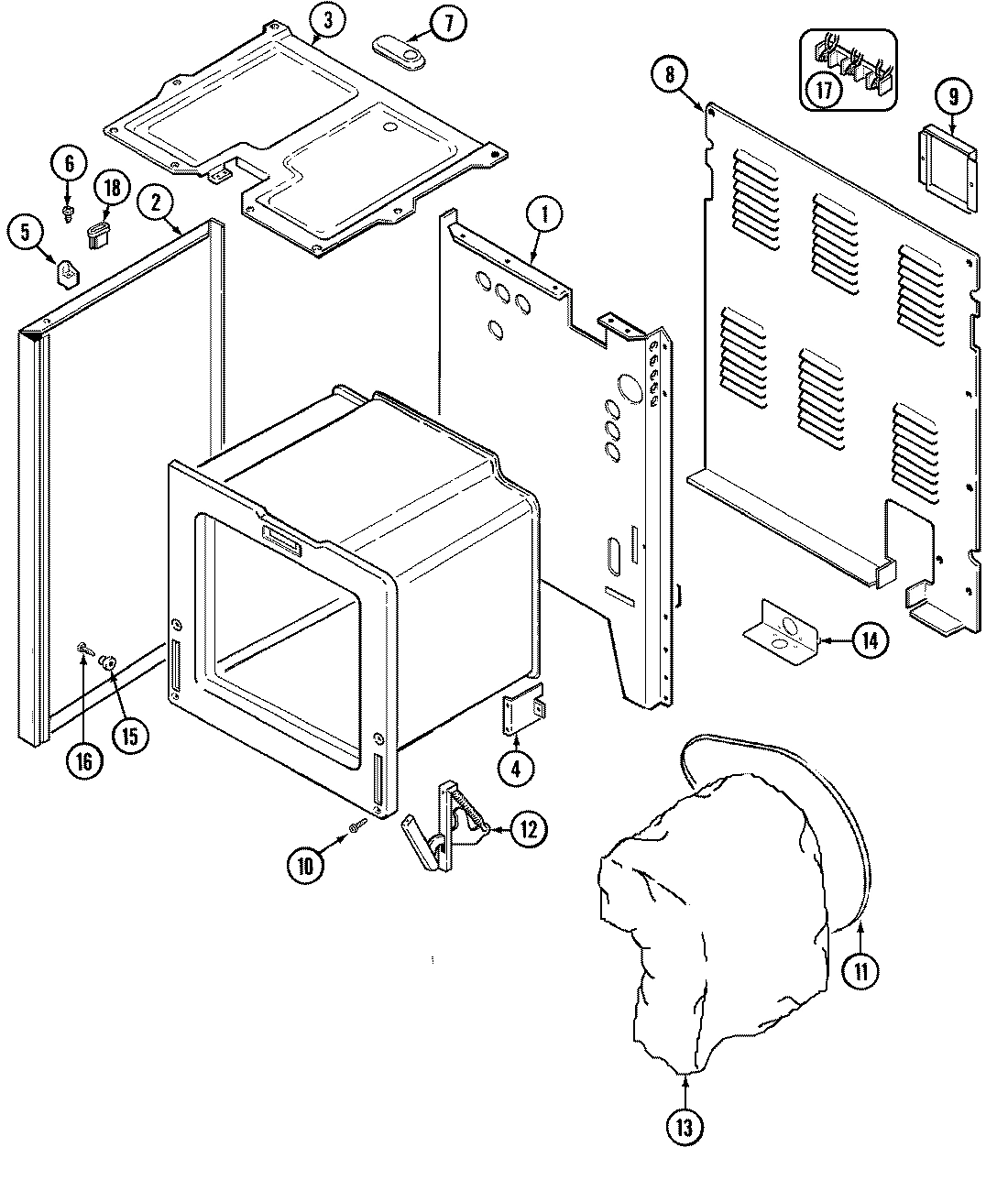

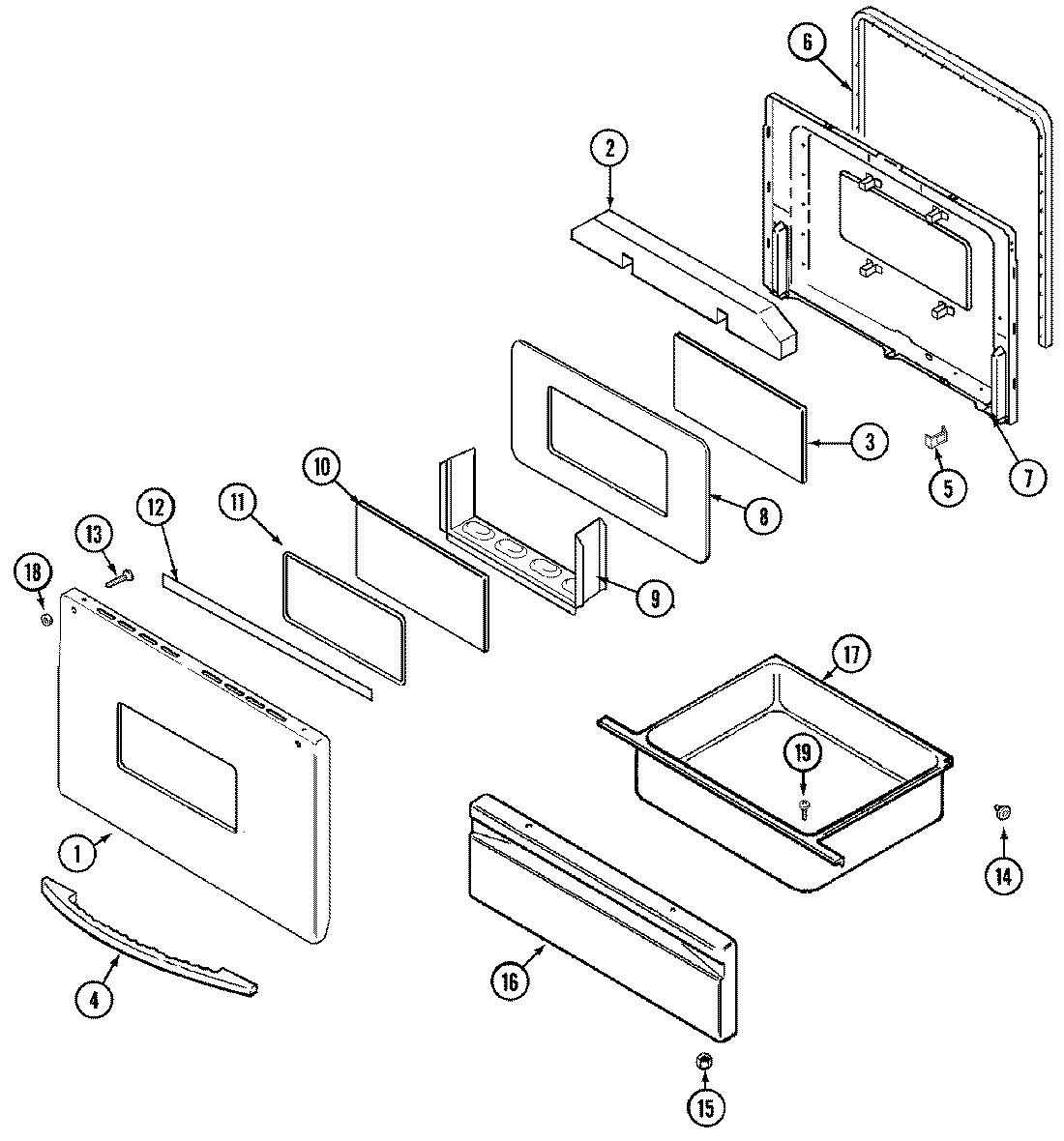

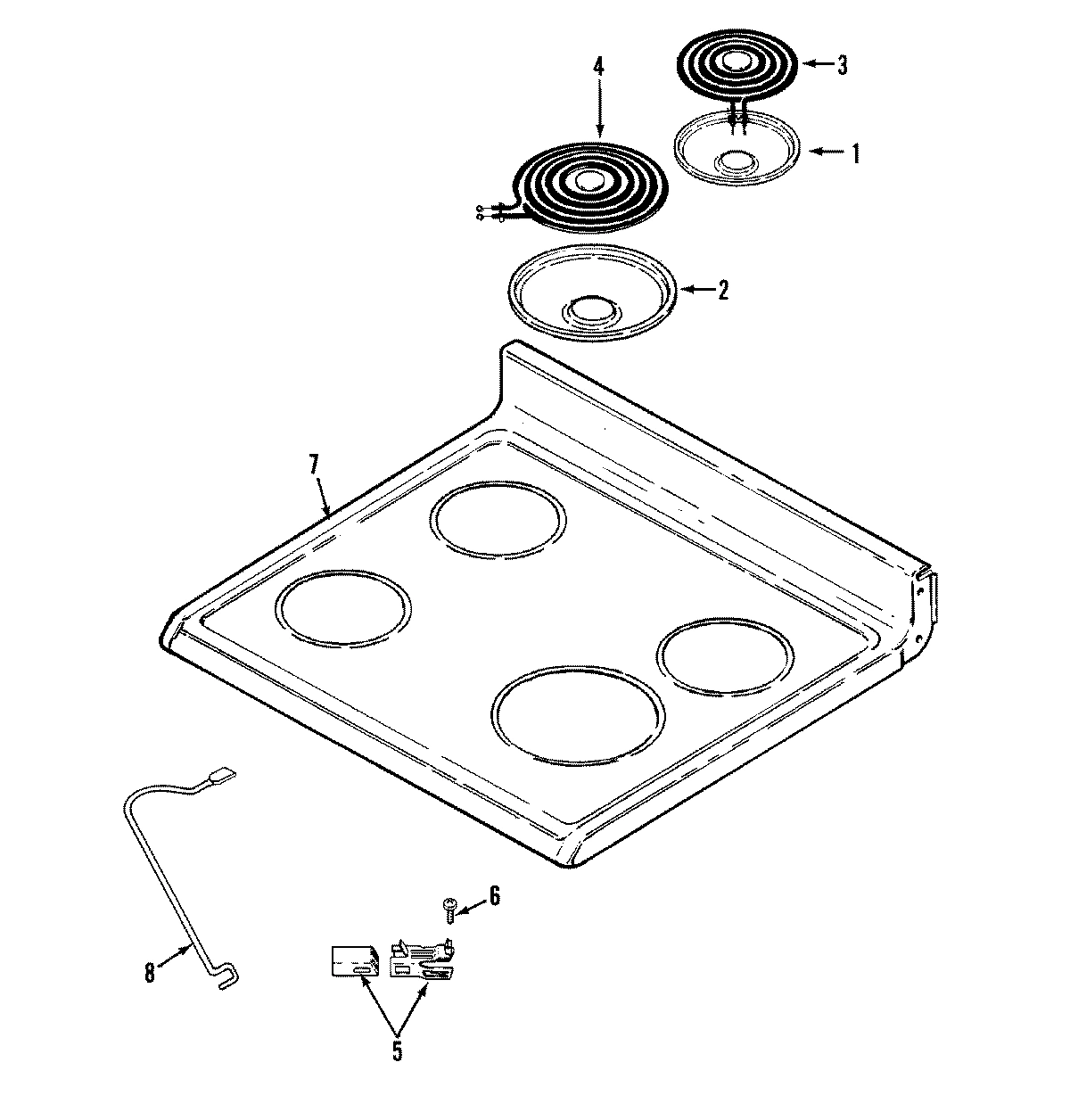

Model Whirlpool PER4510AAW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

PANEL, DOOR (WHT) WPL 2401F12171 Contact Us For Availability

1

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

1

TUBE, VENT WPL 8026P01960 Contact Us For Availability

1

PANEL, CONTROL (WHT) WPL 74005369 Contact Us For Availability

2

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $5.02

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $12.65

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

INSULATION, DOOR WPL 74002458 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

2

CLOCK W/OVERLAY (WHT) WPL 74005371 Contact Us For Availability

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

3

WPY04000036 Whirlpool Surface Element Backorder WPL WPY04000036 $75.33

3

BOX, BURNER WPL 4011F23919 Contact Us For Availability

3

GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability

3

SCREW (WHT) WPL 7101P34860 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003602 Contact Us For Availability

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

WPY04000035 Whirlpool Surface Element In Stock WPL WPY04000035 $79.64

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

HANDLE, DOOR (WHT) WPL 2411F00371 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

5

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $61.72

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

CLIP, DOOR WPL 7112P03460 Contact Us For Availability

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

6

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

6

SCREW WPL 7118P01360 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

7

LINING, DOOR WPL 74005097 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 74003428 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

SCREW WPL 7101P20960 Contact Us For Availability

8

BAFFLE, DOOR WPL 74002461 Contact Us For Availability

8

PROP ROD WPL 74004084 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003603 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003604 Contact Us For Availability

9

END CAP, CONTROL PNL (RT-WHT) WPL 74003607 Contact Us For Availability

9

END CAP, CONTROL PNL (LT-WHT) WPL 74003608 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

9

SUPPORT, OUTER GLASS WPL 74002462 Contact Us For Availability

9

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

9

SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

GLASS, DOOR (OUTER-WHT) WPL 74002464 Contact Us For Availability

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

STRAP, INSULATION WPL 74003385 Contact Us For Availability

GASKET, WINDOW WPL 7201P01760 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

12

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $91.57

12

WP74003611 Whirlpool Range White Knob Backorder WPL WP74003611 $13.00

12

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability

INSULATION, WRAP WPL 74003112 Contact Us For Availability

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

NUT WPL 7103P08260 Contact Us For Availability

SHAFT, ROLLER WPL 74004079 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

EXTENSION, CONTROL PANEL WPL 74004551 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

HARNESS, SENSOR WPL 74004988 Contact Us For Availability

HARNESS, CONTROL PANEL WPL 74005372 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

BULB-OVEN WPL 7407P10360 Contact Us For Availability

GUIDE, COOKING WPL 71002782 Contact Us For Availability

MANUAL, USE & CARE (TRI) WPL 74005284 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

18

BUSHING, PROP SUPPORT WPL 74001256 Contact Us For Availability

18

SPACER, HANDLE (WHT) WPL 8010P08960 Contact Us For Availability

18

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

19

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

19

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

20

RACK, HALF (FLUSH CONV. COVER) WPL 74003590 Contact Us For Availability

NI

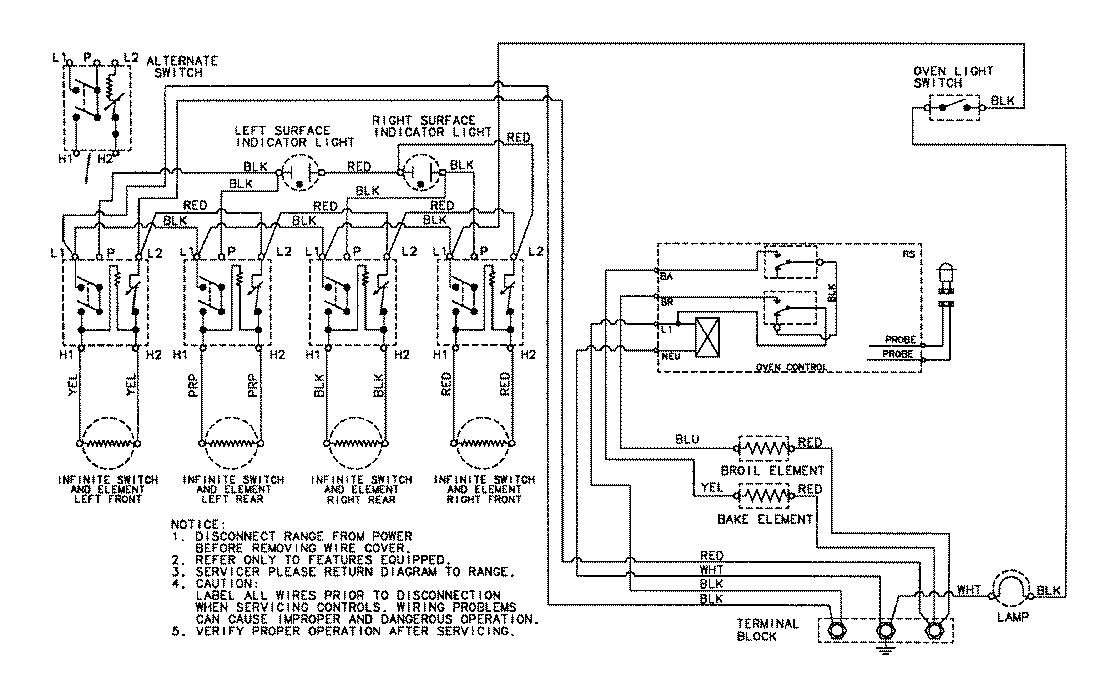

WIRING INFORMATION WPL 15002661 Contact Us For Availability
