Model Whirlpool PER4310BAW ELECTRIC RANGE – Common Parts &amp; Diagrams

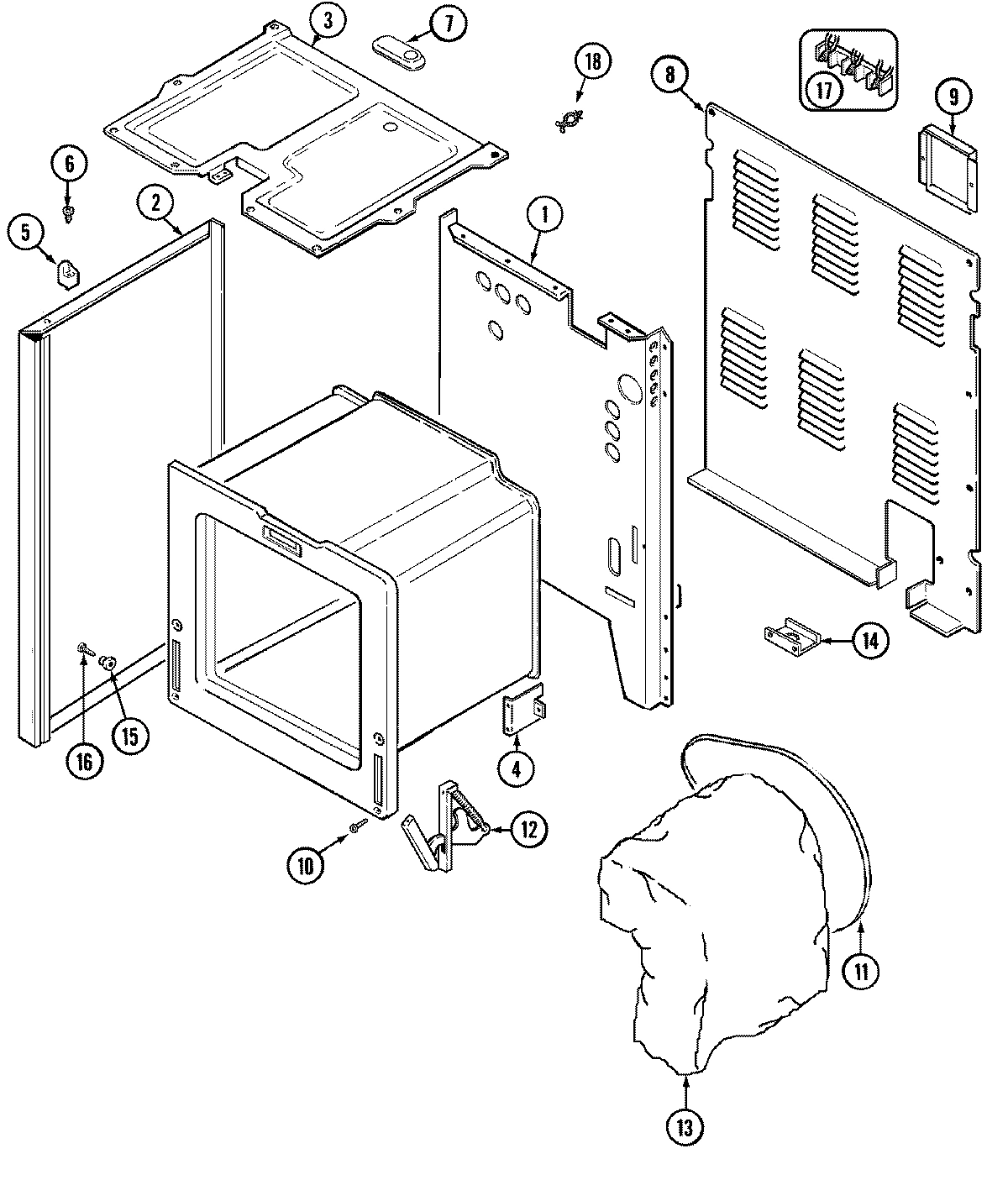

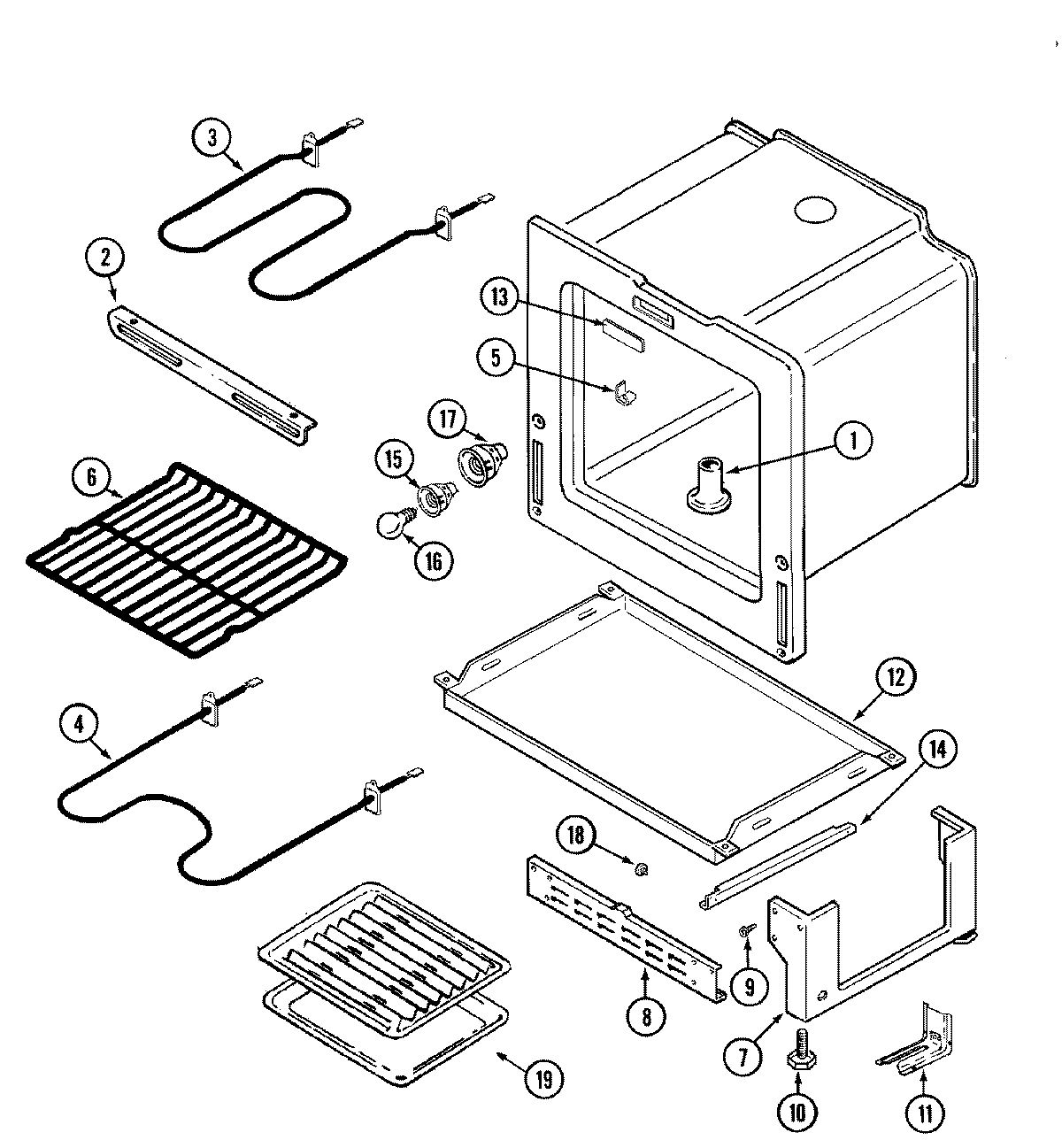

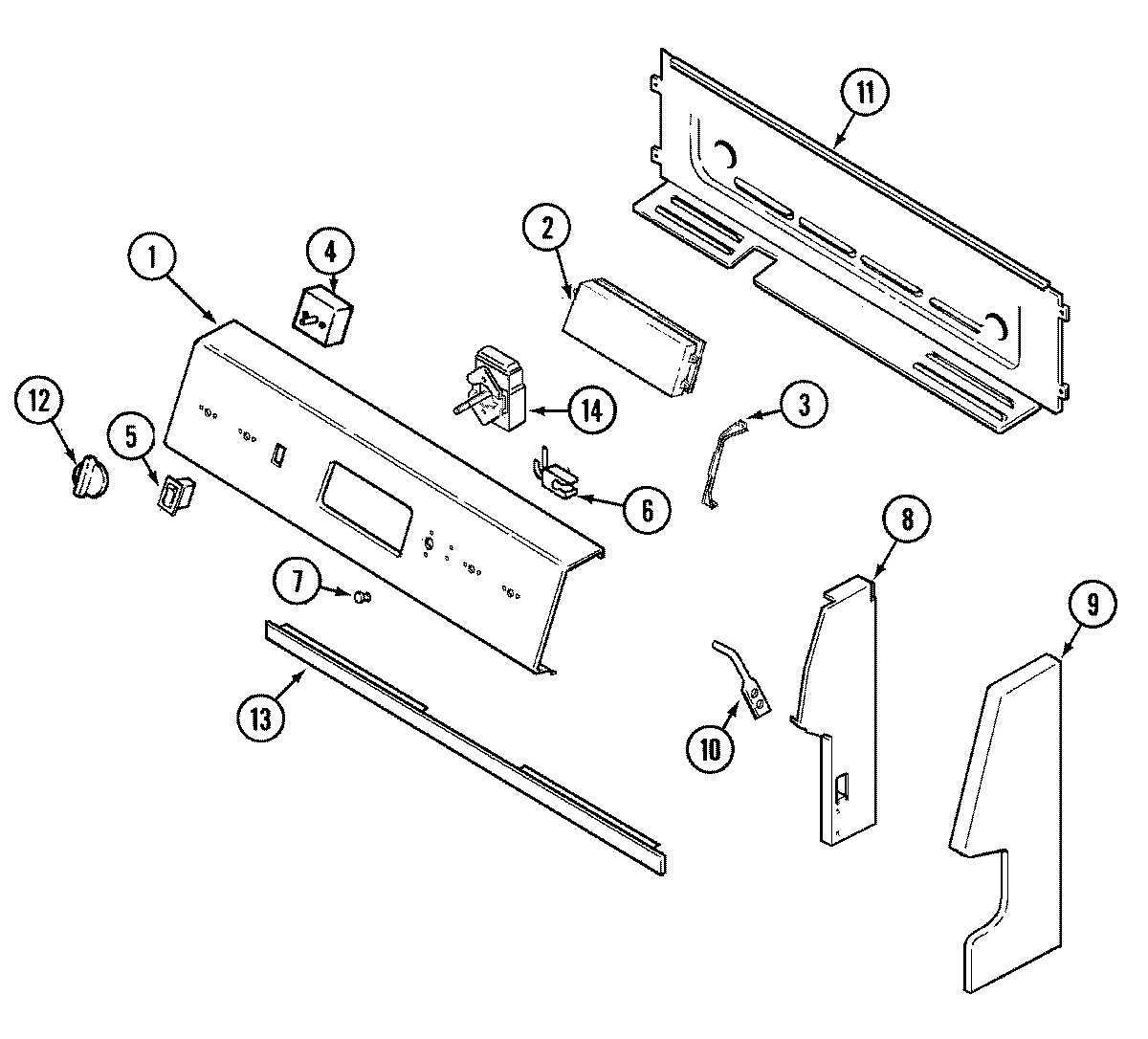

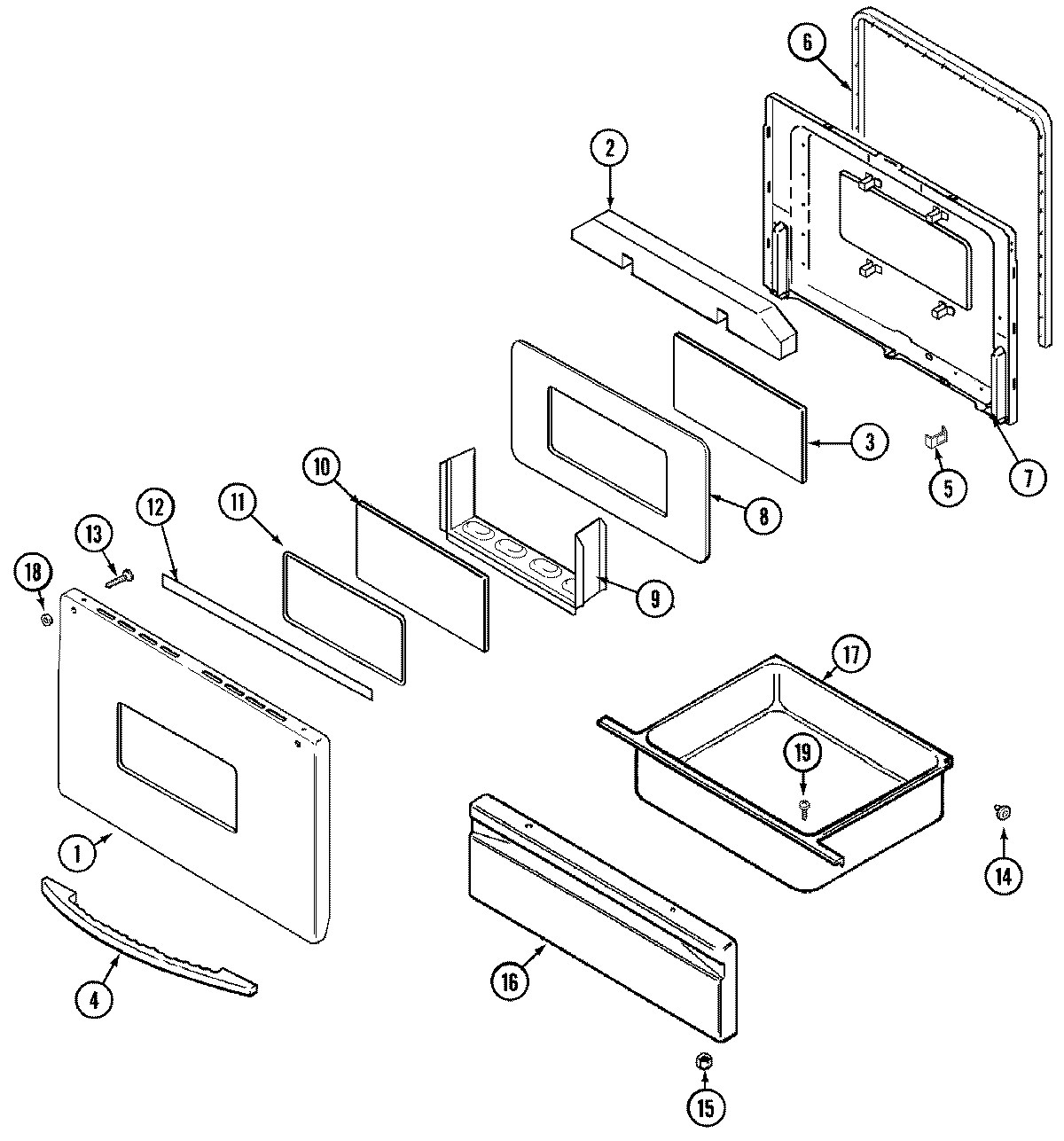

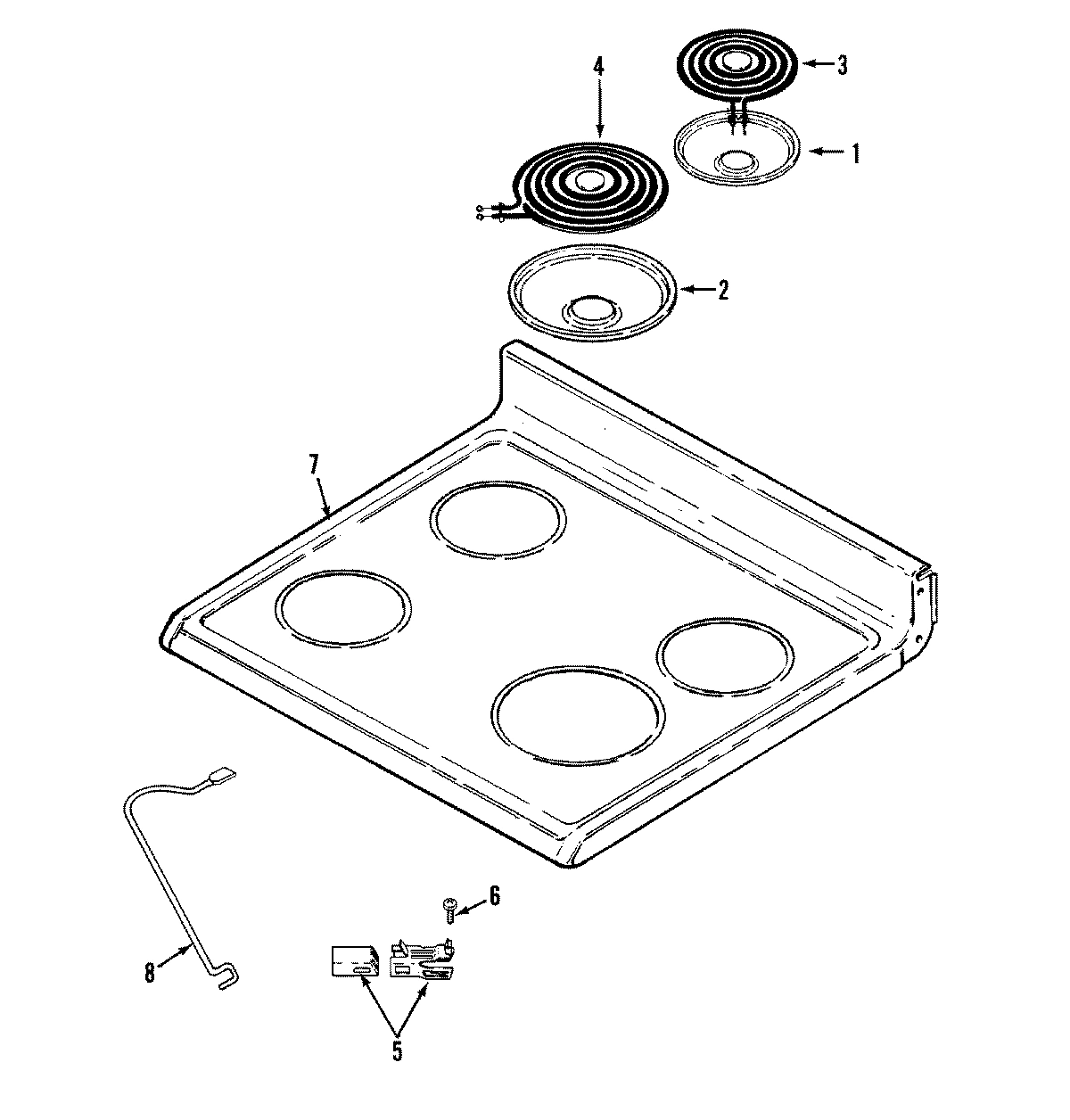

1

PANEL, DOOR (WHT) WPL 74006288 Contact Us For Availability

1

TUBE, VENT WPL 8026P01960 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

1

BACK, MAIN WPL 74006322 Contact Us For Availability

1

PANEL, CONTROL (WHT) WPL 74006373 Contact Us For Availability

1

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

2

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $5.02

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $12.65

2

INSULATION, DOOR WPL 74002458 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

CLOCK (WHT) WPL 74005381 Contact Us For Availability

3

WP12001559 Whirlpool Element Kit Backorder WPL WP12001559 $119.93

3

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

3

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $84.34

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

3

GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability

3

BOX, BURNER WPL 4011F23919 Contact Us For Availability

3

SCREW (WHT) WPL 7101P34860 Contact Us For Availability

3

BRACKET, CLOCK WPL 74005294 Contact Us For Availability

4

WP12001560 Whirlpool Surface Element Backorder WPL WP12001560 $141.27

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

WPW10345410 Whirlpool Surface Element Backorder WPL WPW10345410 $150.35

4

HANDLE, DOOR (WHT) WPL 74006291 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

5

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $61.72

5

CLIP, DOOR WPL 7112P03460 Contact Us For Availability

5

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

6

SCREW WPL 7118P01360 Contact Us For Availability

7

LINING, DOOR WPL 74005097 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 74003428 Contact Us For Availability

8

SCREW WPL 7101P20960 Contact Us For Availability

8

BAFFLE, DOOR WPL 74002461 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

8

PROP ROD WPL 74004084 Contact Us For Availability

9

SUPPORT, OUTER GLASS WPL 74002462 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

9

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

9

SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability

9

END CAP, CONTROL PNL (LT-WHT) WPL 74003370 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

GLASS, DOOR (OUTER-WHT) WPL 74002464 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

GASKET, WINDOW WPL 7201P01760 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

STRAP, INSULATION WPL 74003385 Contact Us For Availability

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

12

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $91.57

12

WP74003373 Whirlpool Knob Switch Backorder WPL WP74003373 $12.06

12

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $5.02

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability

INSULATION, WRAP WPL 74003112 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

WP74005019 Whirlpool Range Thermostat In Stock WPL WP74005019 $135.09

NUT WPL 7103P08260 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

BULB-OVEN WPL 7407P10360 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability

MANUAL, USE & CARE WPL 74005904 Contact Us For Availability

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

WASHER (1``) WPL 74001521 Contact Us For Availability

CLAMP, WIRE WPL 7111P02060 Contact Us For Availability

19

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

19

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

NI

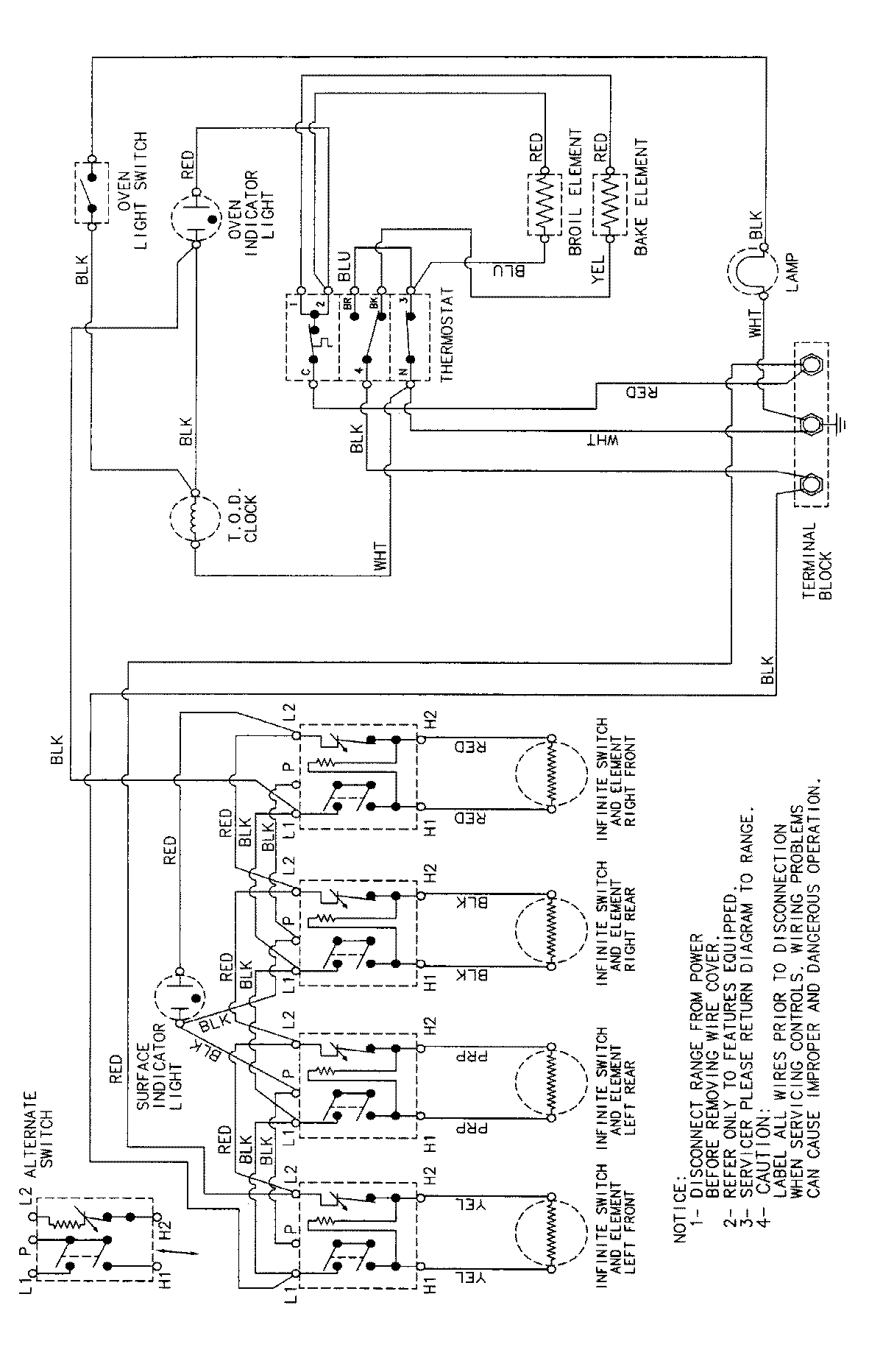

WIRING INFORMATION WPL 15002214 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003389 Contact Us For Availability
