Model Whirlpool PDET910AYW ELECTRIC DRYER – Common Parts & Diagrams

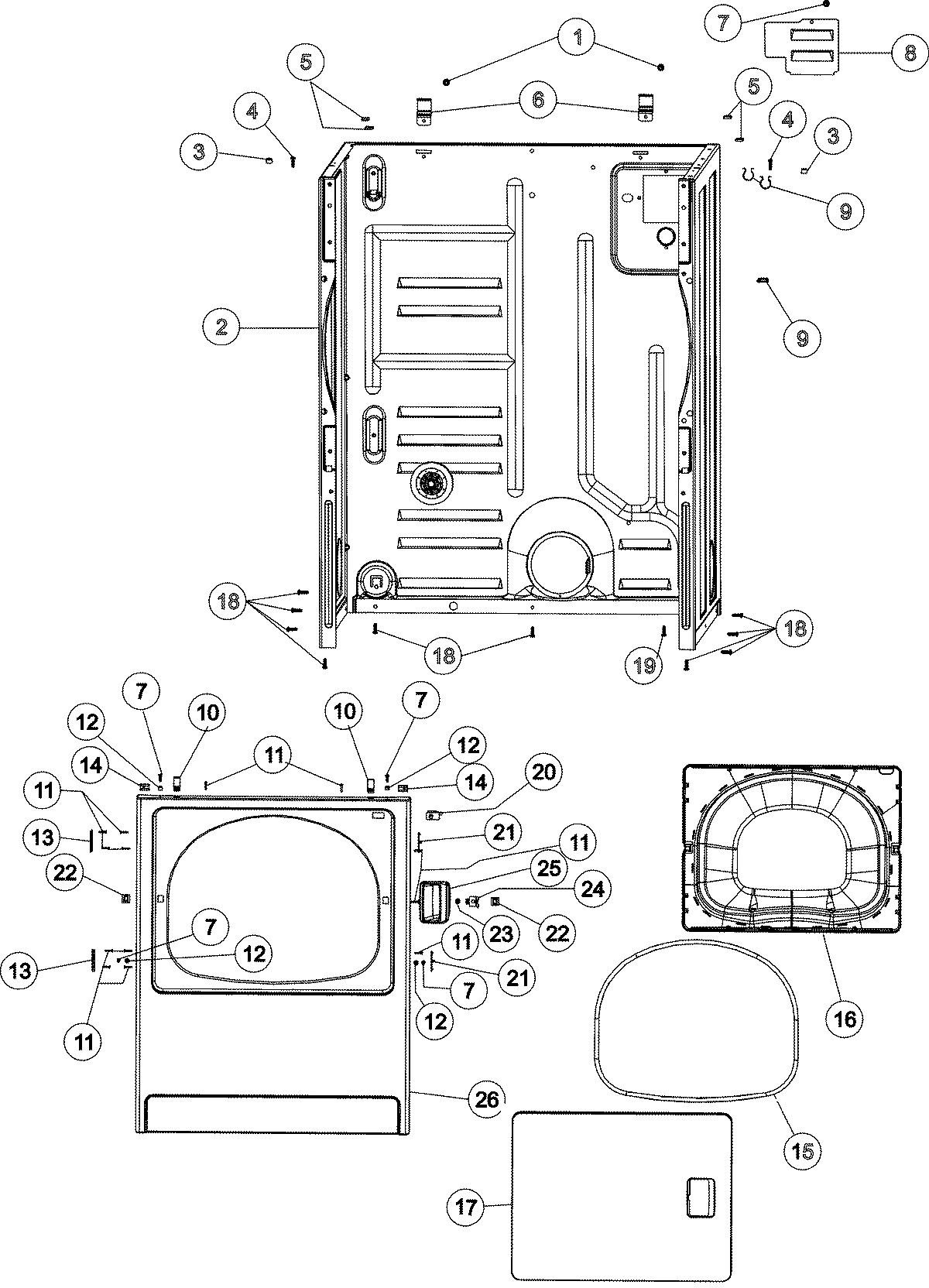

02 - CABINET & FRONT PANEL
04 - SUPPLEMENTAL INFORMATION

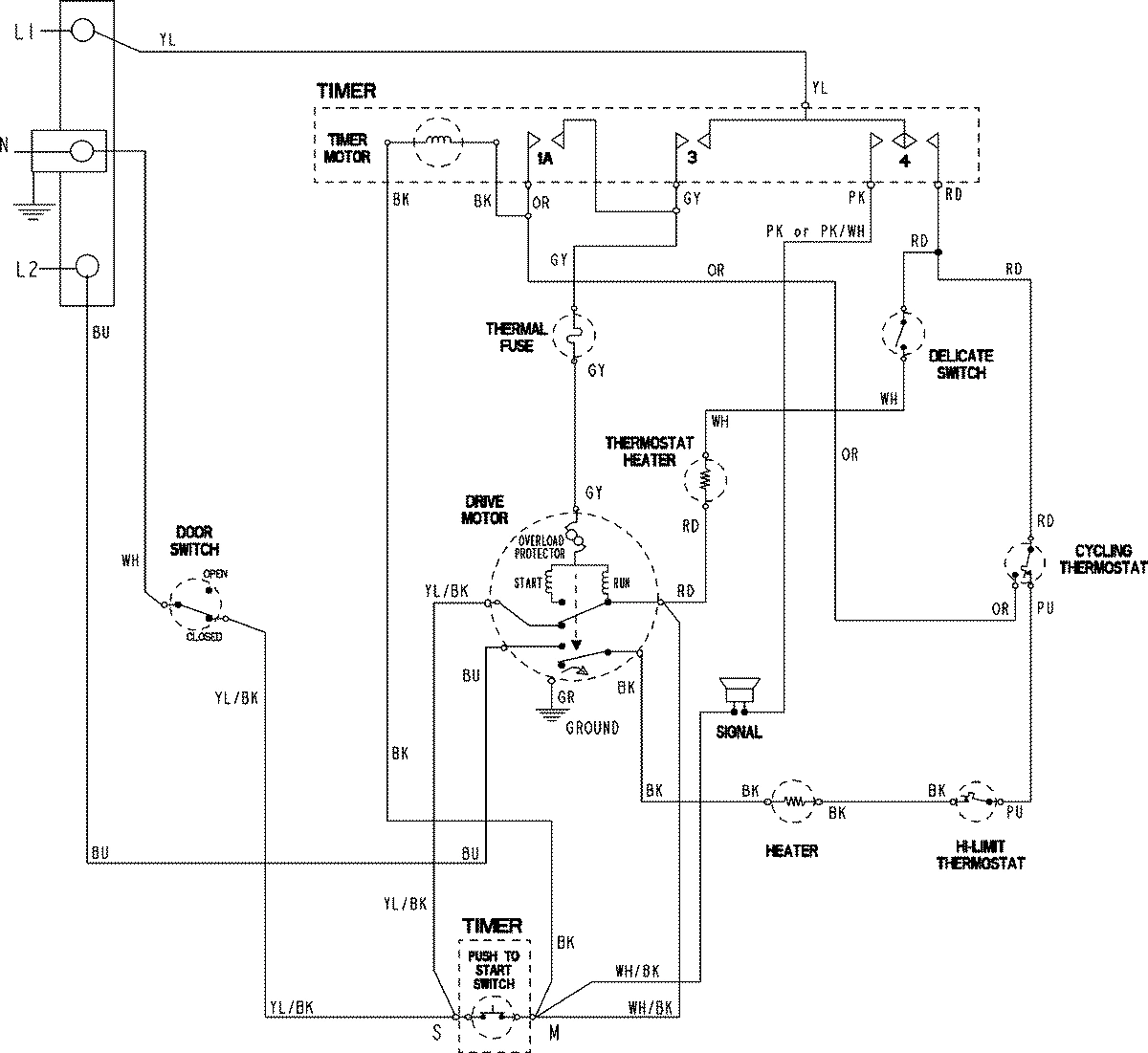

06 - WIRING INFORMATION

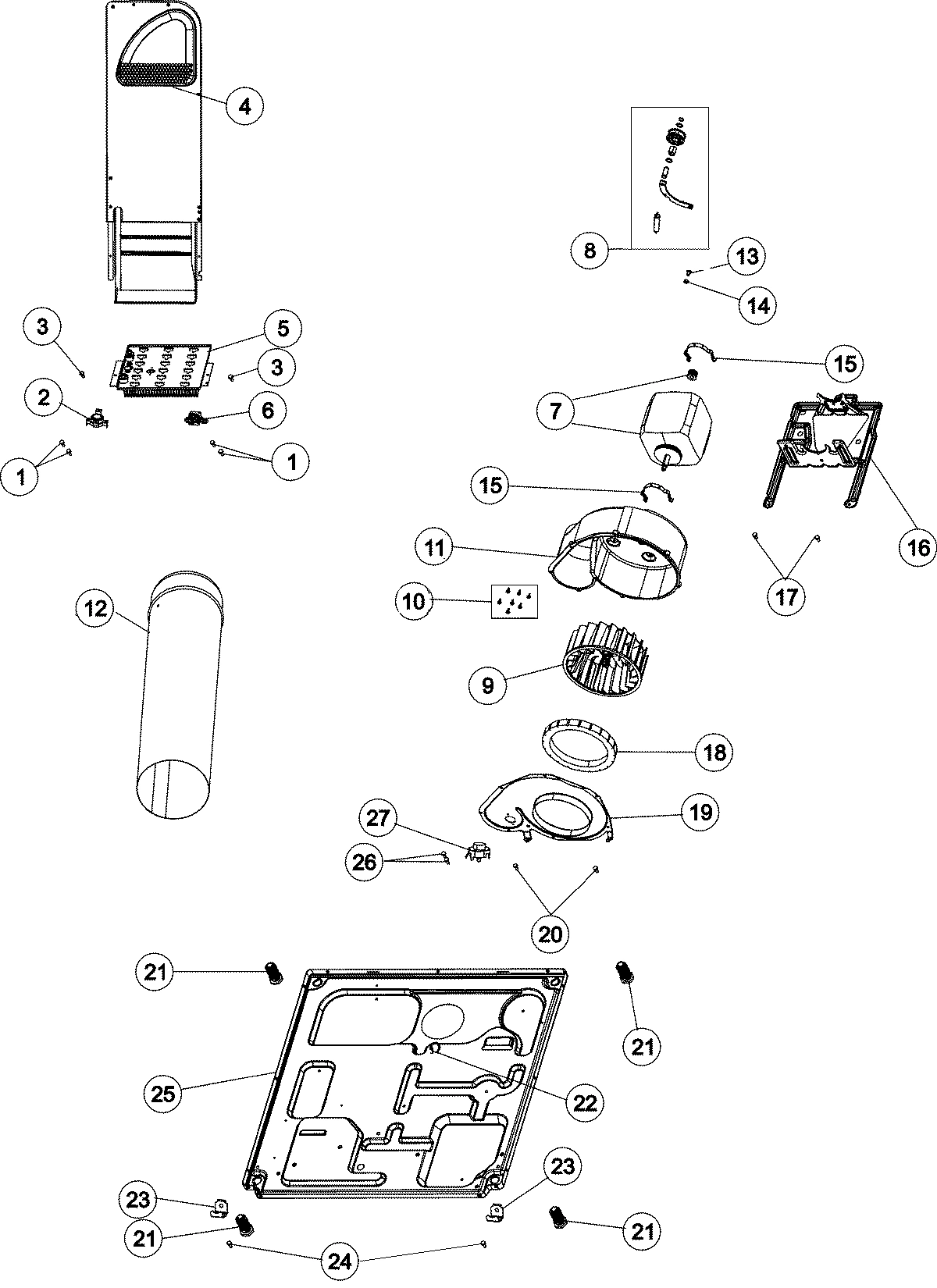

01 - BASE, HEATER & MOTOR

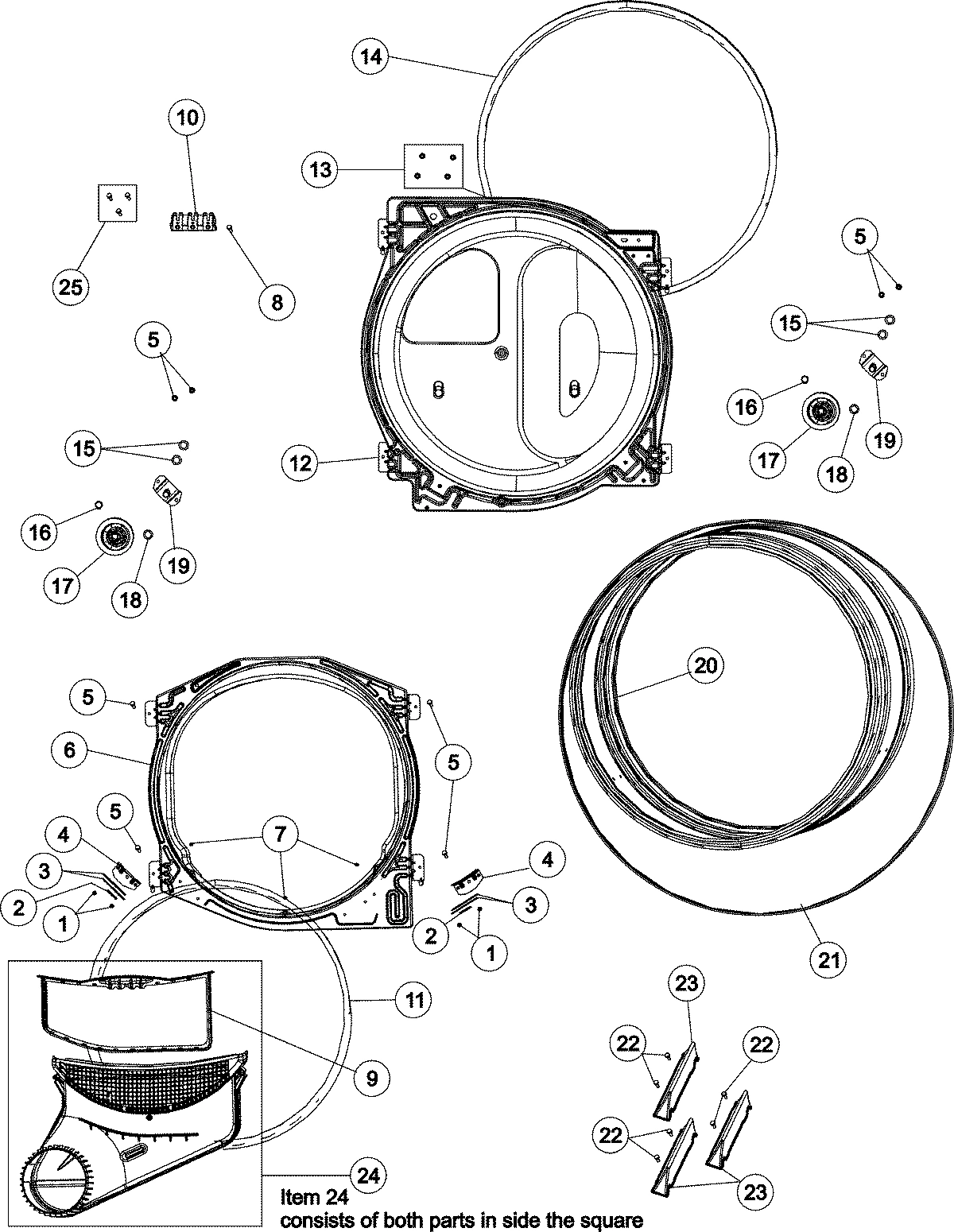

05 - TUMBLER

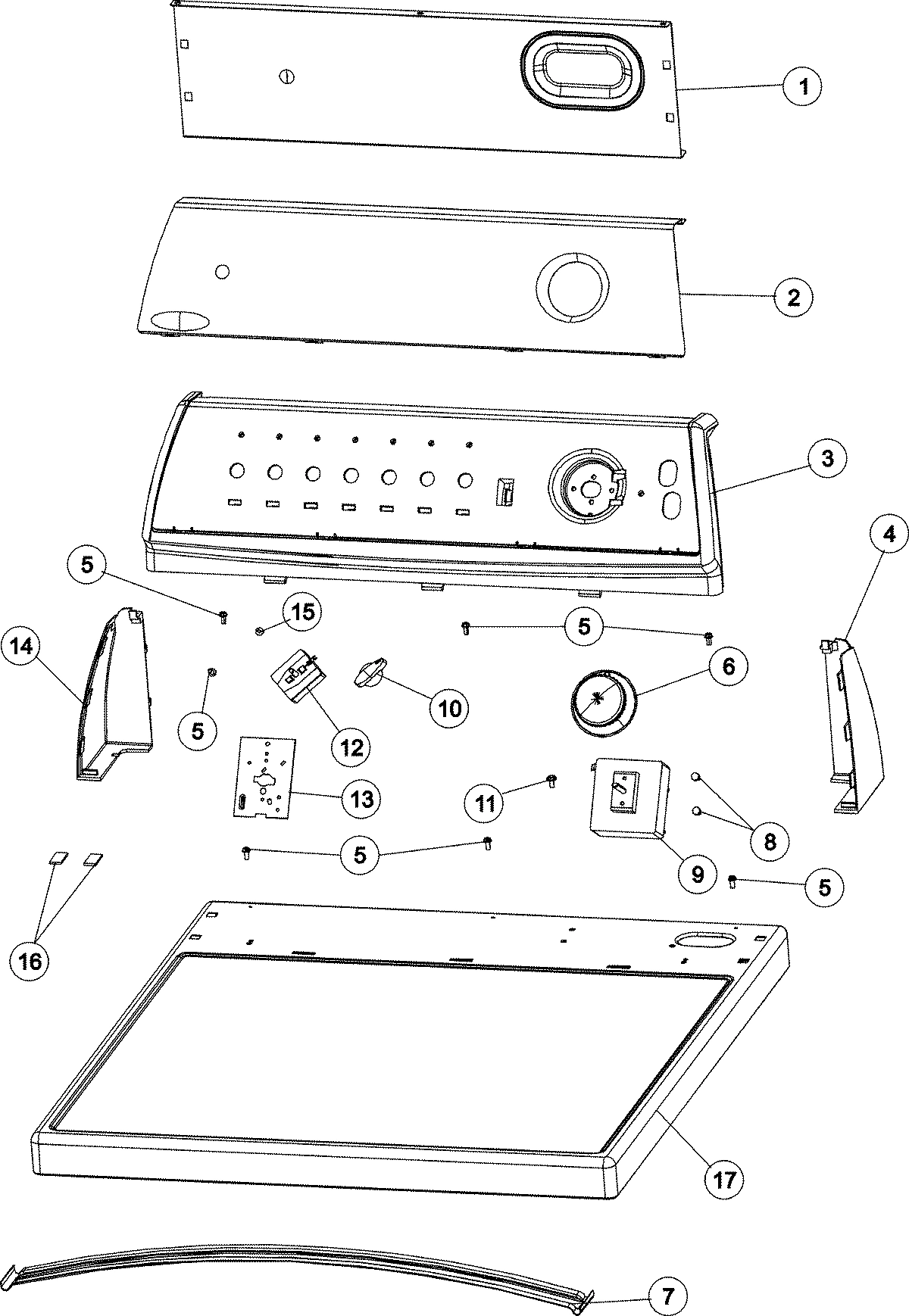

03 - CONTROL PANEL & TOP
Common parts from model Whirlpool PDET910AYW ELECTRIC DRYER
1
HARNESS, WIRE - DRYER WPL 37001174 Contact Us For Availability
1
SHIELD, BACKGUARD WPL 37001233 Contact Us For Availability
2
PAD, FELT-COIN WPL 500121 Contact Us For Availability
2
MANUAL, USE & CARE DRYER WPL 2206678 Contact Us For Availability
2
MANUAL, USE & CARE WPL Y2205342 Contact Us For Availability
2
FACIA WPL 37001217 Contact Us For Availability
3
SVC MAN, DOM DRYER GAS WPL 16026315 Contact Us For Availability
3
FRAME (WHT), CONTROL PANEL WPL 21001552 Contact Us For Availability
4
ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability
4
ENDCAP, PANEL (RT-WHT) WPL 21001547 Contact Us For Availability
5
GROMMET, CORD WPL 33002053 Contact Us For Availability
6
HINGE, TOP WPL 500003 Contact Us For Availability
6
WIRE, GROUND WPL 37001152 Contact Us For Availability
6
ASSY,BLKHD FRONT CO WPL 503756W Contact Us For Availability
7
LOCKNUT, EARED FOR CANADIAN WPL 33001425 Contact Us For Availability
7
SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability
7
BRACE, TOP WPL 56486 Contact Us For Availability
8
RACK,DRYING WPL Y504105 Contact Us For Availability
8
SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability
9
TIMER - DRYER WPL 37001240 Contact Us For Availability
9
BUZZER ASSY. WPL 531639 Contact Us For Availability
10
BLOCK, TERMINAL WPL 61923 Contact Us For Availability
10
KNOB-SELECTOR WPL 21002196 Contact Us For Availability
11
HOUSING, BLOWER WPL 56020 Contact Us For Availability
12
DUCT, EXHAUST WPL 505518 Contact Us For Availability
12
BULKHEAD, REAR (WHT) WPL 504801W Contact Us For Availability
12
SWITCH, TWO POSITION ROTARY WPL 31001190 Contact Us For Availability
13
SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability
13
SHIELD, CONTROL (1 POS.) WPL 21001517 Contact Us For Availability
14
ENDCAP, PANEL (LT-WHT) WPL 21001546 Contact Us For Availability
15
SEAL, FRONT PANEL WPL 504005 Contact Us For Availability
15
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
16
SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability
16
MOUNT, MOTOR WPL 503613 Contact Us For Availability
17
COVER, TOP - WHITE/DRYER WPL 37001232 Contact Us For Availability
18
SEAL, BLOWER HOUSING WPL 37001119 Contact Us For Availability
18
WASHER, WAVE WPL Y504082 Contact Us For Availability
19
COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability
20
ASSEMBLY, CYLINDER (WHT) WPL 504467W Contact Us For Availability
21
LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability
21
PLUG, HINGE HOLE WPL 503126 Contact Us For Availability
22
CLIP, WIRE WPL 504034 Contact Us For Availability
22
SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability
23
BAFFLE, (WHT) WPL 37001125 Contact Us For Availability
23
STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability
23
CLIP, FRONT PANEL WPL 37001145 Contact Us For Availability
24
BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability
24
AIR DUCT ASSEMBLY WPL 37001141 Contact Us For Availability
25
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
25
DRYER BASE WPL 37001156 Contact Us For Availability
25
SCREW PKG, TERMINAL BLOCK WPL 37001300 Contact Us For Availability
26
FRONT PANEL - WHITE WPL 37001154 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003796 Contact Us For Availability
× ![]()
