Model Whirlpool MH9181XMQ1 Microwave Oven 1.8 Cu. Ft. – Common Parts & Diagrams
02 - DOOR PARTS

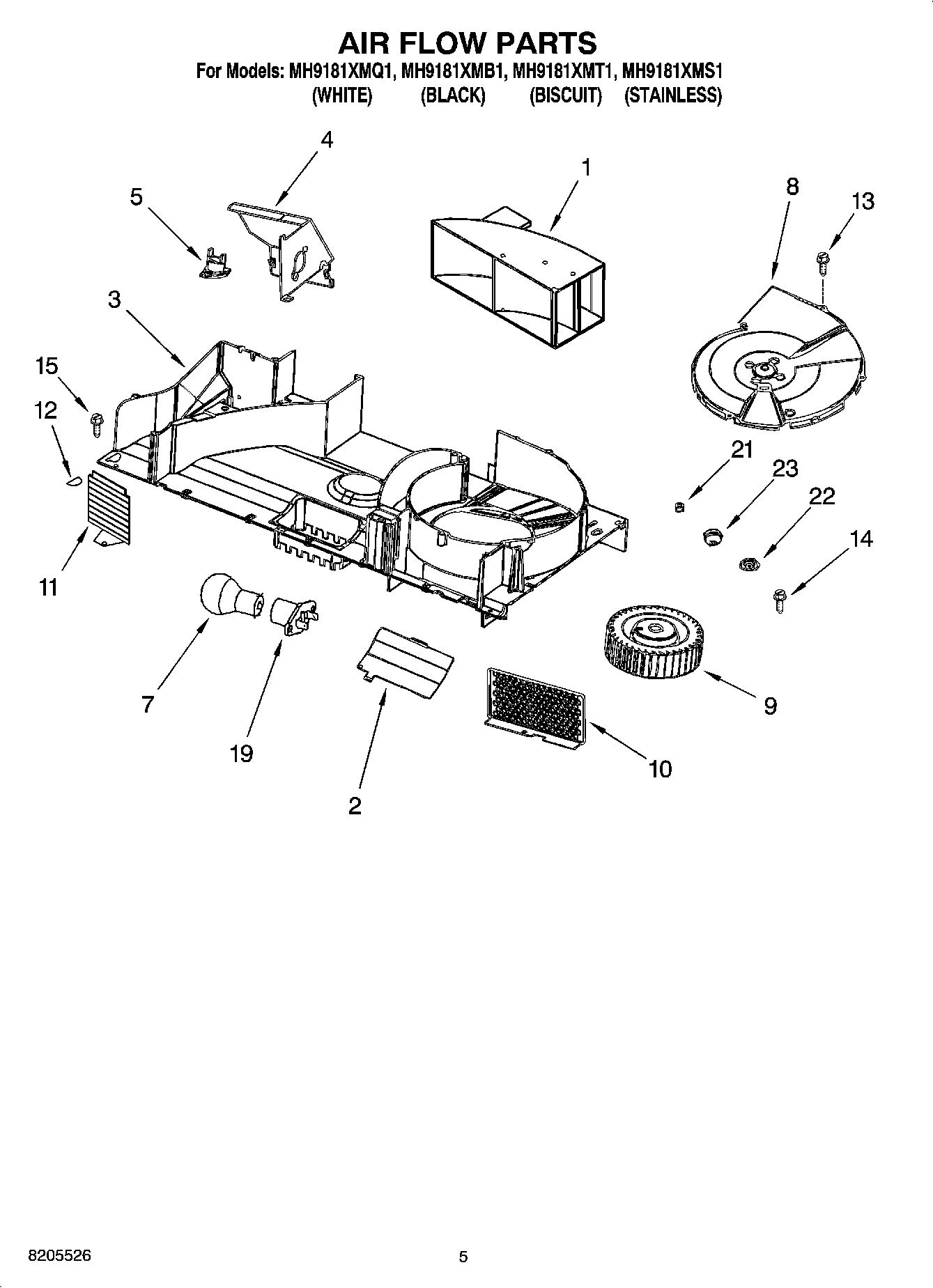

04 - AIR FLOW PARTS

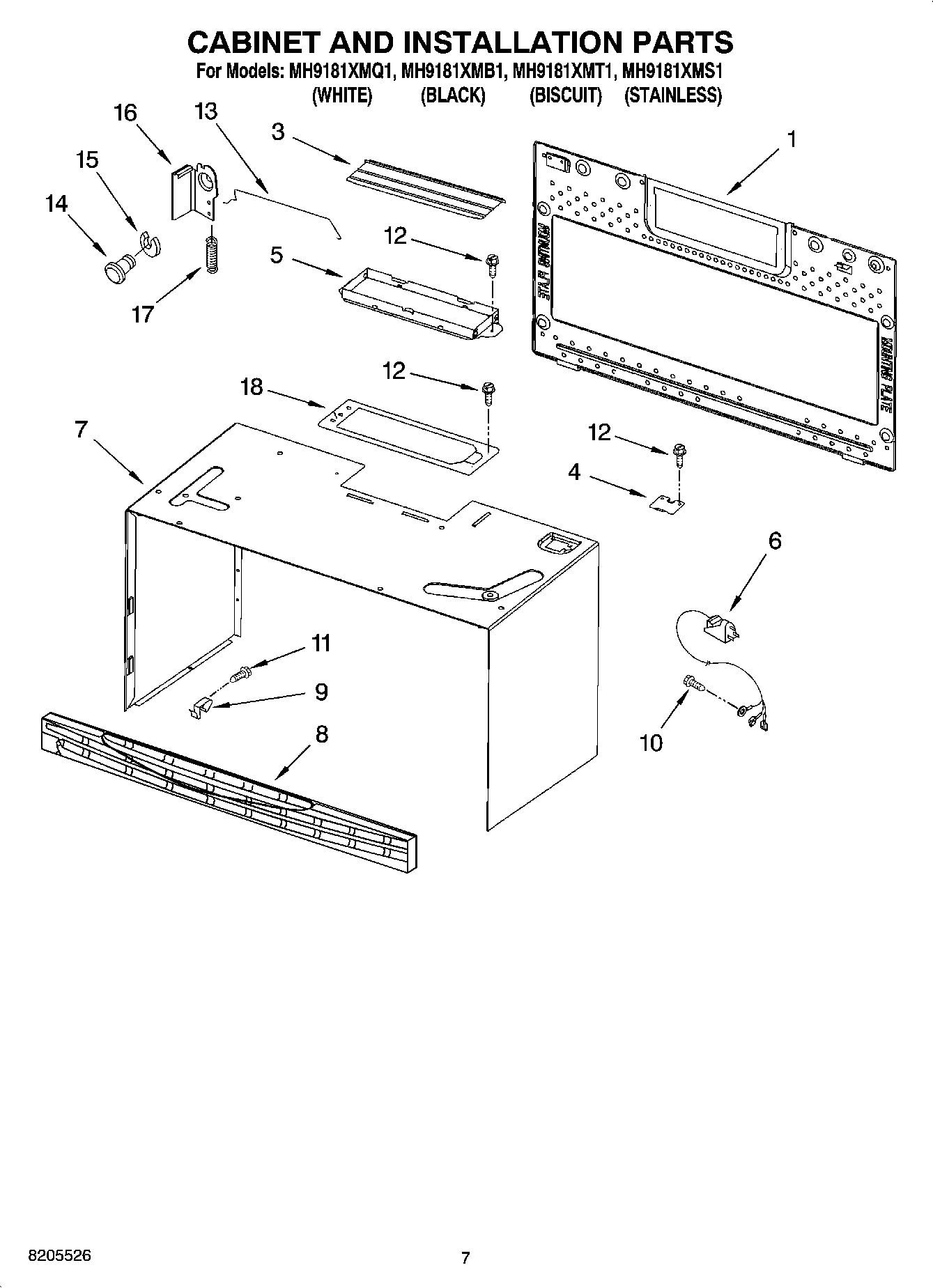

06 - CABINET AND INSTALLATION PARTS

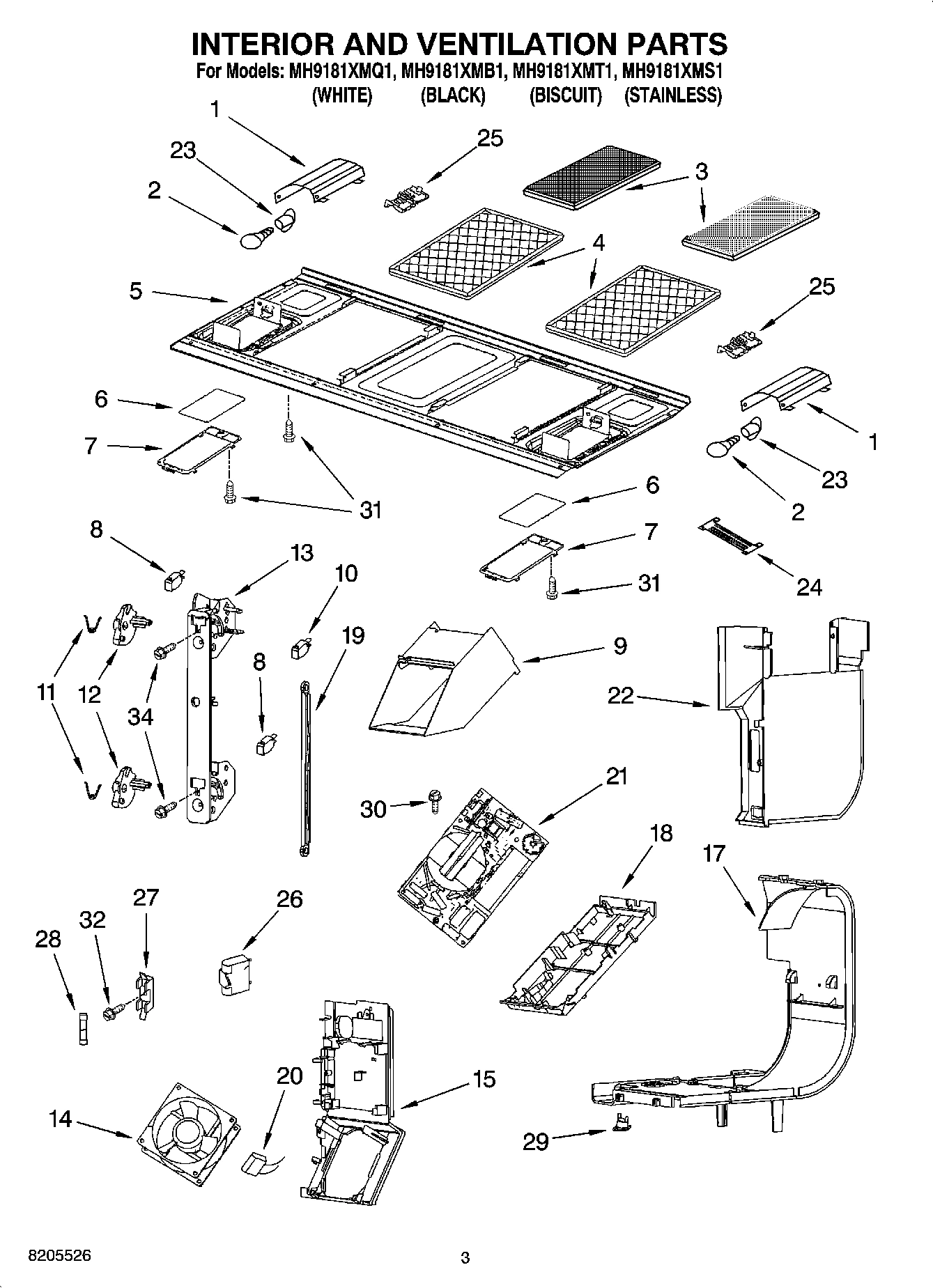

03 - INTERIOR AND VENTILATION PARTS

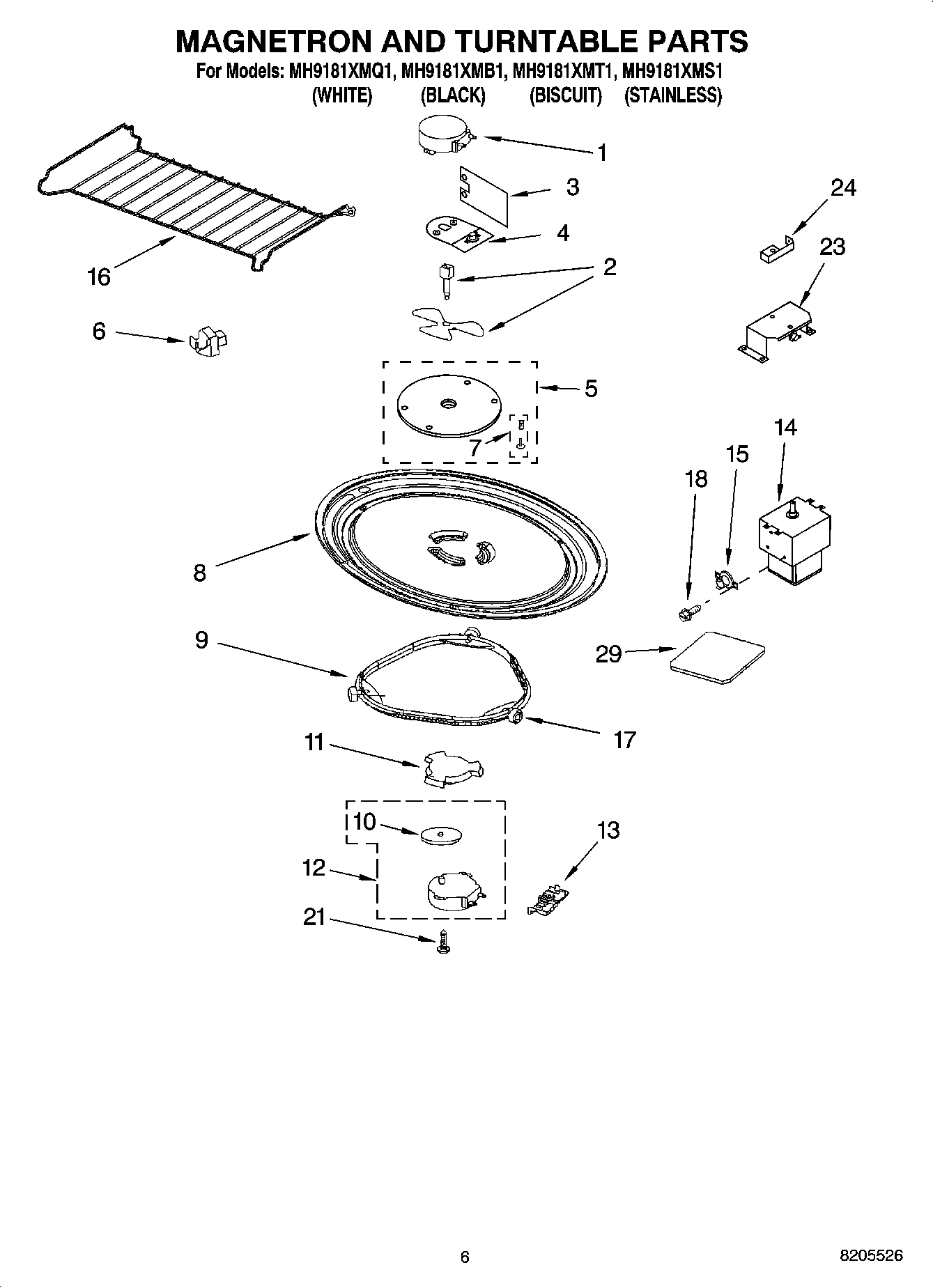

05 - MAGNETRON AND TURNTABLE PARTS

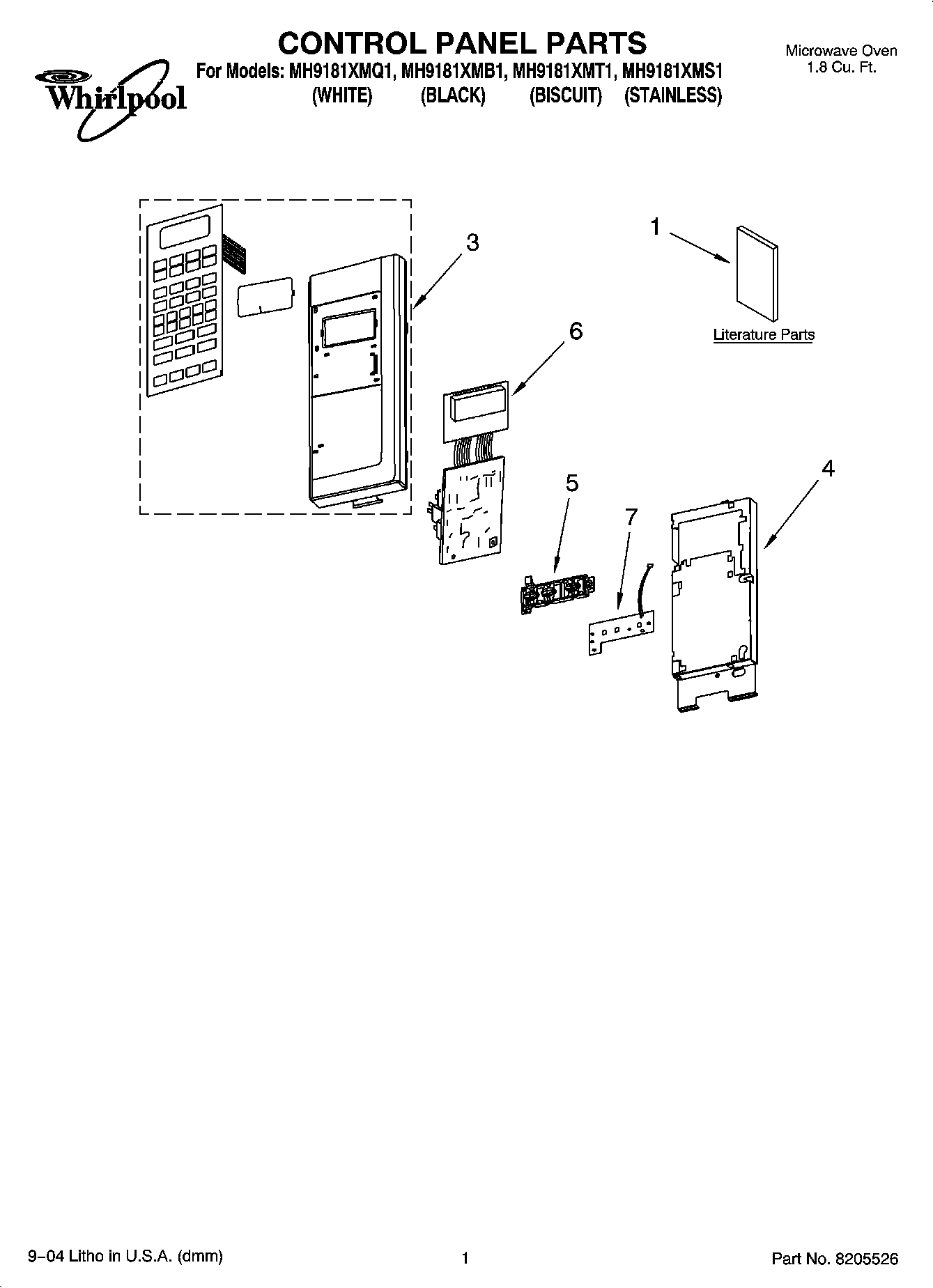

01 - CONTROL PANEL PARTS
Common parts from model Whirlpool MH9181XMQ1 Microwave Oven 1.8 Cu. Ft.
1
Reflector, Lamp WPL 8184959 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Literature Parts (Instructn, Install) WPL LIT8184059 Contact Us For Availability
1
Literature Parts (U & C Guide) WPL LIT8185465 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8185466 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8185467 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184108 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204801 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204802 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204803 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204804 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Bracket, Control WPL 8184920 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Plate, Bottom WPL 8204686 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8184477 Contact Us For Availability
5
Button, Control (White) WPL 8184110 Contact Us For Availability
5
Button, Control (Biscuit) WPL 8184182 Contact Us For Availability
5
Button, Control (Stainless/Black) WPL 8184183 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
6
Microcomputer WPL 8204822 Contact Us For Availability
7
Case, Outer (White) WPL 8184899 Contact Us For Availability
7
Case, Outer (Black/Stainless) WPL 8184900 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8184901 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Keyboard Assy WPL 8204823 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Grille, Vent (White) WPL 8184118 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184170 Contact Us For Availability
8
Grille, Vent (Black) WPL 8184171 Contact Us For Availability
8
Grille, Vent (Stainless) WPL 8204791 Contact Us For Availability
9
Cover, Inverter WPL 8184124 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
12
Plate, Cam WPL 8184121 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Fan, DC 12 V WPL 8184875 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Rack WPL 8184052 Contact Us For Availability
17
Wheel (3) WPL 4393861 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Bracket, Holder WPL 8185032 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Template, Upper WPL 8183985 Contact Us For Availability
18
Template, Wall WPL 8183987 Contact Us For Availability
18
Miscellaneous WPL ARI118326A Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Holder, Lamp WPL 8184926 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Cable WPL 8184887 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
25
Cover, Terminal WPL 8184202 Contact Us For Availability
26
Capacitor WPL 8184204 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
29
Foil, Lamp WPL 8184203 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
× ![]()
