Model Whirlpool MH8150XMB0 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

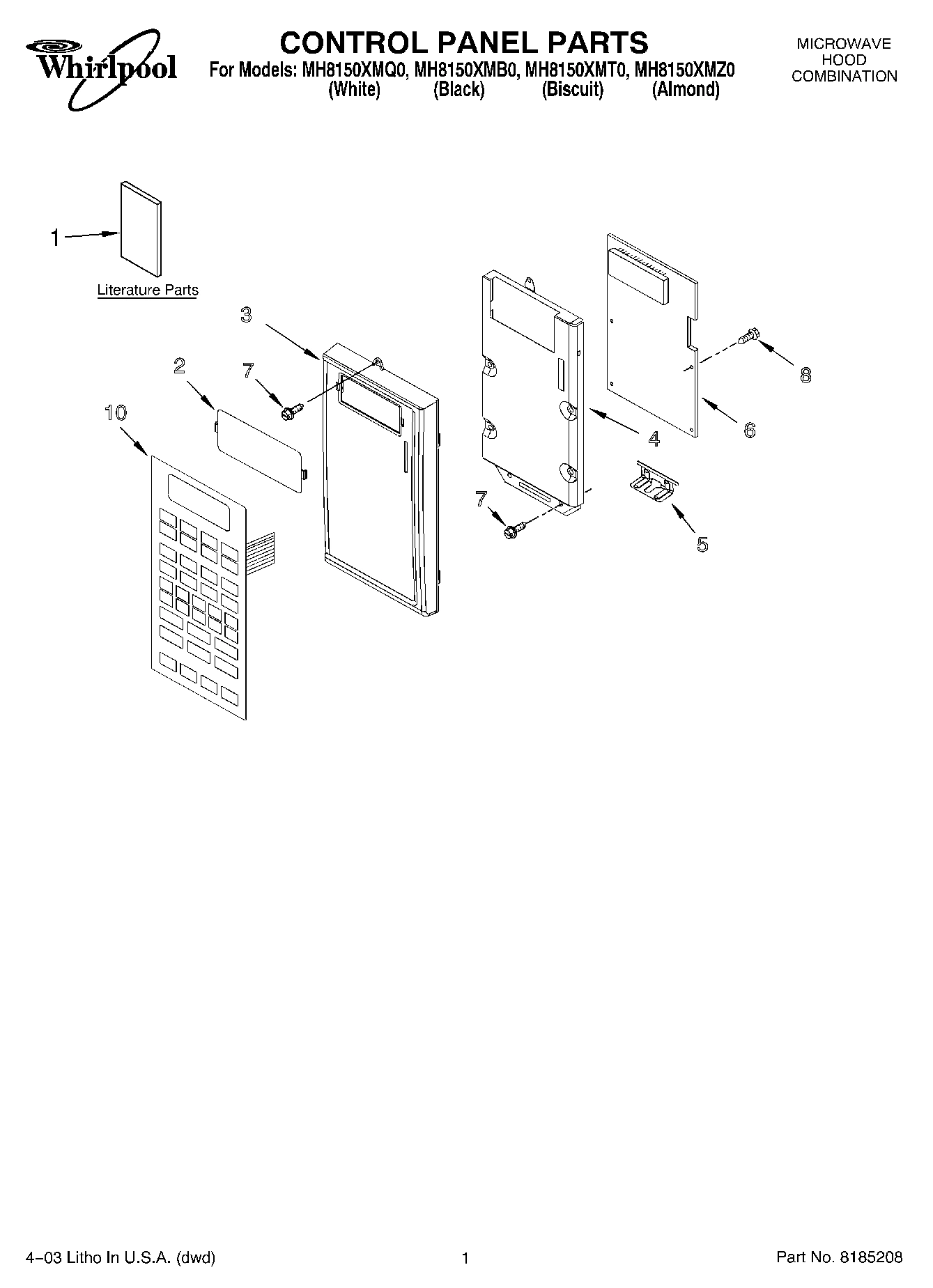

1

Literature Parts (Installation Instructions) WPL LIT8183731 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8184983 Contact Us For Availability

1

Literature Parts (Guide, Cooking (Label)) WPL LIT8184991 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8184999 Contact Us For Availability

1

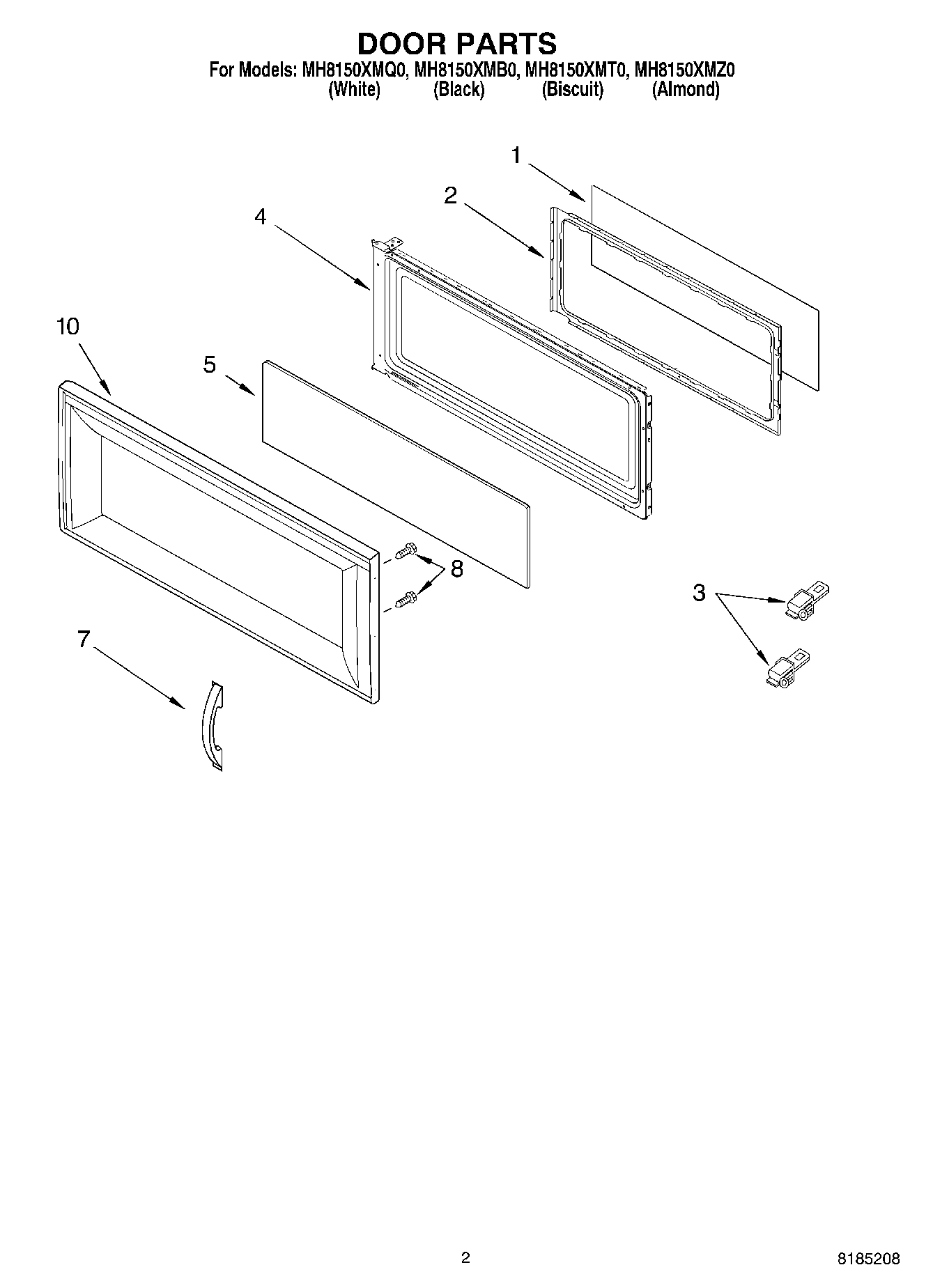

Film, Back WPL 4393870 Contact Us For Availability

2

Frame, Inner WPL 8169545 Contact Us For Availability

2

Lens (B/Q/Z Models) WPL 8183708 Contact Us For Availability

2

Lens (Biscuit Model) WPL 8183724 Contact Us For Availability

3

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $50.07

3

Latch, Door WPL 4393913 Contact Us For Availability

3

Panel, Control (Black) WPL 8183709 Contact Us For Availability

3

Panel, Control (White) WPL 8183710 Contact Us For Availability

3

Panel, Control (Almond) WPL 8183711 Contact Us For Availability

3

Panel, Control (Biscuit) WPL 8183725 Contact Us For Availability

4

Body, Door (White) WPL 8169653 Contact Us For Availability

4

Lid, Power Cord WPL 8184313 Contact Us For Availability

4

Bracket, Control WPL 8183821 Contact Us For Availability

4

Body, Door (Almond) WPL 8169429 Contact Us For Availability

4

Body, Door (Black) WPL 8169460 Contact Us For Availability

4

Body, Door (Biscuit) WPL 8169546 Contact Us For Availability

5

Glass, Outer (Clear (Green Tint)) WPL 4393725 Contact Us For Availability

5

Thermostat WPL 8183697 Contact Us For Availability

5

Plate, Hinge WPL 4393744 Contact Us For Availability

5

Glass, Outer (Clear) WPL 8183704 Contact Us For Availability

6

W10315274 Whirlpool Microwave Meal Rack Backorder WPL W10315274 $19.80

6

Microcomputer WPL 8183713 Contact Us For Availability

6

Cord, Power WPL 8184898 Contact Us For Availability

7

4393777 Whirlpool Microwave Door Handle - Whi In Stock WPL 4393777 $65.76

7

4393782 Whirlpool Microwave Door Handle In Stock WPL 4393782 $79.01

7

Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability

7

Handle, Door (Almond) WPL 4393783 Contact Us For Availability

7

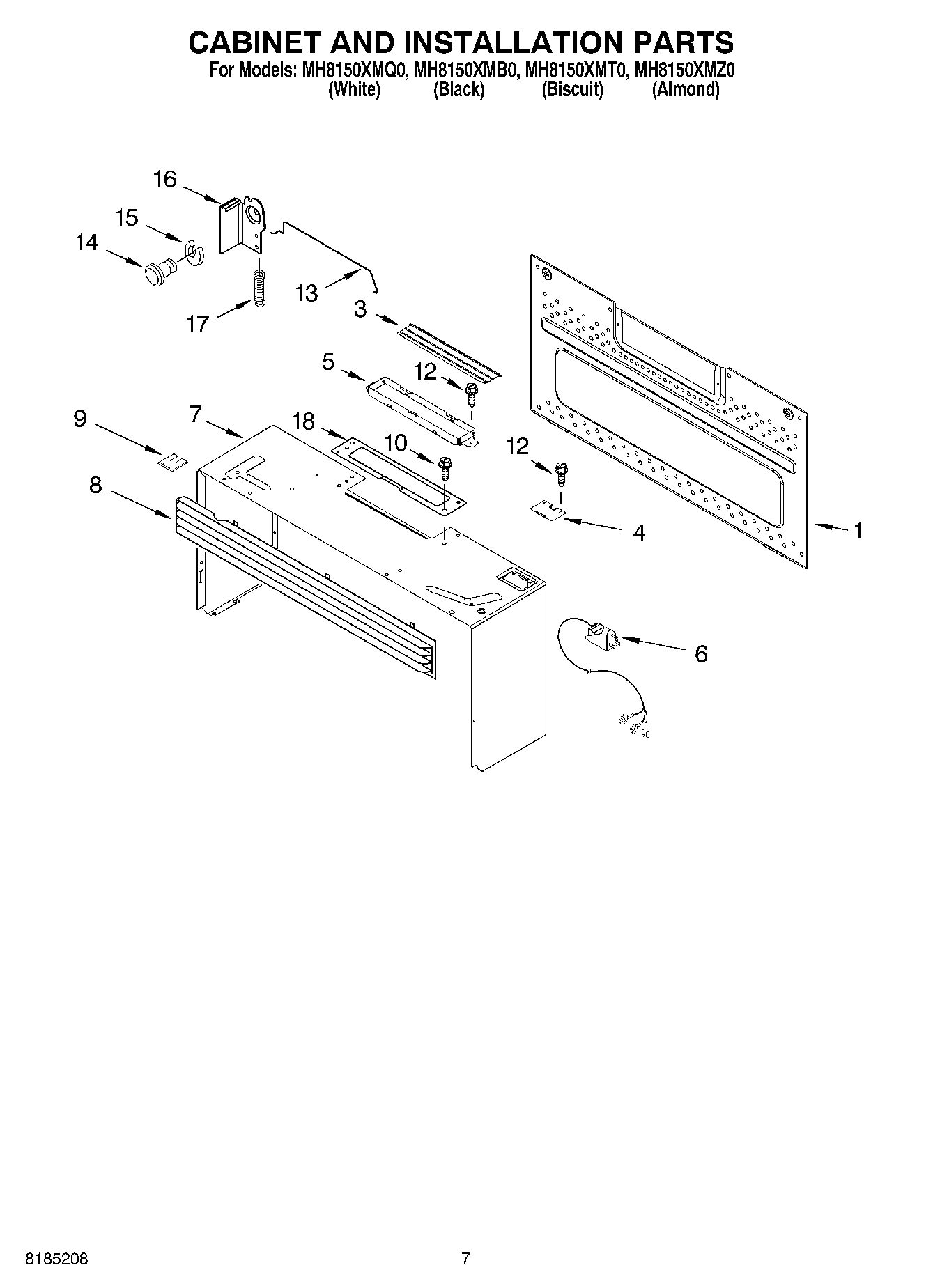

Case, Outer (White) WPL 8169660 Contact Us For Availability

7

Case, Outer (Black) WPL 8169661 Contact Us For Availability

7

Case, Outer (Almond) WPL 8169662 Contact Us For Availability

7

Case, Outer (Biscuit) WPL 8169664 Contact Us For Availability

7

Screw WPL 4393828 Contact Us For Availability

8

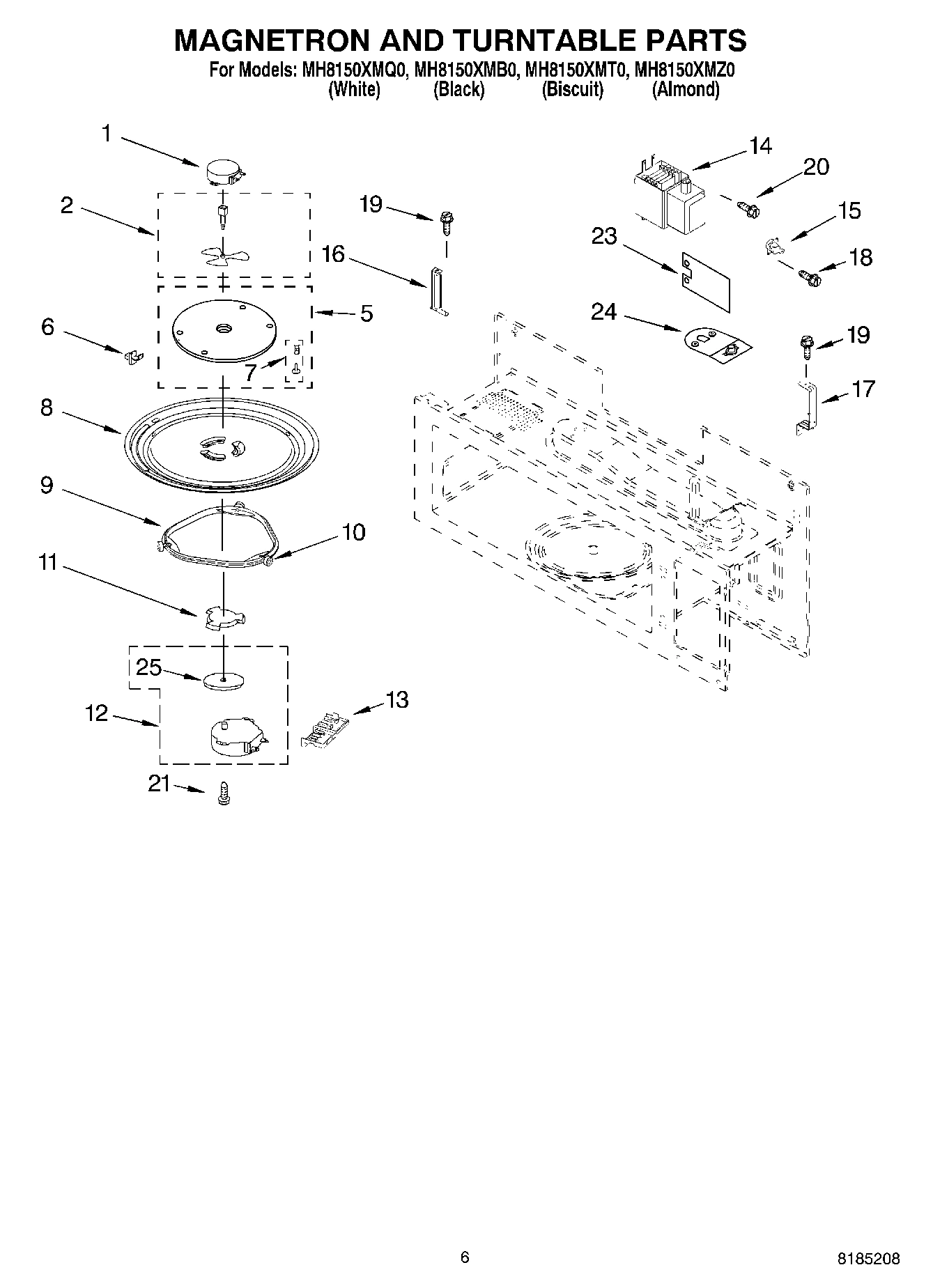

Turntable WPL 4393799 No Longer Available

8

8183851 Whirlpool Microwave Oven Vent Grille In Stock WPL 8183851 $30.78

8

8183852 Whirlpool Microwave Primary Vent Gril In Stock WPL 8183852 $32.95

8

8183948 Whirlpool Microwave Oven Vent Grille In Stock WPL 8183948 $29.01

8

Grille, Vent (Almond) WPL 8184243 Contact Us For Availability

8

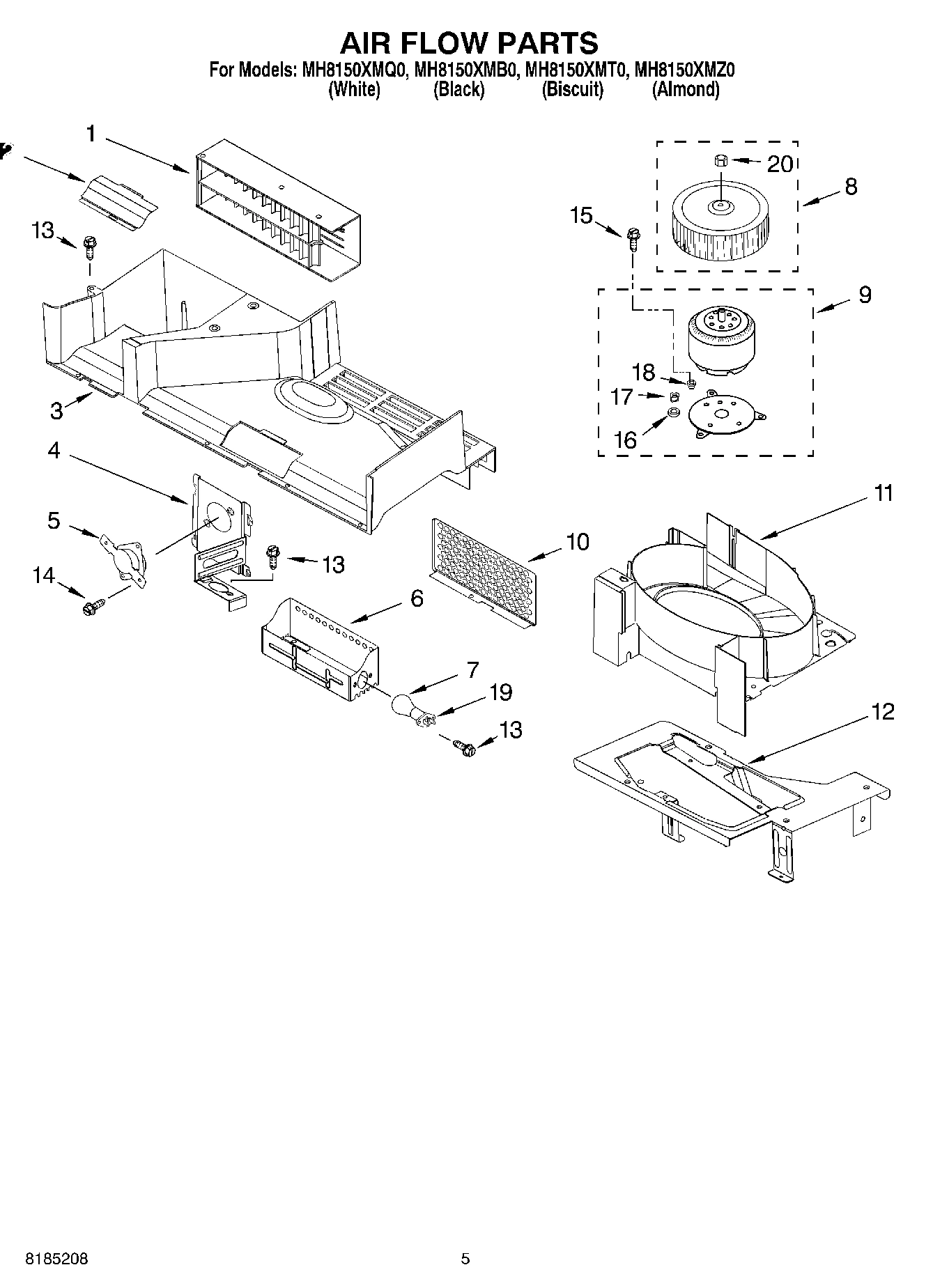

Guide, Air (Magnetron) WPL 8184309 Contact Us For Availability

8

Screw WPL 4393346 Contact Us For Availability

9

8206334 Whirlpool Microwave Mounting Bracket In Stock WPL 8206334 $2.83

9

Cover, Fan WPL 8183823 Contact Us For Availability

8169353 Whirlpool Microwave Door Frame Backorder WPL 8169353 $131.98

8169481 Whirlpool Microwave Outer Door Frame Backorder WPL 8169481 $102.87

WP4393834 Whirlpool Microwave Screw Backorder WPL WP4393834 $4.77

Wheel, Plastic WPL 4393861 Contact Us For Availability

Switch, Micro (3) WPL 8204656 Contact Us For Availability

Switch, Membrane (Almond) WPL 8183707 Contact Us For Availability

Switch, Membrane (White) WPL 8204695 Contact Us For Availability

Switch, Membrane (Black) WPL 8204696 Contact Us For Availability

Switch, Membrane (Biscuit) WPL 8204697 Contact Us For Availability

Frame, Outer (Almond) WPL 8169354 Contact Us For Availability

Frame, Outer (Biscuit) WPL 8185213 Contact Us For Availability

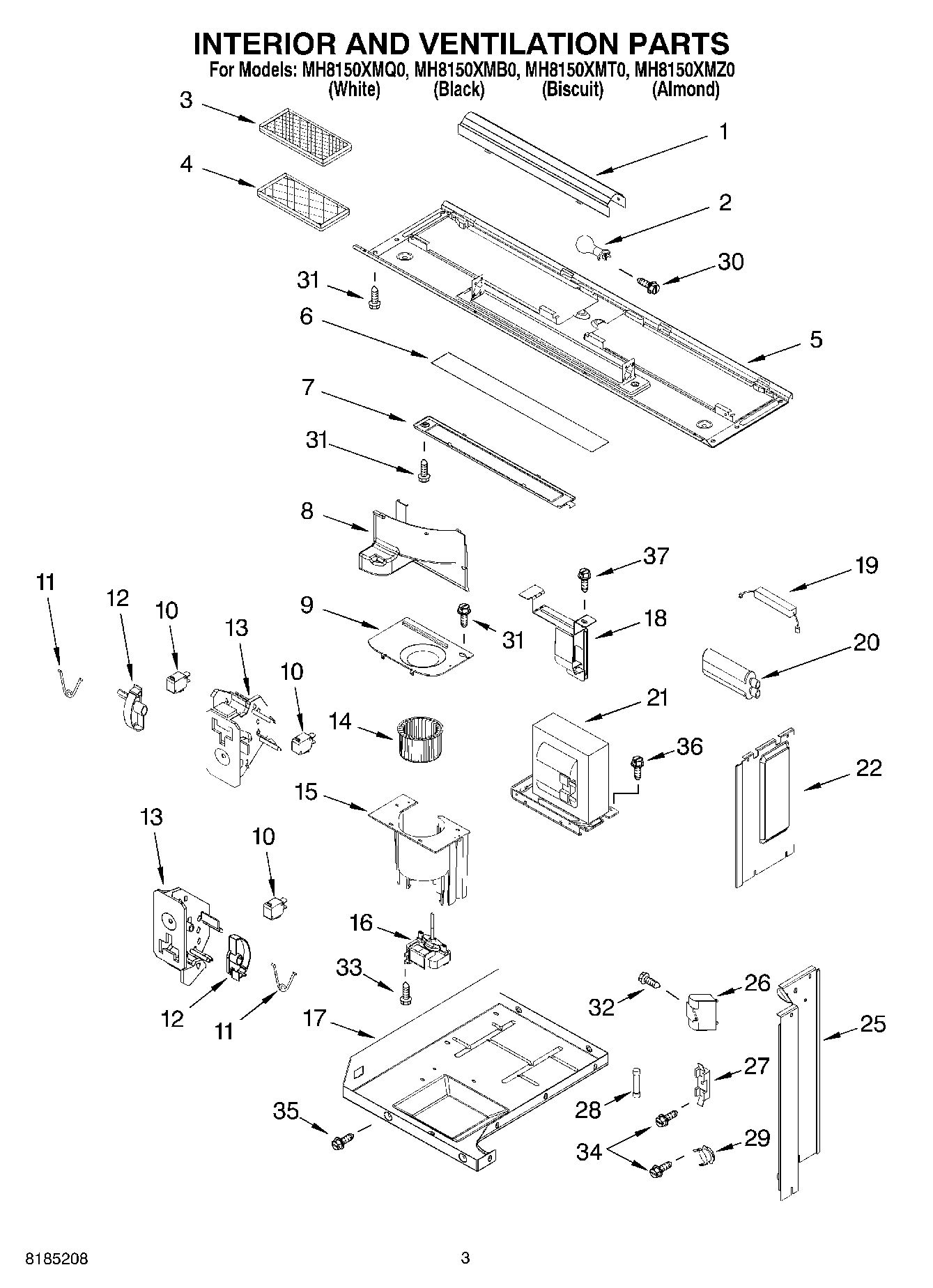

11

Spring, Interlock (2) WPL 8169438 Contact Us For Availability

12

Plate, Cam (2) WPL 8183824 Contact Us For Availability

13

8205572 Whirlpool Microwave Interlock Backorder WPL 8205572 $4.19

13

Screw WPL 8169474 Contact Us For Availability

13

Rod WPL 8169318 Contact Us For Availability

14

Wheel, Fan WPL 8183825 Contact Us For Availability

14

Latch, Pivot WPL 8169319 Contact Us For Availability

15

Thermostat WPL 8183698 Contact Us For Availability

15

Housing, Fan WPL 8184310 Contact Us For Availability

15

E-Ring WPL 8169320 Contact Us For Availability

16

Motor, Fan WPL 8185211 Contact Us For Availability

16

Catch WPL 8185033 Contact Us For Availability

17

Spacer, Copper Pipe WPL 8184129 Contact Us For Availability

17

Chassis WPL 8185212 Contact Us For Availability

17

Spring WPL 8169374 Contact Us For Availability

WP8169704 Whirlpool Screw In Stock WPL WP8169704 $3.50

Cushion, Mtr WPL 8169635 Contact Us For Availability

Filler Kit (Black) WPL 8171337 Contact Us For Availability

Filler Kit (White) WPL 8171336 Contact Us For Availability

Holder, Capacitor WPL 8184311 Contact Us For Availability

Plate, Damper WPL 8169697 Contact Us For Availability

Hardware, Installation WPL 8169768 Contact Us For Availability

Filler Kit (Biscut) WPL 8171338 Contact Us For Availability

Filler Kit (Almond) WPL 8171570 Contact Us For Availability

Wall Template WPL 8183743 Contact Us For Availability

Rack WPL 8183813 Contact Us For Availability

Upper Template WPL 8183985 Contact Us For Availability

Miscellaneous WPL ARI118277A Contact Us For Availability

ACCESSORY PARTS WPL ARI118278A Contact Us For Availability

19

8169539 Whirlpool Microwave Light Bulb Socket Backorder WPL 8169539 $35.16

19

W11256462 Whirlpool Microwave Diode In Stock WPL W11256462 $15.24

20

W10850446 Whirlpool Microwave Magnetron Capac In Stock WPL W10850446 $143.73

21

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $14.93

21

Transformer, H.V. WPL 8185252 Contact Us For Availability

22

Plate, Side (R) WPL 4393705 Contact Us For Availability

25

8184109 Whirlpool Microwave Spacer In Stock WPL 8184109 $4.51

25

Plate, Side (L) WPL 8169470 Contact Us For Availability

26

Capacitor WPL 4393709 Contact Us For Availability

27

Holder, Fuse WPL 8184312 Contact Us For Availability

28

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $23.48

29

Thermostat WPL 8183703 Contact Us For Availability

33

Screw WPL 4393833 Contact Us For Availability

34

Screw WPL 8169478 Contact Us For Availability

35

8169479 Whirlpool Microwave Screw Backorder WPL 8169479 $3.22

36

Screw WPL 4393839 Contact Us For Availability

37

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $10.17
