Model Whirlpool MH8150XJT0 MICROWAVE OVEN – Common Parts & Diagrams
02 - DOOR

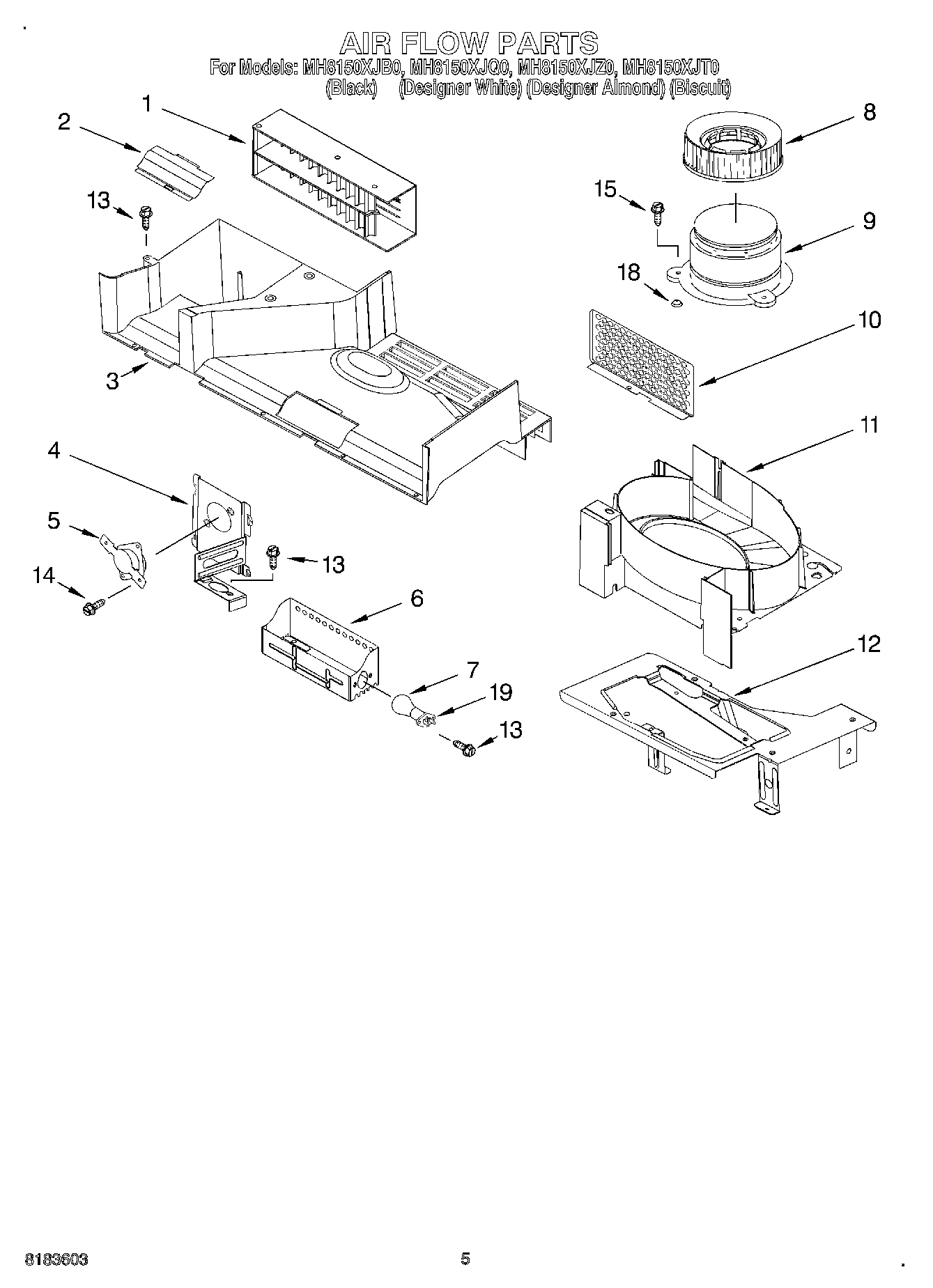

04 - AIR FLOW

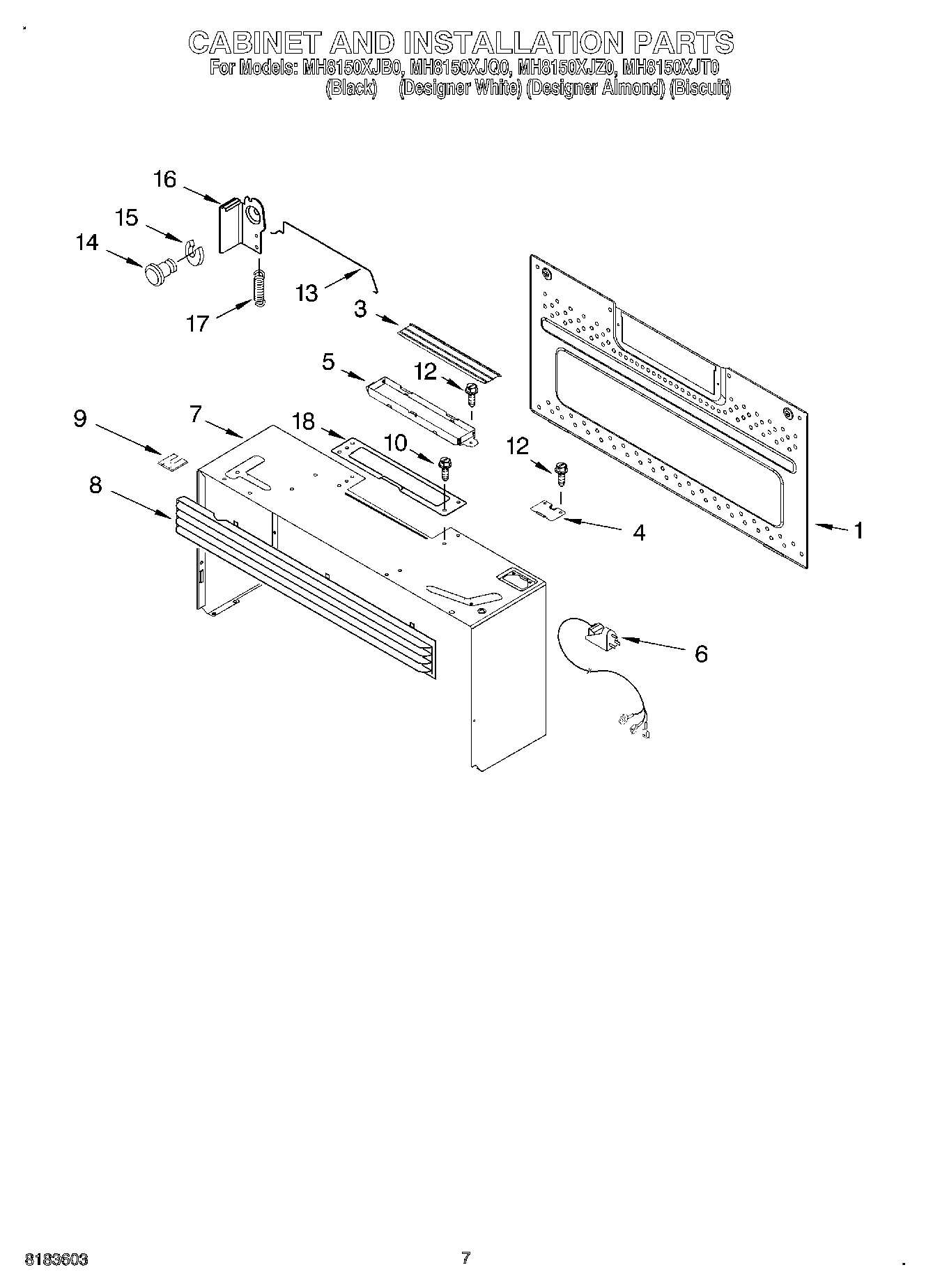

06 - CABINET AND INSTALLATION, OPTIONAL

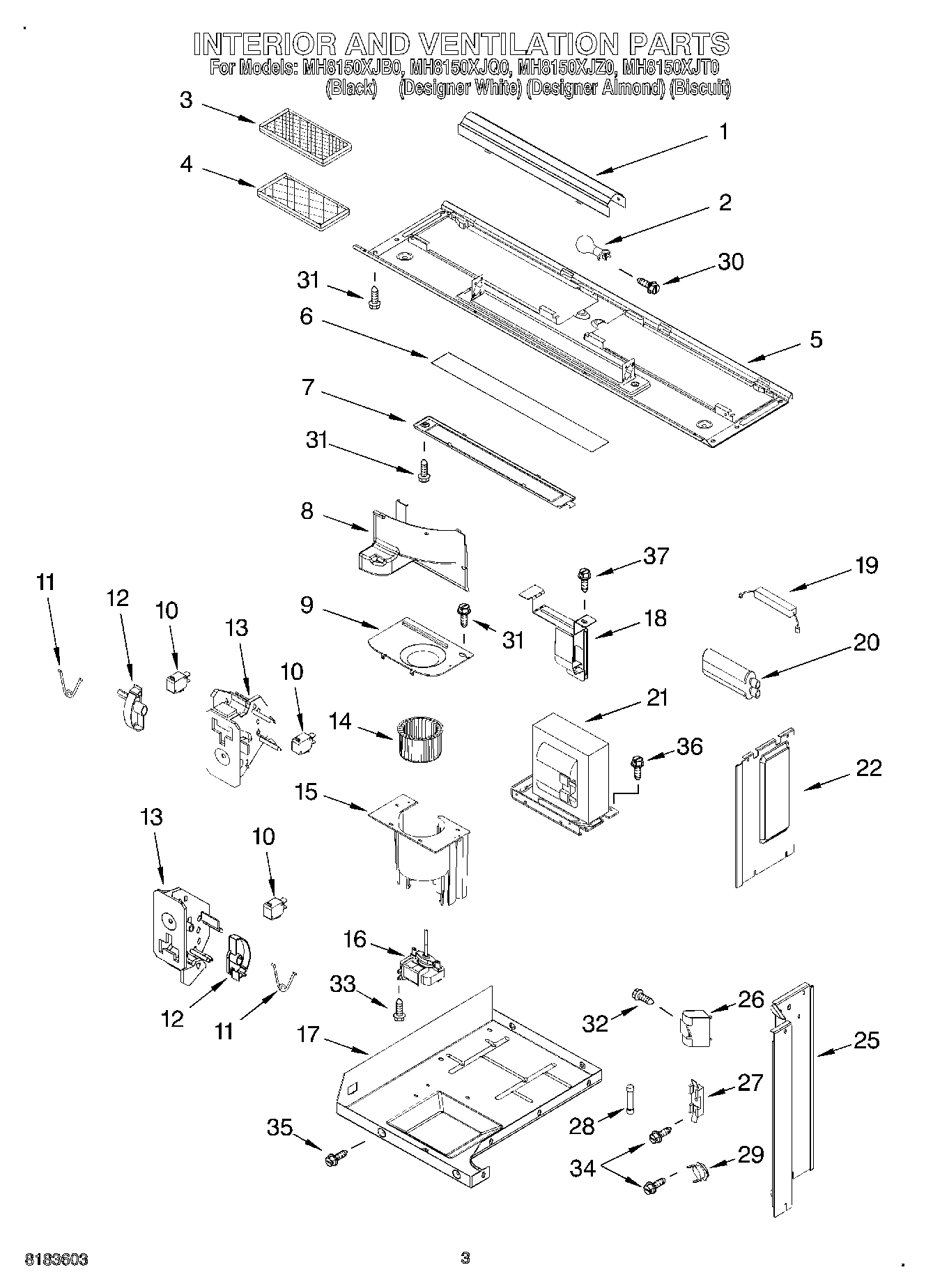

03 - INTERIOR AND VENTILATION

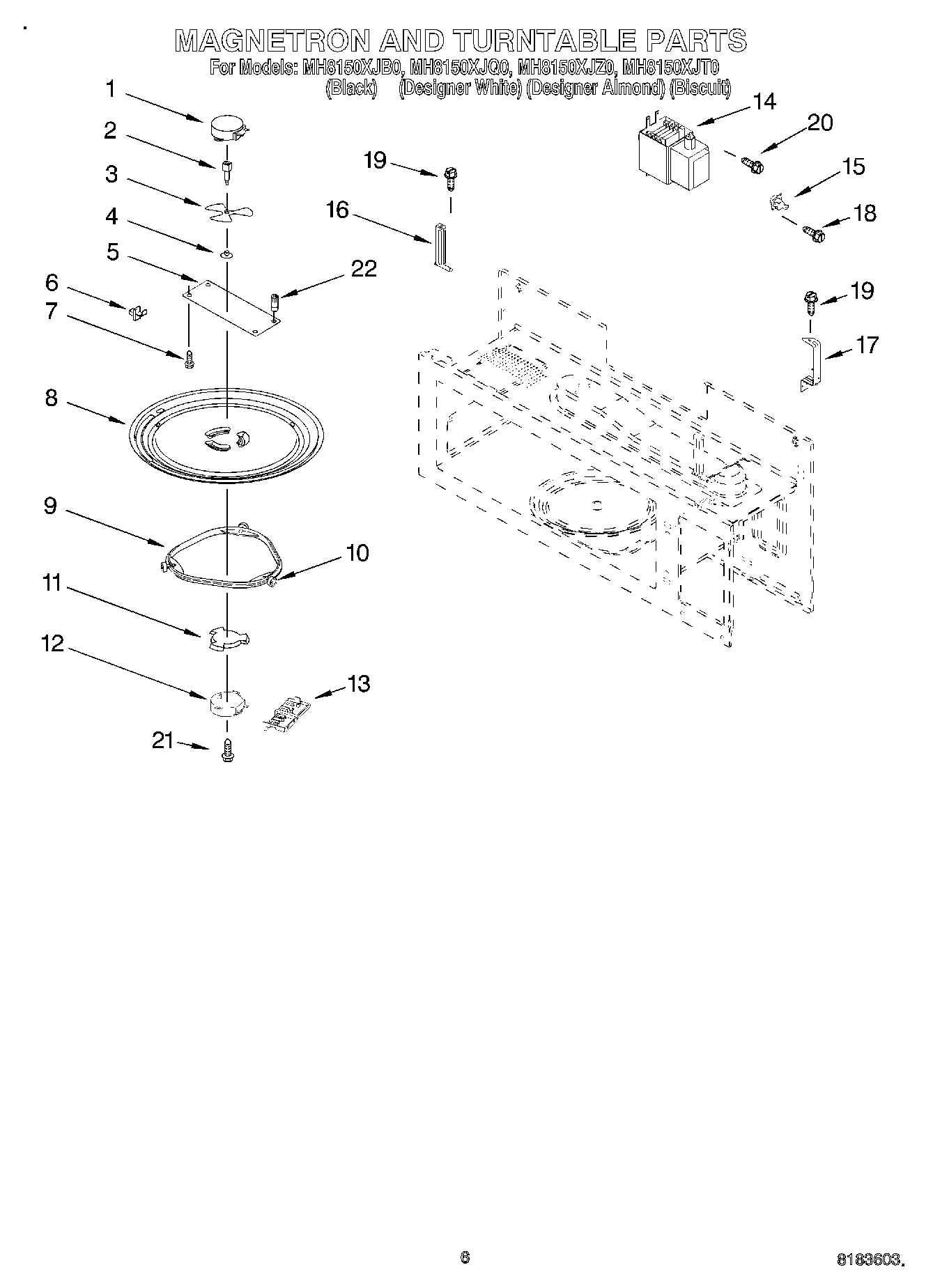

05 - MAGNETRON & TURNTABLE

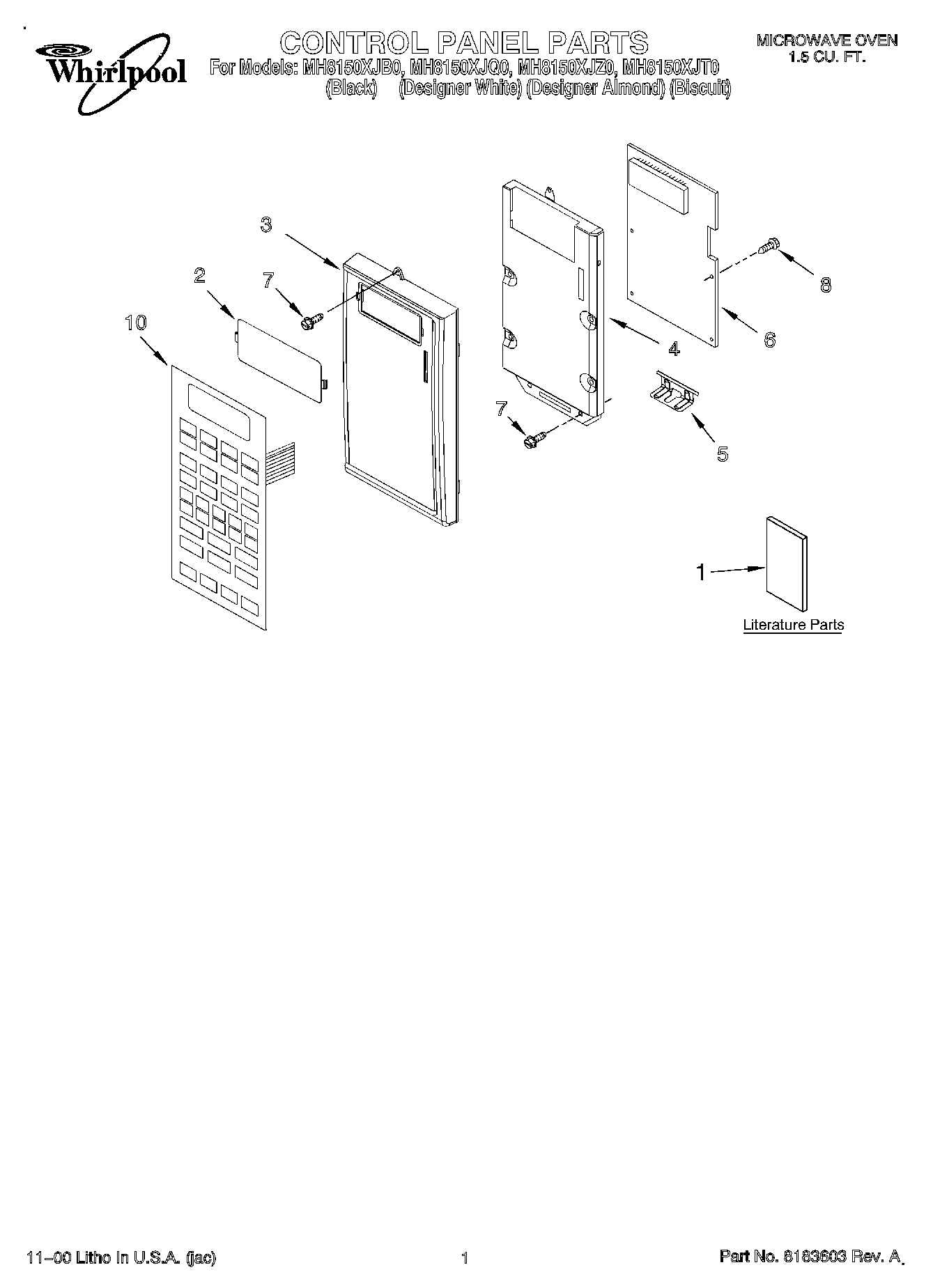

01 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool MH8150XJT0 MICROWAVE OVEN
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8169687 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8169689 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8169769 Contact Us For Availability
1
Literature Parts (Guide, Cooking (Label)) WPL LIT8183715 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Shaft, Stirrer WPL 4393794 Contact Us For Availability
2
Lens (B/Q/Z Models) WPL 8183708 Contact Us For Availability
2
Lens (Biscuit Model) WPL 8183724 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Stirrer WPL 4393748 Contact Us For Availability
3
Panel, Control (Black) WPL 8183709 Contact Us For Availability
3
Panel, Control (White) WPL 8183710 Contact Us For Availability
3
Panel, Control (Almond) WPL 8183711 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 8183725 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Guide, Stirrer WPL 4393749 Contact Us For Availability
4
Bracket, Control WPL 8183712 Contact Us For Availability
5
Glass, Outer (Clear (Green Tint)) WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Bottom WPL 8169407 Contact Us For Availability
5
Cover, Inlet WPL 4393750 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
6
Microcomputer WPL 8183713 Contact Us For Availability
6
Glass, Lamp WPL 8169564 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Handle, Door (Almond) WPL 4393783 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Holder, Glass WPL 8169316 Contact Us For Availability
7
Nail, Plastic WPL 4393291 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Screw WPL 4393833 Contact Us For Availability
8
Grille, Vent (Almond) WPL 8169334 Contact Us For Availability
8
Guide, Air (Magnetron) WPL 8183699 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
9
Cover, Fan WPL 8183700 Contact Us For Availability
10
Switch, Membrane (Black) WPL 8183705 Contact Us For Availability
10
Switch, Membrane (White) WPL 8183706 Contact Us For Availability
10
Switch, Membrane (Almond) WPL 8183707 Contact Us For Availability
10
Switch, Membrane (Biscuit) WPL 8183816 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
12
Plate, Cam (2) WPL 8169469 Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
14
Wheel, Fan WPL 8183701 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Housing, Fan WPL 8183702 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Motor, Fan WPL 4393700 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Chassis WPL 8169740 Contact Us For Availability
17
Holder, Connector (R) WPL 4393686 Contact Us For Availability
18
Filler Kit (Black) WPL 8171337 Contact Us For Availability
18
Filler Kit (White) WPL 8171336 Contact Us For Availability
18
Upper Template WPL 8169298 Contact Us For Availability
18
Wall Template WPL 8169487 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Hardware, Installation WPL 8169768 Contact Us For Availability
18
Filler Kit (Biscut) WPL 8171338 Contact Us For Availability
18
Filler Kit (Almond) WPL 8171570 Contact Us For Availability
18
Rack WPL 8183714 Contact Us For Availability
18
Holder, Capacitor WPL 4393702 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Screw WPL 8169474 Contact Us For Availability
21
Transformer, H.V. WPL 8169698 Contact Us For Availability
22
Plate, Side (R) WPL 4393705 Contact Us For Availability
22
Bushing, Nail WPL 4393290 Contact Us For Availability
25
Plate, Side (L) WPL 8169470 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 4393538 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
35
Screw WPL 8169475 Contact Us For Availability
37
Screw WPL 4393830 Contact Us For Availability
× ![]()
