Model Whirlpool MH7155XMS0 MICROWAVE OVEN – Common Parts & Diagrams
06 - CABINET AND INSTALLATION PARTS

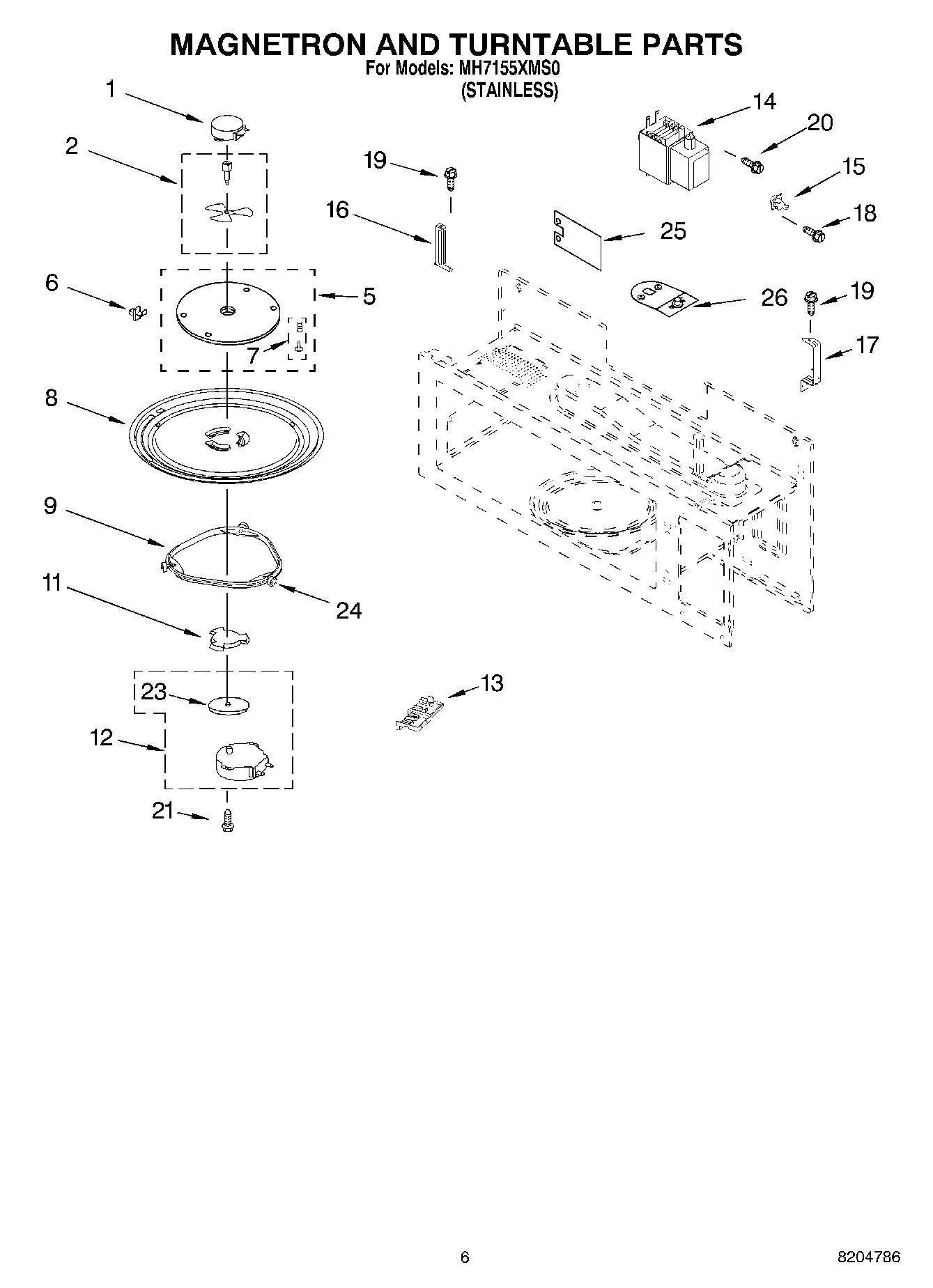

05 - MAGNETRON AND TURNTABLE PARTS

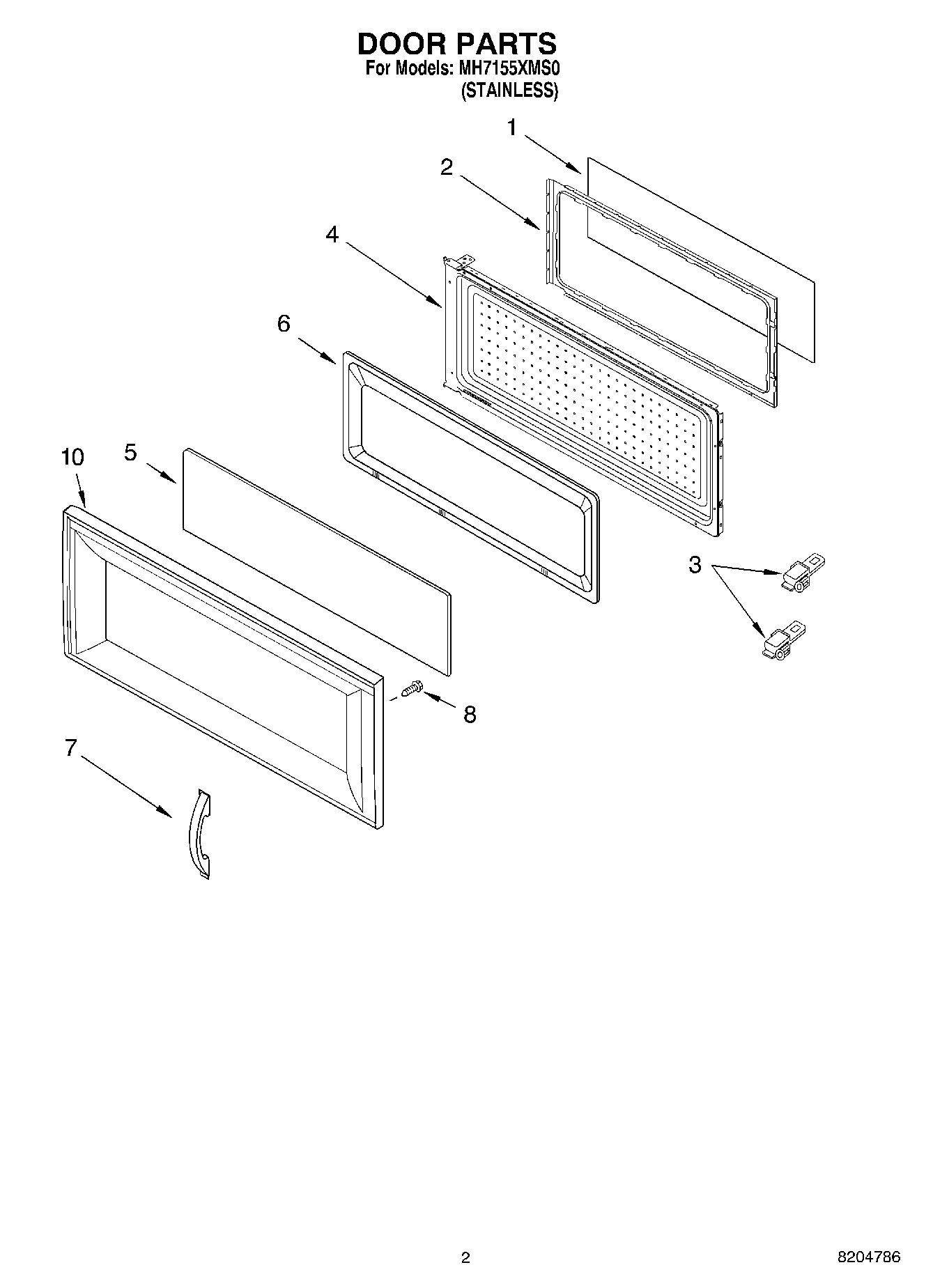

02 - DOOR PARTS

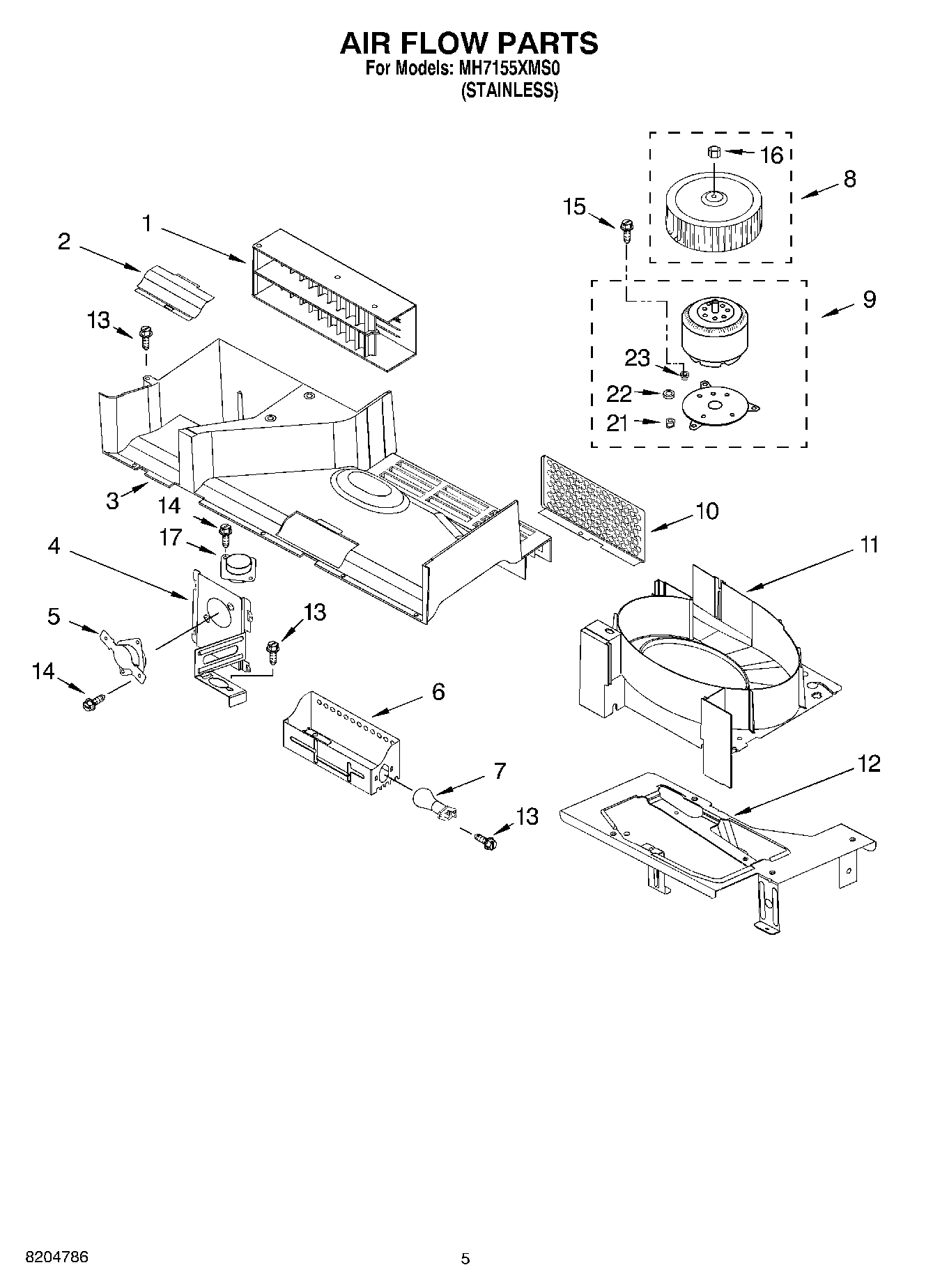

04 - AIR FLOW PARTS

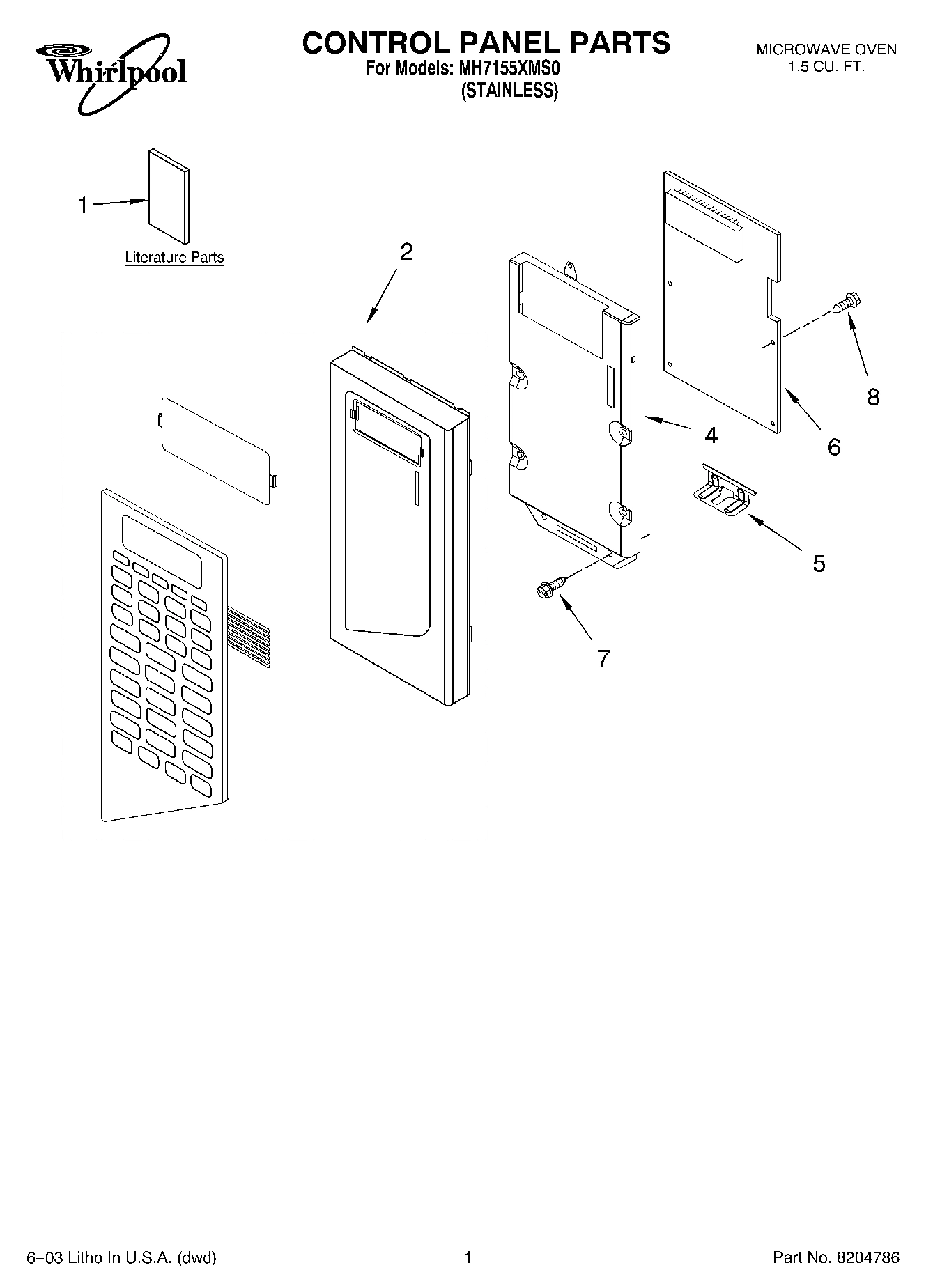

01 - CONTROL PANEL PARTS

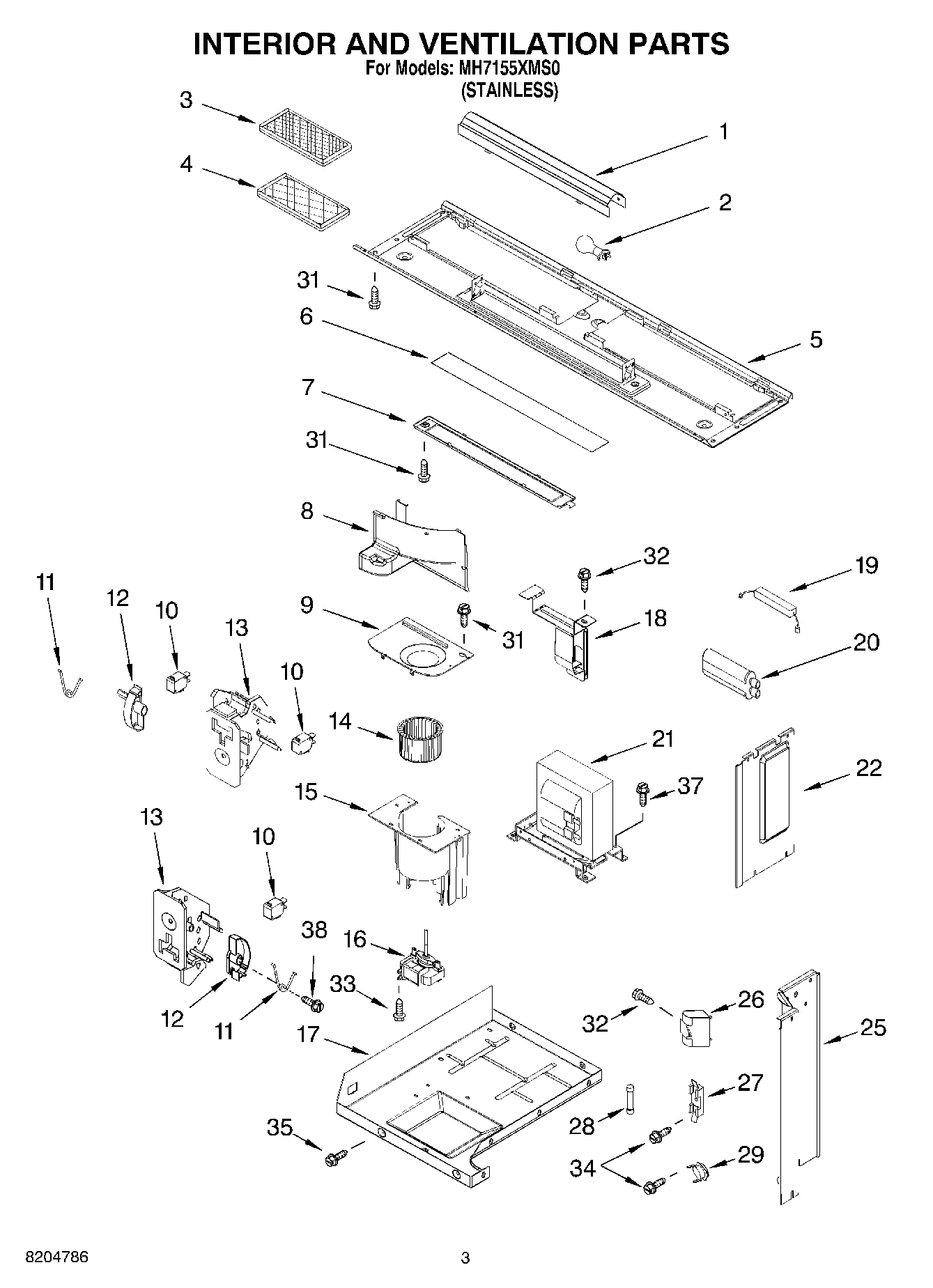

03 - INTERIOR AND VENTILATION PARTS
Common parts from model Whirlpool MH7155XMS0 MICROWAVE OVEN
1
Film, Back WPL 4393870 Contact Us For Availability
1
Deflector, Air WPL 8184638 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8183731 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8184982 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8184990 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8184998 Contact Us For Availability
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL 8204828 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
4
Body, Door WPL 8169460 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
5
Glass, Outer Included with 10 WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Plate, Bottom WPL 8184307 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Panel, Door WPL 8204768 Contact Us For Availability
6
Housing, Lamp WPL 8184745 Contact Us For Availability
6
Microcomputer WPL 8183726 Contact Us For Availability
6
Glass, Lamp WPL 8185210 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Wheel, Fan WPL 8204694 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
Guide, Air (Magnetron) WPL 8184309 Contact Us For Availability
9
Motor, Fan WPL 8204751 Contact Us For Availability
9
Cover, Fan WPL 8183823 Contact Us For Availability
10
Frame, Outer WPL 8204829 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
10
Switch, Micro WPL 8204656 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8185085 Contact Us For Availability
12
Plate, Cam WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI118255A Contact Us For Availability
14
Wheel, Fan WPL 8183825 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
Housing, Fan WPL 8184310 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
16
Nut WPL 8184404 Contact Us For Availability
16
Motor, Fan WPL 8185211 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Chassis WPL 8185212 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Holder, Capacitor WPL 8184311 Contact Us For Availability
19
Screw WPL 8169474 Contact Us For Availability
21
SPACER WPL 8184129 Contact Us For Availability
21
Transformer, H.V. WPL 8185252 Contact Us For Availability
22
Plate, Damper WPL 4393874 Contact Us For Availability
22
Plate, Side (R) WPL 8204657 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
24
Rollers (3) WPL 4393861 Contact Us For Availability
25
Plate, Side (L) WPL 8204658 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
26
Thermostat/Bracket WPL 8184585 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
33
Screw WPL 4393833 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
× ![]()
