Model Whirlpool MH3185XPS0 Microwave Oven 1.8 Cu. Ft. – Common Parts & Diagrams

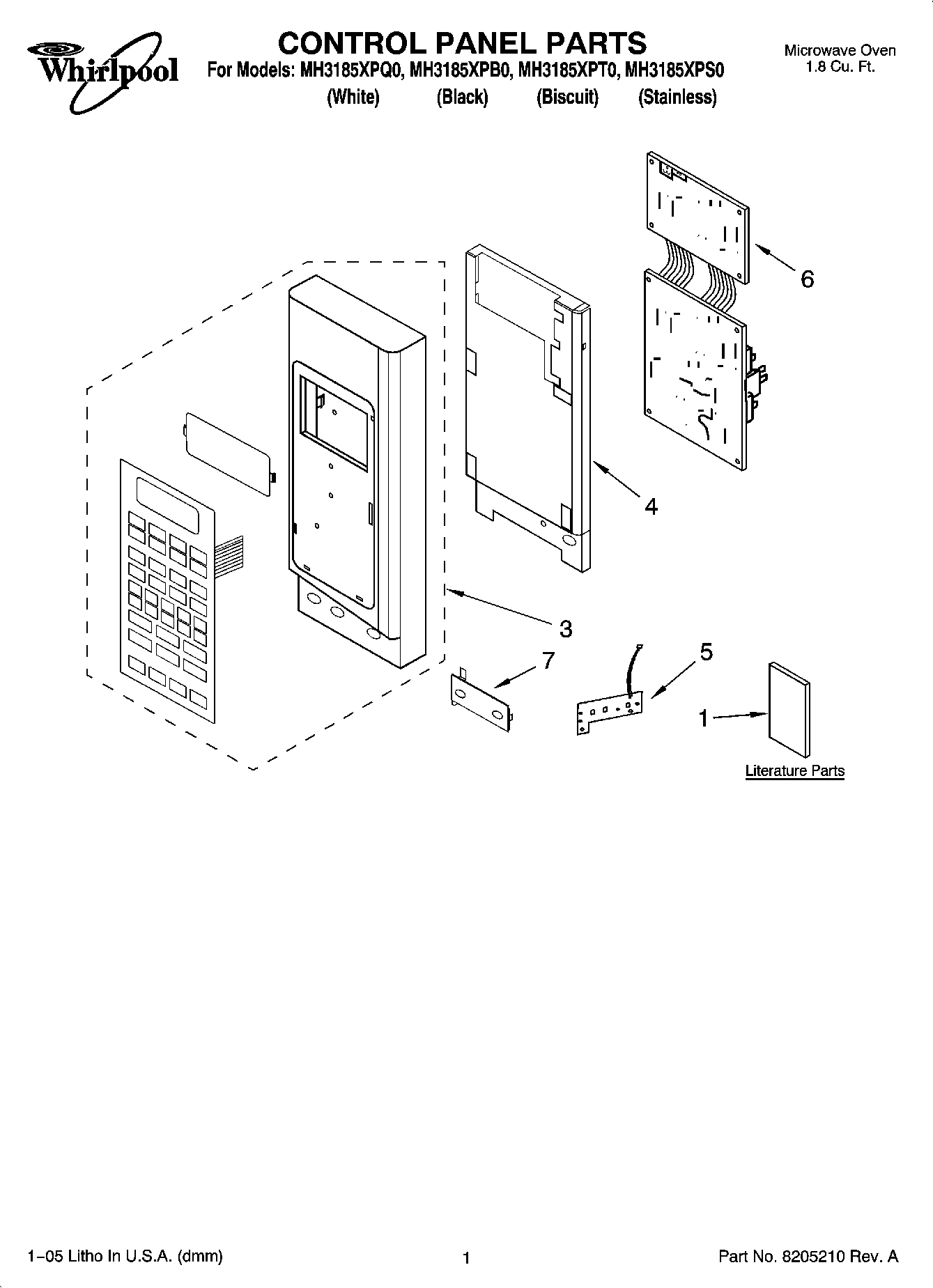

01 - CONTROL PANEL PARTS

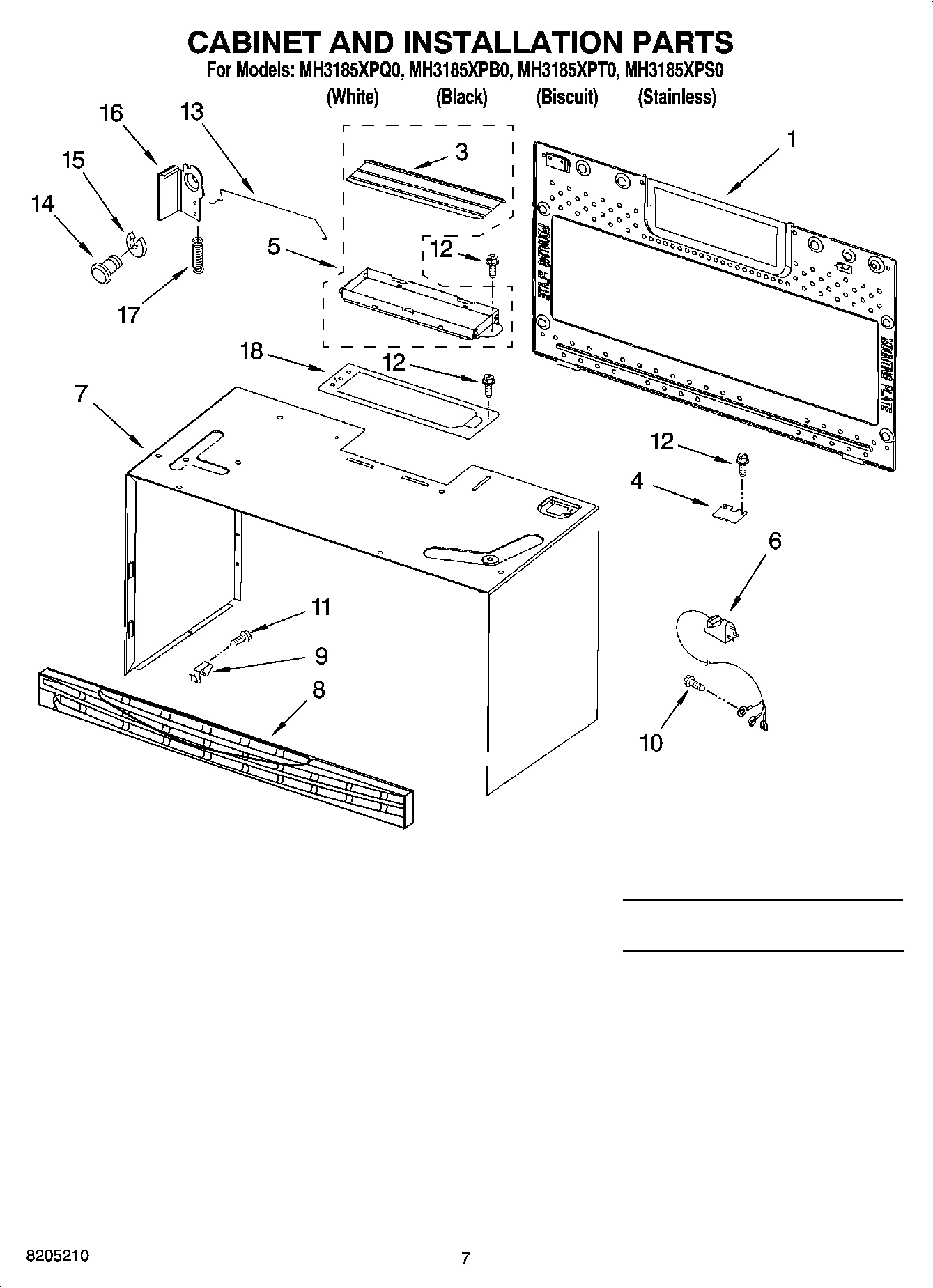

06 - CABINET AND INSTALLATION PARTS

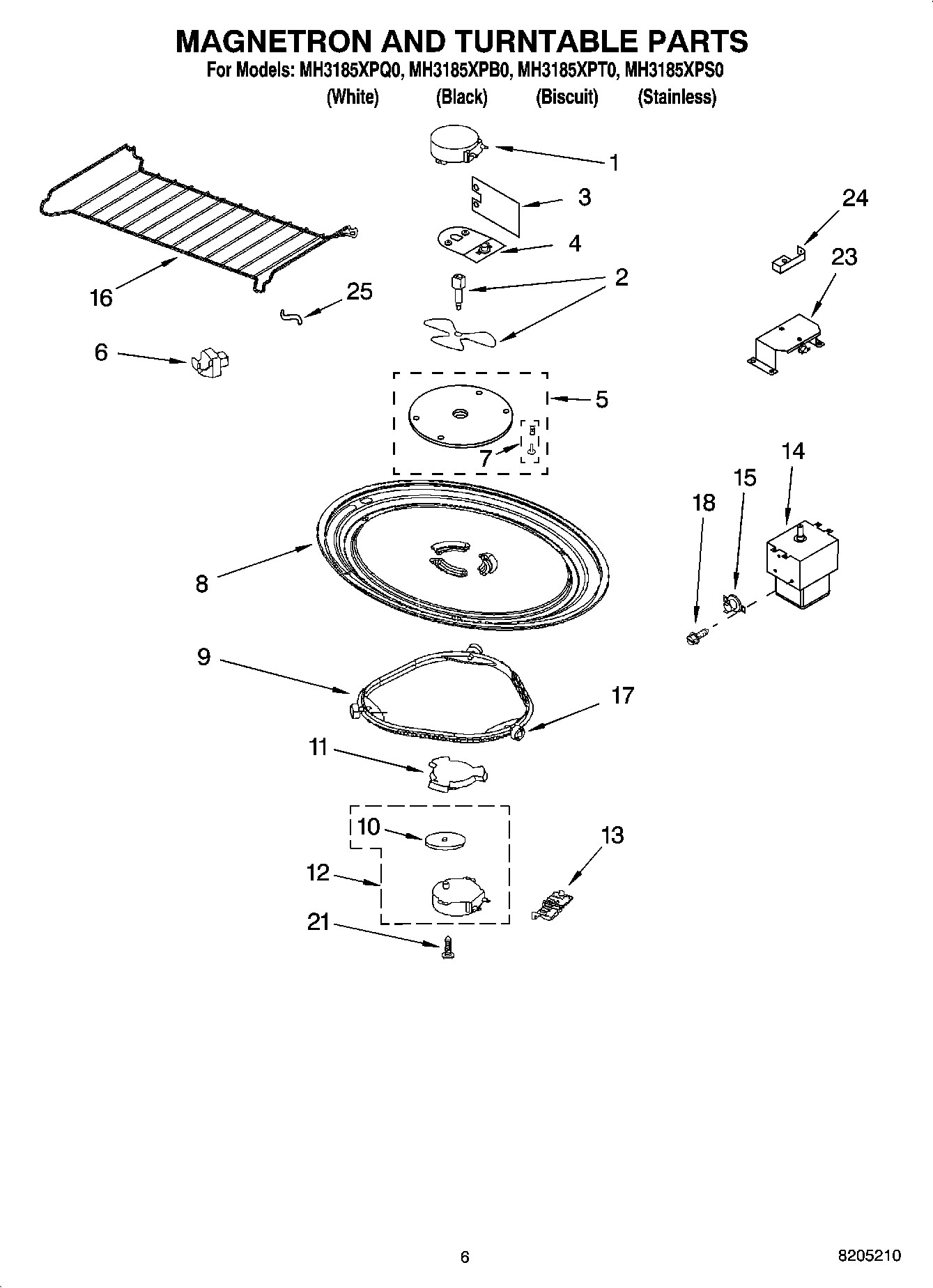

05 - MAGNETRON AND TURNTABLE PARTS

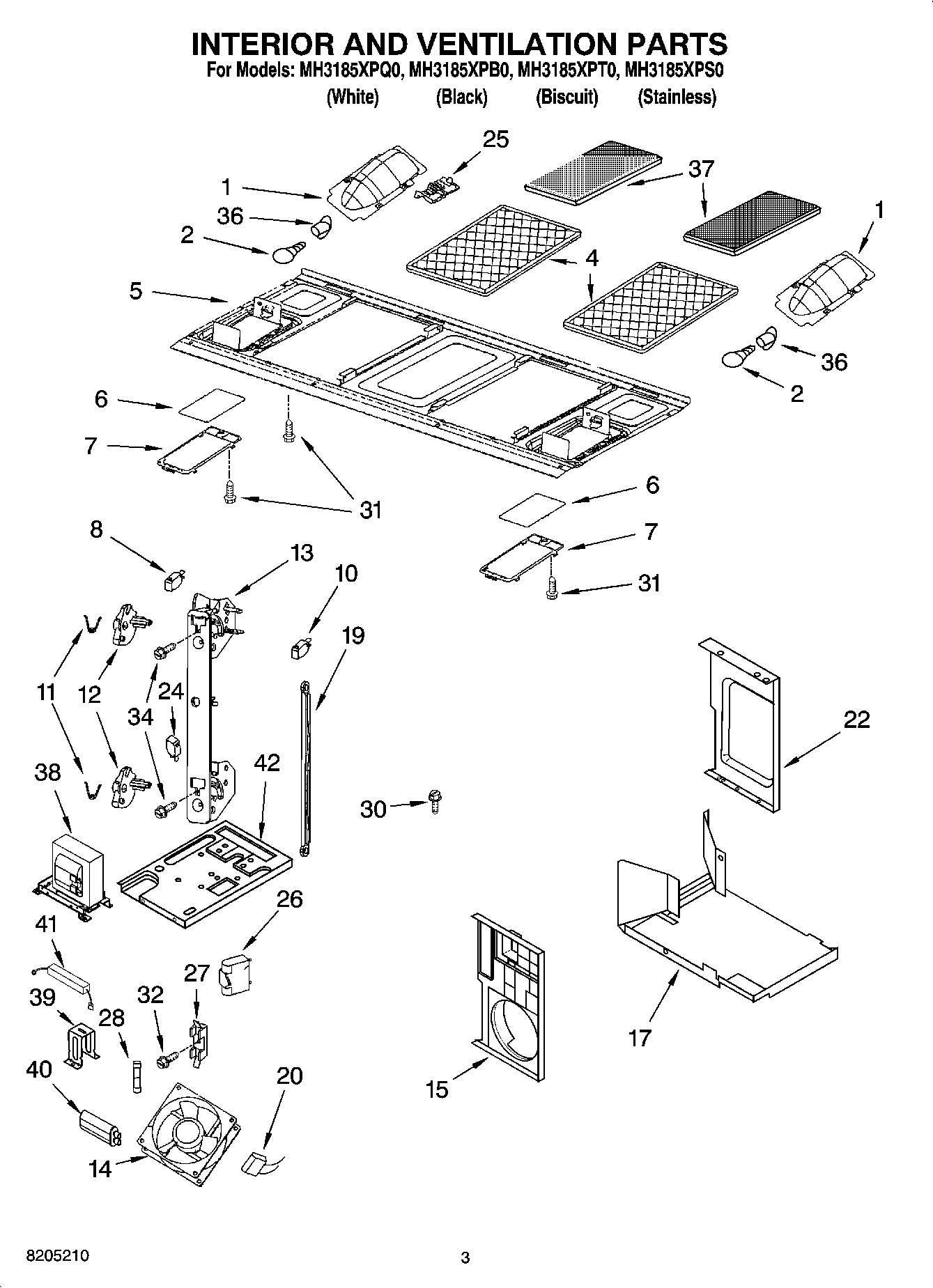

03 - INTERIOR AND VENTILATION PARTS

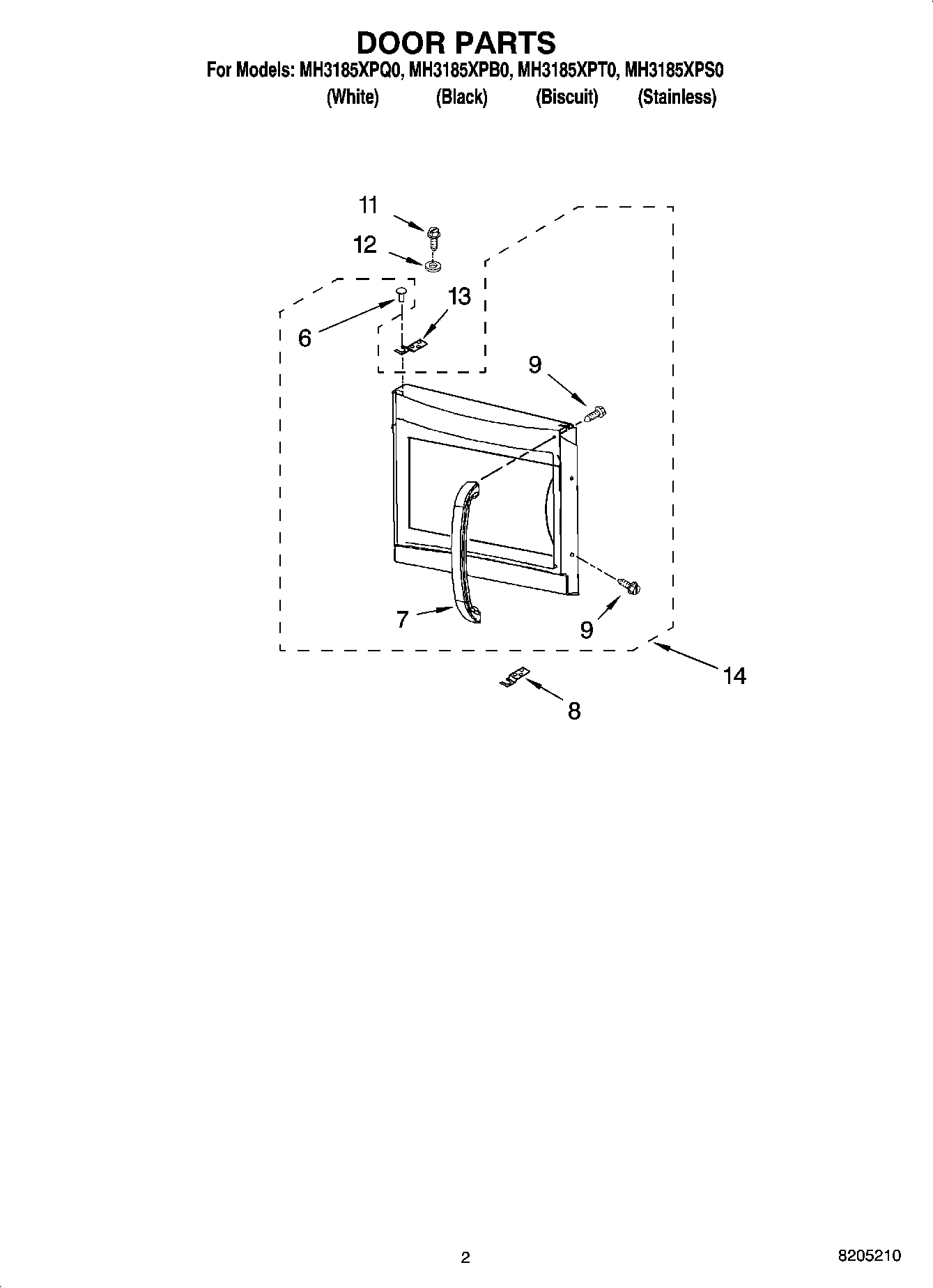

02 - DOOR PARTS

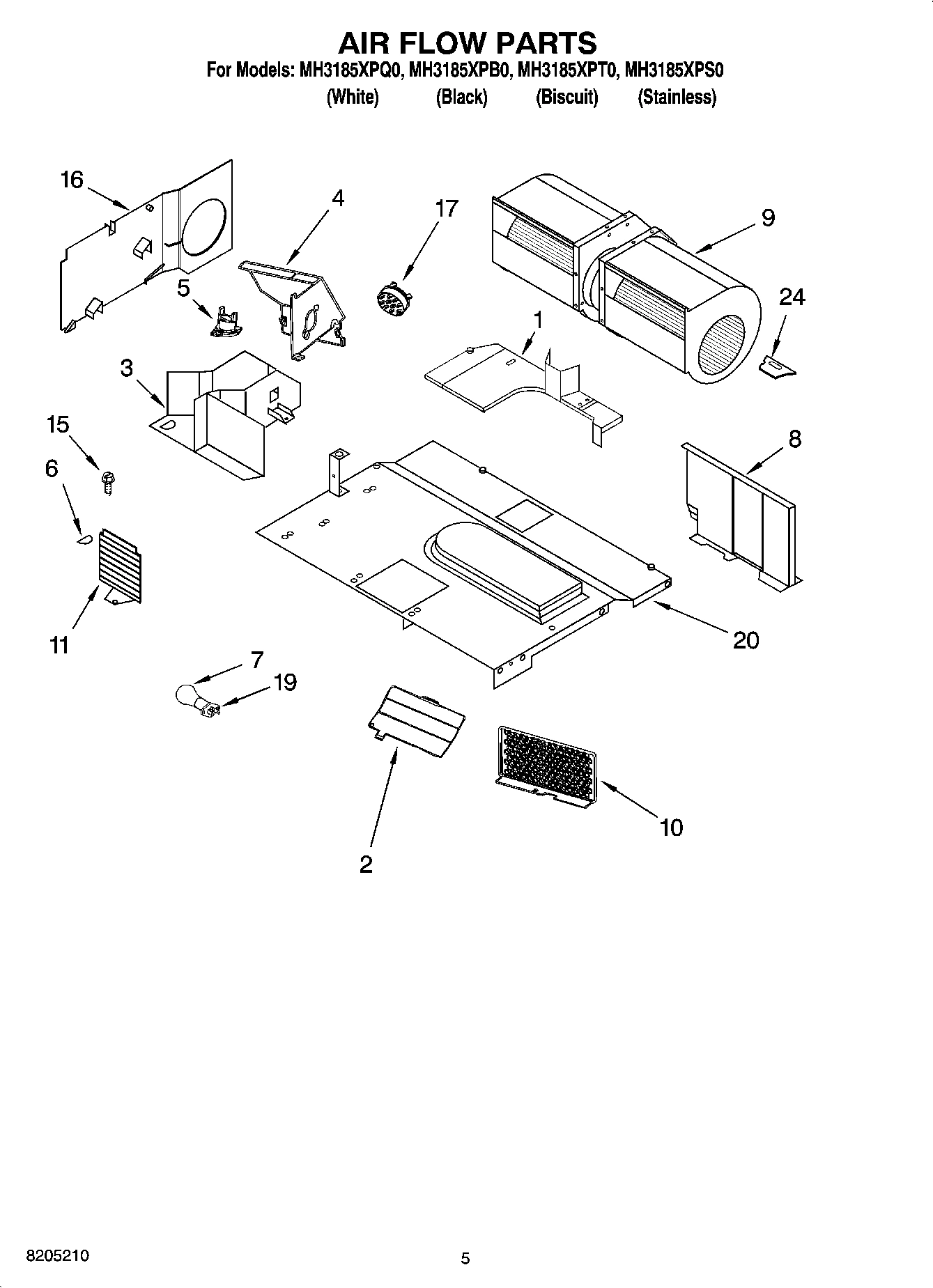

04 - AIR FLOW PARTS
Common parts from model Whirlpool MH3185XPS0 Microwave Oven 1.8 Cu. Ft.
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
1
Reflector, Lamp WPL 8205096 Contact Us For Availability
1
Deflector, Air WPL 8205350 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205202 Contact Us For Availability
2
Cover, Lamp WPL 8205353 Contact Us For Availability
3
Shield, Nomex WPL 8205369 Contact Us For Availability
3
Duct, Air WPL 8205368 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Bracket, Thermostat WPL 8204789 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8184604 Contact Us For Availability
5
Plate, Bottom WPL 8205381 Contact Us For Availability
5
Thermostat WPL 8183703 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
6
Cover WPL 8204676 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
7
Handle, Door (White) WPL 8205308 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8205309 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Grille, Vent (White) WPL 8205245 Contact Us For Availability
8
Grille, Vent (Black) WPL 8205248 Contact Us For Availability
8
Lower Hinge WPL 8204678 Contact Us For Availability
8
Air Guide, Back WPL 8205354 Contact Us For Availability
9
Motor, Fan Assy WPL 8184825 Contact Us For Availability
10
Shield WPL 8205355 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Shield WPL 8204790 Contact Us For Availability
12
Plate, Cam WPL 8205211 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
13
Upper Hinge WPL 8204679 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8205362 Contact Us For Availability
14
Complete Door (White) WPL 8205382 Contact Us For Availability
14
Complete Door (Stainless) WPL 8205383 Contact Us For Availability
14
Complete Door (Black) WPL 8205384 Contact Us For Availability
14
Complete Door (Biscuit) WPL 8205385 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Thermostat WPL 8184951 Contact Us For Availability
15
Housing, Fan WPL 8205364 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Rack WPL 8184052 Contact Us For Availability
16
Air Guide (Right) WPL 8205352 Contact Us For Availability
16
Air Guide (Left) WPL 8205367 Contact Us For Availability
17
Wheel (3) WPL 4393861 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Diffuser, Housing WPL 8205357 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Template, Wall WPL 8183987 Contact Us For Availability
18
Template, Upper WPL 8184731 Contact Us For Availability
18
Plate, Damper WPL 8185090 Contact Us For Availability
18
H.V. Wire Assy WPL 8205693 Contact Us For Availability
18
Lamp/Turntable Wire Assembly WPL 8205694 Contact Us For Availability
18
Main Harness WPL 8205695 Contact Us For Availability
18
FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous WPL ARI118099A Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
20
Base Plate, Air Guide WPL 8205351 Contact Us For Availability
22
Plate, Side WPL 8205356 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
24
Socket, Motor Wire WPL 8185097 Contact Us For Availability
25
Cover, Terminal WPL 8184202 Contact Us For Availability
26
Motor, Capacitor WPL 8184091 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
36
Holder, Lamp WPL 8169539 Contact Us For Availability
38
Transformer, H.V. WPL 8205358 Contact Us For Availability
39
Bracket, Capacitor WPL 8205359 Contact Us For Availability
40
Capacitor, H.V. WPL 8205360 Contact Us For Availability
42
Chassis WPL 8205365 Contact Us For Availability
× ![]()
