Model Whirlpool MH1170XSY1 Microwave Oven 1.7 Cu. Ft. – Common Parts & Diagrams

Template, Upper
Template, Upper WPL 8205871 Contact Us For Availability
View on Model
Ground Wire Assy.
Ground Wire Assy. WPL 8205635 Contact Us For Availability
View on Model
H.V. Wire Assy
H.V. Wire Assy WPL 8206415 Contact Us For Availability
View on Model
Miscellaneous
Miscellaneous WPL ARI118032A Contact Us For Availability
View on Model
Main Harness
Main Harness WPL W10107710 Contact Us For Availability
View on Model
HV Trnsfrm Wr Assy
HV Trnsfrm Wr Assy WPL W10107740 Contact Us For Availability
View on Model
Grnd Wire, Filter
Grnd Wire, Filter WPL W10107760 Contact Us For Availability
View on Model
Harness Wire, NTC
Harness Wire, NTC WPL W10107770 Contact Us For Availability
View on Model
Hdlmp/TT Wire Assy
Hdlmp/TT Wire Assy WPL W10138804 Contact Us For Availability
View on Model
1

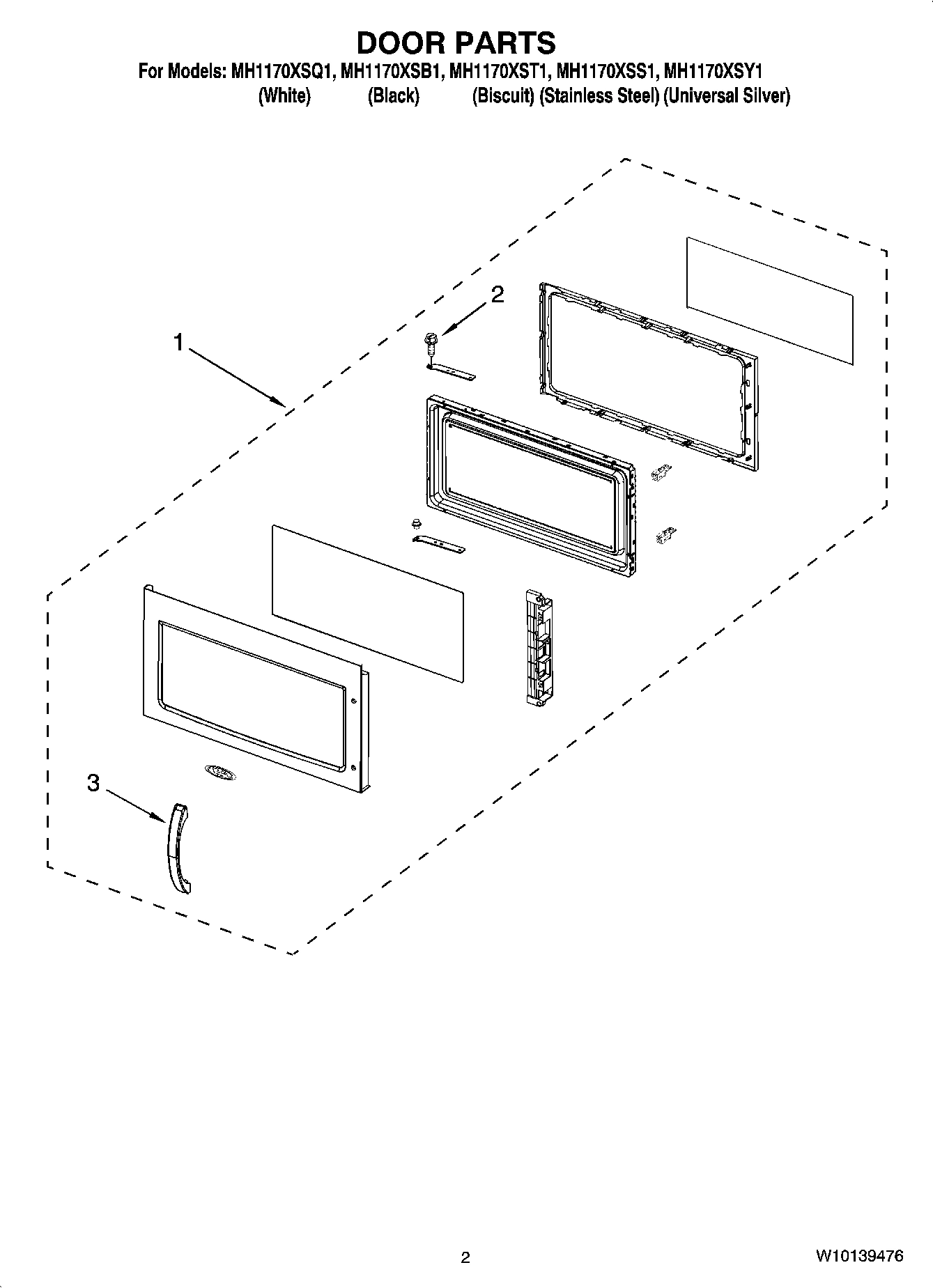

COMPLETE DOOR (Stainless)
COMPLETE DOOR (Stainless) WPL 8206396 Contact Us For Availability
View on Model
1
COMPLETE DOOR (Biscuit)
COMPLETE DOOR (Biscuit) WPL 8206397 Contact Us For Availability
View on Model
1
Cover, Inlet Includes Nails and Bushings
Cover, Inlet Includes Nails and Bushings WPL 8206389 Contact Us For Availability
View on Model
1
Deflector, Air
Deflector, Air WPL 8206340 Contact Us For Availability
View on Model
1
COMPLETE DOOR (Silver)
COMPLETE DOOR (Silver) WPL 8206398 Contact Us For Availability
View on Model
2
Screw
Screw WPL 8206181 Contact Us For Availability
View on Model
3
Handle (White)
Handle (White) WPL W10114514 Contact Us For Availability
View on Model
3
Handle (Black/Stainless)
Handle (Black/Stainless) WPL W10114515 Contact Us For Availability
View on Model
3
Handle (Biscuit)
Handle (Biscuit) WPL W10114551 Contact Us For Availability
View on Model
3
Nails/Bushings (4 of each)
Nails/Bushings (4 of each) WPL 8184549 Contact Us For Availability
View on Model
4

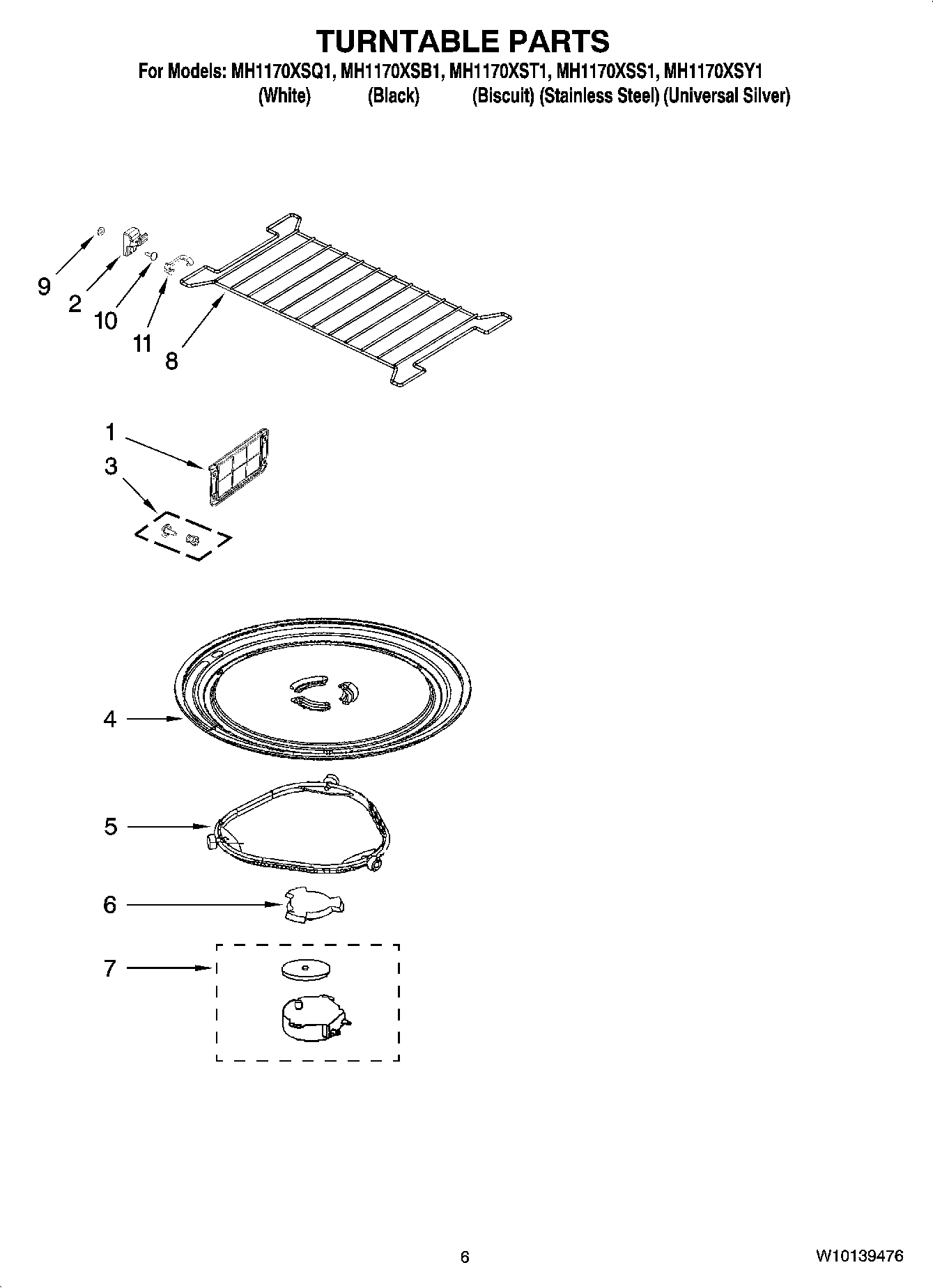

Turntable
Turntable WPL 4393799 No Longer Available
View on Model
4

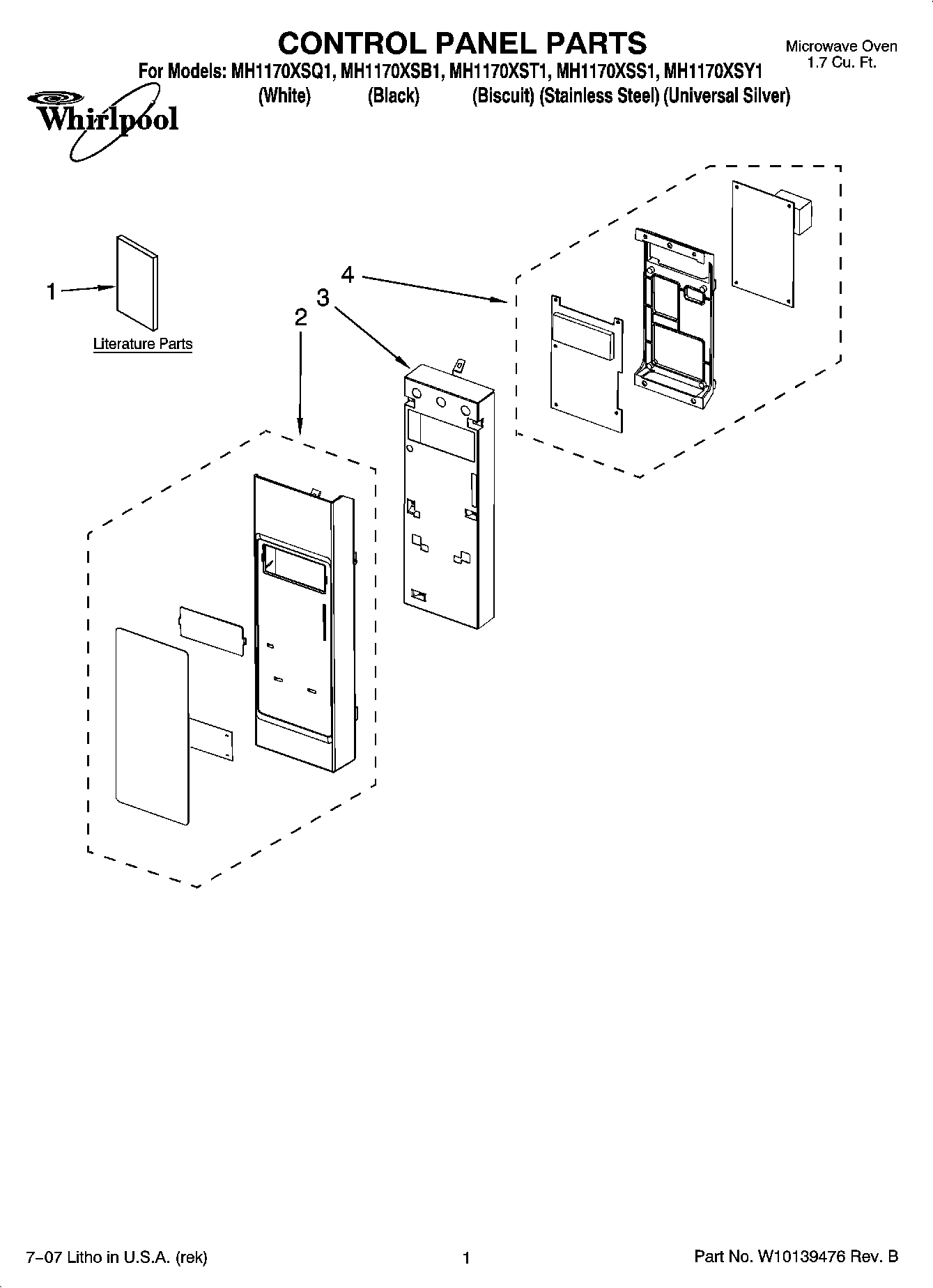

Microcomputer
Microcomputer WPL 8206360 Contact Us For Availability
View on Model
4
Cover, Side Inlet
Cover, Side Inlet WPL 8206371 Contact Us For Availability
View on Model
5

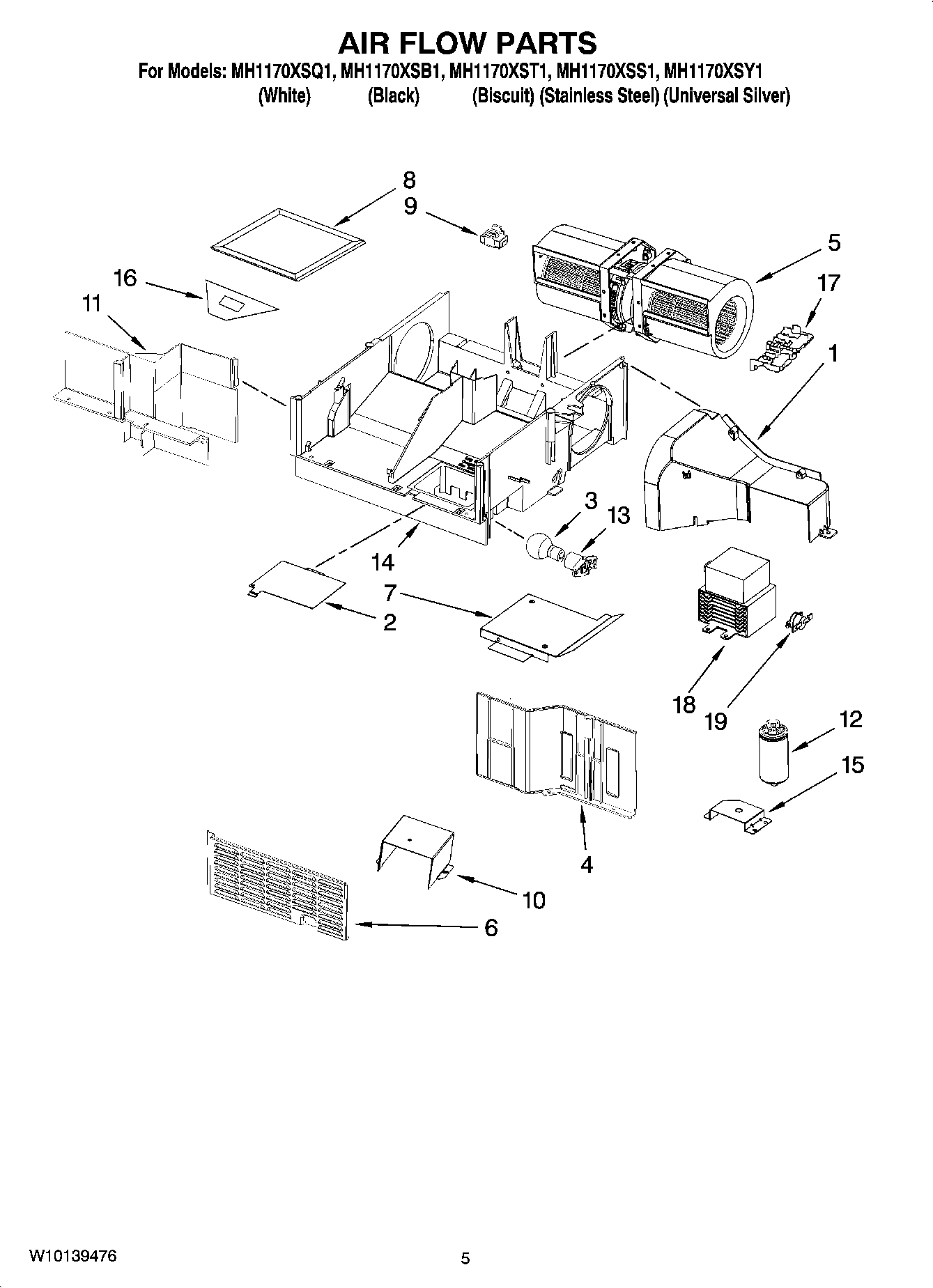

Motor, Fan Assy
Motor, Fan Assy WPL W10114550 Contact Us For Availability
View on Model
5

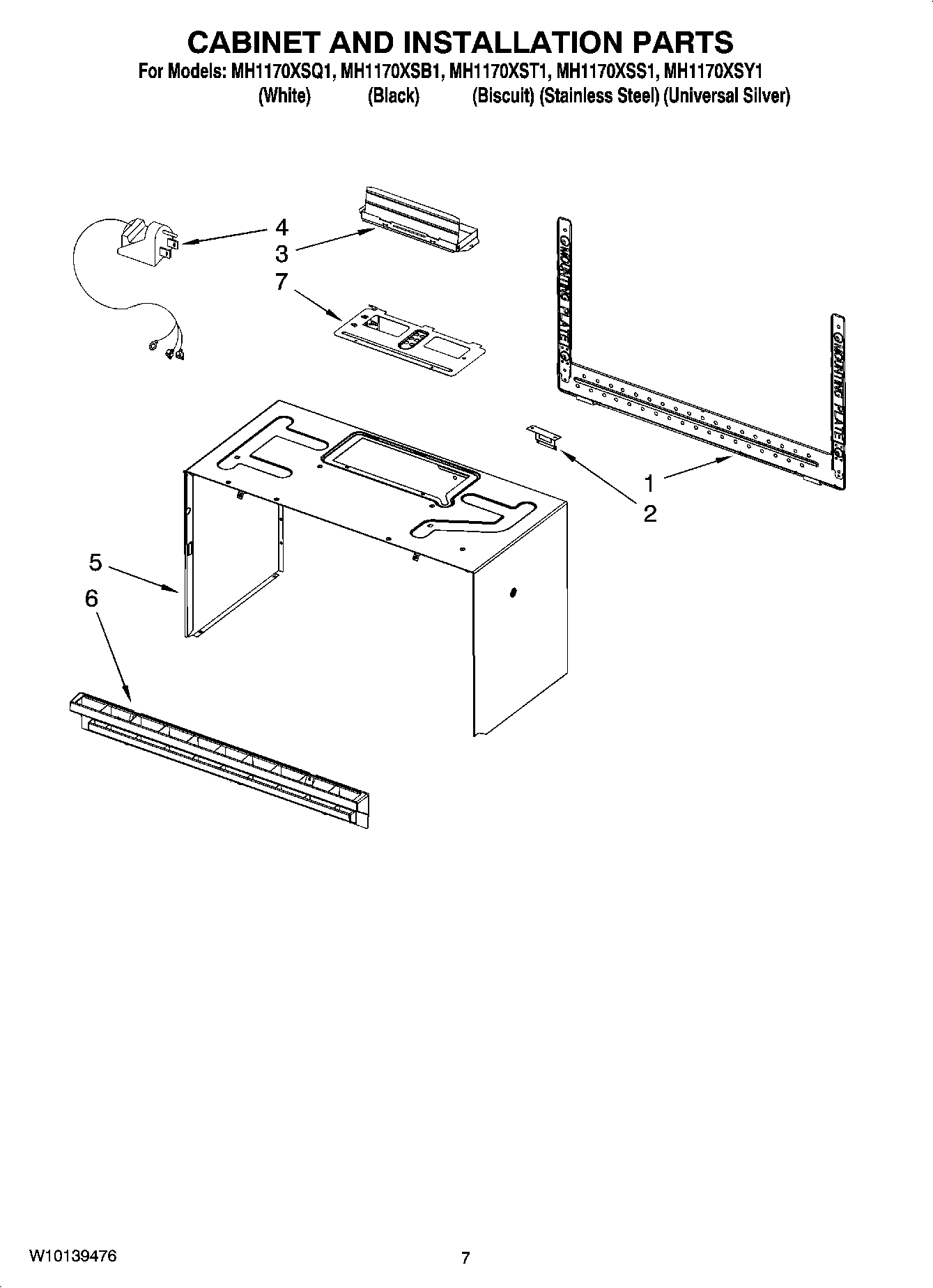

Case, Outer (White)
Case, Outer (White) WPL 8206337 Contact Us For Availability
View on Model
5
Case, Outer (Black)
Case, Outer (Black) WPL 8206338 Contact Us For Availability
View on Model
5
Case, Outer (Biscuit)
Case, Outer (Biscuit) WPL 8206339 Contact Us For Availability
View on Model
6
Grille, Vent (Universal Silver)
Grille, Vent (Universal Silver) WPL 8206393 Contact Us For Availability
View on Model
6
Shield
Shield WPL W10107800 Contact Us For Availability
View on Model
7
Plate, Damper
Plate, Damper WPL 8206336 Contact Us For Availability
View on Model
10
Spring, Interlock
Spring, Interlock WPL 8169438 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 8206618 Contact Us For Availability
View on Model
10
Channel, Air
Channel, Air WPL 8206625 Contact Us For Availability
View on Model
11
Plate, Cam
Plate, Cam WPL 8183824 Contact Us For Availability
View on Model
11
Air Guide
Air Guide WPL W10138800 Contact Us For Availability
View on Model
12
Filter
Filter WPL 8206624 Contact Us For Availability
View on Model
14
Base Plate, Air Guide
Base Plate, Air Guide WPL W10138799 Contact Us For Availability
View on Model
15
Brkt-Mntg, Filter
Brkt-Mntg, Filter WPL 8206368 Contact Us For Availability
View on Model
16
Socket, Motor Wire
Socket, Motor Wire WPL W10117846 Contact Us For Availability
View on Model
17
Cover, Terminal
Cover, Terminal WPL W10110598 Contact Us For Availability
View on Model
23
Support, Diode
Support, Diode WPL 8206370 Contact Us For Availability
View on Model
25

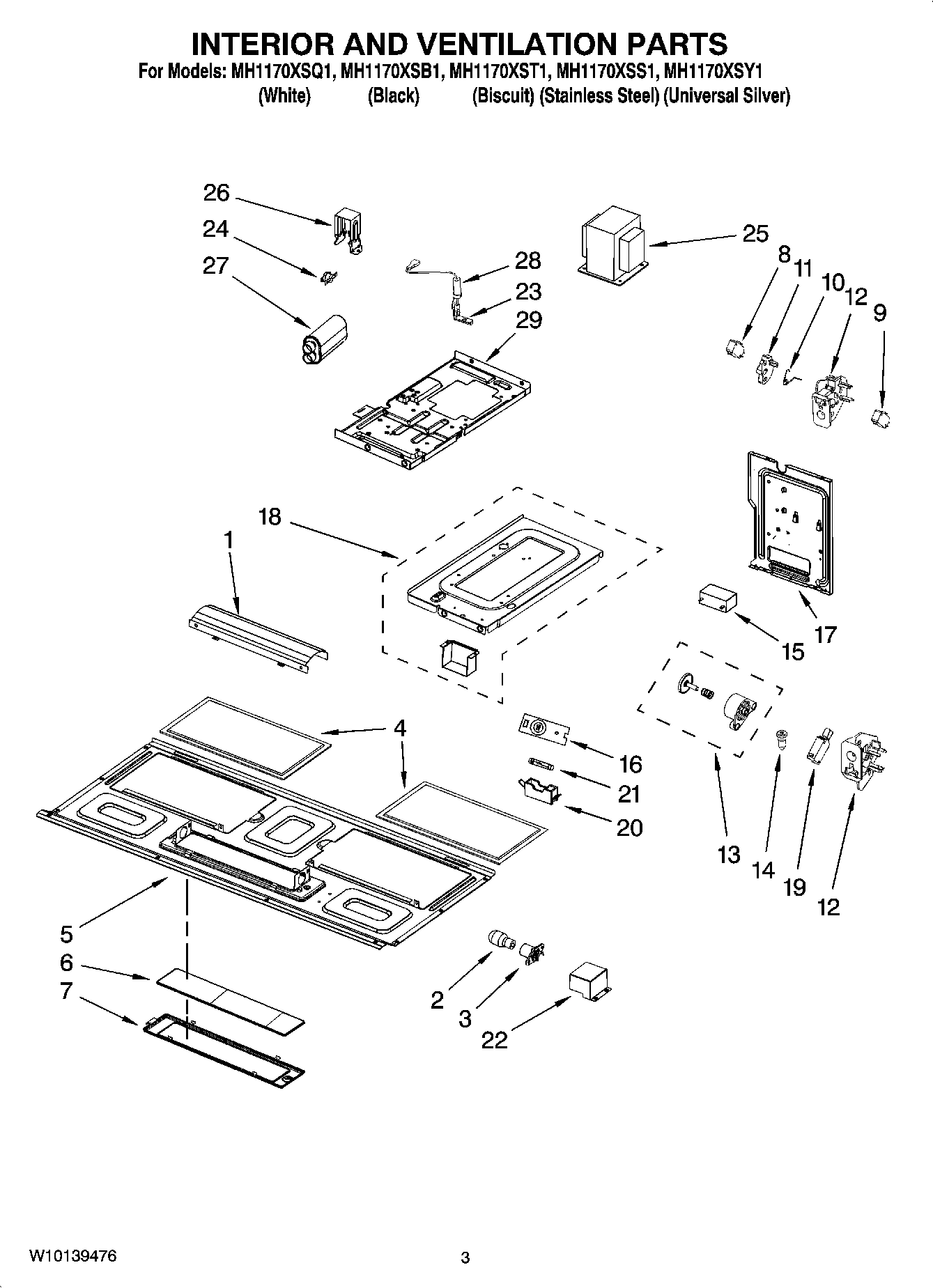

Transformer, H.V.
Transformer, H.V. WPL 8206343 Contact Us For Availability
View on Model
28
Diode, H.V.
Diode, H.V. WPL 8206369 Contact Us For Availability
View on Model
29
Chassis
Chassis WPL W10138791 Contact Us For Availability
View on Model
