Model Whirlpool MH1150XMQ3 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

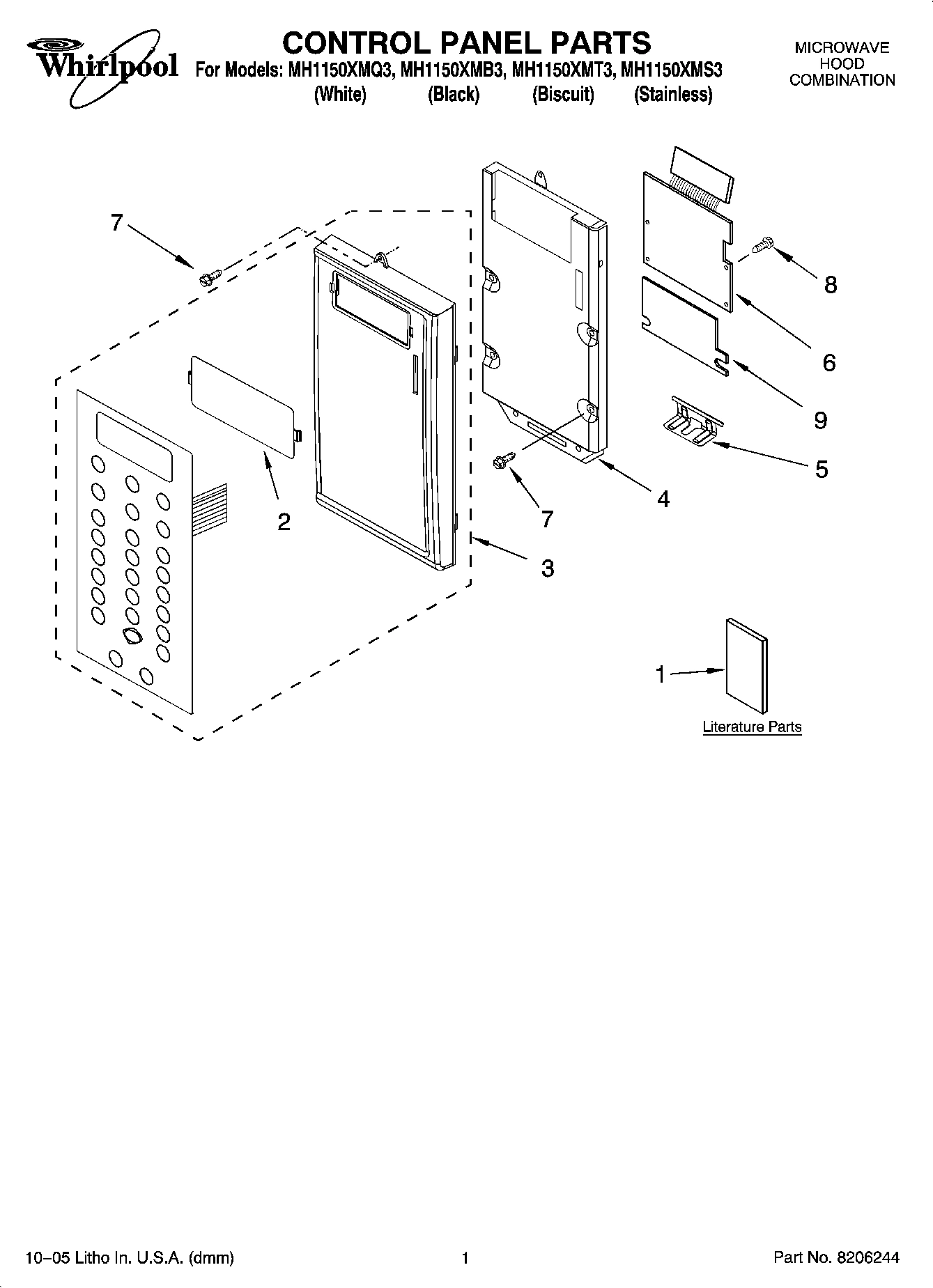

01 - CONTROL PANEL PARTS
03 - INTERIOR AND VENTILATION PARTS
05 - MAGNETRON AND TURNTABLE PARTS
02 - DOOR PARTS
04 - AIR FLOW PARTS
06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool MH1150XMQ3 MICROWAVE HOOD COMBINATION
1
Cover, Inlet WPL 8185255 Contact Us For Availability
1
Deflector, Air WPL 8185096 Contact Us For Availability
2
Hook, Rack (4) WPL 8204662 Contact Us For Availability
2
Socket, Motor Wire WPL 8185097 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (White) WPL 8185286 Contact Us For Availability
3
Panel, Control (Black) WPL 8185287 Contact Us For Availability
3
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
3
Base Plate WPL 8205563 Contact Us For Availability
4
Turntable WPL 4393799 Contact Us For Availability
4
Air Guide (Right) WPL 8185098 Contact Us For Availability
5
Thermostat WPL 4393945 Contact Us For Availability
6
Complete, Door (Black) WPL 8185239 Contact Us For Availability
6
Complete Door (White) WPL 8185238 Contact Us For Availability
6
Complete Door (Stainless) WPL 8204741 Contact Us For Availability
6
Complete Door (Biscuit) WPL 8204788 Contact Us For Availability
6
Deflector, Cooling Air WPL 8185099 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Case, Outer (White) WPL 8185091 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8185092 Contact Us For Availability
7
Case, Outer (Stainless) WPL 8185093 Contact Us For Availability
9
Cover, Terminal WPL 4393756 Contact Us For Availability
9
Motor, Fan WPL 8184825 Contact Us For Availability
10
Shield WPL 8205355 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Thermostat WPL 8183698 Contact Us For Availability
11
Air Guide, Sealing Plate WPL 8204996 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Rack WPL 8204725 Contact Us For Availability
12
Screw WPL 4393828 Contact Us For Availability
13
Screw WPL 4393838 Contact Us For Availability
14
Screw WPL 8169478 Contact Us For Availability
15
Screw WPL 4393833 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Socket, Light WPL 8169539 Contact Us For Availability
16
Left Block, Magnetron WPL 8205583 Contact Us For Availability
16
Air Guide (Left) WPL 8185115 Contact Us For Availability
17
Middle Block, Magnetron WPL 8205584 Contact Us For Availability
17
Cover, Light WPL 8185118 Contact Us For Availability
18
Right Block, Magnetron WPL 8205585 Contact Us For Availability
18
Upper Template WPL 8184731 Contact Us For Availability
18
Cover, Motor WPL 8185090 Contact Us For Availability
18
Main Harness WPL 8205632 Contact Us For Availability
18
Lamp Wire Assy. WPL 8205633 Contact Us For Availability
18
H.V. Wire Assy. WPL 8205634 Contact Us For Availability
18
Ground Wire Assy. WPL 8205635 Contact Us For Availability
18
Miscellaneous WPL ARI118003A Contact Us For Availability
19
Filter WPL 8169561 Contact Us For Availability
25
Bracket, Right WPL 8205559 Contact Us For Availability
26
Capacitor WPL 8184091 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
30
Screw WPL 8169474 Contact Us For Availability
31
Block, Air Guide Magnetron WPL 8205581 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
38
Resistor WPL 8205152 Contact Us For Availability
× ![]()
