Model Whirlpool MES5570AAB ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

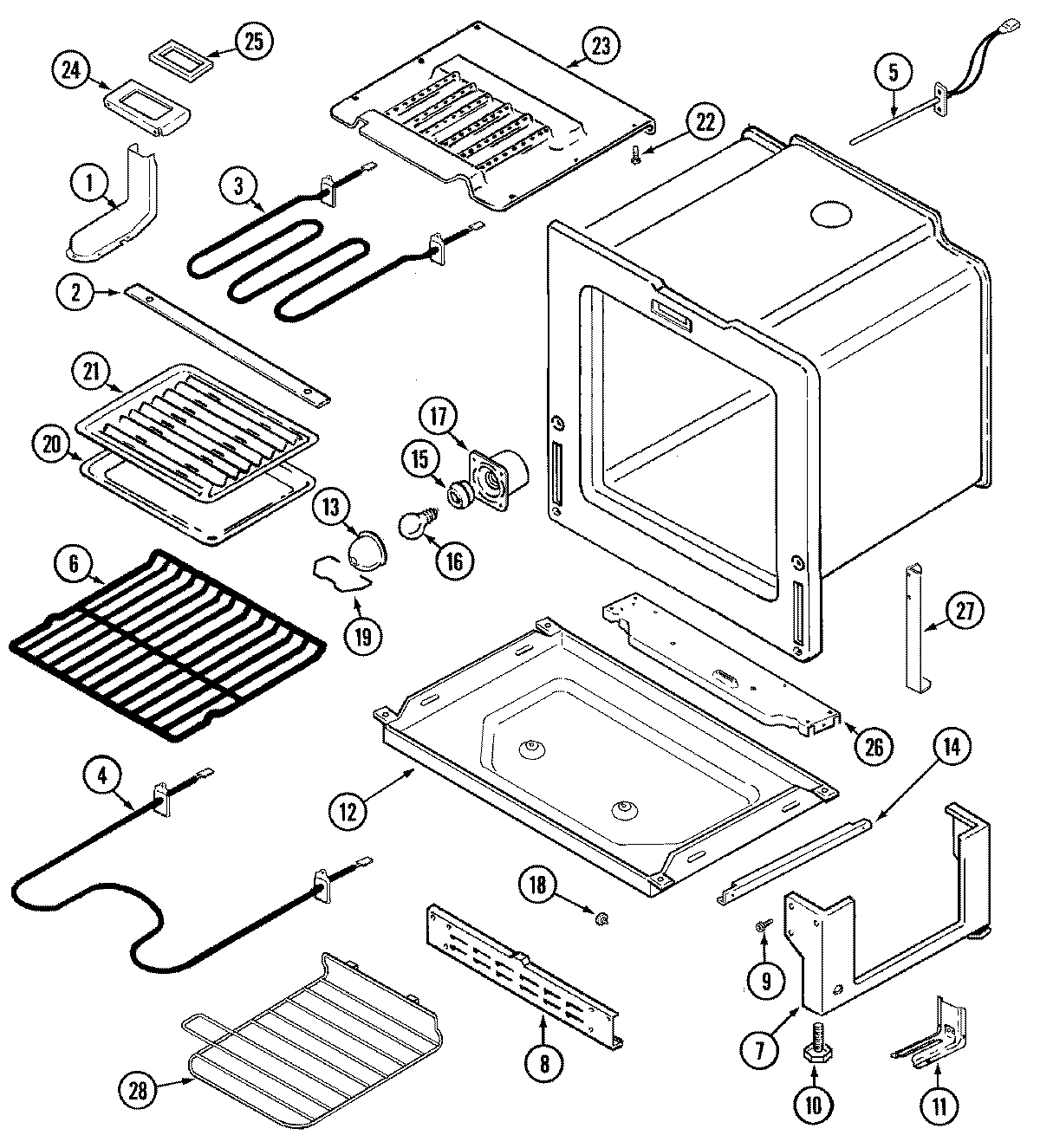

03 - OVEN/BASE

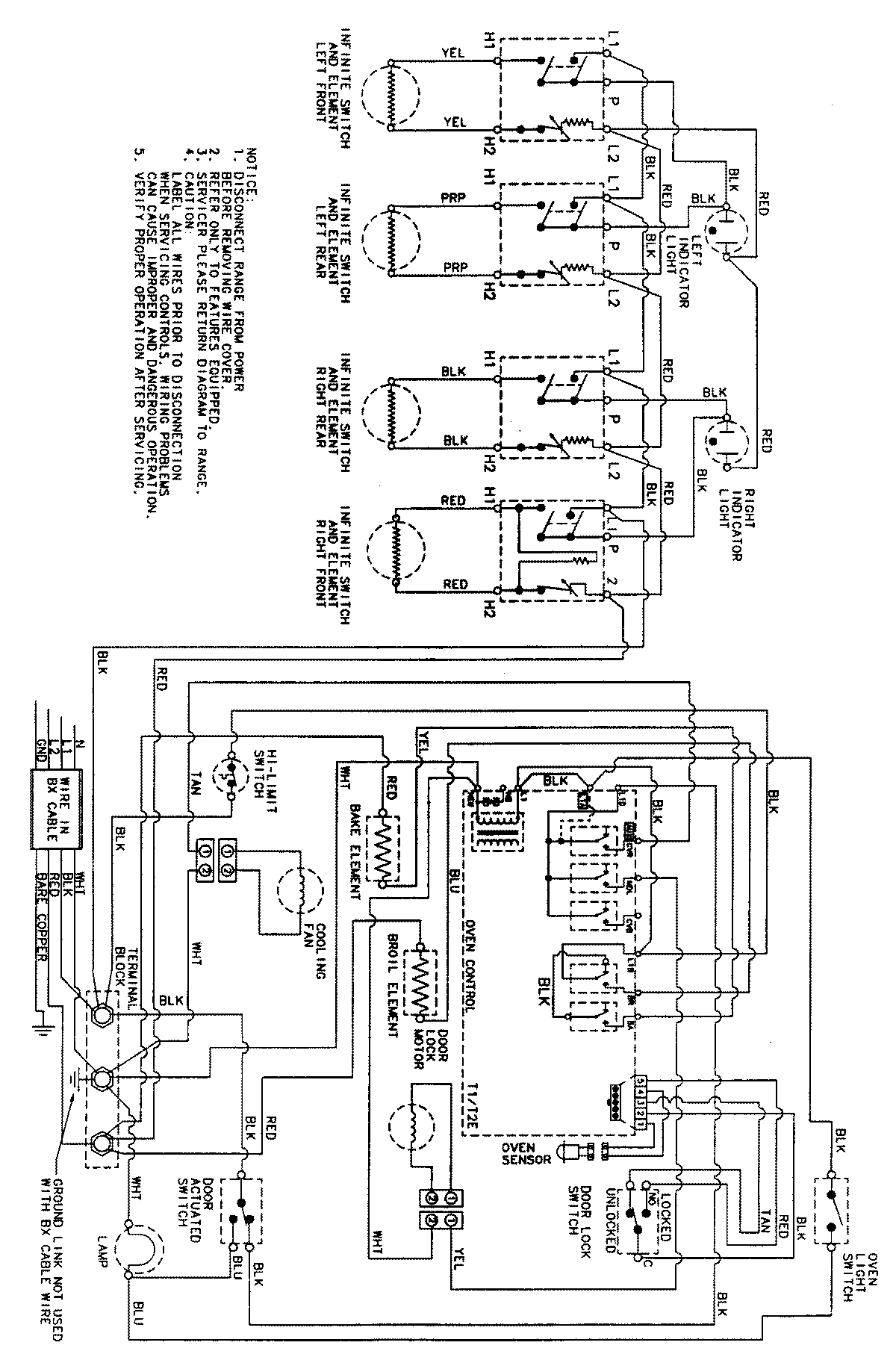

05 - WIRING INFORMATION

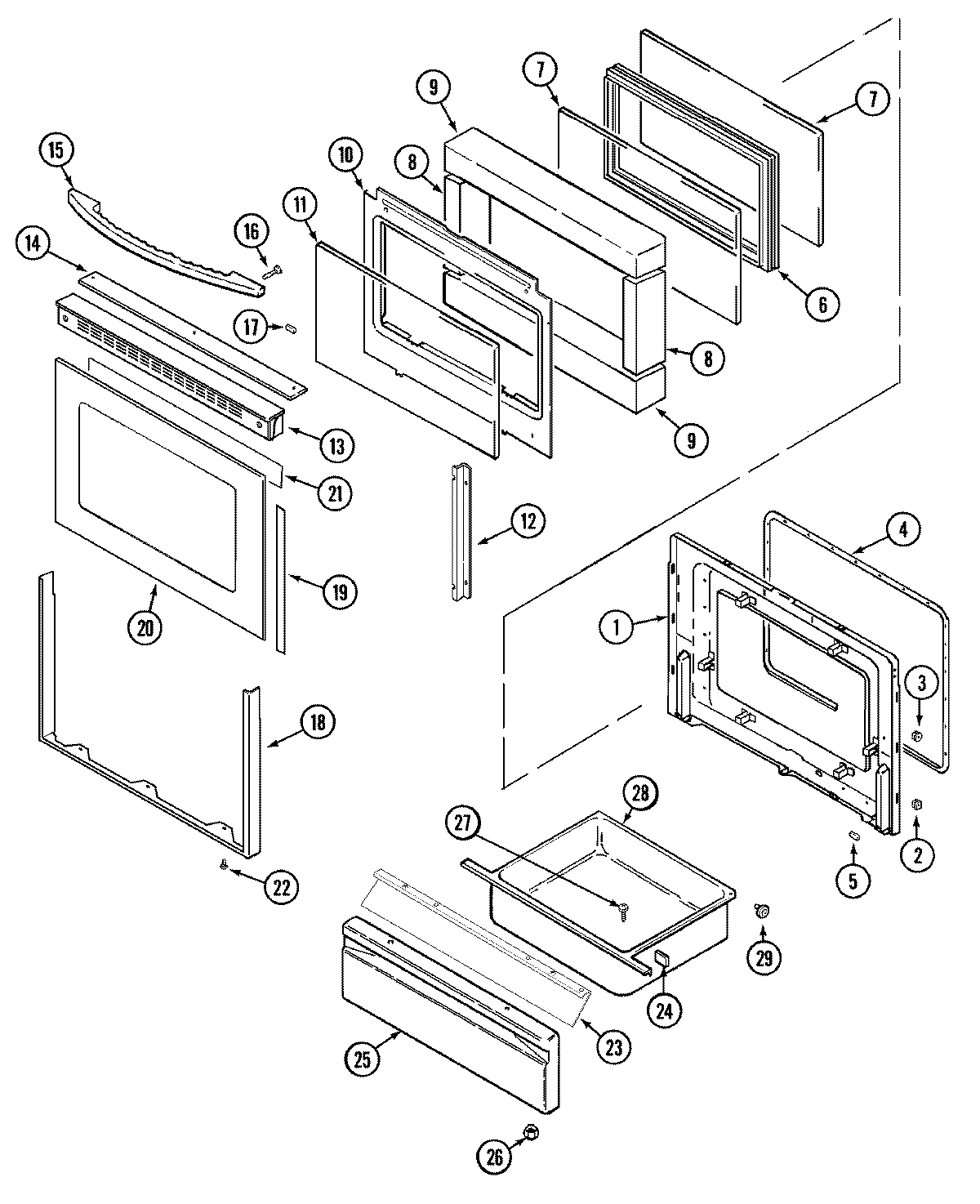

02 - DOOR/DRAWER

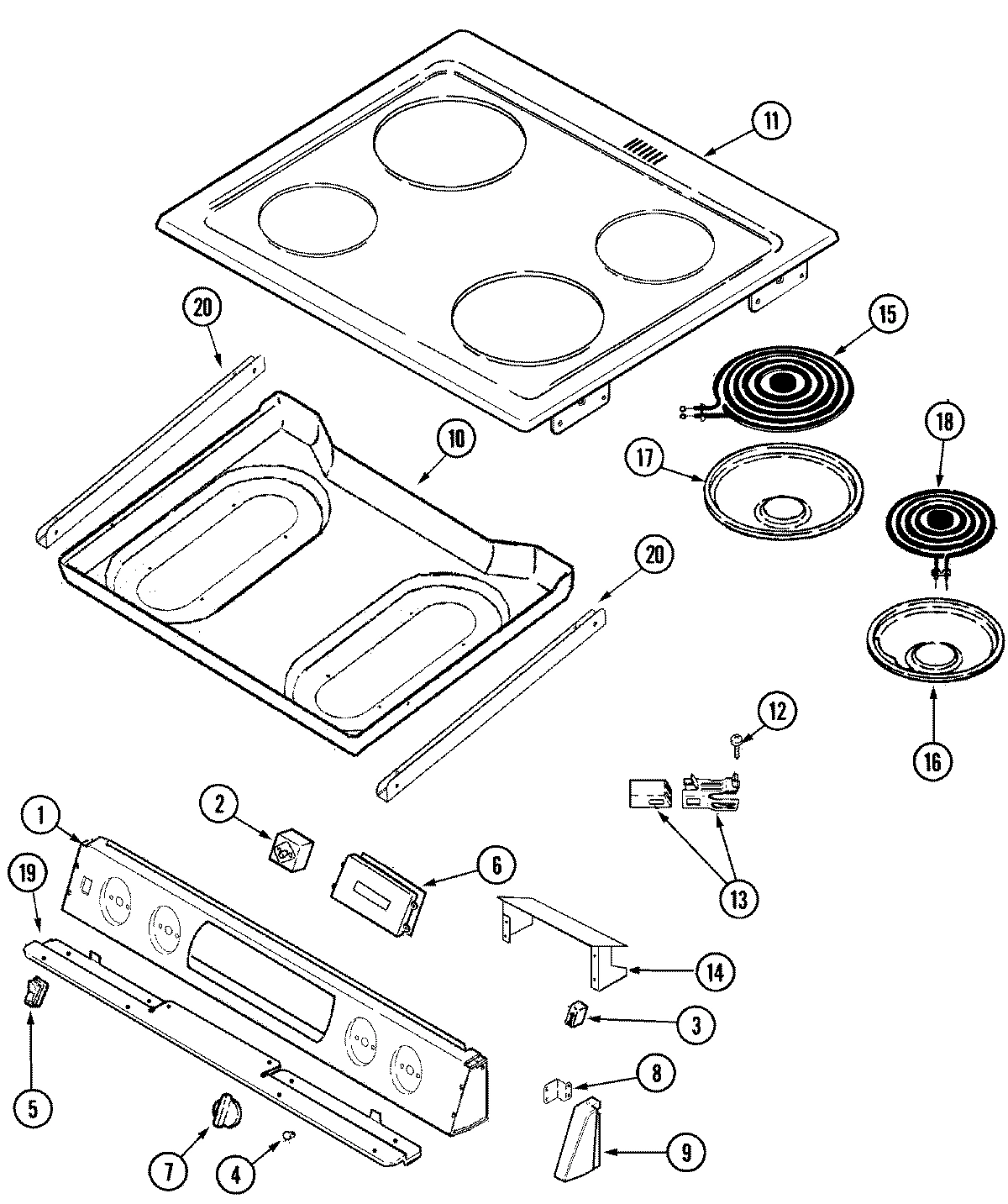

04 - TOP ASSEMBLY
Common parts from model Whirlpool MES5570AAB ELECTRIC RANGE
1
BOX, VENT WPL 74004170 Contact Us For Availability
1
LINING, DOOR WPL 74003642 Contact Us For Availability
1
PANEL, CONTROL (BLK) WPL 74004356 Contact Us For Availability
2
SCREW WPL 7101P34560 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability
2
NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
3
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74004184 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability
4
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
5
SWITCH, ROCKER (BLK) WPL 74003363 Contact Us For Availability
6
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
6
INSULATION, OVEN WPL 74003503 Contact Us For Availability
6
FRAME, GLASS WPL 74003644 Contact Us For Availability
6
CLOCK W/OVERLAY (BLK) WPL 74004332 Contact Us For Availability
6
LOCK, PURSE WPL 74007369 Contact Us For Availability
6
CLOCK W/OVERLAY (BLK) WPL 74009306 Contact Us For Availability
7
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003405 Contact Us For Availability
7
KNOB (BLK) WPL 74003612 Contact Us For Availability
8
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
INSULATION, SIDE WPL 74003646 Contact Us For Availability
8
SCREW WPL 74004208 Contact Us For Availability
8
BRACKET, END CAP WPL 74004186 Contact Us For Availability
8
BRACKET, END CAP WPL 74005671 Contact Us For Availability
9
BLOCK, DISCONNECT (MALE) WPL 74002230 Contact Us For Availability
9
BLOCK, DISCONNECT WPL 74002305 Contact Us For Availability
9
BLOCK, DISCONNECT WPL 74002306 Contact Us For Availability
9
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
9
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
9
CAP, END (LT-BLK) WPL 74004321 Contact Us For Availability
9
CAP, END (RT-BLK) WPL 74004322 Contact Us For Availability
9
CAP, END (RT-BLK) WPL 74004595 Contact Us For Availability
9
CAP, END (LT-BLK) WPL 74004596 Contact Us For Availability
9
CAP, END (BLK-RT) WPL 74004813 Contact Us For Availability
9
CAP, END (BLK-LT) WPL 74004816 Contact Us For Availability
10
BAFFLE, DOOR WPL 74003648 Contact Us For Availability
10
NUT WPL 7103P12560 Contact Us For Availability
10
BOTTOM, BURNER BOX WPL 74004251 Contact Us For Availability
10
BOTTOM, BURNER BOX WPL 74006046 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE NUT NOT REQUIRE WPL W10124350 Contact Us For Availability
11
PLATE, HINGE WPL 74004173 Contact Us For Availability
11
SCREW WPL 7101P35260 Contact Us For Availability
11
GLASS, DOOR WPL 74003649 Contact Us For Availability
11
TOP, MAIN (BLK) WPL 74004357 Contact Us For Availability
11
TOP, MAIN (BLK) WPL 74007602 Contact Us For Availability
12
EXTENSION, HEAT SHIELD WPL 74004176 Contact Us For Availability
12
RETAINER, INSULATION (LOWER) WPL 74004169 Contact Us For Availability
12
RETAINER, GLASS WPL 74003650 Contact Us For Availability
12
SCREW WPL 7118P01360 Contact Us For Availability
13
SHIELD, HEAT WPL 74004177 Contact Us For Availability
13
COVER, BULB WPL 74003389 Contact Us For Availability
14
EXTENSION, MAIN BACK WPL 74004175 Contact Us For Availability
14
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
14
INSULATOR, FIBER BOARD WPL 74004316 Contact Us For Availability
15
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
15
HANDLE, DOOR (BLK) WPL 74003617 Contact Us For Availability
16
SWITCH WPL 74001802 Contact Us For Availability
16
BULB-OVEN WPL 7407P10360 Contact Us For Availability
17
TRIM, SIDE (BLK) WPL 74004216 Contact Us For Availability
17
HOUSING, BULB WPL 74003388 Contact Us For Availability
17
TAPE, DBL. SIDED (WHT) WPL 71002092 Contact Us For Availability
18
ASSEMBLY, DOOR LATCH WPL 74004327 Contact Us For Availability
18
ASSEMBLY, DOOR LATCH WPL 74005675 Contact Us For Availability
18
SHAFT, ROLLER WPL 74004079 Contact Us For Availability
18
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
18
FRAME, DOOR (BLK) WPL 74004324 Contact Us For Availability
19
FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability
19
FAN MOTOR ASY. WPL 74004947 Contact Us For Availability
19
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
19
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
19
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
19
SUPPORT, CONTROL PANEL WPL 74004185 Contact Us For Availability
20
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
GLASS, DOOR (BLK) WPL 74003662 Contact Us For Availability
20
BRACKET, SUPPORT WPL 74005822 Contact Us For Availability
21
BUMPER, ROD WPL 74001631 Contact Us For Availability
21
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
21
TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability
21
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
21
HARNESS, SENSOR & LOCK WPL 74004335 Contact Us For Availability
21
HARNESS, RELAY WPL 74004786 Contact Us For Availability
21
HARNESS, SENSOR & LOCK WPL 74005674 Contact Us For Availability
21
HARNESS, MAIN WPL 74009285 Contact Us For Availability
22
ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability
22
GUIDE, COOKING WPL 71002782 Contact Us For Availability
22
MANUAL, USE & CARE WPL 74004346 Contact Us For Availability
23
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
23
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
23
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
23
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
24
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
24
PLATE, VENT WPL 74004178 Contact Us For Availability
24
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
25
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
25
GASKET, VENT WPL 74004179 Contact Us For Availability
25
PANEL, DRAWER (BLK) WPL 74003701 Contact Us For Availability
26
SUPPORT WPL 74004167 Contact Us For Availability
26
NUT, LOCK WPL 7103P13960 Contact Us For Availability
27
SUPPORT, OVEN WPL 74004171 Contact Us For Availability
27
SCREW WPL 7101P07260 Contact Us For Availability
28
RACK, HALF (FLUSH CONV. COVER) WPL 74003590 Contact Us For Availability
28
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
29
NUT WPL 7103P08260 Contact Us For Availability
29
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002569 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003356 Contact Us For Availability
× ![]()
