Model Whirlpool MER6757BAS15 ELECTRIC RANGE – Common Parts & Diagrams

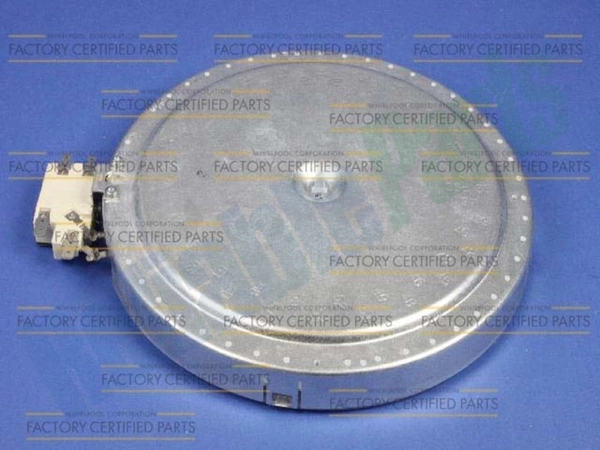

01 - COOKTOP PARTS

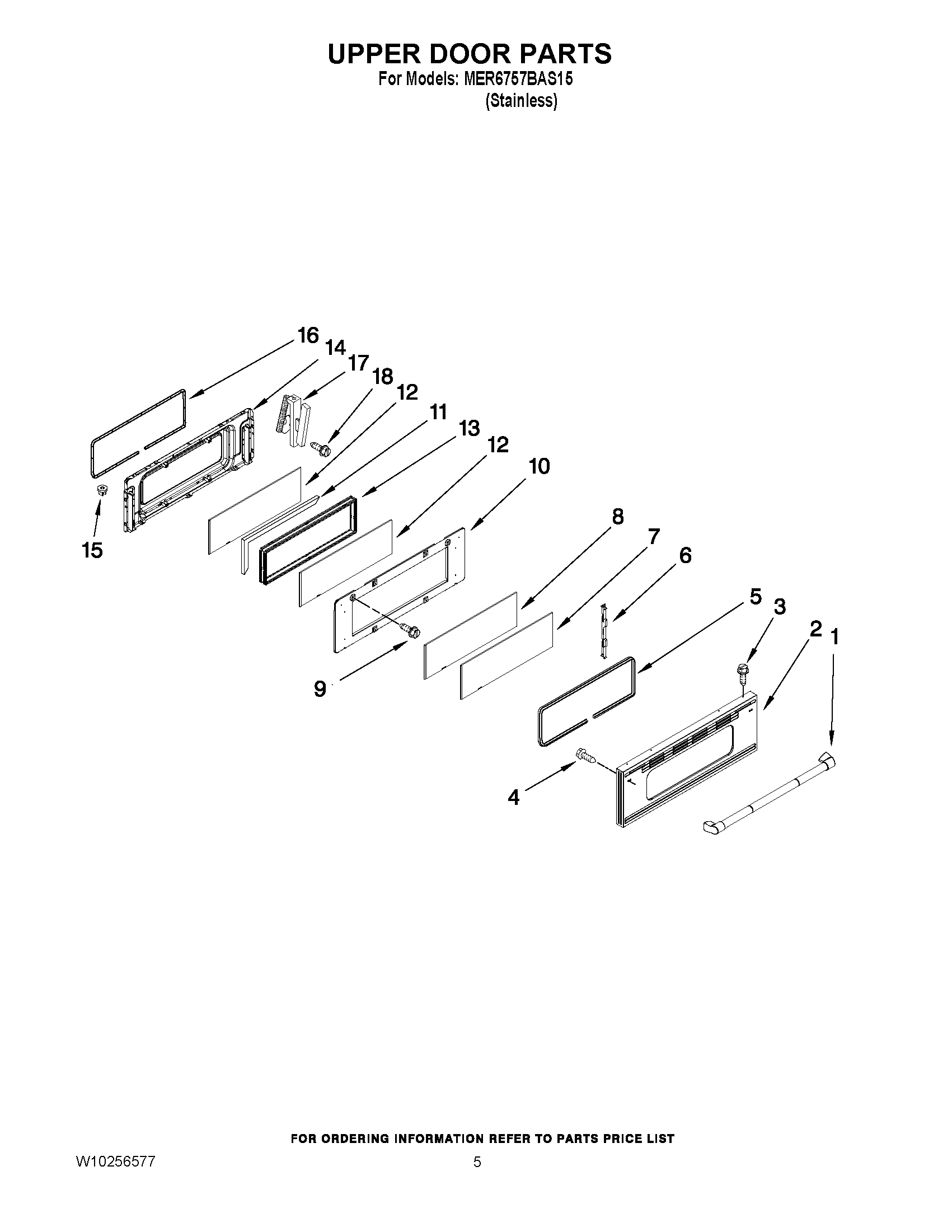

04 - UPPER DOOR PARTS

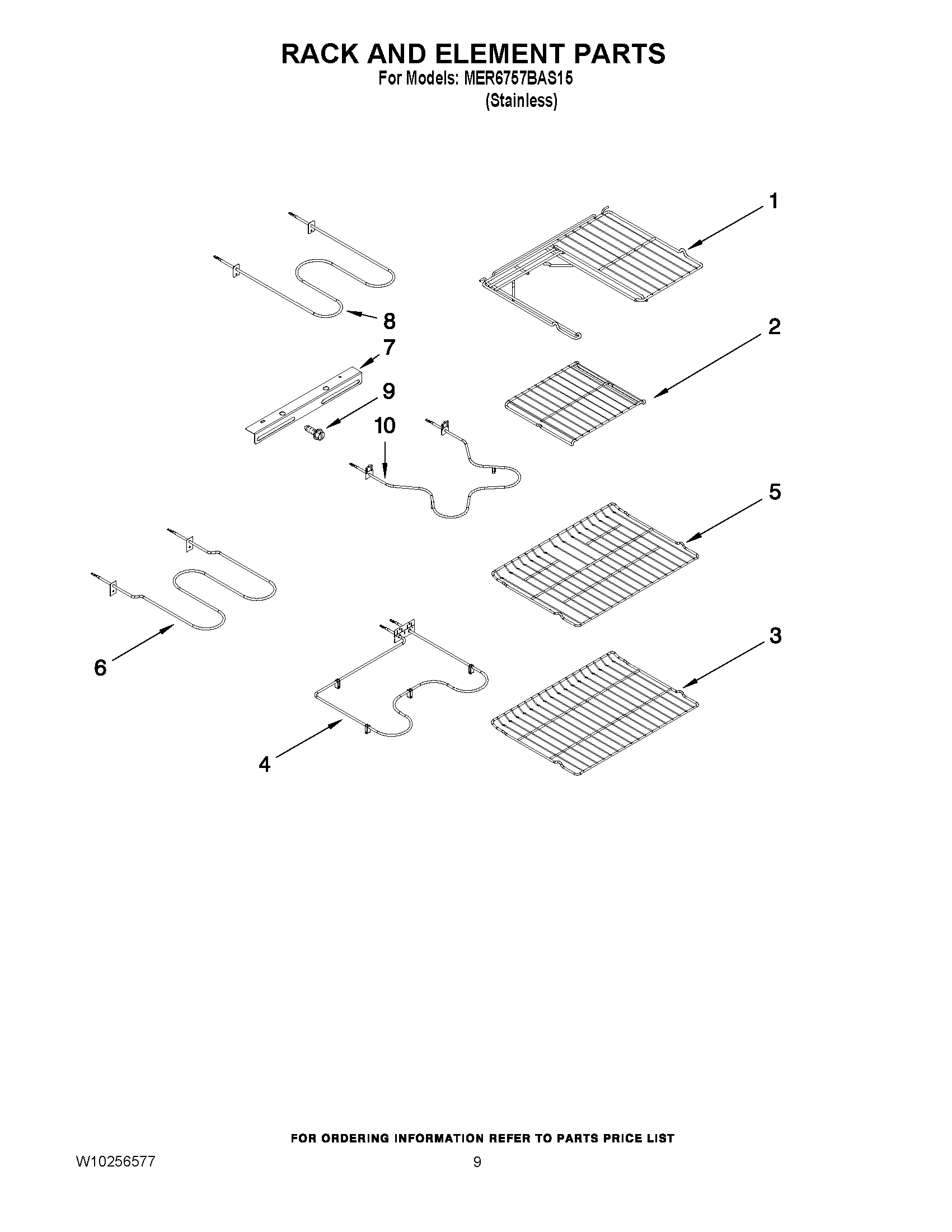

06 - RACK AND ELEMENT PARTS

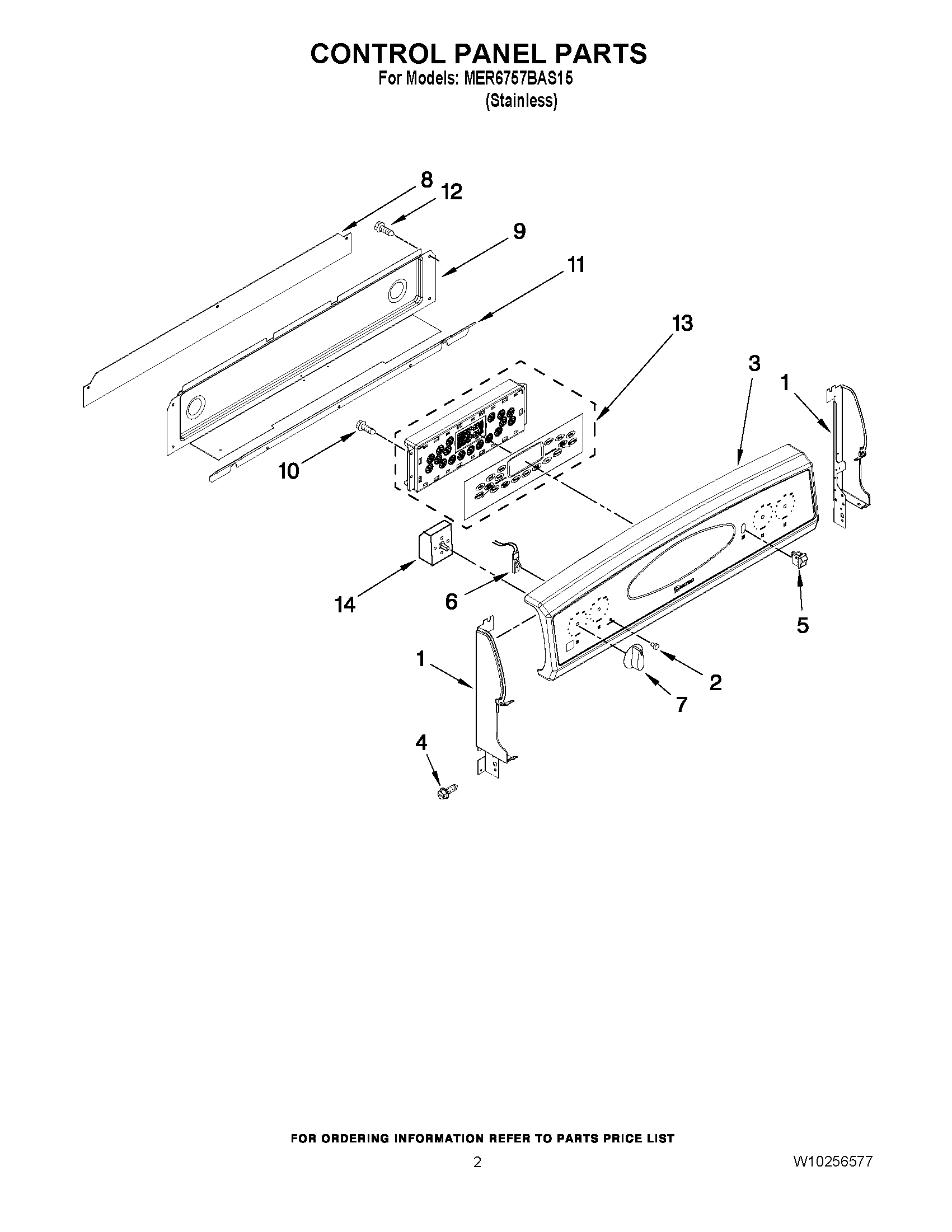

02 - CONTROL PANEL PARTS

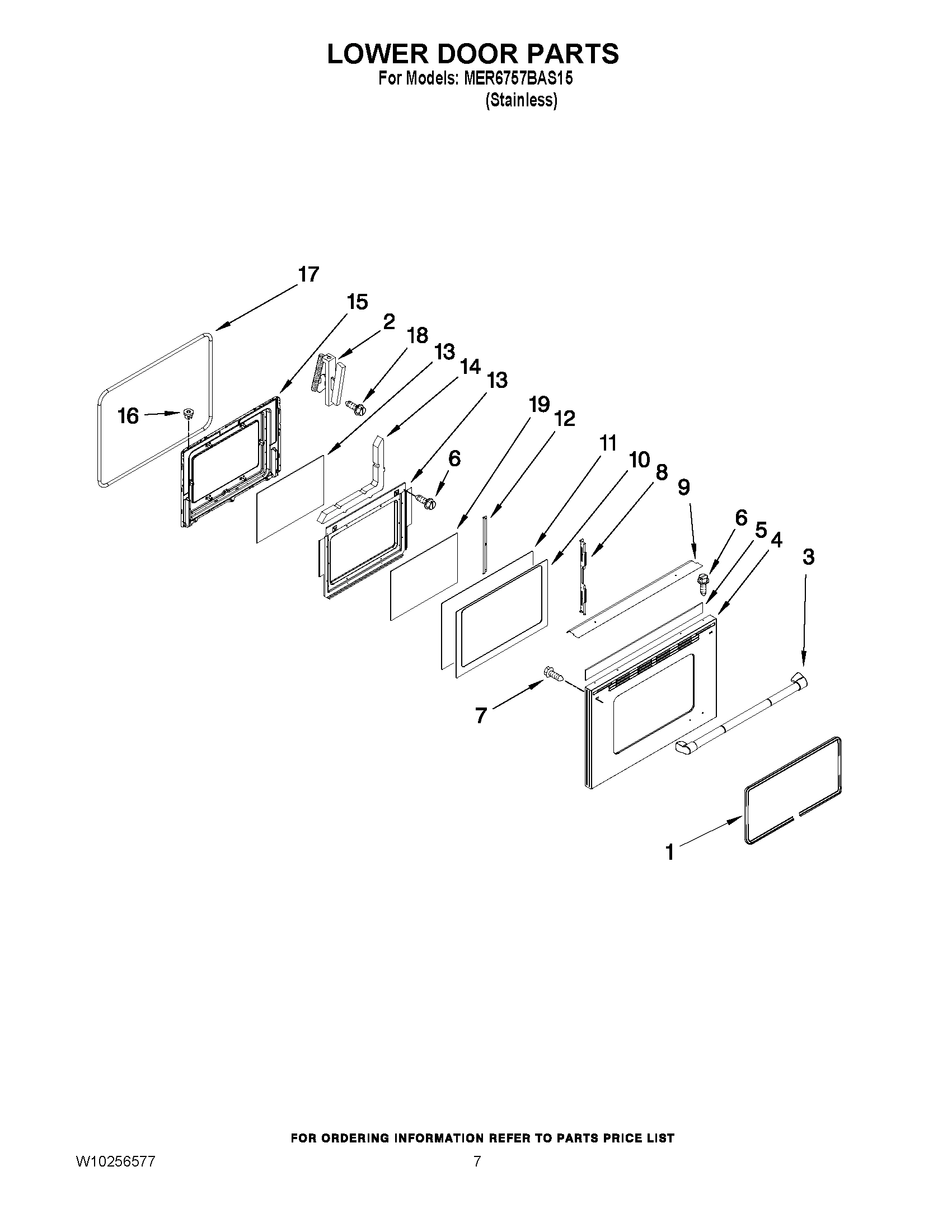

05 - LOWER DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)

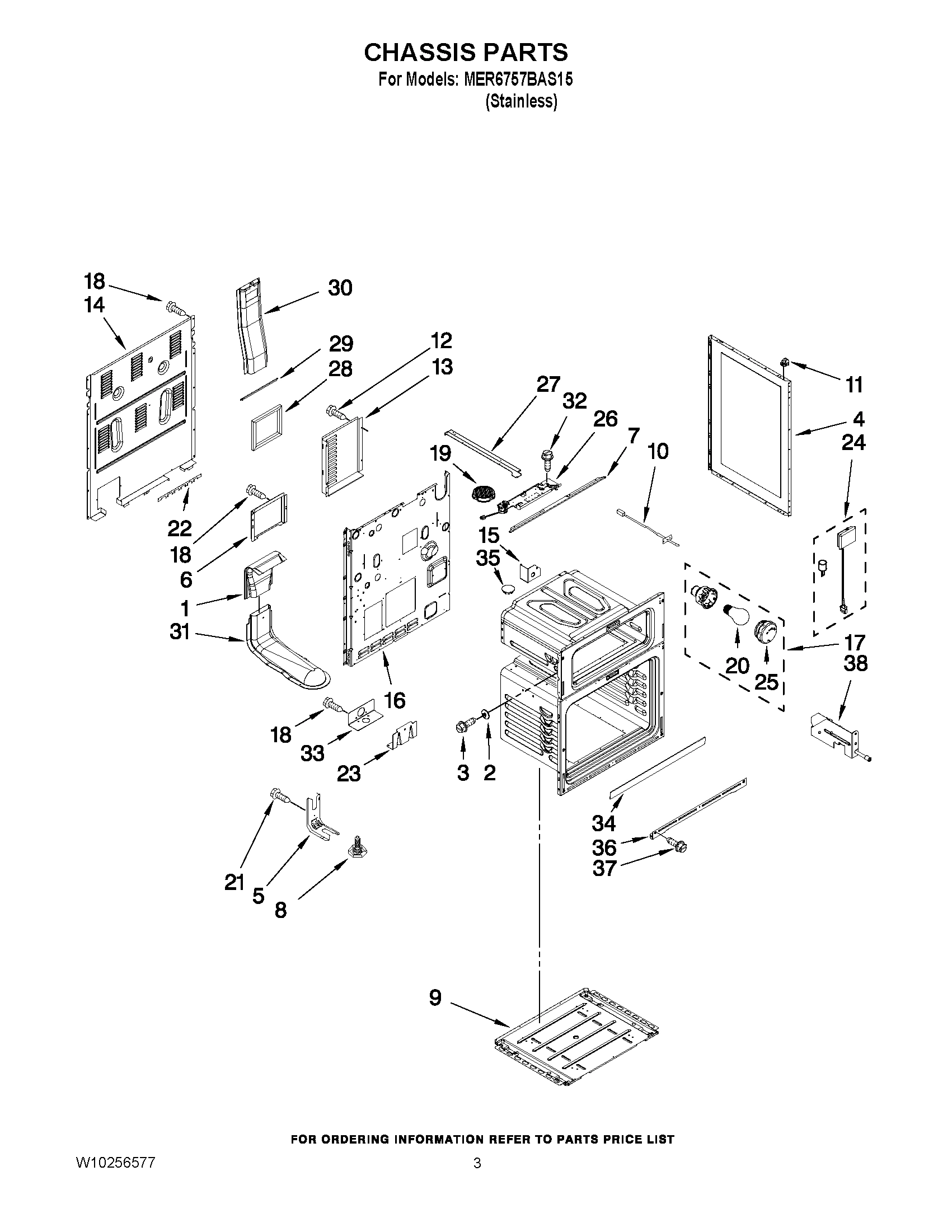

03 - CHASSIS PARTS
Common parts from model Whirlpool MER6757BAS15 ELECTRIC RANGE
1
RACK, HALF WPL W10273862 Contact Us For Availability
1
Support, Backguard (Right) WPL 3807F73370 Contact Us For Availability
1
Support, Backguard (Left) WPL 3807F73470 Contact Us For Availability
1
Gasket, Window WPL 7201P14160 Contact Us For Availability
1
Extension, Vent WPL 8026P08260 Contact Us For Availability
2
INSERT, RACK WPL W10275560 Contact Us For Availability
2
Lens, Indicator WPL 7730P01160 Contact Us For Availability
2
Hinge, Door (2) WPL 7106P14160 Contact Us For Availability
2
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
3
Rack, Lwr Oven (2) WPL 7801P17360 Contact Us For Availability
3
Panel, Control WPL 7704P14060 Contact Us For Availability
3
Handle, Door WPL 7701P52660 Contact Us For Availability
3
Screw, Shoulder WPL 7101P61860 Contact Us For Availability
4
Panel, Door WPL 7760P15460 Contact Us For Availability
4
Panel, Side WPL 2618F19470 Contact Us For Availability
5
Switch, Rocker WPL 7403P98560 Contact Us For Availability
5
Insulation, Foil WPL 7002P42760 Contact Us For Availability
5
Brack, Anti-Tip WPL 3801F65651 Contact Us For Availability
6
Light, Indicator WPL 7407P13660 Contact Us For Availability
6
Cover, Access WPL 4005F74751 Contact Us For Availability
7
Support, Broil Element (Upper) WPL 3807F49445 Contact Us For Availability
7
Knobs (4) WPL 7737P23260 Contact Us For Availability
7
Screw WPL 7101P67560 Contact Us For Availability
7
Bracket, Cooktop WPL 3801F92480 Contact Us For Availability
8
Element, Broil (Upper) WPL 7406P47460 Contact Us For Availability
8
Shield, Sight WPL 3604F38751 Contact Us For Availability
8
Retainer, Glass Support (2) WPL 3804F26545 Contact Us For Availability
8
Foot, Leveler (4) WPL 7101P50760 Contact Us For Availability
9
Cover, Rear Wire WPL 4005F80351 Contact Us For Availability
9
Shield, Door WPL 3604F44151 Contact Us For Availability
10
Baffle, Door WPL 3601F35445 Contact Us For Availability
10
Screw WPL 7101P50060 Contact Us For Availability
10
Glass, Outer Door WPL 7902P75260 Contact Us For Availability
10
Sensor, Oven (Lower Oven) WPL 7430P04260 Contact Us For Availability
10
Sensor, Oven (Upper Oven) WPL 7430P04460 Contact Us For Availability
11
Insulation (2) WPL 7002P48860 Contact Us For Availability
11
Shield, Wire WPL 3604F40551 Contact Us For Availability
11
Glass, Door WPL 7902P46860 Contact Us For Availability
11
Spacer, Top (Left) WPL 8010P08760 Contact Us For Availability
11
Spacer, Top (Right) WPL 8010P08860 Contact Us For Availability
12
Glass, Inner (2) WPL 7902P52160 Contact Us For Availability
12
Screw WPL 7101P43460 Contact Us For Availability
12
Bracket, Inner WPL 3801F88651 Contact Us For Availability
12
Screw WPL 7101P38860 Contact Us For Availability
13
Frame, Glass WPL 7907P03460 Contact Us For Availability
13
CONTROL W/OVERLAY WPL W10334474 Contact Us For Availability
13
Baffle, Door WPL 3601F37351 Contact Us For Availability
13
Cover, Bottom Wire WPL 4005F59251 Contact Us For Availability
14
Switch, Infinite (LF) WPL W10177711 Contact Us For Availability
14
Liner, Door WPL 2402W24819 Contact Us For Availability
14
Switch, Infinite (LR,RR) WPL 7403P23860 Contact Us For Availability
14
Switch, Infinite (RF) WPL 7403P23960 Contact Us For Availability
14
Insulation WPL 7002P24660 Contact Us For Availability
14
COVER, UPPER WIRE WPL W10167412 Contact Us For Availability
15
Liner, Door WPL 2402W31219 Contact Us For Availability
15
Bracket (Right) WPL 3801F70551 Contact Us For Availability
15
Bracket (Left) WPL 3801F70651 Contact Us For Availability
16
Nut, Snap (2) WPL 7103P14160 Contact Us For Availability
16
Gasket, Door WPL 7201P09160 Contact Us For Availability
16
Back, Main WPL 4002F33251 Contact Us For Availability
17
HINGE, DOOR WPL 7106P14860 Contact Us For Availability
18
Screw WPL 7101P28260 Contact Us For Availability
18
SCREW WPL 7101P37660 Contact Us For Availability
19
Glass, Inner WPL 7902P43660 Contact Us For Availability
19
Screen, Smoke WPL 8034P00860 Contact Us For Availability
20
Bulb, Oven WPL 7407P11460 Contact Us For Availability
21
Screw WPL 7101P48560 Contact Us For Availability
22
Sheild, Cord WPL 8036P01260 Contact Us For Availability
24
LIGHT ASSY. WPL 7407P18160 Contact Us For Availability
26
Latch, Door Lock WPL 8002P07760 Contact Us For Availability
27
BOTTOM, BURNER BOX (RIGHT) WPL W10283688 Contact Us For Availability
27
BOTTOM, BURNER BOX (LEFT) WPL W10283722 Contact Us For Availability
28
Gasket, Vent WPL 7201P08960 Contact Us For Availability
29
Shield, Door Lock WPL 3604F44051 Contact Us For Availability
30
Vent, Oven WPL 4022W01745 Contact Us For Availability
31
Vent, Box (Lower) WPL 4006W12945 Contact Us For Availability
31
Vent, Box (Upper) WPL 4006W13945 Contact Us For Availability
32
Screw WPL 7101P37560 Contact Us For Availability
34
Seal, Frame WPL 7212P06660 Contact Us For Availability
35
Plug, Hole WPL 7718P03060 Contact Us For Availability
36
Trim, Kickplate WPL 3608F09170 Contact Us For Availability
37
Screw (2) WPL 7101P63360 Contact Us For Availability
38
SWTCH-LITE WPL 7450P10860 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
Harness, Wire (Sensor) WPL 5171P46260 Contact Us For Availability
NI
Harness, Wire (Side Mount) WPL 5171P46760 Contact Us For Availability
NI
Harness, Inf.Sw. (Right) WPL 5171P86560 Contact Us For Availability
NI
Harness, Inf.Sw. (Left) WPL 5171P91060 Contact Us For Availability
NI
Harness, Main WPL 5171P95360 Contact Us For Availability
NI
Harness, Wire (Door Position) WPL 5175P36560 Contact Us For Availability
NI
Blocks, Bare Wire Adapter (Kit of 3) WPL 7401P15760 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
NI
Harness, Wire (Main Top) WPL W10196939 Contact Us For Availability
NI
Insulation, Wrap (Lower Oven) WPL 7002P23360 Contact Us For Availability
NI
Insulation, Back (Upper Oven) WPL 7002P43460 Contact Us For Availability
NI
Insulation, Wrap (Upper Oven) WPL 7002P49060 Contact Us For Availability
× ![]()
