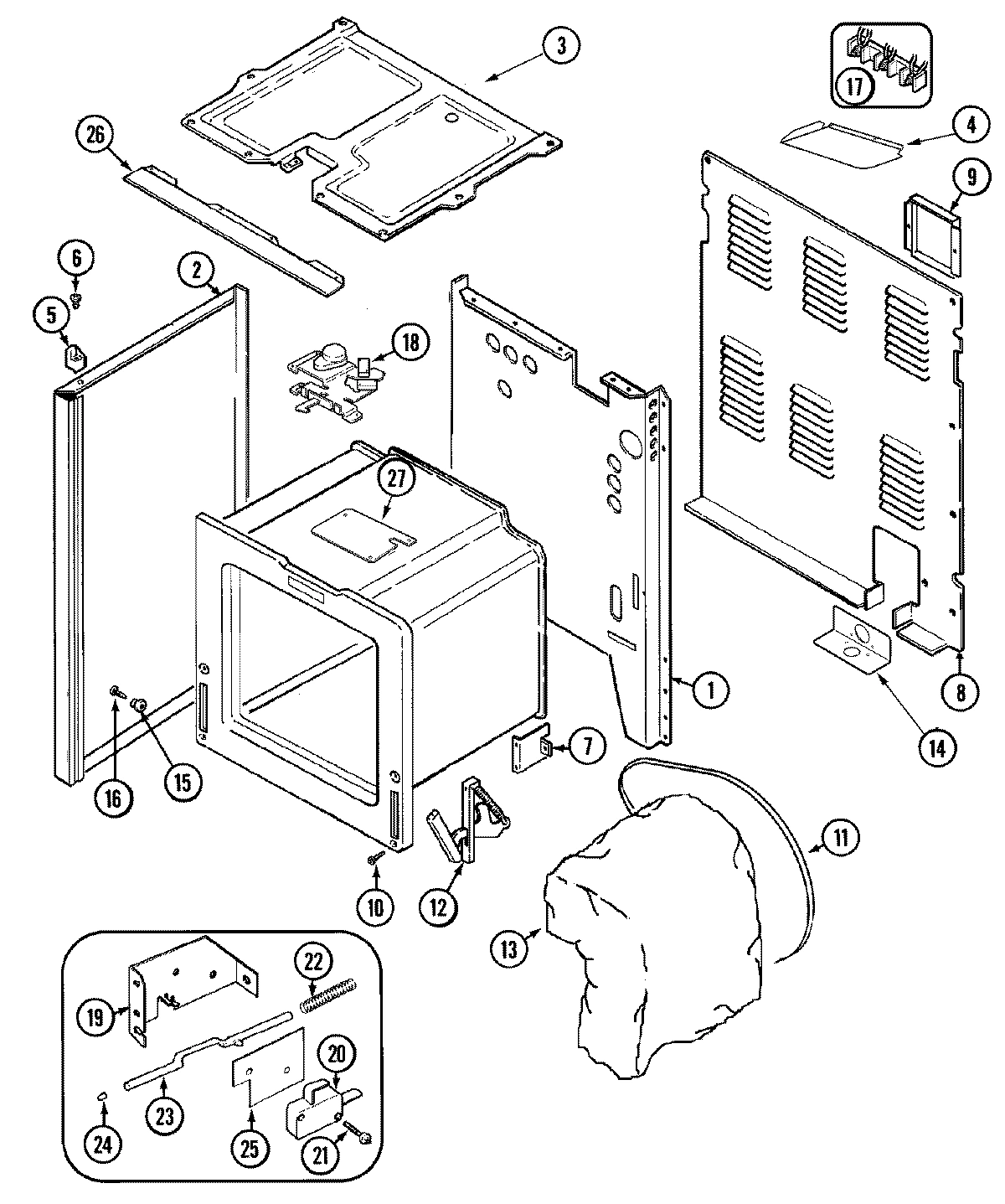

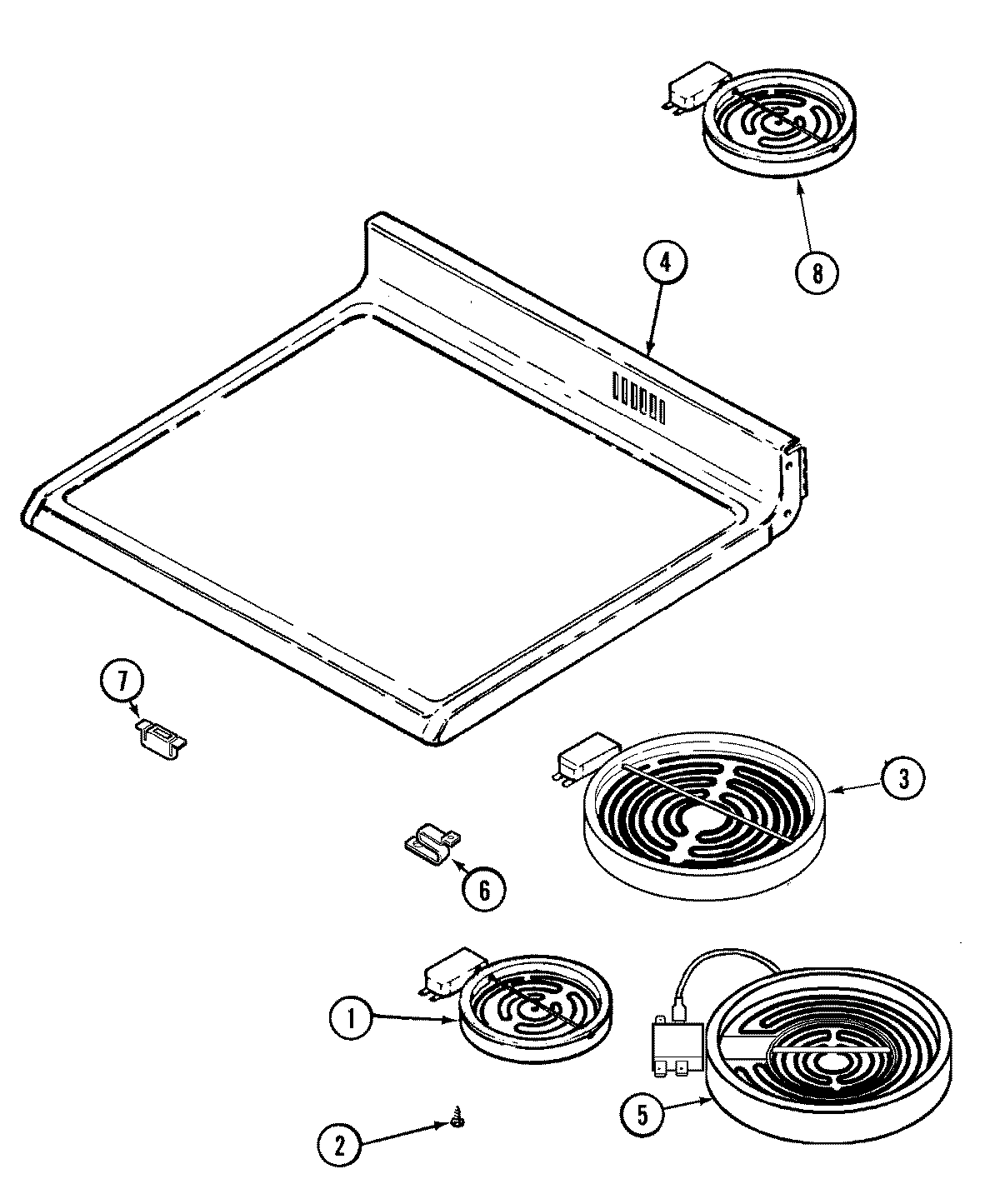

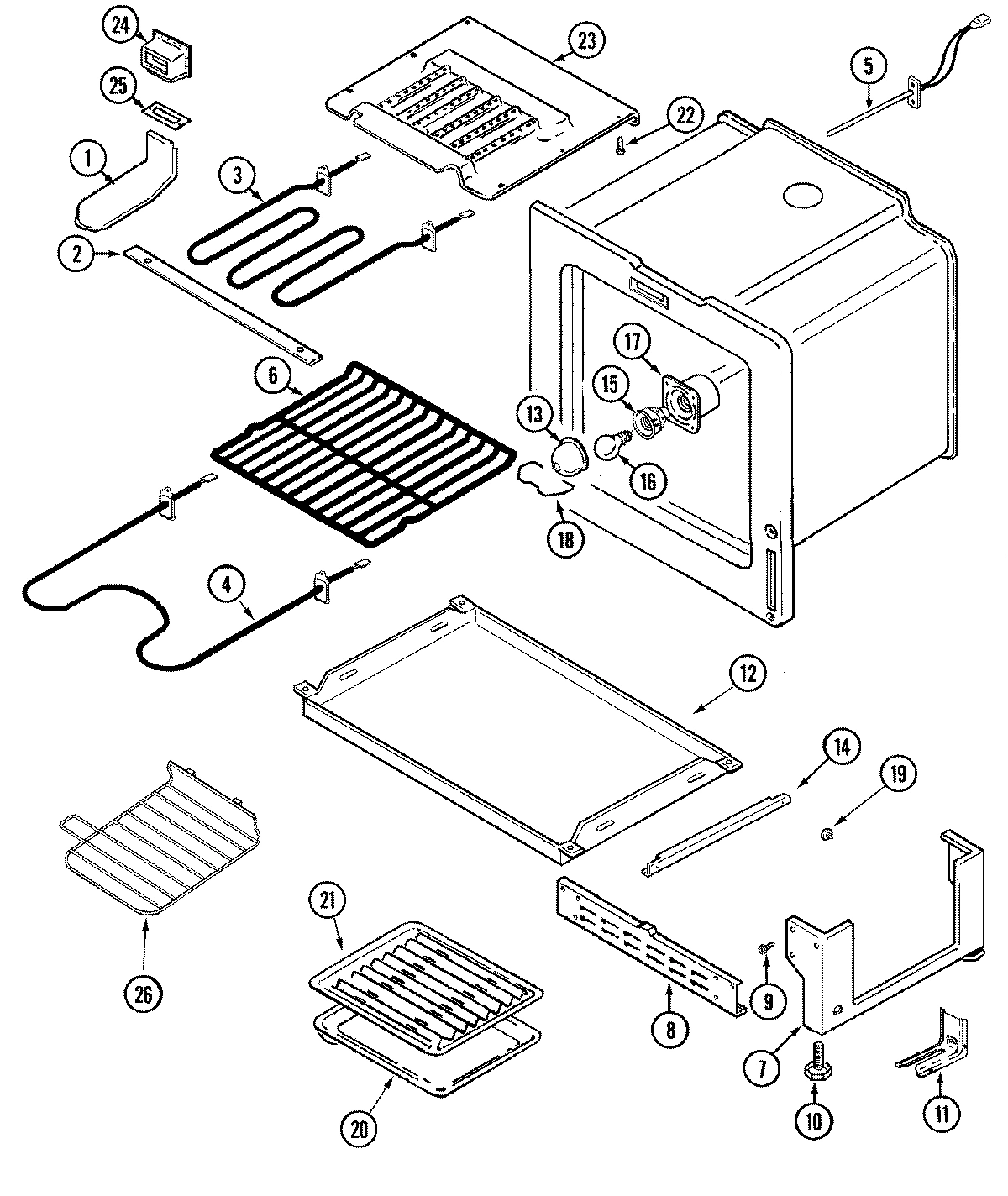

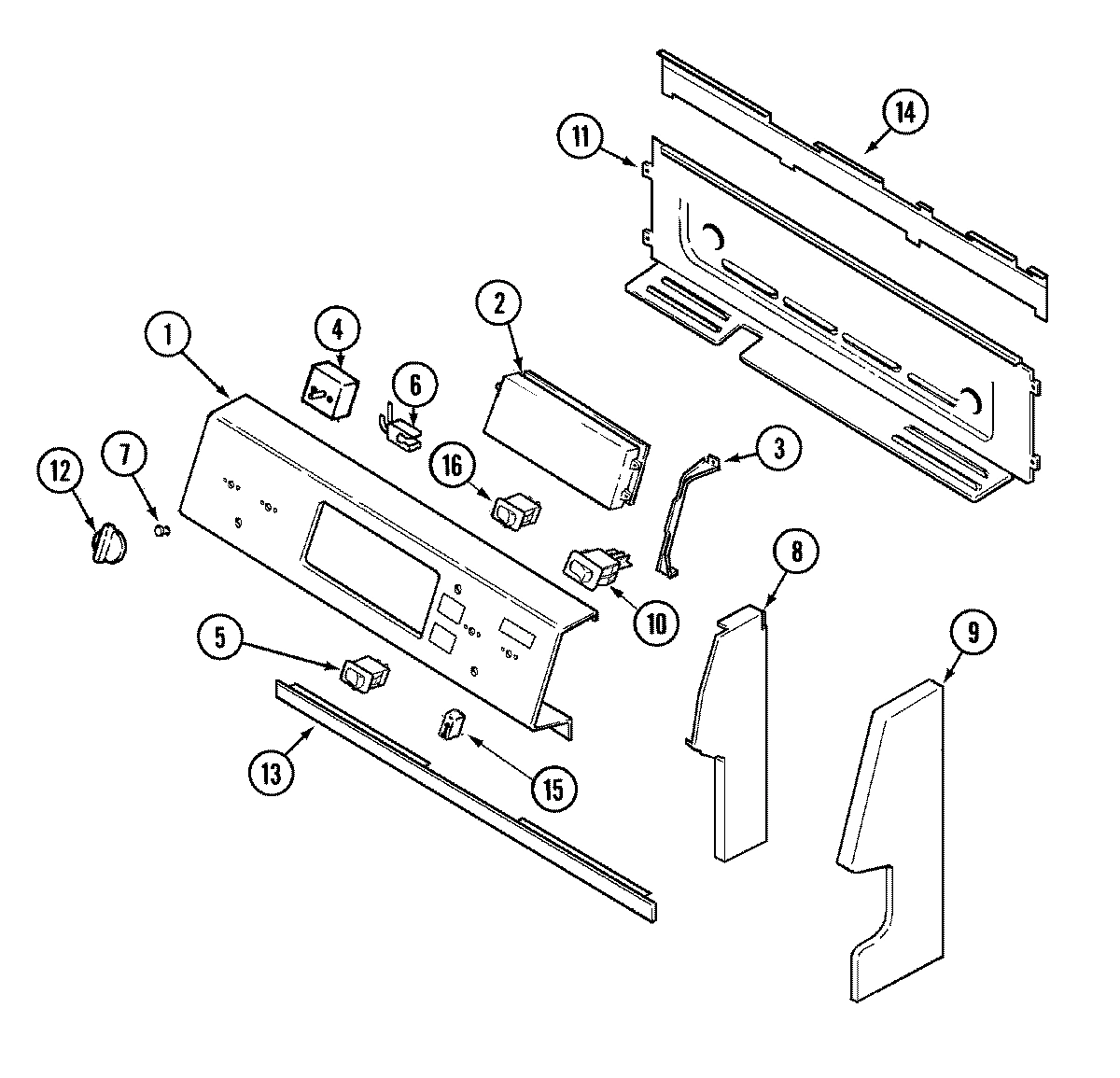

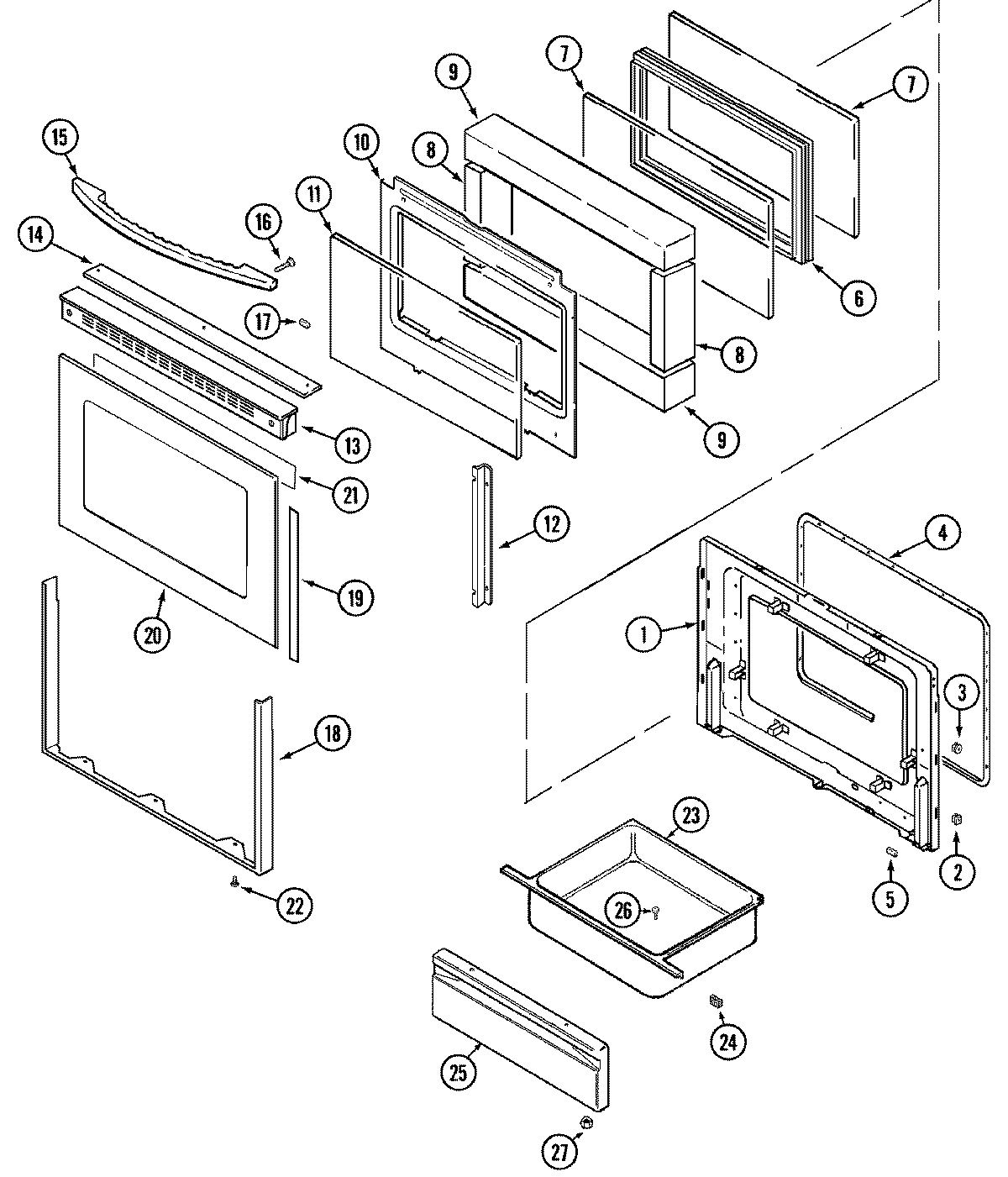

Model Whirlpool MER5770BAQ ELECTRIC RANGE – Common Parts &amp; Diagrams

1

LINING, DOOR WPL 74003642 Contact Us For Availability

1

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

1

MANUAL, USE & CARE WPL 74005908 Contact Us For Availability

1

GUIDE, COOKING (TRILINGUAL) WPL 74007136 Contact Us For Availability

1

BACK, MAIN WPL 74006322 Contact Us For Availability

1

GROMMET WPL 8008P01060 Contact Us For Availability

1

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

2

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

2

NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability

2

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

2

HARNESS, DOOR LOCK MOTOR WPL 74005489 Contact Us For Availability

2

HARNESS, BACKGUARD WPL 74007607 Contact Us For Availability

2

HARNESS, BACKGUARD WPL 74007618 Contact Us For Availability

2

PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability

2

SCREW WPL 7101P34560 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

3

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $124.94

3

BOX, BURNER WPL 74006384 Contact Us For Availability

3

BOX, BURNER (LT) WPL 74007366 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74007367 Contact Us For Availability

4

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

4

WP74003122 Whirlpool Infinite Switch Assembly In Stock WPL WP74003122 $81.47

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (WARMING) WPL 74006589 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

4

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

4

COVER, TERMINAL WPL 74006581 Contact Us For Availability

4

PAD, SPONGE (NON ABRASIVE) WPL 20001100 Contact Us For Availability

4

TOP, MAIN (BSQ) WPL 74006479 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

W10823709 Whirlpool Range Dual Radiant Surfac In Stock WPL W10823709 $147.51

5

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

7

INDICATOR, LIGHT WPL 74006388 Contact Us For Availability

8

WP8523700 Whirlpool Surface Element Backorder WPL WP8523700 $130.63

8

BRACKET, CONTROL PANEL (RT) WPL 74005392 Contact Us For Availability

8

BRACKET, CONTROL PANEL (LT) WPL 74005393 Contact Us For Availability

8

INSULATION, SIDE WPL 74003646 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

9

END CAP, CNTRL PANEL (RT-BSQ) WPL 74004979 Contact Us For Availability

9

END CAP, CNTRL PANEL (LT-BSQ) WPL 74004980 Contact Us For Availability

9

SCREW (6ABX1/2 3/16) WPL 74004982 Contact Us For Availability

9

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

SWITCH, ROCKER DUAL (BSQ) WPL 74006469 Contact Us For Availability

BAFFLE, DOOR WPL 74003648 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability

GLASS, DOOR WPL 74003649 Contact Us For Availability

STRAP, INSULATION WPL 74003385 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

WP74011141 Whirlpool Oven Hinge Backorder WPL WP74011141 $138.74

KNOB, SWITCH (BSQ) WPL 74005143 Contact Us For Availability

RETAINER, GLASS WPL 74003650 Contact Us For Availability

RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

TRIM, DOOR TOP (BSQ) WPL 74006403 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74005771 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

EXTENSION, CONTROL PANEL WPL 74006376 Contact Us For Availability

INSERT, DOOR TRIM (BSQ) WPL 74004978 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

15

HANDLE, DOOR (BSQ) WPL 74006377 Contact Us For Availability

15

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

15

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

74008765 Whirlpool Range Oven Rocker Switch B Backorder WPL 74008765 $64.51

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

TAPE, DBL. SIDED (WHT) WPL 71002092 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $4.82

FRAME, DOOR (BSQ) WPL 74005162 Contact Us For Availability

DOOR LOCK MOTOR ASSY. WPL 74005575 Contact Us For Availability

LATCH, DOOR LOCK WPL 74007722 Contact Us For Availability

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

20

GLASS, DOOR (BSQ) WPL 74006405 Contact Us For Availability

20

SWITCH WPL 74001802 Contact Us For Availability

20

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

21

TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability

21

SCREW WPL 912012 Contact Us For Availability

21

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

22

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

23

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

23

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

23

BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability

24

SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability

24

BUMPER, ROD WPL 74001631 Contact Us For Availability

24

EXTENSION, VENT WPL 3826W01445 Contact Us For Availability

25

PANEL, DRAWER (BSQ) WPL 74006571 Contact Us For Availability

25

INSULATOR, SWITCH WPL 74001872 Contact Us For Availability

25

GASKET, VENT WPL 74003285 Contact Us For Availability

26

SCREW WPL 7101P07260 Contact Us For Availability

26

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

26

RACK, HALF (FLUSH CONV. COVER) WPL 74003590 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

RETAINER, INSUL. DOOR LOCK WPL 74005496 Contact Us For Availability

INSULATION, DOOR LOCK WPL 74006590 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE BOTH PARTS NOT WPL W10124350 Contact Us For Availability

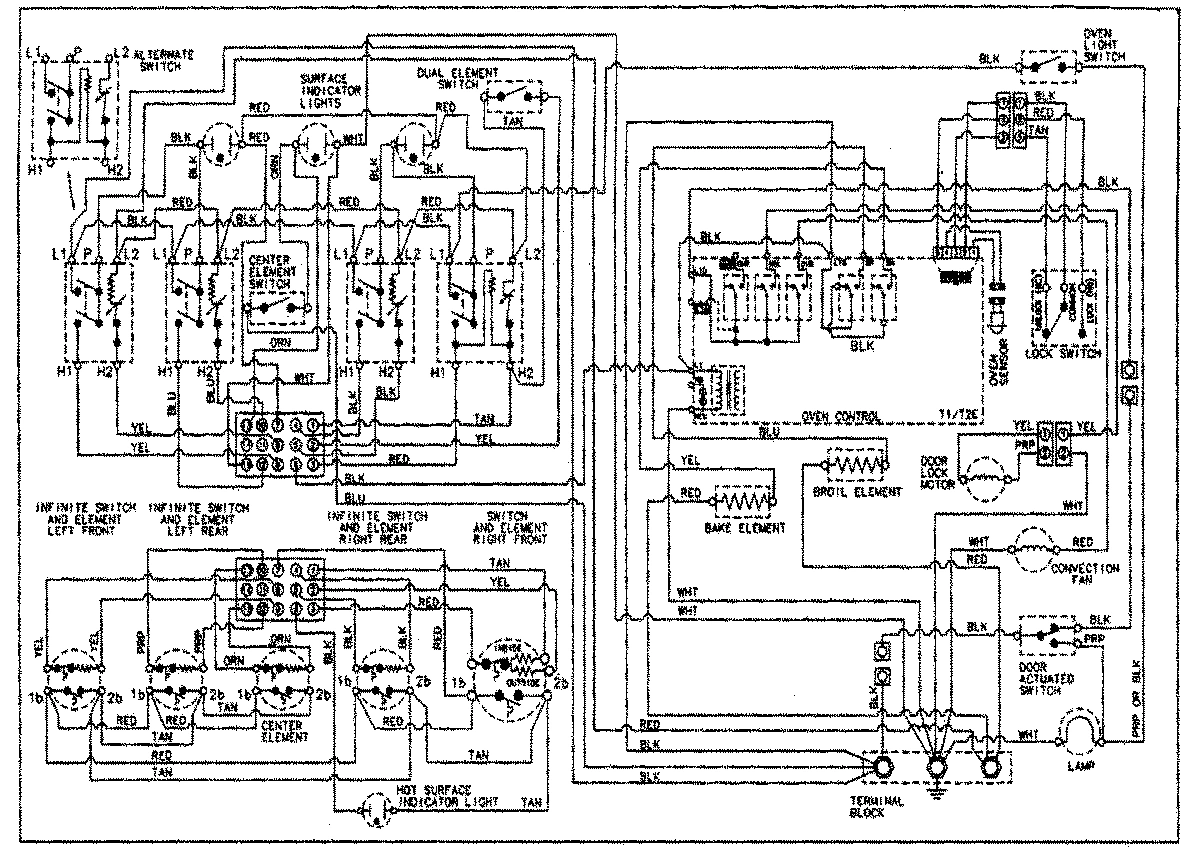

WIRING INFORMATION WPL 15002884 Contact Us For Availability

WIRING INFORMATION WPL 15003097 Contact Us For Availability

WIRING INFORMATION WPL 15003108 Contact Us For Availability

WIRING INFORMATION WPL 15003142 Contact Us For Availability
