Model Whirlpool MER5770ACW ELECTRIC RANGE – Common Parts & Diagrams
05 - TOP ASSEMBLY

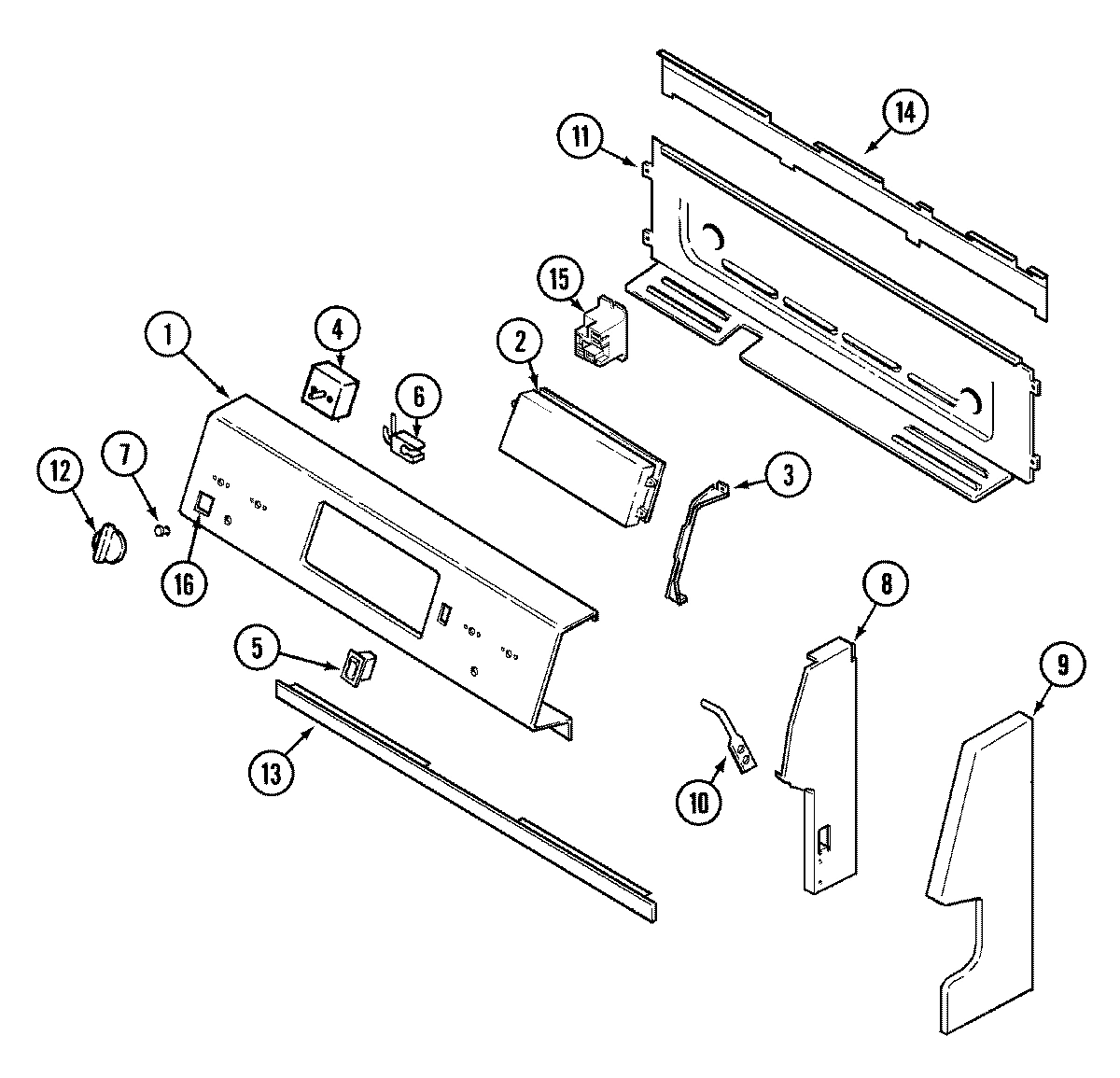

02 - CONTROL PANEL (ACB, ACW)

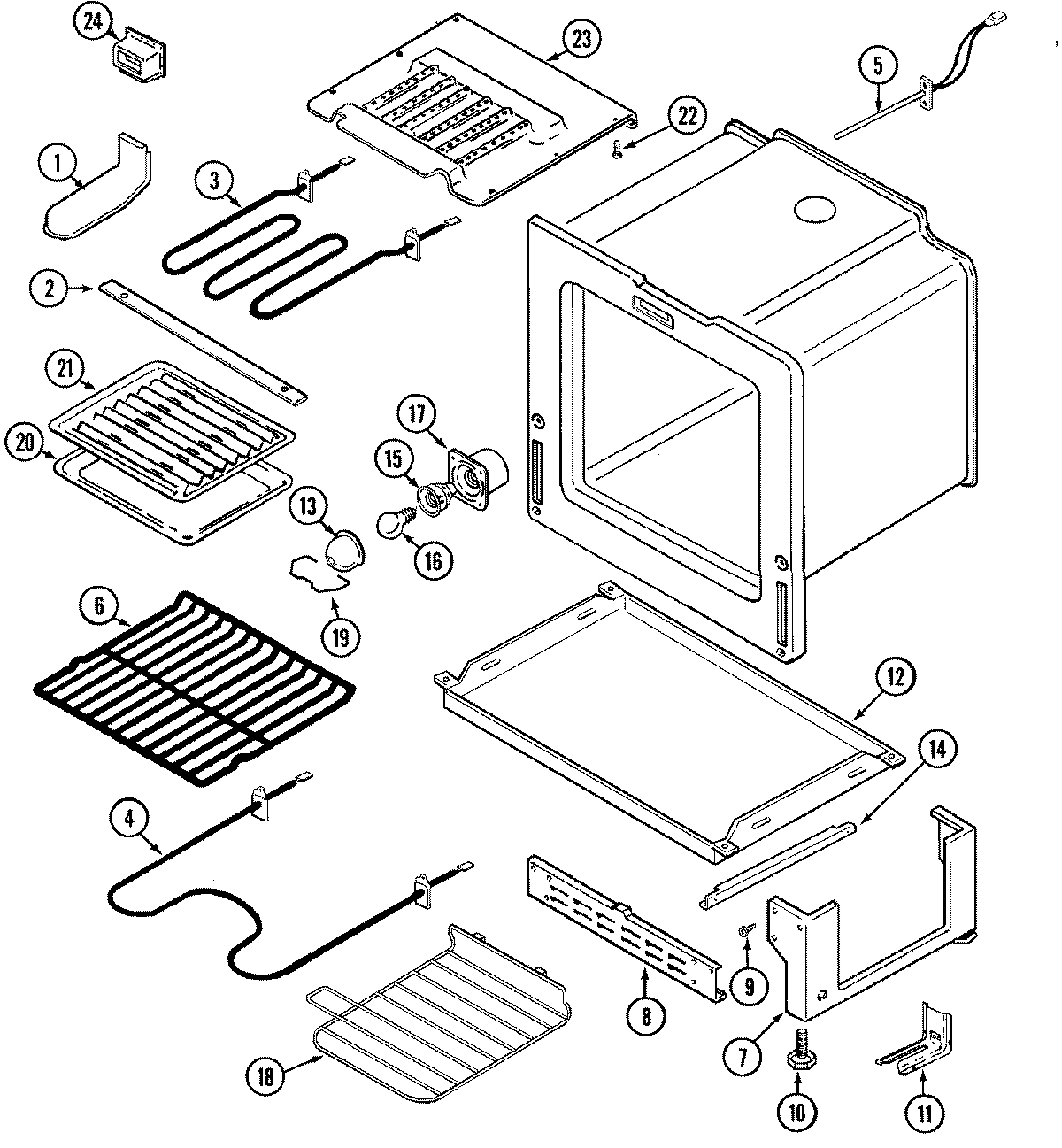

04 - OVEN/BASE

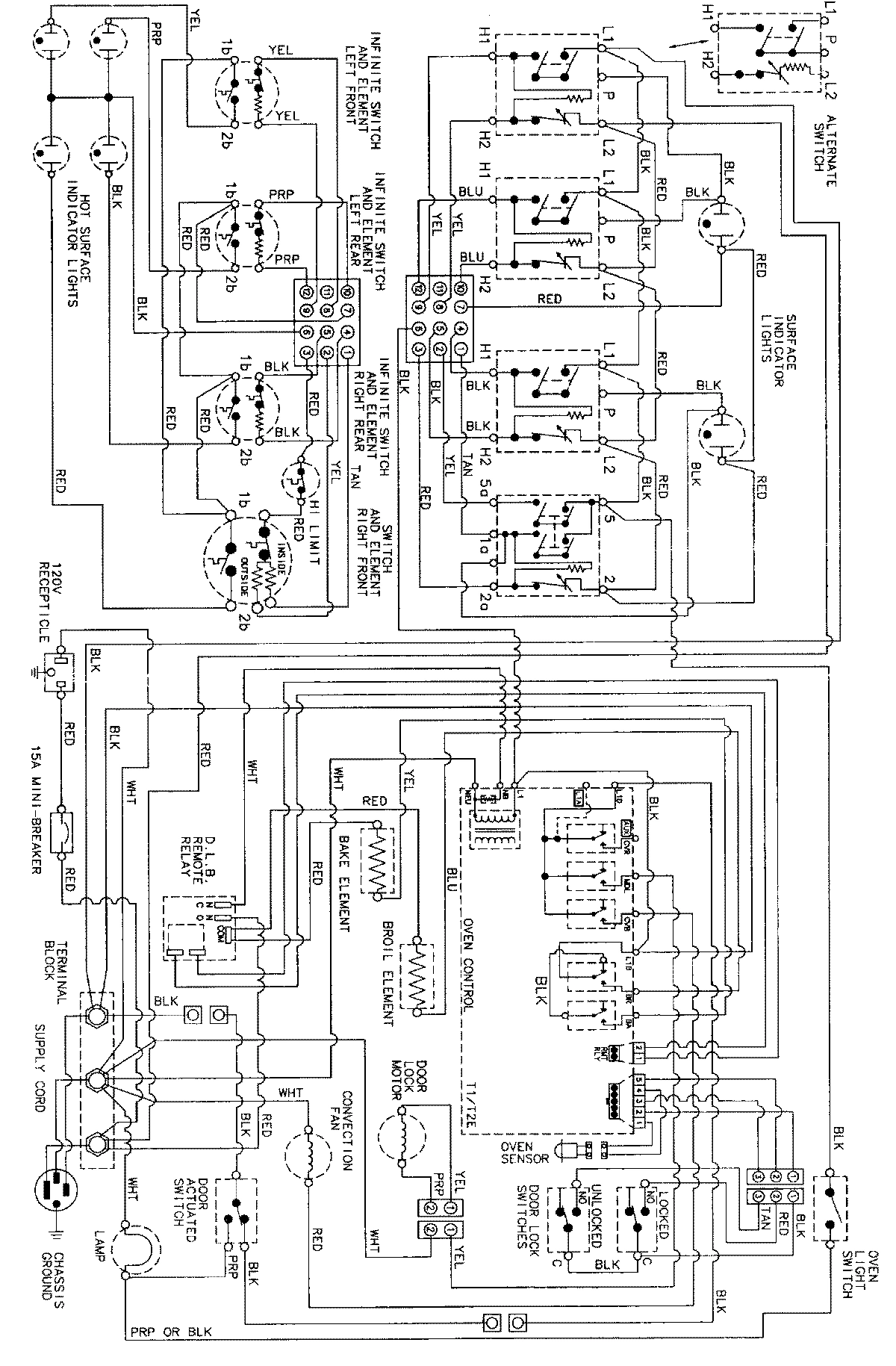

06 - WIRING INFORMATION

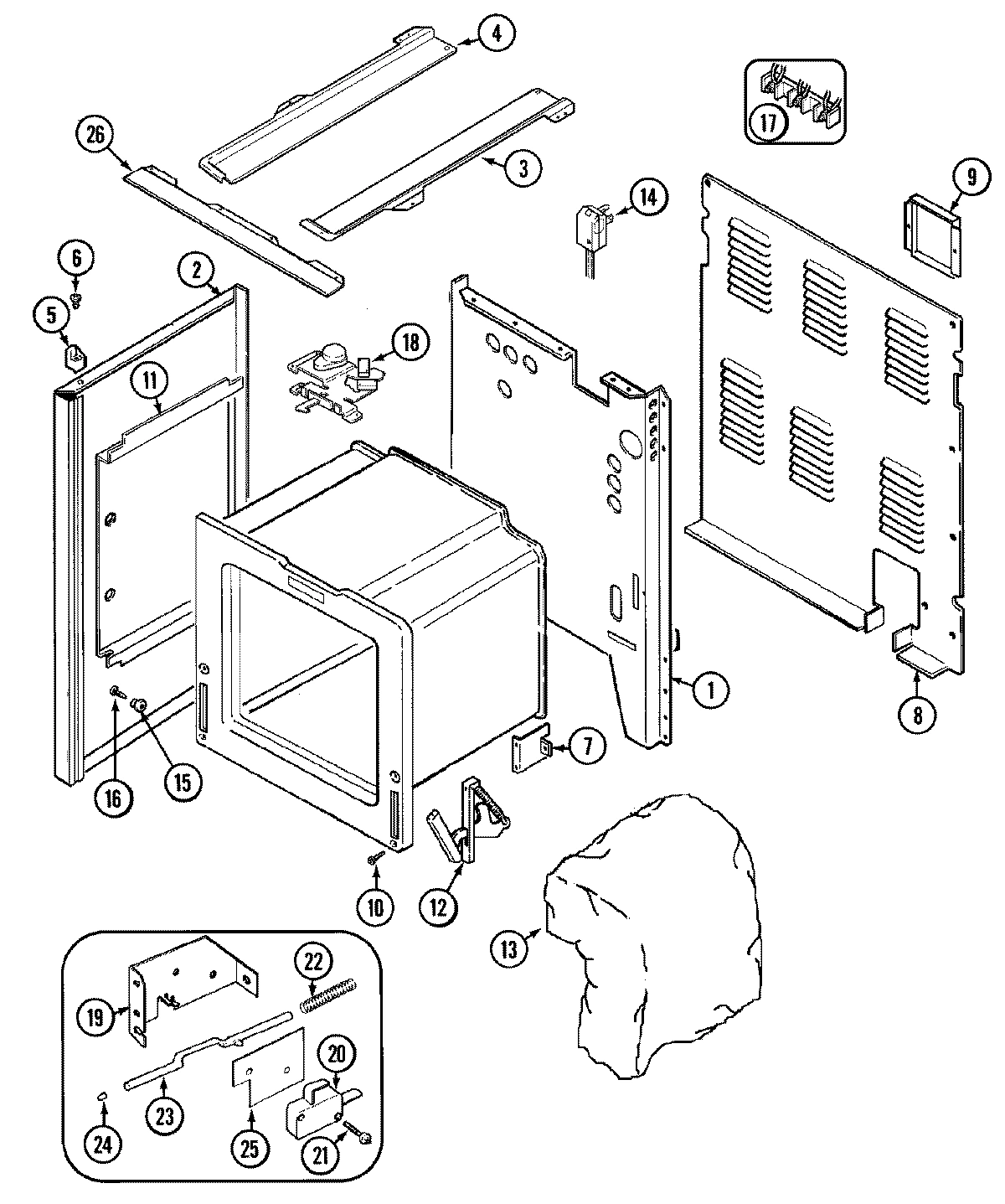

01 - BODY

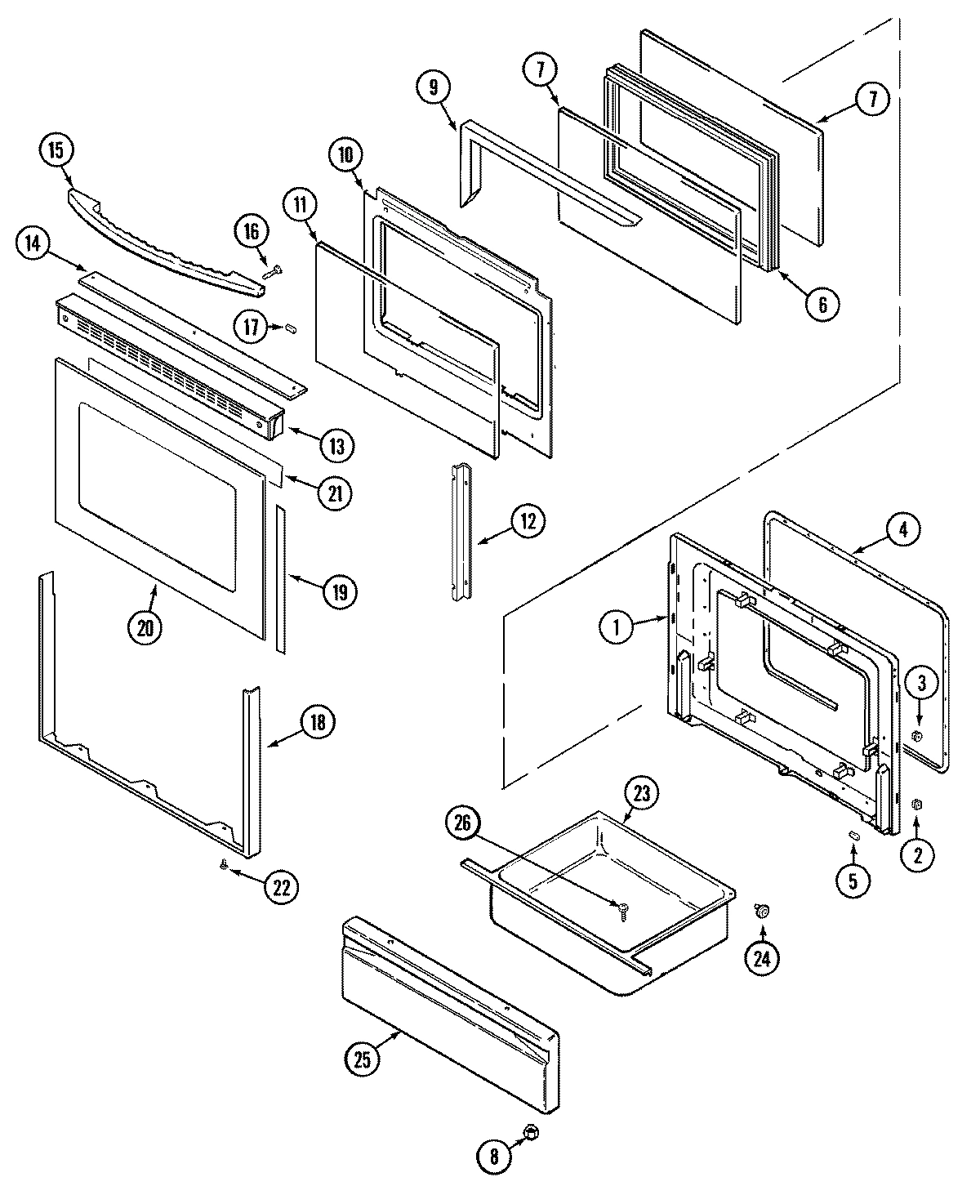

03 - DOOR/DRAWER

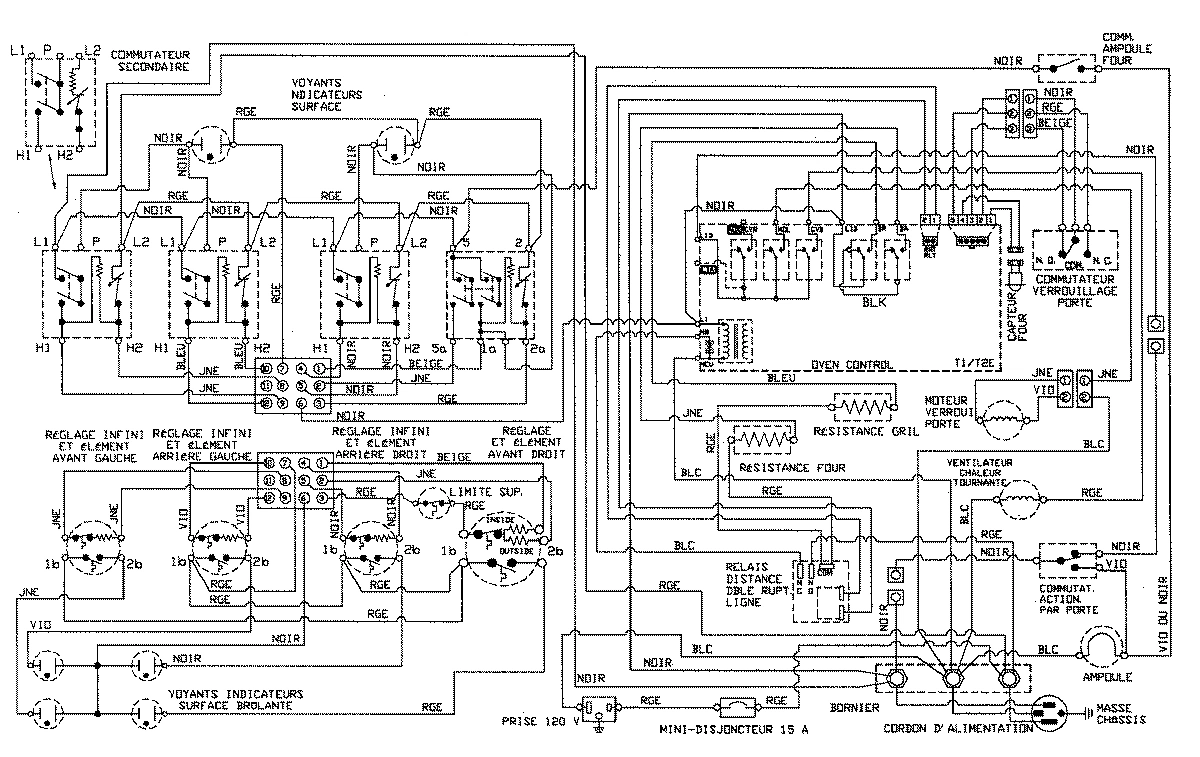

07 - WIRING INFORMATION
Common parts from model Whirlpool MER5770ACW ELECTRIC RANGE
1
PANEL, CONTROL (WHT) WPL 74003786 Contact Us For Availability
1
VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
LINING, DOOR WPL 74003642 Contact Us For Availability
1
WIRING INFORMATION (FRC) WPL 15002785 Contact Us For Availability
2
SCREW WPL 7101P34960 Contact Us For Availability
2
CLOCK (WHT) WPL 74003758 Contact Us For Availability
2
SCREW WPL 7101P34560 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability
2
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
2
NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability
3
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
3
BRACKET, CLOCK WPL 74003627 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74003378 Contact Us For Availability
3
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
4
TOP, MAIN (WHT GLASS/WHT TRM) WPL 74003790 Contact Us For Availability
4
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
4
SCREW WPL 7101P30960 Contact Us For Availability
4
SWITCH, DUAL ELEMENT WPL 74002144 Contact Us For Availability
4
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
4
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74003379 Contact Us For Availability
4
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
ELEMENT, CERAN. DUAL WPL 74002666 Contact Us For Availability
5
LIMITER WPL 74002667 Contact Us For Availability
5
LIMITER (DUAL) WPL 74004880 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
6
BRACKET, SWITCH WPL 71003077 Contact Us For Availability
6
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
6
FRAME, GLASS WPL 74003644 Contact Us For Availability
7
LIGHT, INDICATOR WPL 71003078 Contact Us For Availability
7
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003393 Contact Us For Availability
7
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (RT) WPL 74003603 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (LT) WPL 74003604 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability
8
NUT, LOCK WPL 7103P13960 Contact Us For Availability
9
END CAP, CONTROL PNL (RT-WHT) WPL 74003607 Contact Us For Availability
9
END CAP, CONTROL PNL (LT-WHT) WPL 74003608 Contact Us For Availability
9
SWITCH, LIMIT WPL 71003076 Contact Us For Availability
9
SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability
9
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
9
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
10
HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability
10
SCREW WPL 7101P11260 Contact Us For Availability
10
BAFFLE, DOOR WPL 74003648 Contact Us For Availability
11
HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability
11
SCREW WPL 7101P35260 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 74003422 Contact Us For Availability
11
GLASS, DOOR WPL 74003649 Contact Us For Availability
12
RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability
12
RETAINER, GLASS WPL 74003650 Contact Us For Availability
13
SHIELD, SIGHT WPL 74003374 Contact Us For Availability
13
COVER, BULB WPL 74003389 Contact Us For Availability
13
COVER, BULB WPL 7724P04760 Contact Us For Availability
13
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
14
EXTENSION, CONTROL PANEL WPL 74003614 Contact Us For Availability
14
EXTENSION, CONTROL PANEL WPL 74006376 Contact Us For Availability
14
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
14
CORD, POWER WPL 7402P05060 Contact Us For Availability
14
SCREW (WHT) WPL 74001278 Contact Us For Availability
14
INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability
15
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
15
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
15
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
15
HANDLE, DOOR (WHT) WPL 74003620 Contact Us For Availability
16
BREAKER, CIRCUIT (BLK) WPL 71003070 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
17
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
17
RECEPTACLE, OUTLET (WHT) WPL 71003069 Contact Us For Availability
17
HARNESS, REMOTE RELAY WPL 74003480 Contact Us For Availability
17
HARNESS, SENSOR/LOCK WPL 74003557 Contact Us For Availability
17
HOUSING, BULB WPL 74003388 Contact Us For Availability
17
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
17
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
17
TAPE, DBL. SIDED (WHT) WPL 71002092 Contact Us For Availability
18
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
18
MANUAL, USE & CARE WPL 74003685 Contact Us For Availability
18
MANUAL, USE & CARE (FRCH) WPL 74003732 Contact Us For Availability
18
RACK, HALF (FLUSH CONV. COVER) WPL 74003590 Contact Us For Availability
18
LATCH, DOOR LOCK WPL 74003559 Contact Us For Availability
18
INSULATION, LATCH WPL 74003560 Contact Us For Availability
18
RETAINER, INSULATION WPL 74003561 Contact Us For Availability
18
DOOR LOCK MOTOR ASSY. WPL 74005575 Contact Us For Availability
18
FRAME, DOOR (WHT) WPL 74004325 Contact Us For Availability
18
FRAME W/TAPE ASSY WPL 74004842 Contact Us For Availability
19
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
19
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
19
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
19
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
19
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
19
TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
SWITCH WPL 74001802 Contact Us For Availability
20
GLASS, DOOR (WHT) WPL 74003671 Contact Us For Availability
21
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
21
SCREW WPL 912012 Contact Us For Availability
21
TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability
22
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
23
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
23
ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability
23
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
24
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
24
BUMPER, ROD WPL 74001631 Contact Us For Availability
24
NUT WPL 7103P08260 Contact Us For Availability
24
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
25
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
25
PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability
26
BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability
26
SCREW WPL 7101P07260 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002331 Contact Us For Availability
× ![]()
