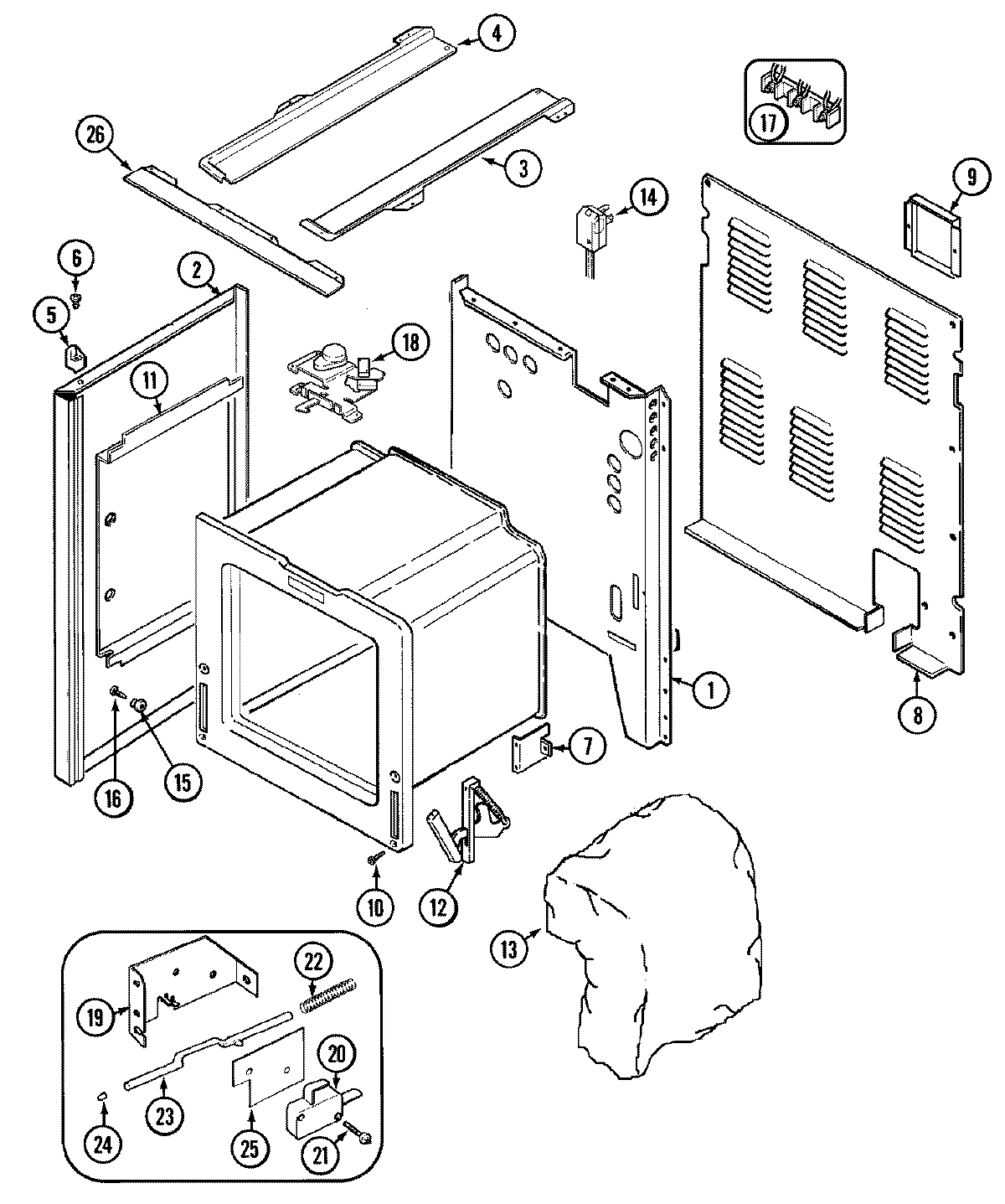

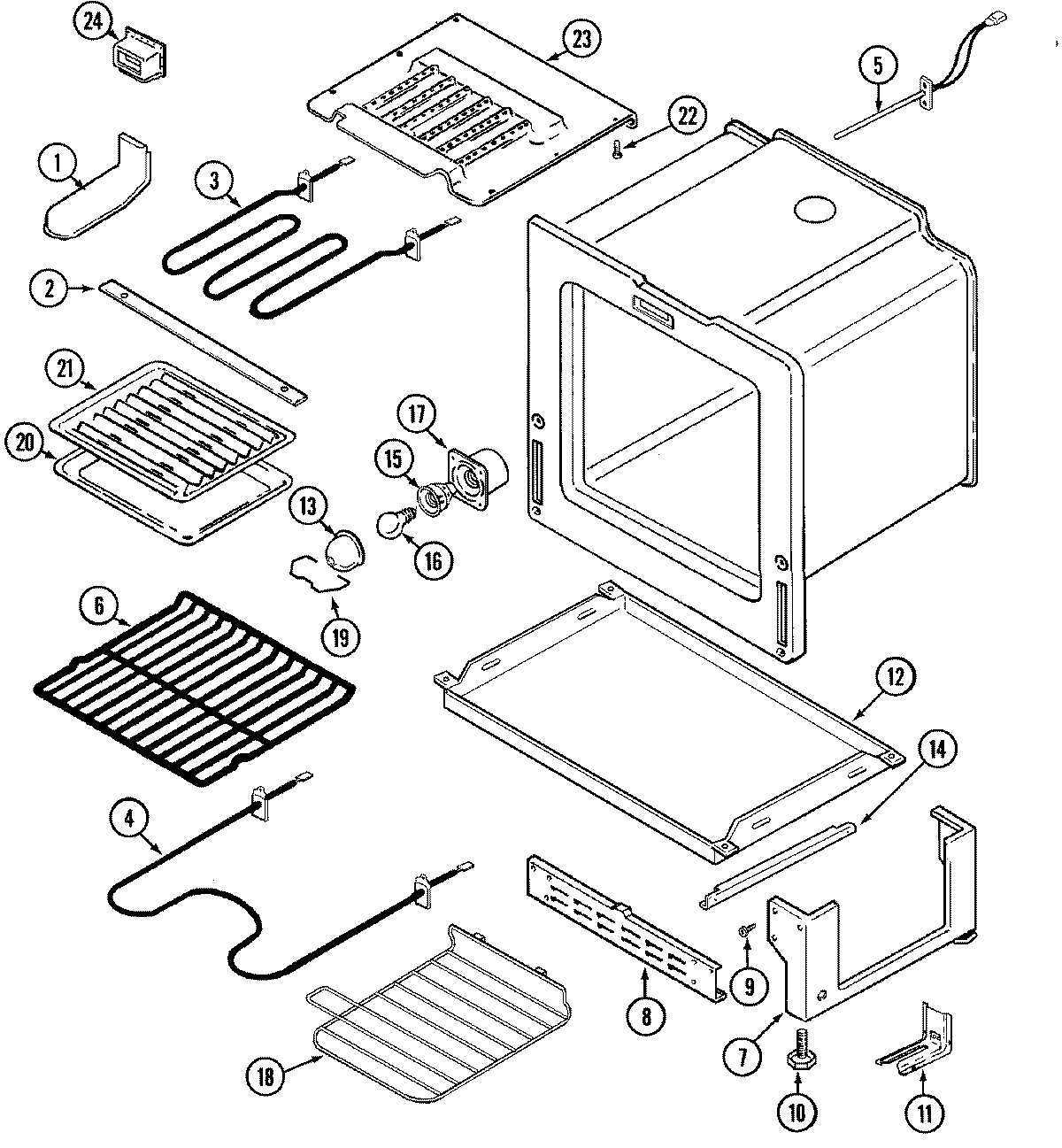

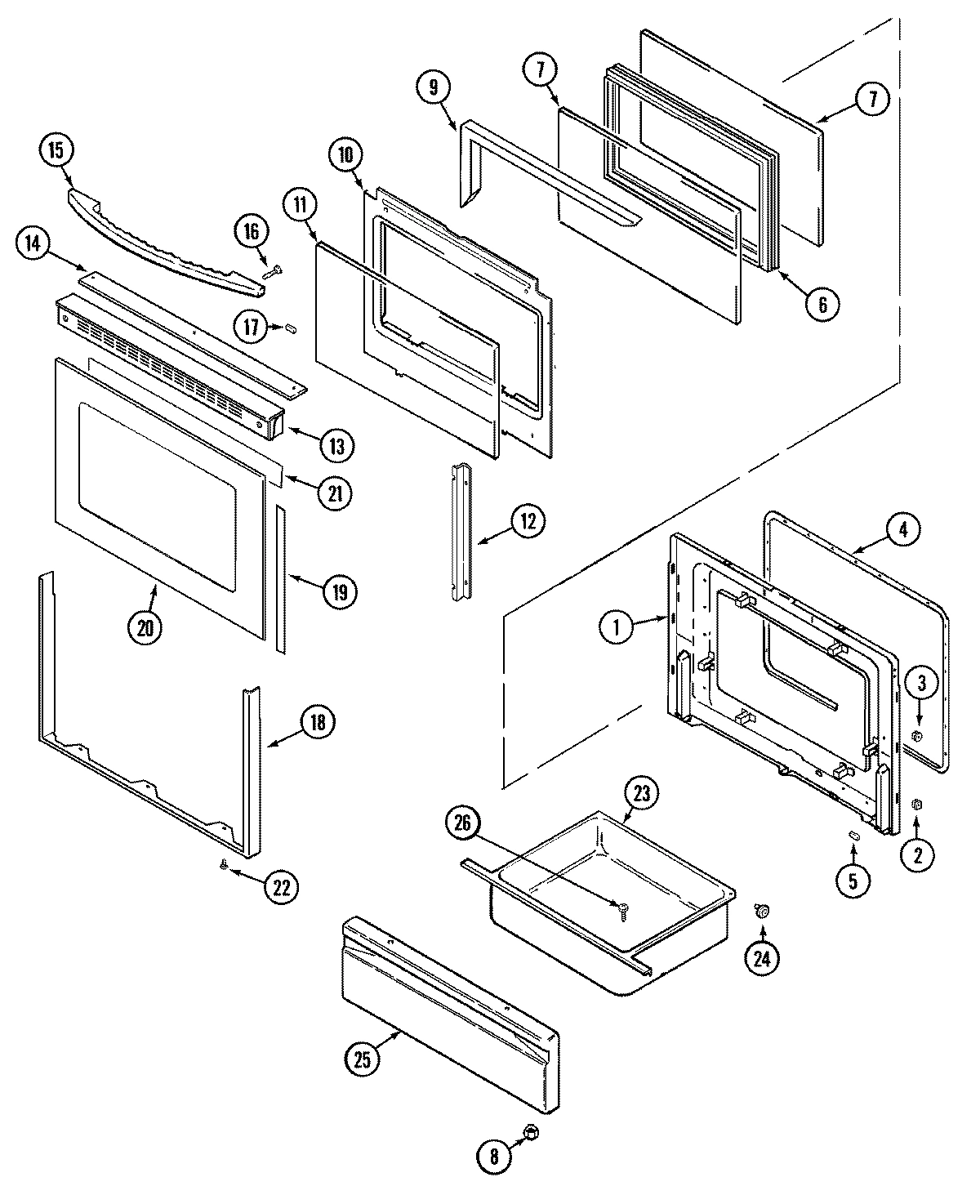

Model Whirlpool MER5770ACQ ELECTRIC RANGE – Common Parts &amp; Diagrams

1

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

1

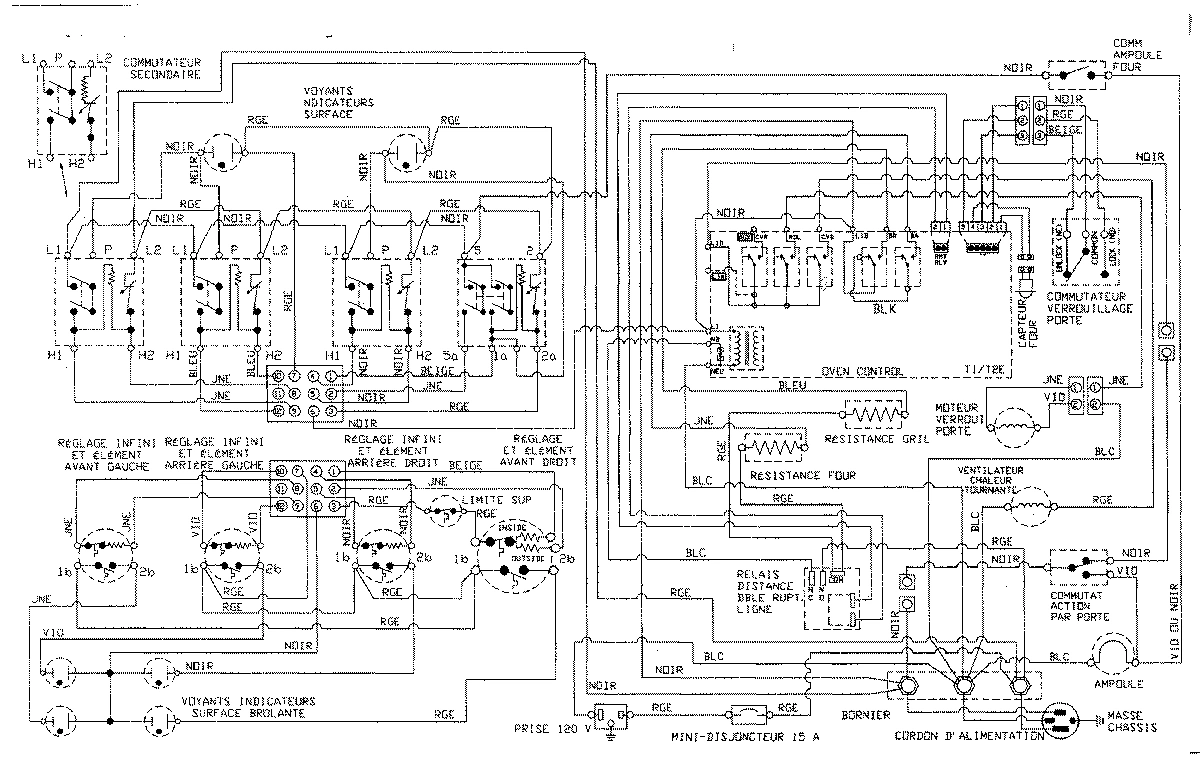

WIRING INFORMATION (FRC) WPL 15002779 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

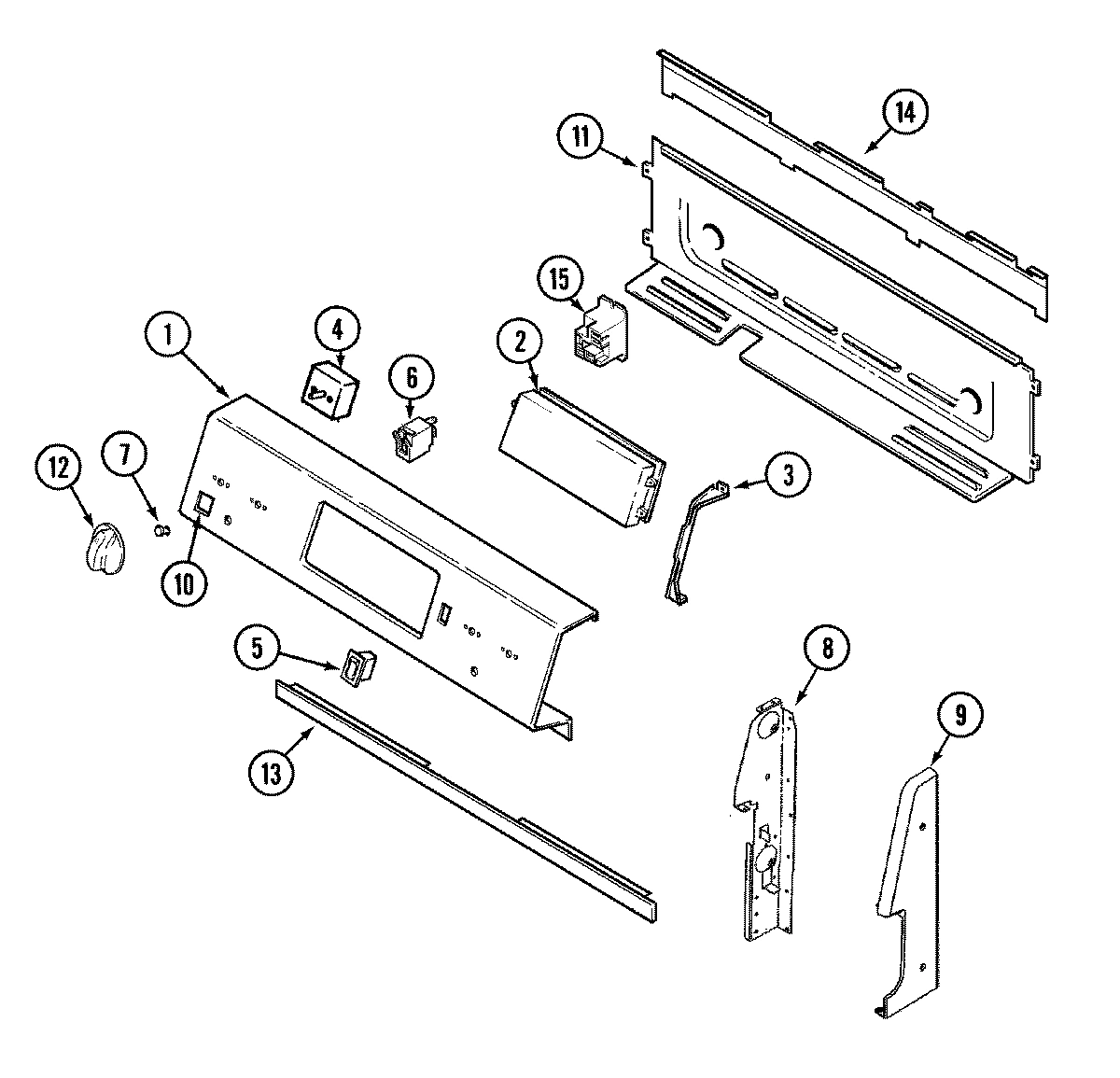

PANEL, CONTROL (BSQ) WPL 74005487 Contact Us For Availability

2

SCREW WPL 7101P34560 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

2

PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability

2

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

2

SCREW WPL 7101P14760 Contact Us For Availability

2

CLOCK (BSQ) WPL 74005174 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

3

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $124.94

3

NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003627 Contact Us For Availability

3

SCREW (8ABX3/8) BSQ WPL 74004985 Contact Us For Availability

3

LIMITER WPL 74004494 Contact Us For Availability

4

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

4

SCREW W/WASHER WPL 71003201 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, DUAL ELEMENT WPL 74002144 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

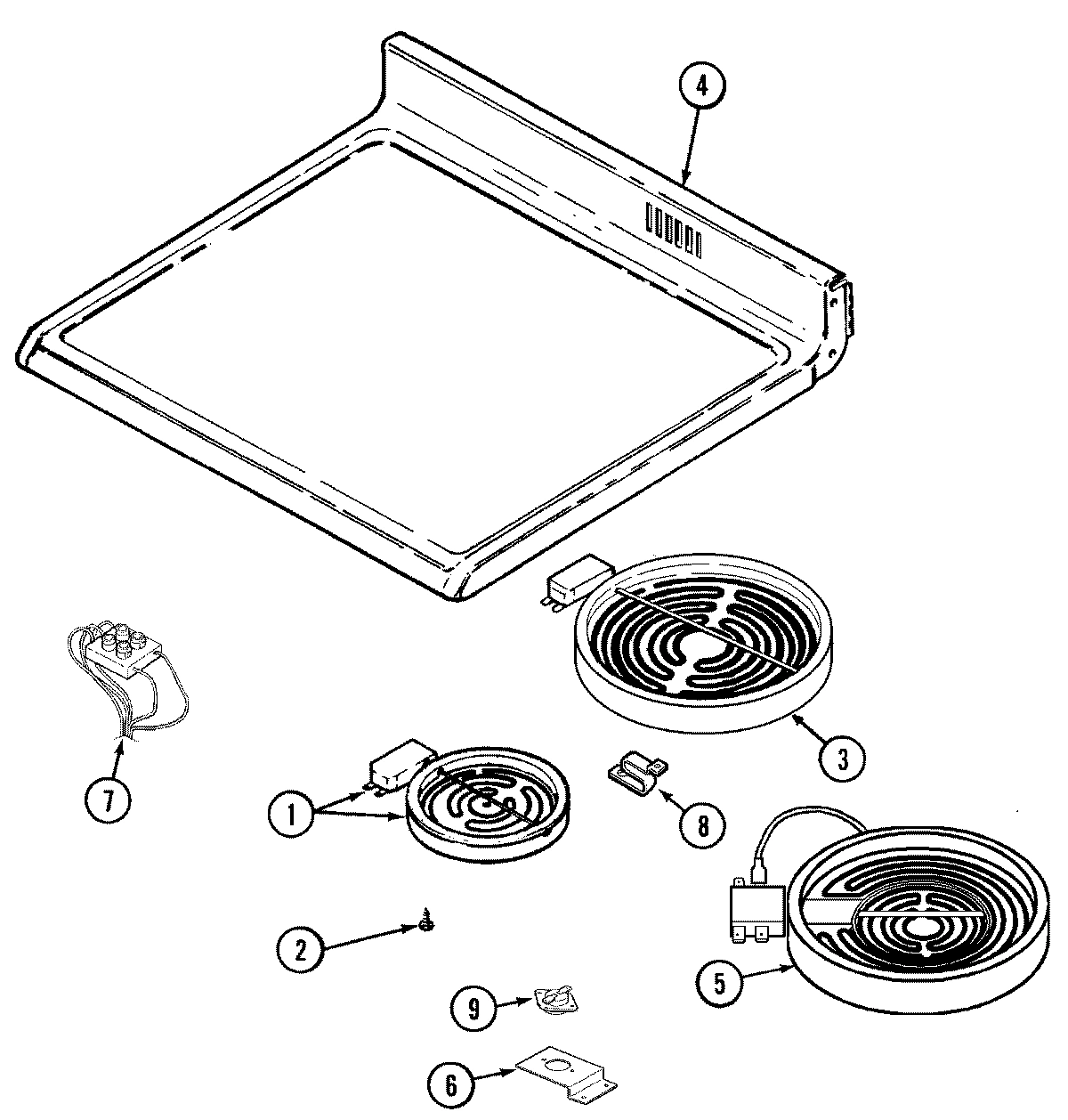

MAIN, TOP (ALM GLASS/BSQ TRM) WPL 74005180 Contact Us For Availability

4

SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

74008765 Whirlpool Range Oven Rocker Switch B Backorder WPL 74008765 $64.51

5

W10823709 Whirlpool Range Dual Radiant Surfac In Stock WPL W10823709 $147.51

5

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

LIMITER (DUAL) WPL 74004880 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

6

BRACKET, SWITCH WPL 71003077 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

7

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

7

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

LIGHT, INDICATOR WPL 71003078 Contact Us For Availability

8

NUT, LOCK WPL 7103P13960 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

BRACKET, CONTROL PANEL (RT) WPL 74005392 Contact Us For Availability

8

BRACKET, CONTROL PANEL (LT) WPL 74005393 Contact Us For Availability

9

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

9

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $4.82

9

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

9

END CAP, CNTRL PANEL (RT-BSQ) WPL 74004979 Contact Us For Availability

9

END CAP, CNTRL PANEL (LT-BSQ) WPL 74004980 Contact Us For Availability

9

SCREW (6ABX1/2 3/16) WPL 74004982 Contact Us For Availability

9

SWITCH, LIMIT WPL 71003076 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

BAFFLE, DOOR WPL 74003648 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

RECEPTACLE, OUTLET (BSQ) WPL 74005144 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

GLASS, DOOR WPL 74003649 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

RETAINER, INSULATION (SIDE) WPL 74003422 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

12

WP74011141 Whirlpool Oven Hinge Backorder WPL WP74011141 $138.74

12

RETAINER, GLASS WPL 74003650 Contact Us For Availability

12

KNOB, SWITCH (BSQ) WPL 74005143 Contact Us For Availability

TRIM, DOOR (TOP-BSQ) WPL 74005006 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

INSERT, DOOR TRIM (BSQ) WPL 74004978 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

CORD, POWER WPL 7402P05060 Contact Us For Availability

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

EXTENSION, CONTROL PANEL WPL 74004551 Contact Us For Availability

EXTENSION, CONTROL PANEL WPL 74006376 Contact Us For Availability

WP74003482 Whirlpool Auxiliary Relay Backorder WPL WP74003482 $118.28

HANDLE, DOOR (BSQ) WPL 74004974 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

BULB-OVEN WPL 7407P10360 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

BREAKER, CIRCUIT (BLK) WPL 71003070 Contact Us For Availability

TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

HARNESS, REMOTE RELAY WPL 74003480 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 74003557 Contact Us For Availability

HARNESS, SUPPLY LOCK MOTOR WPL 74004538 Contact Us For Availability

HARNESS, CONTROL PNL/TOP WPL 74004552 Contact Us For Availability

HARNESS, CONTROL PANEL WPL 74005488 Contact Us For Availability

FRAME, DOOR (BSQ) WPL 74005162 Contact Us For Availability

RACK, HALF (FLUSH CONV. COVER) WPL 74003590 Contact Us For Availability

LATCH, DOOR LOCK WPL 74003559 Contact Us For Availability

INSULATION, LATCH WPL 74003560 Contact Us For Availability

RETAINER, INSULATION WPL 74003561 Contact Us For Availability

DOOR LOCK MOTOR ASSY. WPL 74005575 Contact Us For Availability

MANUAL, USE & CARE WPL 74003685 Contact Us For Availability

MANUAL, USE & CARE (FRCH) WPL 74004795 Contact Us For Availability

GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability

TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

20

GLASS, DOOR (OUTER-BSQ) WPL 74005008 Contact Us For Availability

20

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

20

SWITCH WPL 74001802 Contact Us For Availability

21

TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability

21

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

21

SCREW WPL 912012 Contact Us For Availability

22

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

23

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

23

BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability

23

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

NUT WPL 7103P08260 Contact Us For Availability

SHAFT, ROLLER WPL 74004079 Contact Us For Availability

EXTENSION, VENT ASSEMBLY WPL 74004534 Contact Us For Availability

BUMPER, ROD WPL 74001631 Contact Us For Availability

25

PANEL, DRAWER (BSQ) WPL 74005055 Contact Us For Availability

25

INSULATOR, SWITCH WPL 74001872 Contact Us For Availability

26

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

26

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

26

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

NI

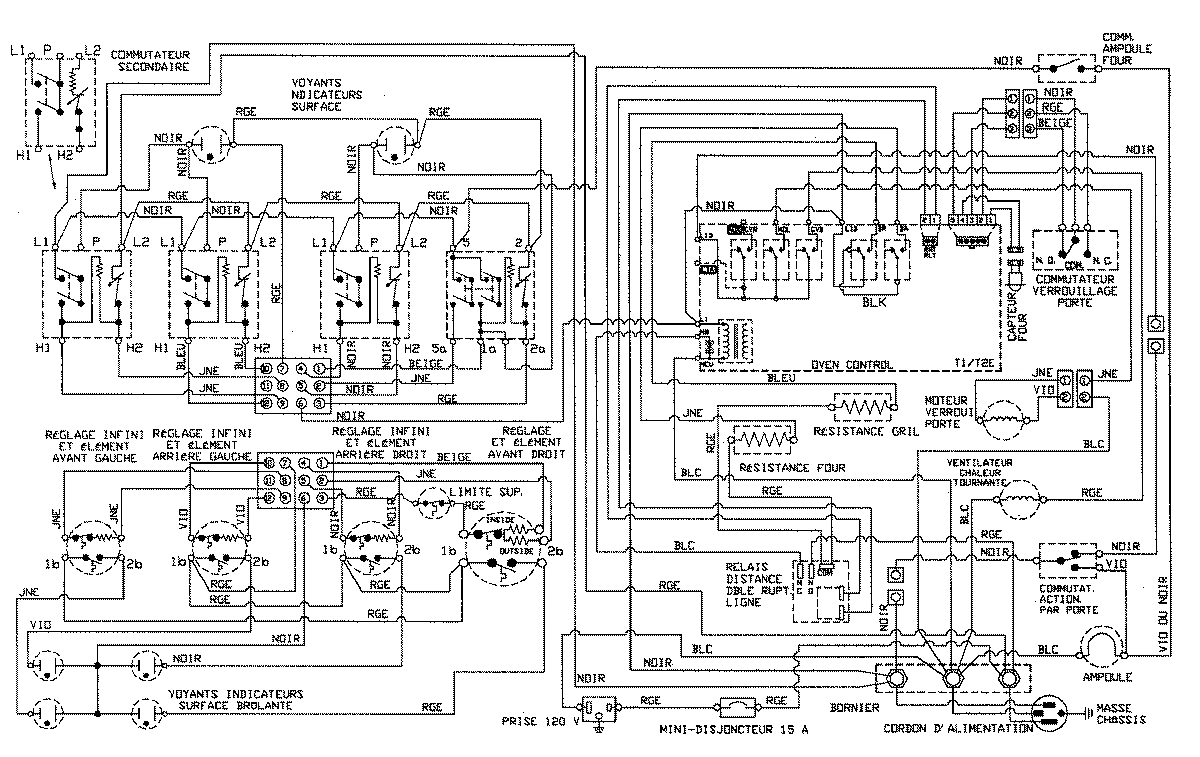

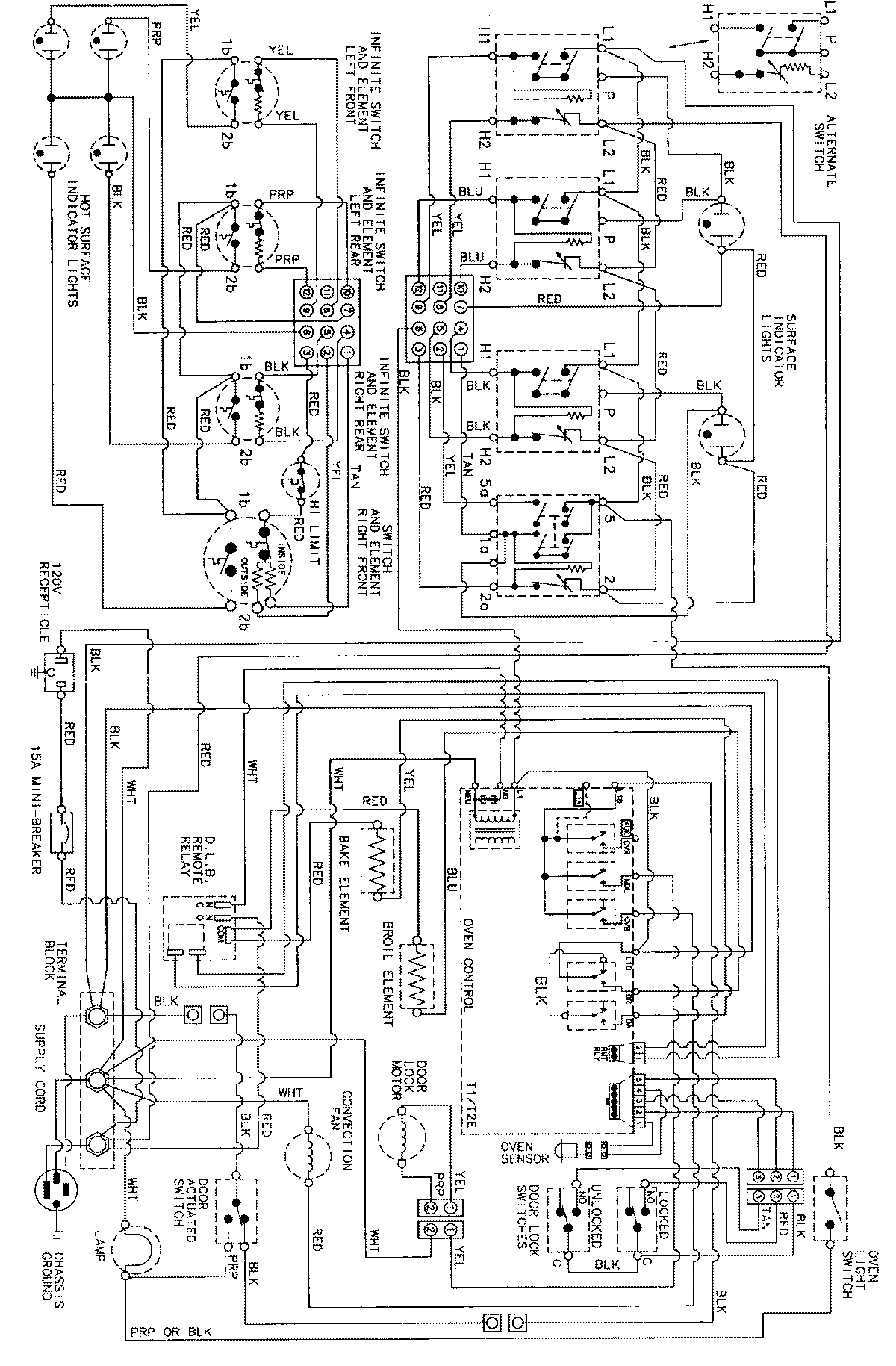

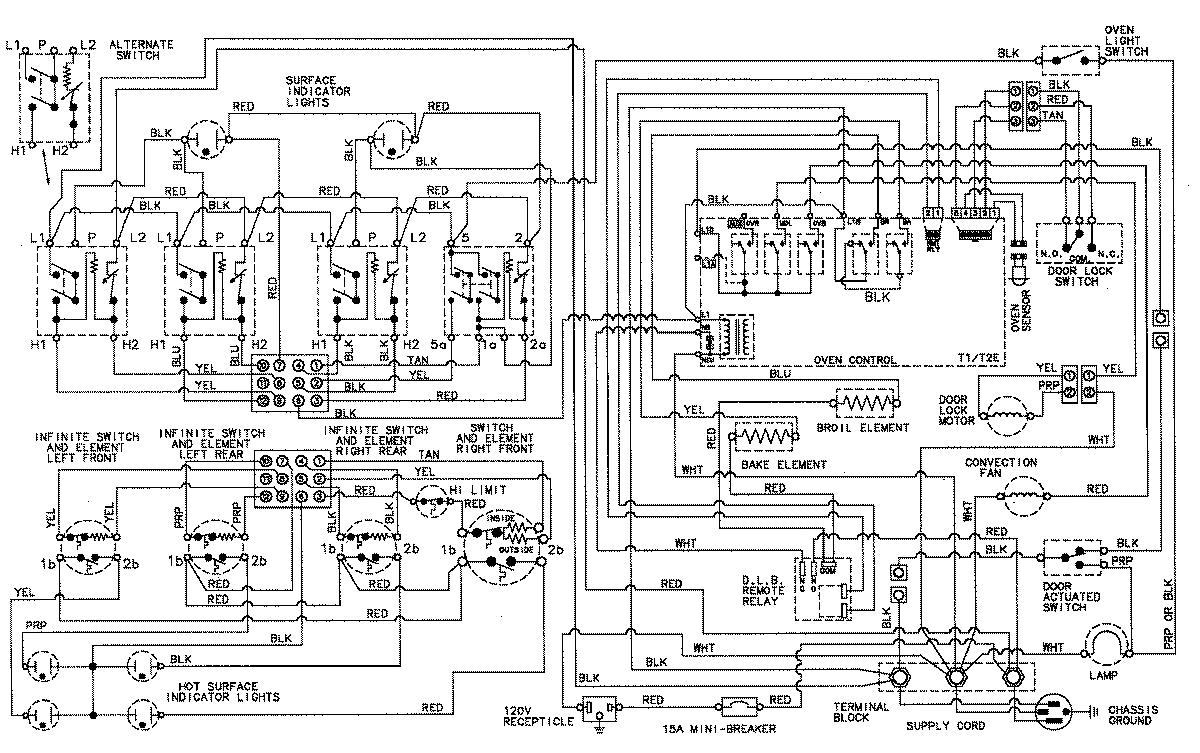

WIRING INFORMATION WPL 15002331 Contact Us For Availability

NI

WIRING INFORMATION WPL 15002782 Contact Us For Availability
