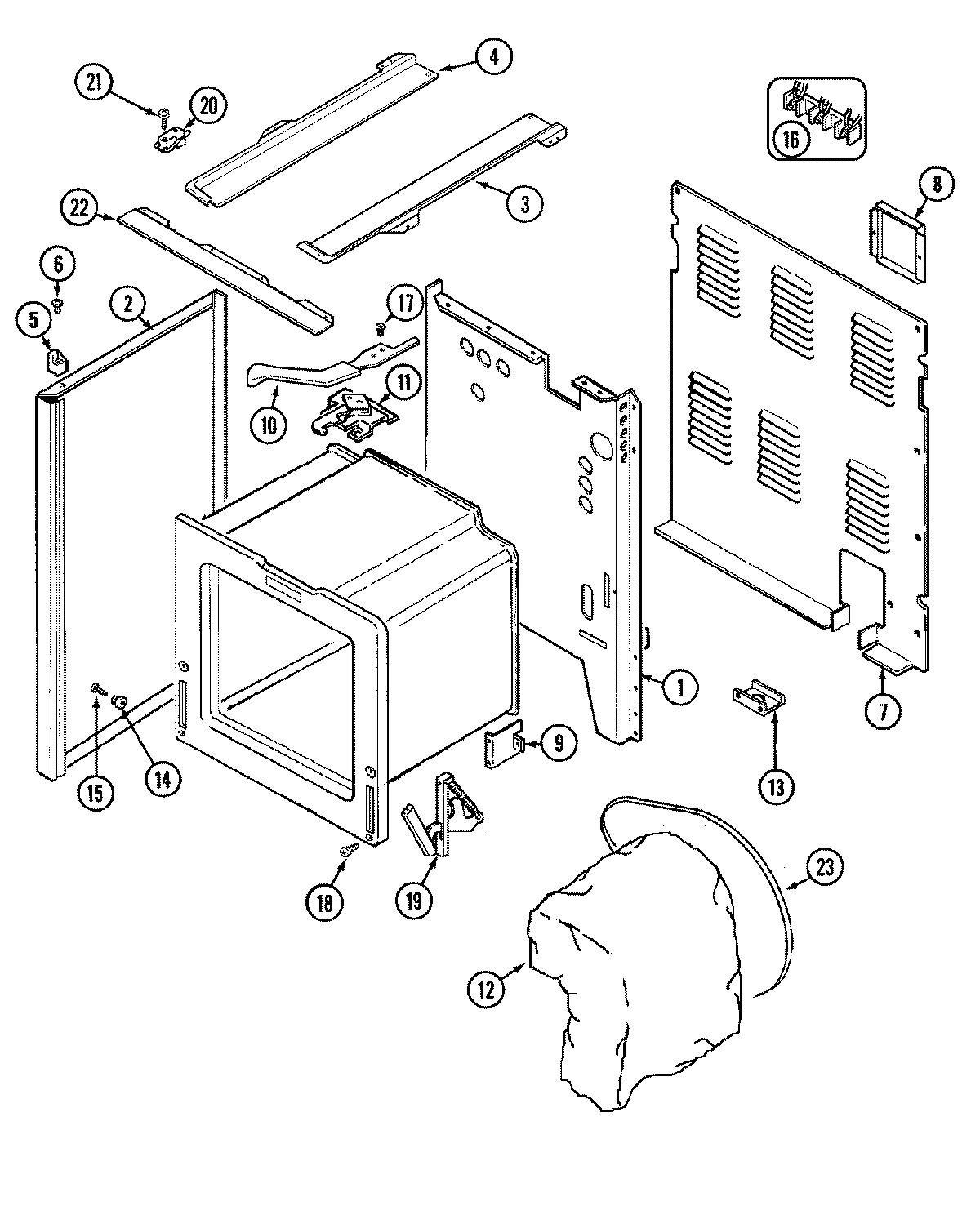

Model Whirlpool MER5750AAA ELECTRIC RANGE – Common Parts &amp; Diagrams

1

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

1

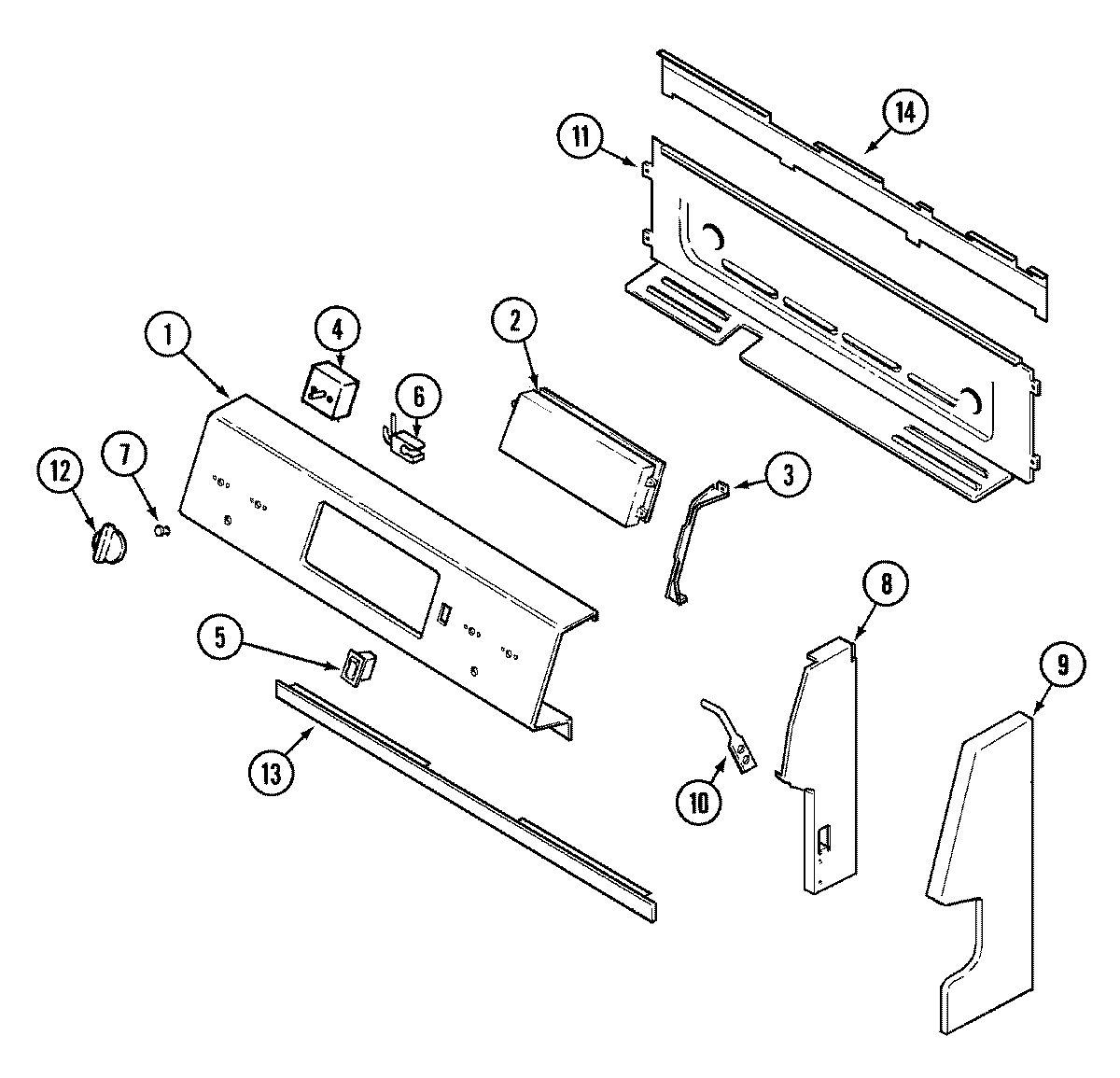

PANEL, CONTROL (ALM) WPL 74003675 Contact Us For Availability

1

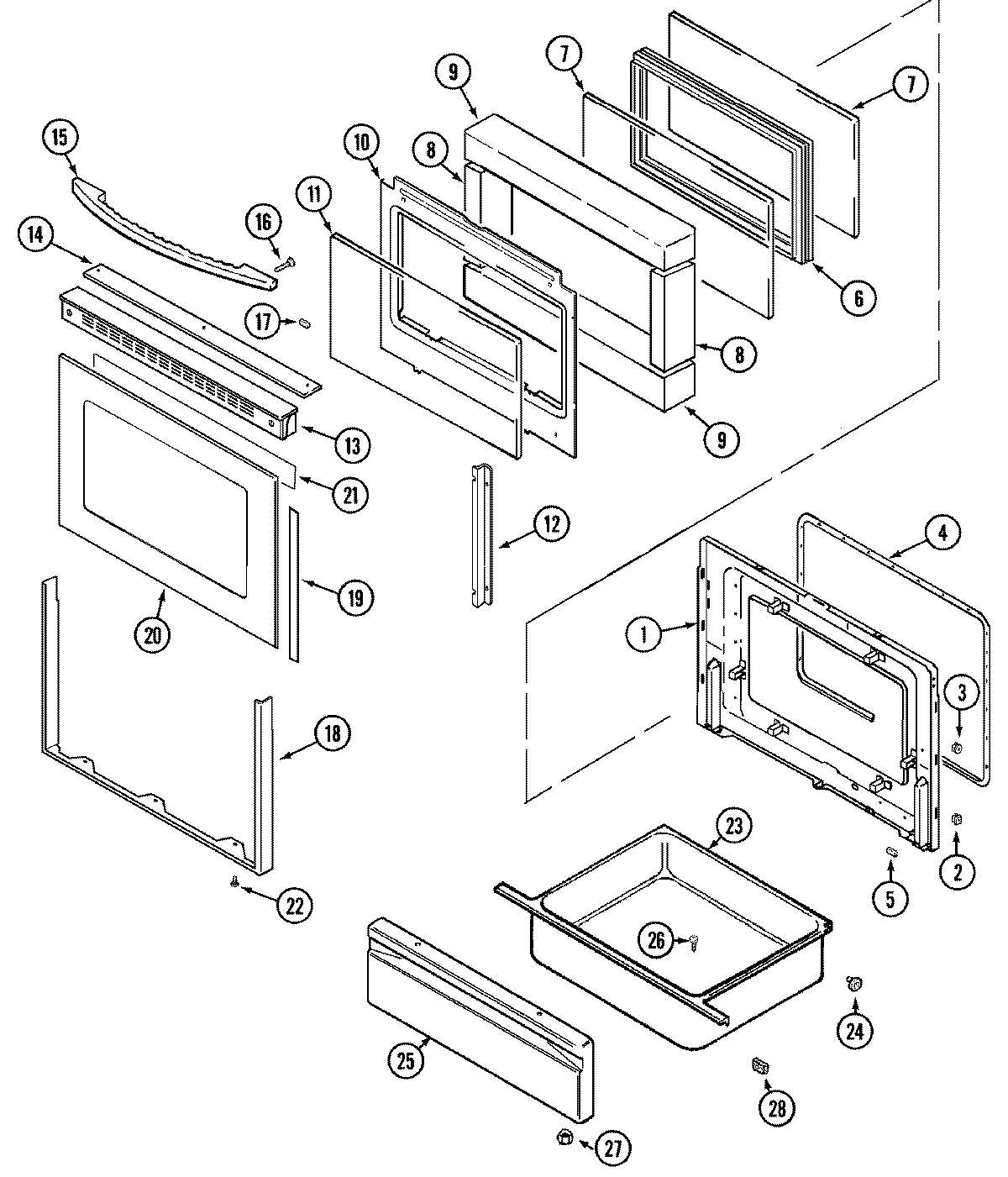

LINING, DOOR WPL 74003642 Contact Us For Availability

2

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

2

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $5.02

2

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

2

LIMITER WPL 74004494 Contact Us For Availability

2

LIMITER (8``) WPL 74002652 Contact Us For Availability

2

CLOCK (ALM) WPL 74003676 Contact Us For Availability

2

NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability

3

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

3

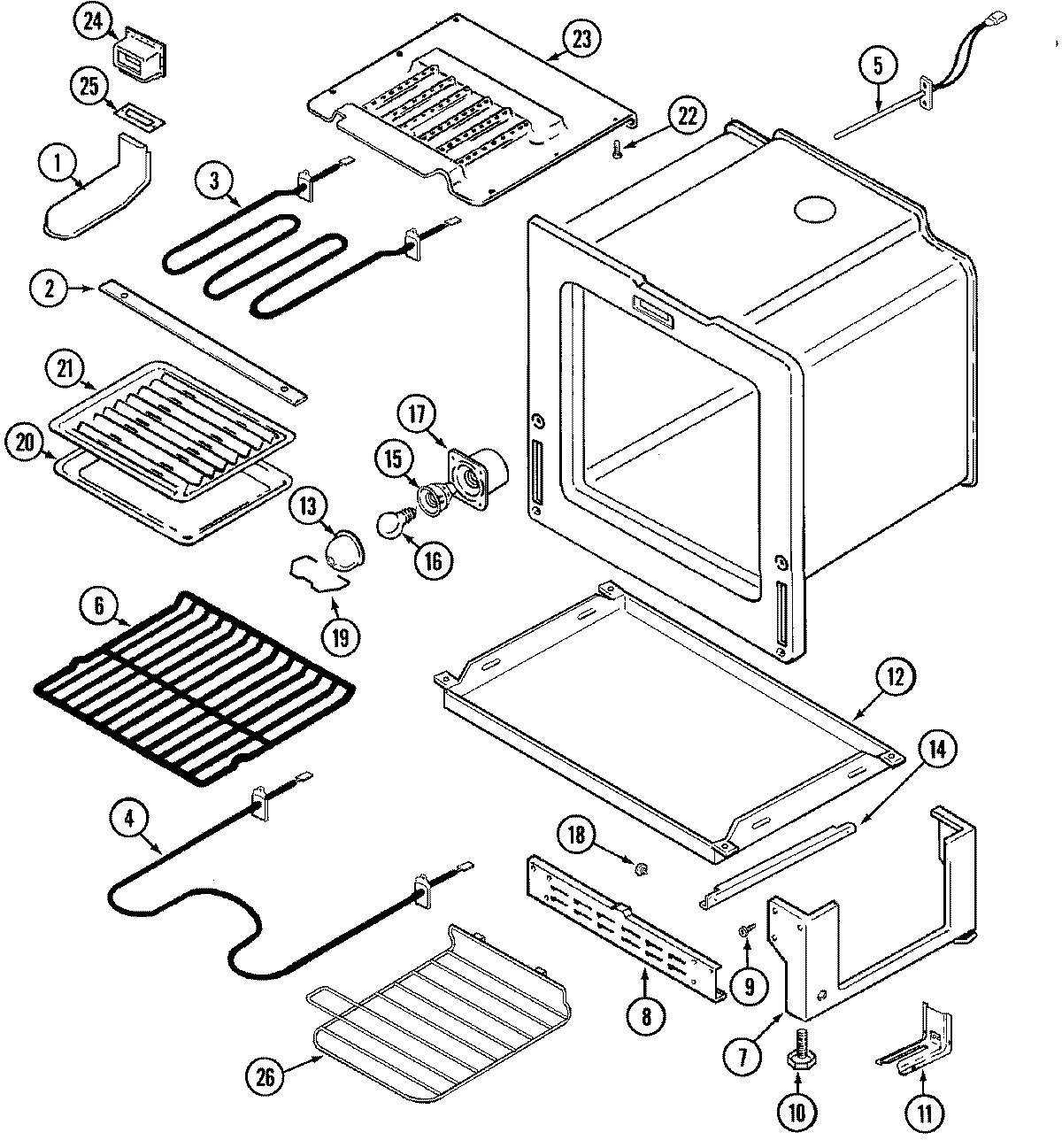

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $124.94

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

3

SCREW WPL 7101P34560 Contact Us For Availability

3

SCREW (ALM) WPL 74002502 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003627 Contact Us For Availability

4

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

4

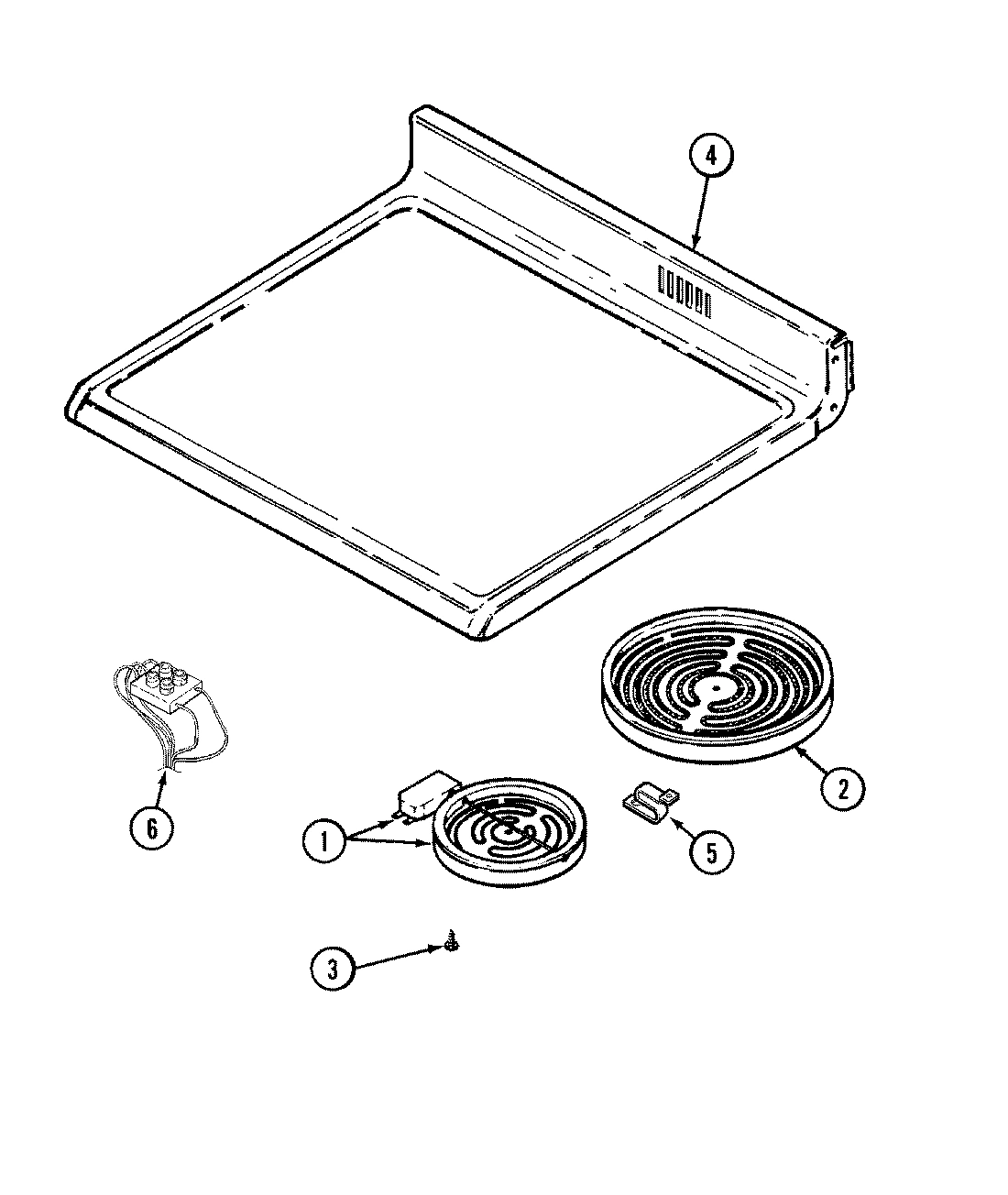

TOP, MAIN (ALM GLASS/ALM TRM) WPL 74003678 Contact Us For Availability

4

CLEANER, ELCO WPL 8308P00260 Contact Us For Availability

4

SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

74008765 Whirlpool Range Oven Rocker Switch B Backorder WPL 74008765 $64.51

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

LIGHT, INDICATOR (4-POS) WPL 74003589 Contact Us For Availability

6

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

7

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003603 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003604 Contact Us For Availability

8

INSULATION, SIDE WPL 74003646 Contact Us For Availability

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

9

SCREW (1 3/16``-ALM) WPL 74002528 Contact Us For Availability

9

END CAP, CONTROL PNL (RT-ALM) WPL 74003609 Contact Us For Availability

9

END CAP, CONTROL PNL (LT-ALM) WPL 74003610 Contact Us For Availability

9

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

LEVER, LATCH (BRN) WPL 74003006 Contact Us For Availability

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

BAFFLE, DOOR WPL 74003648 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability

LATCH, DOOR WPL 74003380 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability

GLASS, DOOR WPL 74003649 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability

RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability

FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability

KNOB (ALM)--SUB WPL 74003613 Contact Us For Availability

RETAINER, GLASS WPL 74003650 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

COVER, BULB WPL 7724P04760 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

TRIM, TOP (ALM) WPL 74003651 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

EXTENSION, CONTROL PANEL WPL 74003614 Contact Us For Availability

SCREW, TRIM (ALM) WPL 7101P37060 Contact Us For Availability

INSERT, DOOR TRIM (ALM) WPL 7728P09560 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability

BLOCK, DISCONNECT WPL 74002306 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 74003468 Contact Us For Availability

HANDLE, DOOR (ALM) WPL 74003619 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

MANUAL, USE & CARE WPL 74003628 Contact Us For Availability

17

HOUSING, BULB WPL 74003388 Contact Us For Availability

17

GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability

17

TAPE, DBL. SIDED (WHT) WPL 71002092 Contact Us For Availability

18

SCREW WPL 7101P11260 Contact Us For Availability

18

SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability

18

FRAME, DOOR (ALM) WPL 74003657 Contact Us For Availability

19

WP74011141 Whirlpool Oven Hinge Backorder WPL WP74011141 $138.74

19

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

19

TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability

20

SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability

20

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

20

GLASS, DOOR (ALM) WPL 74003672 Contact Us For Availability

21

SCREW WPL 912012 Contact Us For Availability

21

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

21

TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability

22

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

23

STRAP, INSULATION WPL 74003385 Contact Us For Availability

23

BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability

23

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

24

NUT WPL 7103P08260 Contact Us For Availability

24

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

24

EXTENSION, VENT WPL 3826W01445 Contact Us For Availability

25

GASKET, VENT WPL 74003285 Contact Us For Availability

25

PANEL, DRAWER (ALM) WPL 74003445 Contact Us For Availability

26

RACK, HALF (FLUSH CONV. COVER) WPL 74003590 Contact Us For Availability

26

SCREW WPL 7101P07260 Contact Us For Availability

27

NUT, LOCK WPL 7103P13960 Contact Us For Availability

28

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

NI

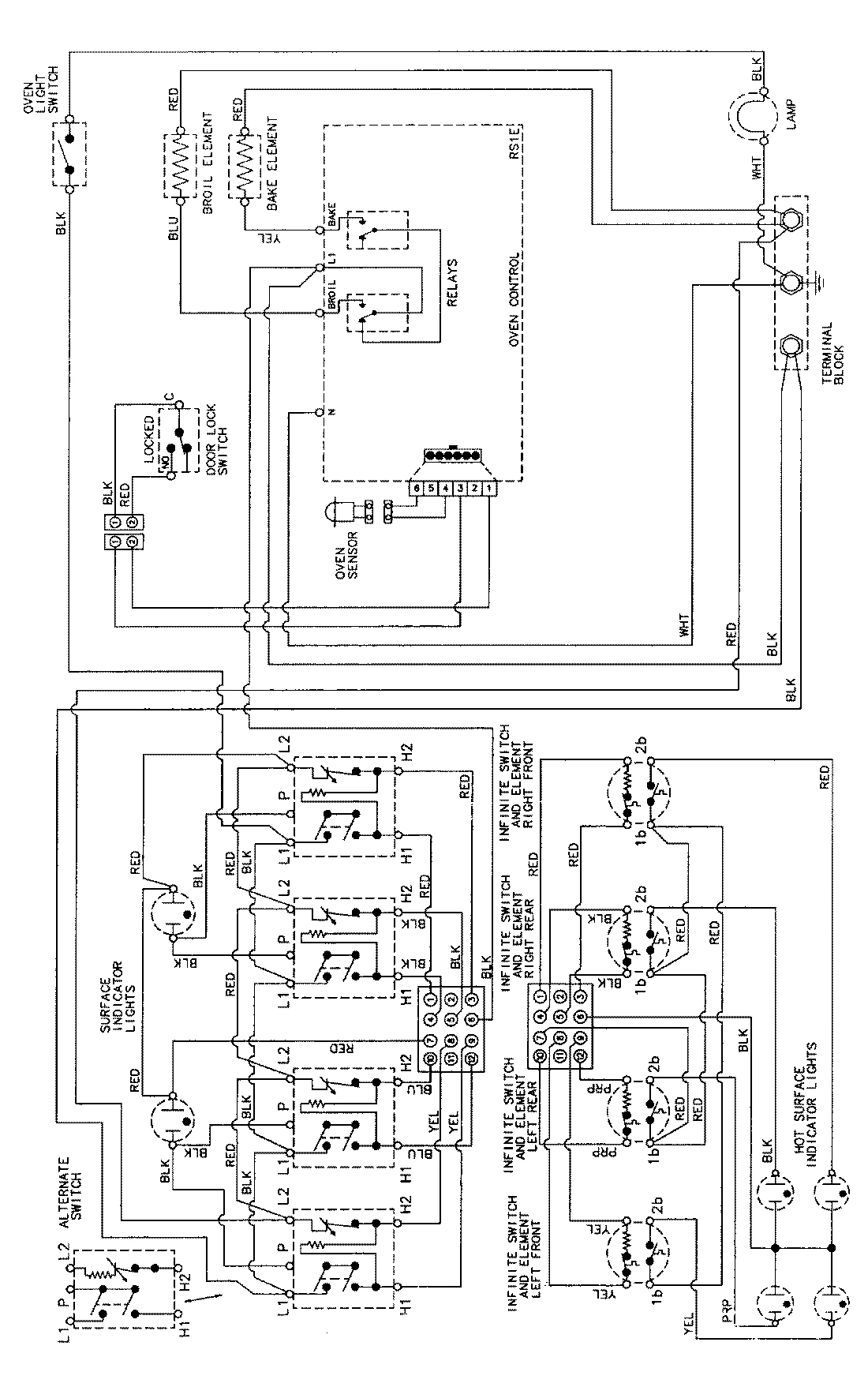

WIRING INFORMATION WPL 15002276 Contact Us For Availability
