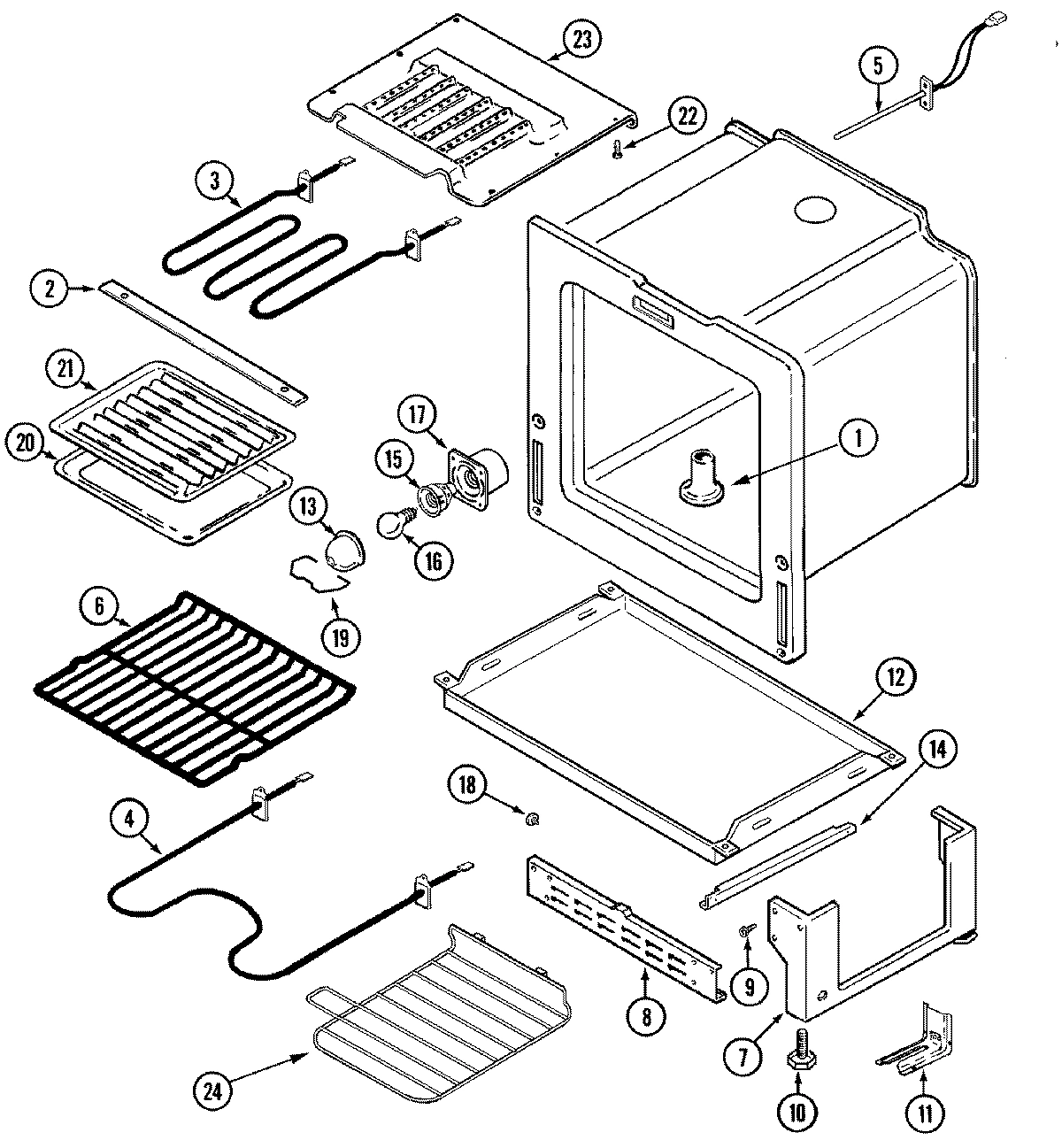

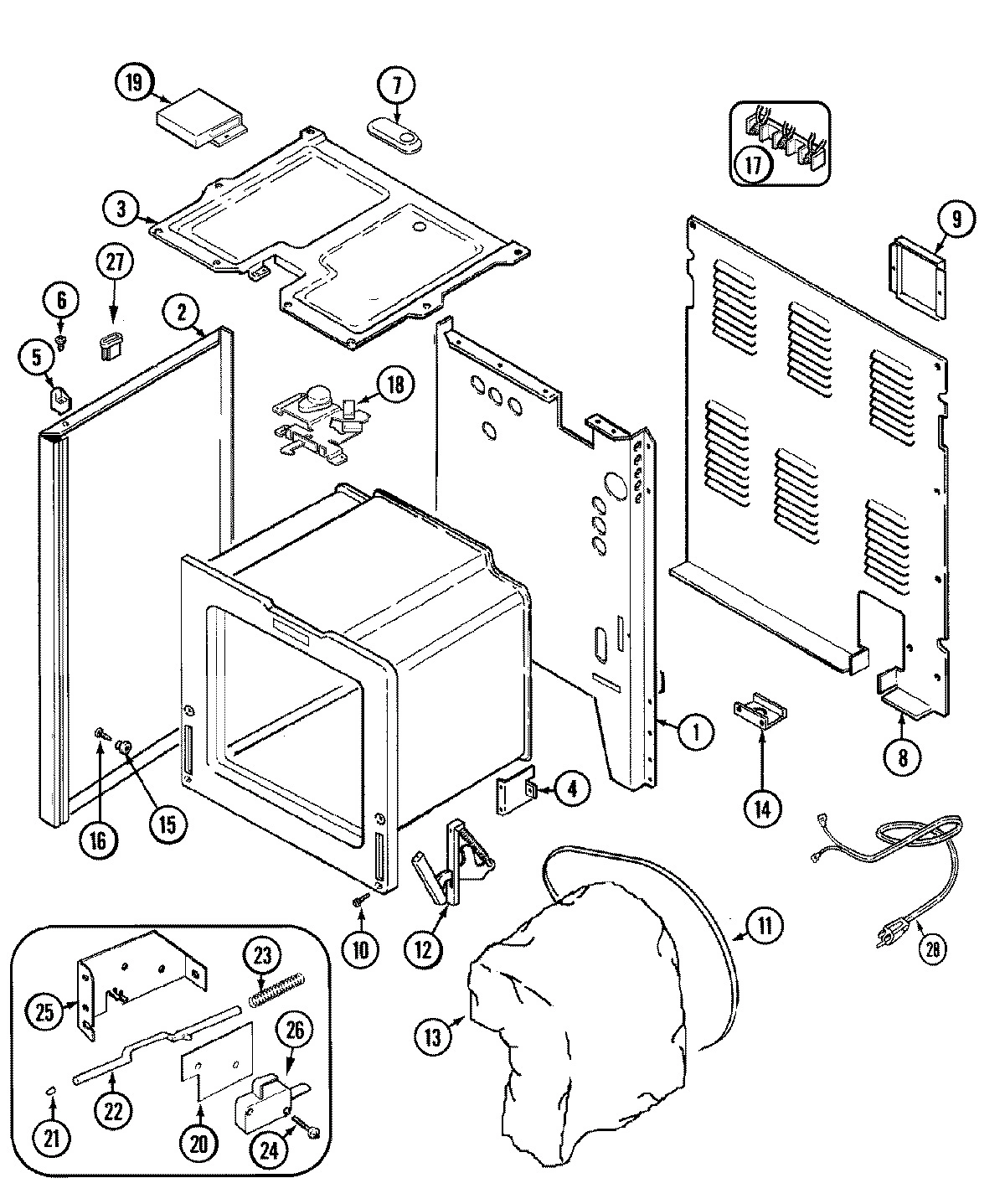

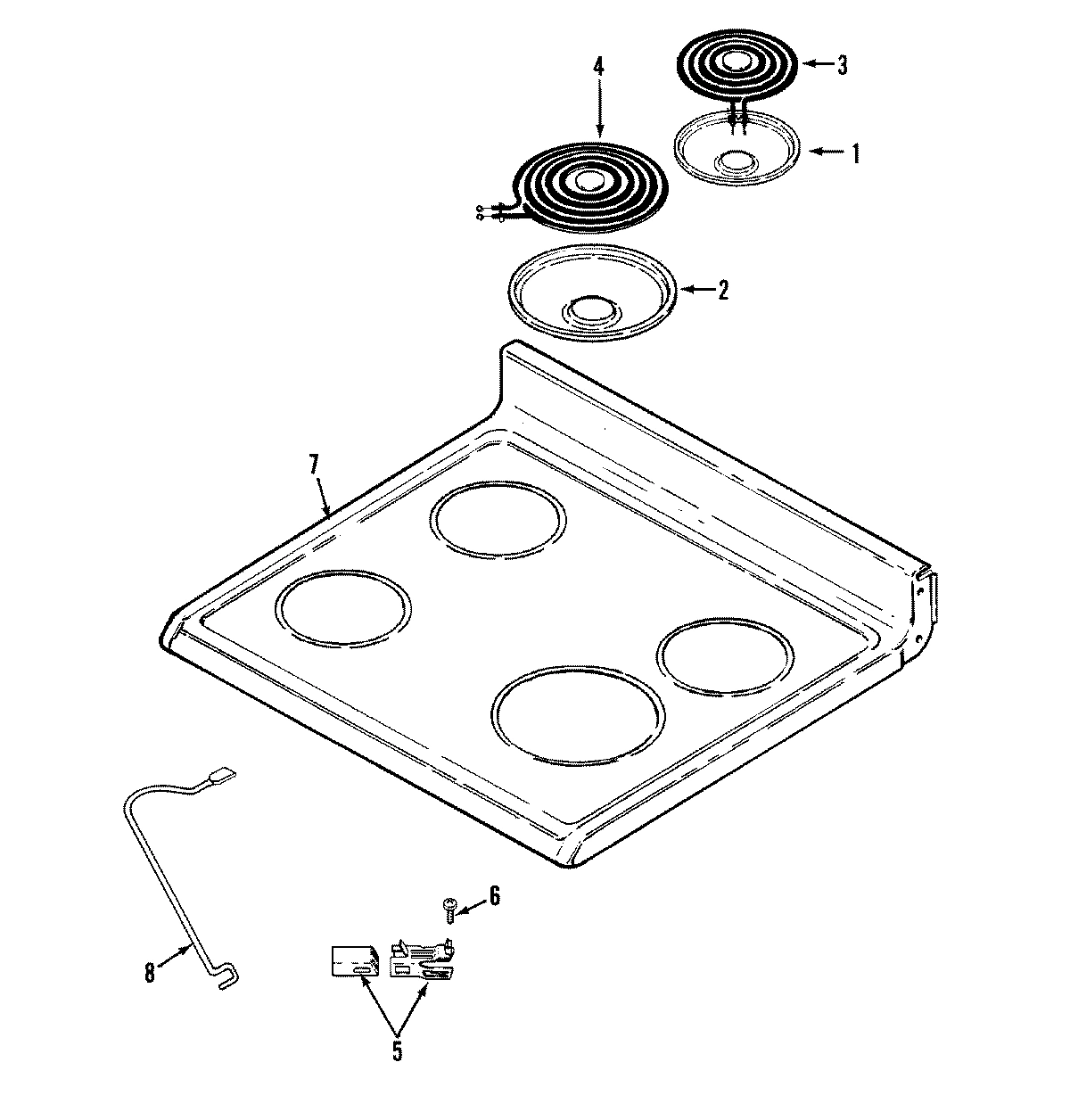

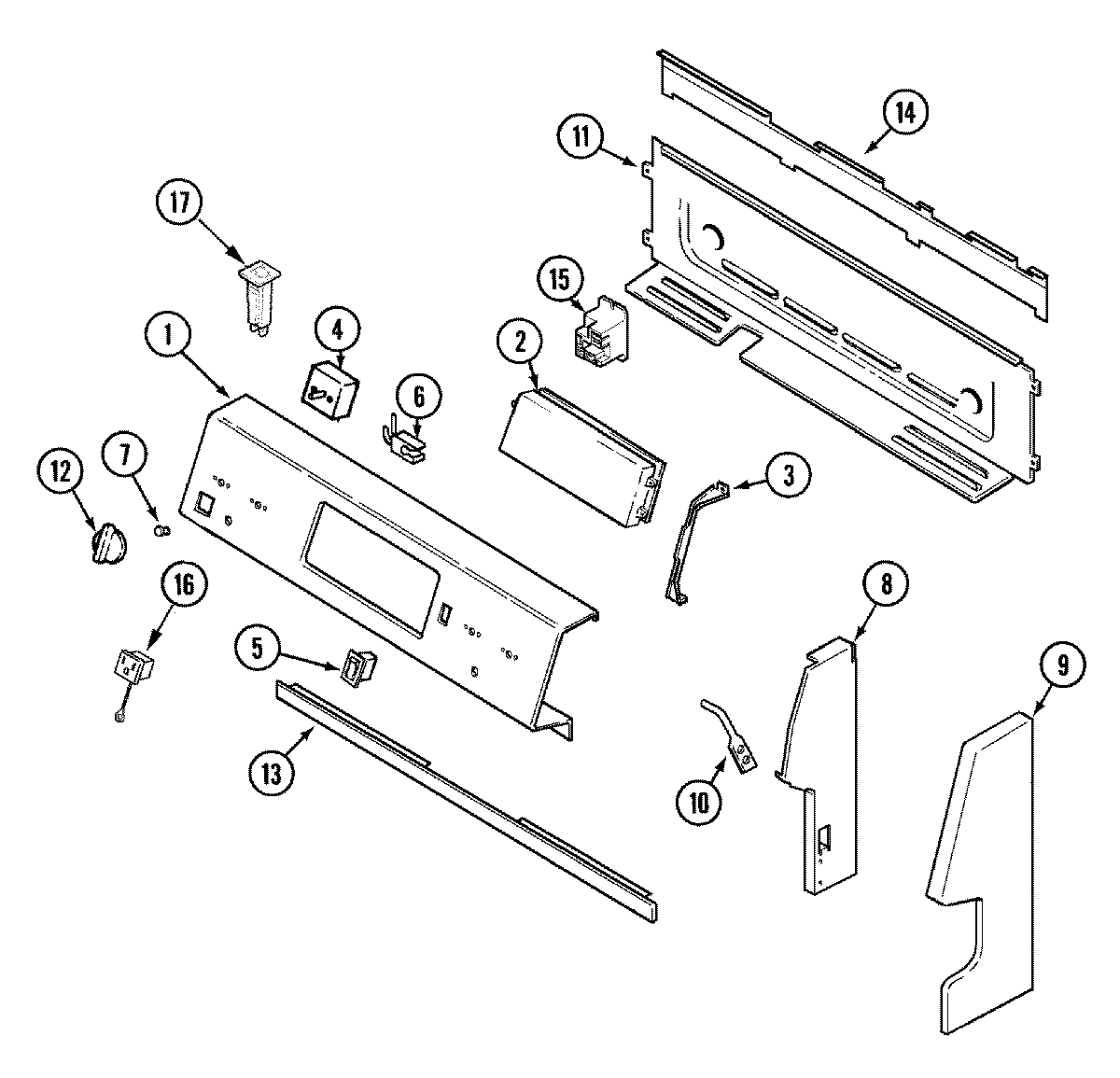

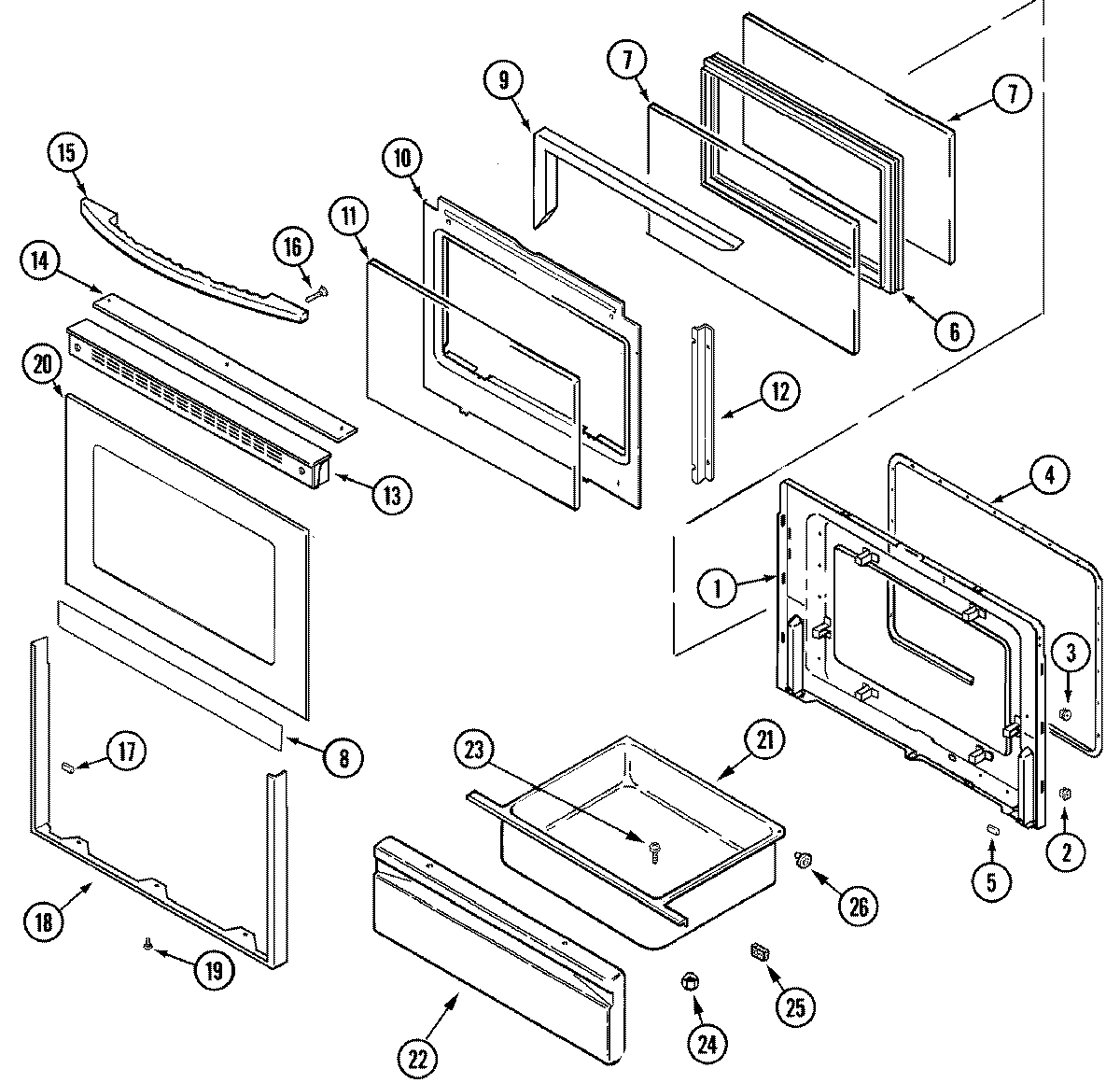

Model Whirlpool MER5570BCQ ELECTRIC RANGE – Common Parts &amp; Diagrams

1

TUBE, VENT WPL 8026P01960 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

1

BOWL, DRIP (6``W/HOLE-BLK) WPL 7725P04060 Contact Us For Availability

1

PANEL, CONTROL (BSQ) WPL 74006419 Contact Us For Availability

1

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

1

MANUAL, USE & CARE WPL 74005908 Contact Us For Availability

2

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $11.32

2

NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability

2

SCREW WPL 7101P34560 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

2

PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability

2

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

2

SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability

2

CLOCK W/OVERLAY (BSQ) WPL 74006200 Contact Us For Availability

2

HARNESS, SENSOR/LOCK WPL 74003557 Contact Us For Availability

2

HARNESS, SENSOR TO LOCK WPL 74003638 Contact Us For Availability

2

HARNESS, DOOR LOCK MOTOR WPL 74005489 Contact Us For Availability

2

HARNESS, BKGD WPL 74007603 Contact Us For Availability

2

HARNESS, BACKGUARD WPL 74007614 Contact Us For Availability

3

WP12001559 Whirlpool Element Kit Backorder WPL WP12001559 $119.93

3

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $124.94

3

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $84.34

3

NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability

3

BOX, BURNER WPL 74003403 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003627 Contact Us For Availability

3

SCREW (8ABX3/8) BSQ WPL 74004985 Contact Us For Availability

4

WP12001560 Whirlpool Surface Element Backorder WPL WP12001560 $141.27

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

WPW10345410 Whirlpool Surface Element Backorder WPL WPW10345410 $150.35

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

5

74008765 Whirlpool Range Oven Rocker Switch B Backorder WPL 74008765 $64.51

5

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

6

SCREW WPL 7118P01360 Contact Us For Availability

6

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

7

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

7

TOP, MAIN (BSQ) WPL 74005063 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

8

TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

SUPPORT, TOP WPL 74001170 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003603 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003604 Contact Us For Availability

9

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $4.82

9

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

9

END CAP, CNTRL PANEL (RT-BSQ) WPL 74004979 Contact Us For Availability

9

END CAP, CNTRL PANEL (LT-BSQ) WPL 74004980 Contact Us For Availability

9

SCREW (6ABX1/2 3/16) WPL 74004982 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

BAFFLE, DOOR WPL 74003648 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

GLASS W/TAPE ASSY WPL 74004857 Contact Us For Availability

SCREW WPL 7101P34460 Contact Us For Availability

STRAP, INSULATION WPL 74003385 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

12

WP74011141 Whirlpool Oven Hinge Backorder WPL WP74011141 $138.74

12

RETAINER, GLASS WPL 74003650 Contact Us For Availability

12

KNOB, SWITCH (BSQ) WPL 74005143 Contact Us For Availability

TRIM, DOOR TOP (BSQ) WPL 74006403 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

INSERT, DOOR TRIM (BSQ) WPL 74004978 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

EXTENSION, CONTROL PANEL WPL 74003614 Contact Us For Availability

EXTENSION, CONTROL PANEL WPL 74006376 Contact Us For Availability

WP74003482 Whirlpool Auxiliary Relay Backorder WPL WP74003482 $118.28

WASHER (1``) WPL 74001521 Contact Us For Availability

HANDLE, DOOR (BSQ) WPL 74006377 Contact Us For Availability

SCREW WPL 74006394 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

RECEPTACLE, OUTLET (BSQ) WPL 74005144 Contact Us For Availability

TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

BREAKER, CIRCUIT (BLK) WPL 71003070 Contact Us For Availability

FRAME, DOOR (BSQ) WPL 74005162 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

INSULATION, LATCH WPL 74003560 Contact Us For Availability

DOOR LOCK MOTOR ASSY. WPL 74005575 Contact Us For Availability

RETAINER, INSULATION WPL 74006400 Contact Us For Availability

19

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

19

COVER, DOOR LATCH WPL 74003479 Contact Us For Availability

20

GLASS, DOOR (BSQ) WPL 74006405 Contact Us For Availability

20

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

20

INSULATOR, SWITCH WPL 74001872 Contact Us For Availability

21

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

21

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

21

BUMPER, ROD WPL 74001631 Contact Us For Availability

22

PANEL, DRAWER (BSQ) WPL 74005055 Contact Us For Availability

22

ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability

23

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

23

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

23

BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability

24

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

24

RACK, HALF (FLUSH CONV. COVER) WPL 74003590 Contact Us For Availability

24

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

25

SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability

25

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

26

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

26

SHIELD, DOOR LIGHT SWITCH WPL 74001598 Contact Us For Availability

26

SWITCH WPL 74001802 Contact Us For Availability

27

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

27

BUSHING, PROP SUPPORT WPL 74001256 Contact Us For Availability

28

TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability

28

CORD, POWER WPL 7402P05060 Contact Us For Availability

NI

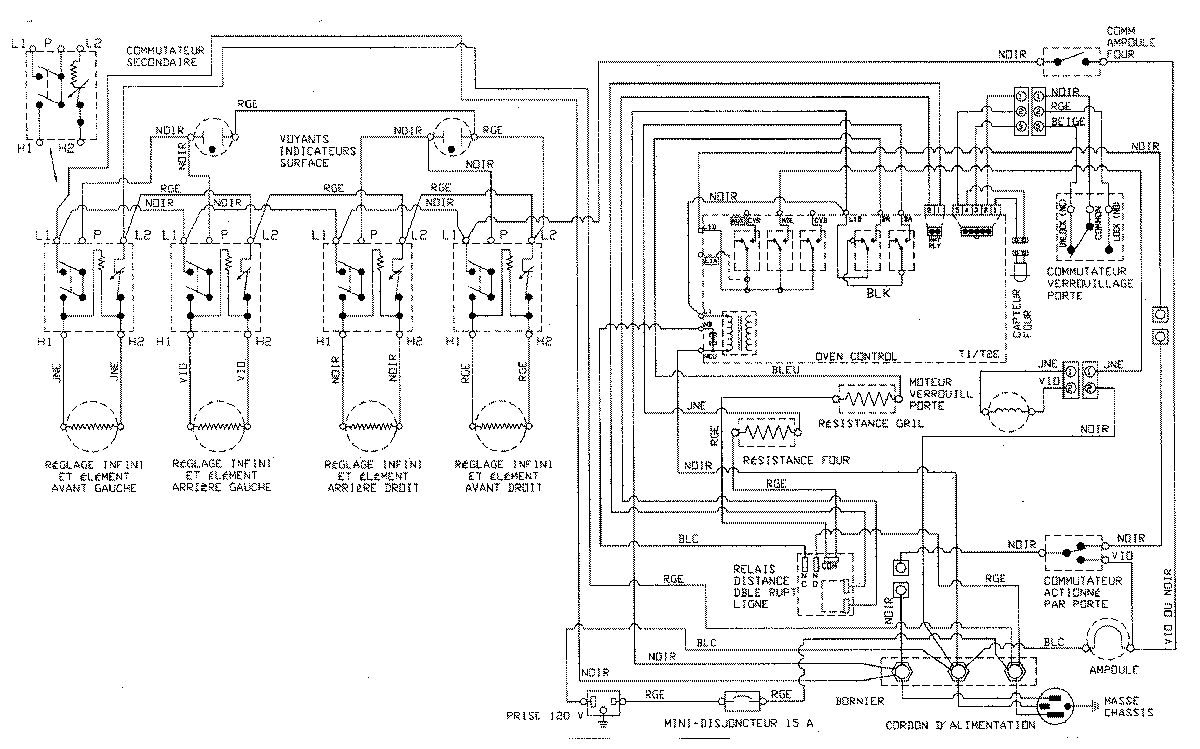

WIRING INFORMATION WPL 15002778 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003092 Contact Us For Availability
