Model Whirlpool MER5510AAL ELECTRIC RANGE – Common Parts &amp; Diagrams

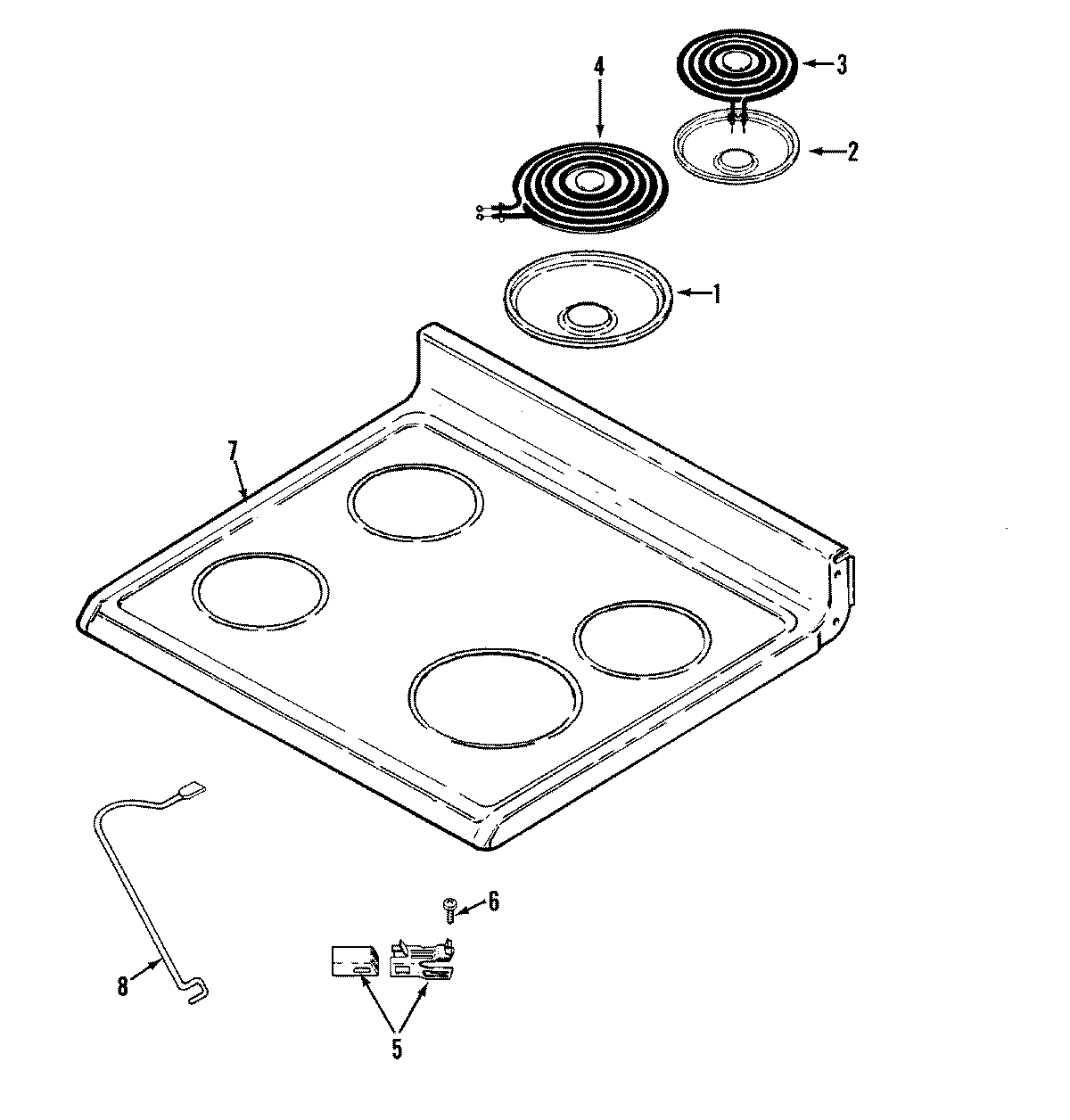

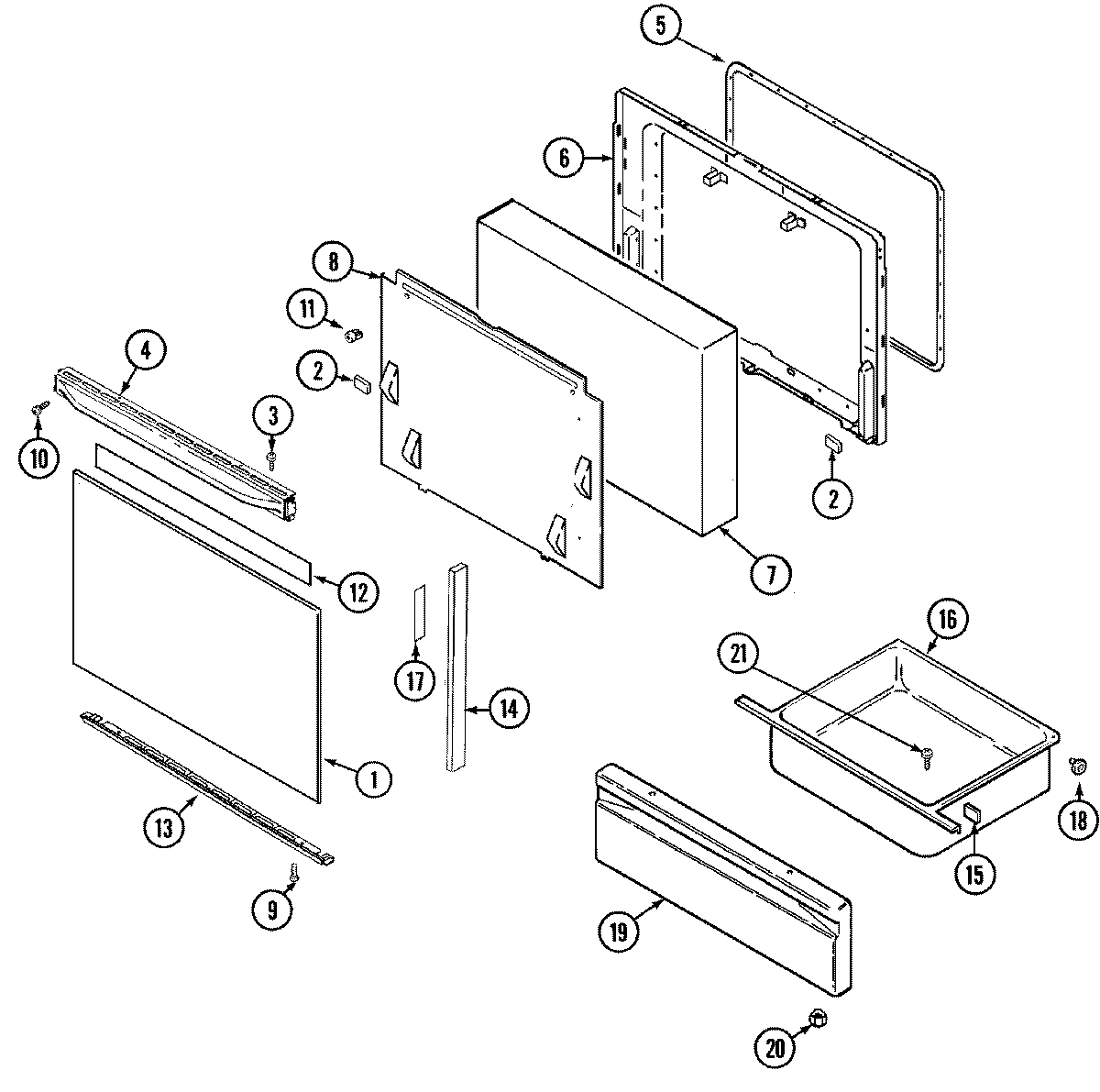

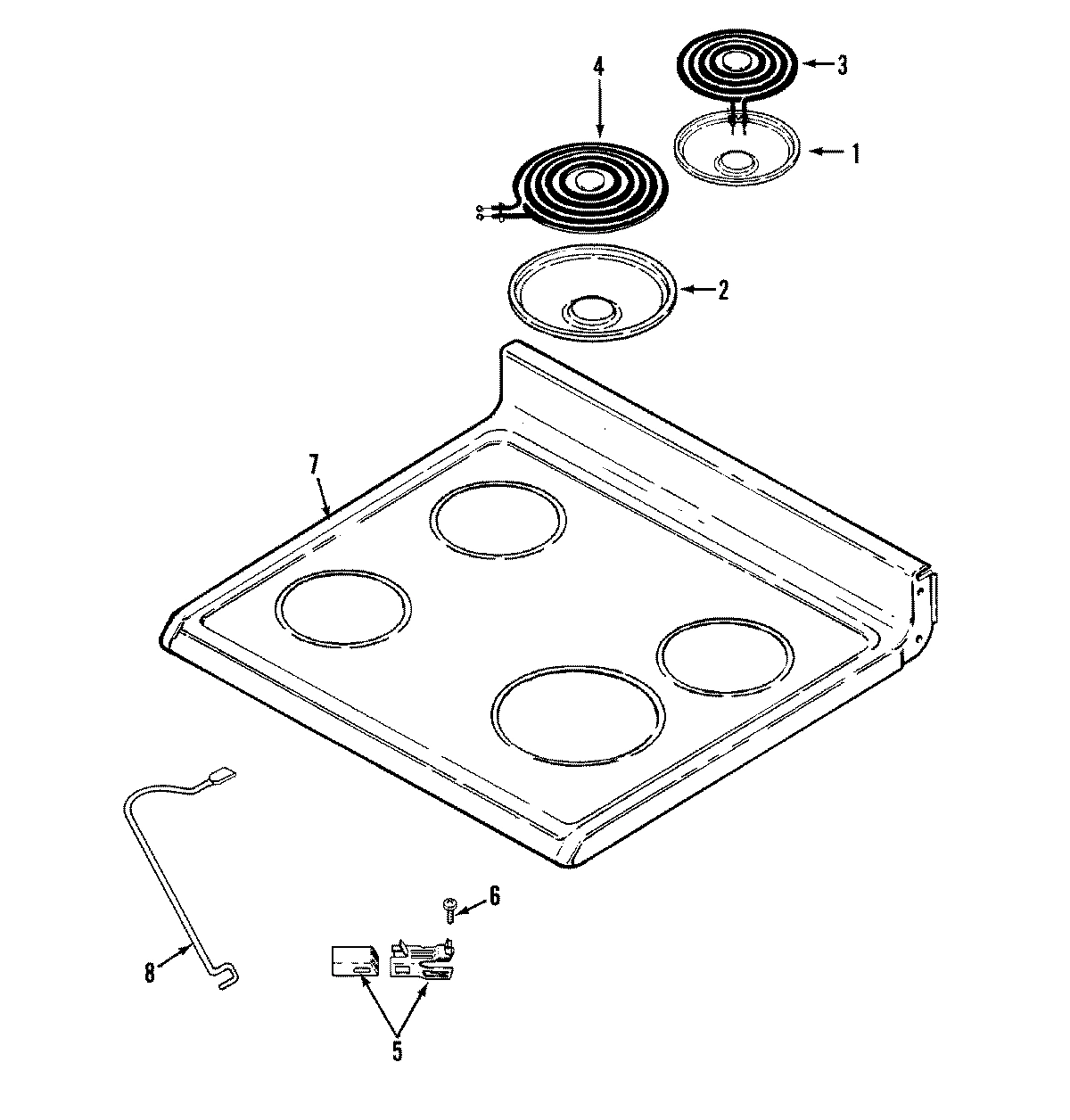

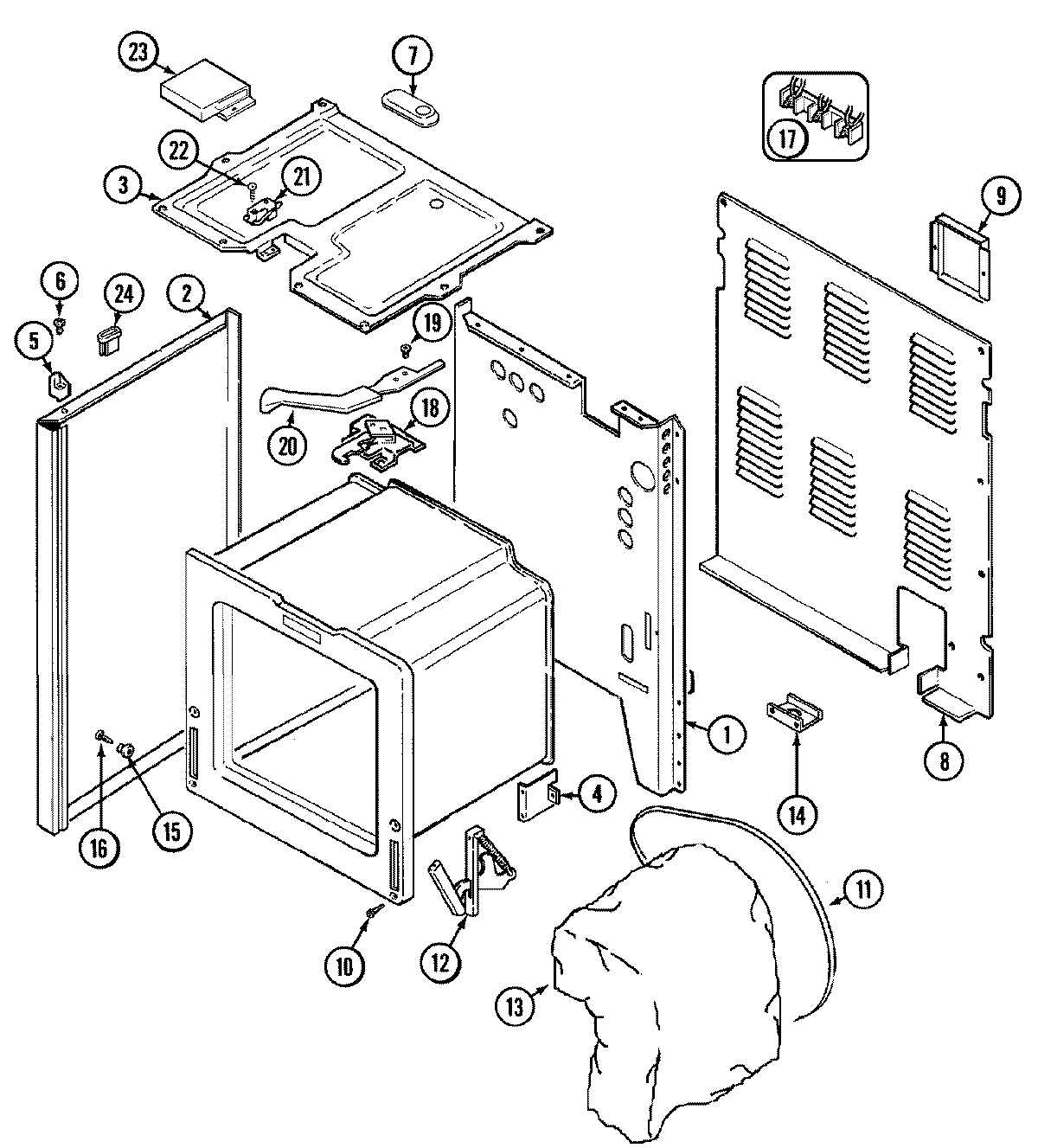

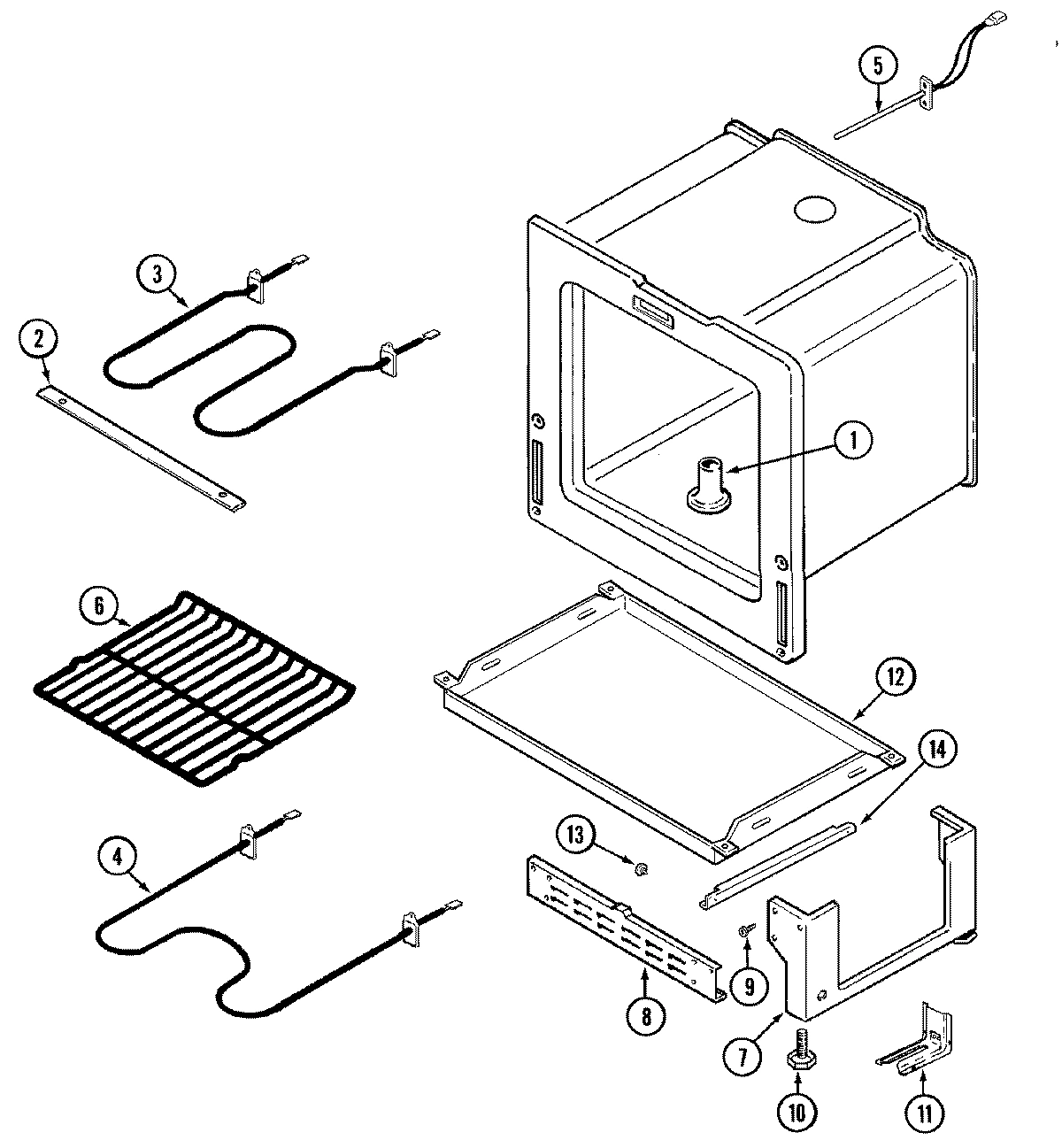

1

PANEL, CONTROL (BLK) WPL 74003875 Contact Us For Availability

1

GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability

1

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

1

TUBE, VENT WPL 74003469 Contact Us For Availability

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $12.65

2

CLOCK (BLK) WPL 74003485 Contact Us For Availability

2

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

2

PANEL, SIDE (ALM) WPL 74003237 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

3

WP12001559 Whirlpool Element Kit Backorder WPL WP12001559 $119.93

3

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $84.34

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

3

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003362 Contact Us For Availability

3

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

3

BOX, BURNER WPL 74003403 Contact Us For Availability

4

WP12001560 Whirlpool Surface Element Backorder WPL WP12001560 $141.27

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

5

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

5

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

6

LINING, DOOR WPL 74003245 Contact Us For Availability

6

SCREW WPL 7118P01360 Contact Us For Availability

7

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

7

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

7

INSULATION, DOOR WPL 74001842 Contact Us For Availability

7

TOP, MAIN (ALM) WPL 74003450 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

7

TOP, MAIN (ALM) WPL 74003444 Contact Us For Availability

8

SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability

8

END CAP, CONTROL PNL (RT-BLK) WPL 74003367 Contact Us For Availability

8

END CAP, CONTROL PNL (LT-BLK) WPL 74003368 Contact Us For Availability

8

BAFFLE, DOOR SOLID WPL 3601F21851 Contact Us For Availability

8

SUPPORT, TOP WPL 74001170 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

9

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

10

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

10

HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability

10

SCREW WPL 7101P11260 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

KNOB, INFINITE SWITCH (BLK) WPL 74003427 Contact Us For Availability

NUT, NYLON WPL 7103P04560 Contact Us For Availability

STRAP, INSULATION WPL 74003385 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

12

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $91.57

12

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

12

RETAINER, INSULATION (BOTTOM) WPL 74003392 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 74003468 Contact Us For Availability

TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

MANUAL, USE & CARE WPL 74003845 Contact Us For Availability

END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

16

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

16

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

16

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

TAPE, END CAP WPL 8270P09360 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

18

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

18

RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability

18

LATCH, DOOR WPL 74003380 Contact Us For Availability

19

PANEL, DRAWER (ALM) WPL 74003445 Contact Us For Availability

19

SCREW WPL 7101P11560 Contact Us For Availability

20

NUT, LOCK WPL 7103P13960 Contact Us For Availability

20

LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability

21

SCREW WPL 7101P07260 Contact Us For Availability

21

SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability

21

INSULATOR, SWITCH WPL 74003630 Contact Us For Availability

22

SCREW WPL 912012 Contact Us For Availability

23

COVER, DOOR LATCH WPL 74003479 Contact Us For Availability

24

BUSHING, PROP SUPPORT WPL 74001256 Contact Us For Availability

NI

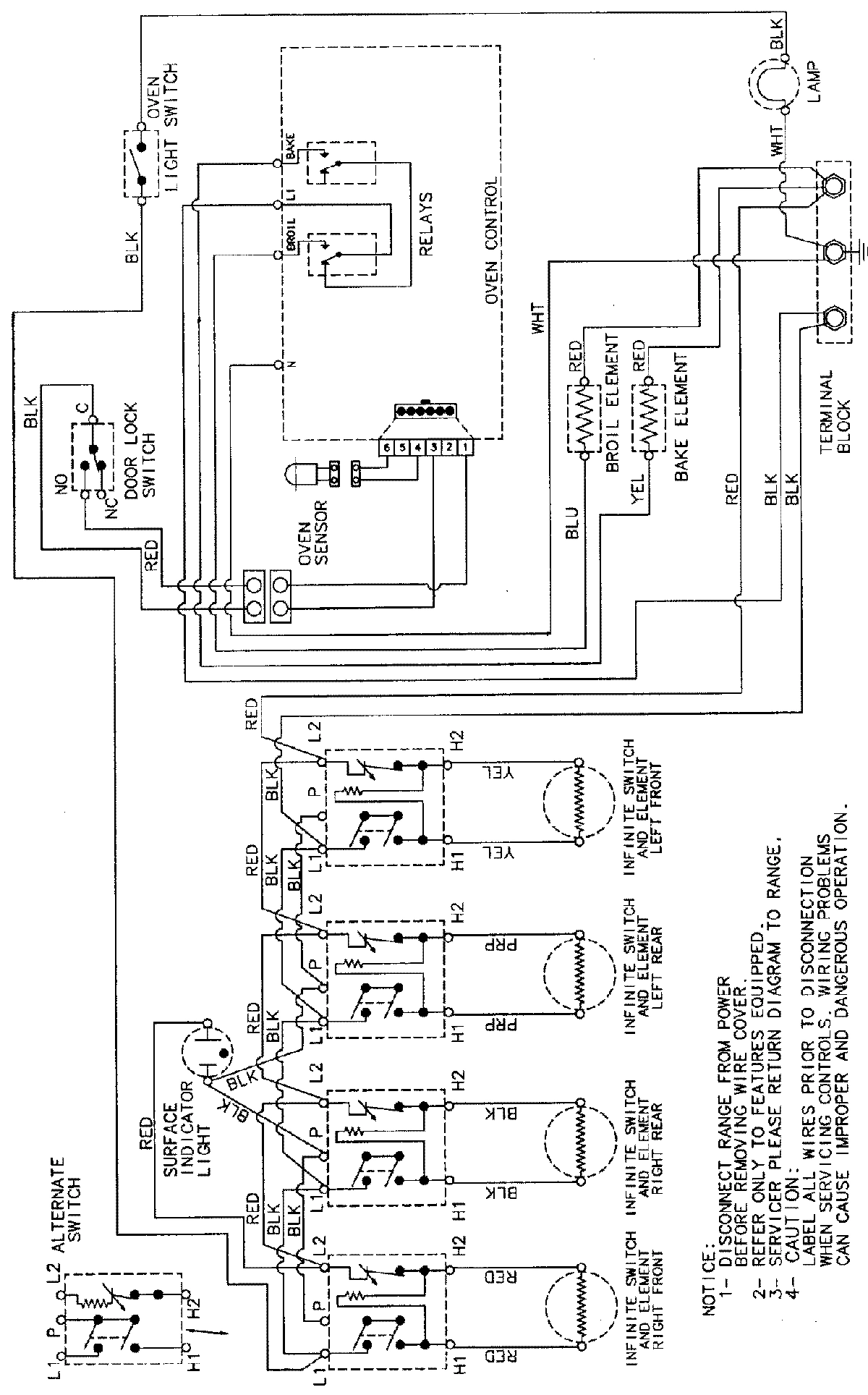

WIRING INFORMATION WPL 15002232 Contact Us For Availability
