Model Whirlpool MDG9700AWM GAS DRYER – Common Parts & Diagrams
05 - SUPPLEMENTAL INFORMATION

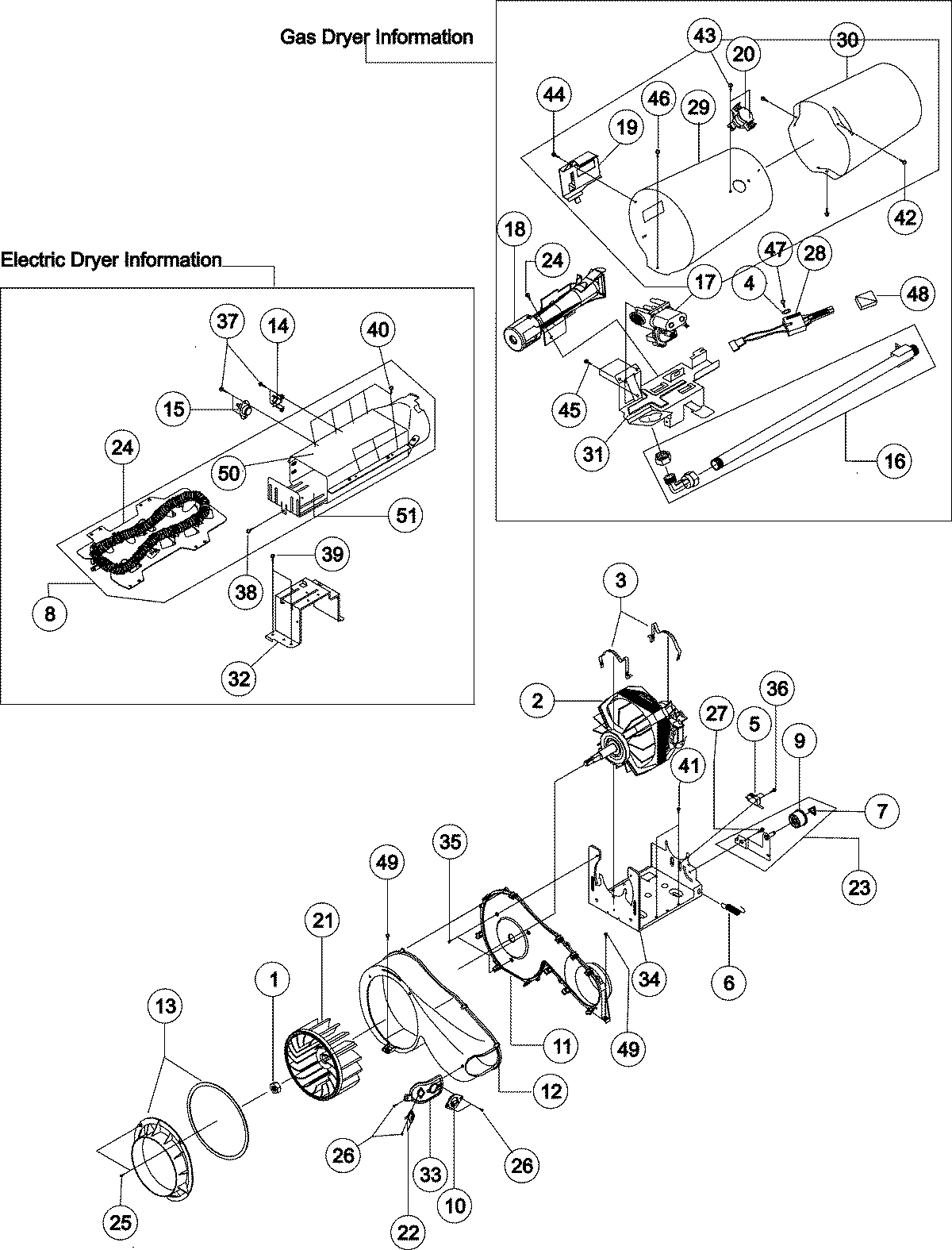

01 - BLOWER-HEATER-MOTOR

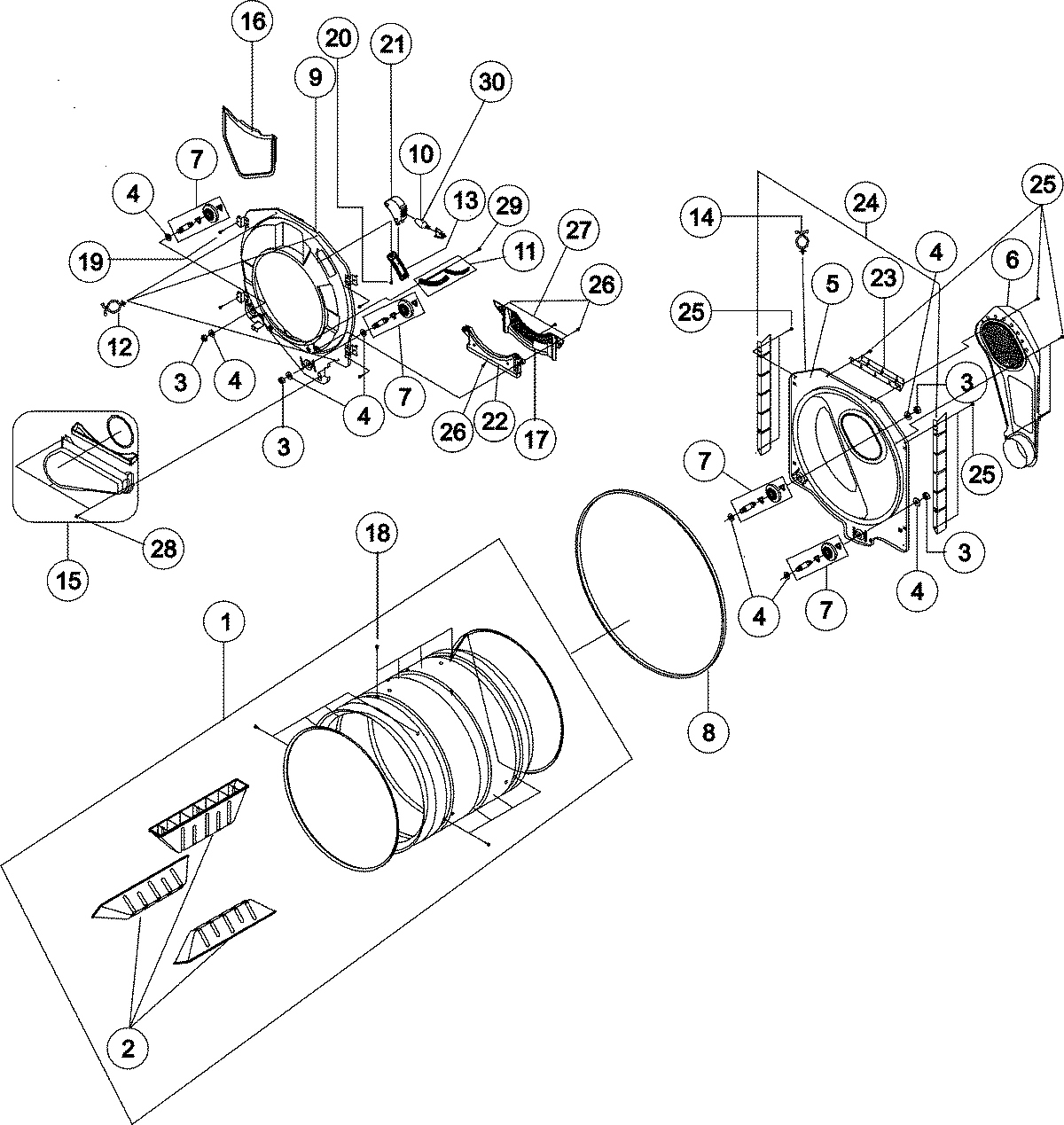

03 - DRUM

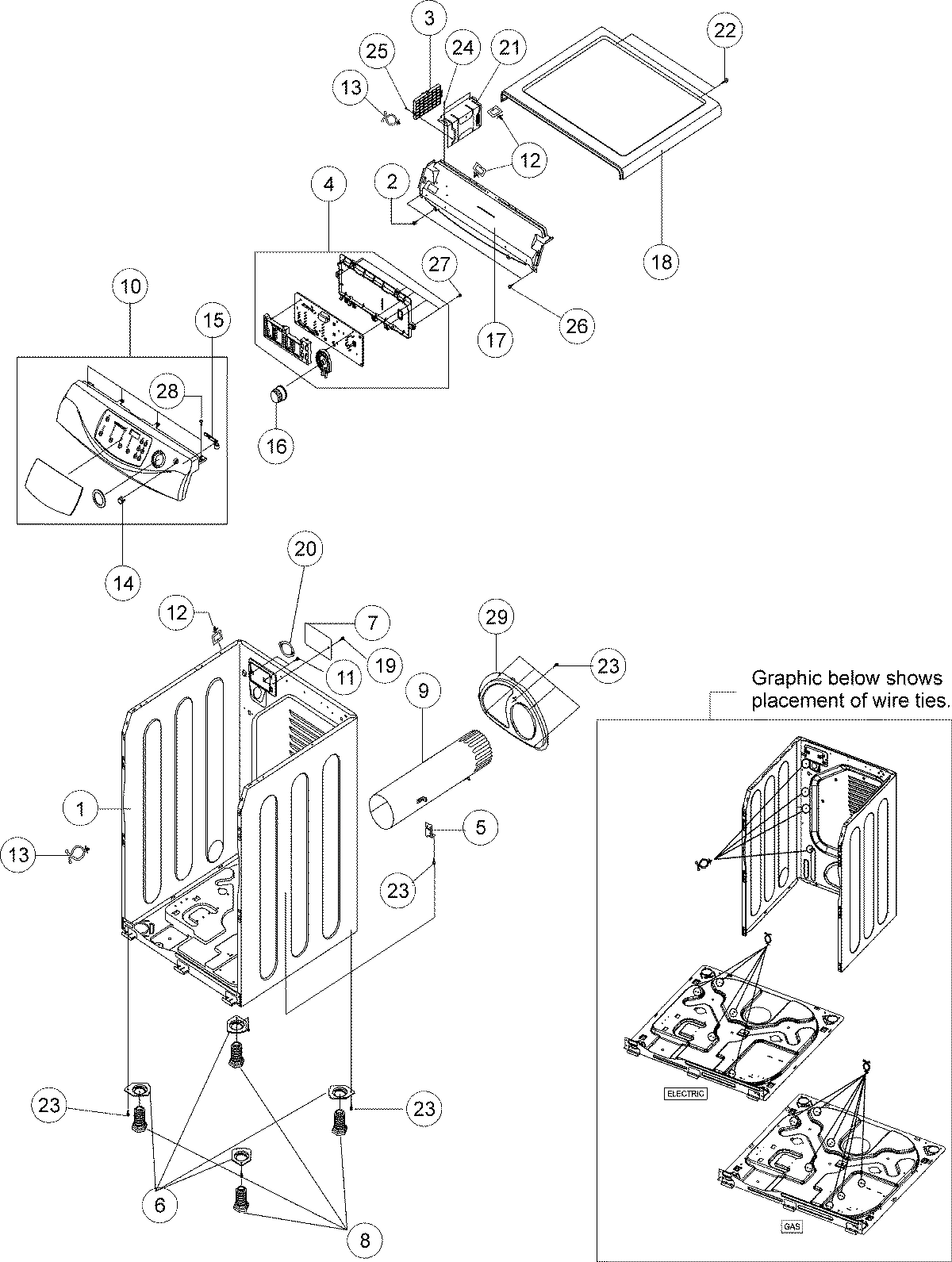

02 - CONTROL PANEL - CABINET

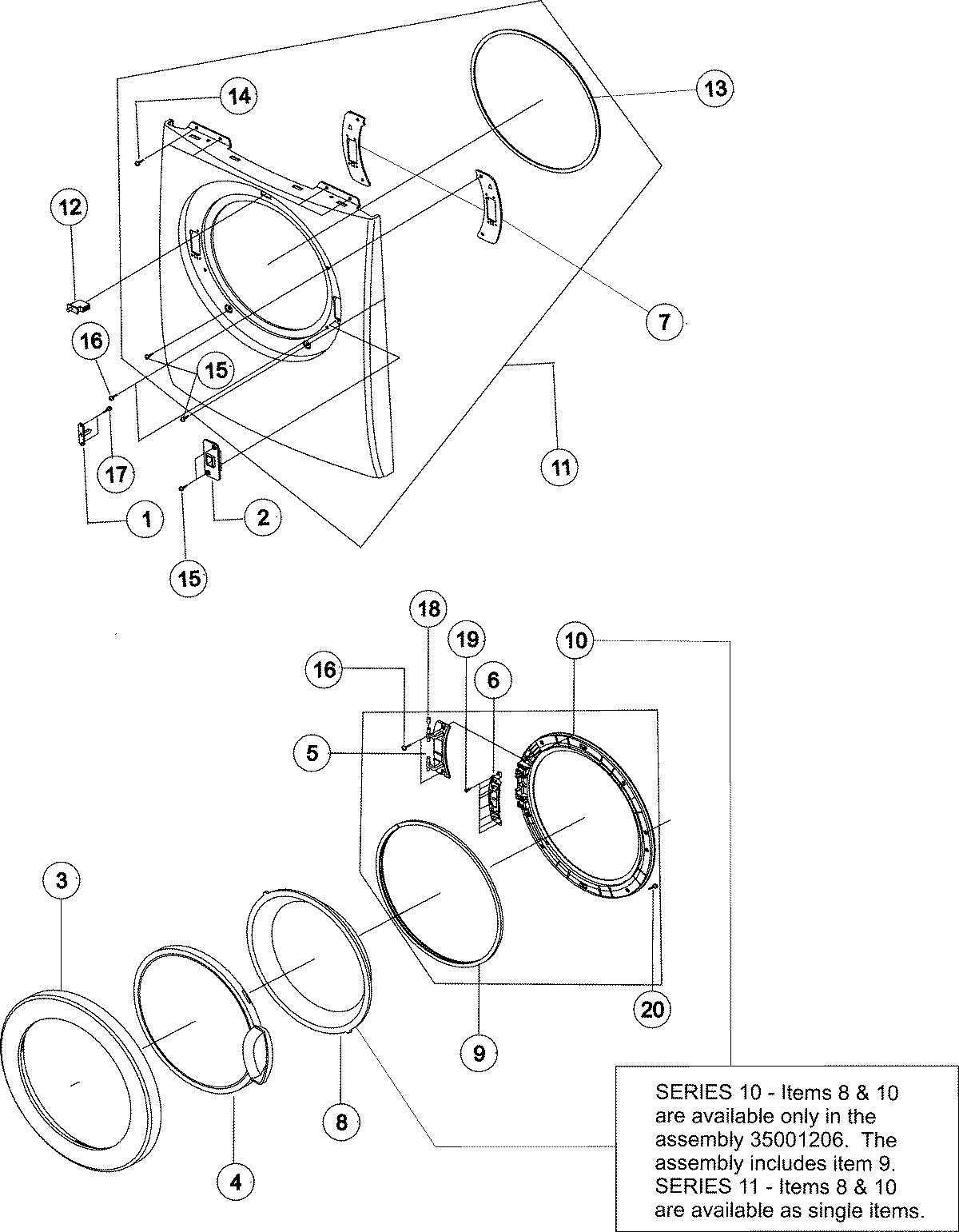

04 - FRONT - DOOR
Common parts from model Whirlpool MDG9700AWM GAS DRYER
1
NUT-INCH WPL 35001079 Contact Us For Availability
1
ASSY-DRUM WRAPPER WPL 35001130 Contact Us For Availability
1
ASSY FRAME - GAS - PLATINUM LU WPL 35001196 Contact Us For Availability
1
LEVER-DOOR WPL 35001111 Contact Us For Availability
2
ASSY, WIRE GAS 9700 WPL 35001263 Contact Us For Availability
2
DRUM-LIFTER WPL 35001131 Contact Us For Availability
2
SCREW-ASSY TAPP WPL 6006001170 Contact Us For Availability
2
ASSY-HOLDER LEVER WPL 35001112 Contact Us For Availability
3
SPRING-PLATE WPL 35001081 Contact Us For Availability
3
ASSY PCB PARTS WPL 35001153 Contact Us For Availability
3
COVER - DOOR PLATINUM WPL 35001194 Contact Us For Availability
4
NUT-CIRCULAR WPL 6021001130 Contact Us For Availability
4
WASHER WPL 35001133 Contact Us For Availability
4
ASSY PCB PARTS WPL 35001154 Contact Us For Availability
4
DOOR-SAFETY WPL 35001114 Contact Us For Availability
5
SVC MAN, DOM DRYER ELECT WPL 16025911 Contact Us For Availability
5
SWITCH-MICRO WPL 35001082 Contact Us For Availability
5
DRUM-BACK WPL 35001134 Contact Us For Availability
5
GUIDE-EXHAST WPL 35001155 Contact Us For Availability
5
HINGE-DOOR WPL 35001115 Contact Us For Availability
6
DRYING RACK, 7.3 / 27`` WPL 35001077 Contact Us For Availability
6
SPRING-TENSION WPL 35001083 Contact Us For Availability
6
SPRING-TENSION WPL 35001278 Contact Us For Availability
6
ASSY-DUCT AIR WPL 35001135 Contact Us For Availability
6
ASSY-DUCT AIR WPL 35001240 Contact Us For Availability
6
BRACKET-LEG WPL 35001156 Contact Us For Availability
6
SUPPORT-HINGE WPL 35001120 Contact Us For Availability
7
HOLDER-SHAFT WPL 35001084 Contact Us For Availability
7
DUCT, EXHAUST ASSEMBLY WPL 12002640 Contact Us For Availability
7
COVER-POWER CORD WPL 34001069 Contact Us For Availability
7
BRACKET-HINGE WPL 35001129 Contact Us For Availability
8
VENT KIT (27``) WPL 12002641 Contact Us For Availability
8
LEG WPL 35001158 Contact Us For Availability
8
DOOR-GLASS WPL 35001182 Contact Us For Availability
9
ASSY-ROLLER WPL 35001086 Contact Us For Availability
9
ASSY-DRUM FRONT WPL 35001149 Contact Us For Availability
9
ASSY-DUCT EXHAUST WPL 35001159 Contact Us For Availability
9
SEAL-DOOR WPL 35001122 Contact Us For Availability
10
THERMISTOR WPL WP35001191 No Longer Available
10
ANCHOR BRACKET KIT WPL 12002643 Contact Us For Availability
10
ASSY-PANEL CONTROL - PLATINUM WPL 35001198 Contact Us For Availability
10
ASSEMBLY HOLDER-GLASS WPL 35001206 Contact Us For Availability
11
DUCT, EXHAUST (B) WPL 35001205 Contact Us For Availability
11
GUIDE-DUCT FAN WPL 35001088 Contact Us For Availability
11
ASSY-GUIDE SENSOR WPL 35001150 Contact Us For Availability
11
ASSY-FRAME FRONT - PLATINUM WPL 35001195 Contact Us For Availability
12
DUCT, EXHAUST (A) WPL 35001204 Contact Us For Availability
12
COVER-DUCT FAN WPL 35001089 Contact Us For Availability
12
STAND OFF WPL 6046000310 Contact Us For Availability
12
CLAMPER-WIRE SADDLE WPL 35001171 Contact Us For Availability
12
DOOR-SWITCH WPL 35001125 Contact Us For Availability
13
MANUAL, USE & CARE WPL DC6802031B Contact Us For Availability
13
MANUAL, USE & CARE WPL W10126691 Contact Us For Availability
13
ASSY-DUCT CONNECTOR WPL 35001090 Contact Us For Availability
13
COVER-LAMP WPL 35001139 Contact Us For Availability
13
HOLDER-WIRE (RETAINER/CLIP) WPL 35001004 Contact Us For Availability
13
SPONGE-EPDM WPL 35001128 Contact Us For Availability
14
SCREW-PUMP BRACKET WPL 34001211 Contact Us For Availability
14
BUTTON-PUSH (PLATINUM) WPL 34001385 Contact Us For Availability
15
ASSY-DUCT OUTLET WPL 35001140 Contact Us For Availability
15
SCREW-TAPPING,TH,+,2S,M4,L12,- WPL 6002001006 Contact Us For Availability
15
LEVER-POWER WPL 34001279 Contact Us For Availability
16
ASSY PIPE WPL 35001093 Contact Us For Availability
16
KNOB-ENCODER (PLATINUM) WPL 34001387 Contact Us For Availability
16
SCREW-MACHINE WPL 35001126 Contact Us For Availability
17
COVER-FILTER (B) WPL 35001142 Contact Us For Availability
17
SCREW-TAPPING WPL 6002001204 Contact Us For Availability
17
FRAME-PLATE (U) WPL 35001162 Contact Us For Availability
18
TUBE-BURNER WPL 35001095 Contact Us For Availability
18
COVER-TOP (PLATINUM) WPL 34001390 Contact Us For Availability
18
GUIDE-HINGE WPL 35001127 Contact Us For Availability
19
SCREW-TAPPING WPL 6002000213 Contact Us For Availability
20
THERMOSTAT WPL 35001192 Contact Us For Availability
20
HOLDER-POWER WPL 35001167 Contact Us For Availability
20
SCREW-TAPPING WPL 6002000525 Contact Us For Availability
21
FAN - BLOWER WPL 35001097 Contact Us For Availability
21
FAN - BLOWER WPL 35001220 Contact Us For Availability
21
GUIDE-LAMP WPL 35001143 Contact Us For Availability
21
HOLDER-PCB WPL 35001168 Contact Us For Availability
22
COVER-FILTER (F) WPL 35001144 Contact Us For Availability
23
BRACKET-IDLER WPL 35001277 Contact Us For Availability
23
ASSY-BRACKET IDLER WPL 35001098 Contact Us For Availability
23
SCREW-TAPPING WPL 6002000239 Contact Us For Availability
23
BRACKET-DRUM BACK (T) WPL 35001145 Contact Us For Availability
24
BRACKET-DRUM BACK (S) WPL 35001146 Contact Us For Availability
26
SCREW-TAPPING WPL 35001147 Contact Us For Availability
26
SCREW-TAPPING WPL 35001166 Contact Us For Availability
27
SCREW-SPECIAL WPL 35001099 Contact Us For Availability
28
SCREW-TAPPING WPL 6002000231 Contact Us For Availability
29
KIT, CTRL. PANEL W/KNOB (WHT) WPL 12001224 Contact Us For Availability
29
DUCT-CONE (F) WPL 35001101 Contact Us For Availability
29
SCREW-TAPPING WPL 6002001320 Contact Us For Availability
29
COVER-BACK WPL 35001201 Contact Us For Availability
30
DUCT-CONE (B) WPL 35001102 Contact Us For Availability
30
SOCKET-LAMP WPL 35001148 Contact Us For Availability
31
BRACKET-BURNER WPL 35001103 Contact Us For Availability
32
DIE-HEATER WPL 35001104 Contact Us For Availability
33
BRACKET-THERMISTOR WPL 35001105 Contact Us For Availability
34
BRACKET-MOTOR WPL 35001106 Contact Us For Availability
36
SCREW-TAPPING WPL 35001107 Contact Us For Availability
42
SCREW-TAPPING WPL 35001234 Contact Us For Availability
45
SCREW-TAPPING WPL 6002000470 Contact Us For Availability
47
SCREW-TAPPING WPL 35001116 Contact Us For Availability
48
ABSORBER-IGNITOR WPL 35001117 Contact Us For Availability
50
DUCT-HEATER (U) WPL 35001109 Contact Us For Availability
51
DUCT-HEATER (L) WPL 35001110 Contact Us For Availability
× ![]()
