Model Whirlpool MDET446AYW ELECTRIC DRYER – Common Parts & Diagrams

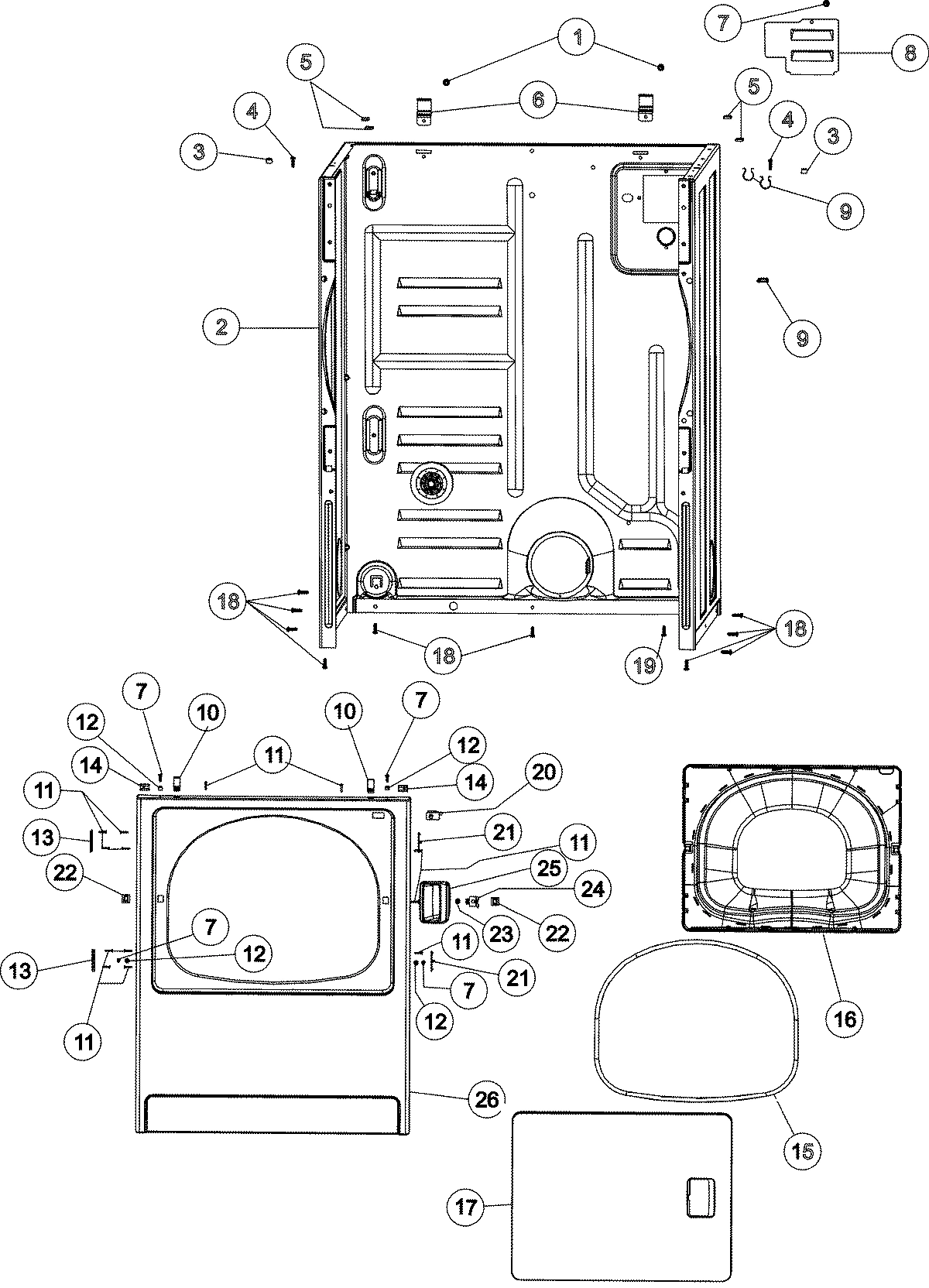

02 - CABINET & FRONT PANEL
04 - SUPPLEMENTAL INFORMATION

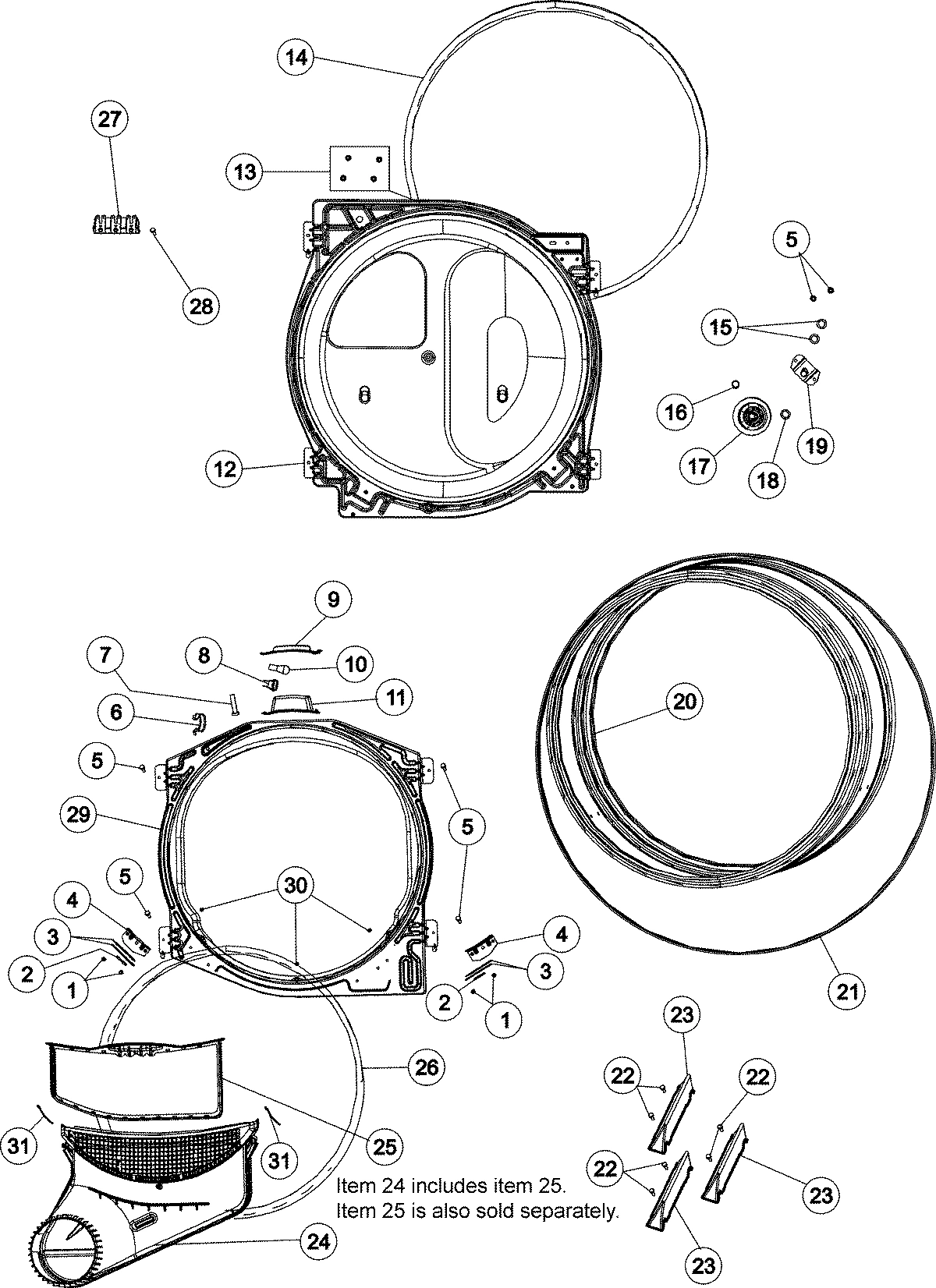

05 - TUMBLER

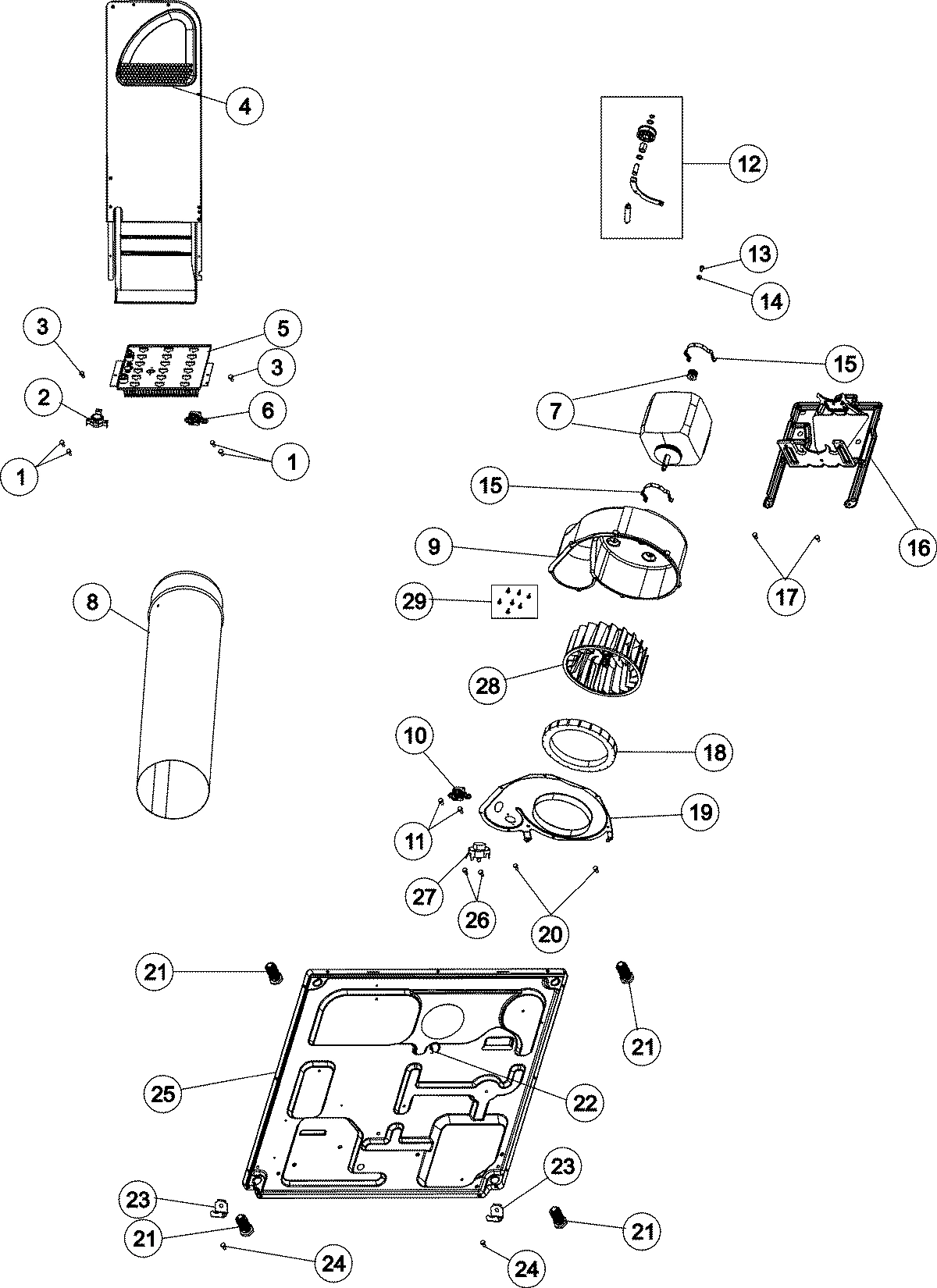

01 - BASE, HEATER & MOTOR

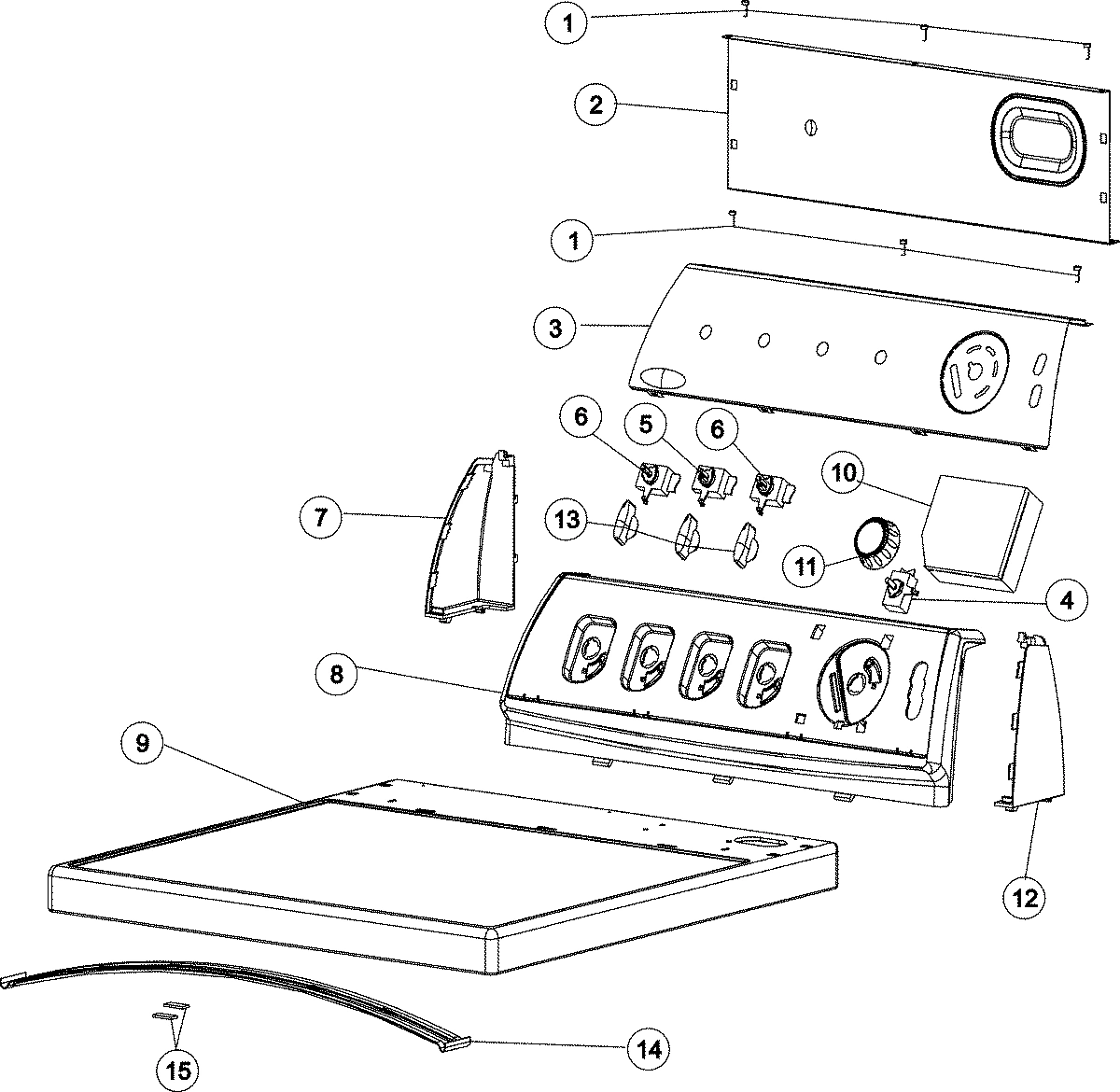

03 - CONTROL PANEL & TOP

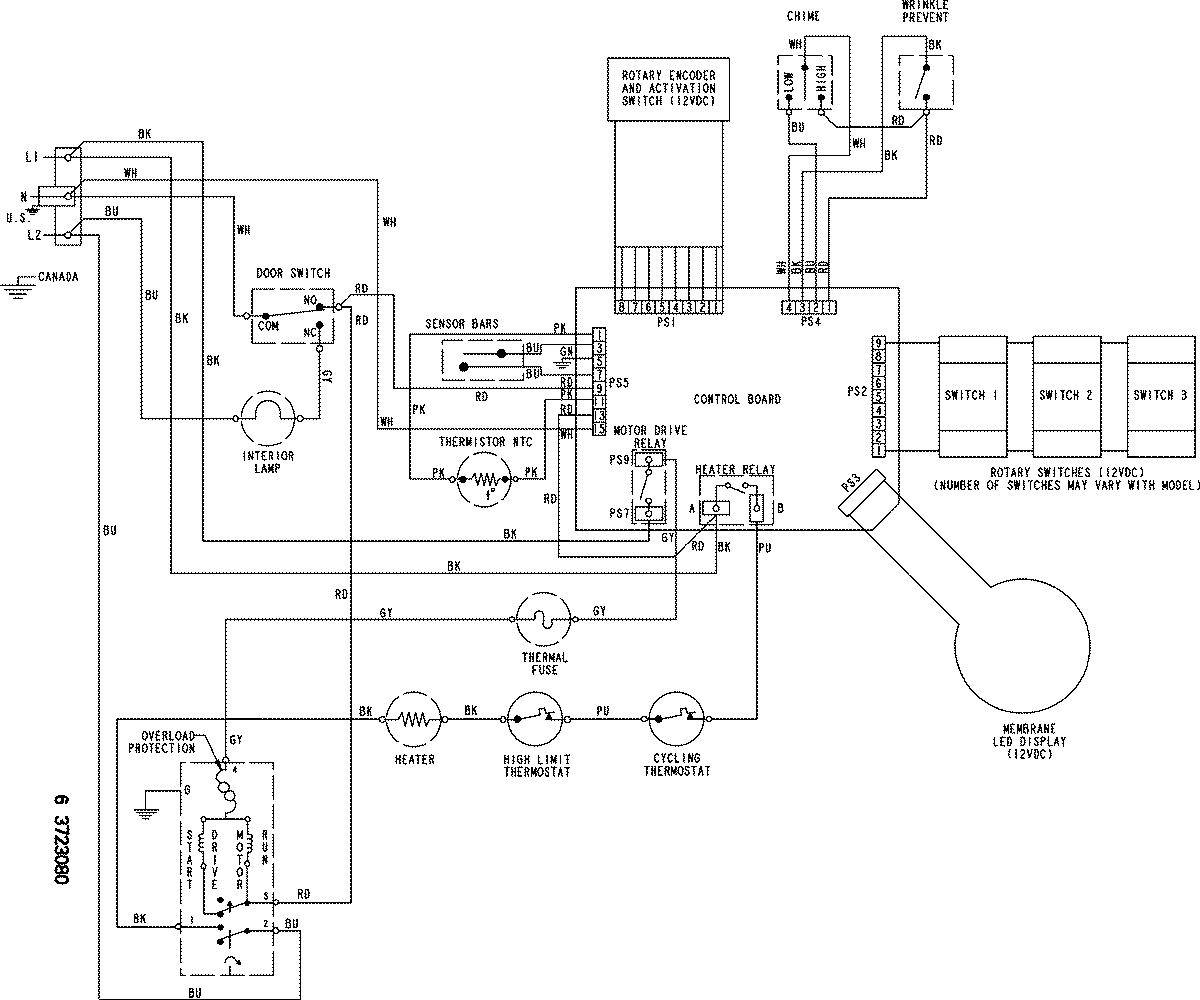

06 - WIRING INFORMATION
Common parts from model Whirlpool MDET446AYW ELECTRIC DRYER
1
HARNESS, WIRE-LOWER ELECTRIC WPL 37001157 Contact Us For Availability
2
WIRE HARNESS - UPPER WPL 37001161 Contact Us For Availability
2
SHIELD, BACKGUARD WPL 37001233 Contact Us For Availability
3
MANUAL, USE & CARE WPL 2202687 Contact Us For Availability
3
MANUAL, USE & CARE WPL 2206672 Contact Us For Availability
3
FACIA WPL 37001176 Contact Us For Availability
4
ENCODER, ROTARY 32 POSITION WPL 37001266 Contact Us For Availability
4
LEAD ASSEMBLY (GROUND) WPL 21001980 Contact Us For Availability
4
ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability
5
SOUNDFOIL WPL 37001147 Contact Us For Availability
5
ENCODER, ROTARY 3 POSITION WPL 21002198 Contact Us For Availability
6
HINGE, TOP WPL 500003 Contact Us For Availability
6
SVC MAN, DOM DRYER GAS WPL 16026315 Contact Us For Availability
6
ENCODER, ROTARY 4 POSITION WPL 37001263 Contact Us For Availability
7
ENDCAP (WHT-LT) WPL 21001519 Contact Us For Availability
8
HOLDER, LAMP WPL 504458 Contact Us For Availability
8
DUCT, EXHAUST WPL 505518 Contact Us For Availability
8
SUPPORT, SWITCH -WHT (CONSOLE) WPL 37001166 Contact Us For Availability
9
LENS, LIGHT WPL 40094301 Contact Us For Availability
9
HOUSING, BLOWER WPL 56020 Contact Us For Availability
9
COVER, TOP - WHITE/DRYER WPL 37001232 Contact Us For Availability
11
HOUSING, CYLINDER LIGHT WPL 503622 Contact Us For Availability
11
KNOB ASSEMBLY - ROTARY ENCODER WPL 37001185 Contact Us For Availability
12
BULKHEAD, REAR (WHT) WPL 504801W Contact Us For Availability
12
ENDCAP (WHT-RT) WPL 21001523 Contact Us For Availability
13
SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability
14
BRACE, TOP WPL 56486 Contact Us For Availability
15
PAD, FELT-COIN WPL 500121 Contact Us For Availability
15
SEAL, FRONT PANEL WPL 504005 Contact Us For Availability
16
SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability
16
MOUNT, MOTOR WPL 503613 Contact Us For Availability
18
WASHER, WAVE WPL Y504082 Contact Us For Availability
18
SEAL, BLOWER HOUSING WPL 37001119 Contact Us For Availability
19
COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability
20
ASSEMBLY, CYLINDER (WHT) WPL 504467W Contact Us For Availability
21
LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability
21
PLUG, HINGE HOLE WPL 503126 Contact Us For Availability
22
CLIP, WIRE WPL 504034 Contact Us For Availability
22
SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability
23
BAFFLE, (WHT) WPL 37001125 Contact Us For Availability
23
STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability
23
CLIP, FRONT PANEL WPL 37001145 Contact Us For Availability
24
BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability
24
AIR DUCT ASSEMBLY WPL 37001141 Contact Us For Availability
25
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
25
DRYER BASE WPL 37001156 Contact Us For Availability
26
FRONT PANEL - WHITE WPL 37001154 Contact Us For Availability
27
BLOCK, TERMINAL WPL 61923 Contact Us For Availability
28
SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability
29
ASSY, BLKHD FRONT LIT (WHT) WPL 503616W Contact Us For Availability
29
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
30
SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability
31
CLIP, RETAINING HARNESS WPL 40012001 Contact Us For Availability
31
SENSOR, MOISTURE WPL 503625 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003775 Contact Us For Availability
× ![]()
