Model Whirlpool MCE8000AZW ELECTRIC DRYER – Common Parts & Diagrams
02 - CABINET, UPPER & LOWER

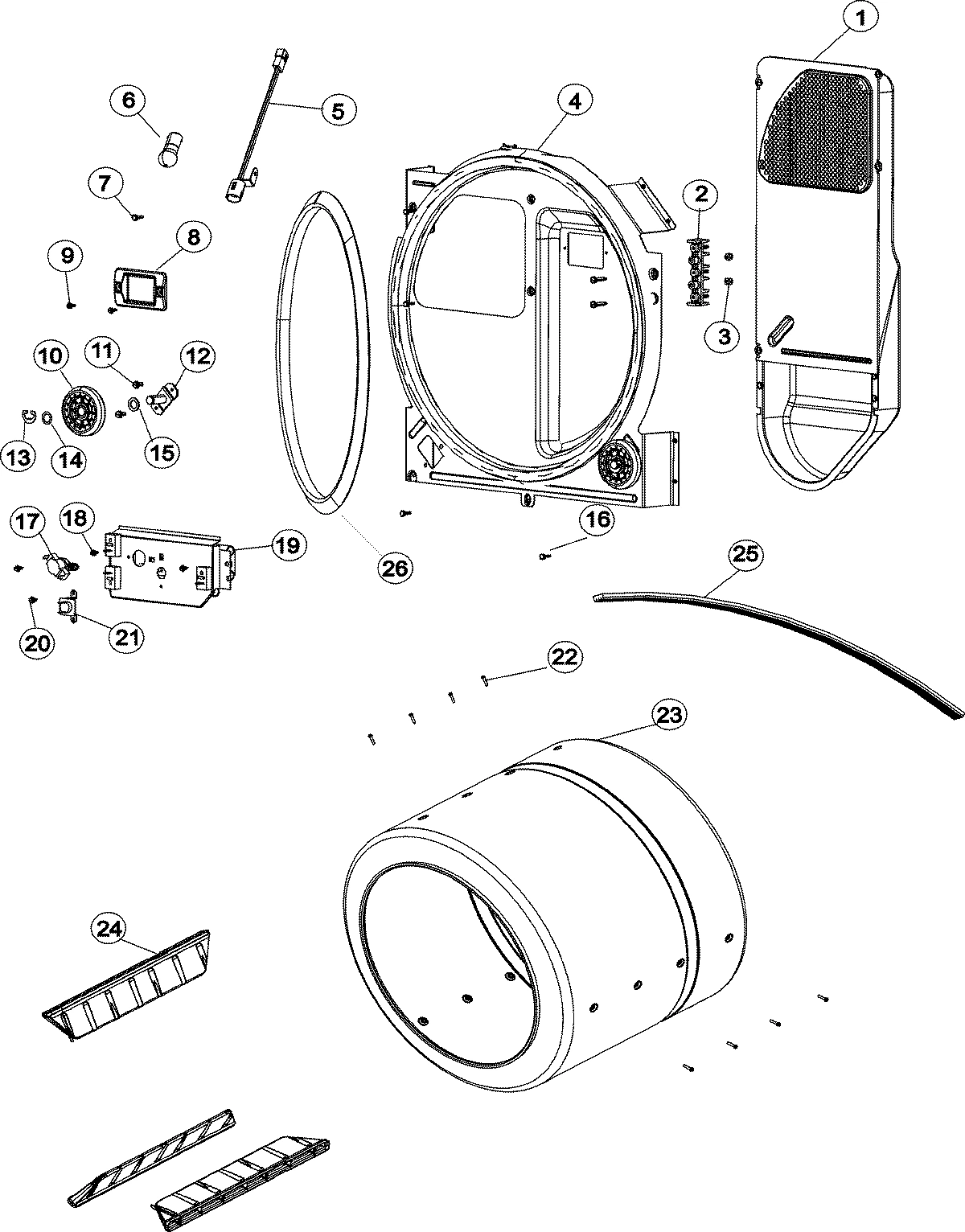

04 - CYLINDER, HEATER & BULKHEAD

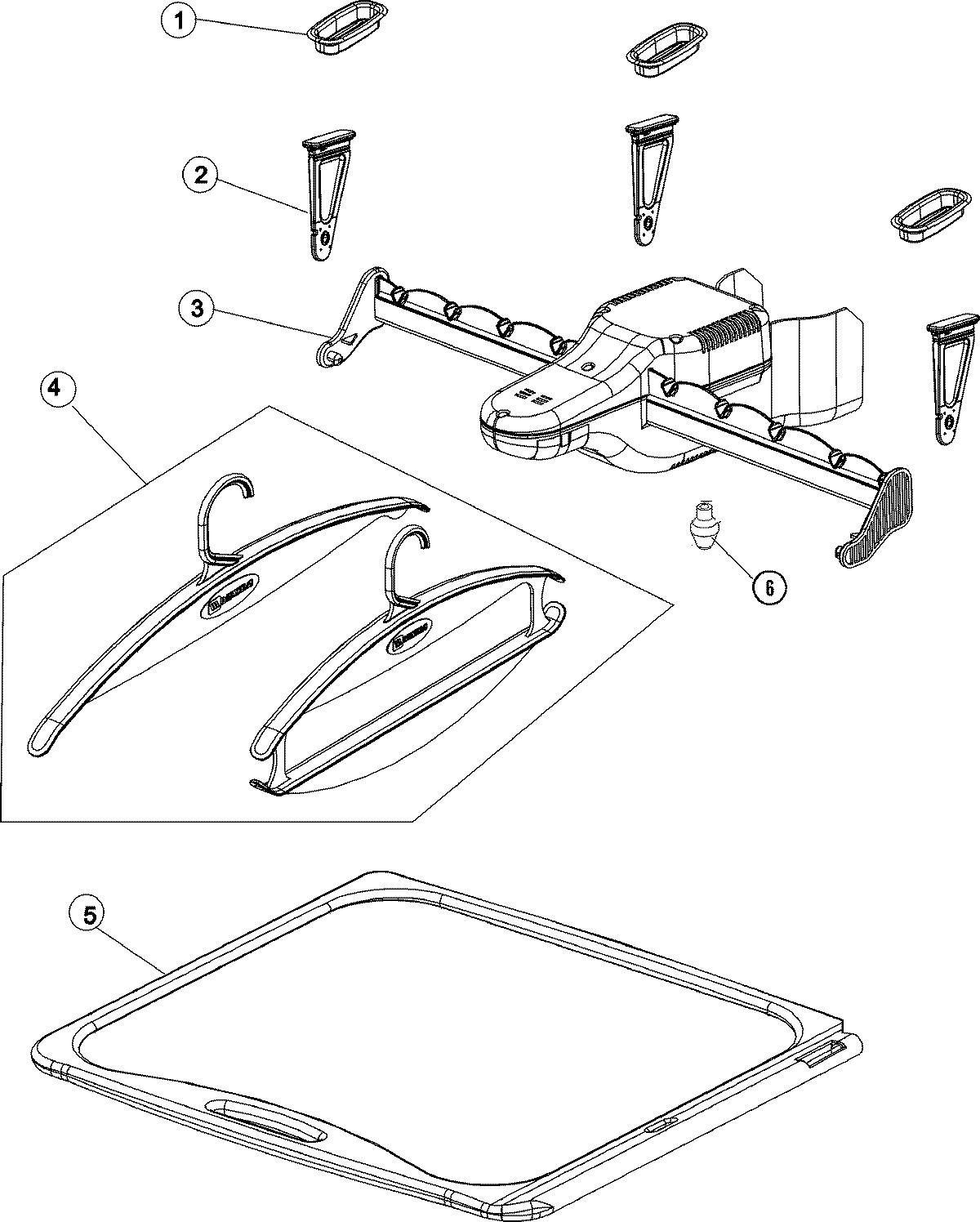

07 - SHAKER, HANGERS & RACKS

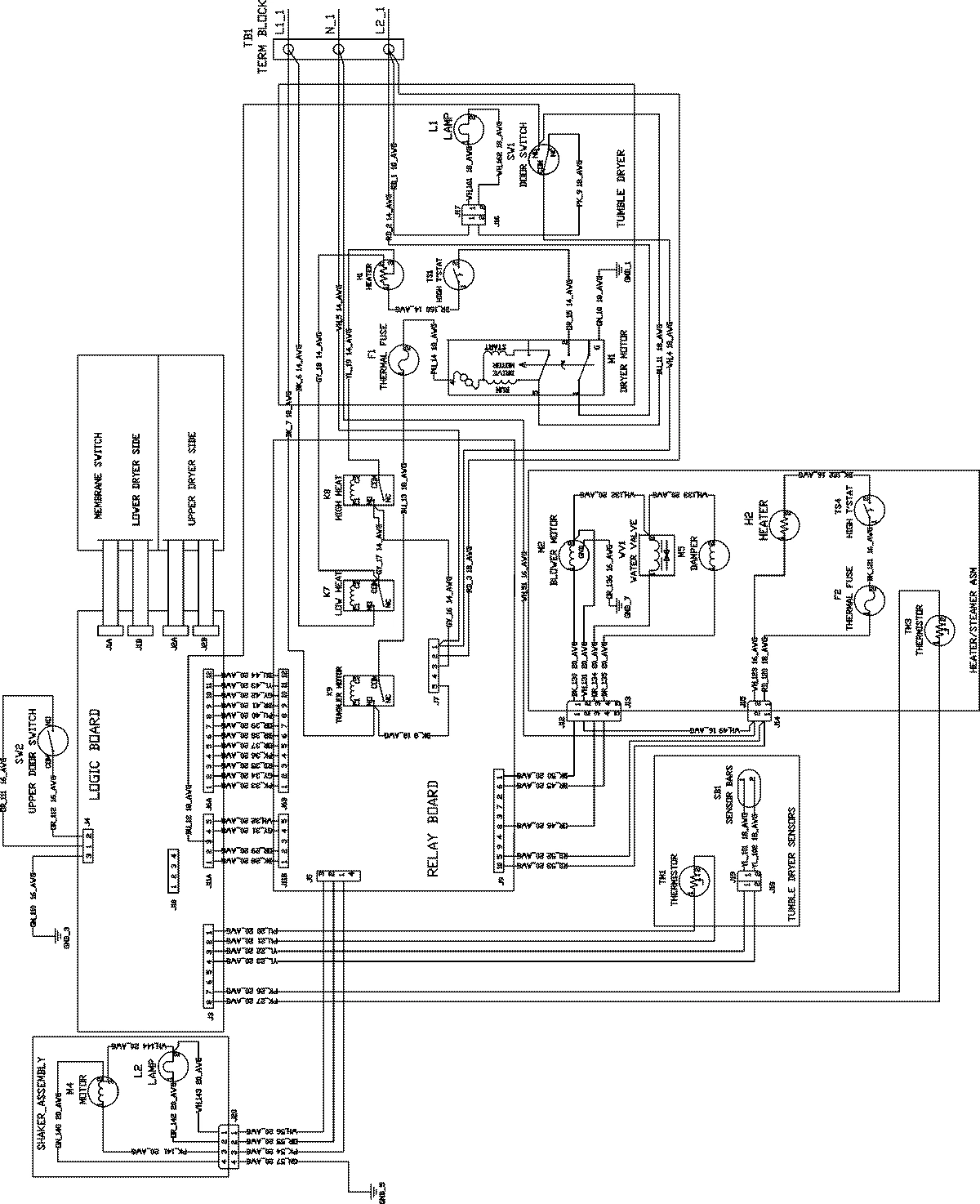

10 - WIRING INFORMATION

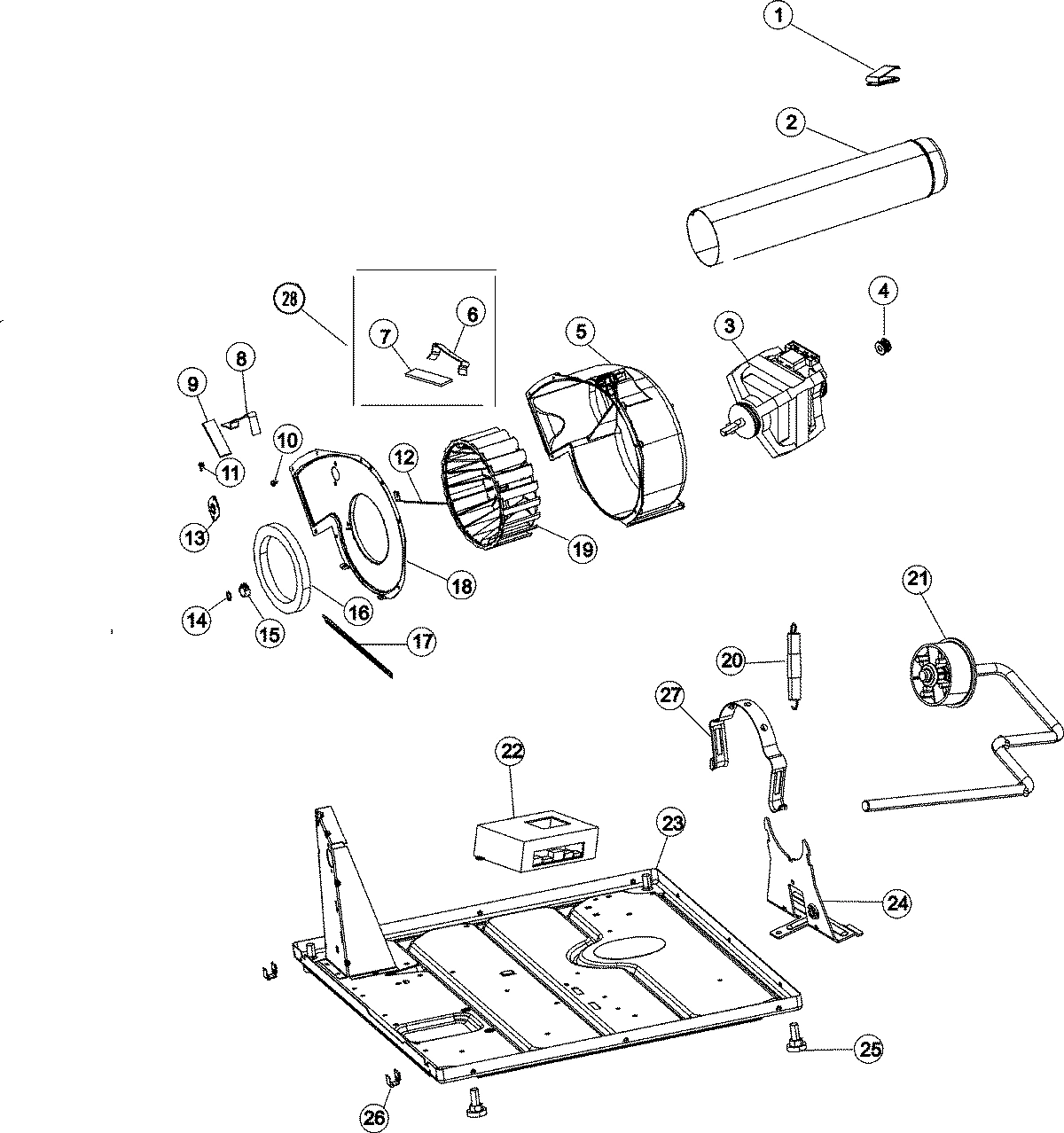

01 - BASE, MOTOR & BLOWER

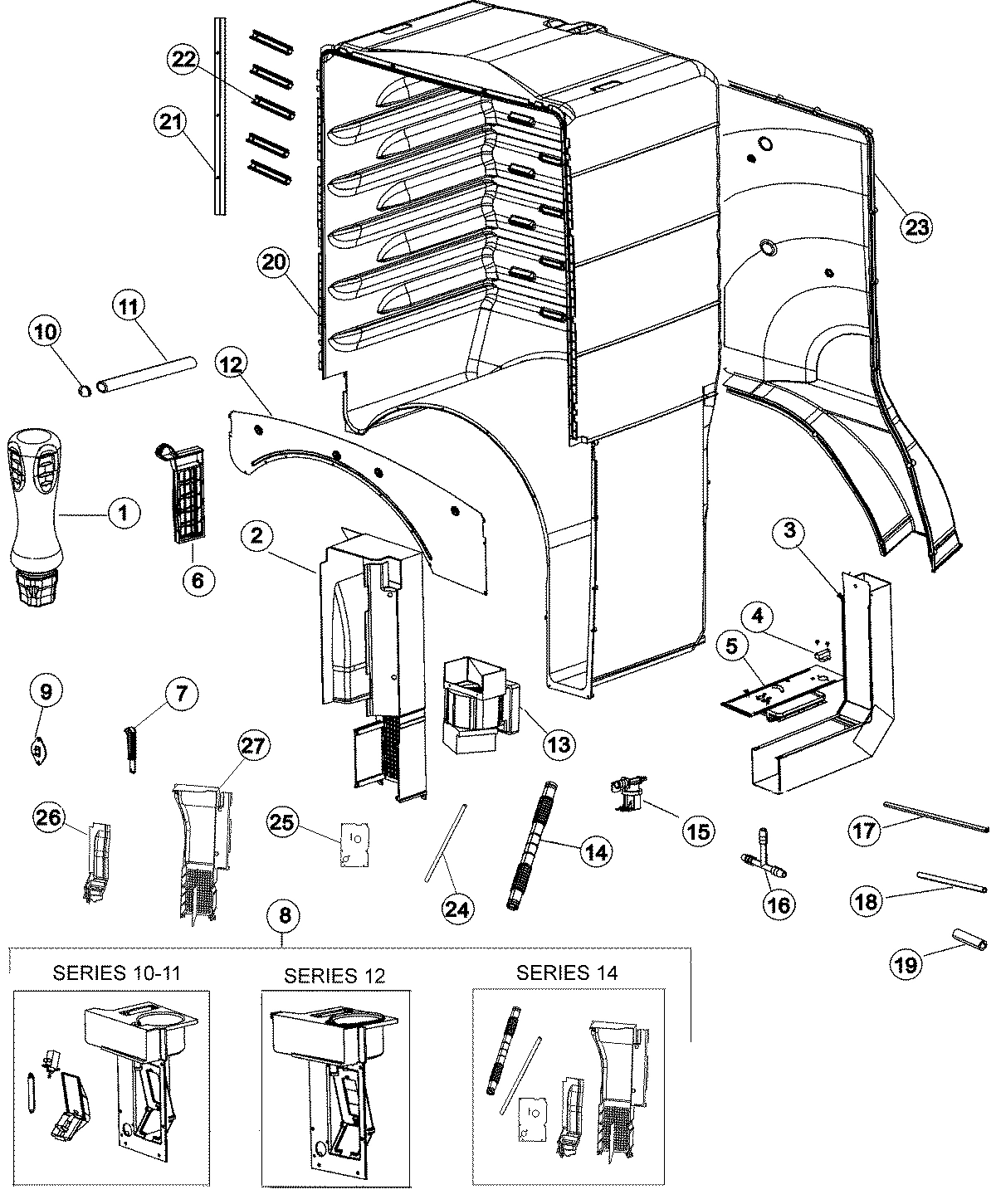

06 - LINER, STEAMER & RESERVOIR
08 - SUPPLEMENTAL INFORMATION

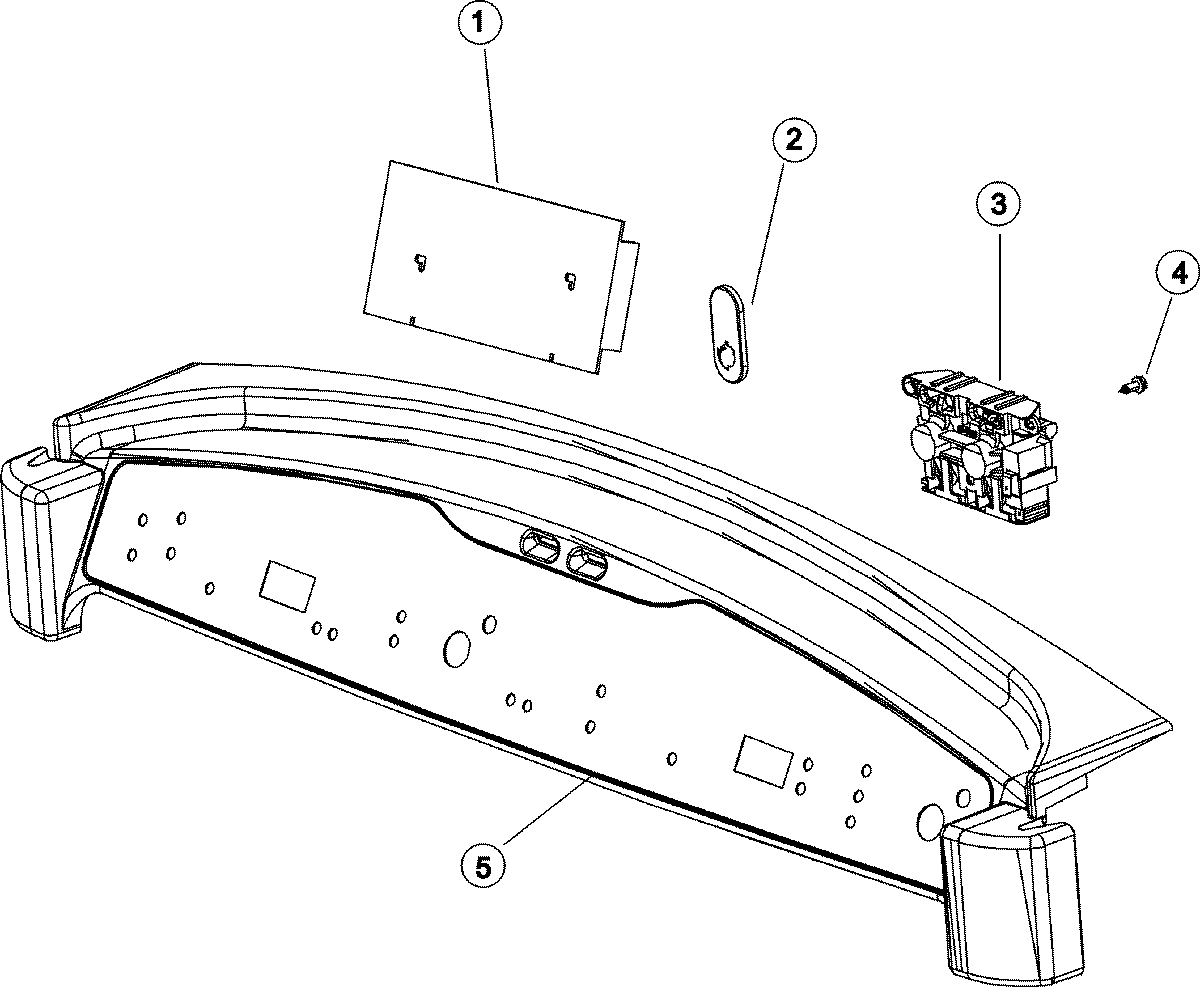

03 - CONTROL PANEL

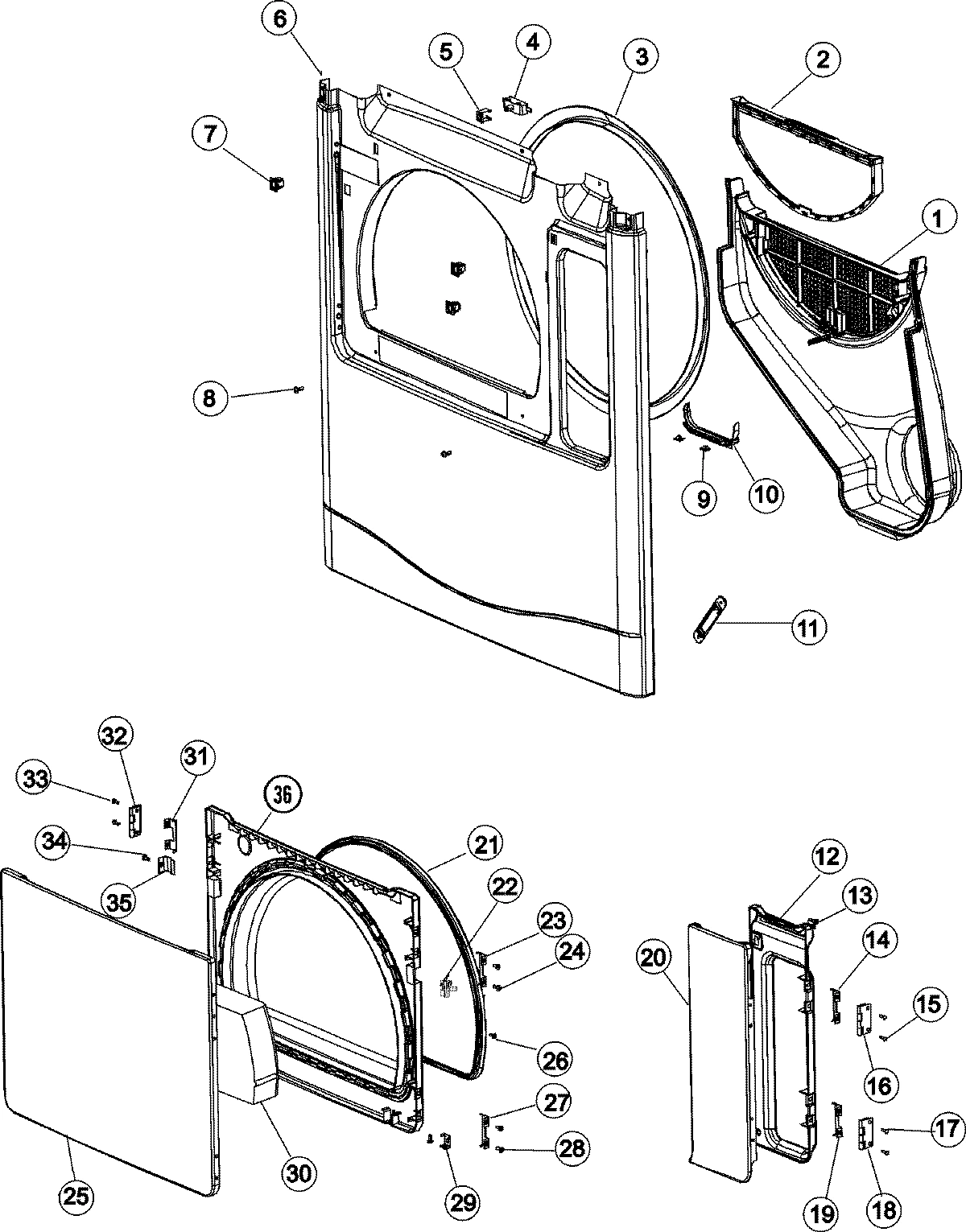

05 - FRONT PANEL & LOWER DOORS

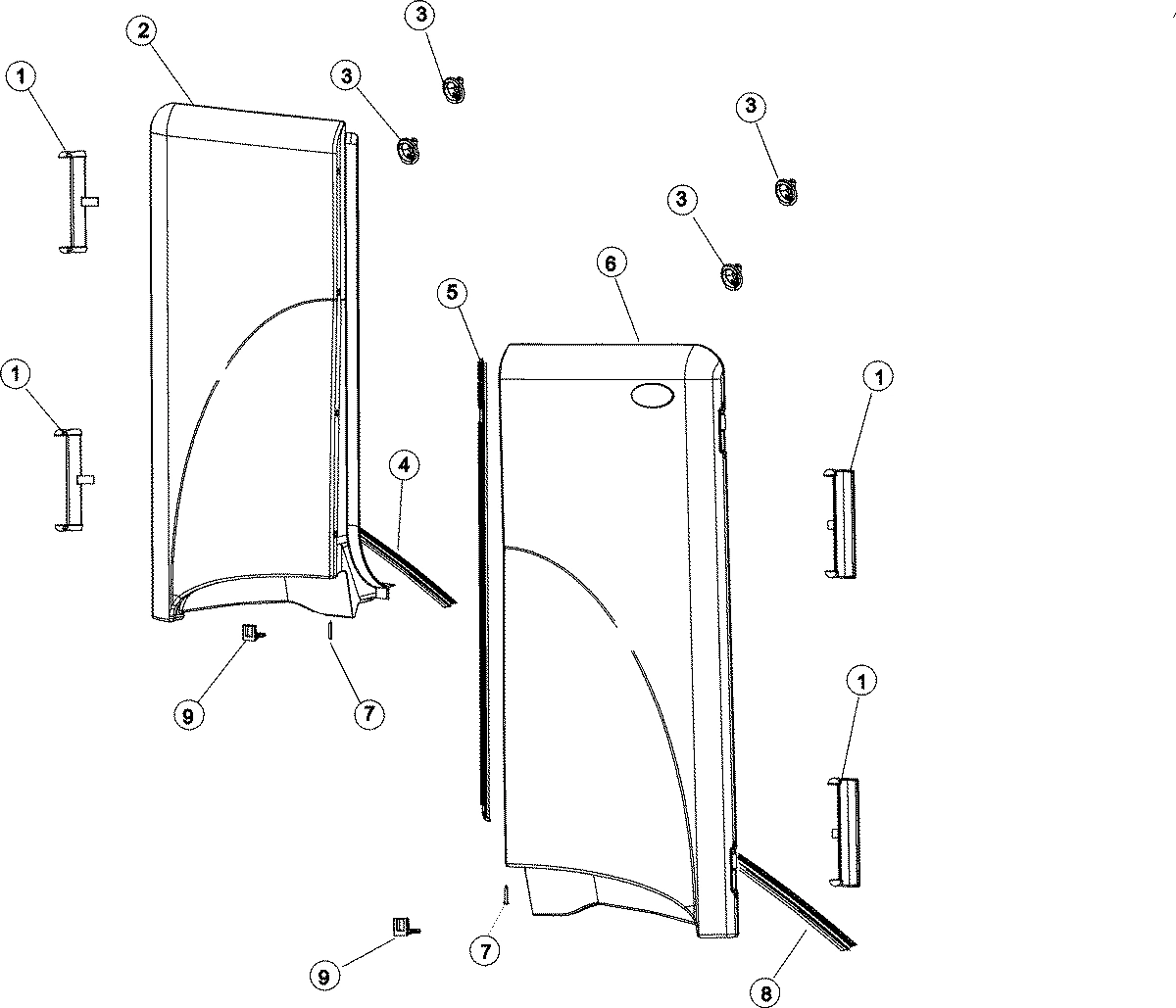

09 - UPPER DOOR
Common parts from model Whirlpool MCE8000AZW ELECTRIC DRYER
1
HEATER HOUSING ASSEMBLY WPL 31001587 Contact Us For Availability
1
BOOT, SHAKER STRAP WPL 31001622 Contact Us For Availability
1
WIRING INFORMATION (ELEC) WPL 15003314 Contact Us For Availability
1
CLIP, VENT PIPE GROUND WPL 31001572 Contact Us For Availability
1
BOTTLE, RESERVOIR WATER WPL 31001684 Contact Us For Availability
1
SVC MAN, DOM DRYING CENTR G/E WPL 16022785 Contact Us For Availability
1
GUIDE, ENERGY WPL 31001511 Contact Us For Availability
1
GUIDE, USER DVD WPL 534240 Contact Us For Availability
1
MANUAL, USE & CARE WPL 534241 Contact Us For Availability
1
GUIDE, TROUBLE SHOOTING WPL 534537 Contact Us For Availability
1
GUIDE, TROUBLE SHOOTING WPL 534603 Contact Us For Availability
1
LOGIC BOARD (CONTROL) WPL 31001562 Contact Us For Availability
1
DUCT, COLLECTOR WPL 31001635 Contact Us For Availability
1
SEAL WPL 530204 Contact Us For Availability
1
COVER, HINGE RETAINER (WHT) WPL 31001671 Contact Us For Availability
2
SCREW WPL 257952 Contact Us For Availability
2
STRAP, GROUND WPL 530965 Contact Us For Availability
2
STRAP, SHAKER SUPPORT WPL 31001621 Contact Us For Availability
2
DUCT, EXHAUST WPL 530134 Contact Us For Availability
2
AIR DUCT, RETURN WPL 31001623 Contact Us For Availability
2
HARNESS, UPPER HEATER/STEAMER WPL 31001664 Contact Us For Availability
2
HARNESS, UPPER HEATER/STEAMER WPL 31001761 Contact Us For Availability
2
MANUAL, USE & CARE NEPTUNE DC WPL 2206670 Contact Us For Availability
2
CLIP, WIRING HARNESS WPL 257430 Contact Us For Availability
2
HARNESS, MAIN POWER WPL 31001692 Contact Us For Availability
2
CLIP, RETAINING WPL 31001659 Contact Us For Availability
2
FILTER, LINT (GRAY) WPL 31001640 Contact Us For Availability
2
UPPER DOOR ASM (LT-WHT) WPL 31001667 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
3
LOCKNUT, EARED FOR CANADIAN WPL 33001425 Contact Us For Availability
3
POWER CORD, CANADIAN 240V WPL 33002916 Contact Us For Availability
3
SHAKER ASSEMBLY WPL 31001702 Contact Us For Availability
3
HOT AIR DUCT ASSEMBLY WPL 31001604 Contact Us For Availability
3
DOOR LATCH ASSEMBLY (UPPER) WPL 31001565 Contact Us For Availability
3
HOOK, DOOR WPL 31001670 Contact Us For Availability
4
PAD, HINGE WPL 354128 Contact Us For Availability
4
BULKHEAD WITH SEAL WPL 31001581 Contact Us For Availability
4
HANGER PACKAGE (2/SM, 1/LG) WPL 31001727 Contact Us For Availability
4
THERMOSTAT, STEAMER WPL 31001630 Contact Us For Availability
4
SWITCH, DOOR WPL 31001732 Contact Us For Availability
4
SEAL, DOOR (LT) WPL 31001765 Contact Us For Availability
5
SUPPORT, CABINET (LT) WPL 31001612 Contact Us For Availability
5
BLOCK, TERMINAL WPL 531518 Contact Us For Availability
5
RECEPTACLE ASM, CLYINDER LIGHT WPL 31001579 Contact Us For Availability
5
SHELF ASSEMBLY WPL 31001679 Contact Us For Availability
5
HOUSING, BLOWER WPL 531801 Contact Us For Availability
5
WIRE, HEATER JUMPER WPL 31001628 Contact Us For Availability
5
HEATER/STEAMER WPL 31001666 Contact Us For Availability
5
CONSOLE W/MEMBRANE PAD (WHT) WPL 31001658 Contact Us For Availability
5
CLIP, SWITCH WPL 31001733 Contact Us For Availability
5
SEAL, DOOR (RT DR SIDE) WPL 31001677 Contact Us For Availability
6
BULB, CYLINDER LIGHT WPL 31001575 Contact Us For Availability
6
FILTER FRAME ASSEMBLY WPL 31001681 Contact Us For Availability
6
COVER, TERMINAL WPL 530284 Contact Us For Availability
6
HARNESS, UPPER DOOR SWITCH WPL 31001662 Contact Us For Availability
6
FRONT PANEL ASSEMBLY (WHT) WPL 31001706 Contact Us For Availability
6
UPPER DOOR ASM (RT-WHT) WPL 31001674 Contact Us For Availability
7
HANGER, EXTERNAL RACK WPL 31001680 Contact Us For Availability
7
SCREW, SEMS WPL 253457 Contact Us For Availability
7
VENT, RESERVOIR FILTER WPL 31001687 Contact Us For Availability
7
CATCH, DOOR WPL 530187 Contact Us For Availability
7
SCREW WPL 253092 Contact Us For Availability
8
CABINET, UPPER (WHT) WPL 31001614 Contact Us For Availability
8
LENS, CYLINDER LIGHT WPL 31001585 Contact Us For Availability
8
RETURN DUCT/DAMPER KIT WPL 12002336 Contact Us For Availability
8
RETURN DUCT/COVER KIT WPL 12002648 Contact Us For Availability
8
COVER, RETURN DUCT WPL 31001760 Contact Us For Availability
8
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
8
SEAL, DOOR (RT) WPL 31001764 Contact Us For Availability
9
THERMISTOR, TEMP CONTROL WPL 31001716 Contact Us For Availability
9
BAND, BELLY WPL 31001594 Contact Us For Availability
9
SCREW, 6-32 HEX WASHER HEAD WPL 31001580 Contact Us For Availability
9
CLIP, TRIM WPL 31001643 Contact Us For Availability
9
STRIKER, LATCH WPL 31001673 Contact Us For Availability
10
CABINET, LOWER (WHT) WPL 31001573 Contact Us For Availability
10
ROLLER (REAR) WPL 31001096 Contact Us For Availability
10
CAP, SHELF SUPPORT WPL 31001603 Contact Us For Availability
10
TRIM, RESERVOIR FLANGE WPL 31001642 Contact Us For Availability
11
SUPPORT, CABINET (RT) WPL 31001613 Contact Us For Availability
11
SCREW WPL 257101 Contact Us For Availability
11
ROD, SHELF SUPPORT WPL 31001602 Contact Us For Availability
11
HARNESS, SENSOR BAR WPL 31001638 Contact Us For Availability
11
SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability
12
POST, LOCATING WPL 21001829 Contact Us For Availability
12
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
12
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
12
TOP, FRONT LINER COVER WPL 31001596 Contact Us For Availability
12
DOOR, INNER RESERVOIR WPL 31001654 Contact Us For Availability
13
FRONT, BELLY BAND WPL 31001608 Contact Us For Availability
13
RING, RETAINING WPL 257854 Contact Us For Availability
13
BLOWER ASSEMBLY WPL 31001627 Contact Us For Availability
13
BAYONET, RESERVOIR DOOR WPL 31001657 Contact Us For Availability
14
SCREW, 8-18X3/8 TYAB BUT WPL 257752 Contact Us For Availability
14
BRACE, CORNER WPL 31001576 Contact Us For Availability
14
WASHER WPL 257814 Contact Us For Availability
14
RING, RETAINING WPL 257855 Contact Us For Availability
14
HOSE, RESERVOIR VALVE WPL 31001631 Contact Us For Availability
15
SPACER, ROLLER WPL 31001583 Contact Us For Availability
15
CLAMP WPL 257823 Contact Us For Availability
15
VALVE, WATER WPL 31001563 Contact Us For Availability
16
SPACER, FRONT PANEL WPL 31001611 Contact Us For Availability
16
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
16
SEAL, BLOWER/COLLECTOR DUCT WPL 31001541 Contact Us For Availability
16
T-CONNECTOR WPL 31001720 Contact Us For Availability
17
BUMPER, CABINET WPL 332653 Contact Us For Availability
17
THERMOSTAT, HI LIMIT WPL 31001689 Contact Us For Availability
17
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
17
HOSE (12``) WPL 31001717 Contact Us For Availability
18
HINGE CABINET LEAF ASM (LT) WPL 31001617 Contact Us For Availability
18
COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability
18
HOSE (8.5``) WPL 31001718 Contact Us For Availability
19
HINGE CABINET LEAF ASM (RT) WPL 31001616 Contact Us For Availability
19
WIRE, HEATER JUMPER WPL 31001691 Contact Us For Availability
19
HEATER ELEMENT & BRACKET WPL 31001746 Contact Us For Availability
19
HOSE (1.5``) WPL 31001719 Contact Us For Availability
20
SPRING, IDLER WPL 31001465 Contact Us For Availability
20
LINER WPL 31001595 Contact Us For Availability
20
DOOR, OUTER RESERVOIR (WHT) WPL 31001656 Contact Us For Availability
21
FUSE, THERMAL (1 SHOT) WPL 31001690 Contact Us For Availability
21
SCREW, 10-24X0700 HXWSHRHD TY WPL 31001571 Contact Us For Availability
21
IDLER ARM ASSEMBLY WPL 31001710 Contact Us For Availability
21
SCREW. No.8-18X1/2 TH RL WPL 31001705 Contact Us For Availability
21
TIE BAR, SHELF WPL 31001609 Contact Us For Availability
21
SEAL, DOOR WPL 31001652 Contact Us For Availability
22
SCREW WPL 257890 Contact Us For Availability
22
SCREW WPL 257759 Contact Us For Availability
22
RELAY BOARD ASSEMBLY WPL 31001561 Contact Us For Availability
22
RELAY BOARD ASY WPL 534643 Contact Us For Availability
22
BRACKET, SHELF WPL 31001607 Contact Us For Availability
22
STRIKE BRACKET ASSEMBLY WPL 31001646 Contact Us For Availability
23
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
23
WASHER, 1/2`` WPL 31001569 Contact Us For Availability
23
BASE ASSEMBLY WPL 31001586 Contact Us For Availability
23
SCREW, No.6 TRI-LOBE 3/8 TORX WPL 31001600 Contact Us For Availability
23
PLENUM WPL 31001606 Contact Us For Availability
24
BAFFLE, WHITE WPL 531249 Contact Us For Availability
24
SCREW WPL 257732 Contact Us For Availability
24
BRACKET, MOTOR WPL 31001570 Contact Us For Availability
24
HOSE, VALVE STEAMER WPL 31001632 Contact Us For Availability
25
FOOT & PAD ASSY WPL 353507 Contact Us For Availability
25
PLATE-RETURN DUCT COVER WPL 31001789 Contact Us For Availability
25
PANEL, OUTER DOOR (WHT) WPL 31001650 Contact Us For Availability
26
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
26
DUCT-AIR RETURN WPL 31001787 Contact Us For Availability
27
CLAMP, MOTOR WPL 530214 Contact Us For Availability
27
CUP-RETURN DUCT WPL 31001788 Contact Us For Availability
29
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
30
SPACER, DOOR BLOCK WPL 31001644 Contact Us For Availability
31
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
32
HINGE, DOOR (LOWER) WPL 31001653 Contact Us For Availability
32
COVER, HINGE (WHT-LOWER DR) WPL 31001641 Contact Us For Availability
34
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
35
PLUG WPL 31001648 Contact Us For Availability
36
INNER DOOR, LOWER WPL 31001645 Contact Us For Availability
× ![]()
