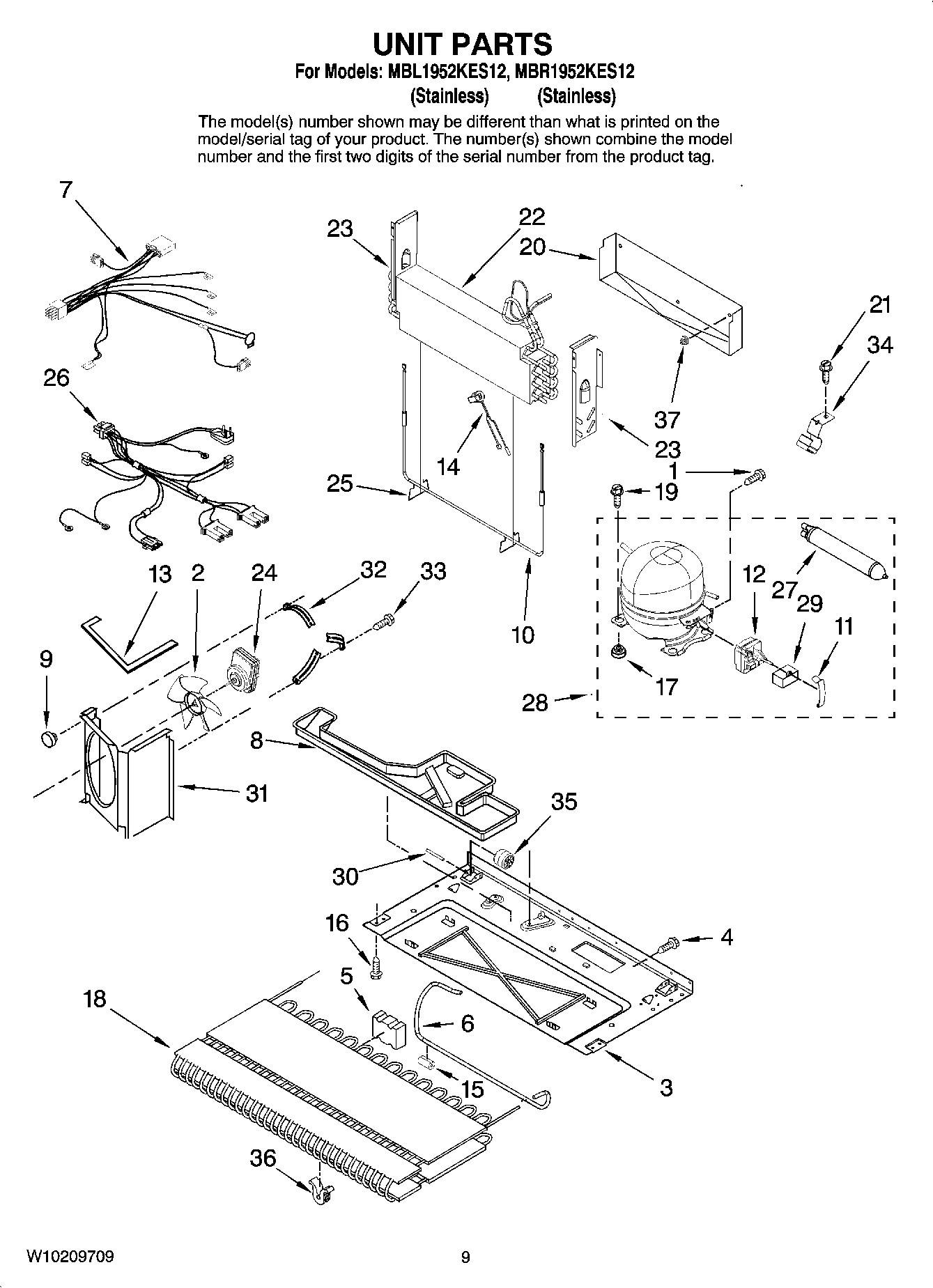

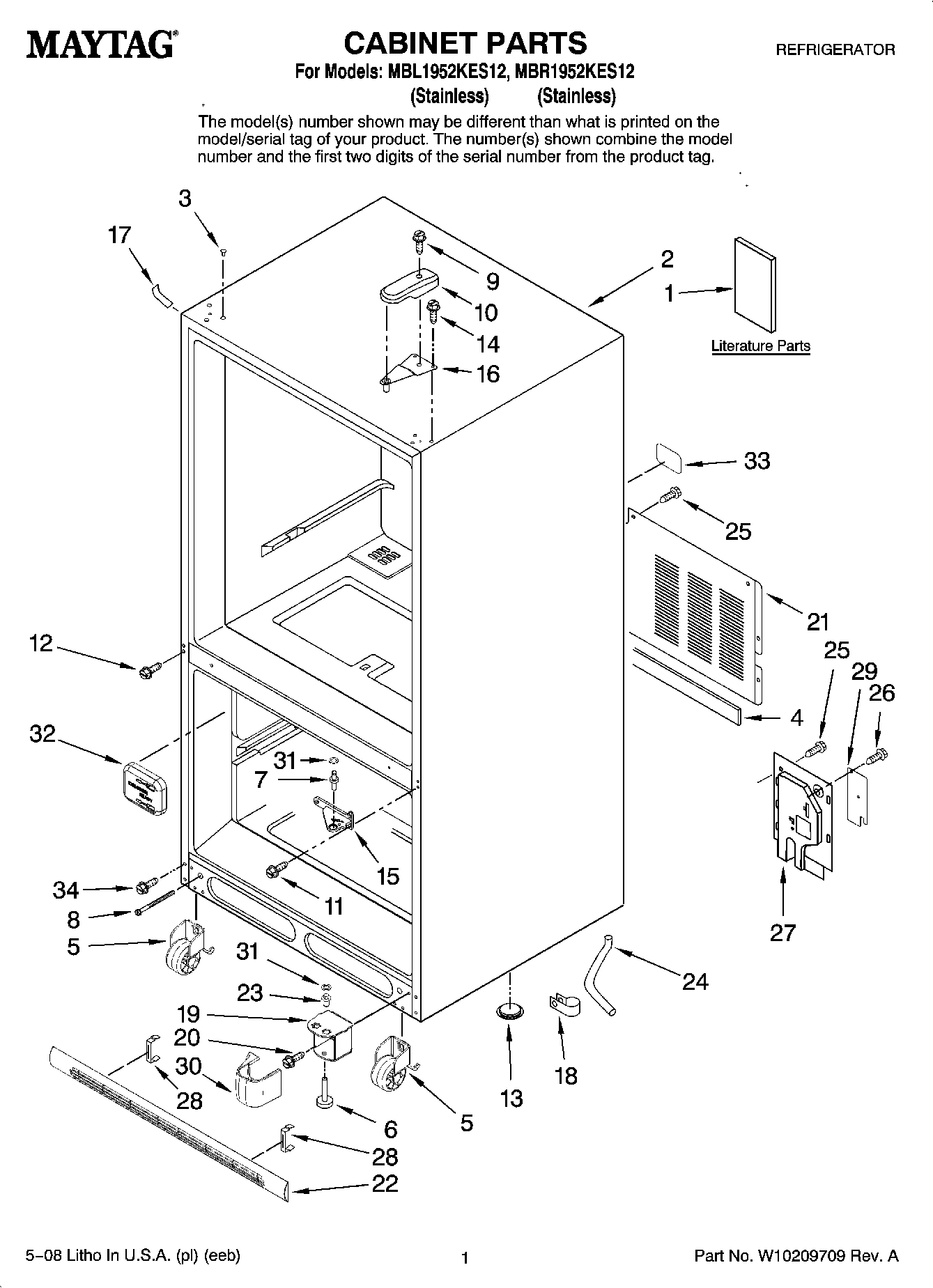

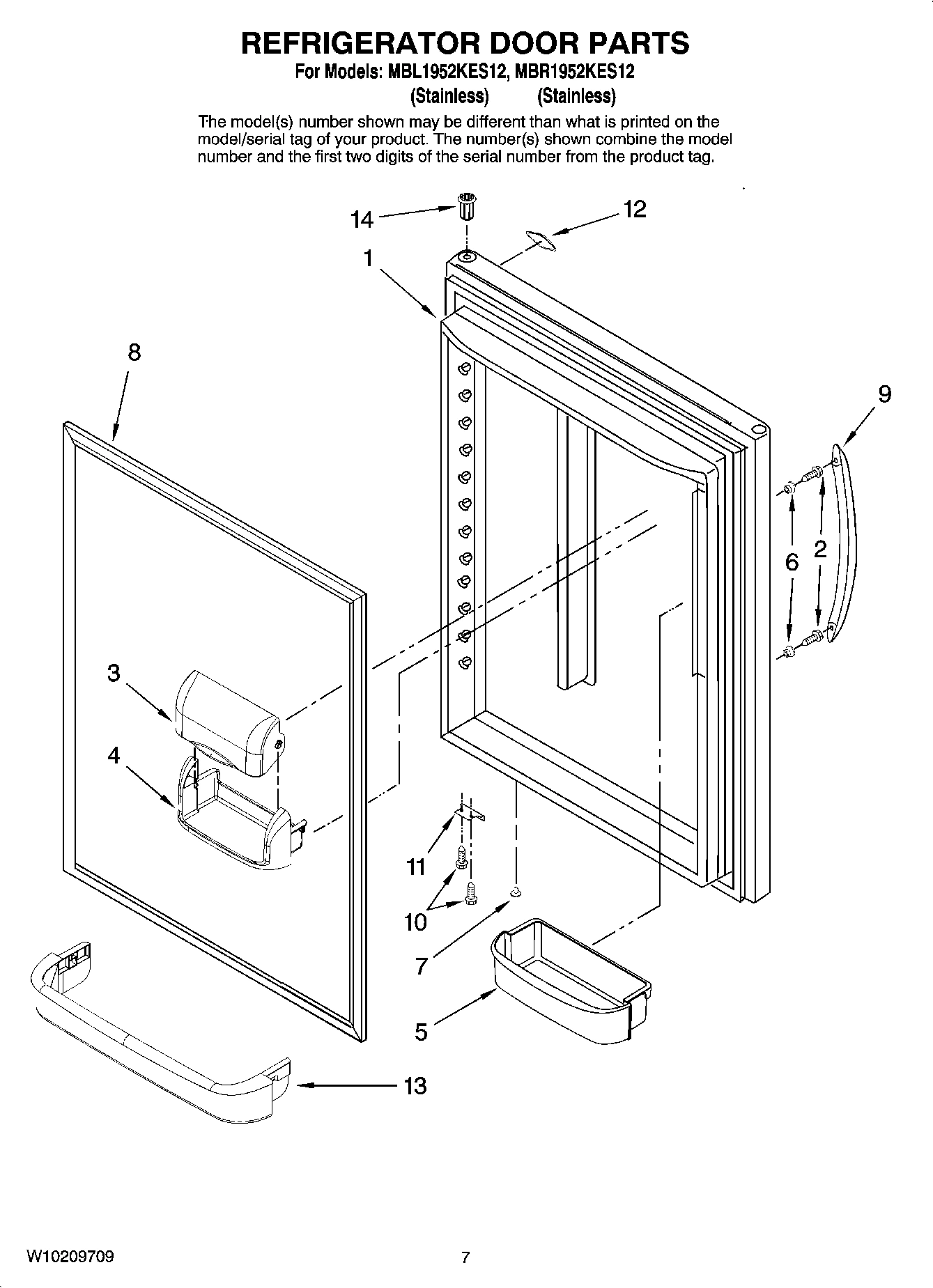

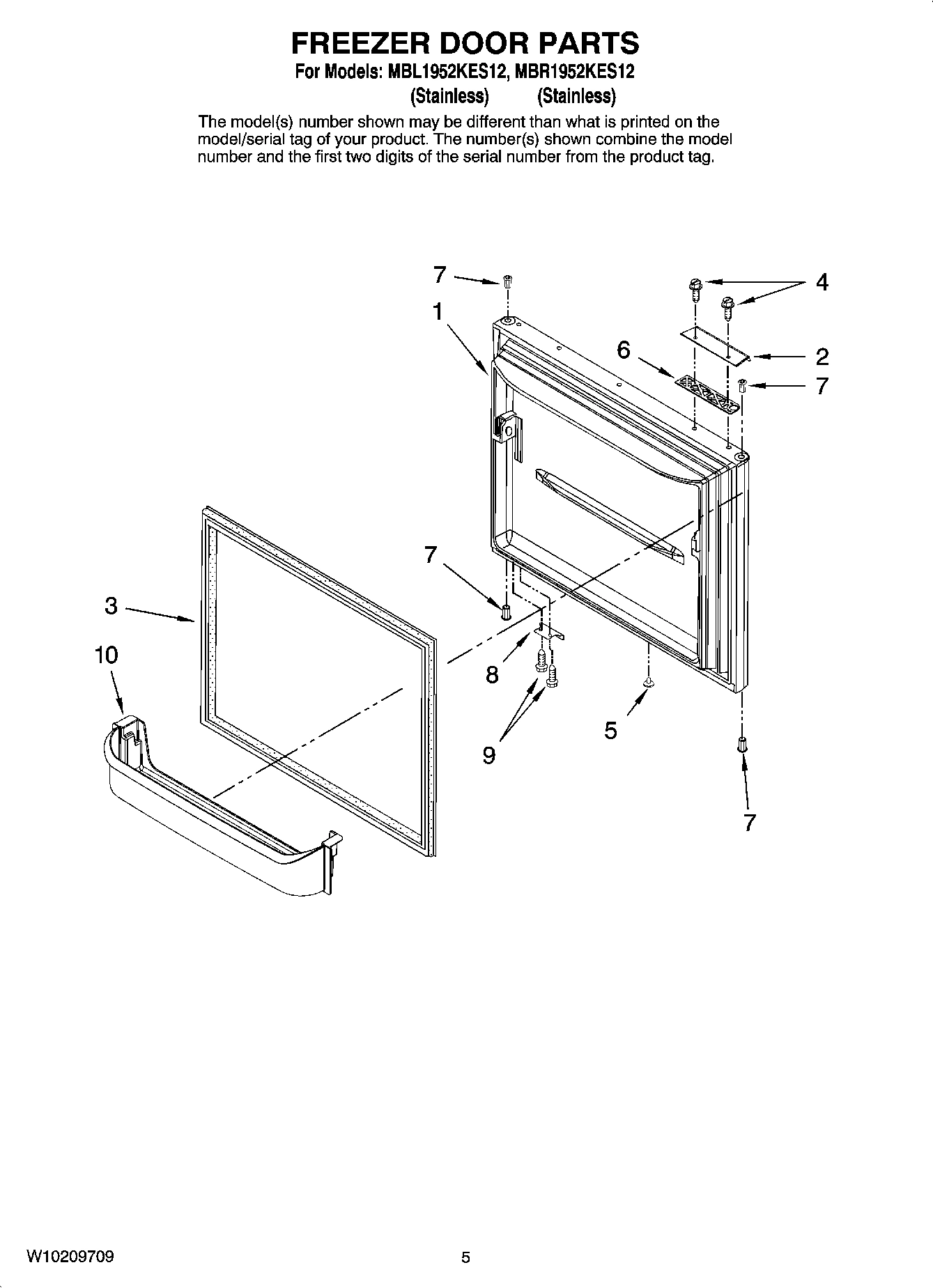

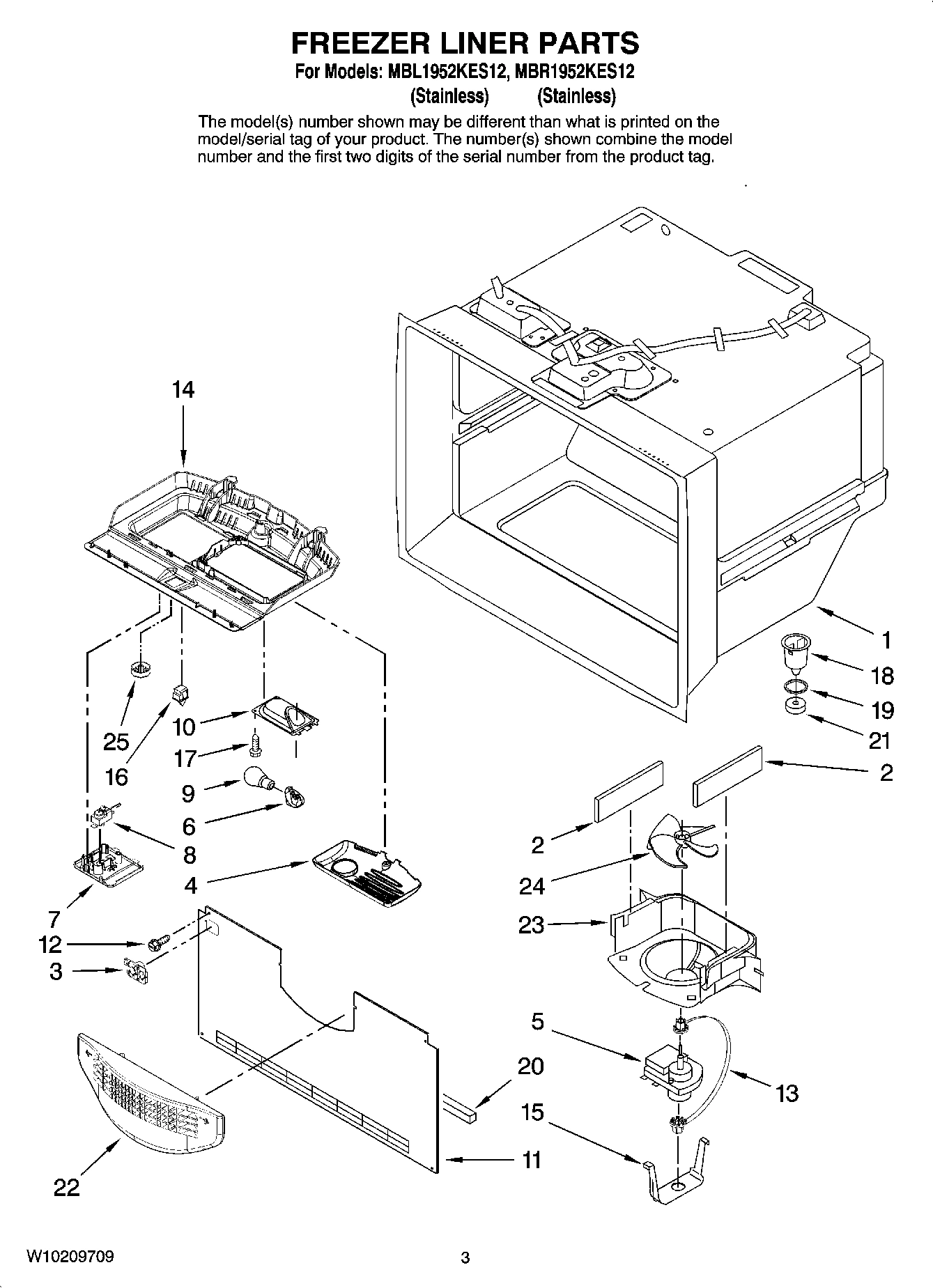

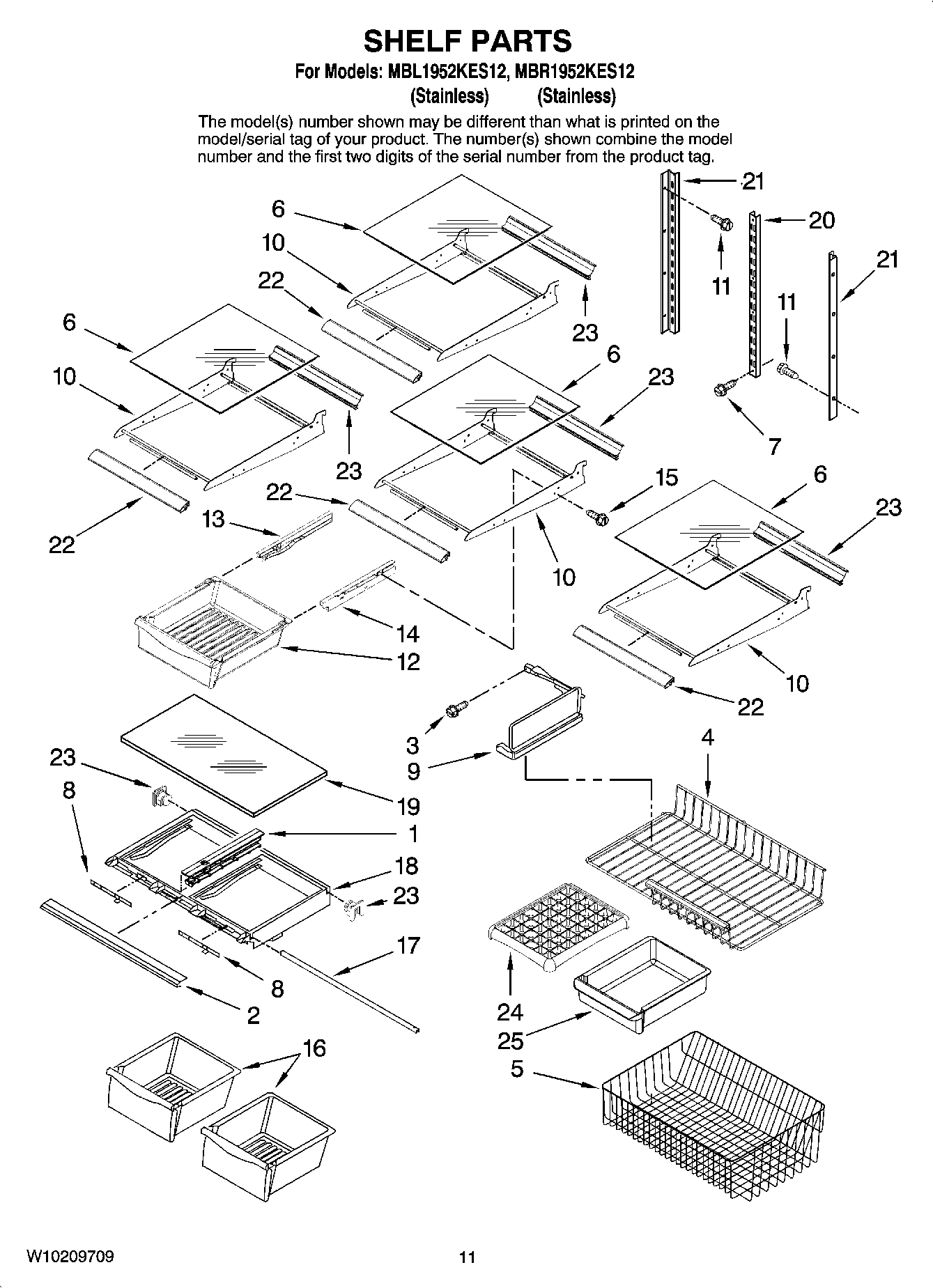

Model Whirlpool MBR1952KES12 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $47.52

1

Door, Refrigerator (Stainless (For MBR1952KES WPL W10182772 Contact Us For Availability

1

Door, Refrigerator (Stainless (For MBL1952KES WPL W10203482 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI4211A77 Contact Us For Availability

1

Door, Freezer (Stainless) WPL W10180598 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $51.80

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.82

2

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

2

WP67003572 Whirlpool Door Handle Backorder WPL WP67003572 $124.96

2

Trim, Crisper WPL 67003879 Contact Us For Availability

3

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $16.36

3

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $54.67

3

WPW10436247 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436247 $224.68

3

SCREW WPL 67006608 Contact Us For Availability

3

BASEPAN WPL 67006914 Contact Us For Availability

4

67006529 Whirlpool Refrigerator Screw Backorder WPL 67006529 $8.89

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

4

TENSIONER, BELT WPL 67001034 Contact Us For Availability

4

Shelf, Freezer (Upper) WPL 67006231 Contact Us For Availability

4

Cover, Light WPL 67001285 Contact Us For Availability

5

67001141 Whirlpool Refrigerator Small Bucket Backorder WPL 67001141 $52.96

5

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.10

5

WP12754803 Whirlpool Refrigerator Freezer Bas Backorder WPL WP12754803 $172.74

5

WP67001021 Whirlpool Refrigerator Bucket Backorder WPL WP67001021 $55.63

5

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $56.72

5

Block, Condenser WPL 67005491 Contact Us For Availability

6

12647901S Whirlpool Refrigerator Handle Space Backorder WPL 12647901S $9.51

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

6

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.15

6

Glass Shelf WPL 12204808 Contact Us For Availability

6

Tube, Discharge WPL W10174591 Contact Us For Availability

7

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

7

Knob, Front WPL 67002512 Contact Us For Availability

7

Panel Control WPL 67001045 Contact Us For Availability

7

Harness, Evap. Heater WPL W10119855 Contact Us For Availability

8

WP67003000 Whirlpool Refrigerator Control In Stock WPL WP67003000 $132.35

8

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $227.22

8

PAN, DRAIN WPL 67004713 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

9

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

9

Handle, Door (Stainless) WPL W10159106 Contact Us For Availability

9

DIVIDER, BASKET (UPPER) WPL 67004127 Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

67003397 Whirlpool Refrigerator Door Retainer Backorder WPL 67003397 $75.05

WP67002135 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67002135 $112.64

Frame, Shelf WPL 67003400 Contact Us For Availability

HOUSING, LIGHT WPL 67001035 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

Cover, Evaporator WPL 67005868 Contact Us For Availability

Clip, Capacitor WPL W10131991 Contact Us For Availability

12

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $49.78

12

8201769 Whirlpool Refrigerator Compressor Rel In Stock WPL 8201769 $132.34

12

WP67001308 Whirlpool Deli Drawer Backorder WPL WP67001308 $107.16

W11690160 Whirlpool Grommet Backorder WPL W11690160 $5.02

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $4.82

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

Retainer, Ref Door WPL 67002505 Contact Us For Availability

14

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

14

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $4.82

14

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $48.27

15

CLIP, EVAP MOTOR WPL 13058002 No Longer Available

15

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

15

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $102.10

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

KNOB, GEAR WPL 67001033 Contact Us For Availability

SCREW WPL 67006573 Contact Us For Availability

17

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $70.60

17

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

18

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

18

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $99.91

18

CONDENSER WPL 67006133 Contact Us For Availability

19

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $8.39

19

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $201.23

19

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $37.25

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $5.02

A3189394 Whirlpool Refrigerator Gasket Backorder WPL A3189394 $17.61

W11337775 Whirlpool Drip Tray Backorder WPL W11337775 $68.10

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $6.02

Cover, Unit WPL 67006101 Contact Us For Availability

Ladder, Side WPL 67001302 Contact Us For Availability

22

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $39.08

22

Evaporator Kit (Incl. Evap., Heat Shield, & I WPL 12002051 Contact Us For Availability

22

Trim, Front Shelf WPL 10459930 Contact Us For Availability

67007018 Whirlpool Refrigerator Bottom Hinge Backorder WPL 67007018 $4.82

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $67.69

Trim, Rear Shelf WPL 10946012 Contact Us For Availability

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

24

WP61002140 Whirlpool Ice Cube Tray Backorder WPL WP61002140 $11.04

24

Motor, Fan WPL 67004432 Contact Us For Availability

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

25

PAN, ICE WPL 61002267 Contact Us For Availability

25

KNOB, FZ CONTROL WPL 67003420 Contact Us For Availability

26

13060302 Whirlpool Refrigerator Wire Harness Backorder WPL 13060302 $236.52

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

28

Compressor (Includes items 11,12,17,27,29) WPL W10130129 Contact Us For Availability

29

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $57.90

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.82

31

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $5.02

31

Shroud WPL W10158508 Contact Us For Availability

32

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $4.82

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $49.60

33

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

33

LABEL, FILL TUBE WPL 67005064 Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

34

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

35

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $14.02

36

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

37

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $56.75

4396418 Whirlpool Ice Maker Backorder WPL 4396418 $285.75

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, 10 OZ. STAINLESS STEEL WPL 31462 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Kit, Evaporator Repair WPL 799833 Contact Us For Availability

WPL ARI4217A92 WPL ARI4217A92 Contact Us For Availability

WPL ARI4218A33 WPL ARI4218A33 Contact Us For Availability

WPL ARI4219A70 WPL ARI4219A70 Contact Us For Availability

WPL ARI4220A96 WPL ARI4220A96 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI4212A80 Contact Us For Availability

Harness, Lights (Freezer) WPL W10130480 Contact Us For Availability

Valve, Access (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI4215A65 Contact Us For Availability

REFRIGERANT CHARGE 4.25 ozs. (R-134A) WPL ARI4216A77 Contact Us For Availability
