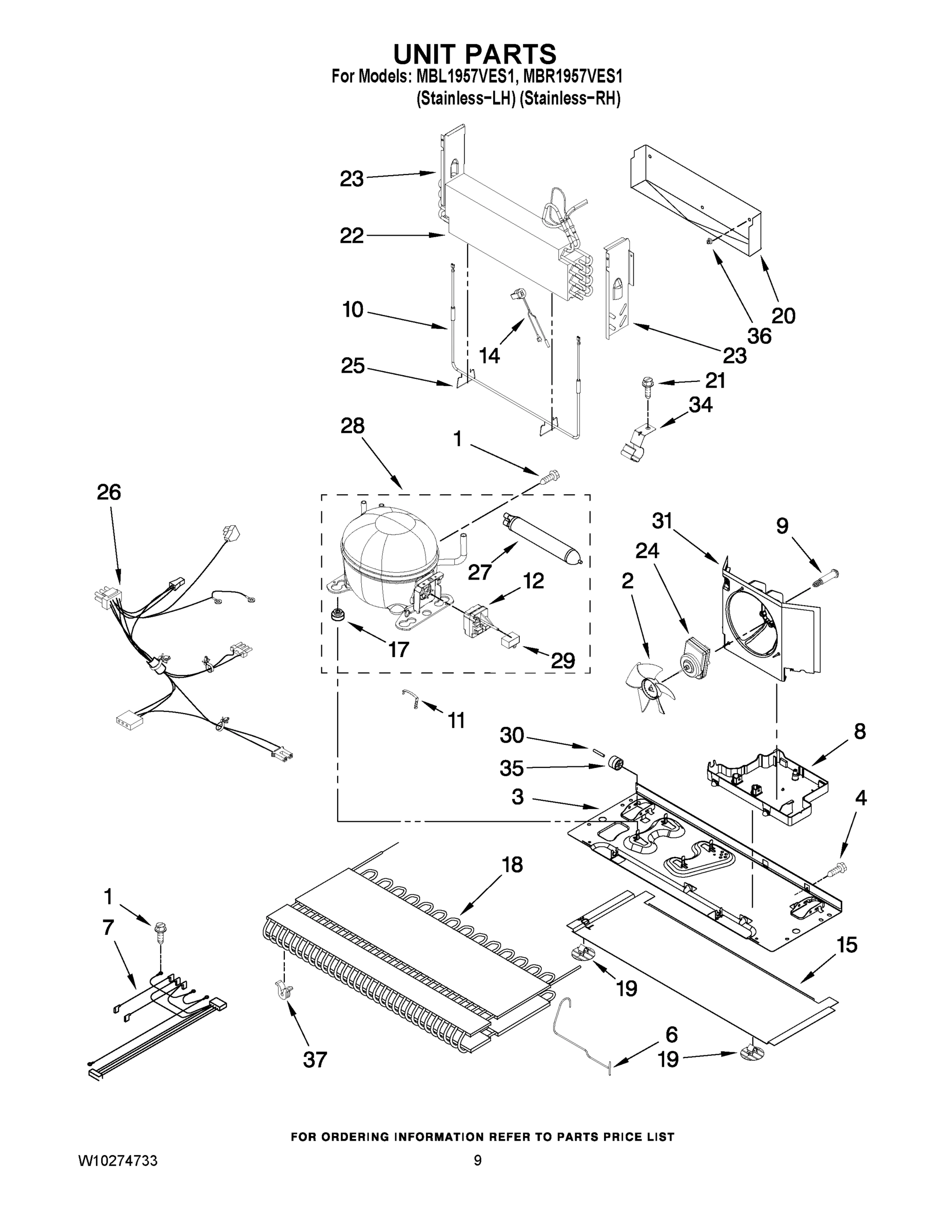

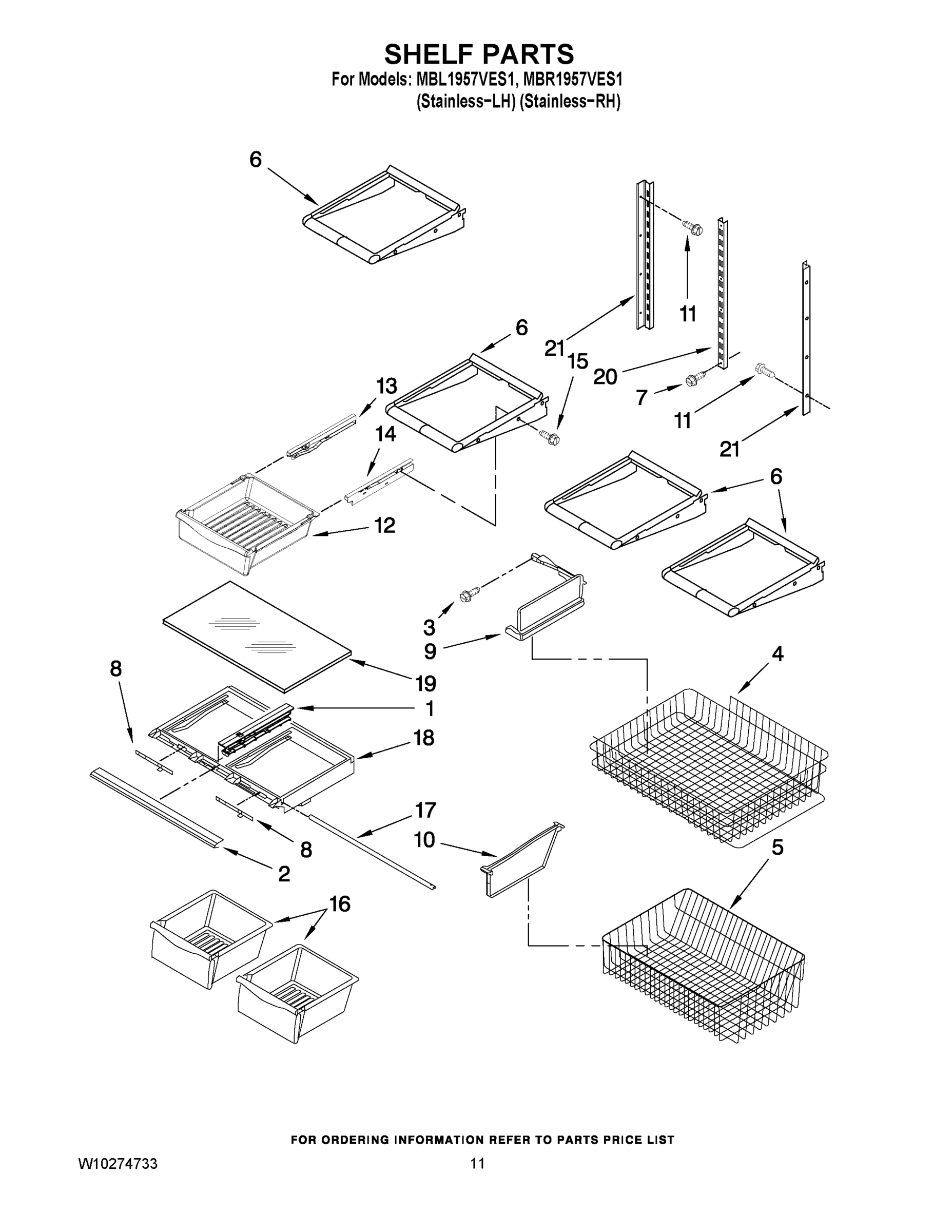

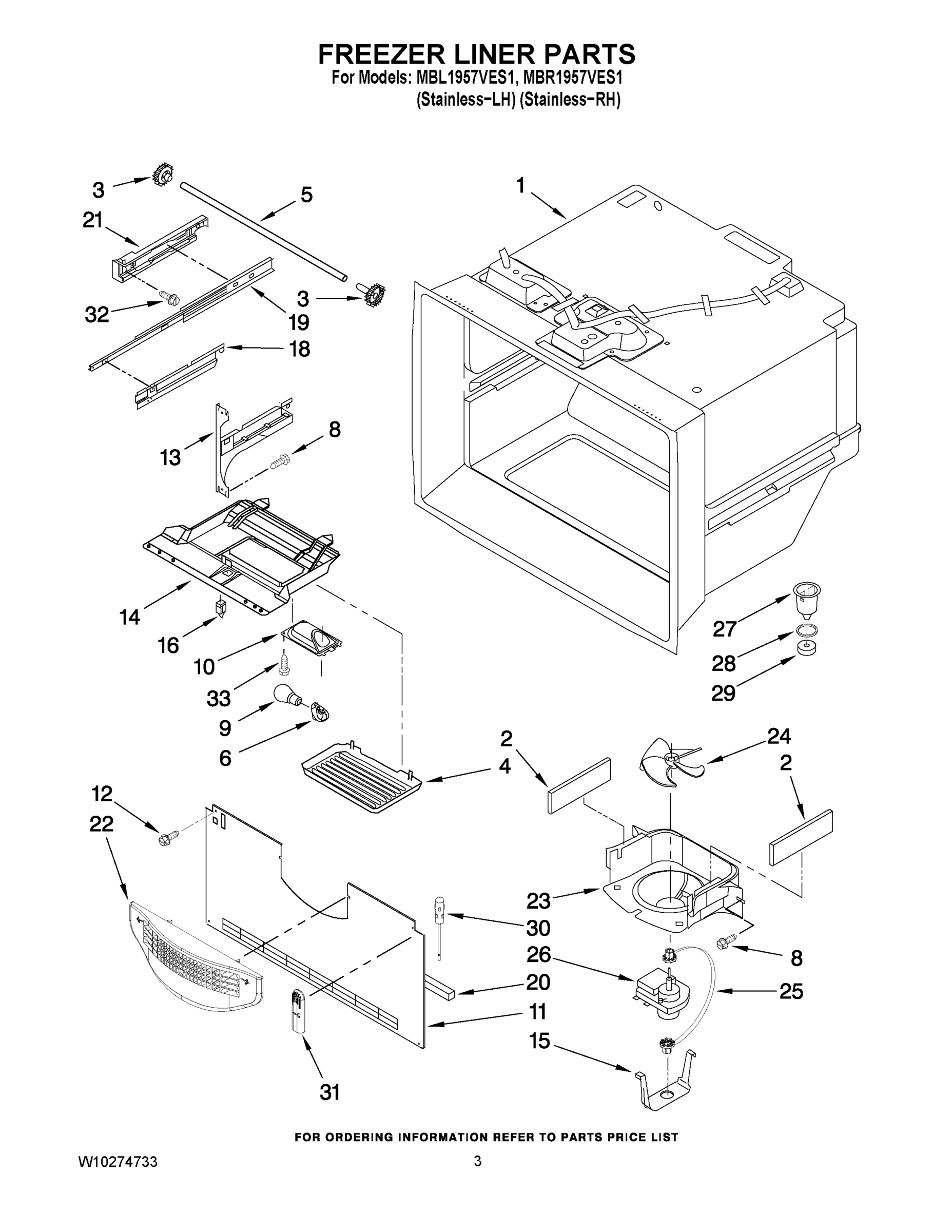

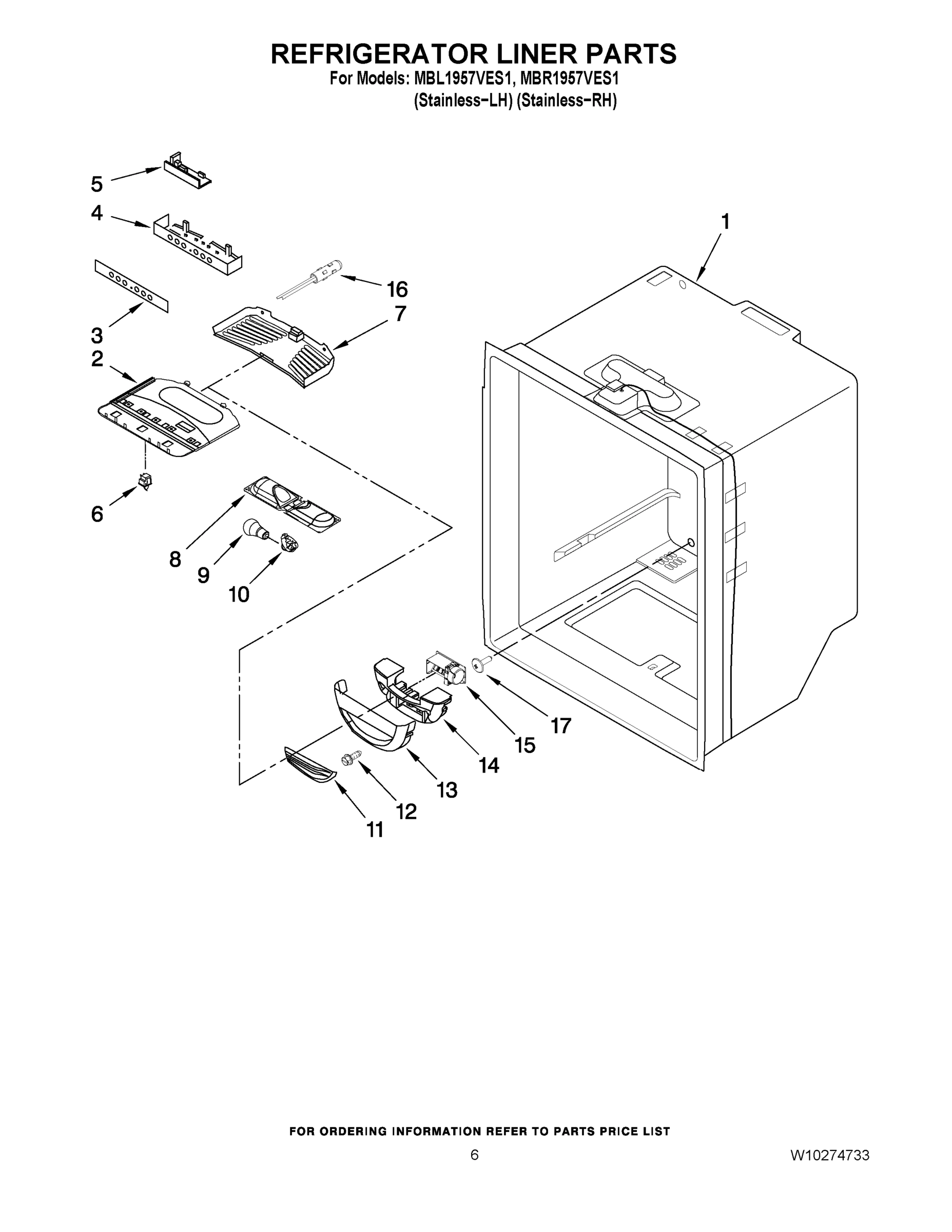

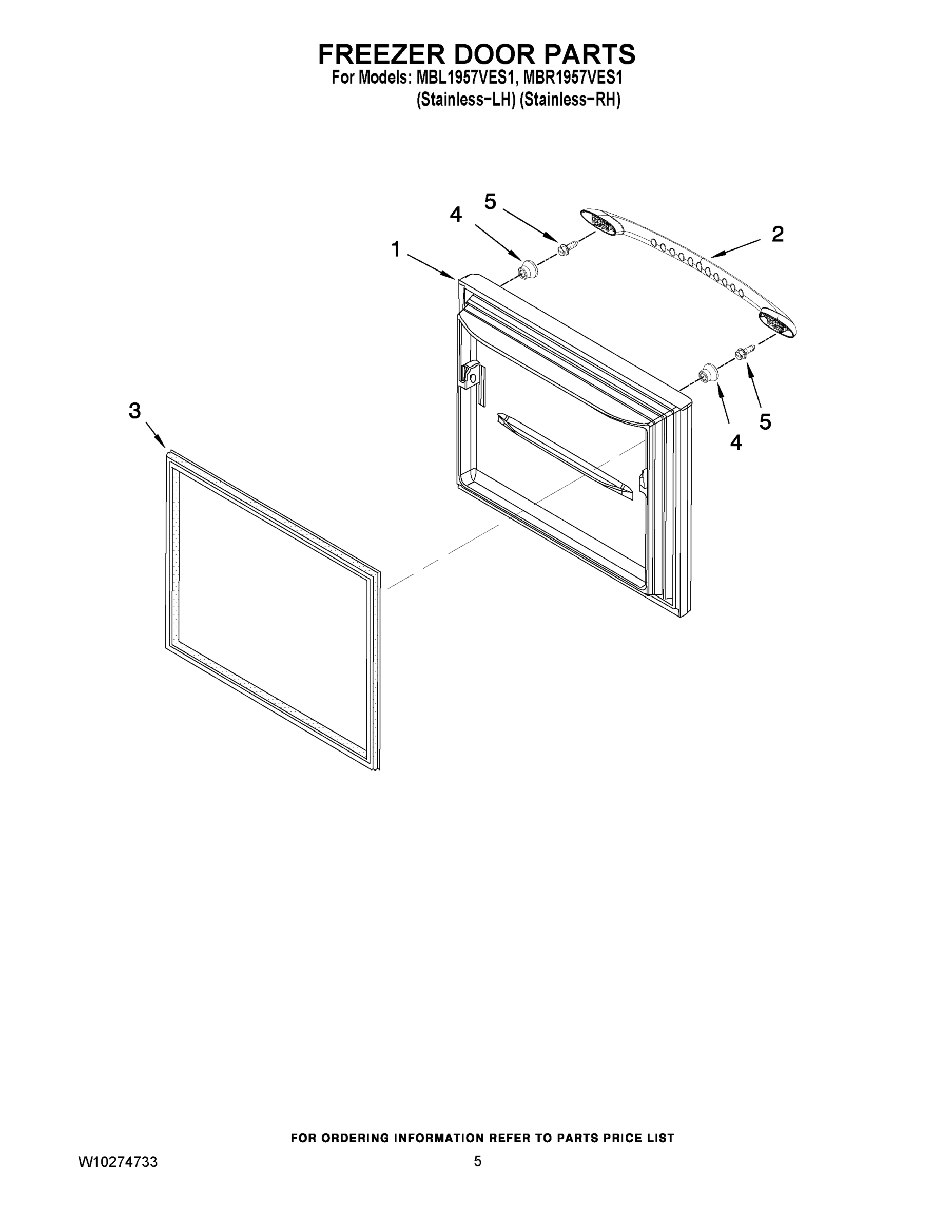

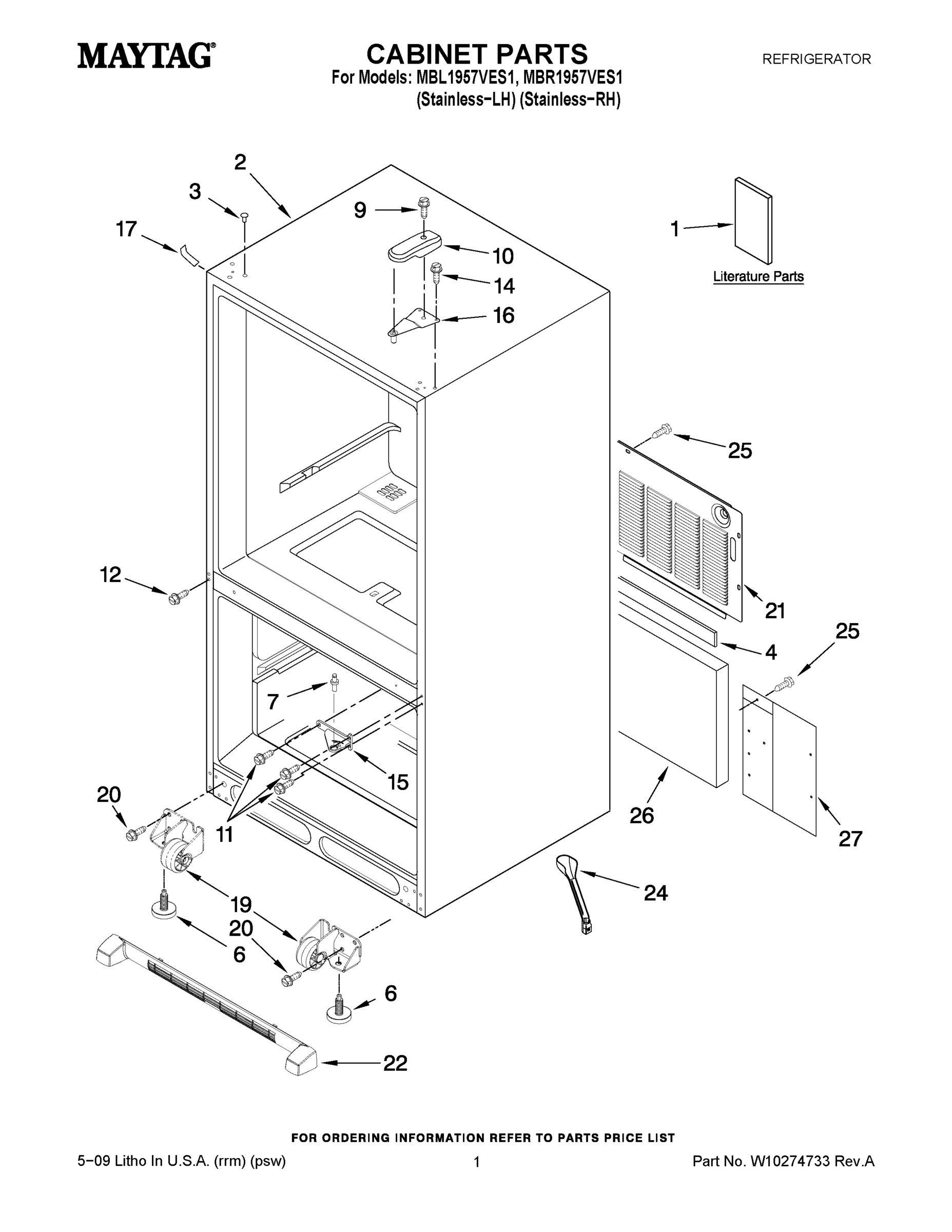

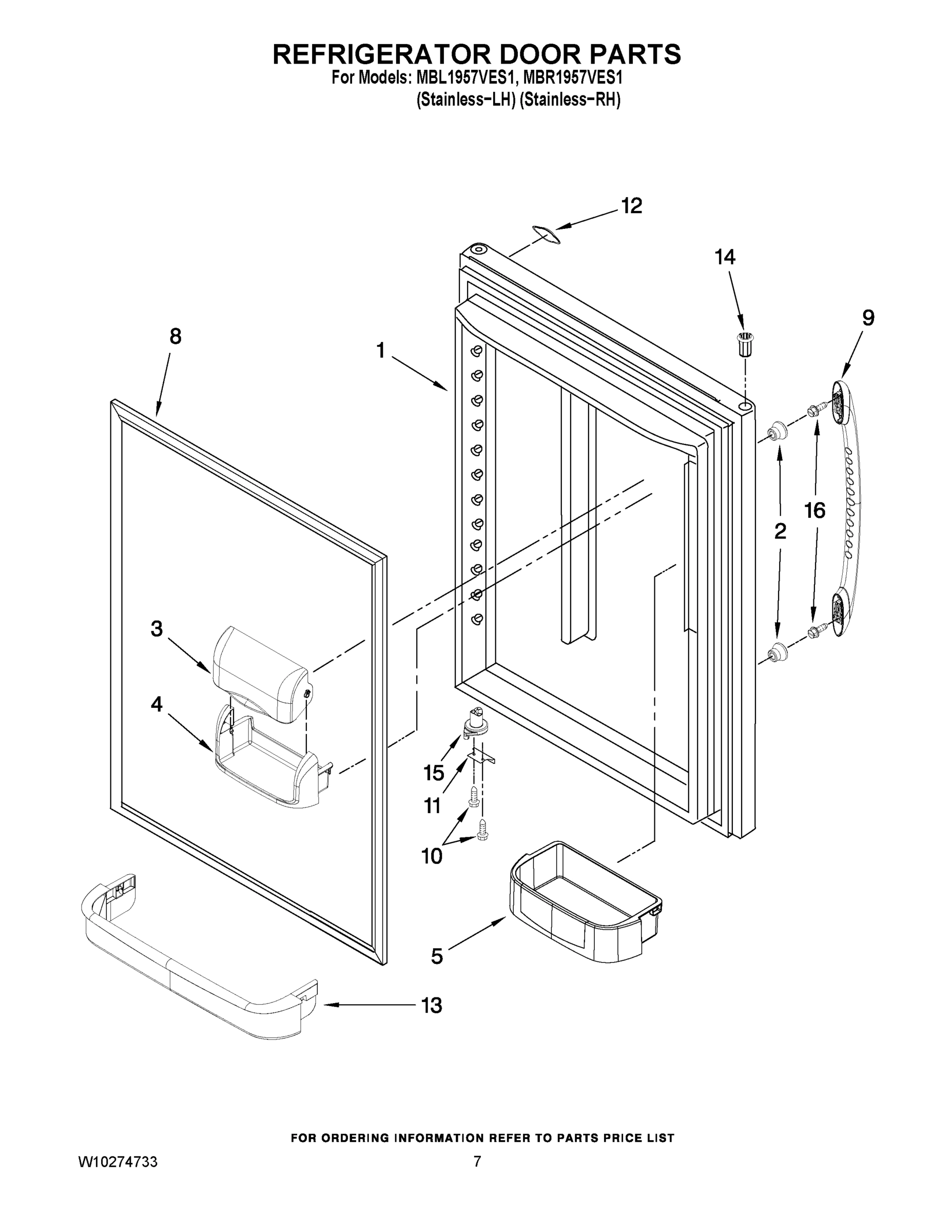

Model Whirlpool MBL1957VES1 REFRIGERATOR – Common Parts &amp; Diagrams

1

Liner (Not A Seviceable Part) WPL ARI4184A82 Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.82

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $57.00

2

TRIM, CRISPER WPL W10231339 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

3

W10480107 Whirlpool Refrigerator Plate Backorder WPL W10480107 $99.74

3

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $54.67

3

Overlay WPL W10207257 Contact Us For Availability

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

4

B5759655 Whirlpool Refrigerator Gasket Backorder WPL B5759655 $8.23

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

4

Cover, Light WPL 12804901 Contact Us For Availability

5

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $63.87

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $44.90

5

WP67004041 Whirlpool Refrigerator Bucket In Stock WPL WP67004041 $55.28

6

W11402522 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402522 $150.81

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

6

Tube, Discharge WPL W10217744 Contact Us For Availability

7

W10224241 Whirlpool Refrigerator Wire Harness Backorder WPL W10224241 $96.51

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $4.82

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $227.22

8

WPW10655367 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655367 $65.39

9

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $17.48

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $7.98

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

9

W11690159 Whirlpool Handle Backorder WPL W11690159 $104.21

9

HANDLE, DOOR (BLACK) WPL 12781004B Contact Us For Availability

10

W11702858 Whirlpool Housing Backorder WPL W11702858 $57.71

10

WP12729127 Whirlpool Refrigerator Heater In Stock WPL WP12729127 $126.57

10

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

11

W11092534 Whirlpool Refrigerator Clip Backorder WPL W11092534 $7.27

11

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

11

WPW10308414 Whirlpool Refrigerator Evaporator Backorder WPL WPW10308414 $162.93

WP2320150 Whirlpool Refrigerator Start Device In Stock WPL WP2320150 $76.03

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $5.02

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $47.02

WPW10197426 Whirlpool Refrigerator Start Devi Backorder WPL WPW10197426 $114.84

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

WPW10330991 Whirlpool Refrigerator Bracket Backorder WPL WPW10330991 $102.22

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $103.73

Retainer, Ref Door WPL 12690501 Contact Us For Availability

14

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

14

W11750607 Whirlpool Insulation Backorder WPL W11750607 $32.09

14

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $52.91

CLIP, EVAP. MOTOR WPL 13058002 No Longer Available

W10206336 Whirlpool Refrigerator Extension Backorder WPL W10206336 $53.08

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $101.60

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $46.99

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $169.94

16

67006901 Whirlpool Refrigerator Screw Backorder WPL 67006901 $4.82

16

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

16

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

17

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $70.60

17

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

18

W10346423 Whirlpool Refrigerator Condenser Backorder WPL W10346423 $168.29

18

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $60.60

18

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $60.60

19

W10206339 Whirlpool Fastener Backorder WPL W10206339 $7.09

19

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $94.87

19

Roller Assembly WPL 12580304 Contact Us For Availability

20

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

20

Tray, Drip WPL 12225401WD Contact Us For Availability

W10210978 Whirlpool Refrigerator Back Cover Backorder WPL W10210978 $134.45

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $19.90

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $20.03

22

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $39.08

22

Evaporator WPL 12726401 Contact Us For Availability

23

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $67.69

23

DAM (LEFT SIDE) WPL 12225602 Contact Us For Availability

23

Dam (Right Side) WPL 12225702 Contact Us For Availability

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $66.25

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $34.13

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $56.72

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $224.45

26

Fiber, Acoustic WPL 12820505 Contact Us For Availability

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

28

COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 2 WPL W10130129 Contact Us For Availability

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $6.02

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $46.20

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $31.88

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.82

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $48.02

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

35

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $14.02

36

Clip, Evap (2) WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $56.75

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W11762633 Whirlpool Icemaker In Stock WPL W11762633 $152.88

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Harness, Lights (Freezer) WPL 13014801 Contact Us For Availability

Valve, Access (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE 5.25 Ozs. (R-134A) WPL ARI4186A89 Contact Us For Availability
