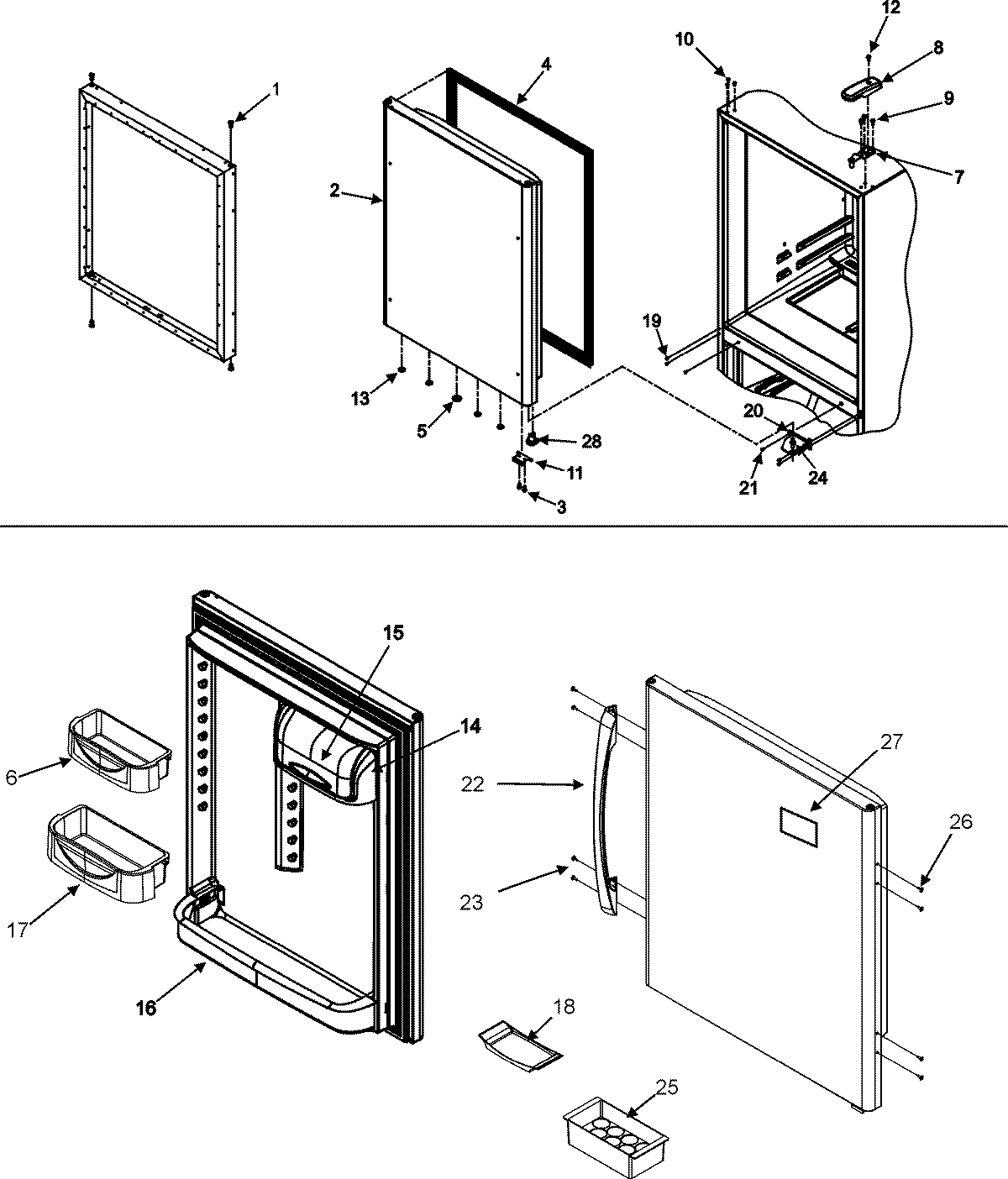

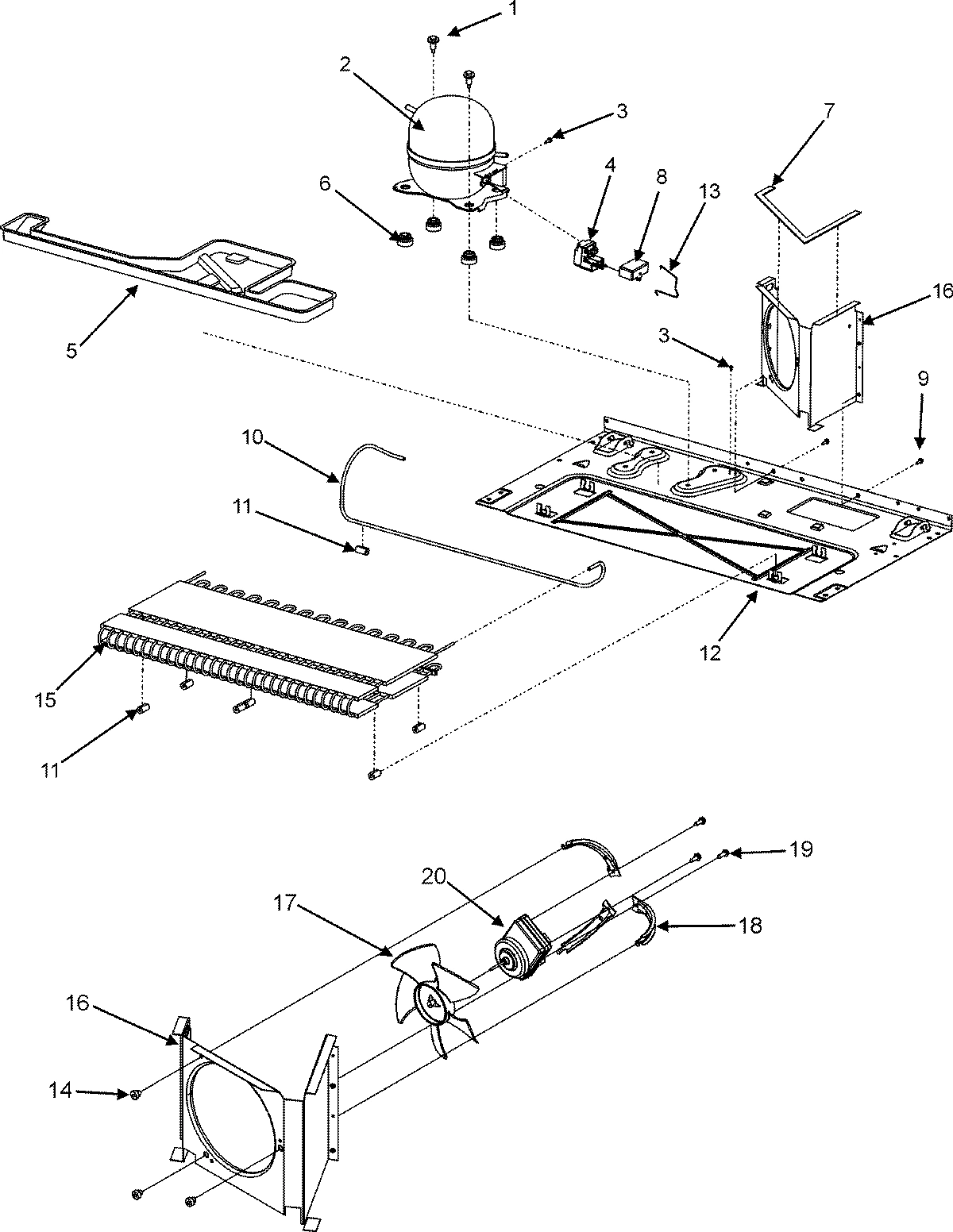

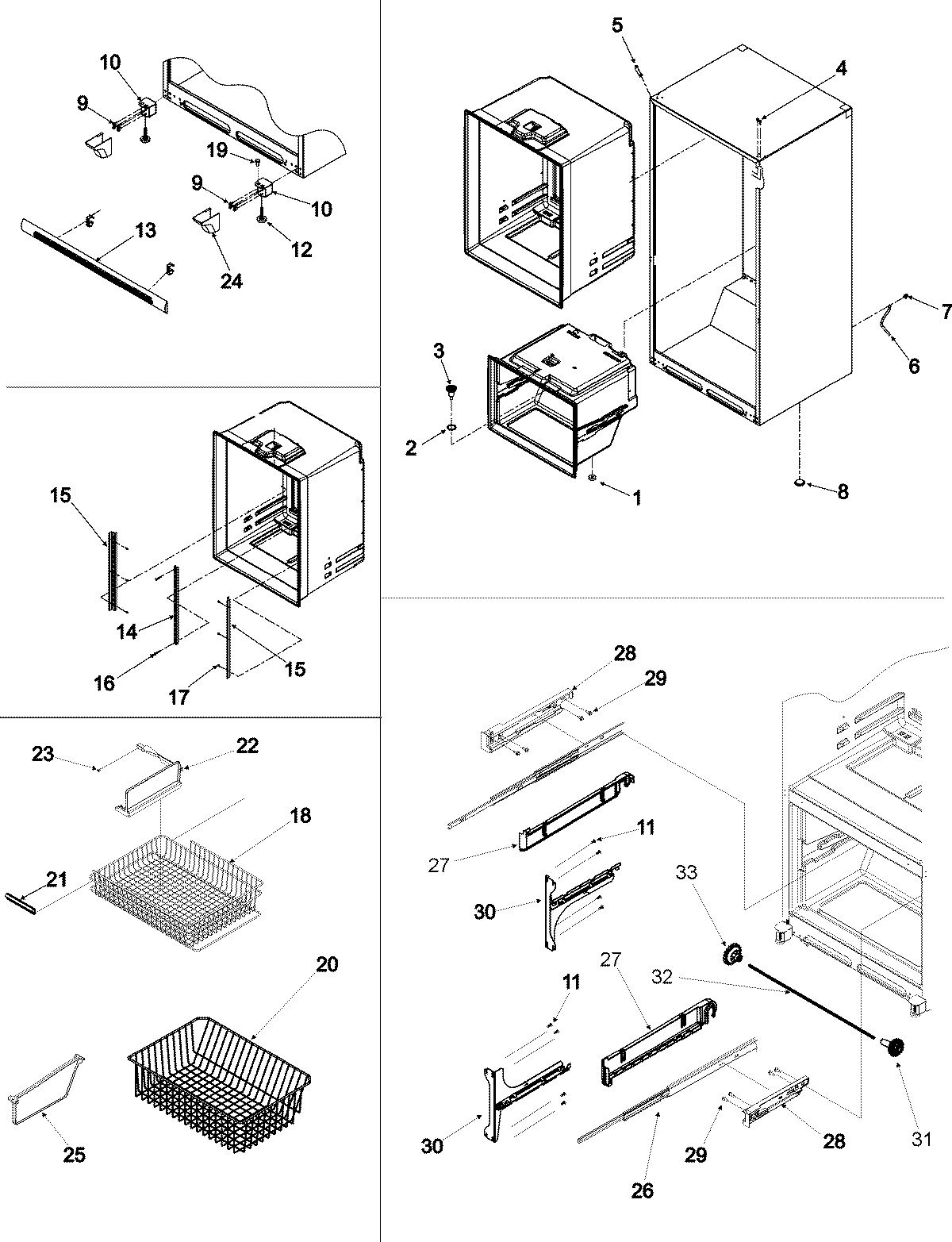

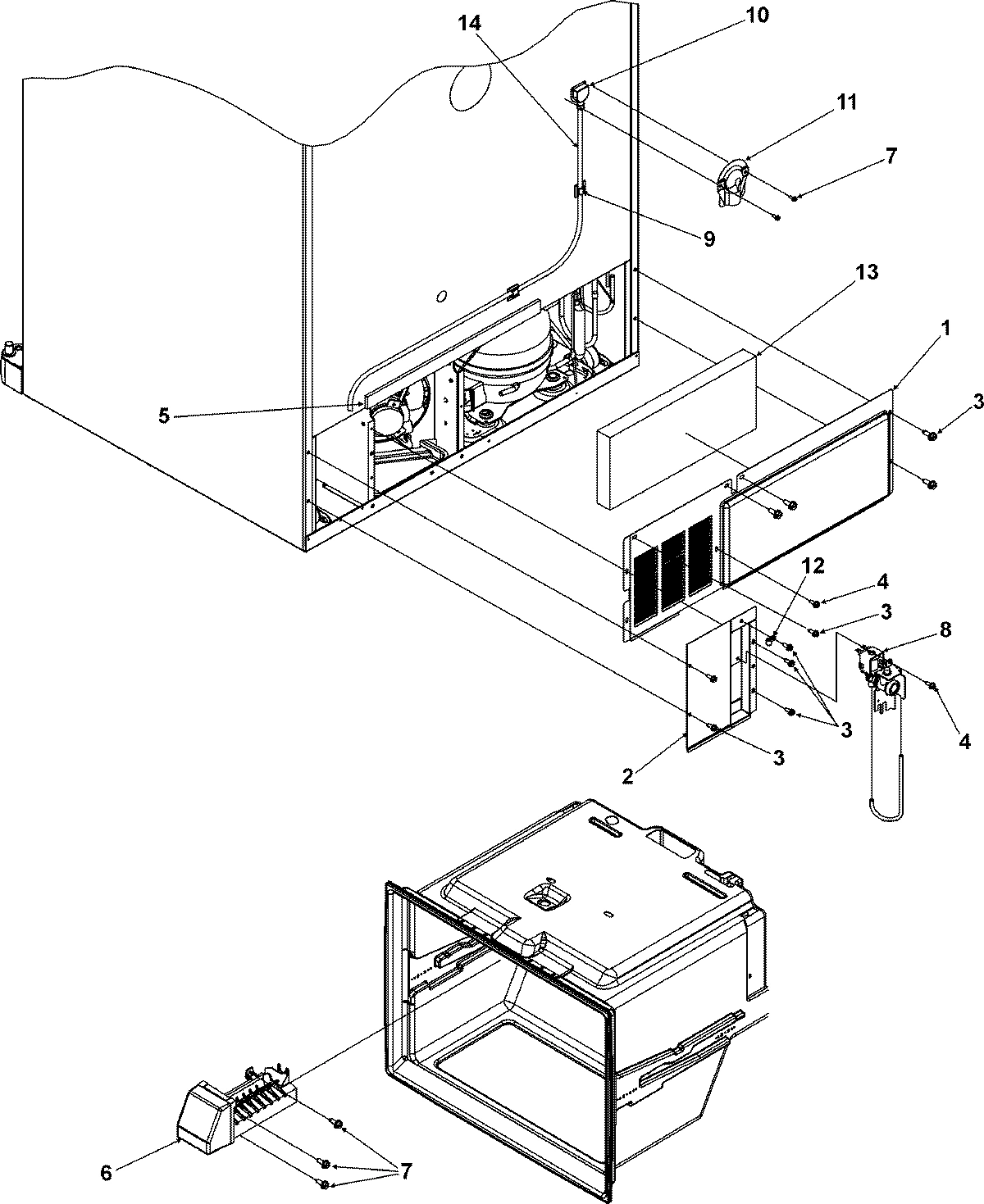

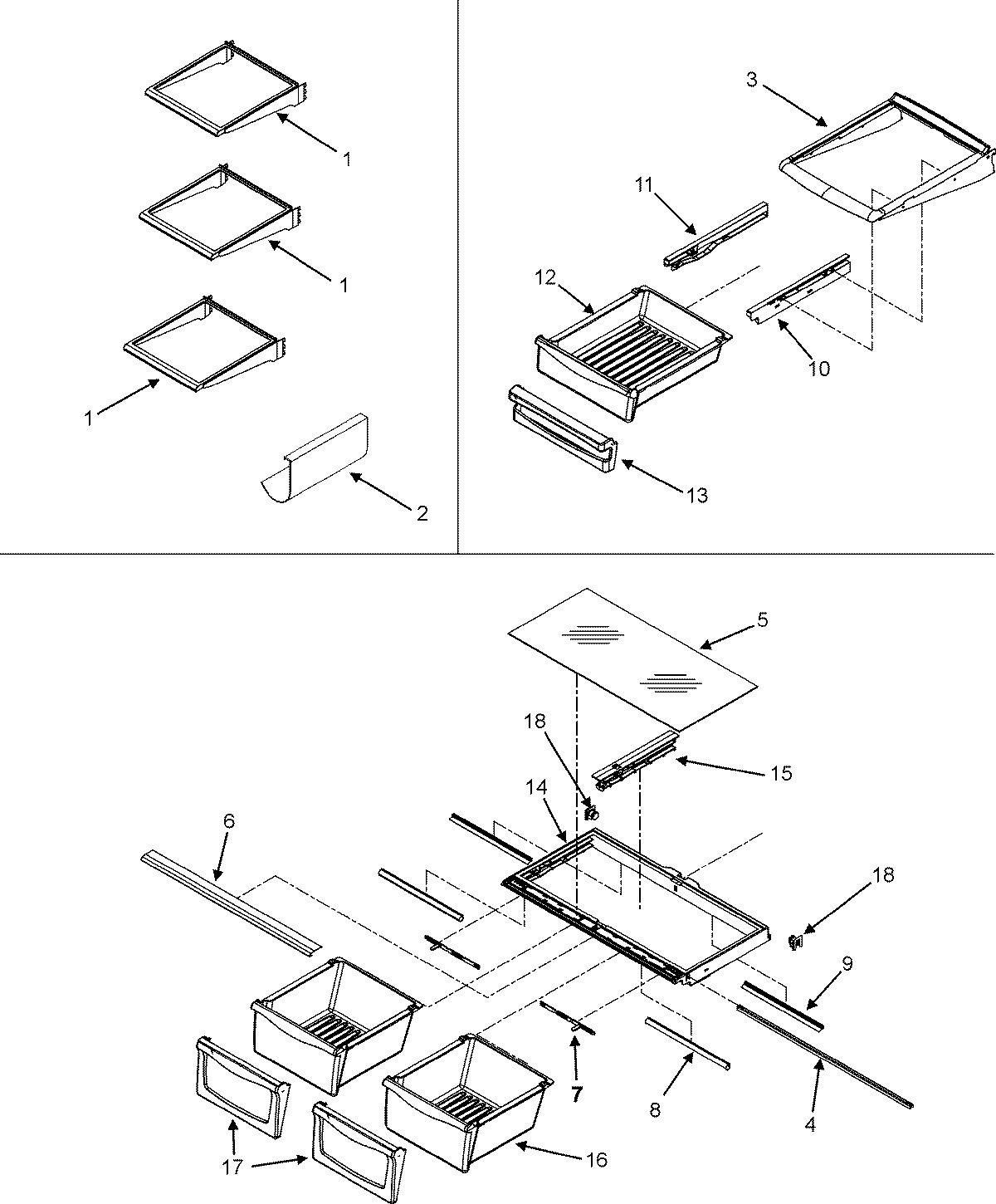

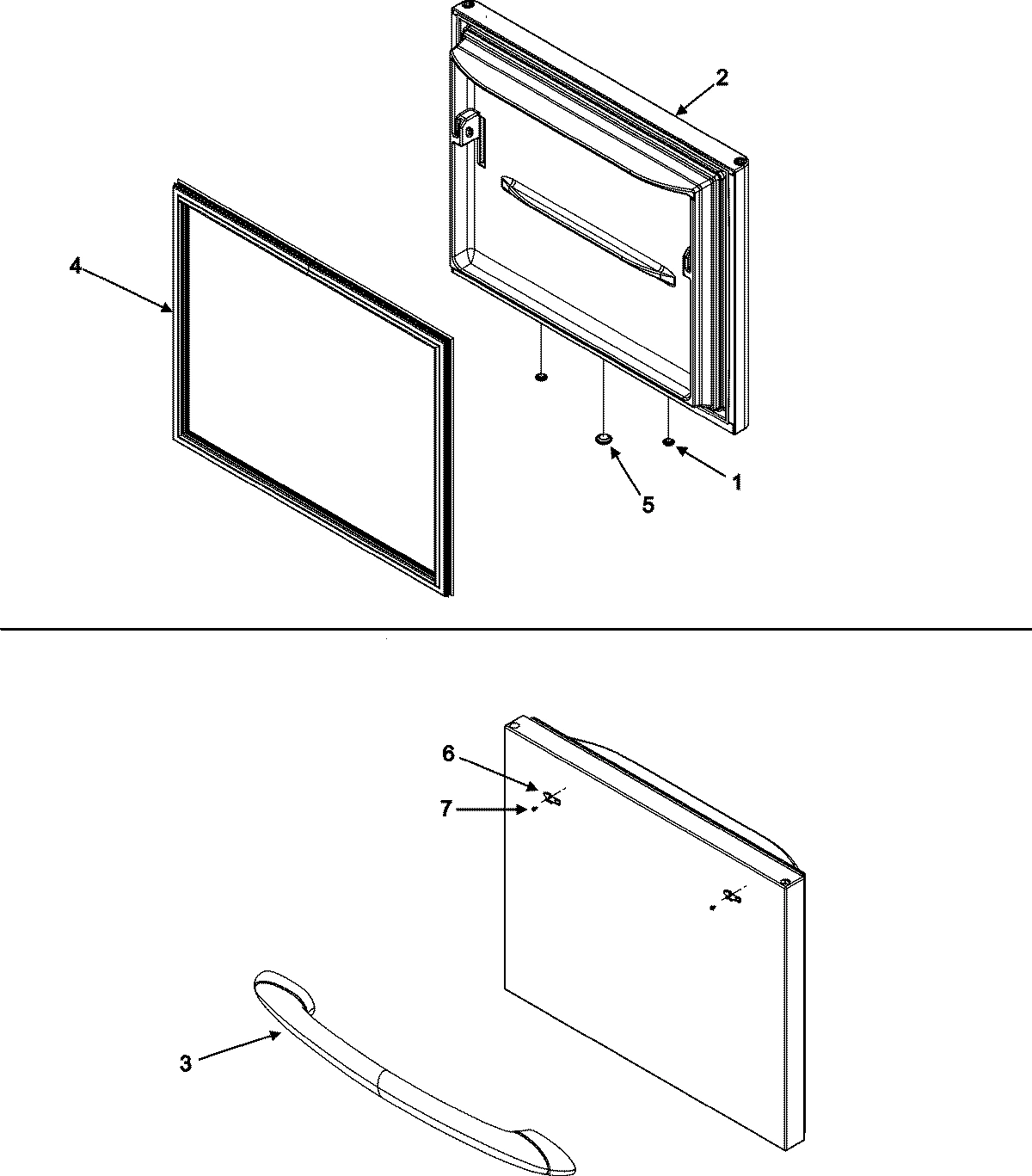

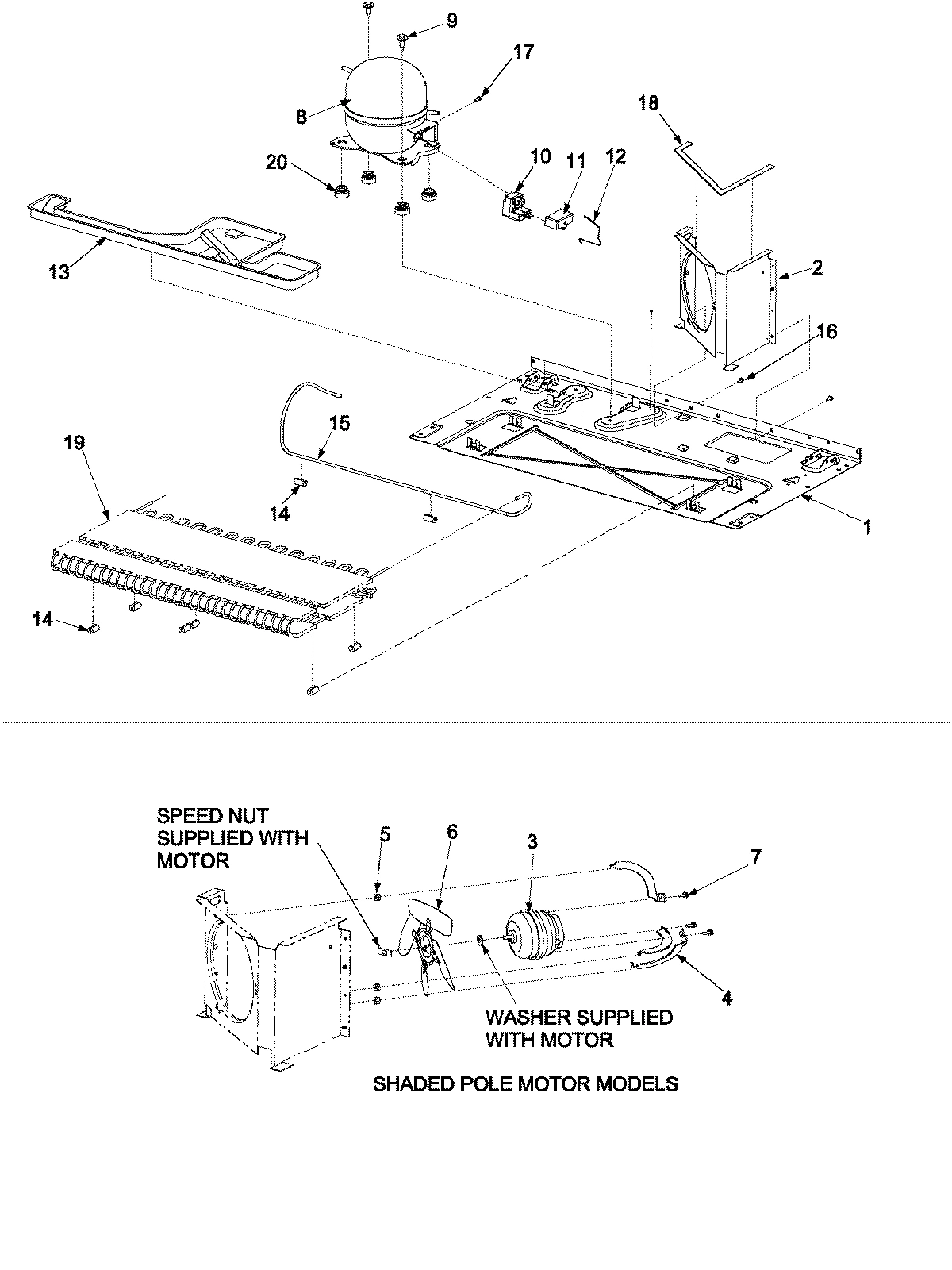

Model Whirlpool MBF2556HEB REFRIGERATOR – Common Parts &amp; Diagrams

1

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

1

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

1

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $6.02

1

SCREW, SHLDR WPL M0221523 Contact Us For Availability

1

MANUAL, USE & CARE WPL 12828102 Contact Us For Availability

1

SHELF, GLIDE WPL 67004434 Contact Us For Availability

2

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $428.79

2

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

2

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

2

DOOR ASSY., REF. FOAM (BLK) WPL 67004504 Contact Us For Availability

2

MODULE, LIGHT WPL Y67003896 Contact Us For Availability

2

SVC MAN, BTM MT WPL 16022769 Contact Us For Availability

2

DOOR ASSY., FRZ. FOAM (BLK) WPL 67003230 Contact Us For Availability

2

RACK, BOTTLE WPL 10448903 Contact Us For Availability

3

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

3

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

3

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

3

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $69.33

3

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.43

3

CARD, HANDLE RELEASE WPL 67003876 Contact Us For Availability

3

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

3

TECH SHT, BTM MT WPL 16026201 Contact Us For Availability

3

SHEET, TECH DATA WPL 67004282 Contact Us For Availability

3

HANDLE ASSY., DOOR (BLK) WPL 67004057 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

SHELF, STATIONARY WPL 67004435 Contact Us For Availability

4

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $148.44

4

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $57.90

4

W10849442 Whirlpool Refrigerator FIP Gasket Backorder WPL W10849442 $146.46

4

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $58.60

4

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $72.75

4

WPW10464769 Whirlpool Refrigerator Housing Backorder WPL WPW10464769 $74.99

4

POP RIVET WPL A4539607 Contact Us For Availability

4

BRACKET, CONDENSER MOTOR WPL 67003354 Contact Us For Availability

4

TAG, ENERGY WPL 67004524 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

5

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

5

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $18.40

5

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $207.03

5

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $146.14

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $209.77

5

PLUG, BUTTON (BLK) WPL A3080001 Contact Us For Availability

5

INLET, WATER WPL 951001 Contact Us For Availability

6

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $63.87

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

6

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $89.06

6

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.55

6

WP67006852 Whirlpool Clip Backorder WPL WP67006852 $15.24

6

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

6

WPW10231345 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231345 $96.82

6

TUBE, DRAIN WPL 67001066 Contact Us For Availability

7

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $6.54

7

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $6.02

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

7

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

7

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

7

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

7

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $37.15

7

SCREW, TR WPL M0223816 Contact Us For Availability

7

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

8

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $34.64

8

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

8

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $59.65

8

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

8

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $47.85

8

WP67003417 Whirlpool Refrigerator Front Seal Backorder WPL WP67003417 $4.82

9

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $75.97

9

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

9

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $5.02

9

WP67002513 Whirlpool Refrigerator Rear Crispe Backorder WPL WP67002513 $4.28

9

SCREW, TF WPL M0260242 Contact Us For Availability

9

SCREW, BOTTOM HINGE WPL 67003858 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $4.82

CLIP, DRIER WPL 10547002 Contact Us For Availability

HINGE, BOTTOM E-CT (BLK) WPL 67001238 Contact Us For Availability

PLUG, TOP HINGE BUTTON (BLK) WPL M0310731 Contact Us For Availability

TUBE, DISCHARGE WPL 67002494 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $4.82

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $210.45

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.78

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

OVERLAY, CONTROL MODULE WPL 67004058 Contact Us For Availability

PAN, BASE WPL 67001512 Contact Us For Availability

PAN, DELI WPL 67004512 Contact Us For Availability

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $76.87

WP67003903 Whirlpool Refrigerator Damper Cont In Stock WPL WP67003903 $116.26

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

DAM, LEFT RETURN WPL 67001083 Contact Us For Availability

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

STRAP, BALE WPL 12576801 Contact Us For Availability

HARNESS, DAMPER WPL 67005162 Contact Us For Availability

FRONT, DELI PAN WPL 67004513 Contact Us For Availability

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $37.25

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

WP67003854 Whirlpool Shelf Frame Backorder WPL WP67003854 $173.44

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

DAM, RIGHT RETURN WPL 67001084 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $7.06

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $80.03

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $54.67

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $240.21

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $19.52

LADDER, SIDES WPL 67001317 Contact Us For Availability

COVER, FZ LIGHT WPL 67003905 Contact Us For Availability

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

WP67004515 Whirlpool Crisper Drawer In Stock WPL WP67004515 $109.82

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

RETAINER, REF DR WPL 67003027 Contact Us For Availability

SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability

MODULE, FZ CONTROL WPL 67003906 Contact Us For Availability

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $51.80

WP67005923 Whirlpool Refrigerator Front Cover In Stock WPL WP67005923 $52.30

SHROUD, EVAP FAN WPL 67002777 Contact Us For Availability

BUCKET, REF DR (LG) WPL 67004530 Contact Us For Availability

HOUSING, LIGHT WPL 67001035 Contact Us For Availability

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $7.14

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $49.60

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $56.72

TRAY, BUTTER WPL 299362 Contact Us For Availability

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $7.10

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $4.82

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $101.60

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $4.82

WPW10503184 Whirlpool Refrigerator Freezer Ba Backorder WPL WPW10503184 $169.77

MOTOR, CONDENSER FAN WPL 67004432 Contact Us For Availability

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $5.02

HANDLE, BASKET/SHELF WPL 10508506 Contact Us For Availability

HARNESS, MC WPL 67003823 Contact Us For Availability

HARNESS, MC WPL 67005251 Contact Us For Availability

22

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.82

22

DIVIDER, BASKET (UPPER) WPL 67001723 Contact Us For Availability

22

HANDLE ASSY., REF DOOR (BLK) WPL 67004042 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $36.93

67006806 Whirlpool Refrigerator Black High To Backorder WPL 67006806 $8.89

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $51.99

SCREW WPL 67001310 Contact Us For Availability

HARNESS, FZ MODULE WPL 67003908 Contact Us For Availability

24

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $33.41

24

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $4.82

24

COVER, LWR HINGE (BLK) WPL 12561901B Contact Us For Availability

25

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $6.52

25

DIVIDER, BASKET (LWR) WPL 67004064 Contact Us For Availability

25

TRAY, EGG WPL 672152 Contact Us For Availability

26

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $6.02

26

RIVET WPL M1205302 Contact Us For Availability

26

SLIDE, DRAWER WPL 67004065 Contact Us For Availability

27

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $49.78

27

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $60.60

27

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $60.60

28

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $46.99

28

ADAPTER, SIDE (LT) WPL 67004010 Contact Us For Availability

28

ADAPTER, SIDE (RT) WPL 67004011 Contact Us For Availability

29

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $31.88

29

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

30

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

30

BRACKET, DRAWER SLIDE (LT) WPL 67004012 Contact Us For Availability

30

BRACKET, DRAWER SLIDE (RT) WPL 67004013 Contact Us For Availability

31

SCREW, ADJUSTING WPL 67002781 Contact Us For Availability

32

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $18.52

32

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $48.27

33

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

33

HARNESS, EVAP HEATER WPL 67003931 Contact Us For Availability

NI

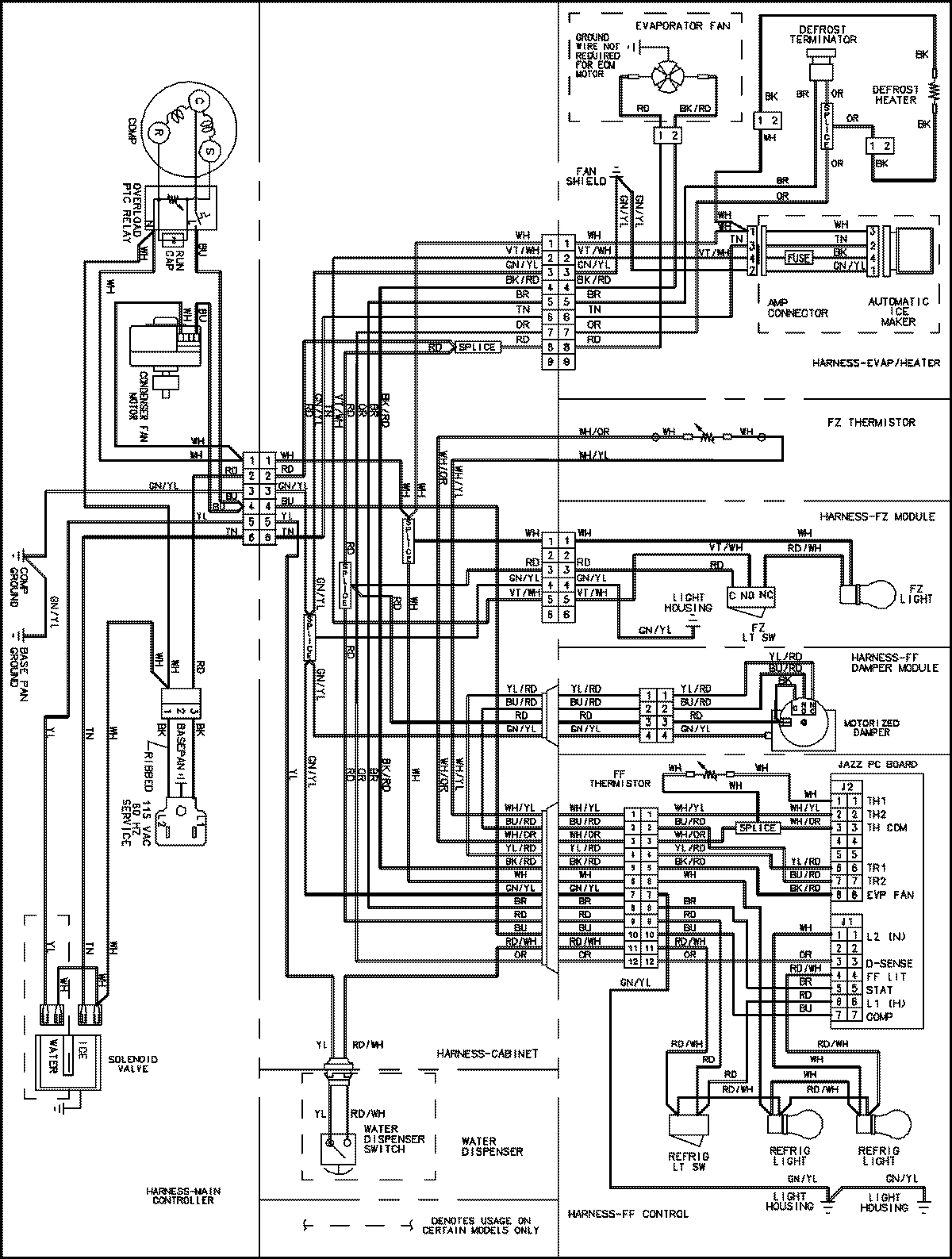

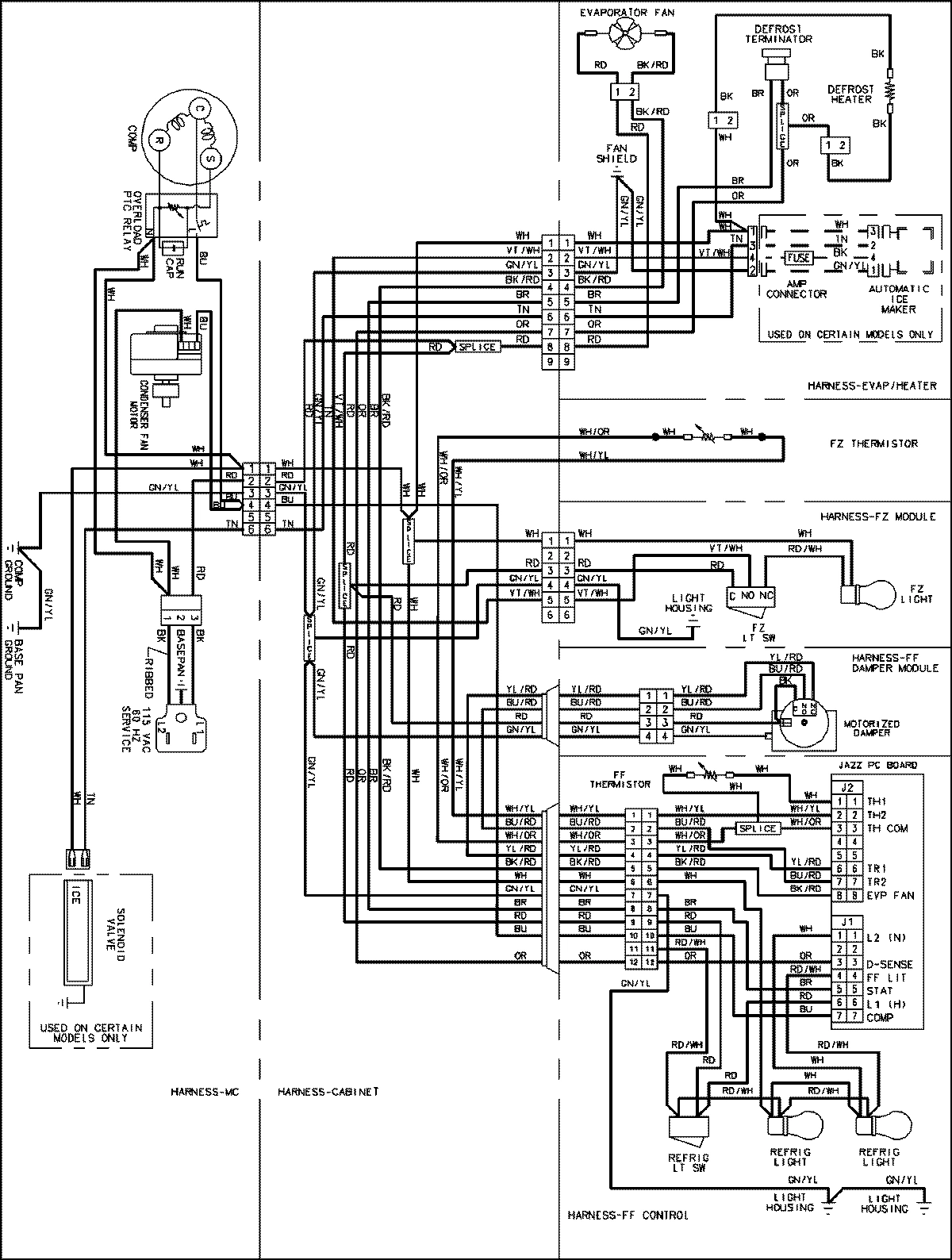

WIRING INFORMATION WPL 15003700 Contact Us For Availability
