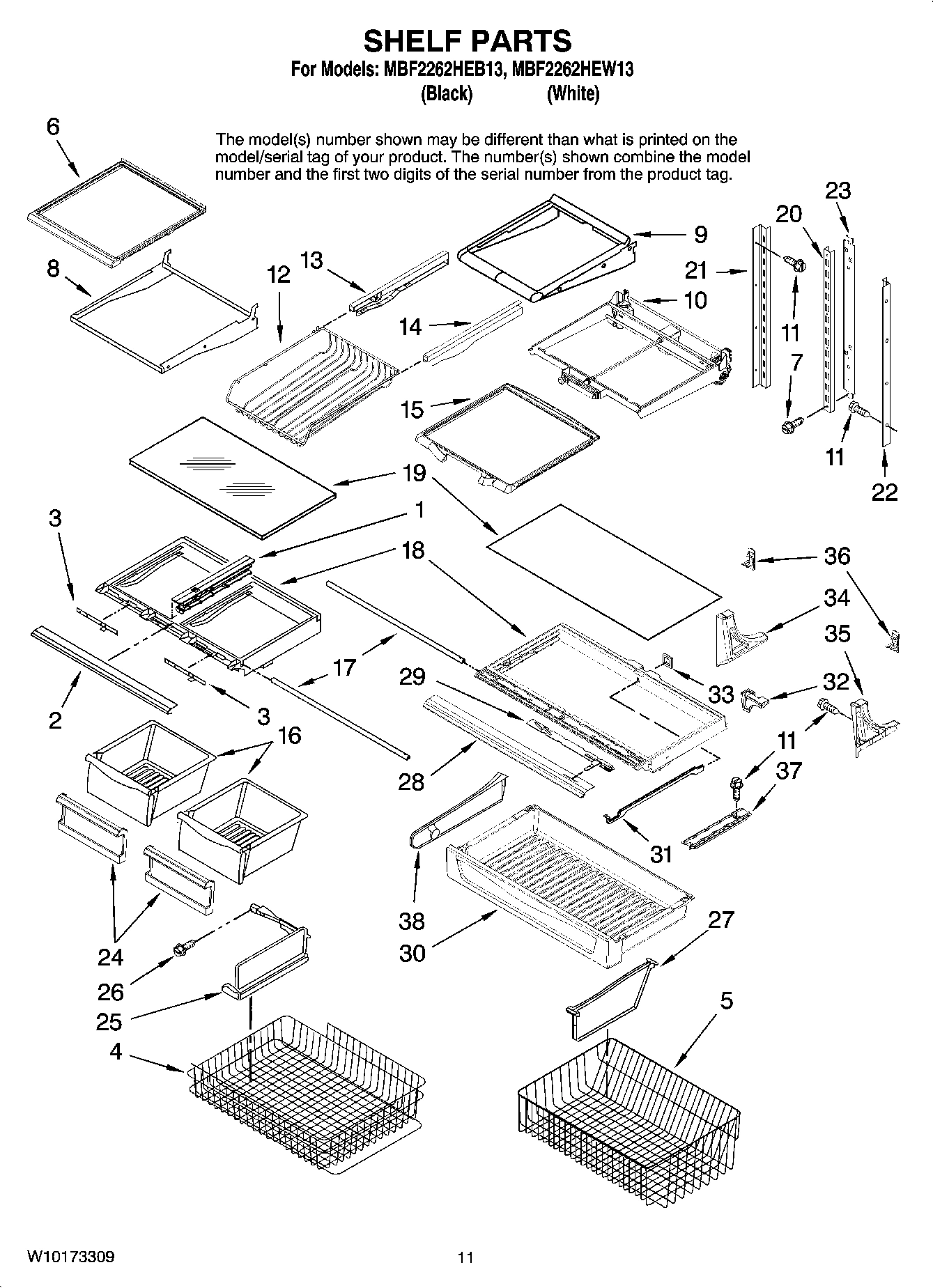

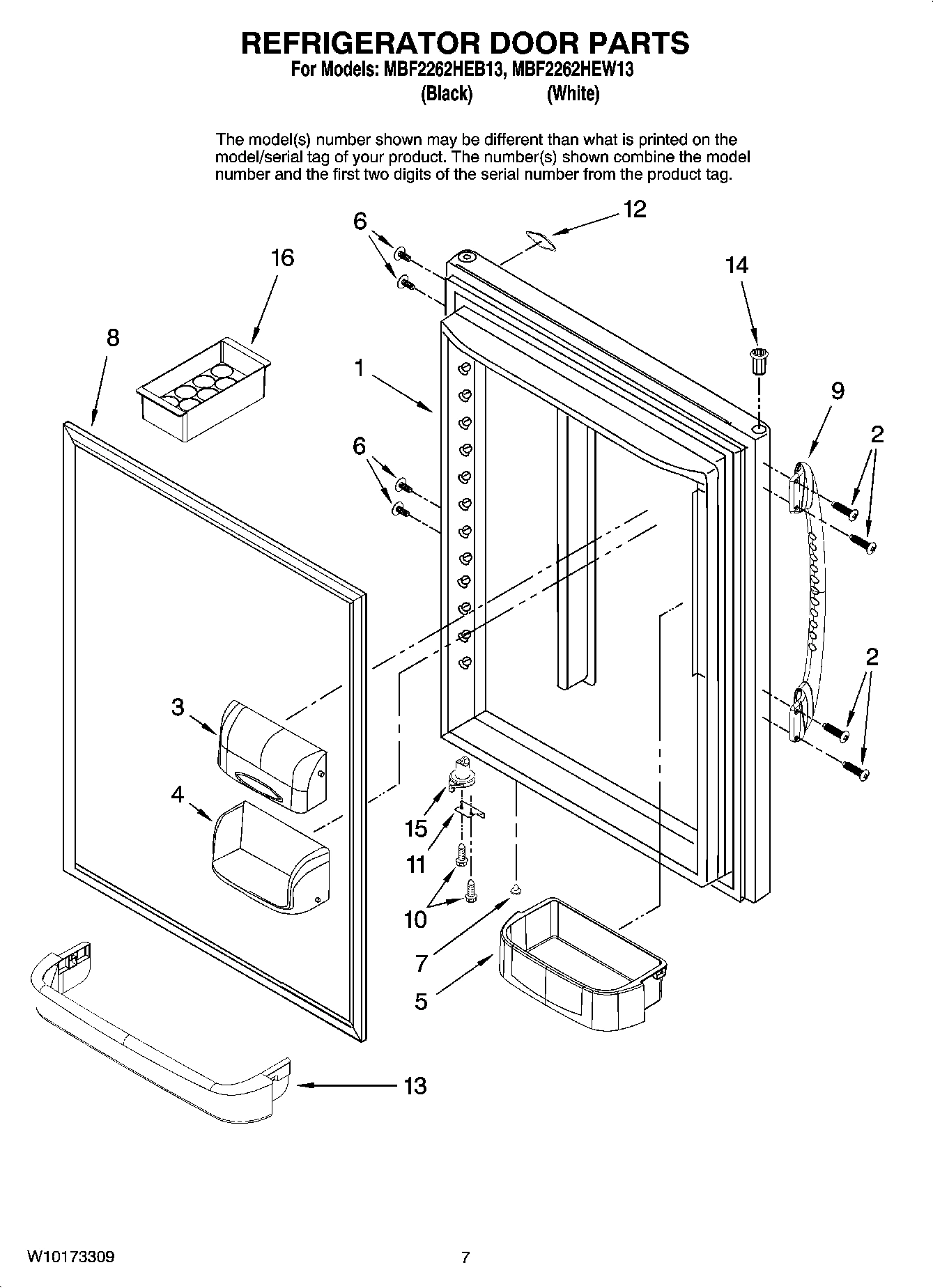

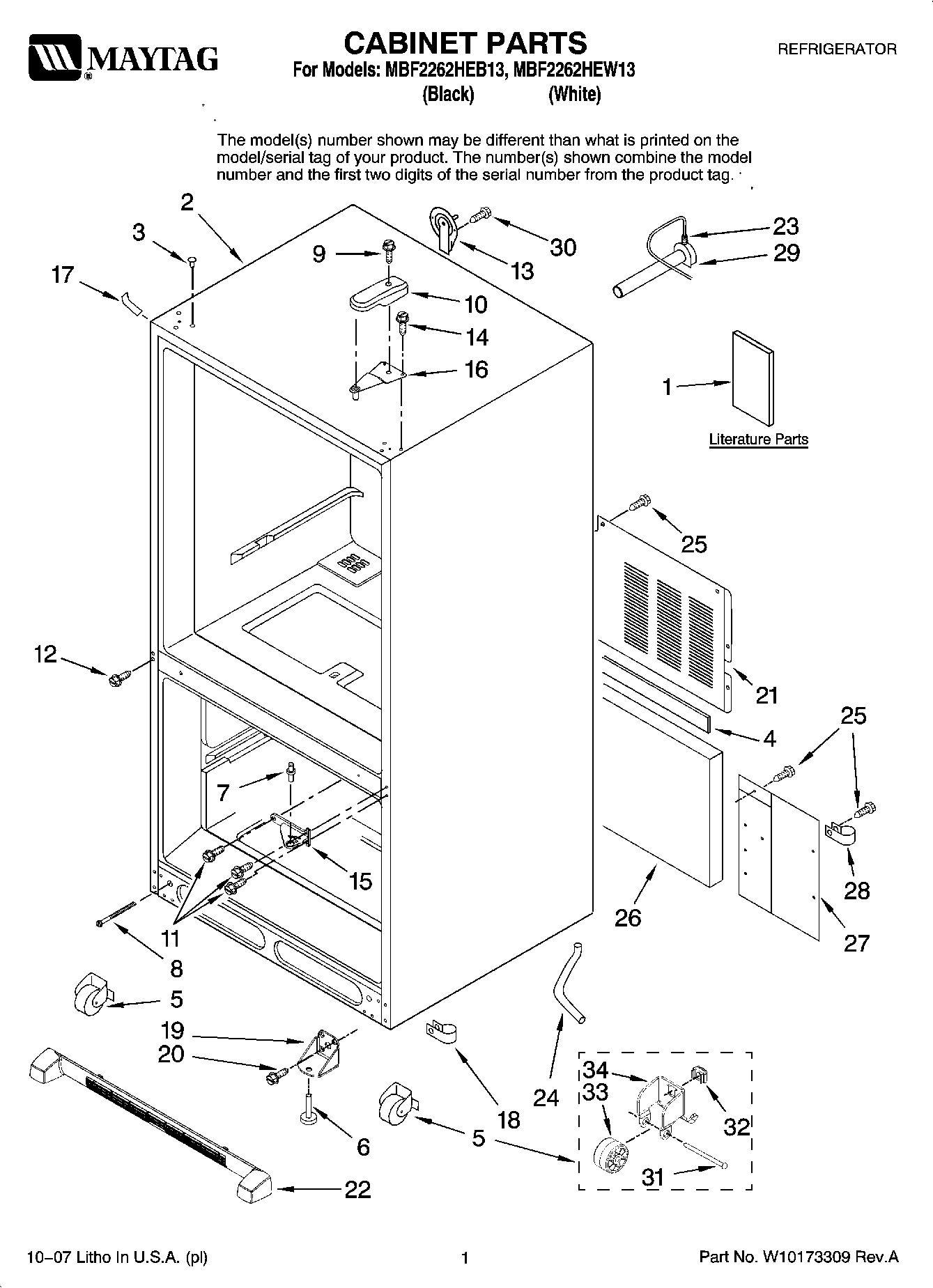

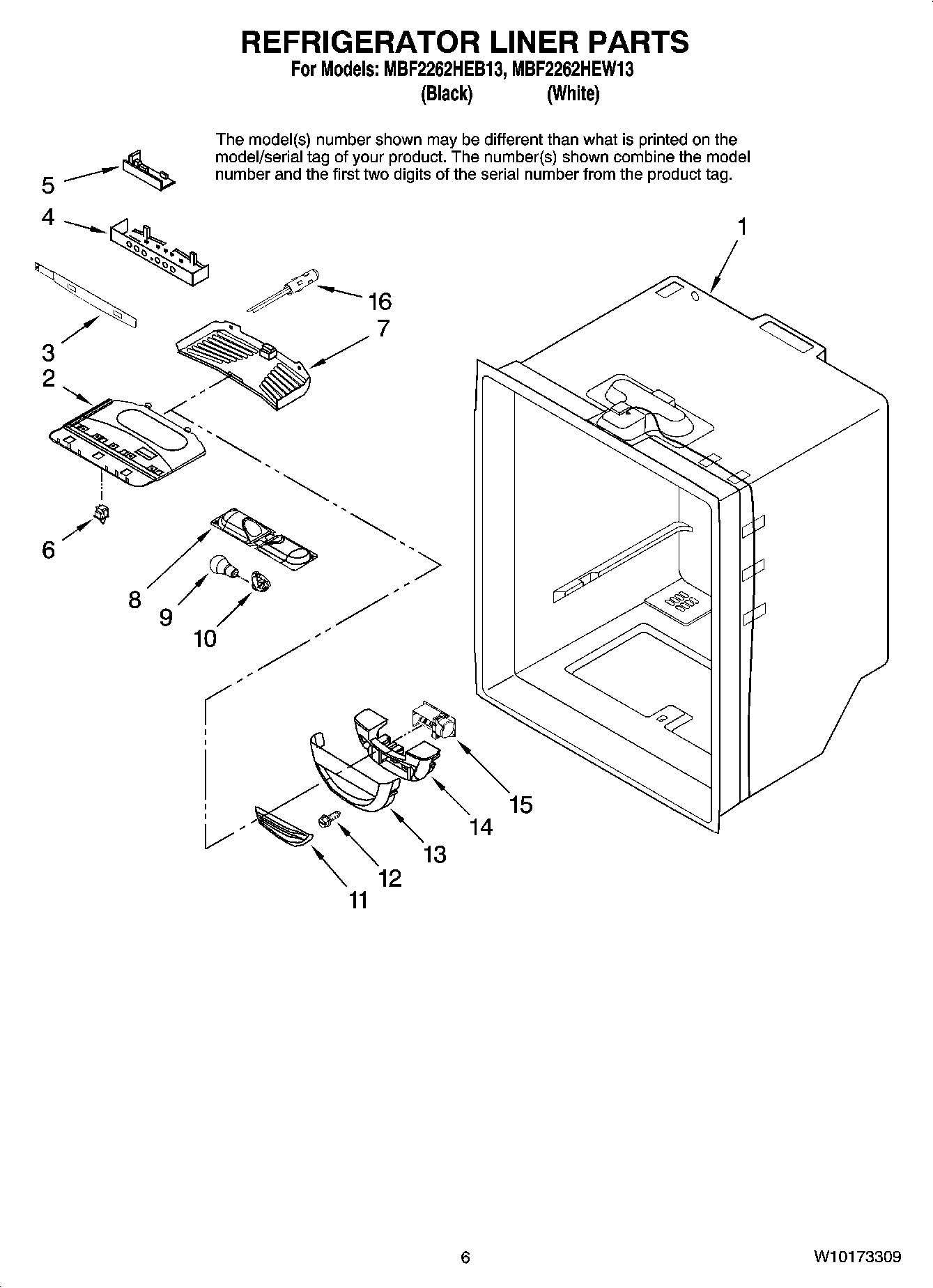

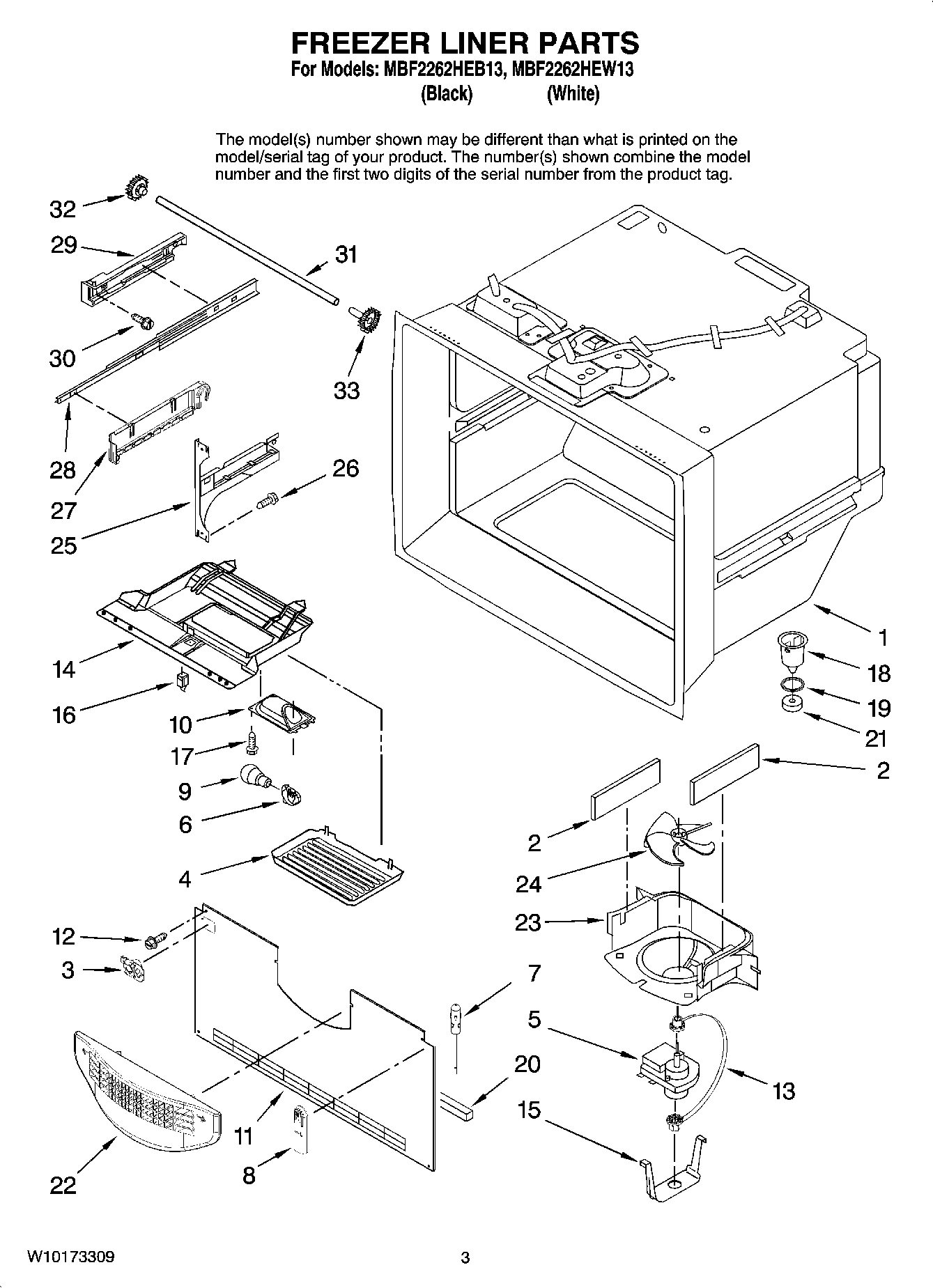

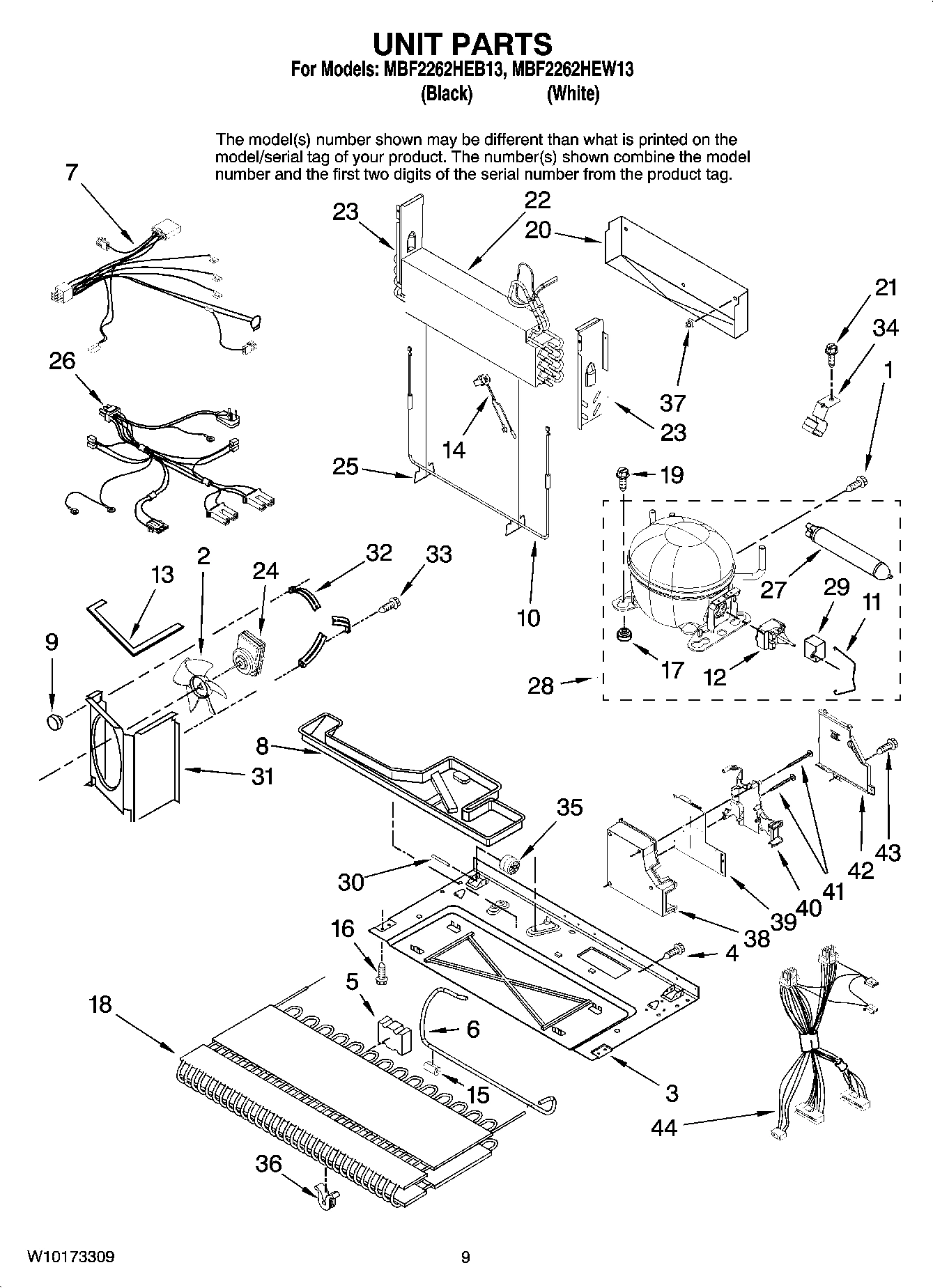

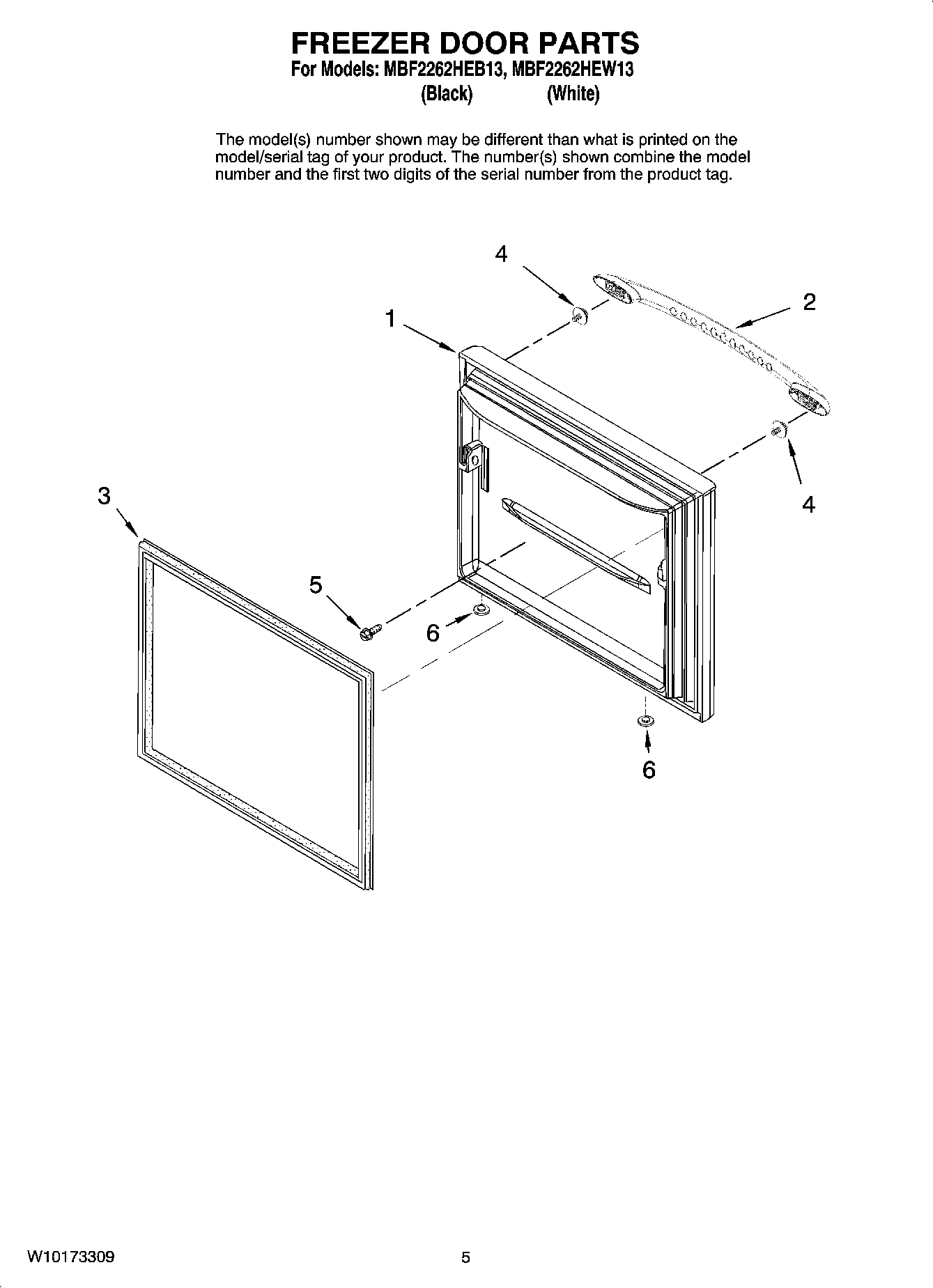

Model Maytag MBF2262HEW13 REFRIGERATOR – Common Parts &amp; Diagrams

1

Door, Freezer (White) MAY W10170997 Contact Us For Availability

1

Door, Freezer (Black) MAY W10170998 Contact Us For Availability

1

TUBE MAY 2256417 Contact Us For Availability

1

Door, Refrigerator (Black) MAY 67004329 Contact Us For Availability

1

Door, Refrigerator (White) MAY 67004363 Contact Us For Availability

1

MAY 67006433 MAY 67006433 Contact Us For Availability

1

MAY 2256086 MAY 2256086 Contact Us For Availability

2

67006806 Whirlpool Refrigerator Black High To Backorder WPL 67006806 $14.93

2

WPW10231343 Whirlpool Shelf Trim Backorder WPL WPW10231343 $53.86

2

MAY W10119654 MAY W10119654 Contact Us For Availability

2

MAY W10119656 MAY W10119656 Contact Us For Availability

2

MAY Y67003896 MAY Y67003896 Contact Us For Availability

2

MAY W10162928 MAY W10162928 Contact Us For Availability

2

MAY 67003729 MAY 67003729 Contact Us For Availability

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $48.62

3

Keyboard MAY 67005439 Contact Us For Availability

3

Gasket, Door (Black) MAY W10130587 Contact Us For Availability

3

Gasket, Door (White) MAY W10130894 Contact Us For Availability

3

MAY 67005744 MAY 67005744 Contact Us For Availability

3

MAY 67005864 MAY 67005864 Contact Us For Availability

3

MAY 67003932 MAY 67003932 Contact Us For Availability

4

W11416469 Whirlpool Refrigerator Housing Backorder WPL W11416469 $101.64

4

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $5.85

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.02

4

Screw MAY 67006425 Contact Us For Availability

4

MAY 489276 MAY 489276 Contact Us For Availability

5

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $14.93

5

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $55.50

5

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $73.43

5

MAY 67005491 MAY 67005491 Contact Us For Availability

5

WHEEL-TUB MAY 8270019 Contact Us For Availability

6

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $8.00

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.88

6

MAY C3680310 MAY C3680310 Contact Us For Availability

6

Screw (4) (White) MAY 12991103 Contact Us For Availability

6

Screw (4) (Black) MAY 67007166 Contact Us For Availability

6

MAY W10167036 MAY W10167036 Contact Us For Availability

6

Shelf (2) MAY 61002572 Contact Us For Availability

7

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $7.01

7

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.35

7

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $12.17

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $43.81

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $4.19

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $3.46

7

HARNESS, EVAP HEATER MAY W10119857 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $70.32

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $7.55

8

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.19

8

Gasket, Door (White) MAY W10130893 Contact Us For Availability

8

Gasket, Door (Black) MAY W10131327 Contact Us For Availability

8

Drain Pan MAY 67004713 Contact Us For Availability

8

Frame, Shelf (2) MAY 61005964 Contact Us For Availability

8

Inert, Tube MAY A3223101 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.53

9

MAY 61004743 MAY 61004743 Contact Us For Availability

9

Shelf (1) MAY 61005752 Contact Us For Availability

9

MAY 67005538 MAY 67005538 Contact Us For Availability

9

Handle, Door (Black) MAY 67005542 Contact Us For Availability

9

Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $43.21

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $16.76

WP67001794 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67001794 $90.21

WP98165 Whirlpool Screw Backorder WPL WP98165 $3.46

MAY 67001035 MAY 67001035 Contact Us For Availability

Socket, Light (2) MAY Y12570701 Contact Us For Availability

MAY 67005271 MAY 67005271 Contact Us For Availability

CUP, WATER FILL MAY 628515 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $43.15

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.20

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.76

MAY W10136415 MAY W10136415 Contact Us For Availability

MAY 67006400 MAY 67006400 Contact Us For Availability

MAY 627843 MAY 627843 Contact Us For Availability

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $47.85

MAY 67006602 MAY 67006602 Contact Us For Availability

Start Device MAY W10136414 Contact Us For Availability

MAY 67004436 MAY 67004436 Contact Us For Availability

MAY 2182124 MAY 2182124 Contact Us For Availability

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $45.66

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.89

Rail, Left MAY 67002190 Contact Us For Availability

Retainer, Ref Door MAY 67001748 Contact Us For Availability

Support MAY 2194712 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $12.24

WP67002191 Whirlpool Refrigerator Crisper Mea Backorder WPL WP67002191 $16.18

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.19

MAY 67006604 MAY 67006604 Contact Us For Availability

MAY W10165425 MAY W10165425 Contact Us For Availability

Retainer MAY 2315522 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $16.76

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.51

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $33.57

MAY W10127429 MAY W10127429 Contact Us For Availability

MAY 61004709 MAY 61004709 Contact Us For Availability

Thermostat (Order 542369 Cement Alumilastic) MAY 627985 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $29.84

WP67002633 Whirlpool Crisper Pan In Stock WPL WP67002633 $95.37

MAY 67215-2 MAY 67215-2 Contact Us For Availability

MAY 67006573 MAY 67006573 Contact Us For Availability

MAY 8533917 MAY 8533917 Contact Us For Availability

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $12.24

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $51.07

MAY W10169124 MAY W10169124 Contact Us For Availability

MAY 489464 MAY 489464 Contact Us For Availability

18

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $221.82

18

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $74.72

18

MAY W10153408 MAY W10153408 Contact Us For Availability

19

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $140.46

19

Screw MAY 67006432 Contact Us For Availability

19

MAY M0114003 MAY M0114003 Contact Us For Availability

20

MAY 67001080 MAY 67001080 Contact Us For Availability

20

Ladder, Center MAY 67004439 Contact Us For Availability

20

Module Assembly (Includes Items 21& 22) MAY 626678 Contact Us For Availability

Gasket MAY B8381501 Contact Us For Availability

SCREW MAY 67006737 Contact Us For Availability

Ladder, Left MAY 67004441 Contact Us For Availability

MAY 626684 MAY 626684 Contact Us For Availability

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $315.69

GRILLE, FZ AIR MAY 13024802 Contact Us For Availability

Ladder, Right MAY 67004440 Contact Us For Availability

Screw MAY 489136 Contact Us For Availability

SHROUD, EVAP FAN MAY W10167023 Contact Us For Availability

MAY 67001083 MAY 67001083 Contact Us For Availability

MAY 67001084 MAY 67001084 Contact Us For Availability

Adapter, Center Ladder MAY 67003721 Contact Us For Availability

MAY W10137519 MAY W10137519 Contact Us For Availability

MAY 67001066 MAY 67001066 Contact Us For Availability

Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability

MAY 67004432 MAY 67004432 Contact Us For Availability

FRONT, CRISPER PAN MAY 67005920 Contact Us For Availability

MAY 67005603 MAY 67005603 Contact Us For Availability

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.92

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $85.52

BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability

BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability

Divider, Upper Basket MAY 67004127 Contact Us For Availability

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $13.18

Screw (8) MAY 67006473 Contact Us For Availability

Harness, Unit with Power Cord MAY 13060201 Contact Us For Availability

MAY 67006608 MAY 67006608 Contact Us For Availability

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $42.36

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $42.36

Drier MAY 2317845 Contact Us For Availability

Divider, Lower Basket MAY 67006644 Contact Us For Availability

28

W10656985 Whirlpool Refrigerator Trim Backorder WPL W10656985 $88.26

28

SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability

28

Compressor (Includes items 11,12,17,27,29) MAY W10130129 Contact Us For Availability

67002002 Whirlpool Refrigerator Pantry Slide Backorder WPL 67002002 $11.16

MAY W10128118 MAY W10128118 Contact Us For Availability

MAY W10128119 MAY W10128119 Contact Us For Availability

MAY 2264017 MAY 2264017 Contact Us For Availability

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.20

30

Screw (6) MAY 67006406 Contact Us For Availability

30

MAY 67005921 MAY 67005921 Contact Us For Availability

31

MAY 67004261 MAY 67004261 Contact Us For Availability

31

MAY W10158508 MAY W10158508 Contact Us For Availability

32

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $5.32

32

MAY 67004953 MAY 67004953 Contact Us For Availability

33

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.84

33

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.77

33

MAY 67002005 MAY 67002005 Contact Us For Availability

34

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $4.19

34

MAY 10547003 MAY 10547003 Contact Us For Availability

35

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $4.19

35

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $12.24

36

GROMMET, COND (4) MAY W10137529 Contact Us For Availability

36

MAY 67004438 MAY 67004438 Contact Us For Availability

37

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $3.22

37

MAY 10623002 MAY 10623002 Contact Us For Availability

38

MAY 67004969 MAY 67004969 Contact Us For Availability

38

MAY 67001923 MAY 67001923 Contact Us For Availability

39

Board, HV Control (Incl Instr Sheet) MAY W10173398 Contact Us For Availability

40

MAY 67005418 MAY 67005418 Contact Us For Availability

41

MAY 67006550 MAY 67006550 Contact Us For Availability

42

MAY 67005421 MAY 67005421 Contact Us For Availability

43

Screw, Cover (3) MAY 67006615 Contact Us For Availability

44

MAY 67005937 MAY 67005937 Contact Us For Availability

100

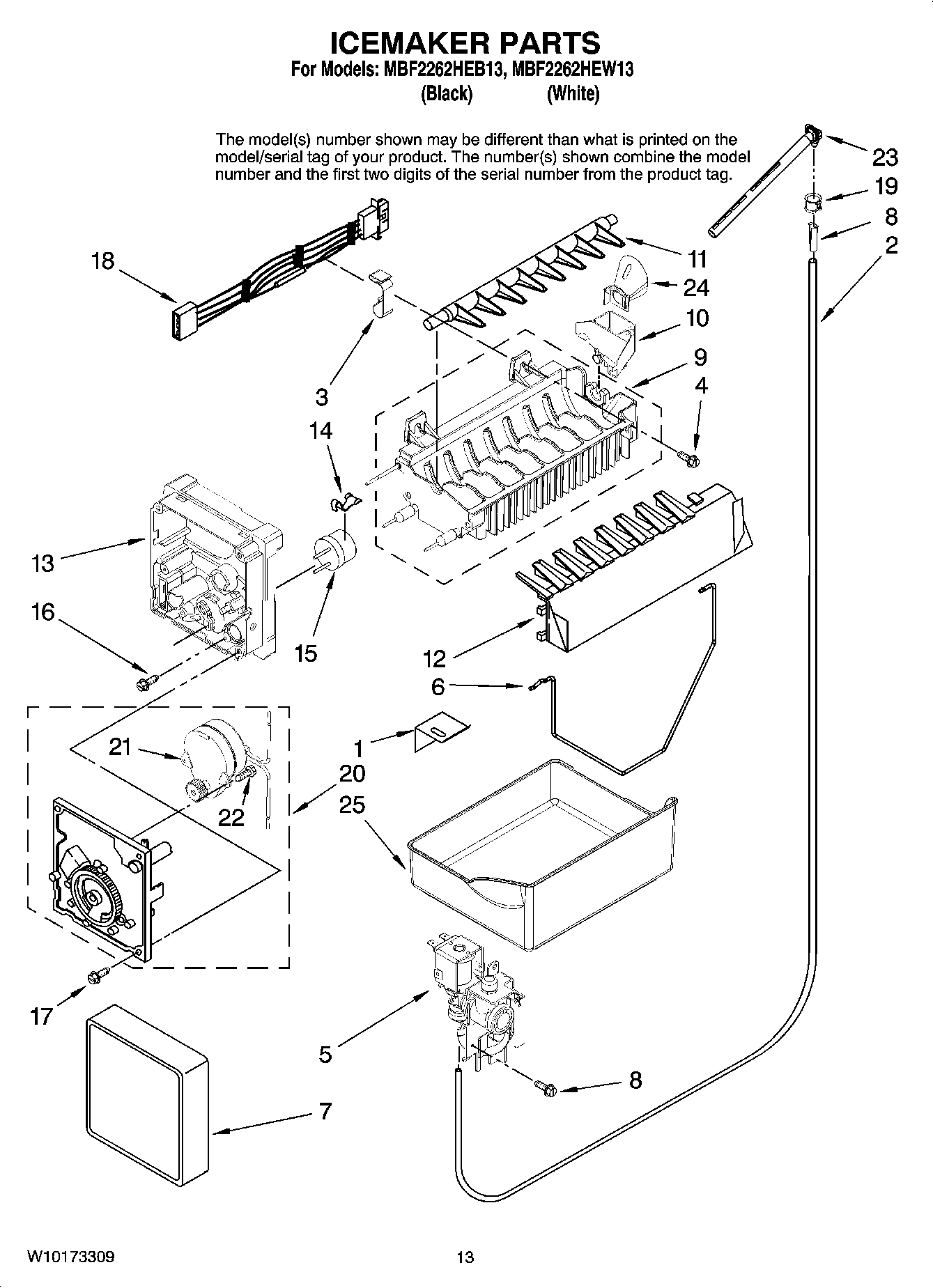

Complete Ice Maker MAY W10122519 Contact Us For Availability

MAY 67006095 MAY 67006095 Contact Us For Availability

Harness, Controls (Refrigerator) MAY 67005644 Contact Us For Availability

MAY 876764 MAY 876764 Contact Us For Availability

VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability

Valve, Access (5/16``) MAY 978026 Contact Us For Availability

VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability

Valve, Access (1/2``) MAY 978028 Contact Us For Availability

Valve, Access (5/8``) MAY 978029 Contact Us For Availability

Valve, Access (3/4``) MAY 978030 Contact Us For Availability

MAY 1117510 MAY 1117510 Contact Us For Availability

SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability

CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability

MAY 4392900 MAY 4392900 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability

MAY 479502 MAY 479502 Contact Us For Availability

MAY 503695 MAY 503695 Contact Us For Availability

MAY 505587 MAY 505587 Contact Us For Availability

MAY 542638 MAY 542638 Contact Us For Availability

MAY 542639 MAY 542639 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability

MAY 833938 MAY 833938 Contact Us For Availability
