Model Whirlpool MBF2262HEQ REFRIGERATOR – Common Parts &amp; Diagrams

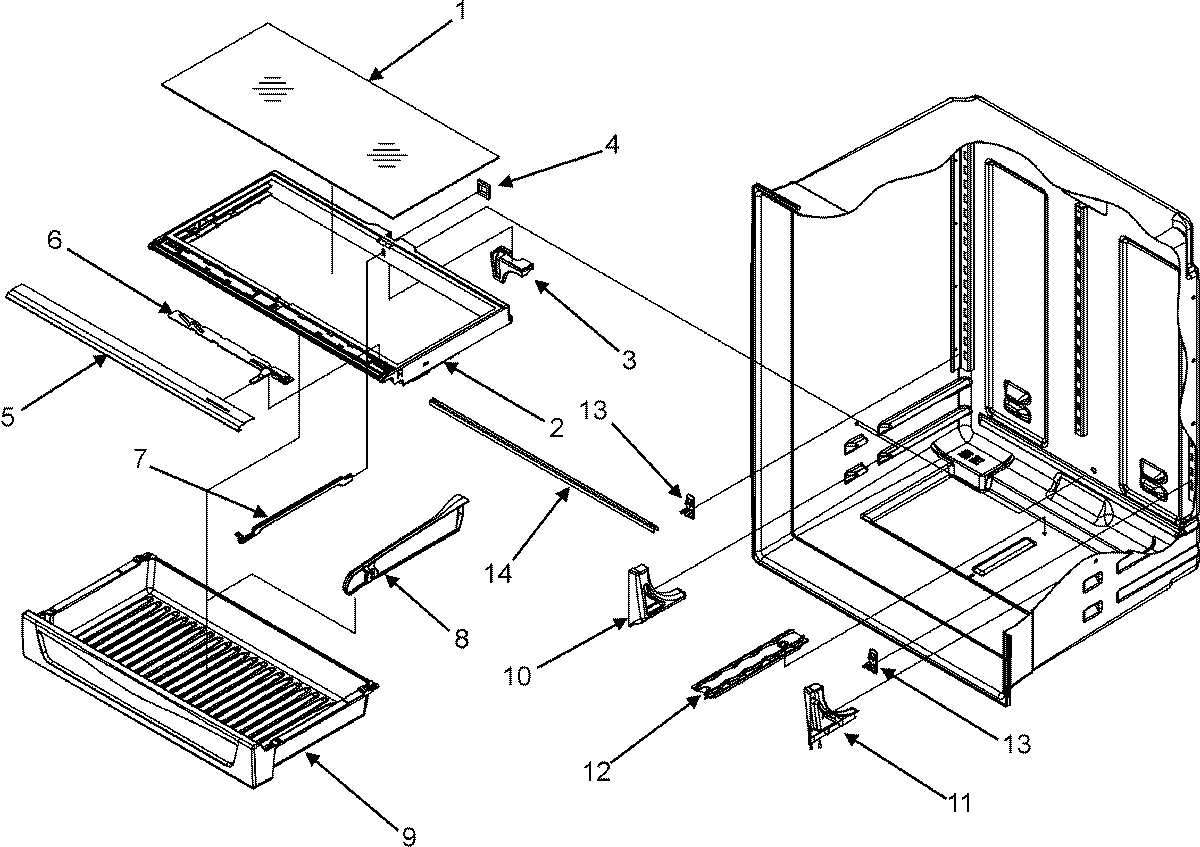

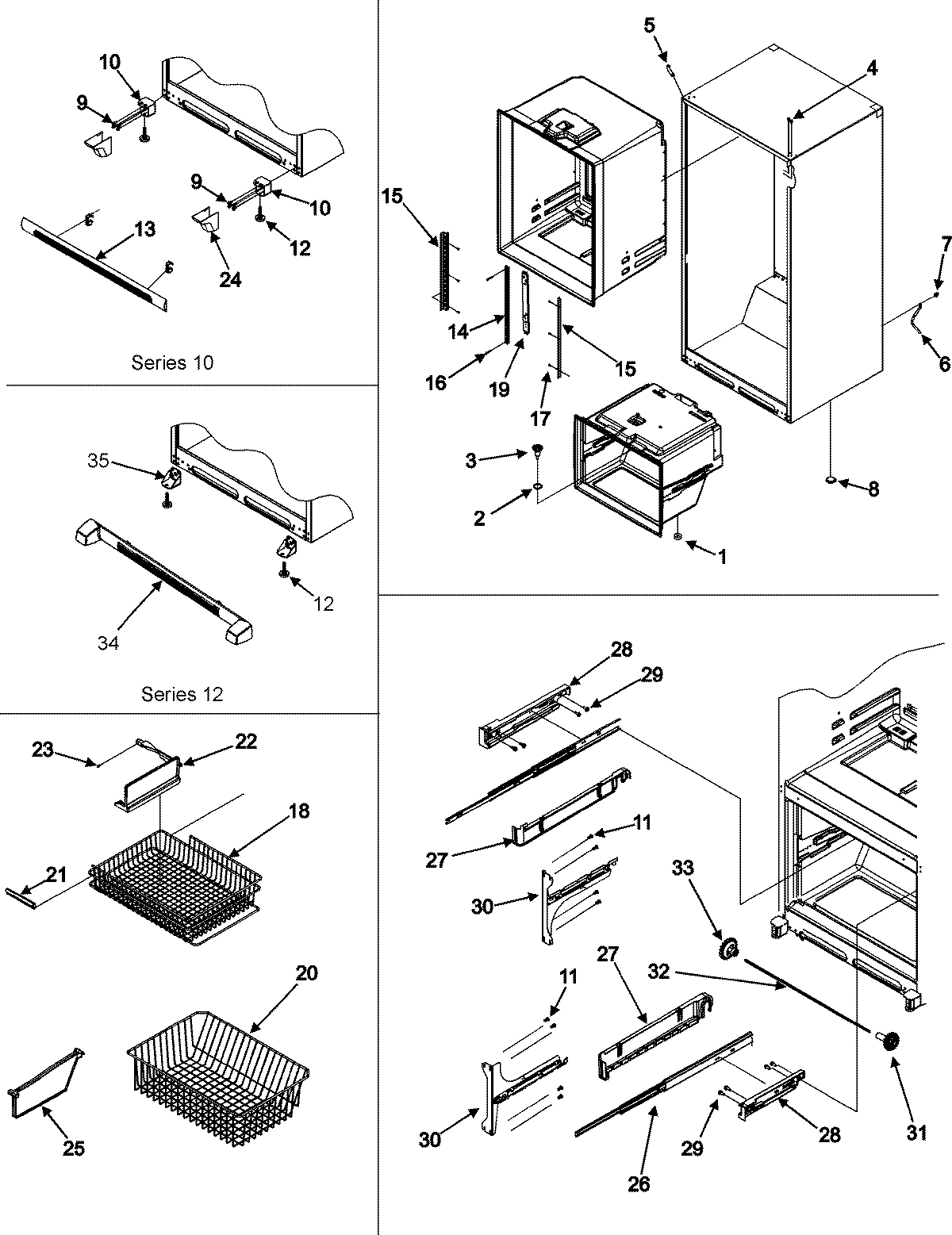

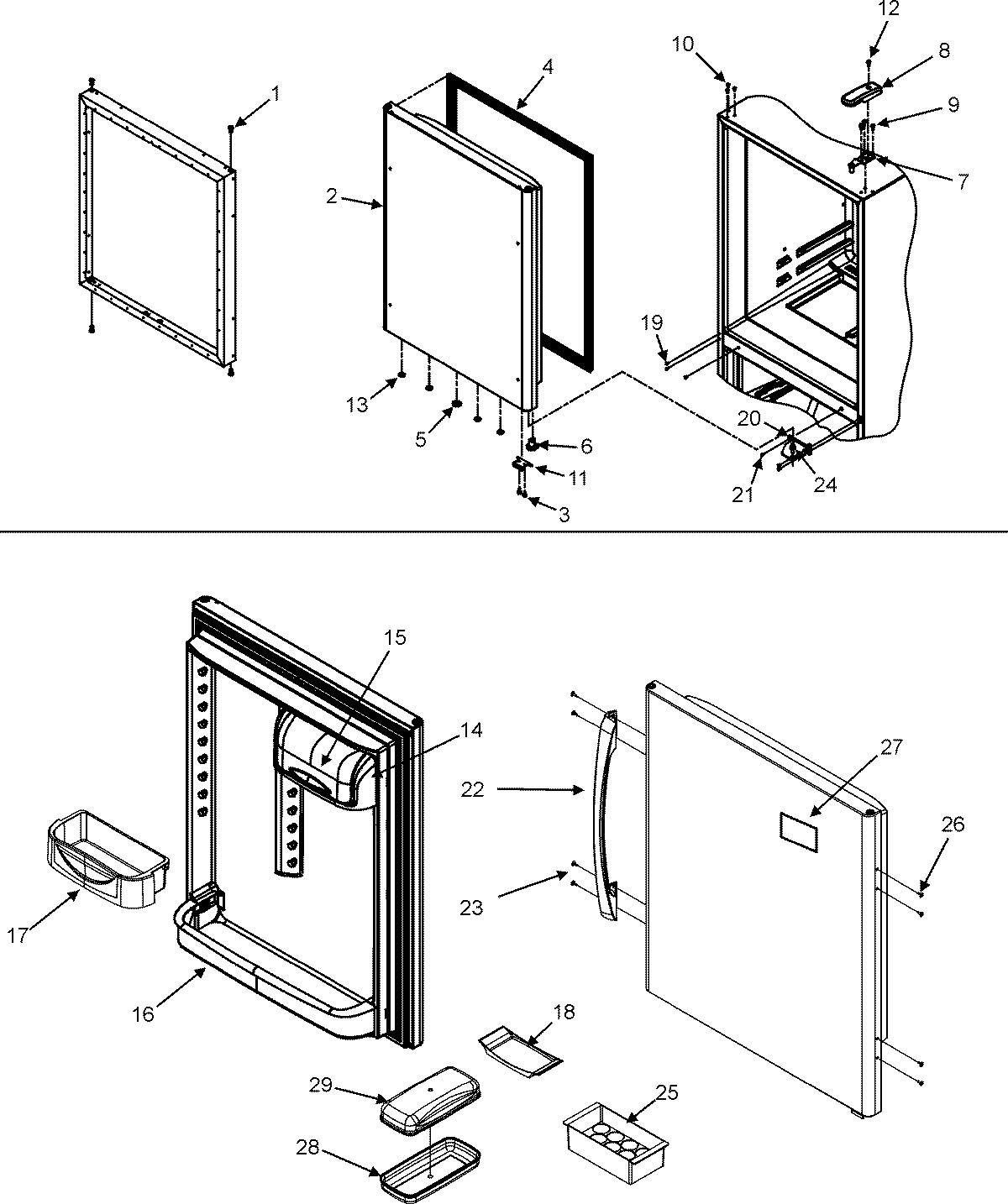

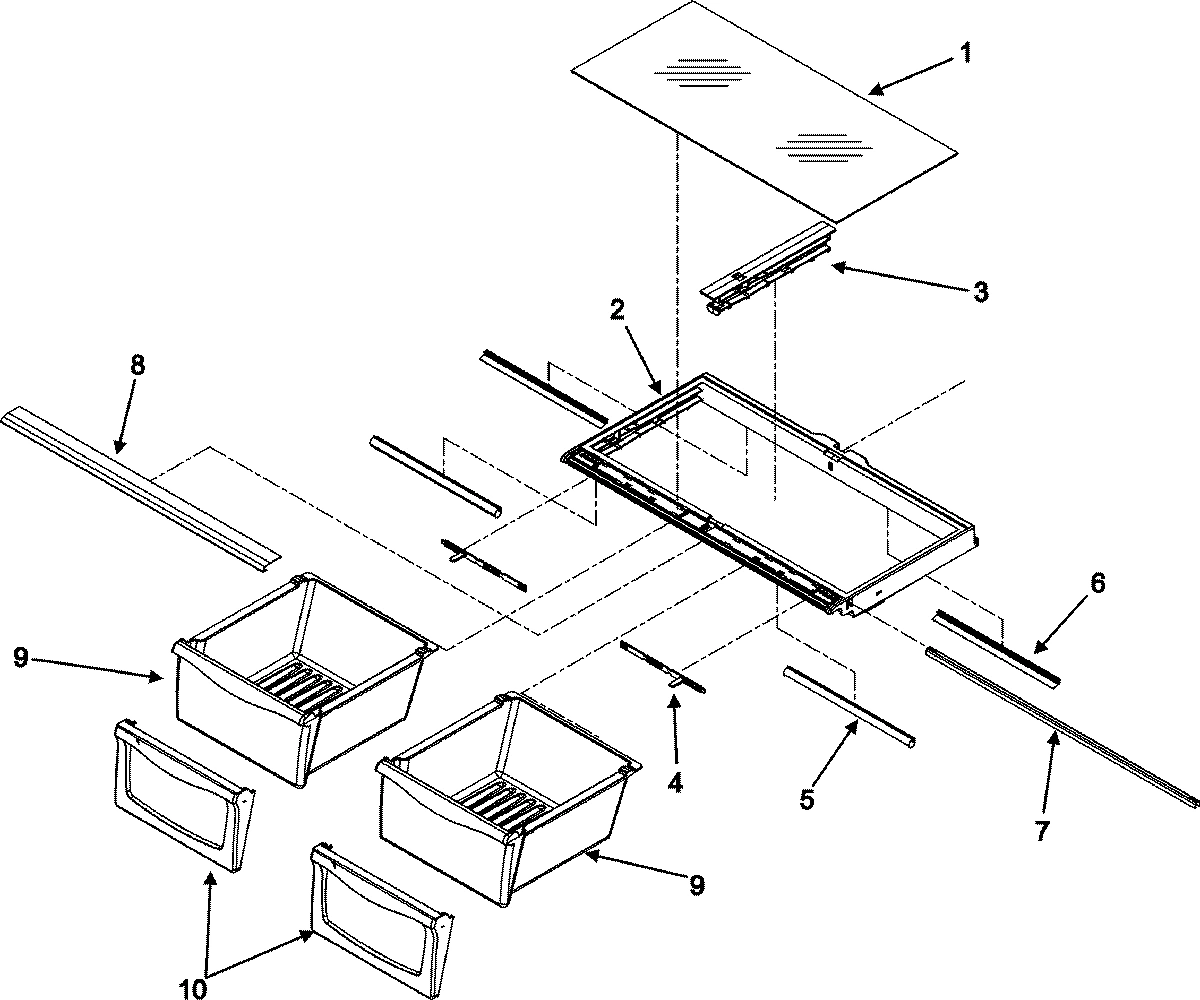

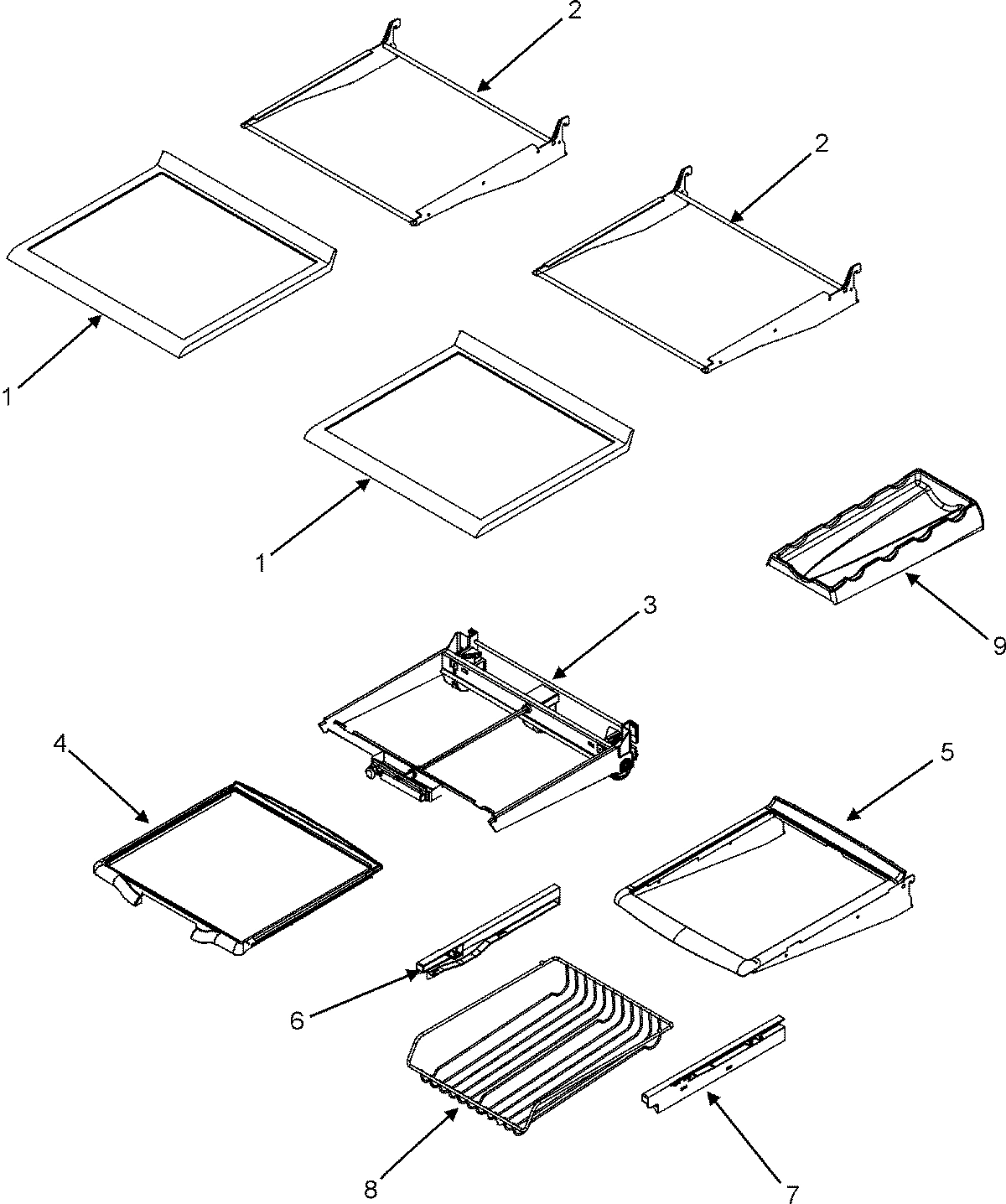

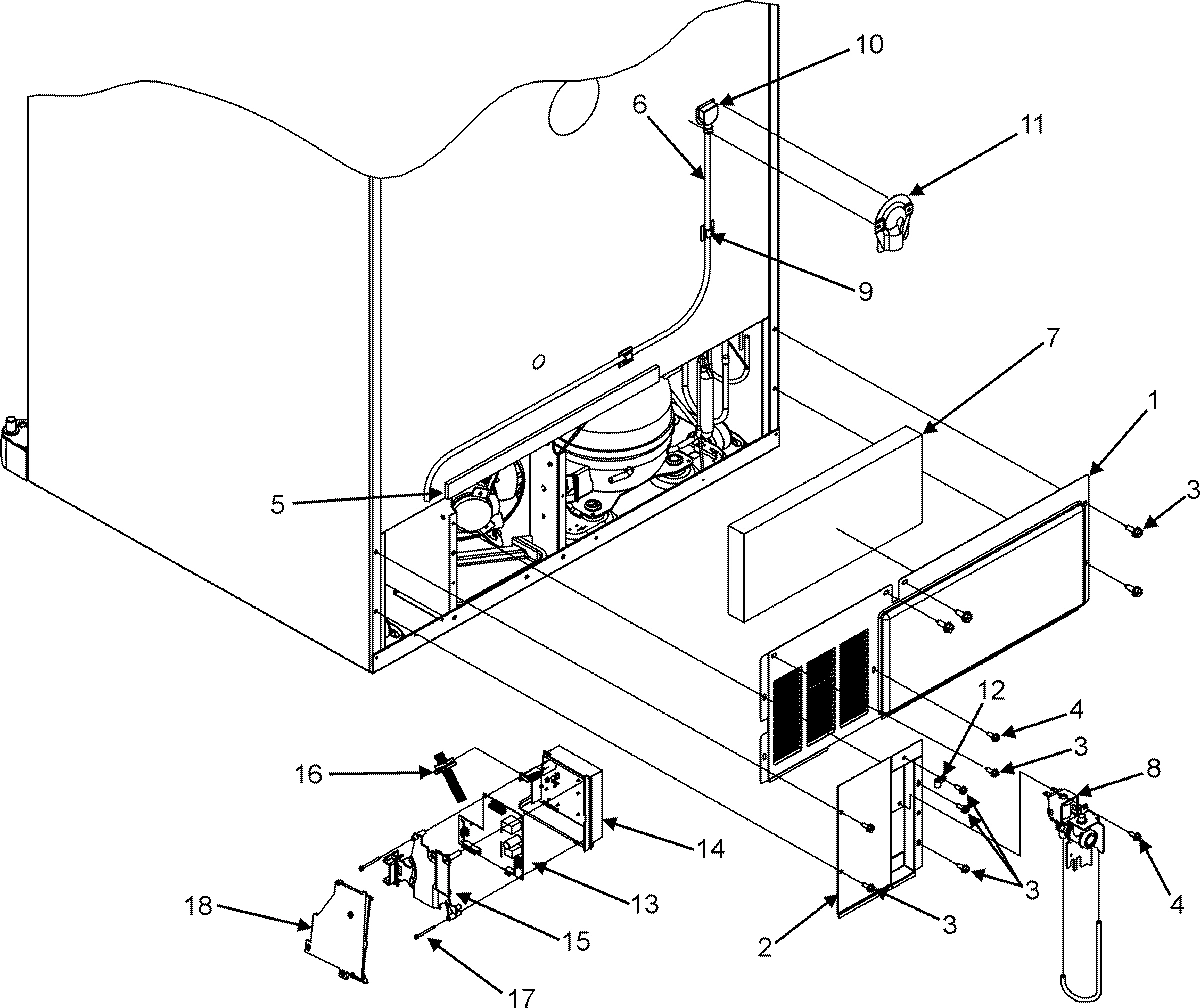

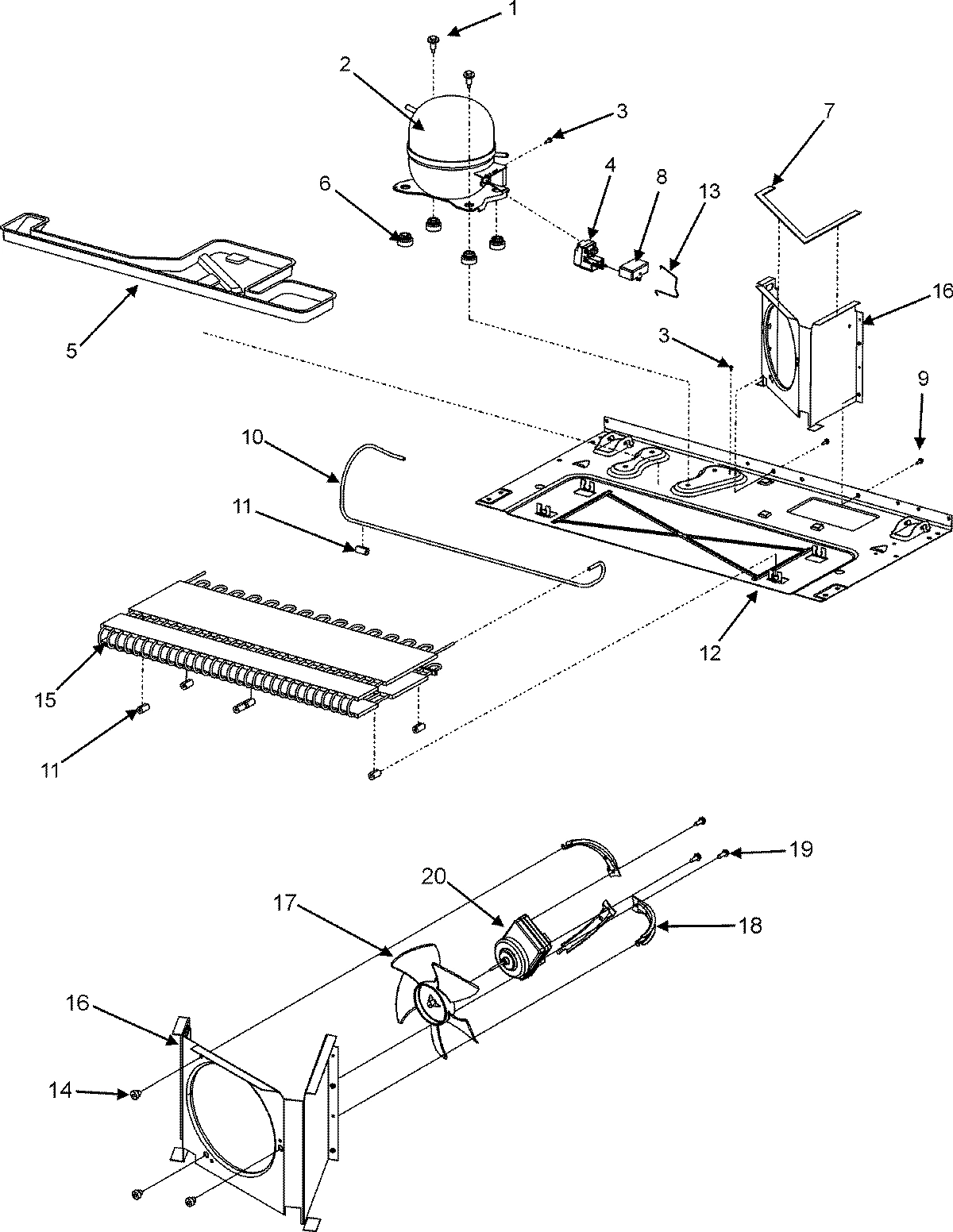

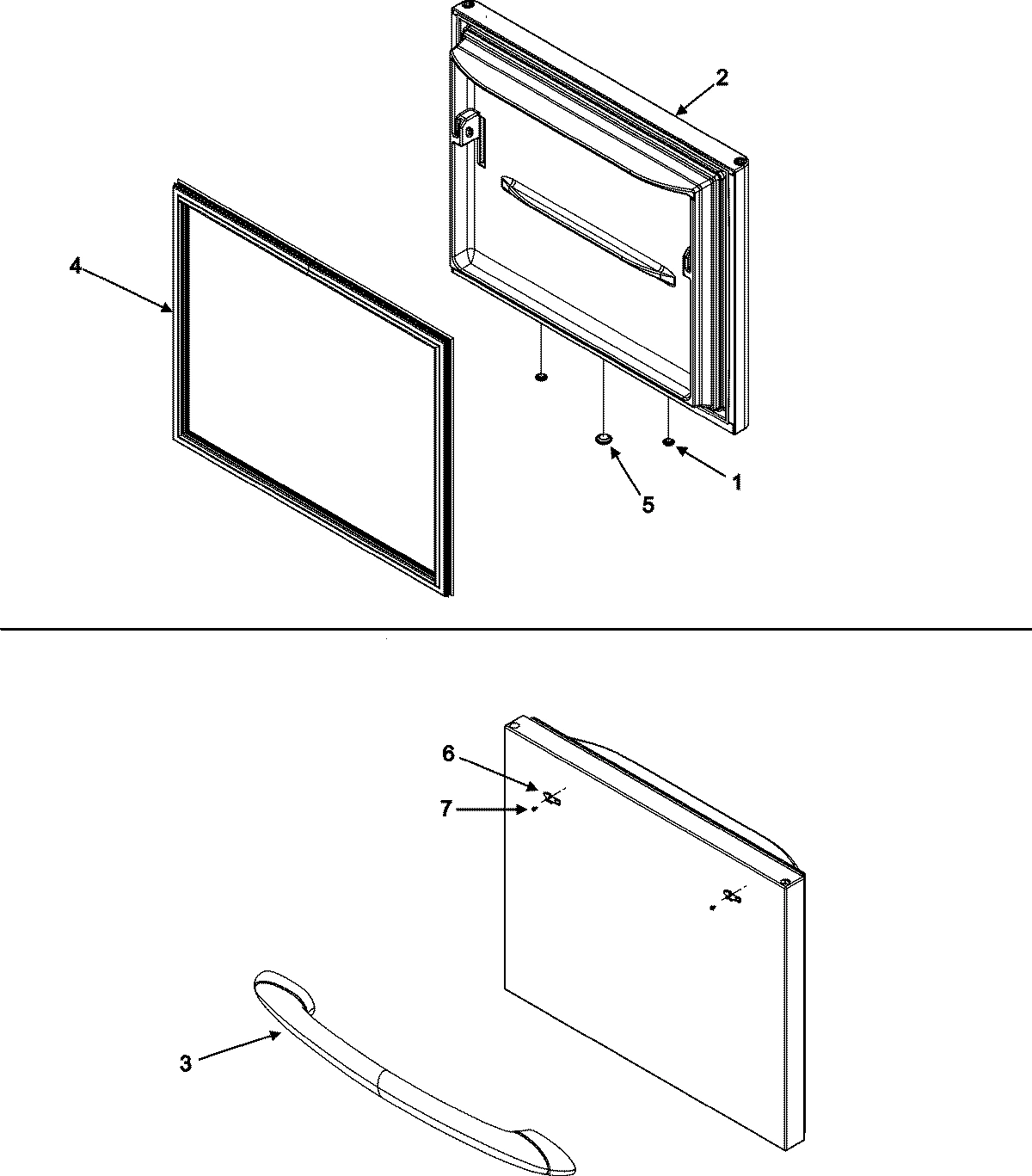

1

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

1

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

1

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $140.92

1

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $6.02

1

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $39.08

1

SHELF, SPILLPROOF WPL 61002572 Contact Us For Availability

1

MANUAL, USE & CARE WPL 12828120 Contact Us For Availability

1

MANUAL, USE & CARE (MAYTAG) WPL 12828159 Contact Us For Availability

1

PLUG, VENT (WHT) WPL 10712401 Contact Us For Availability

2

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $428.79

2

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

2

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

2

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $126.06

2

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $88.28

2

FRAME, SHELF WPL 61005964 Contact Us For Availability

2

MODULE, LIGHT WPL Y67003896 Contact Us For Availability

2

SVC MAN, BTM MT WPL 16025629 Contact Us For Availability

2

DOOR ASSY., REF. FOAM (BSQ) WPL 67004361 Contact Us For Availability

2

DOOR ASSY., FRZ. FOAM (BSQ) WPL 67004365 Contact Us For Availability

3

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

3

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

3

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $69.33

3

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $6.23

3

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $47.52

3

CARD, HANDLE RELEASE WPL 67003876 Contact Us For Availability

3

FRAME ASSY., ELEVATOR SHELF WPL 61005428 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

3

TECH SHT, BTM MT WPL 16025983 Contact Us For Availability

3

HANDLE ASSY., FRZ. DOOR (BSQ) WPL 67004407 Contact Us For Availability

3

HANDLE ASSY., DOOR (BSQ) WPL 67005539 Contact Us For Availability

4

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $200.28

4

W10443313 Whirlpool Door Gasket In Stock WPL W10443313 $147.83

4

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $132.45

4

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $57.90

4

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

4

SHELF, ELEVATOR WPL 61004709 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

POP RIVET WPL A4539607 Contact Us For Availability

4

MODULE, REF CONTROL WPL 67005444 Contact Us For Availability

4

COVER, EVAPORATOR WPL 67003936 Contact Us For Availability

4

TAG, ENERGY WPL 67005688 Contact Us For Availability

4

GASKET, PANTRY WPL 67002005 Contact Us For Availability

5

W10656985 Whirlpool Refrigerator Trim Backorder WPL W10656985 $95.35

5

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $16.73

5

SEAL, FRONT CRISPER WPL 67001063 Contact Us For Availability

5

SHELF, MEAT WPL 61005752 Contact Us For Availability

5

INLET, WATER WPL 951001 Contact Us For Availability

5

COVER, CORNER (BSQ) WPL 67003486 Contact Us For Availability

5

PLUG, BUTTON (WHT) WPL A3080002 Contact Us For Availability

5

PAN, DRAIN WPL 67001091 Contact Us For Availability

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

6

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

6

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $5.30

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.55

6

WP67006852 Whirlpool Clip Backorder WPL WP67006852 $15.24

6

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

6

SEAL, REAR CRISPER WPL 67001768 Contact Us For Availability

6

RAIL, MEAT (LT) WPL 67002190 Contact Us For Availability

6

TUBE, DRAIN WPL 67001066 Contact Us For Availability

6

Slide,Pantry WPL 67002002 Contact Us For Availability

7

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $6.54

7

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $6.02

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

7

WP67002191 Whirlpool Refrigerator Crisper Mea Backorder WPL WP67002191 $19.51

7

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

7

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

7

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $37.15

7

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

7

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

7

Bar,Pantry WPL 67002003 Contact Us For Availability

8

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

8

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $59.65

8

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

8

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $47.85

8

WPW10231343 Whirlpool Shelf Trim Backorder WPL WPW10231343 $85.19

8

RACK, CAN WPL 67004436 Contact Us For Availability

8

DIVIDER, PANTRY WPL 67001923 Contact Us For Availability

8

COVER, TOP HINGE (BSQ) WPL 67001013 Contact Us For Availability

9

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $75.97

9

67001656 Whirlpool Refrigerator Bottle Trivet Backorder WPL 67001656 $48.96

9

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

9

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $5.02

9

WP67002633 Whirlpool Crisper Pan In Stock WPL WP67002633 $108.26

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

SCREW, BOTTOM HINGE WPL 67003858 Contact Us For Availability

9

SCREW, TF WPL M0260242 Contact Us For Availability

9

PAN, PANTRY WPL 67004437 Contact Us For Availability

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $6.02

FRONT, CRISPER PAN WPL 67004371 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

HINGE, BOTTOM E-CT (WHT) WPL 67001239 Contact Us For Availability

CLIP, DRIER WPL 10547002 Contact Us For Availability

PLUG, TOP HINGE BUTTON (BSQ) WPL M0310738 Contact Us For Availability

TUBE, DISCHARGE WPL 67004262 Contact Us For Availability

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $57.93

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $4.82

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $259.39

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.78

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $4.82

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.43

KEYBOARD, CONTROL WPL 67005439 Contact Us For Availability

BASEPAN, MACHINE COMPARTMENT WPL 67001089 Contact Us For Availability

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $76.87

WP67003903 Whirlpool Refrigerator Damper Cont In Stock WPL WP67003903 $116.26

HOOK, LADDER WPL 67004438 Contact Us For Availability

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

TOE GRILLE ASSY (BSQ) WPL 67003845 Contact Us For Availability

HARNESS, DAMPER WPL 67005162 Contact Us For Availability

DAM, LEFT RETURN WPL 67001083 Contact Us For Availability

STRAP, BALE WPL 12576801 Contact Us For Availability

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $71.65

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

BOX, HV CONTROL WPL 67004969 Contact Us For Availability

LADDER, SHELF (CTR) WPL 67004439 Contact Us For Availability

DAM, RIGHT RETURN WPL 67001084 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $7.06

WP67001794 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67001794 $97.77

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $54.67

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $225.96

SPACER, HV BOX WPL 67005418 Contact Us For Availability

LADDER, SHELF (RT) WPL 67004440 Contact Us For Availability

LADDER, SHELF (LT) WPL 67004441 Contact Us For Availability

COVER, FZ LIGHT WPL 67003905 Contact Us For Availability

67005419 Whirlpool Refrigerator HV Board Harn Backorder WPL 67005419 $96.51

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

MODULE, FZ CONTROL WPL 67003906 Contact Us For Availability

RETAINER, DOOR WPL 67001748 Contact Us For Availability

SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $63.87

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $51.80

SHROUD, EVAP FAN WPL 67002777 Contact Us For Availability

SCREW, SM WPL 67005420 Contact Us For Availability

HOUSING, LIGHT WPL 67001035 Contact Us For Availability

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $49.60

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $56.72

SCREW WPL 67005332 Contact Us For Availability

COVER, HV BOX WPL 67005421 Contact Us For Availability

BASKET, UPPER WPL 67002918 Contact Us For Availability

TRAY, BUTTER WPL 299362 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $4.82

ADAPTER, CTR LADDER WPL 67003721 Contact Us For Availability

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $4.82

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $26.20

BASKET, FREEZER (LWR) WPL 67004260 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 67004432 Contact Us For Availability

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $5.02

HANDLE, BASKET/SHELF WPL 10508506 Contact Us For Availability

HARNESS, MC WPL 67005435 Contact Us For Availability

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.82

DIVIDER, BASKET (UPPER) WPL 67001723 Contact Us For Availability

HANDLE ASSY., REF DOOR (BSQ) WPL 67004402 Contact Us For Availability

HANDLE ASSY., REF. DOOR (BSQ) WPL 67005540 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $36.93

67005644 Whirlpool Refrigerator Wire Harness Backorder WPL 67005644 $50.88

SCREW WPL 67001310 Contact Us For Availability

HARNESS, FZ MODULE WPL 67003908 Contact Us For Availability

SCREW, HI TORQUE (BSQ) WPL 67004707 Contact Us For Availability

24

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $33.41

24

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $4.82

24

COVER, LWR HINGE (BSQ) WPL 12561901C Contact Us For Availability

25

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $6.52

25

DIVIDER, BASKET (LWR) WPL 67004064 Contact Us For Availability

25

TRAY, EGG WPL 672152 Contact Us For Availability

26

SLIDE, DRAWER WPL 67004065 Contact Us For Availability

26

RIVET WPL M1205302 Contact Us For Availability

27

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $49.78

27

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $60.60

27

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $60.60

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

ADAPTER, SIDE (LT) WPL 67004010 Contact Us For Availability

ADAPTER, SIDE (RT) WPL 67004011 Contact Us For Availability

TRAY, BUTTER WPL 67004404 Contact Us For Availability

29

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $31.88

29

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

29

LID, BUTTER TRAY WPL 67004405 Contact Us For Availability

30

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

30

BRACKET, DRAWER SLIDE (LT) WPL 67004012 Contact Us For Availability

30

BRACKET, DRAWER SLIDE (RT) WPL 67004013 Contact Us For Availability

31

SCREW, ADJUSTING WPL 10093313 Contact Us For Availability

32

W11715937 Whirlpool Shaft Backorder WPL W11715937 $44.90

32

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $48.27

33

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

33

HARNESS, EVAP HEATER WPL 67005574 Contact Us For Availability

NI

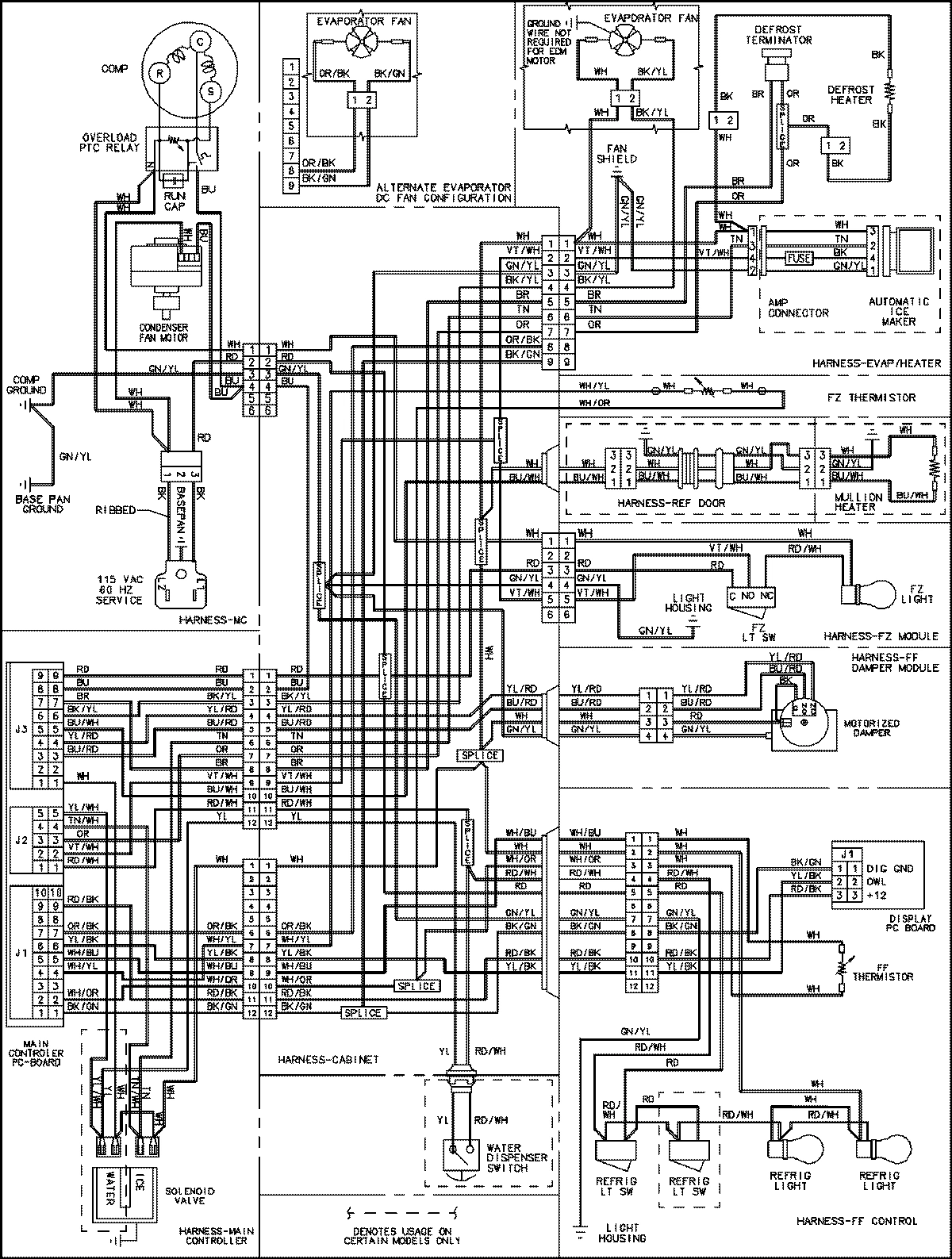

WIRING INFORMATION WPL 15003687 Contact Us For Availability
