Model Maytag MBF1956KEB2 REFRIGERATOR – Common Parts & Diagrams

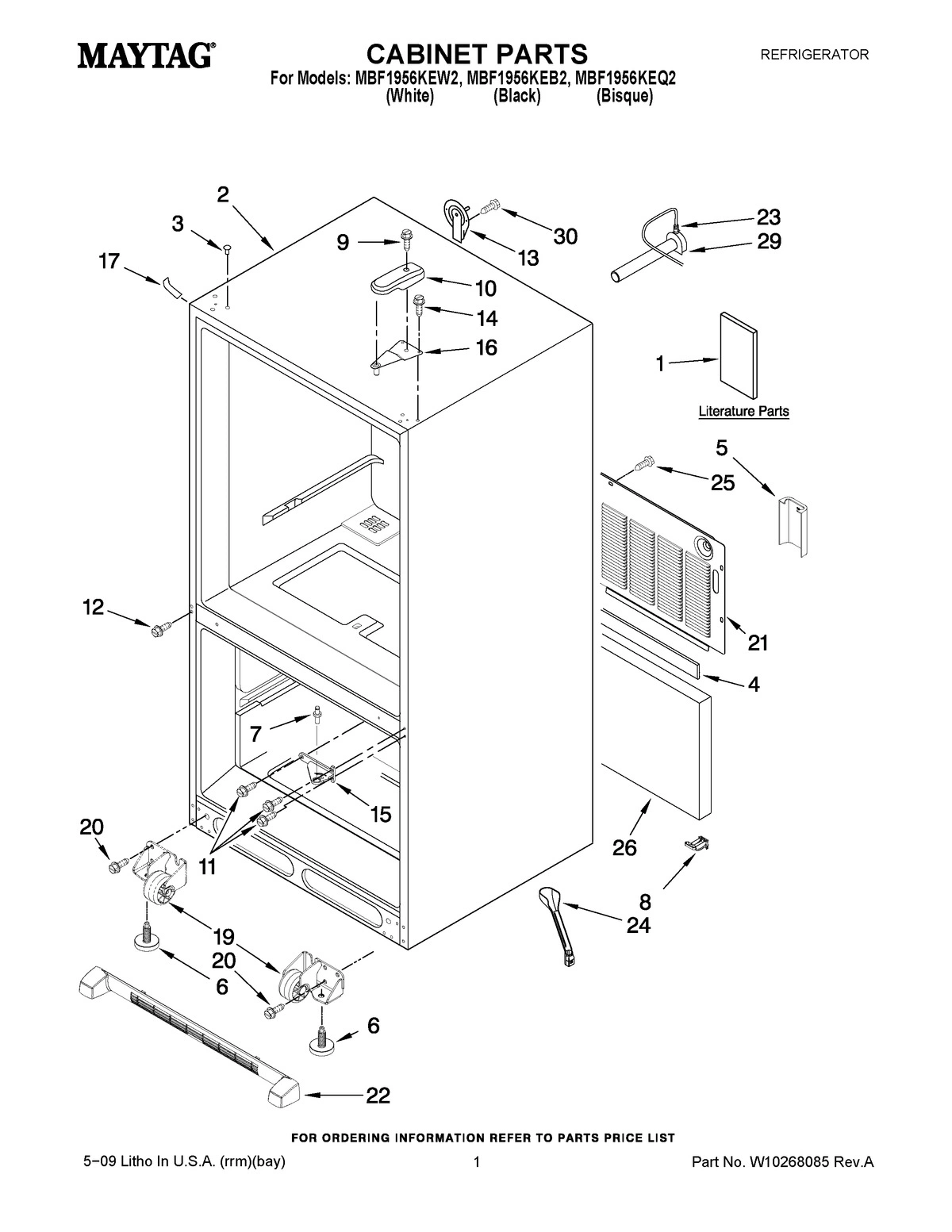

01 - CABINET PARTS

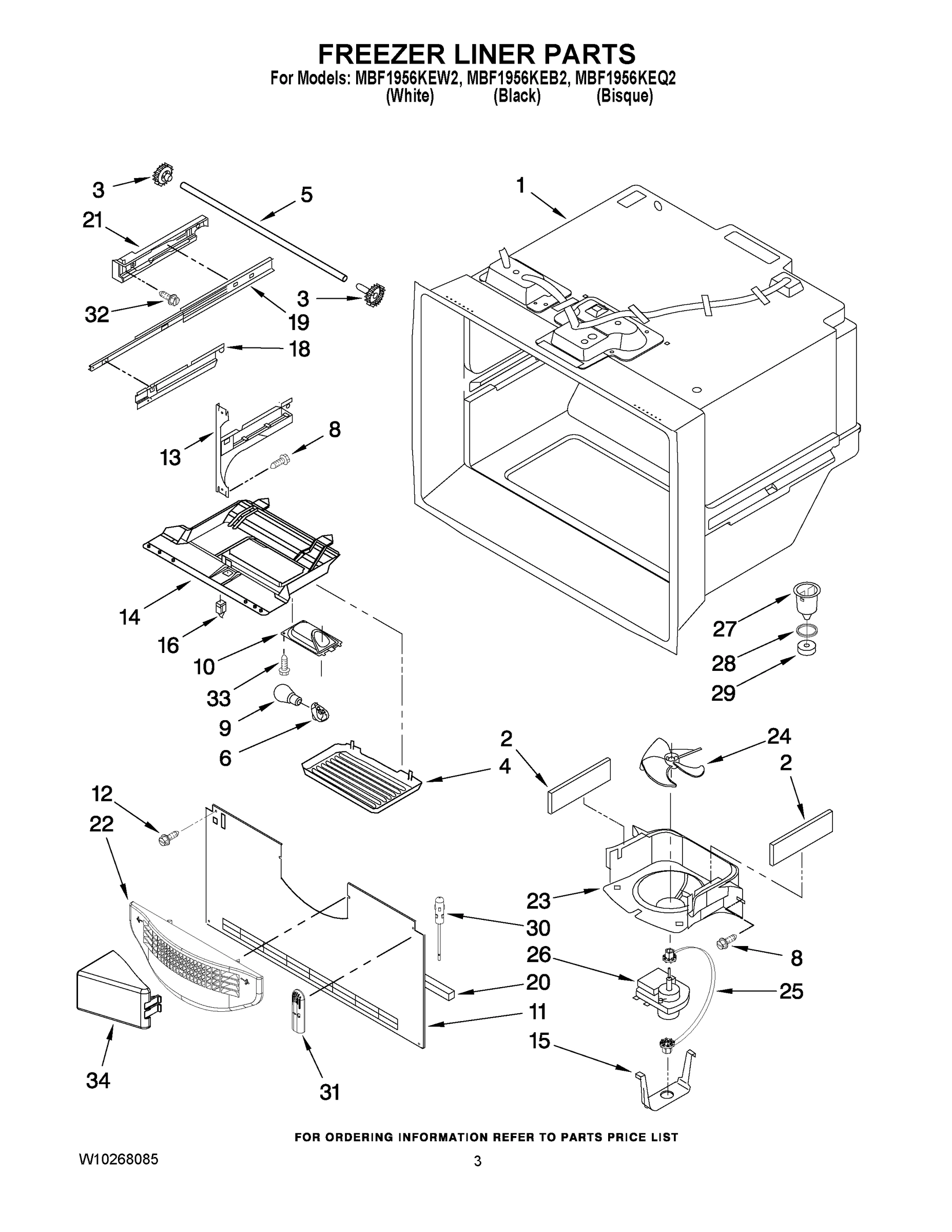

02 - FREEZER LINER PARTS

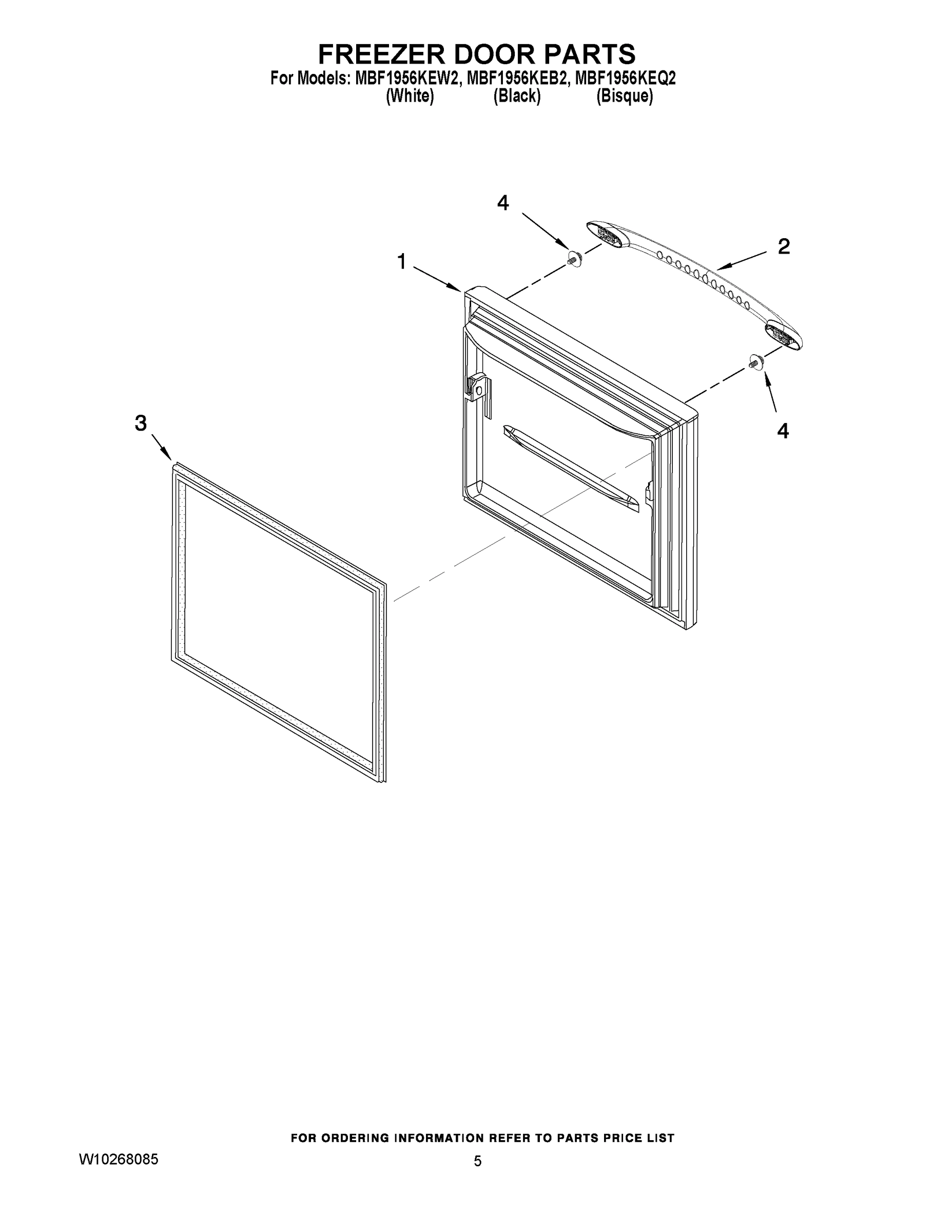

03 - FREEZER DOOR PARTS

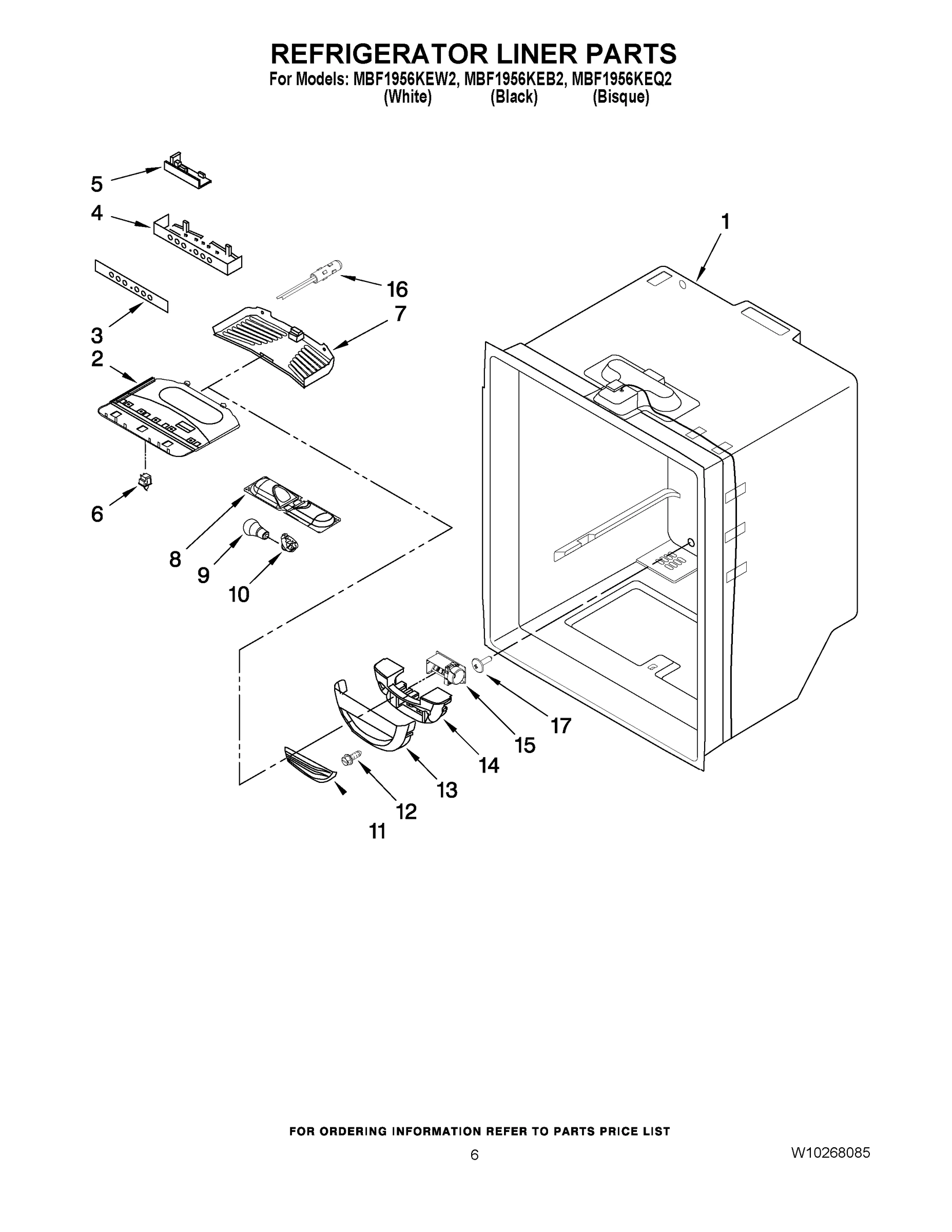

04 - REFRIGERATOR LINER PARTS

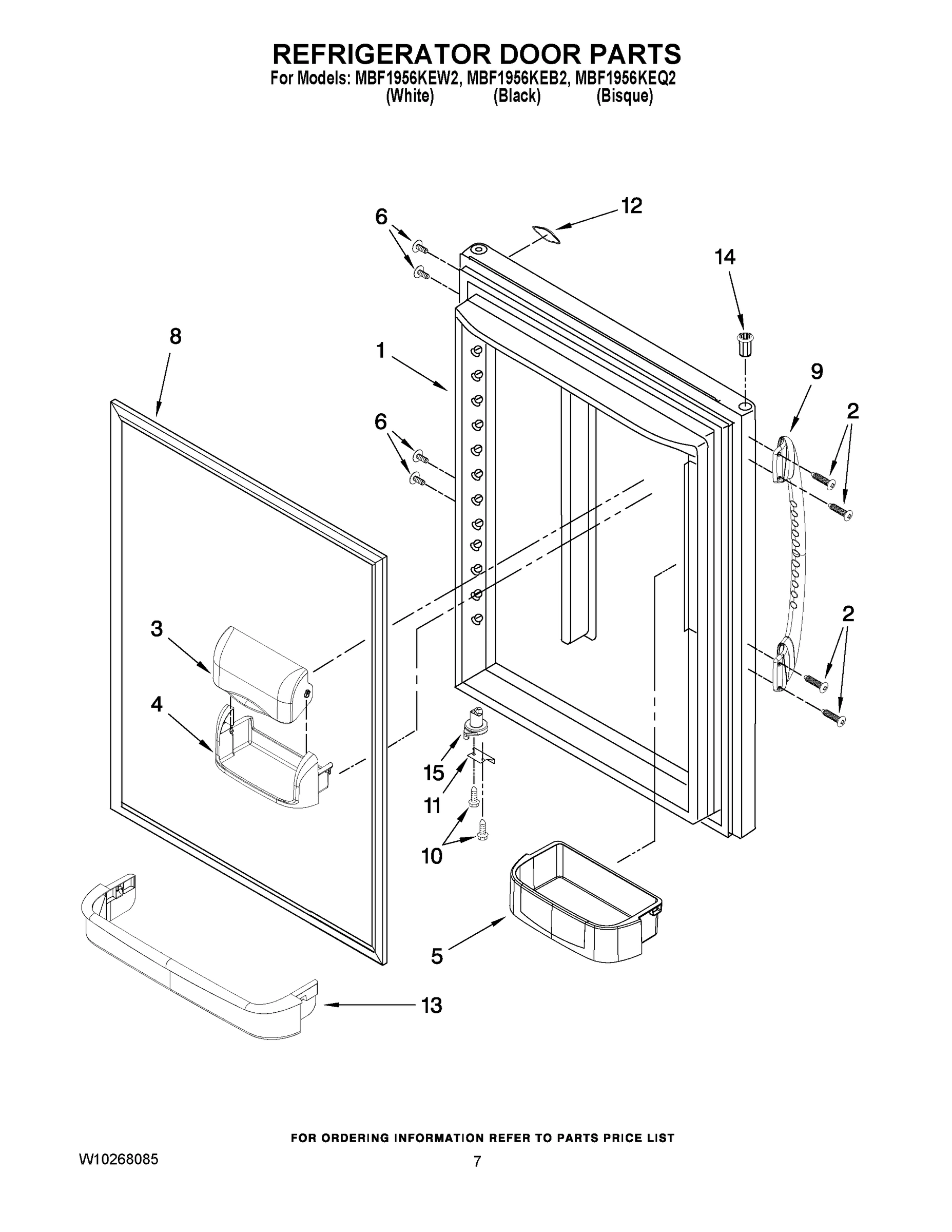

05 - REFRIGERATOR DOOR PARTS

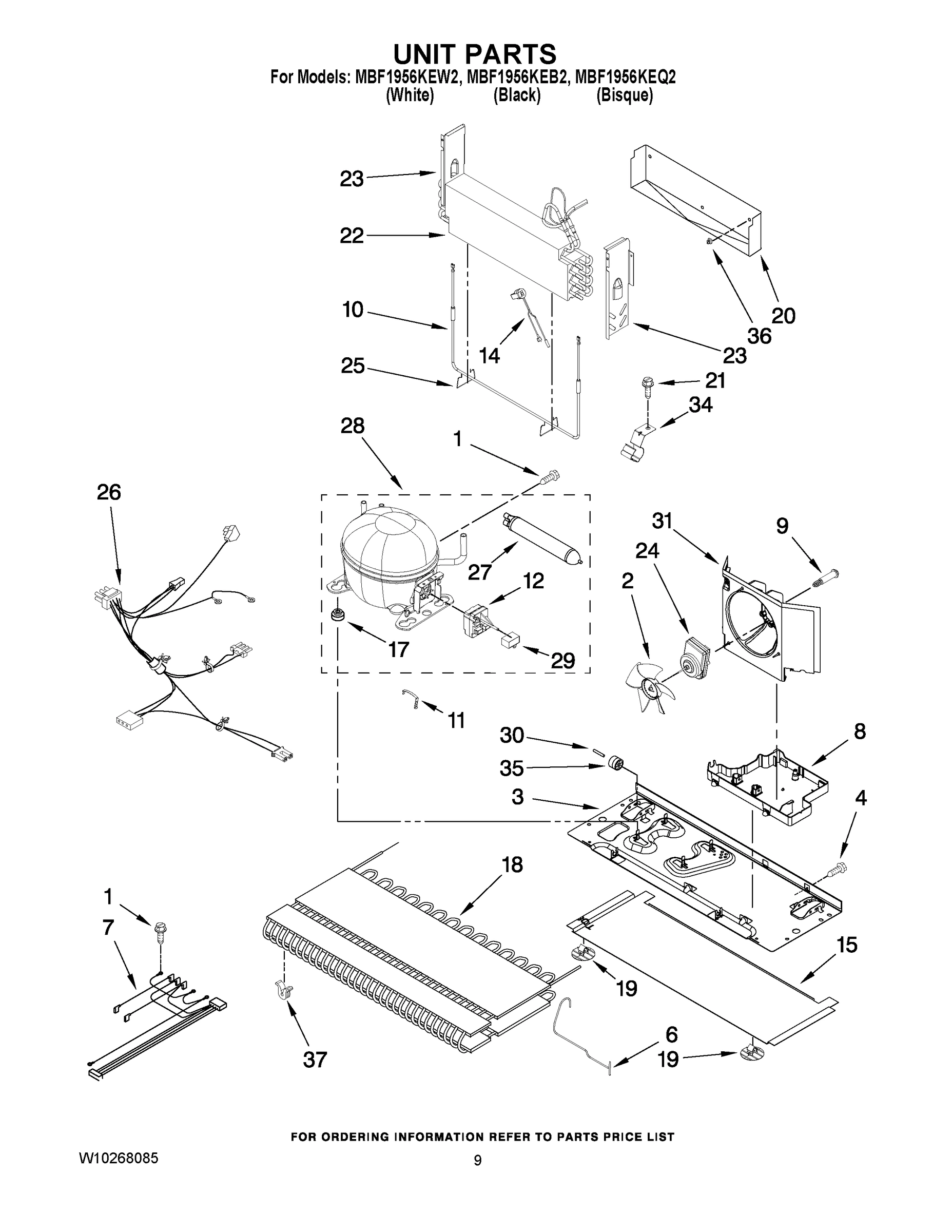

06 - UNIT PARTS

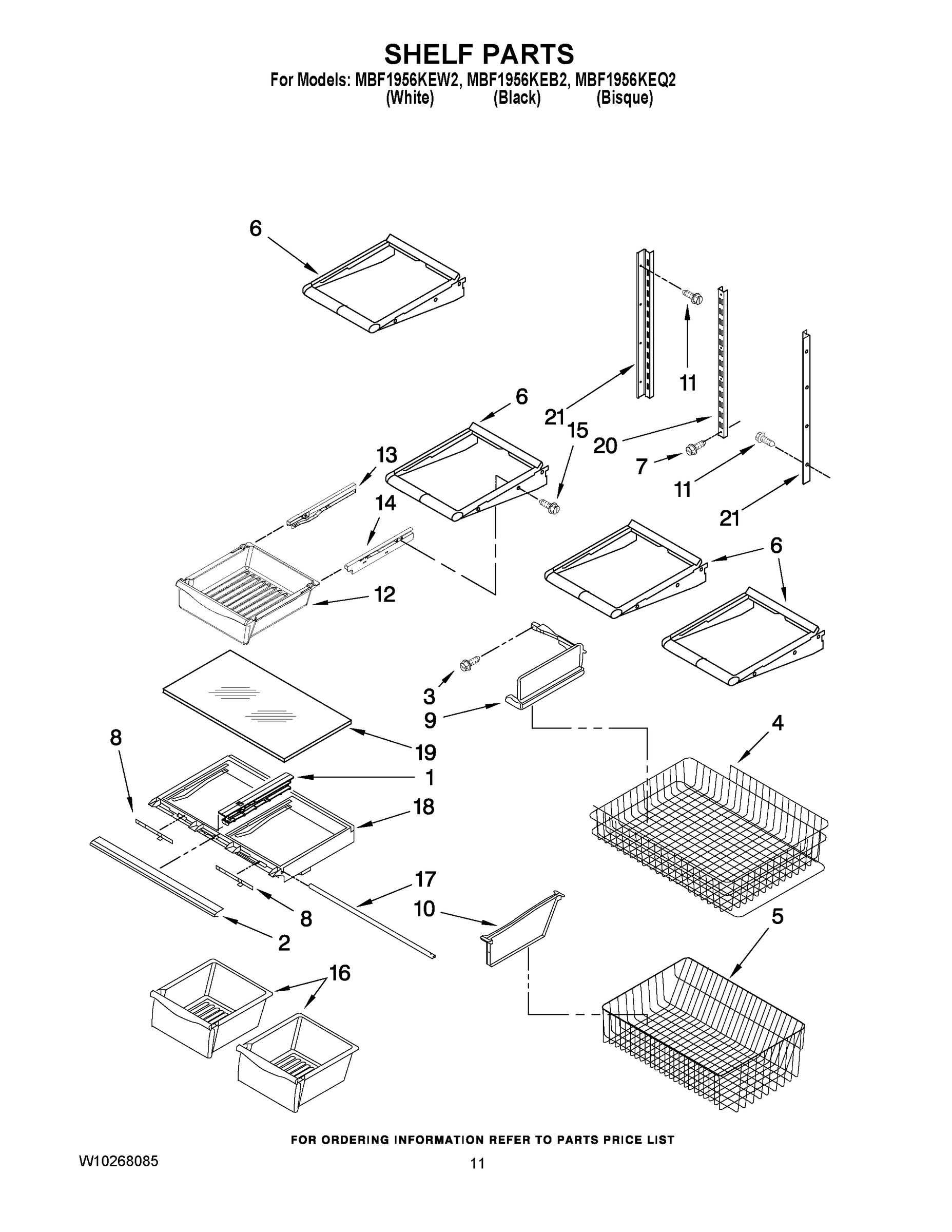

07 - SHELF PARTS

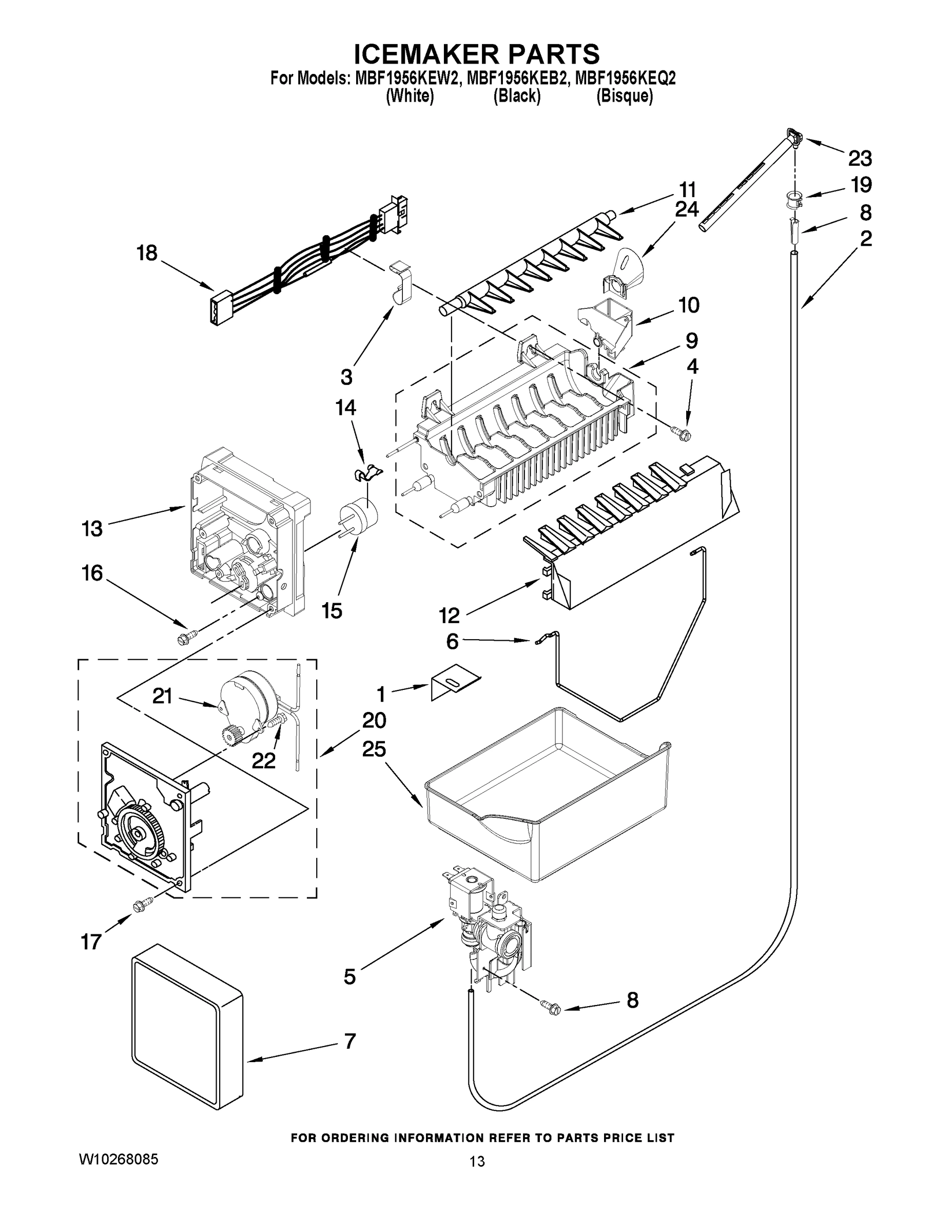

08 - ICEMAKER PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag MBF1956KEB2 REFRIGERATOR
1
MAY 13092201BQ MAY 13092201BQ Contact Us For Availability
1
DOOR, FREEZER (BISQUE) MAY 13092201QQ Contact Us For Availability
1
MAY 13092201WQ MAY 13092201WQ Contact Us For Availability
1
MAY 12658529BQ MAY 12658529BQ Contact Us For Availability
1
DOOR, REFRIGERATOR (BISQUE) MAY 12658529CQ Contact Us For Availability
1
MAY 12658529WQ MAY 12658529WQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
Rail, Center Crisper MAY 12530701 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
2
Gasket, Foam (2) MAY A3189392 Contact Us For Availability
2
MAY W10119651 MAY W10119651 Contact Us For Availability
2
MAY W10119652 MAY W10119652 Contact Us For Availability
2
MAY W10119653 MAY W10119653 Contact Us For Availability
2
MAY 12806301 MAY 12806301 Contact Us For Availability
2
SCREW (4) (WHITE) MAY 12992802 Contact Us For Availability
2
SCREW (4) (BLACK) MAY 12992803 Contact Us For Availability
2
MAY M1261616 MAY M1261616 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231339 MAY W10231339 Contact Us For Availability
2
MAY B5705333SP MAY B5705333SP Contact Us For Availability
3
MAY M0310731 MAY M0310731 Contact Us For Availability
3
MAY M0310738 MAY M0310738 Contact Us For Availability
3
MAY W10164032 MAY W10164032 Contact Us For Availability
3
MAY W10164033 MAY W10164033 Contact Us For Availability
3
MAY 12816502 MAY 12816502 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210982 MAY W10210982 Contact Us For Availability
3
MAY 12990601 MAY 12990601 Contact Us For Availability
3
MAY 10526702 MAY 10526702 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12804901 MAY 12804901 Contact Us For Availability
4
Housing, Electronic Control MAY 12806406 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
Basket, Freezer (Upper) MAY 12896401 Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
GUARD-WATER VALVE MAY W10208592 Contact Us For Availability
5
SHAFT MAY 12812902WD Contact Us For Availability
5
MAY 12868513 MAY 12868513 Contact Us For Availability
5
BUCKET, SMALL (2) MAY 12801901V Contact Us For Availability
5
BUCKET, MEDIUM (2) MAY 12801902V Contact Us For Availability
5
MAY W10143560 MAY W10143560 Contact Us For Availability
5
MAY W10219716 MAY W10219716 Contact Us For Availability
6
Foot, Brake MAY 10354002 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
Screw (4) (White) MAY 12991103 Contact Us For Availability
6
Screw (4) (Bisque) MAY 12991104 Contact Us For Availability
6
SCREW (4) (BLACK) MAY 12991105 Contact Us For Availability
6
MAY W10217744 MAY W10217744 Contact Us For Availability
6
Shelf (4) MAY 12463608 Contact Us For Availability
6
ARM, SHUTOFF MAY 12868001 Contact Us For Availability
7
MAY 10351006 MAY 10351006 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY W10224241 MAY W10224241 Contact Us For Availability
7
Screw MAY 12990515 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
8
MAY W10216614 MAY W10216614 Contact Us For Availability
8
Screw (8) MAY 12990521 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
Gasket, Door (White) MAY W10164030 Contact Us For Availability
8
MAY W10164031 MAY W10164031 Contact Us For Availability
8
MAY W10189185 MAY W10189185 Contact Us For Availability
8
MAY 12530805SP MAY 12530805SP Contact Us For Availability
8
MAY A3223101SP MAY A3223101SP Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
Bulb, Light (2) MAY W10194422V Contact Us For Availability
9
MAY 12781004B MAY 12781004B Contact Us For Availability
9
MAY 12781004Q MAY 12781004Q Contact Us For Availability
9
MAY 12781004W MAY 12781004W Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
DIVIDER, BASKET (UPPER) MAY 12693802 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
10
MAY 12477601C MAY 12477601C Contact Us For Availability
10
MAY 12477601W MAY 12477601W Contact Us For Availability
10
MAY 12990504 MAY 12990504 Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
Housing, Frz. Light MAY 12476401V Contact Us For Availability
10
MAY 12729127 MAY 12729127 Contact Us For Availability
10
DIVIDER, BASKET LOWER MAY 12659608 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY 12226110 MAY 12226110 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 10447111 MAY 10447111 Contact Us For Availability
11
Stop, Door (Black) MAY 10447112 Contact Us For Availability
11
MAY 10447113 MAY 10447113 Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
SCREW (7) MAY 12990101 Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
MAY 2320150 MAY 2320150 Contact Us For Availability
12
MAY W10136414 MAY W10136414 Contact Us For Availability
12
MAY 12656504SP MAY 12656504SP Contact Us For Availability
12
MAY 2182124 MAY 2182124 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
13
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY 12690501 MAY 12690501 Contact Us For Availability
13
GLIDE, LEFT MAY 12656601SP Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
Housing, Lighting MAY 12805001 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 10961006B MAY 10961006B Contact Us For Availability
14
BUSHING (4) (WHITE) MAY 10961006W Contact Us For Availability
14
MAY 12639324SP MAY 12639324SP Contact Us For Availability
14
GLIDE, RIGHT MAY 12656602SP Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY W10196393 MAY W10196393 Contact Us For Availability
15
MAY 12028505B MAY 12028505B Contact Us For Availability
15
MAY 12028505W MAY 12028505W Contact Us For Availability
15
MAY W10206336 MAY W10206336 Contact Us For Availability
15
MAY 12990302SP MAY 12990302SP Contact Us For Availability
15
THERMOSTAT ORDER 542369 CEMENT ALUMILASTIC MAY 628397 Contact Us For Availability
16
Hinge, Top MAY 12566604ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12531305 MAY 12531305 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
Cover, Corner (Bisque) MAY 12587703C Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
PLUG, BUTTON MAY M0310343 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
BRACE, CRISPER MAY 12227302WD Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
Bracket, Basket (Left) MAY 12812303 Contact Us For Availability
18
Bracket, Basket (Right) MAY 12812304 Contact Us For Availability
18
MAY W10135028 MAY W10135028 Contact Us For Availability
18
MAY 12530901SP MAY 12530901SP Contact Us For Availability
18
MAY D7813011 MAY D7813011 Contact Us For Availability
19
MAY 12580304 MAY 12580304 Contact Us For Availability
19
MAY M0114003SP MAY M0114003SP Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
FASTENER, BASEPAN EXTENSION MAY W10206339 Contact Us For Availability
19
GLASS, CRISPER COVER MAY 12204823 Contact Us For Availability
20
Screw (4) MAY 12991302 Contact Us For Availability
20
Gasket, Bottom MAY A3189397 Contact Us For Availability
20
MAY 12225401WD MAY 12225401WD Contact Us For Availability
20
MAY 12435807 MAY 12435807 Contact Us For Availability
20
MODULE ASSEMBLY (INCLUDES ITEMS 21& 22) MAY W10223929 Contact Us For Availability
21
MAY W10210978 MAY W10210978 Contact Us For Availability
21
MAY W10128118 MAY W10128118 Contact Us For Availability
21
MAY W10128119 MAY W10128119 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY 12710606 MAY 12710606 Contact Us For Availability
22
MAY W10236649 MAY W10236649 Contact Us For Availability
22
MAY W10236650 MAY W10236650 Contact Us For Availability
22
GRILLE, TOE (BISQUE) MAY W10236651 Contact Us For Availability
22
Cover, Fan Shroud MAY 13024803 Contact Us For Availability
22
MAY 12726401 MAY 12726401 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
MAY 10463203SP MAY 10463203SP Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
24
MAY W10210987 MAY W10210987 Contact Us For Availability
24
Fan, Evaporator MAY 2169142 Contact Us For Availability
24
MAY 12825101 MAY 12825101 Contact Us For Availability
24
MAY 12918001 MAY 12918001 Contact Us For Availability
25
Grommet (2) MAY W10121318 Contact Us For Availability
25
MAY 12695001V MAY 12695001V Contact Us For Availability
26
Fiber, Acoustic MAY 12820505 Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
MAY W10234024 MAY W10234024 Contact Us For Availability
27
FUNNEL, DRAIN (INCL. No. 28 & 29) MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 2 MAY W10130129 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 2264017 MAY 2264017 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
Screw (6) MAY 12990501 Contact Us For Availability
33
MAY 12991603V MAY 12991603V Contact Us For Availability
34
MAY W10157765 MAY W10157765 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
35
Roller (2) MAY 12477102 Contact Us For Availability
36
Clip, Evap (2) MAY 10623002 Contact Us For Availability
37
Grommet (4) MAY W10137529 Contact Us For Availability
100
MAY W10190978 MAY W10190978 Contact Us For Availability
NI
MAY 13014801 MAY 13014801 Contact Us For Availability
NI
MAY 12868701 MAY 12868701 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
