Model Whirlpool MBB1957VEB10 REFRIGERATOR – Common Parts &amp; Diagrams

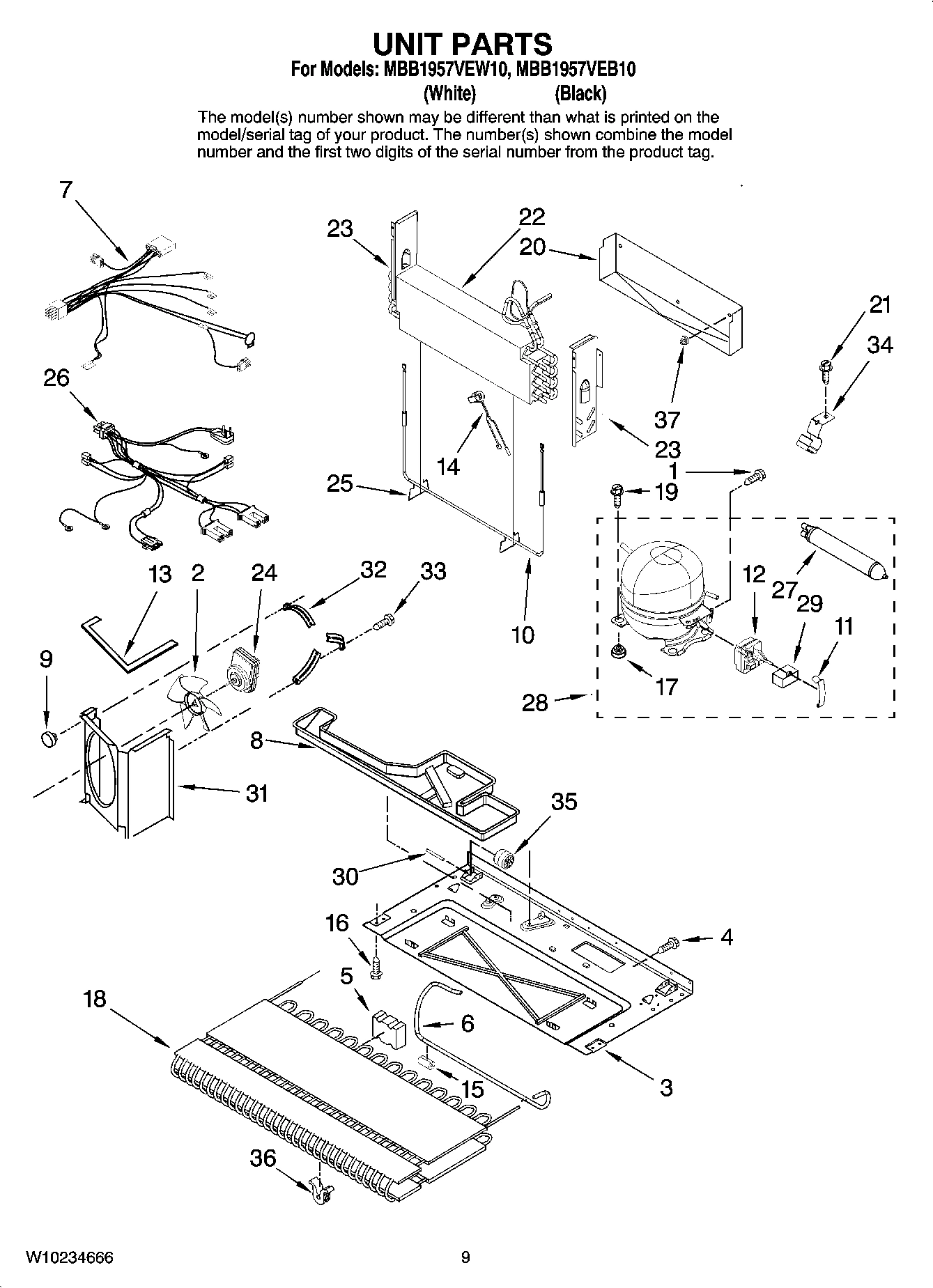

1

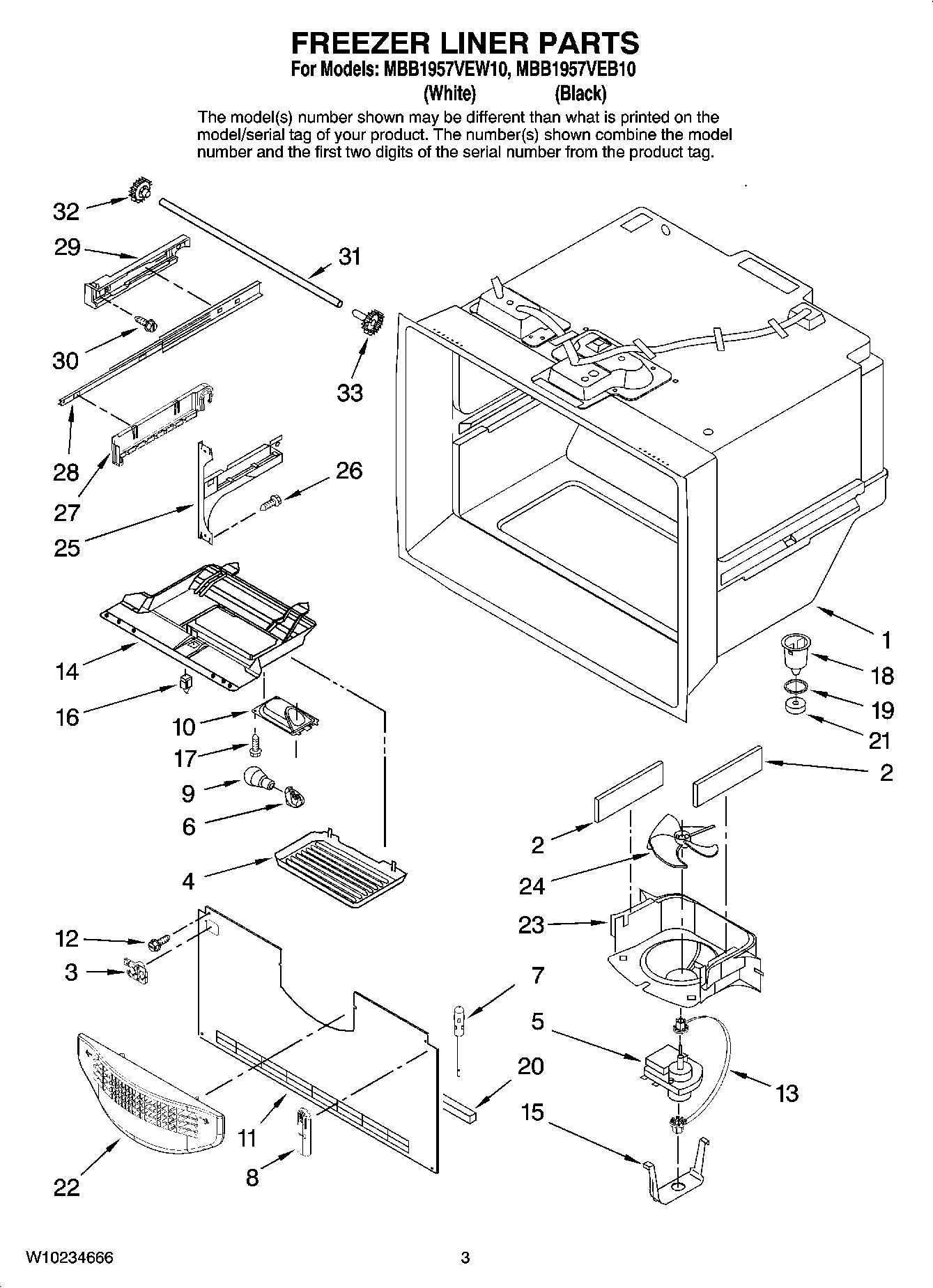

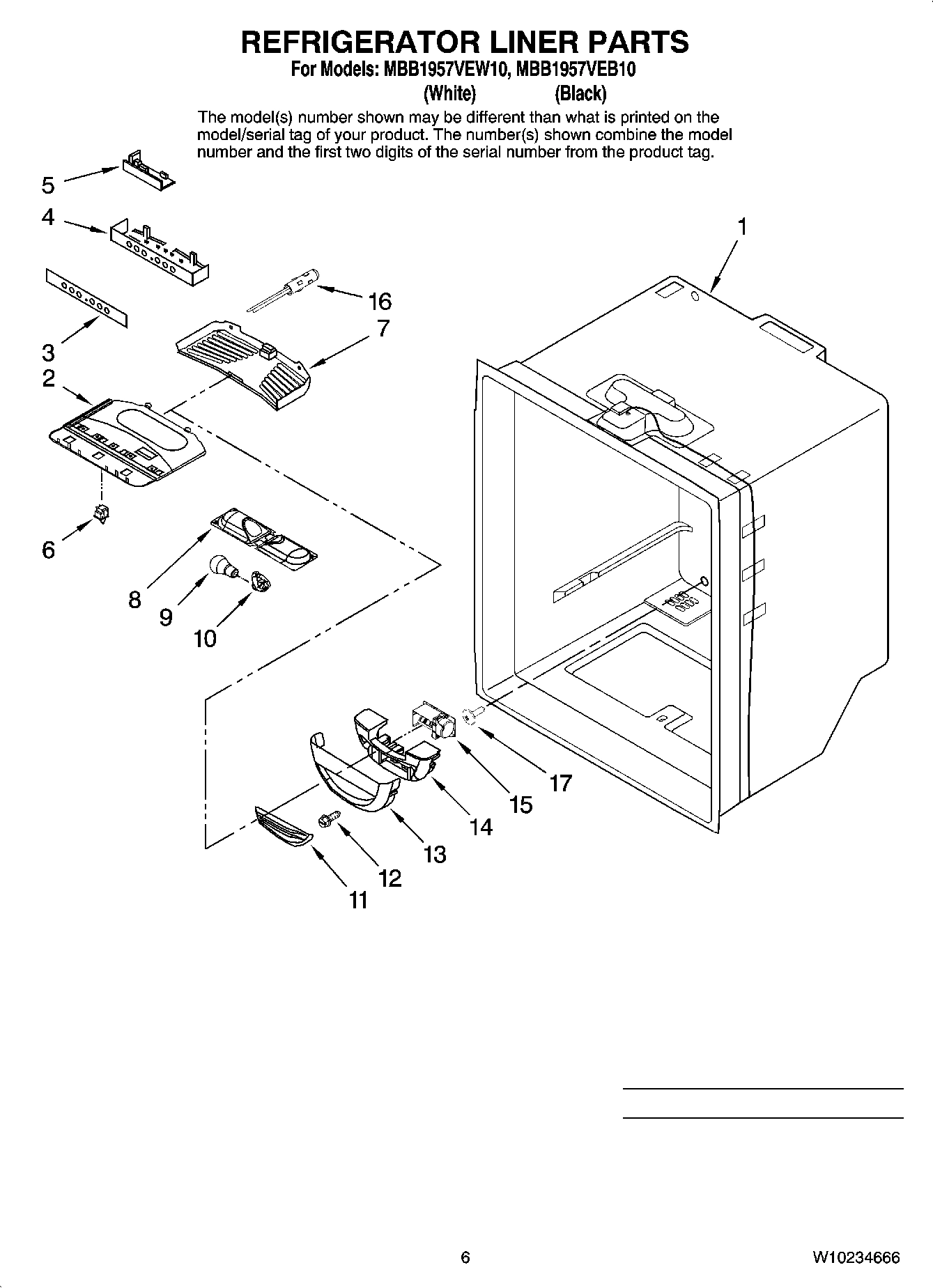

Liner (Not A Serviceable Part) WPL ARI3999A55 Contact Us For Availability

1

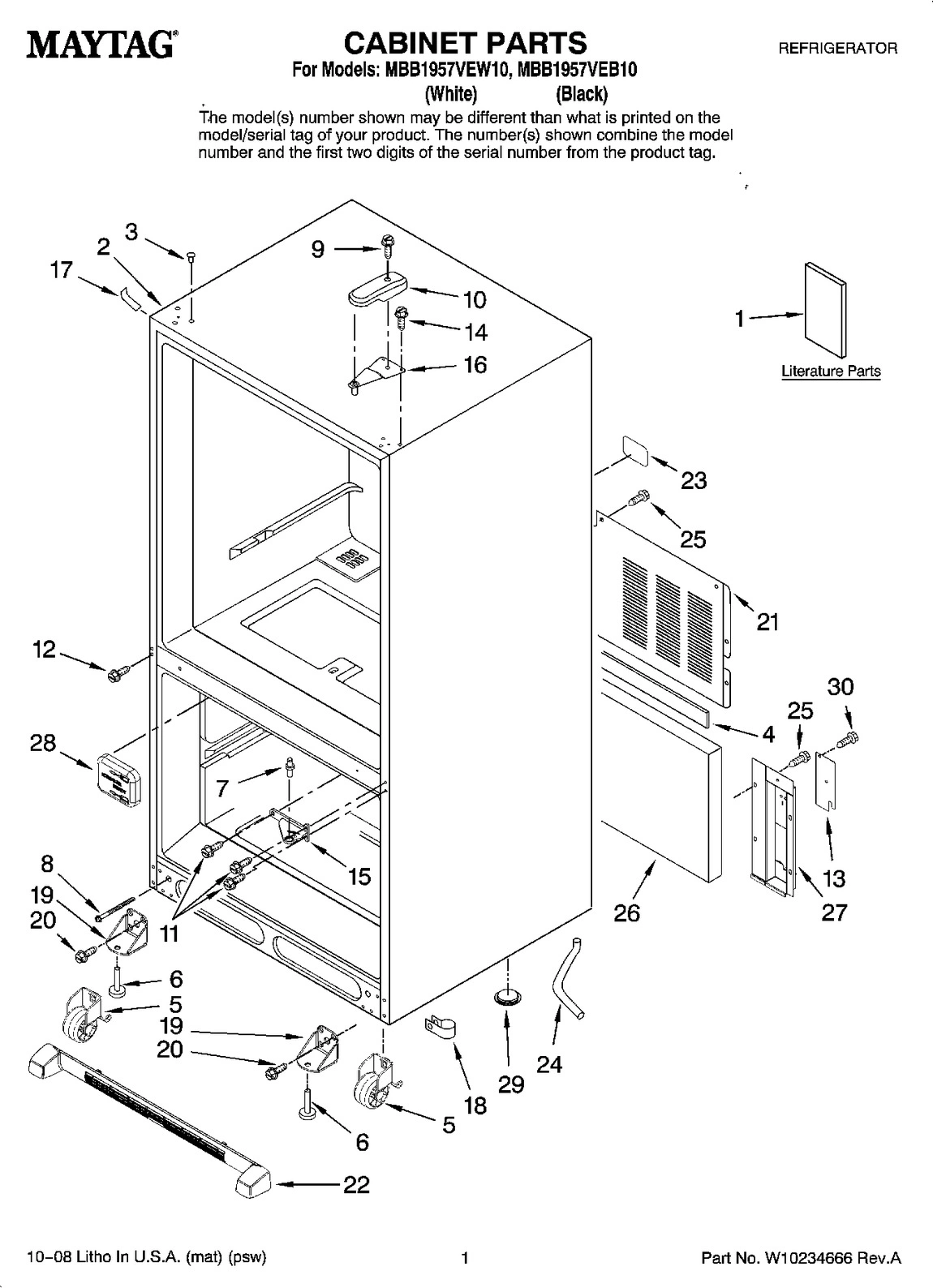

Tech Sheet WPL W10165418 Contact Us For Availability

1

Use & Care Guide WPL W10175446 Contact Us For Availability

1

Energy Guide WPL W10206543 Contact Us For Availability

1

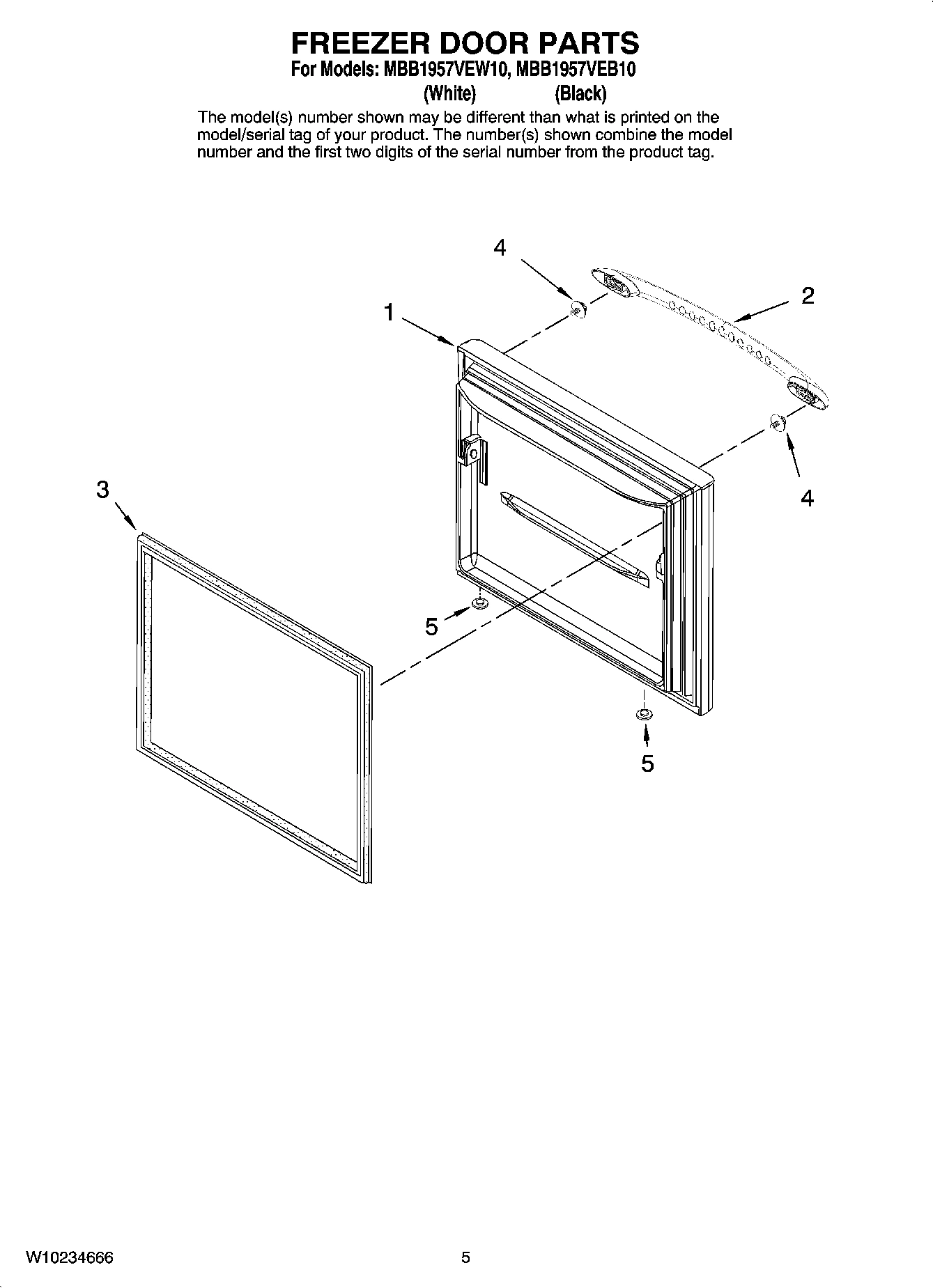

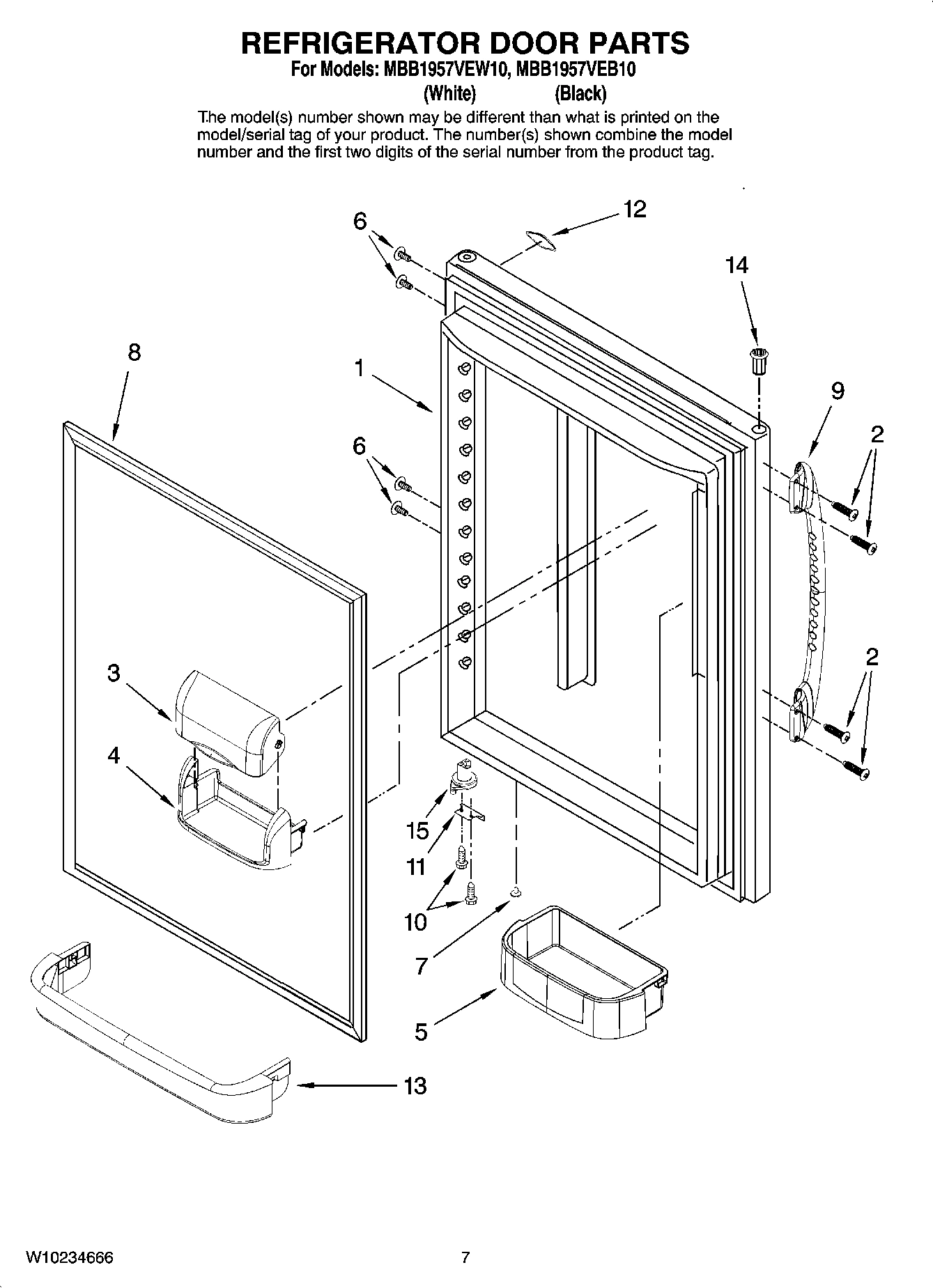

Door, Refrigerator (Black) WPL 67004036 Contact Us For Availability

1

Door, Refrigerator (White) WPL 67004039 Contact Us For Availability

2

67006806 Whirlpool Refrigerator Black High To Backorder WPL 67006806 $8.89

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $51.80

2

WPW10119651 Whirlpool Refrigerator Handle Backorder WPL WPW10119651 $138.85

2

Handle, Door (Black) WPL W10119653 Contact Us For Availability

2

MODULE, LIGHT WPL Y67003896 Contact Us For Availability

2

Cabinet (Not a Servicable Part) WPL ARI3996A17 Contact Us For Availability

2

Screw (4) (White) WPL 67006668 Contact Us For Availability

3

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $16.36

3

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $4.82

3

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $54.67

3

Overlay WPL W10207257 Contact Us For Availability

3

Basepan WPL 12601104 Contact Us For Availability

3

Plug, Button (3) (Black) WPL M0310731 Contact Us For Availability

4

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $6.84

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

4

WPW10464769 Whirlpool Refrigerator Housing Backorder WPL WPW10464769 $74.99

4

Gasket WPL B5759649 Contact Us For Availability

5

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $63.87

5

WP67004041 Whirlpool Refrigerator Bucket In Stock WPL WP67004041 $55.28

5

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $56.72

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $209.77

5

Block, Condenser WPL 67005491 Contact Us For Availability

5

Roller Assy. (2) WPL 12580304KVF Contact Us For Availability

6

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.78

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

6

W11402522 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402522 $150.81

6

Tube, Discharge WPL W10183705 Contact Us For Availability

6

Screw (4) (White) WPL 12991103 Contact Us For Availability

6

Screw (4) (Black) WPL 67007166 Contact Us For Availability

7

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.10

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $69.33

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $4.82

7

Harness, Evap. Heater WPL W10119856 Contact Us For Availability

7

Plug, Button (2) (White) WPL 10712401 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $75.97

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

8

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $227.22

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $154.86

8

PAN, DRAIN WPL 67004713 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

9

WP12781004W Whirlpool Refrigerator Handle Backorder WPL WP12781004W $148.47

9

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

9

Grommet (3) WPL 61004743 Contact Us For Availability

9

Handle, Door (Black) WPL 67006120 Contact Us For Availability

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $34.64

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $14.02

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

WP67002135 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67002135 $112.64

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $6.02

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

Clip, Capacitor WPL W10131991 Contact Us For Availability

8201769 Whirlpool Refrigerator Compressor Rel In Stock WPL 8201769 $132.34

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $5.02

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $47.02

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $34.13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

Retainer, Ref Door WPL 12690501 Contact Us For Availability

PLATE, COVER WPL 12479901 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

W11750607 Whirlpool Insulation Backorder WPL W11750607 $32.09

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $52.91

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $101.60

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $5.30

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $46.99

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $169.94

16

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $31.88

16

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

16

SCREW WPL 67006573 Contact Us For Availability

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $13.22

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $7.10

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

18

Clip, Drain WPL W10157973 No Longer Available

18

W10346423 Whirlpool Refrigerator Condenser Backorder WPL W10346423 $168.29

19

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $8.39

19

Bracket, Foot (2) WPL W10208641 Contact Us For Availability

20

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $5.02

20

W11337775 Whirlpool Drip Tray Backorder WPL W11337775 $68.10

21

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

21

Cover, Unit WPL 12575101WD Contact Us For Availability

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $39.08

WPW10534166 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534166 $76.18

WPW10534167 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534167 $74.57

Evaporator Kit (Incl. Evap., Heat Shield, & I WPL 12002051 Contact Us For Availability

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $67.69

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

LABEL, FILL TUBE WPL 67005064 Contact Us For Availability

24

W10164397 Whirlpool Refrigerator Drain Tube In Stock WPL W10164397 $9.35

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

24

Motor, Fan WPL 67004432 Contact Us For Availability

25

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

26

13060302 Whirlpool Refrigerator Wire Harness Backorder WPL 13060302 $236.52

26

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

27

COVER, WATER VALVE WPL 67001173 Contact Us For Availability

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $94.87

28

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $4.82

28

Compressor (Includes items 11,12,17,27,29) WPL W10130129 Contact Us For Availability

29

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

29

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $57.90

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.82

30

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

31

Shroud WPL 12575309 Contact Us For Availability

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $49.60

33

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

33

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

35

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $14.02

36

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

37

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $56.75

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $51.99

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI4000A61 Contact Us For Availability

Valve, Access (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI4001A53 Contact Us For Availability

REFRIGERANT CHARGE 4.25 ozs. (R-134A) WPL ARI4002A38 Contact Us For Availability
