Model Whirlpool LER1115AAW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

TUBE, VENT WPL 8026P01960 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

1

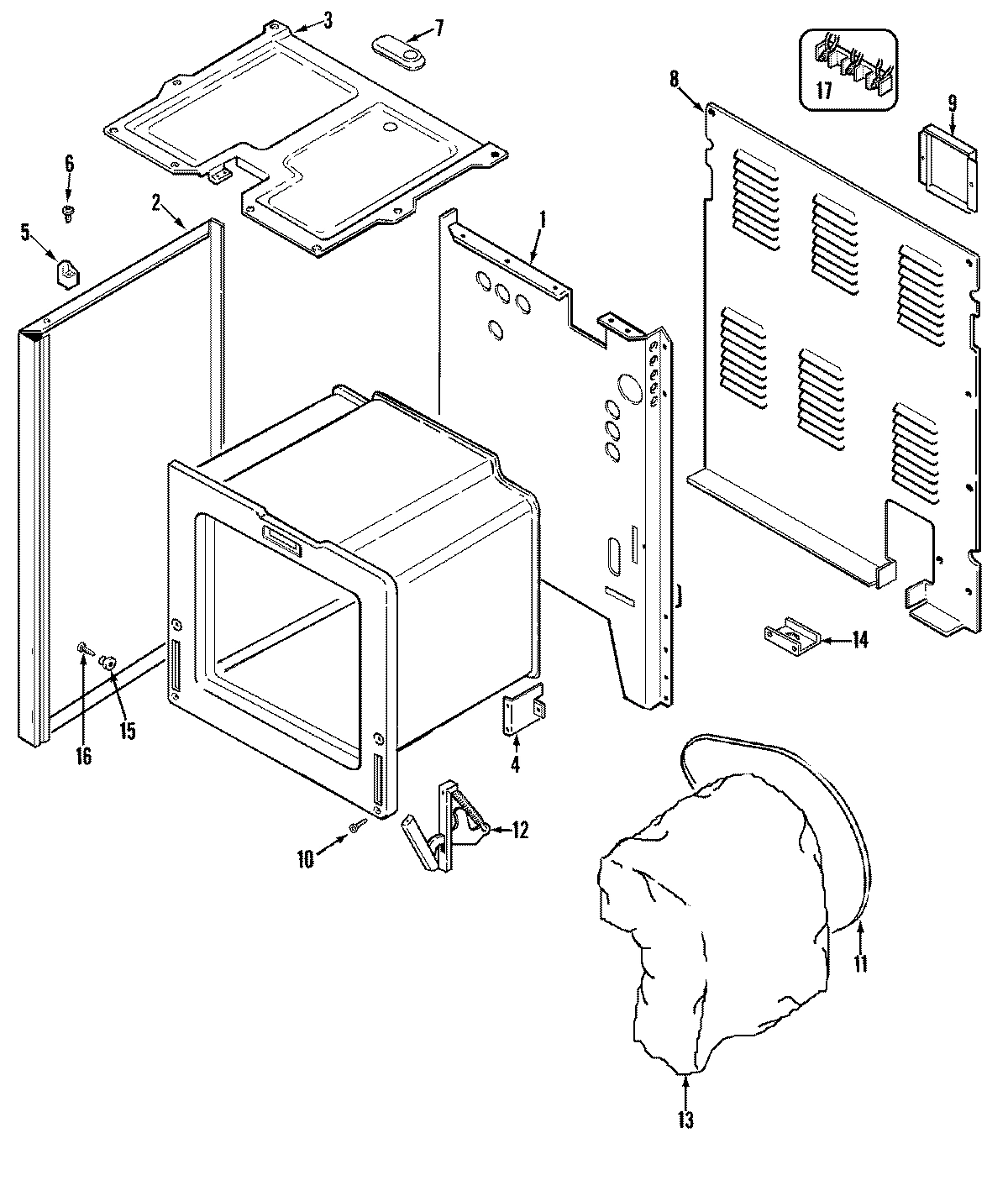

BACK, MAIN WPL 74007131 Contact Us For Availability

1

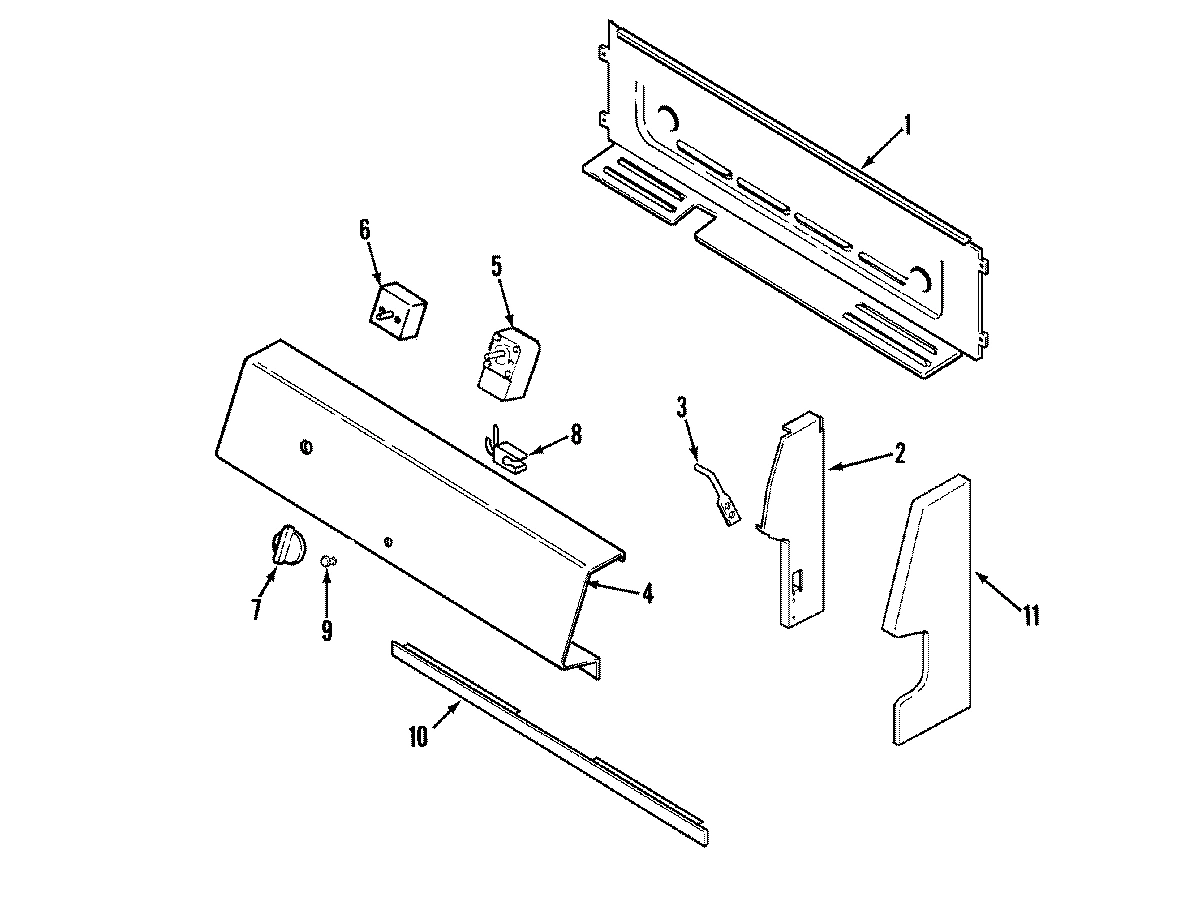

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

1

MANUAL, USE & CARE WPL 74005902 Contact Us For Availability

2

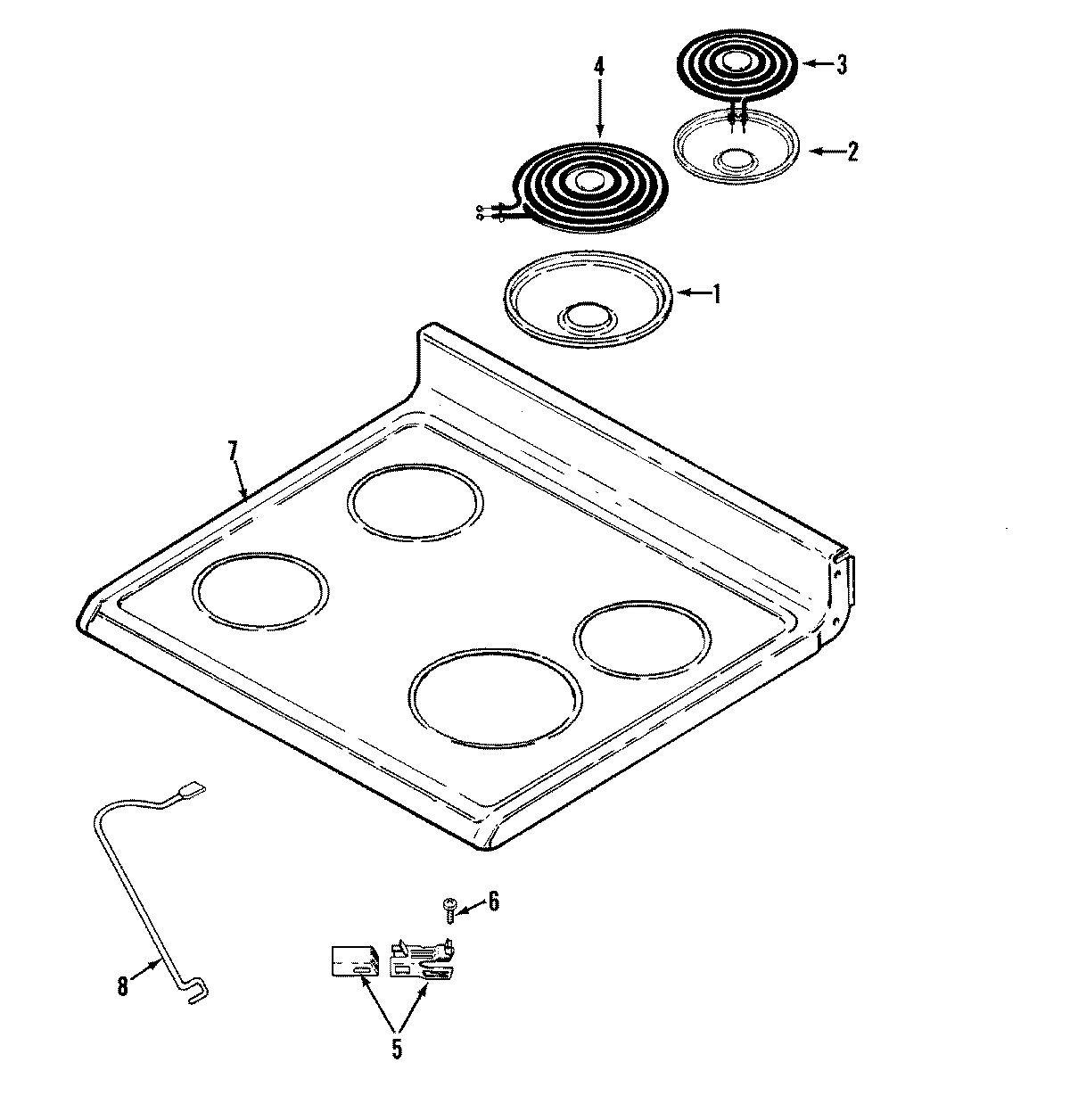

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $9.60

2

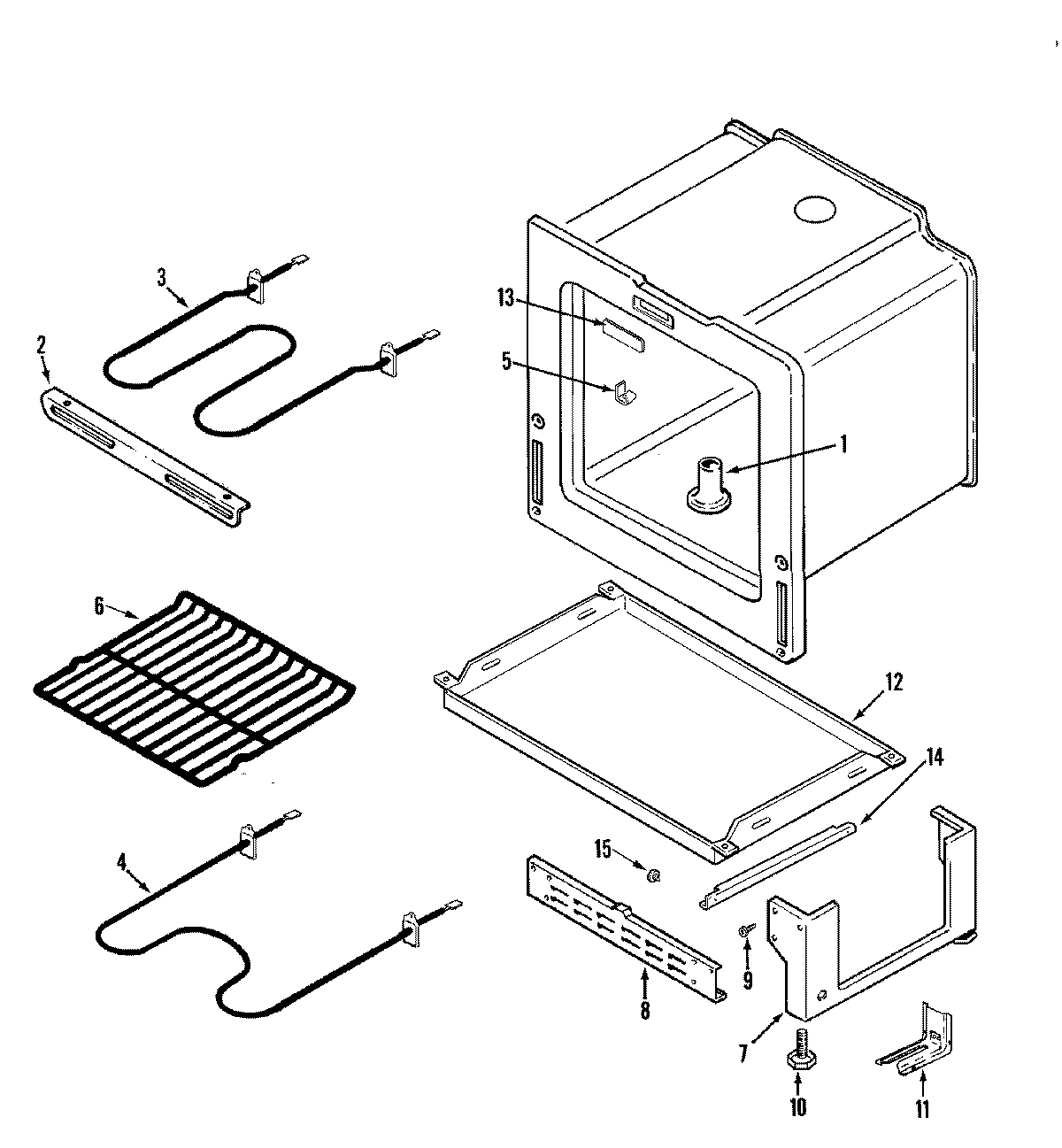

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

2

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

2

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

2

HARNESS, CONTROL PANEL TO TOP WPL 74007477 Contact Us For Availability

2

HARNESS, BACKGUARD WPL 74008217 Contact Us For Availability

3

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

3

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 $77.62

3

SPACER, HANDLE (WHT) WPL 8010P08960 Contact Us For Availability

3

BOX, BURNER WPL 4011F24019 Contact Us For Availability

3

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

4

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

WP9761346 Whirlpool Stove Surface Burner Elem In Stock WPL WP9761346 $62.88

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

PANEL, CONTROL (WHT) WPL 74008216 Contact Us For Availability

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

5

WP74005019 Whirlpool Range Thermostat In Stock WPL WP74005019 $135.09

5

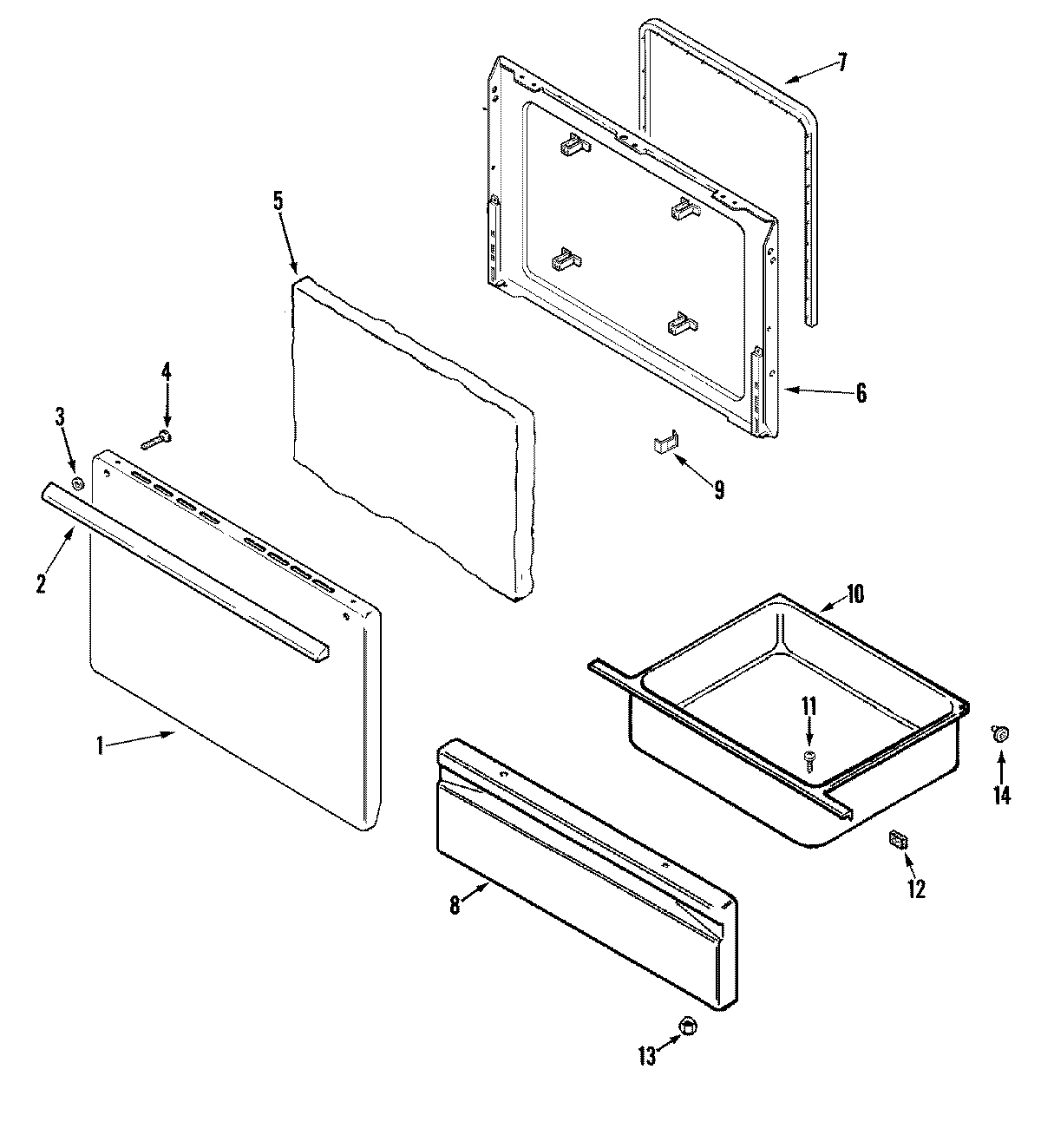

INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability

5

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

LINING, DOOR WPL 74003240 Contact Us For Availability

6

SCREW WPL 7118P01360 Contact Us For Availability

6

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

6

SCREW WPL 7101P30960 Contact Us For Availability

6

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

6

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

7

WP74003373 Whirlpool Knob Switch Backorder WPL WP74003373 $12.06

7

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 74003410 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

7

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

8

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

8

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

SUPPORT, TOP WPL 74001170 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

9

CLIP, DOOR WPL 7112P03460 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

9

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

SCREW WPL 7101P35260 Contact Us For Availability

STRAP, INSULATION WPL 74003385 Contact Us For Availability

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability

END CAP, CONTROL PNL (LT-WHT) WPL 74003370 Contact Us For Availability

12

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $91.57

12

SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability

12

RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability

INSULATION, WRAP WPL 74003112 Contact Us For Availability

14

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

14

NUT WPL 7103P08260 Contact Us For Availability

14

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

16

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

16

SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

NI

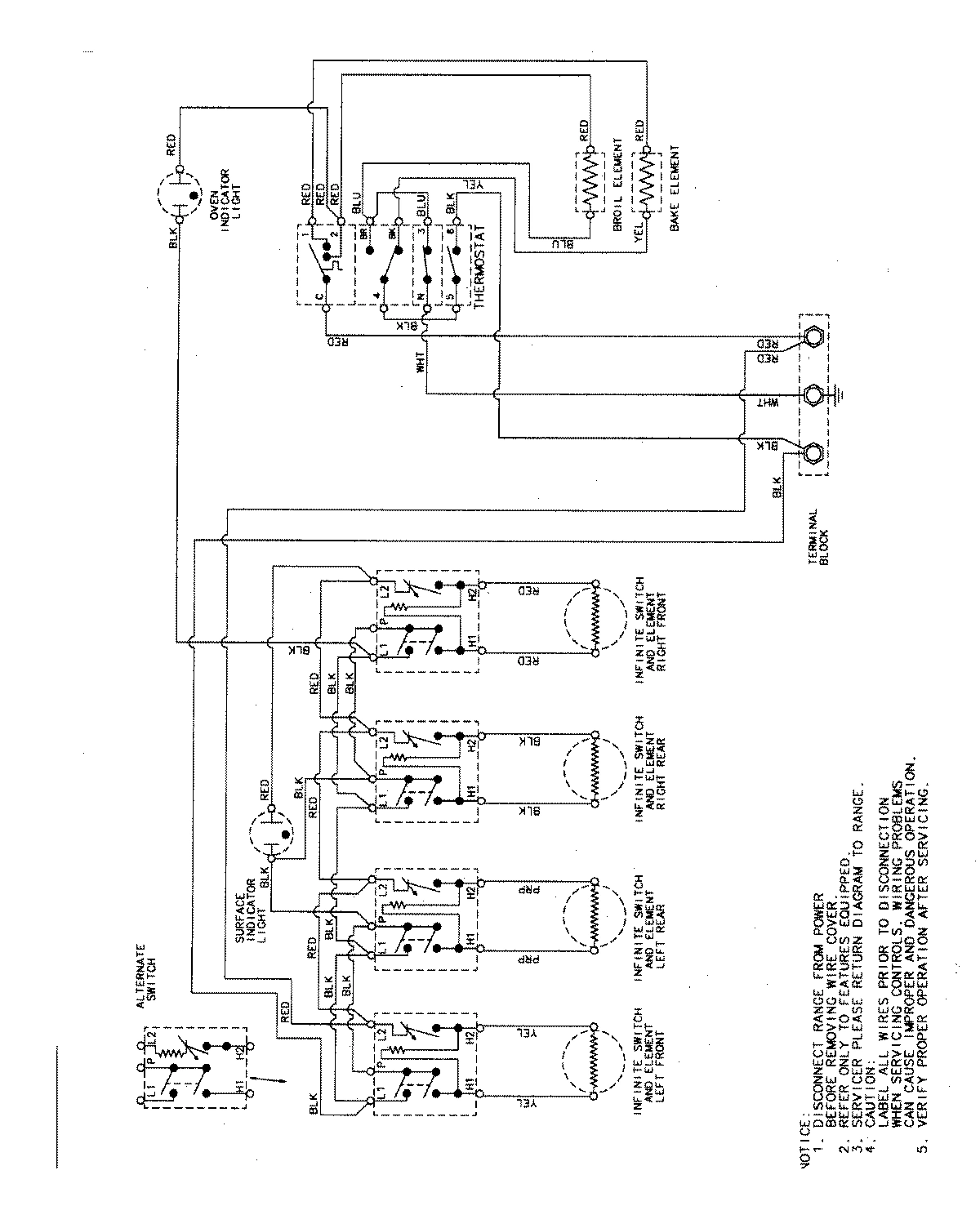

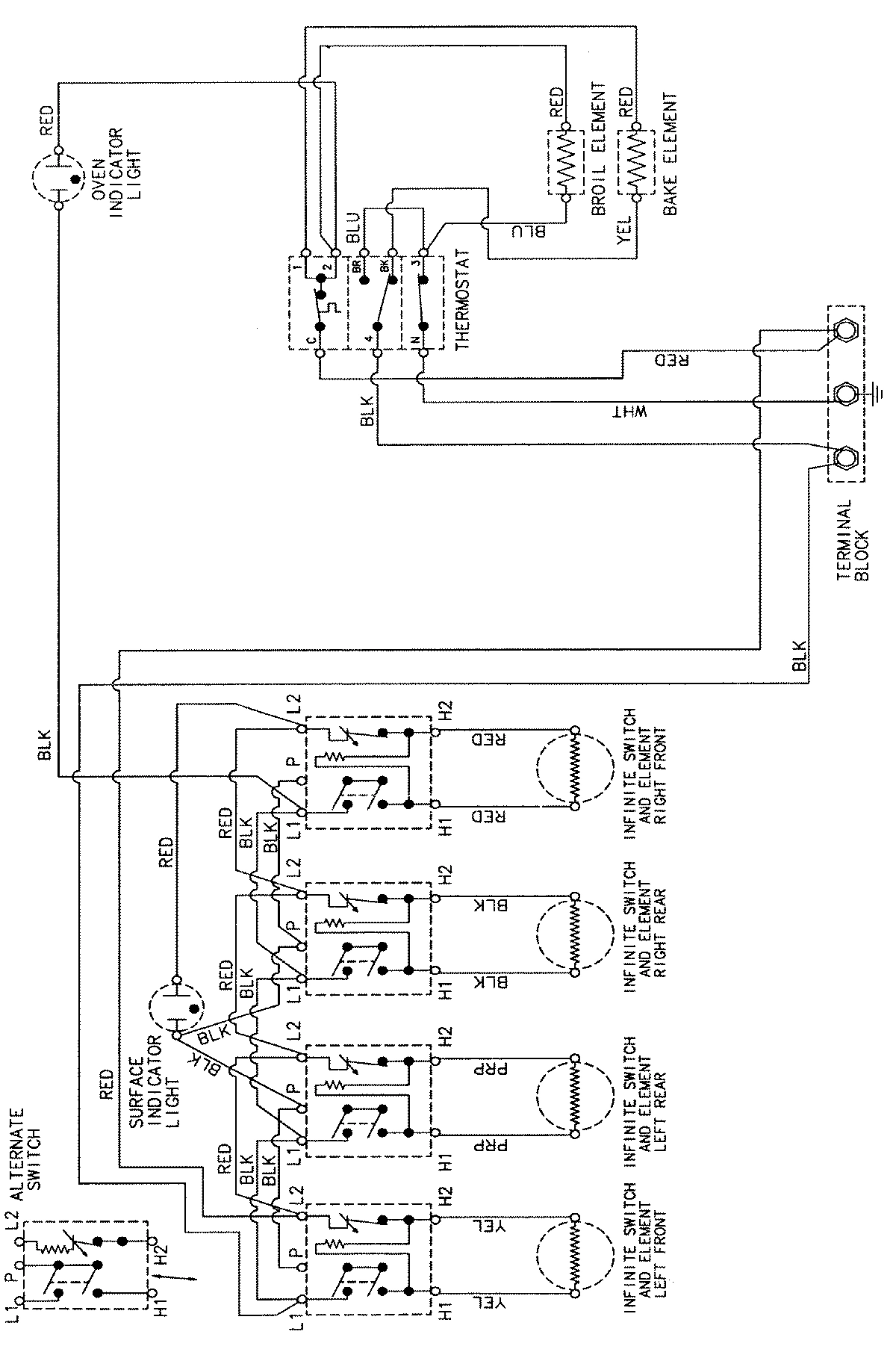

WIRING INFORMATION WPL 15003388 Contact Us For Availability

NI

WIRING INFORMATION WPL 15002208 Contact Us For Availability
