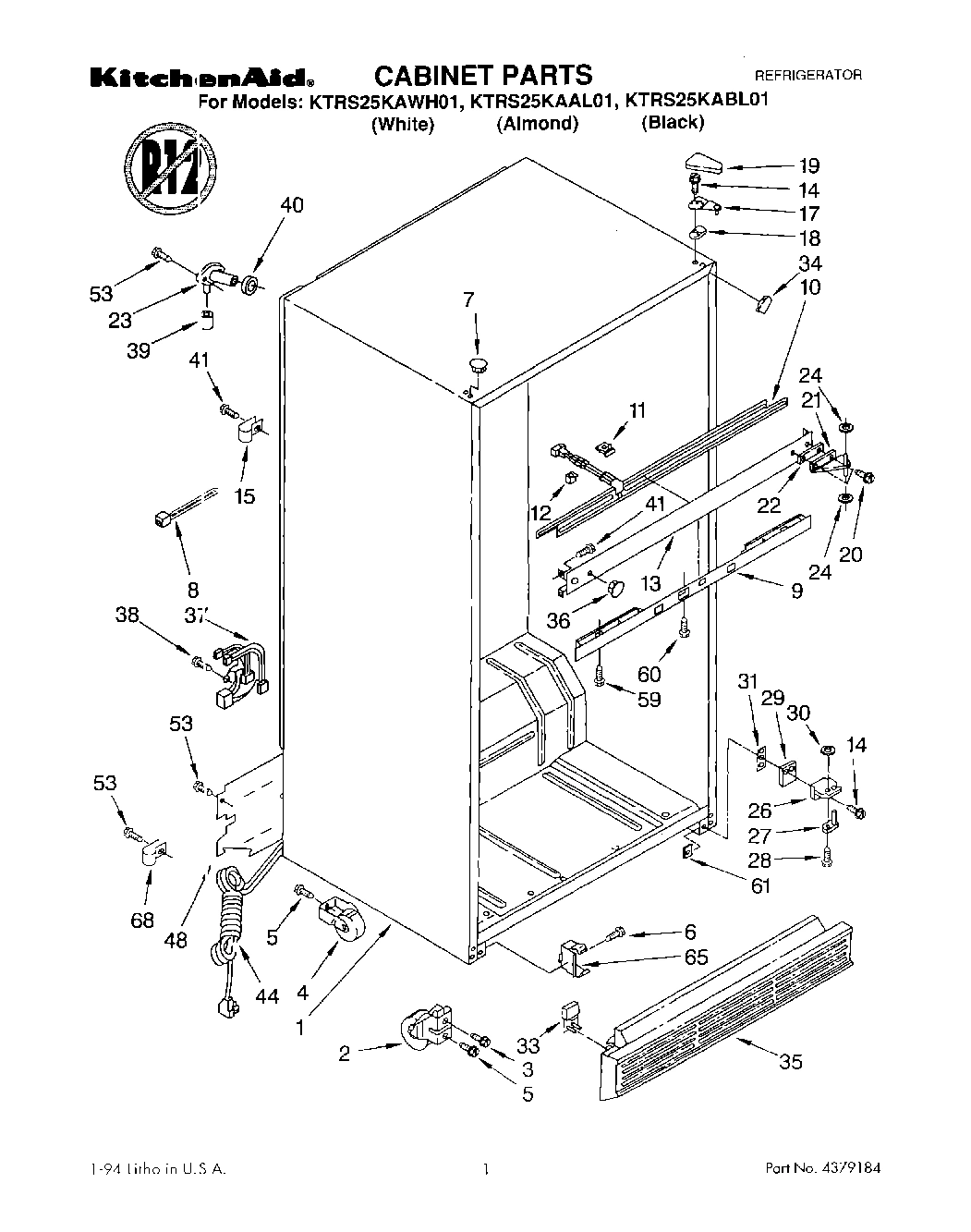

Model Whirlpool KTRS25KABL01 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2161695 WPL LIT2161695 Contact Us For Availability

WPL LIT2168630 WPL LIT2168630 Contact Us For Availability

WPL LIT2169124 WPL LIT2169124 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

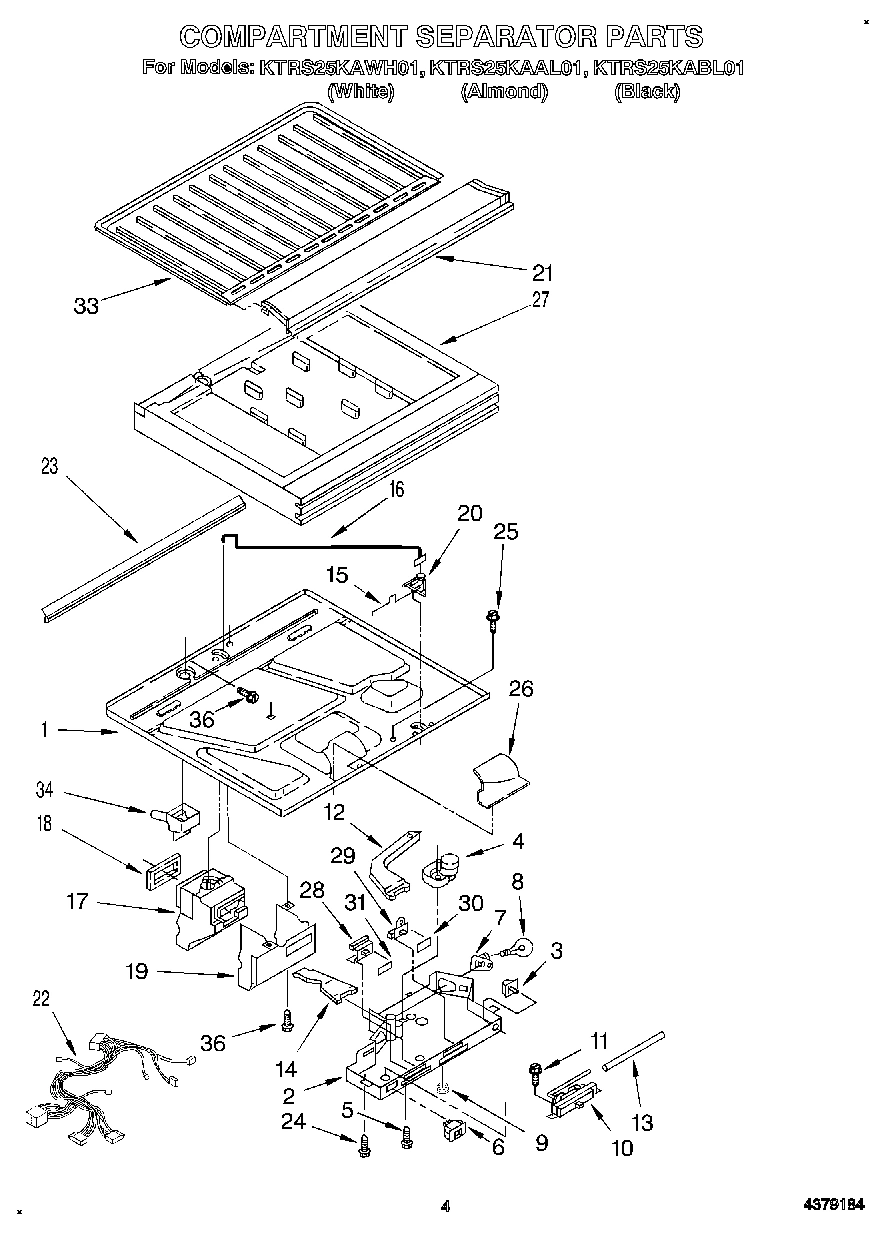

Bottom, Compartment Separator WPL 1125871 Contact Us For Availability

1

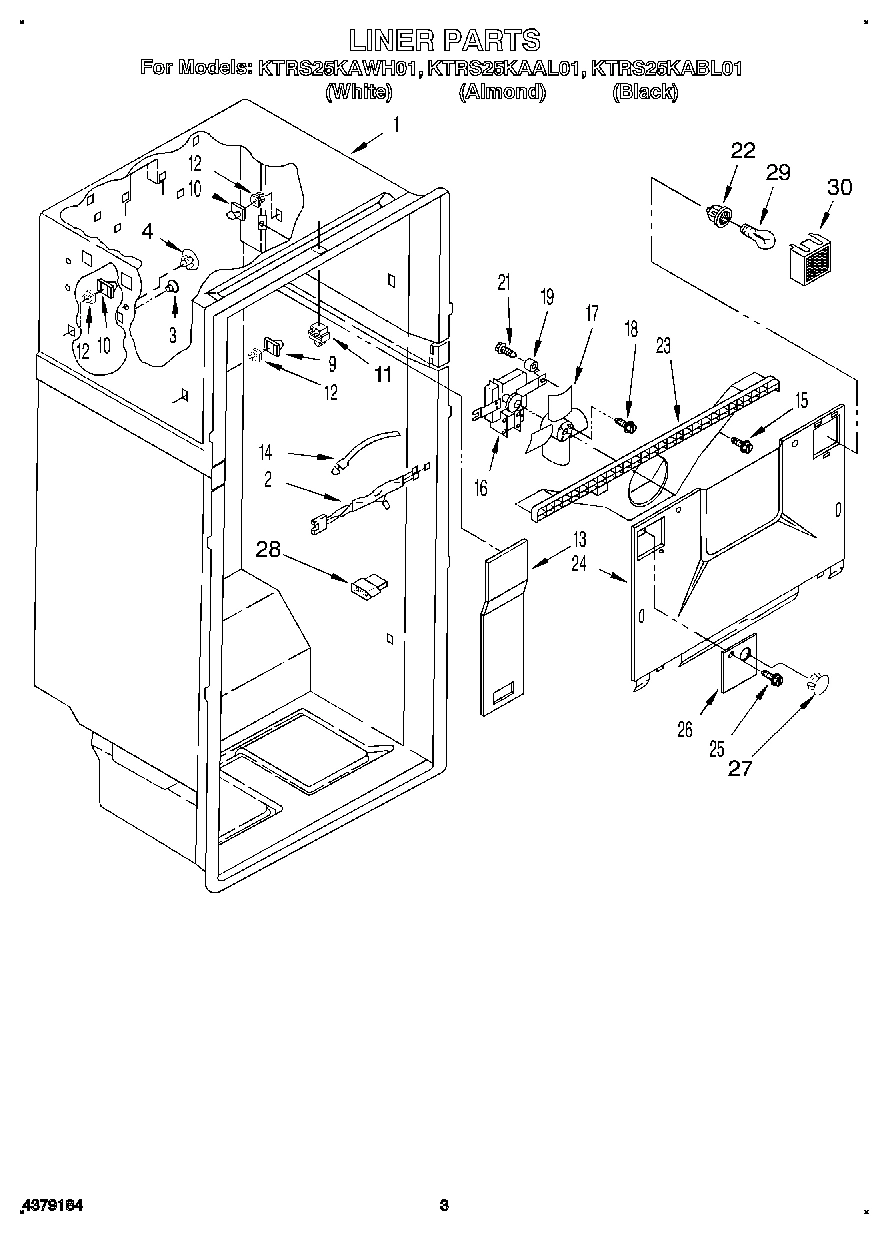

Liner (Not A Serviceable Part) WPL ARI112862A Contact Us For Availability

1

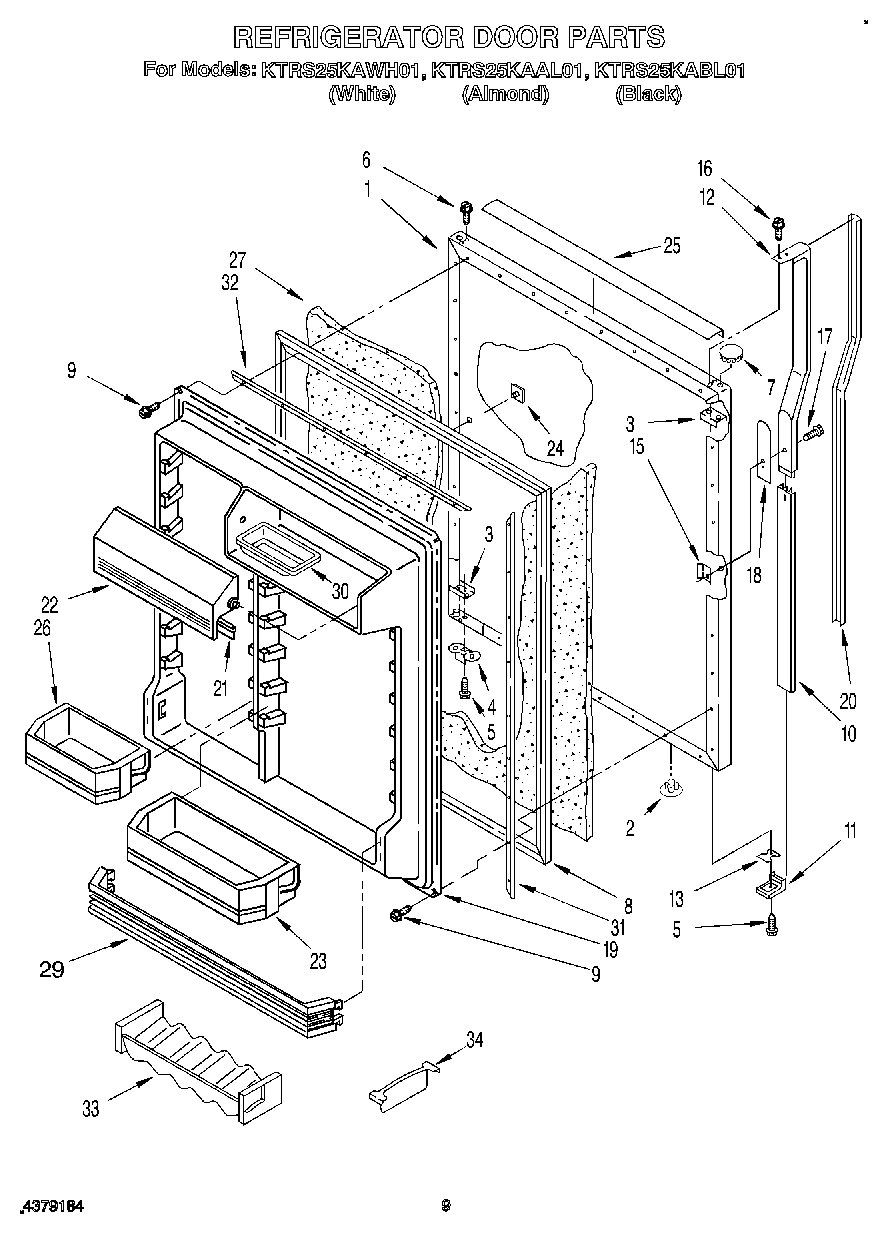

Panel, Refrigerator Door (White) WPL 2157304 Contact Us For Availability

1

Panel, Refrigerator Door (Almond) WPL 2157305 Contact Us For Availability

1

Panel, Refrigerator Door (Black (Also Order I WPL 2157306 Contact Us For Availability

1

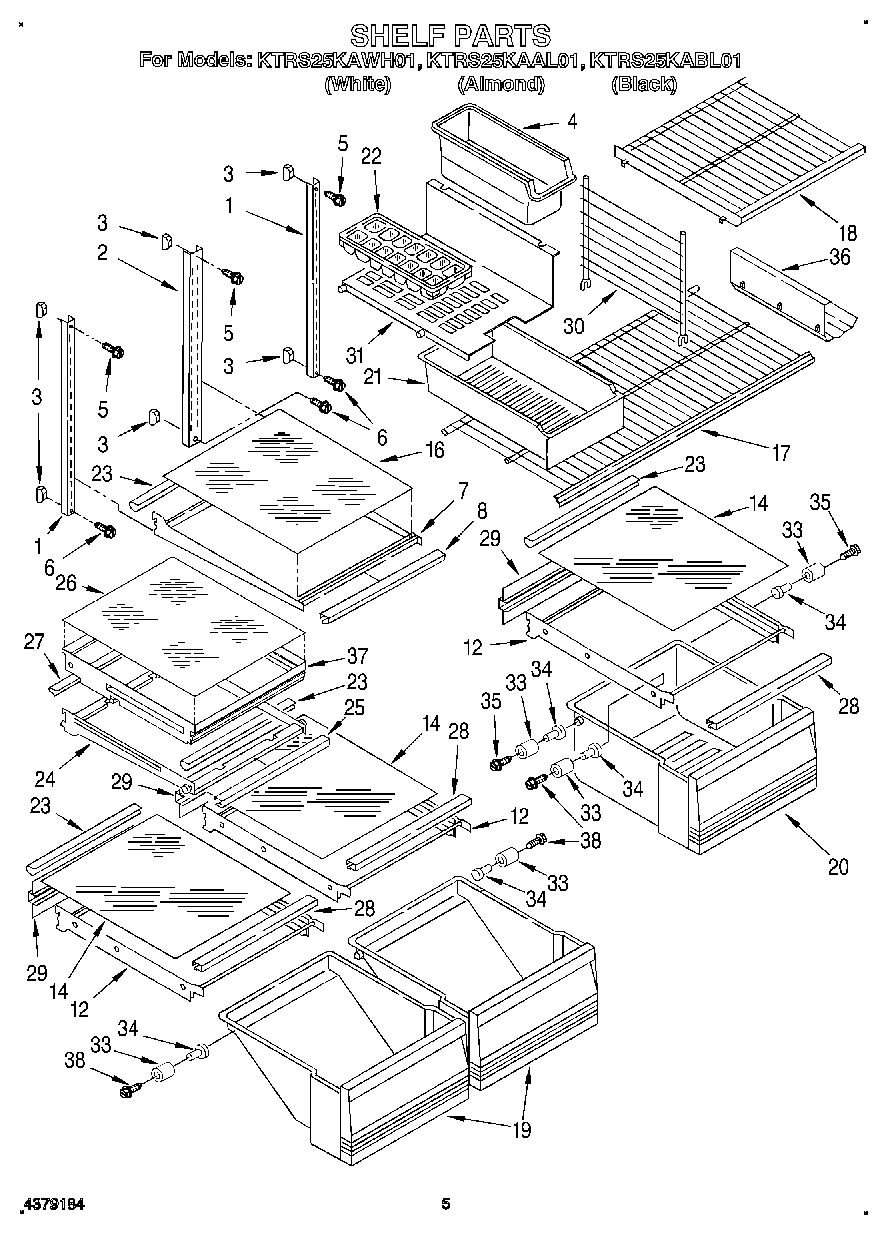

Shelf, Ladder (2) WPL 1118102 Contact Us For Availability

1

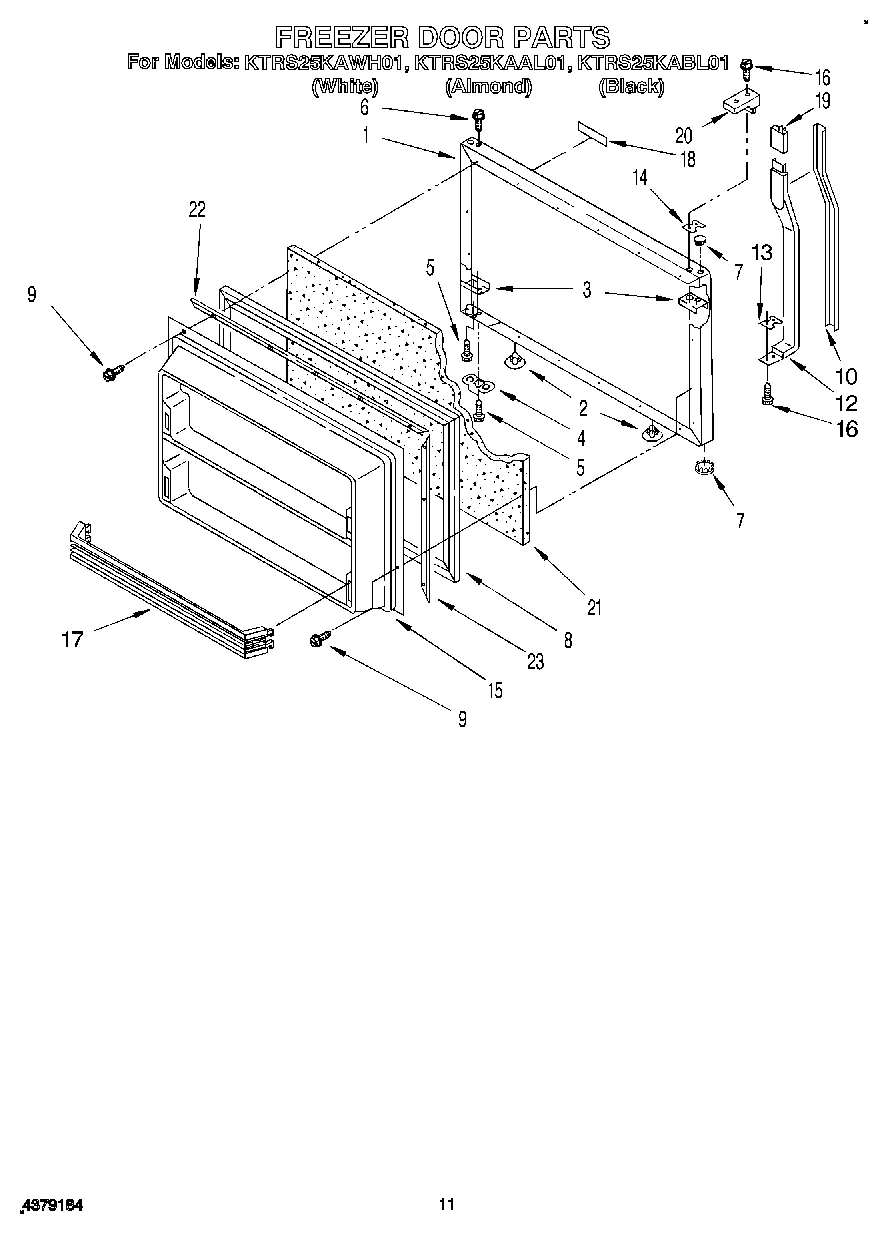

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Box, Control WPL 1125510 Contact Us For Availability

2

Fan, Blade WPL 851732 Contact Us For Availability

2

Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Shelf Ladder, Center WPL 1118101 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $10.05

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

3

Grommet (4) WPL 1110779 Contact Us For Availability

3

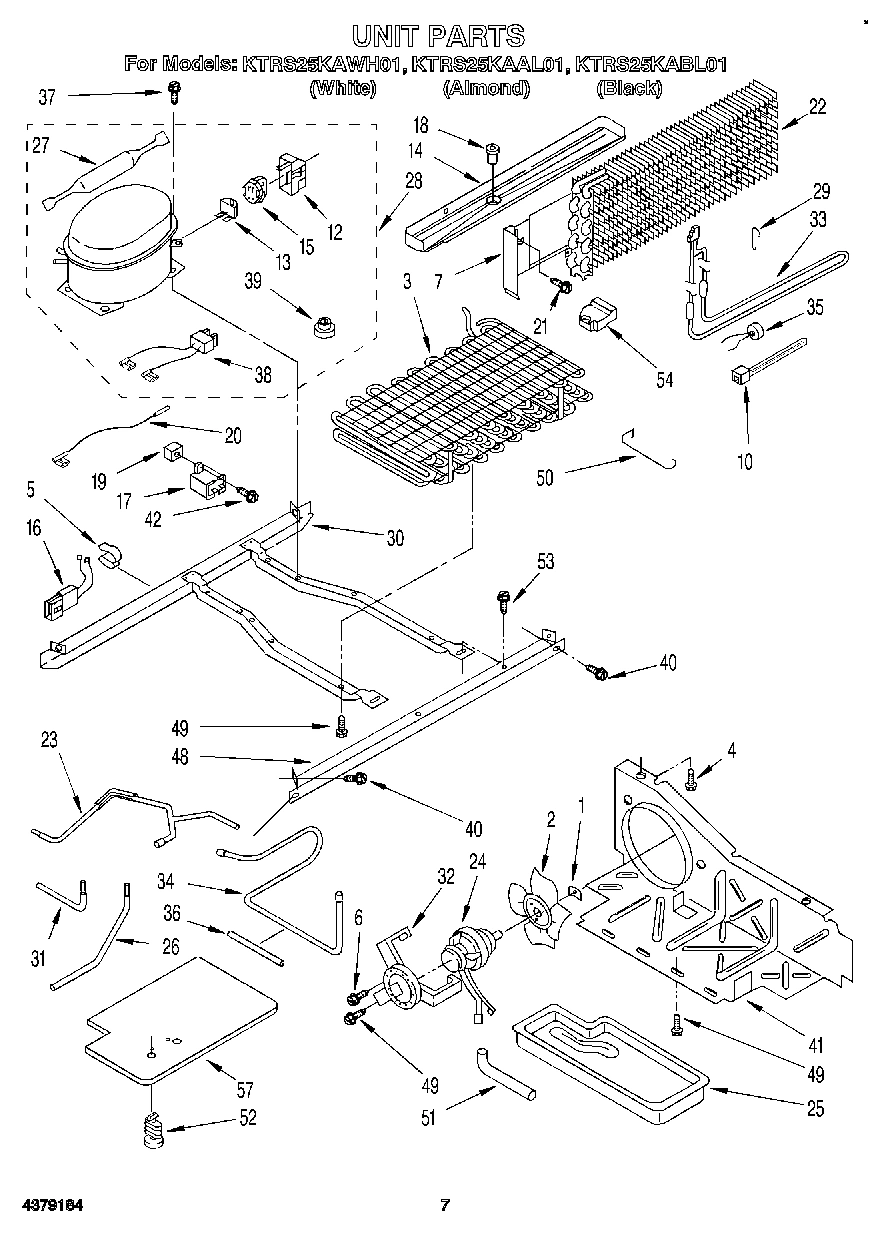

Condenser Assembly WPL 2154011 Contact Us For Availability

4

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $64.97

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

4

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $17.72

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $4.82

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Clip, Wire (2) WPL 548745 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

6

Switch, Toggle WPL 1125964 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

7

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

Heat Shield WPL 1116511 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Shelf, Cantilever (2) WPL 1125748 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1125923 Contact Us For Availability

8

Gasket (Front) WPL 1125784 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1125922 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

9

NLA:SCREW Backorder WPL WPW10141645 $4.82

9

Stud (3) WPL 946356 Contact Us For Availability

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $24.52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Thermostat Assembly WPL 2161831 Contact Us For Availability

Retainer, Insert WPL 1107209 Contact Us For Availability

Insert, Handle (White) WPL 2161568 Contact Us For Availability

Insert, Handle (Almond) WPL 2161569 Contact Us For Availability

Insert, Handle (Black) WPL 2161853 Contact Us For Availability

11

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

11

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

11

End Cap, Handle WPL 1107236 Contact Us For Availability

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

Light Pipe (R.S.) WPL 1125511 Contact Us For Availability

Support, Stud (6) WPL 946355 Contact Us For Availability

Handle WPL 2161508 Contact Us For Availability

Pan Shelf, Slide Assembly (3) WPL 2161761 Contact Us For Availability

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $88.59

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

Cover, Air Duct WPL 2159578 Contact Us For Availability

Shim, End Cap WPL 2151813 Contact Us For Availability

Spacer WPL 1107192 Contact Us For Availability

Light Pipe (L.S.) WPL 1125512 Contact Us For Availability

Drain Pan WPL 1114597 Contact Us For Availability

Glass, Shelf WPL 1125779 Contact Us For Availability

Spacer, Handle WPL 1125789 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

Connecting Rod, Short WPL 1125515 Contact Us For Availability

Relay (See Overload) WPL ARI112863A Contact Us For Availability

Interior Door Panel WPL 1125739 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $65.89

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

Rod, Connecting WPL 1126158 Contact Us For Availability

Housing Plug WPL 1118850 Contact Us For Availability

Glass, Shelf WPL 1125749 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $59.86

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Air Diffuser Assembly WPL 2157253 Contact Us For Availability

Running Capacitor WPL 2154565 Contact Us For Availability

Shelf Bin (2) WPL 1125743 Contact Us For Availability

Shelf, Freezer WPL 1125745 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

Drain Fitting WPL 981629 Contact Us For Availability

Spacer, Handle WPL 1107650 Contact Us For Availability

Shelf, Freezer WPL 1125746 Contact Us For Availability

Nameplate (White) WPL 1125818 Contact Us For Availability

Nameplate (Almond) WPL 1125819 Contact Us For Availability

Nameplate (Black) WPL 2161715 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Grommet, Screw WPL 509812 Contact Us For Availability

Interior Door Panel WPL 1125742 Contact Us For Availability

Crisper Pan (2) Roller Assembly WPL 2161897 Contact Us For Availability

Retainer, Insert WPL 2161570 Contact Us For Availability

Pivot Arm WPL 1125581 Contact Us For Availability

Wire Assembly Overload WPL 2167153 Contact Us For Availability

Insert, Handle (White) WPL 2161513 Contact Us For Availability

Insert, Handle (Almond) WPL 2161514 Contact Us For Availability

Insert, Handle (Black) WPL 2161851 Contact Us For Availability

Meat Pan Roller Assembly WPL 2161894 Contact Us For Availability

End Cap WPL 1125788 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $40.99

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Gasket, Utility Door WPL 1125695 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $66.40

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

Evaporator WPL 2153980 Contact Us For Availability

Utility Door (Includes Item 21) WPL 1125733 Contact Us For Availability

Retainer, Gasket WPL 1121119 Contact Us For Availability

Gasket, Bottom Separator WPL 2159734 Contact Us For Availability

Scroll, Fan WPL 1114593 Contact Us For Availability

Tube, Discharge WPL 2162475 Contact Us For Availability

Shelf Bin (Wide) WPL 1125555 Contact Us For Availability

Retainer, Shelf WPL 1125754 Contact Us For Availability

Retainer, Gasket WPL 1121120 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $61.51

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $4.55

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

Evaporator Cover WPL 1123399 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Frame & Roller Assembly WPL 2161805 Contact Us For Availability

25

Tray, Evaporator WPL 1110674 Contact Us For Availability

25

Trim, Door WPL 1118063 Contact Us For Availability

25

Gasket (Front) WPL 2161685 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $32.12

Insulation, Filler WPL 1108196 Contact Us For Availability

Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability

Shelf Bin (3) WPL 1125744 Contact Us For Availability

Glass, Shelf WPL 2161682 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Insulation, Compartment Separator WPL 1114561 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Retainer, Shelf WPL 2161808 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Slide, Thermostat WPL 1125513 Contact Us For Availability

Gasket (Front) WPL 1125813 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

Slide, Air Control WPL 1125578 Contact Us For Availability

Support, Heater WPL 2149120 Contact Us For Availability

Gasket, Rear WPL 1125816 Contact Us For Availability

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

Window, Air Control WPL 1125579 Contact Us For Availability

Light Lens WPL 981365 Contact Us For Availability

Butter, Tray WPL 1125936 Contact Us For Availability

Divider WPL 1125542 Contact Us For Availability

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $49.60

Window, Thermostat WPL 1125580 Contact Us For Availability

Retainer, Gasket WPL 1123245 Contact Us For Availability

Shelf, Ice Tray Roller Assembly WPL 1125543 Contact Us For Availability

32

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

Separator, Rear Compartment (Top) WPL 2162455 Contact Us For Availability

Heater, Defrost WPL 2162021 Contact Us For Availability

Holder, Beverage WPL 1125981 Contact Us For Availability

Roller WPL 2161749 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

Tube, Suction WPL 2162473 Contact Us For Availability

Load Lock WPL 1117999 Contact Us For Availability

Eyelet, Roller WPL 1112308 Contact Us For Availability

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $20.53

36

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

36

Wine & Egg Rack WPL 1125913 Contact Us For Availability

37

Frame & Roller Assembly Moveable WPL 2161705 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Door Reversal Instructions WPL 1125911 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

41

Air Baffle WPL 2162457 Contact Us For Availability

42

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

50

GUARD-FAN Backorder WPL 1110663 $27.86

51

Drain Extension WPL 2154119 Contact Us For Availability

52

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

53

Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability

54

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Cover, Unit Bottom WPL 2160511 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $4.82

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91
