Model Whirlpool KTRS19KFWH00 REFRIGERATOR – Common Parts & Diagrams

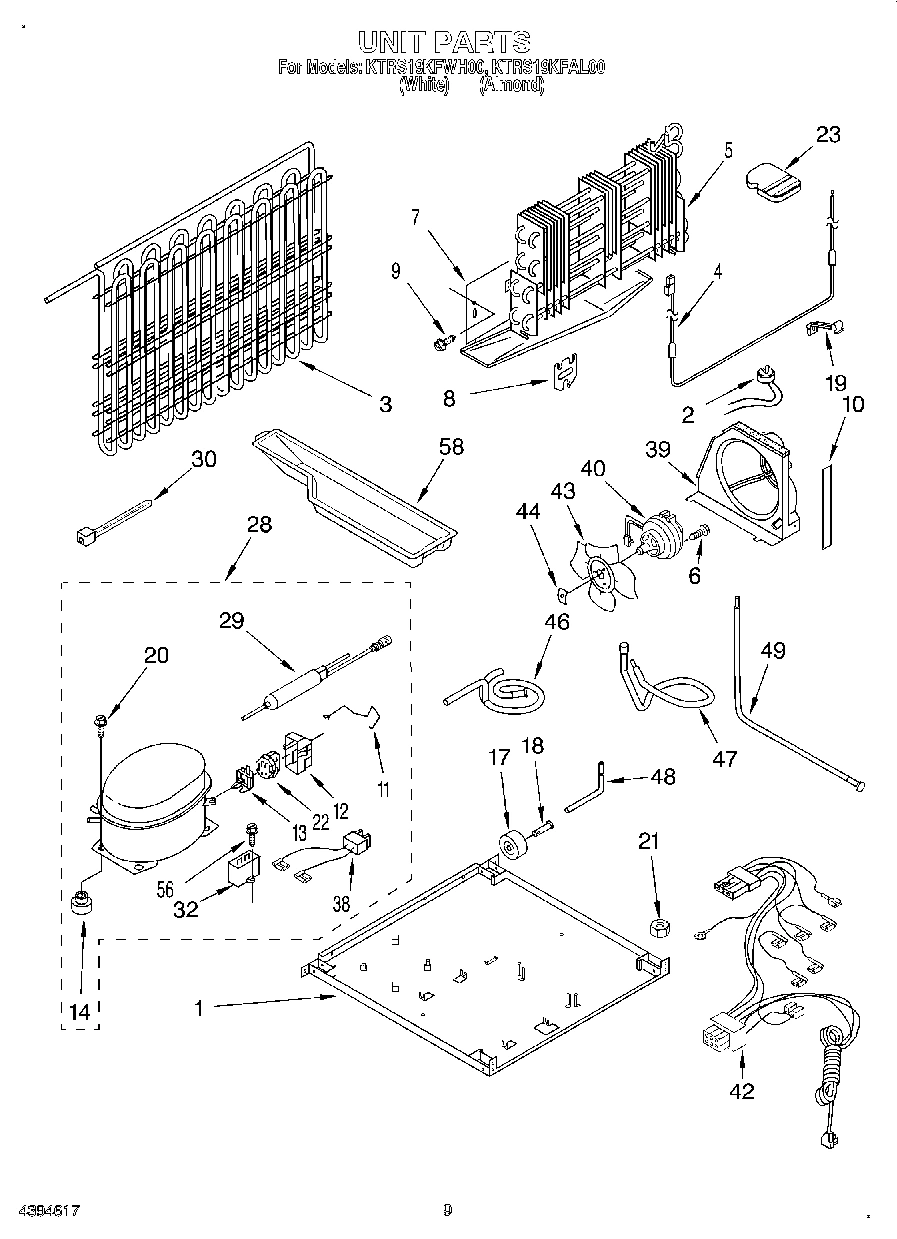

05 - UNIT

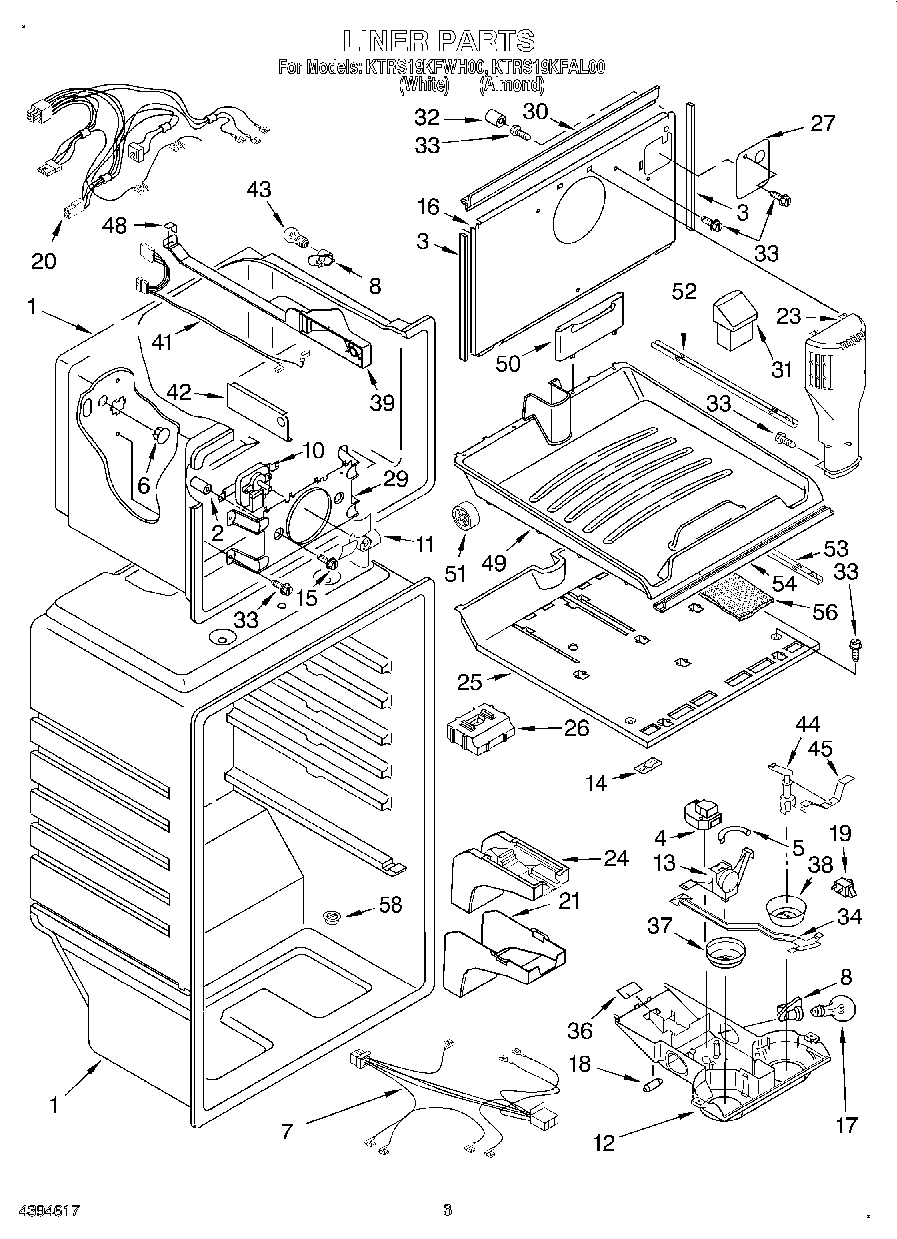

02 - LINER

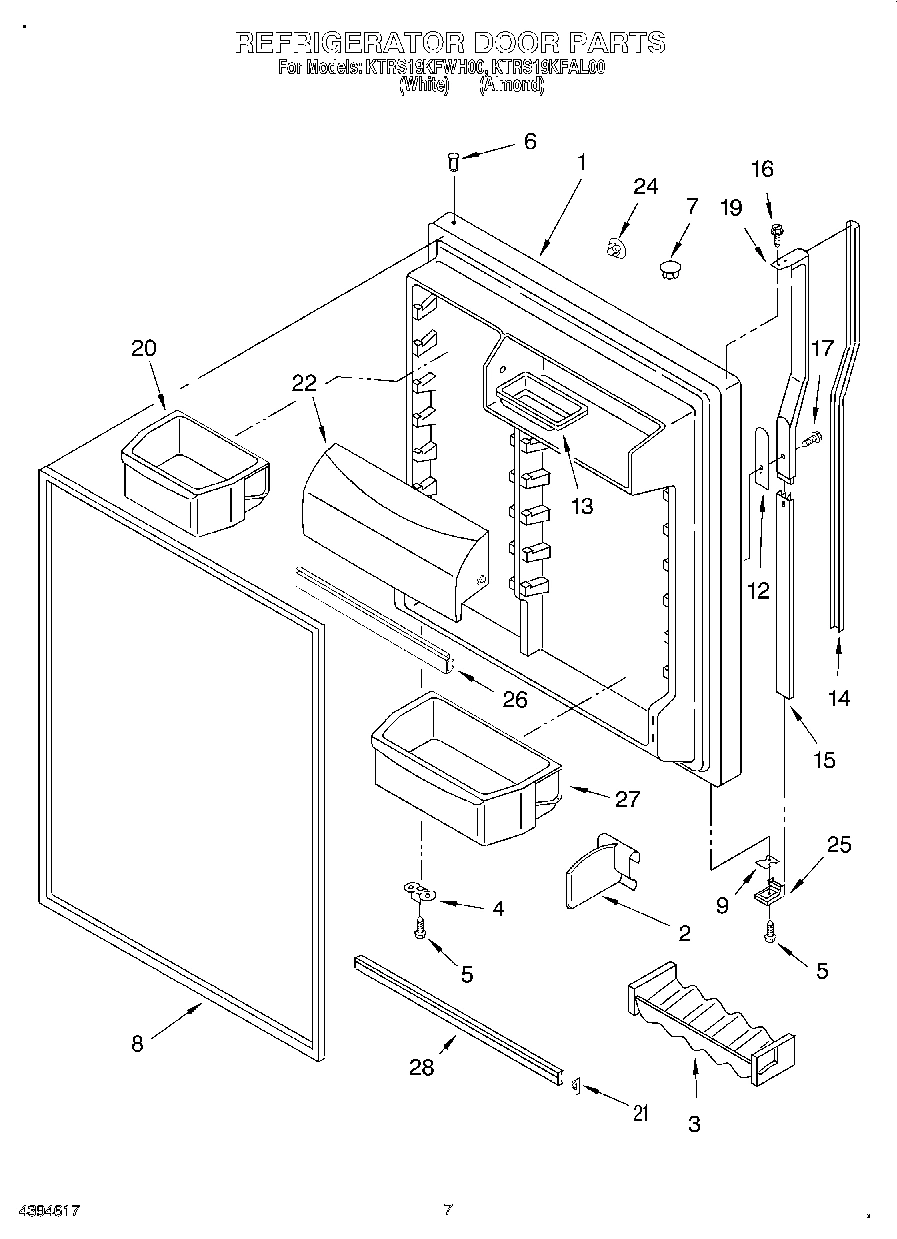

04 - REFRIGERATOR DOOR

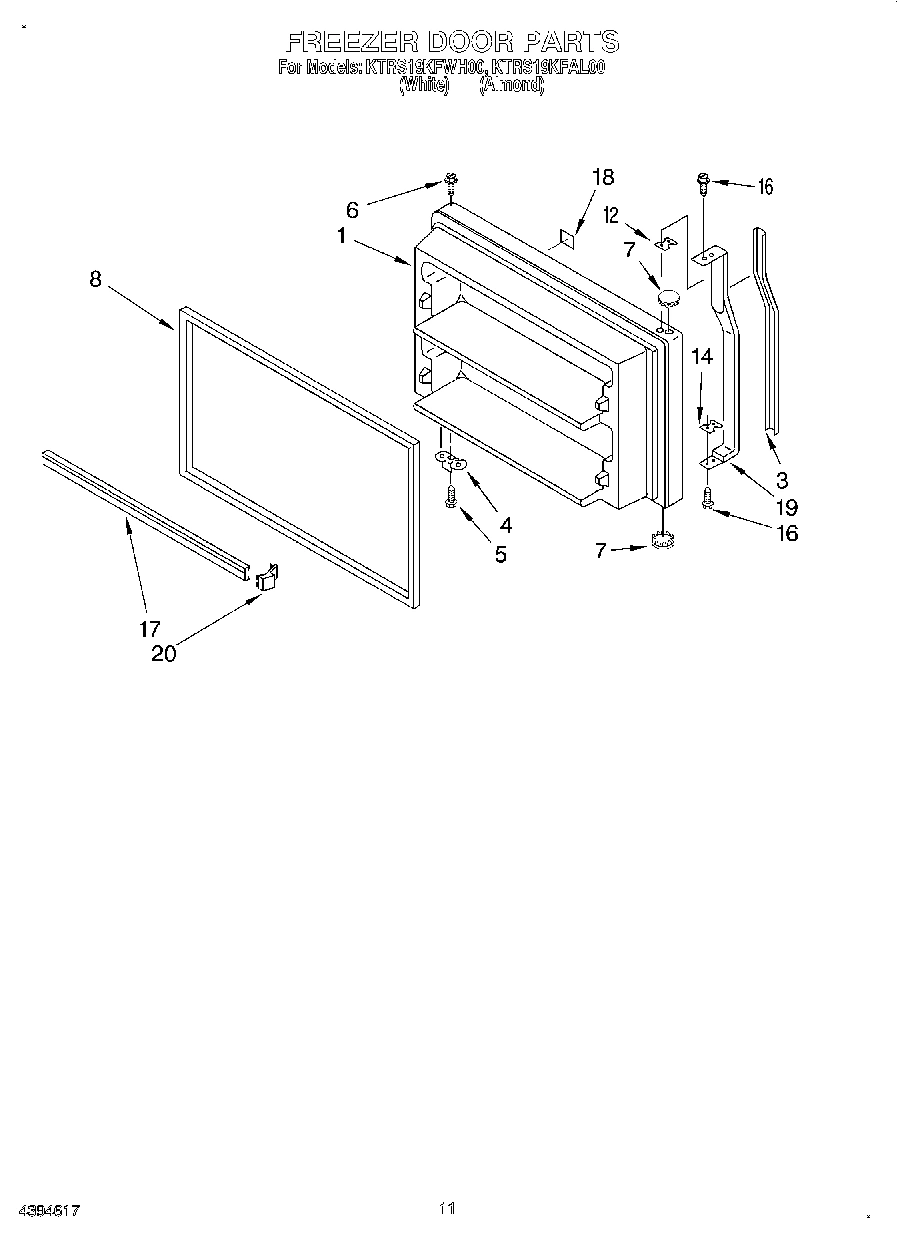

06 - FREEZER DOOR, LIT/OPTIONAL

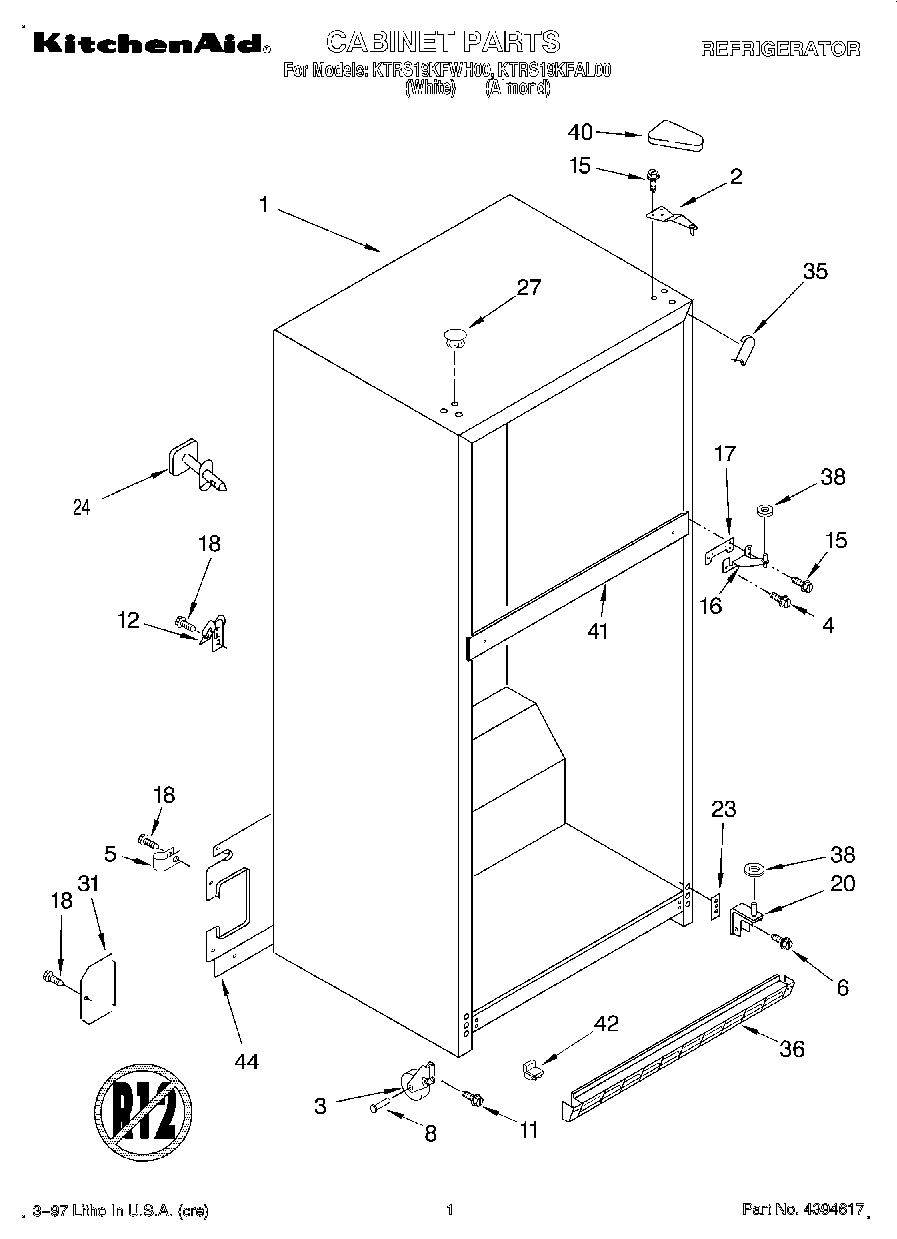

01 - CABINET

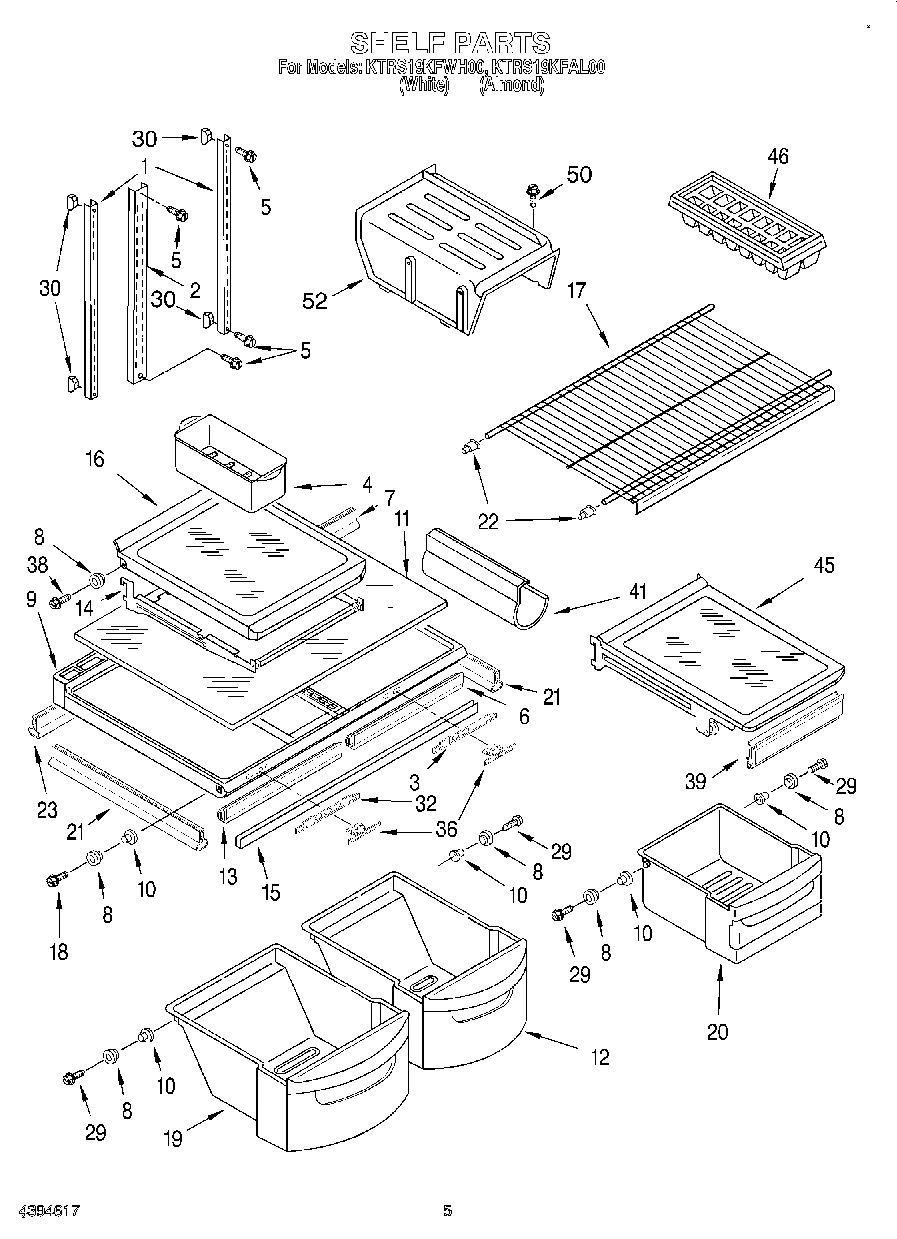

03 - SHELF
Common parts from model Whirlpool KTRS19KFWH00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195462 WPL LIT2195462 Contact Us For Availability
WPL LIT2195481 WPL LIT2195481 Contact Us For Availability
WPL LIT2195582 WPL LIT2195582 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2183866 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Alm WPL 2183867 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (White) WPL 2183860 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Almond) WPL 2183861 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI111571A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
2
Divider, Door Bin WPL 1123293 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Beverage Holder WPL 2193409 Contact Us For Availability
3
Insert, Handle (White) WPL 2168898 Contact Us For Availability
3
Insert, Handle (Almond) WPL 2168899 Contact Us For Availability
3
Slide, Humidity WPL 2174256 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2174126 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174140 Contact Us For Availability
12
Spacer, Door Handle WPL 1107650 Contact Us For Availability
12
Spacer, Handle WPL 1107628 Contact Us For Availability
12
Pan, Crisper (Includes Rollers) WPL 2175446 Contact Us For Availability
13
Tray, Butter WPL 2165792 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Insert, Handle (White) WPL 2168896 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2168897 Contact Us For Availability
14
Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability
15
Retainer, Insert WPL 2168900 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174009 Contact Us For Availability
17
Trim-Door (2) WPL 2171282 Contact Us For Availability
17
Shim, Hinge Center WPL 2183853 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle WPL 2161508 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2175433 Contact Us For Availability
20
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
20
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
20
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
20
Door Reversal Instructions WPL 2180007 Contact Us For Availability
20
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
20
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
20
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
20
WPL 978883 WPL 978883 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2175450 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI111572A Contact Us For Availability
25
End Cap Bottom WPL 1107236 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2189157 Contact Us For Availability
36
Grille (Almond) WPL 2189158 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
38
Screw WPL 489439 Contact Us For Availability
39
Gasket, Front WPL 2174394 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI111573A Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Post, Damper WPL 2179859 Contact Us For Availability
45
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2195483 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
