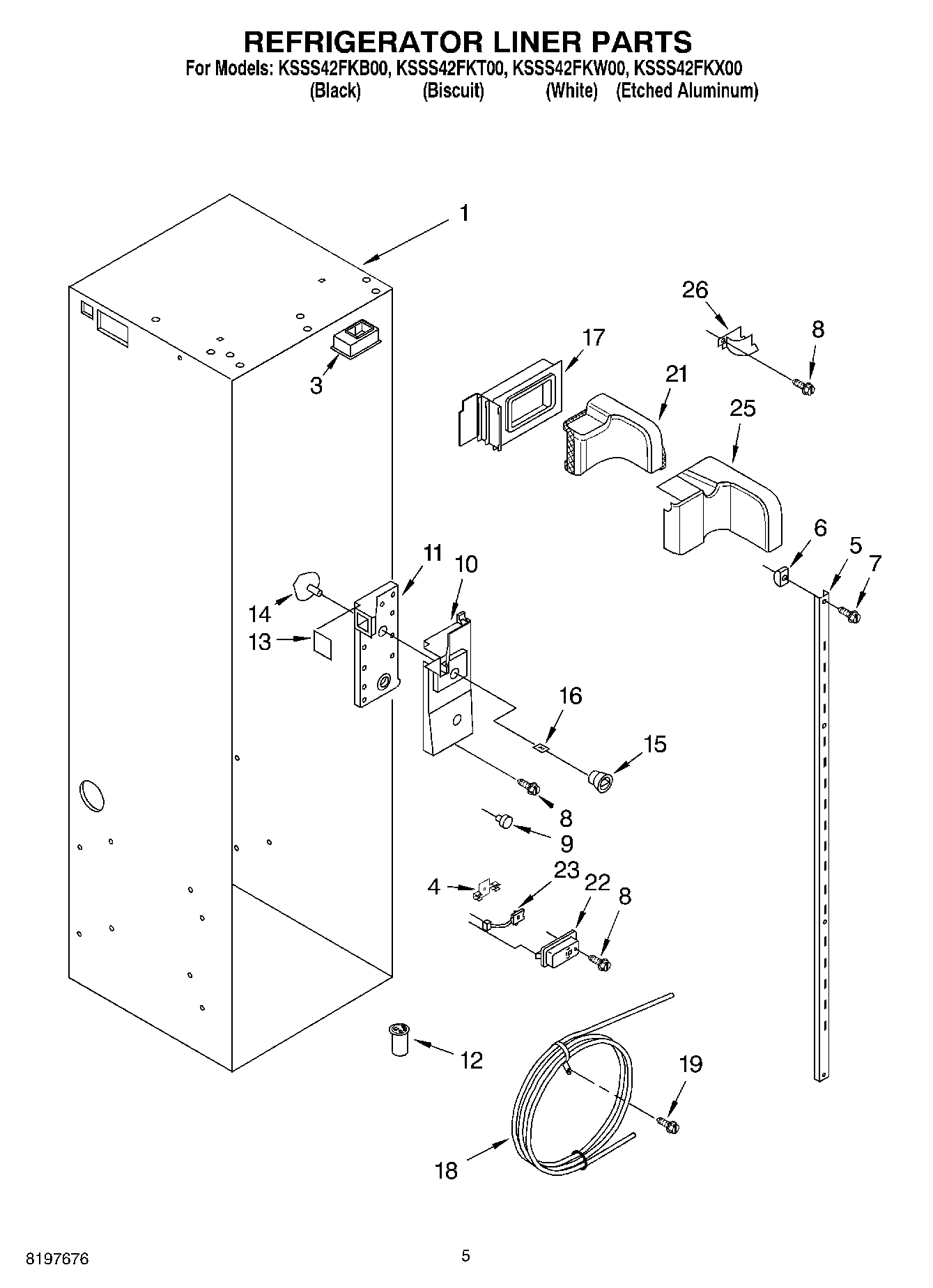

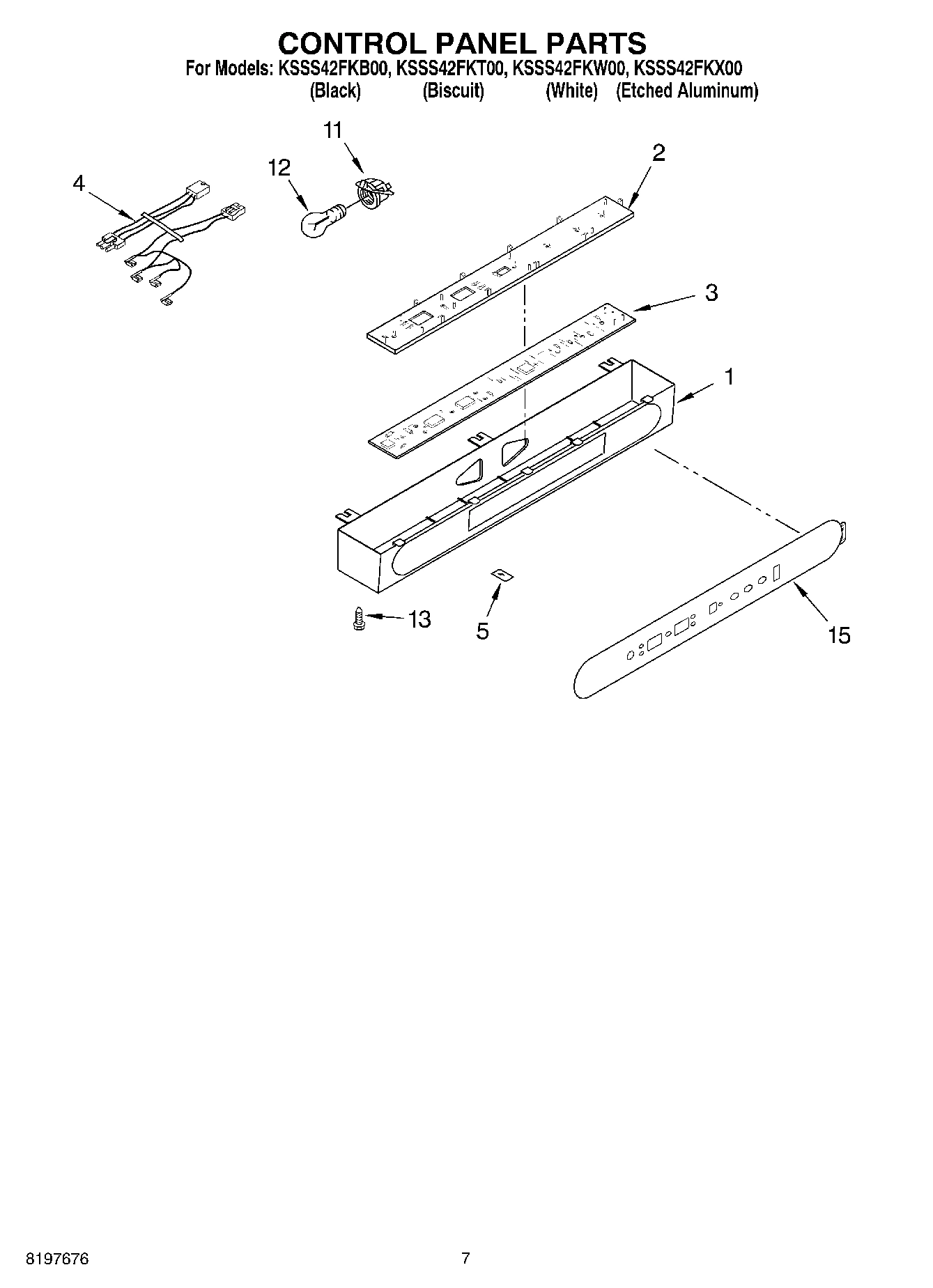

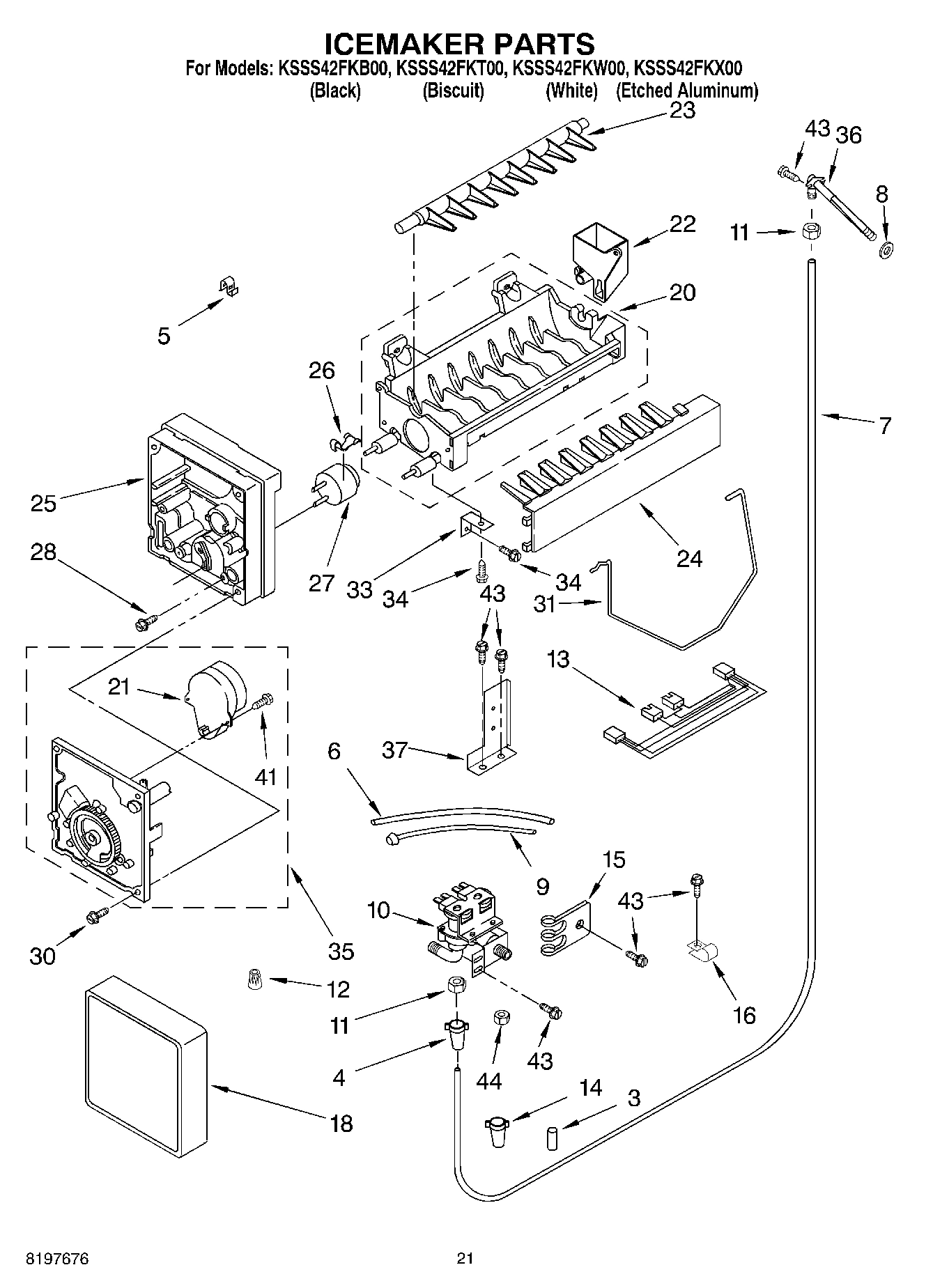

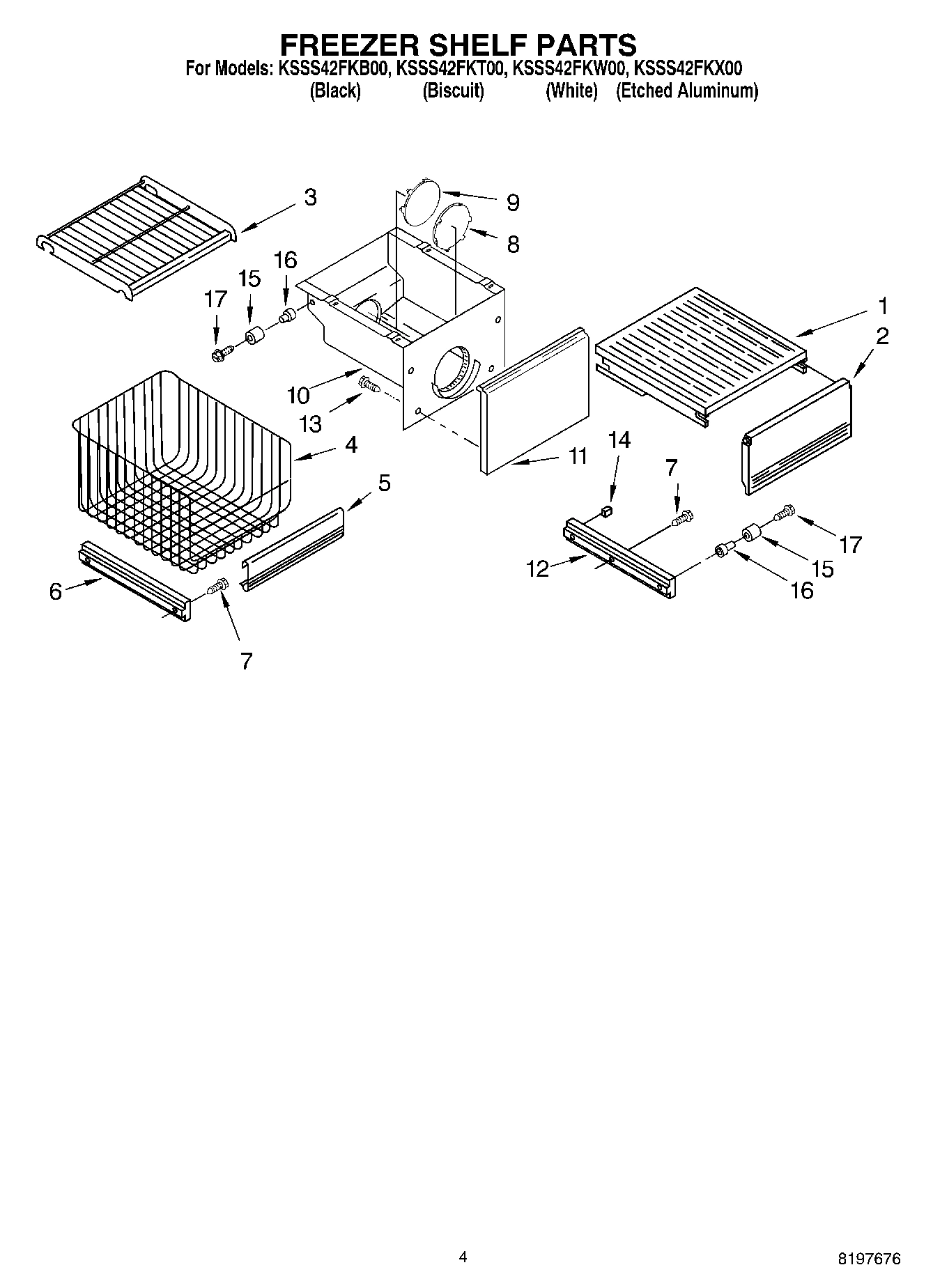

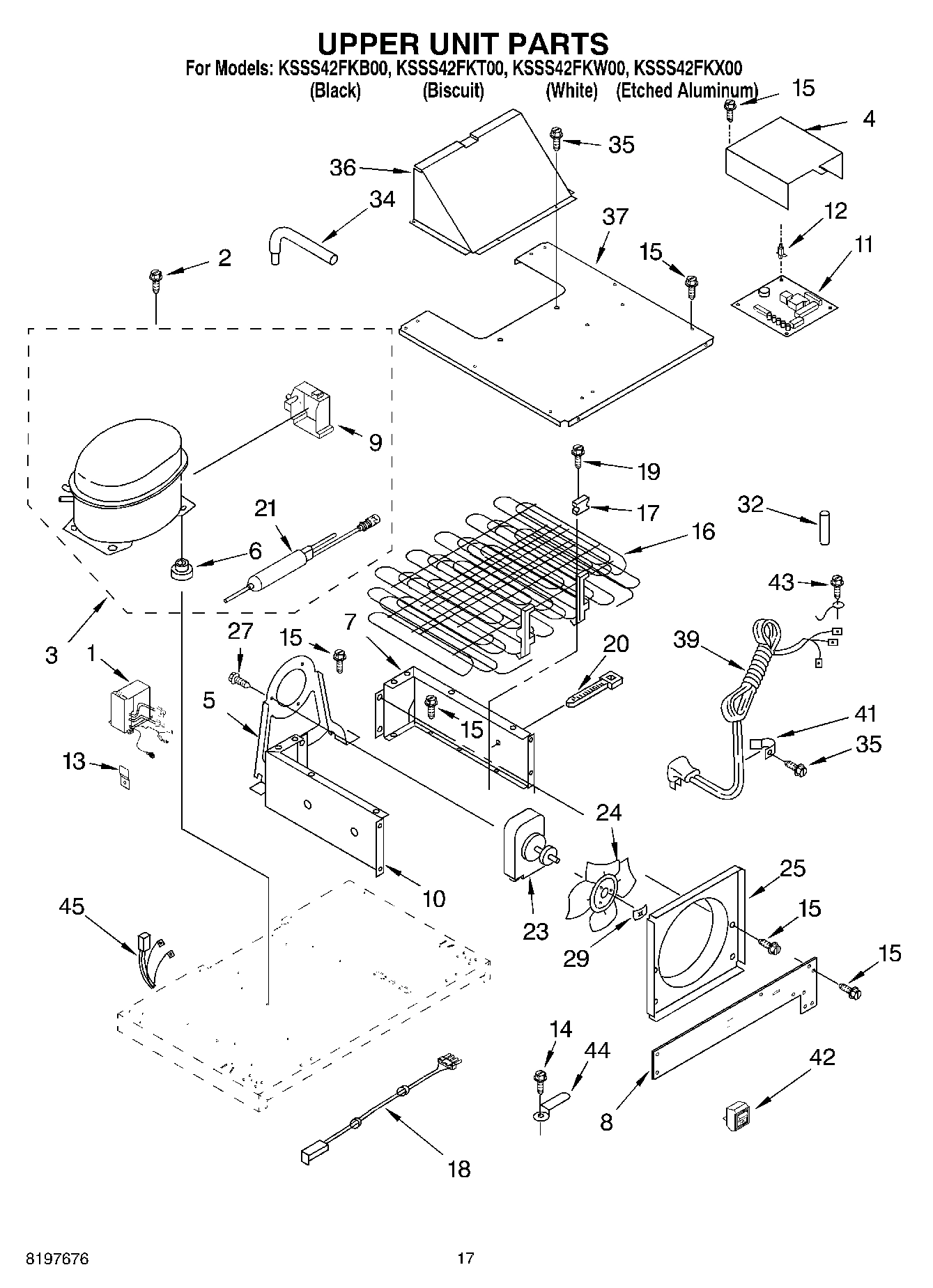

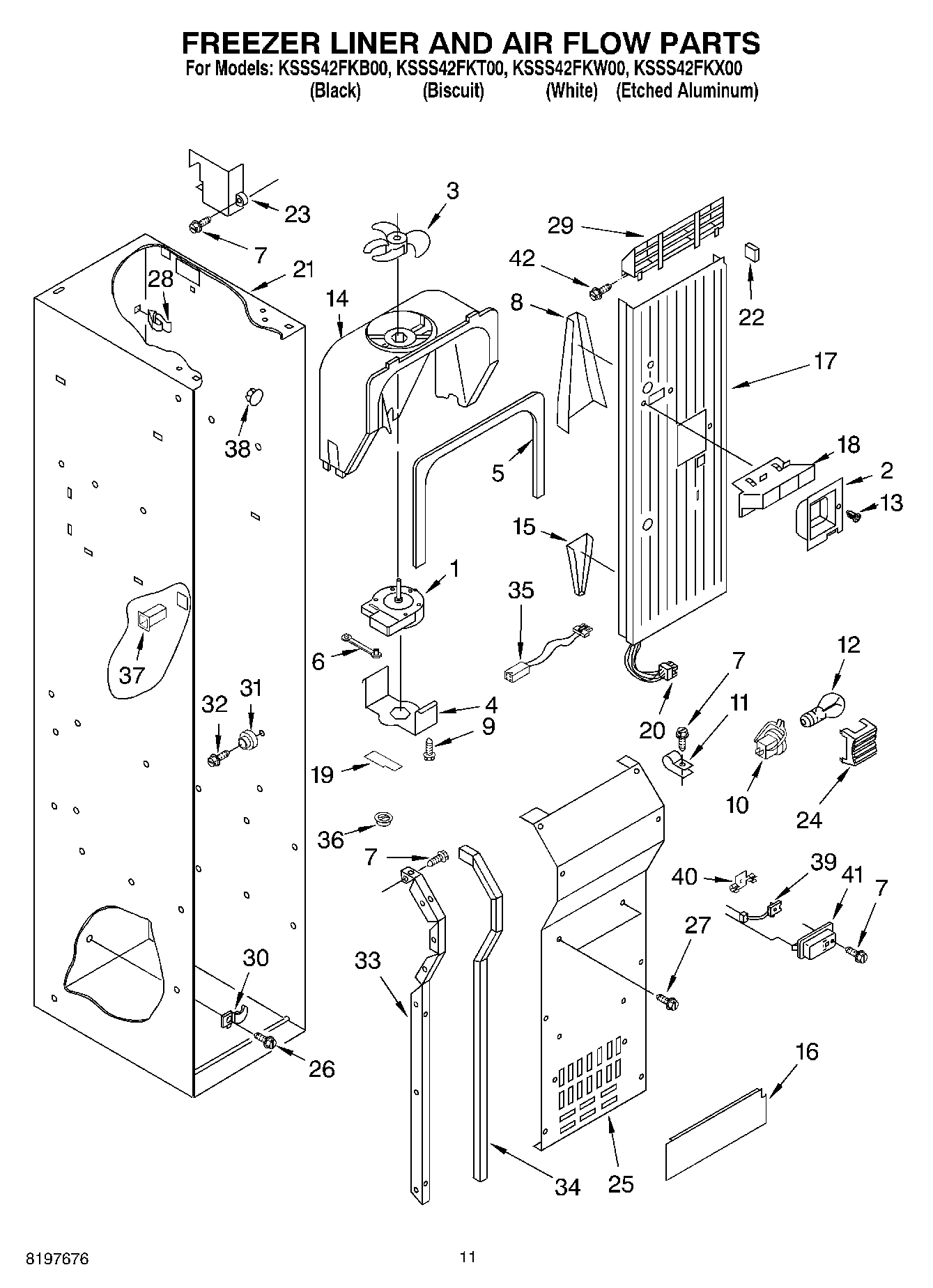

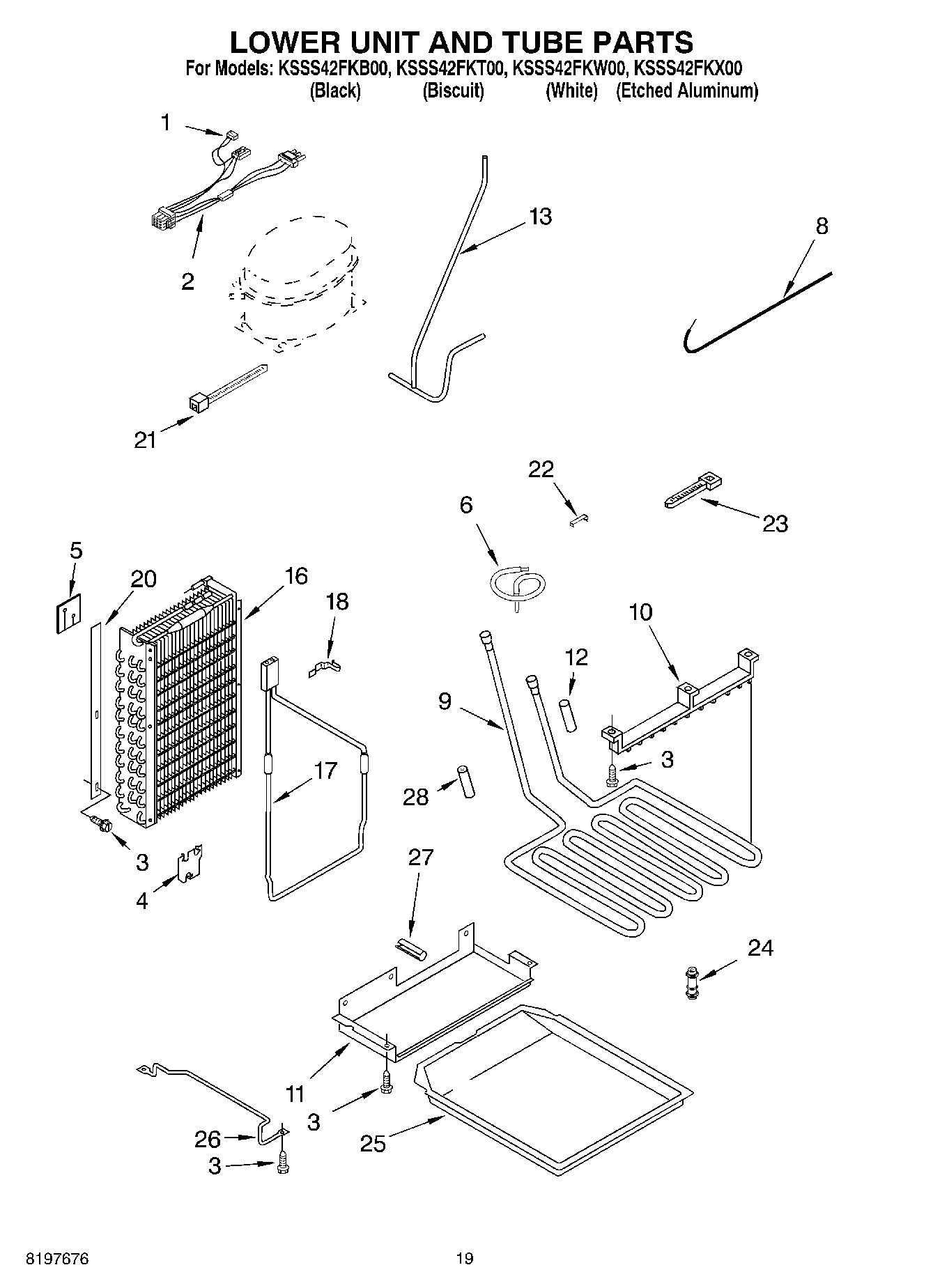

Model Whirlpool KSSS42FKB00 BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $293.54

1

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

1

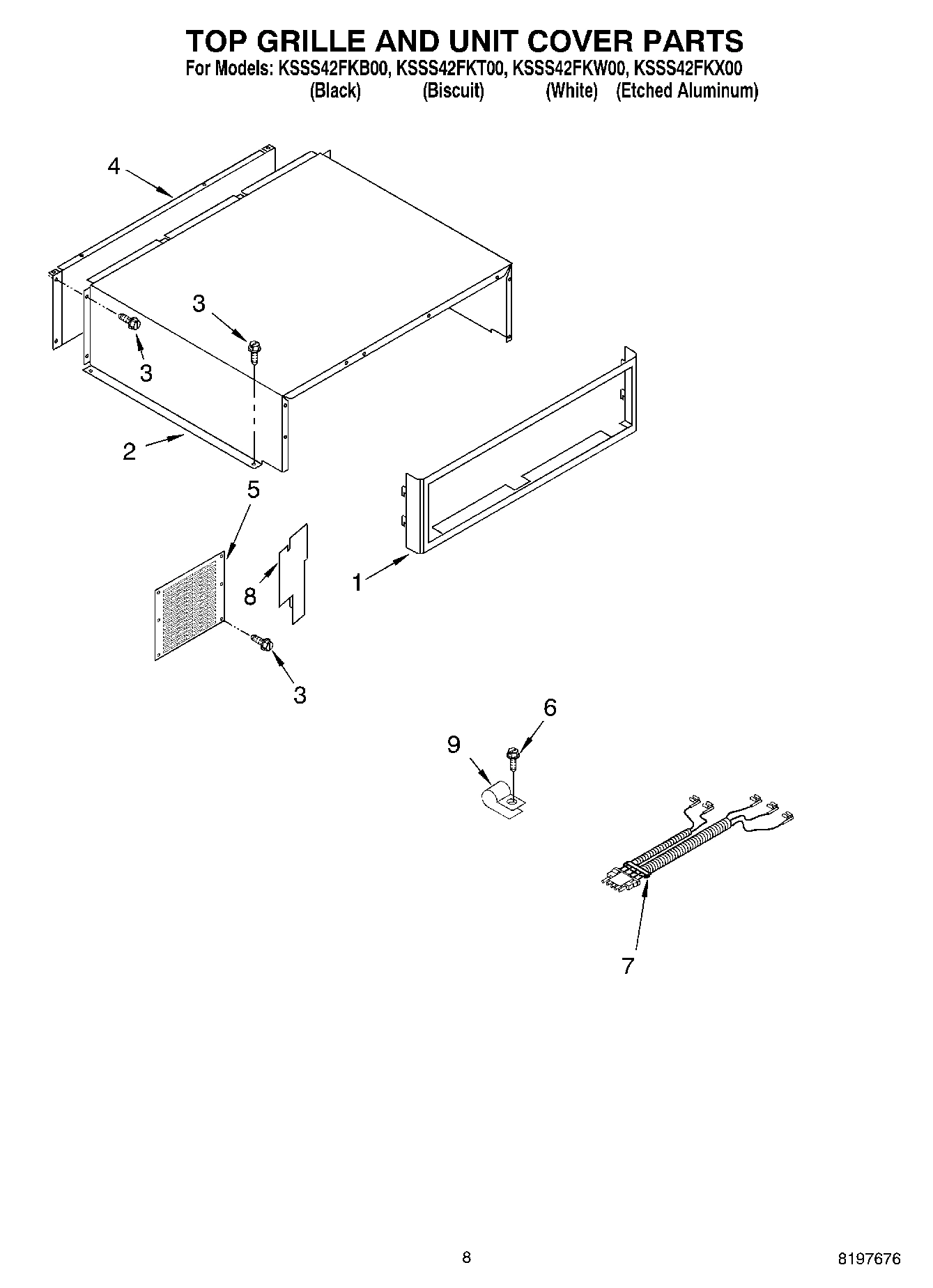

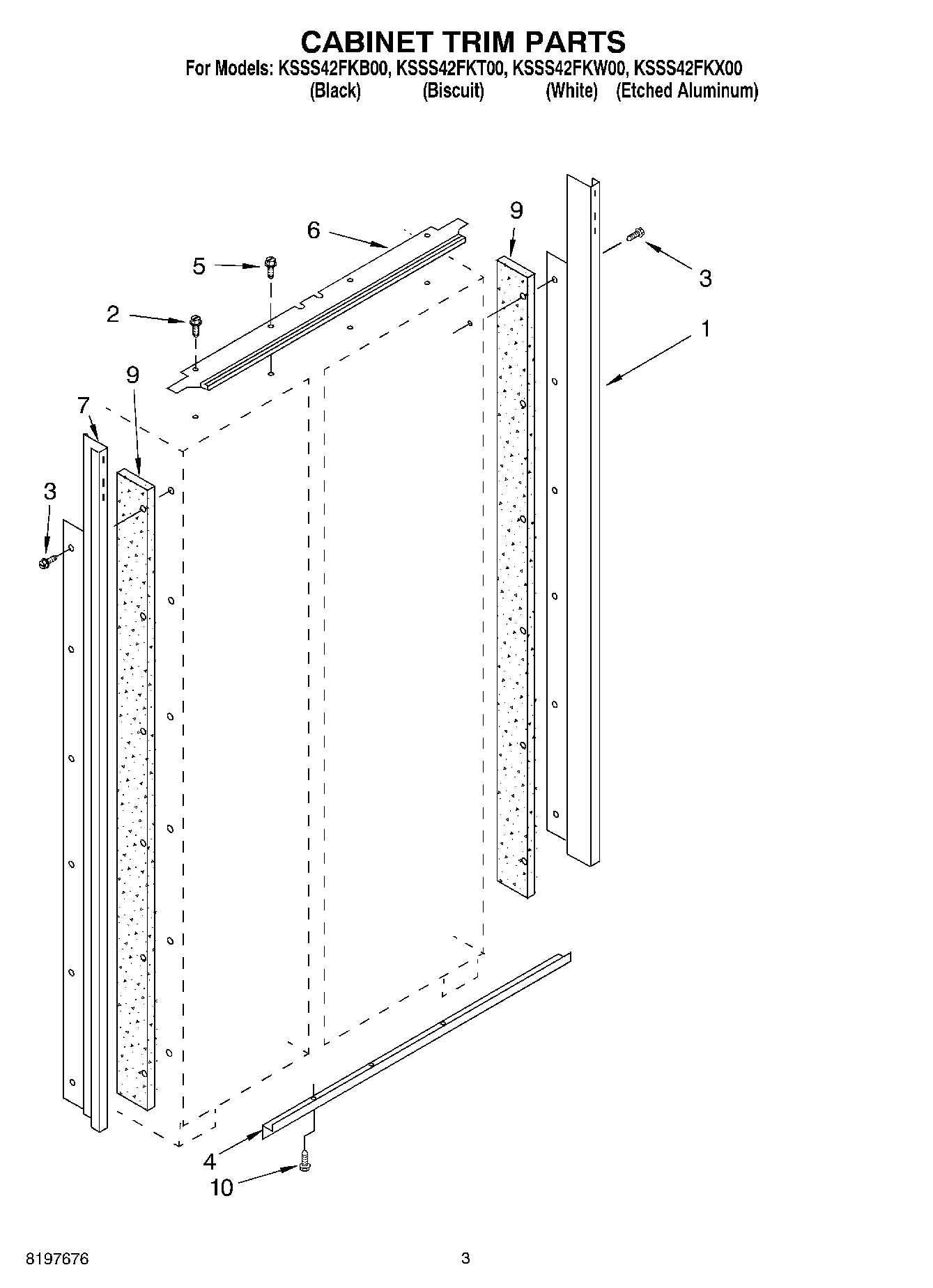

Top Grille Assembly (Black) WPL 2215962B Contact Us For Availability

1

Top Grille Assembly (Biscuit) WPL 2215962T Contact Us For Availability

1

Top Grille Assembly (White) WPL 2215962W Contact Us For Availability

1

Top Grille Assembly (Etched Aluminum) WPL 8201577 Contact Us For Availability

1

Cabinet, Trim (Right Side) (Black) WPL 2215919B Contact Us For Availability

1

Cabinet, Trim (Right Side) (Biscuit) WPL 2215919T Contact Us For Availability

1

Cabinet, Trim (Right Side) (White) WPL 2215919W Contact Us For Availability

1

Cabinet, Trim Right Side (Etched Aluminum) WPL 8201535 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI107154A Contact Us For Availability

1

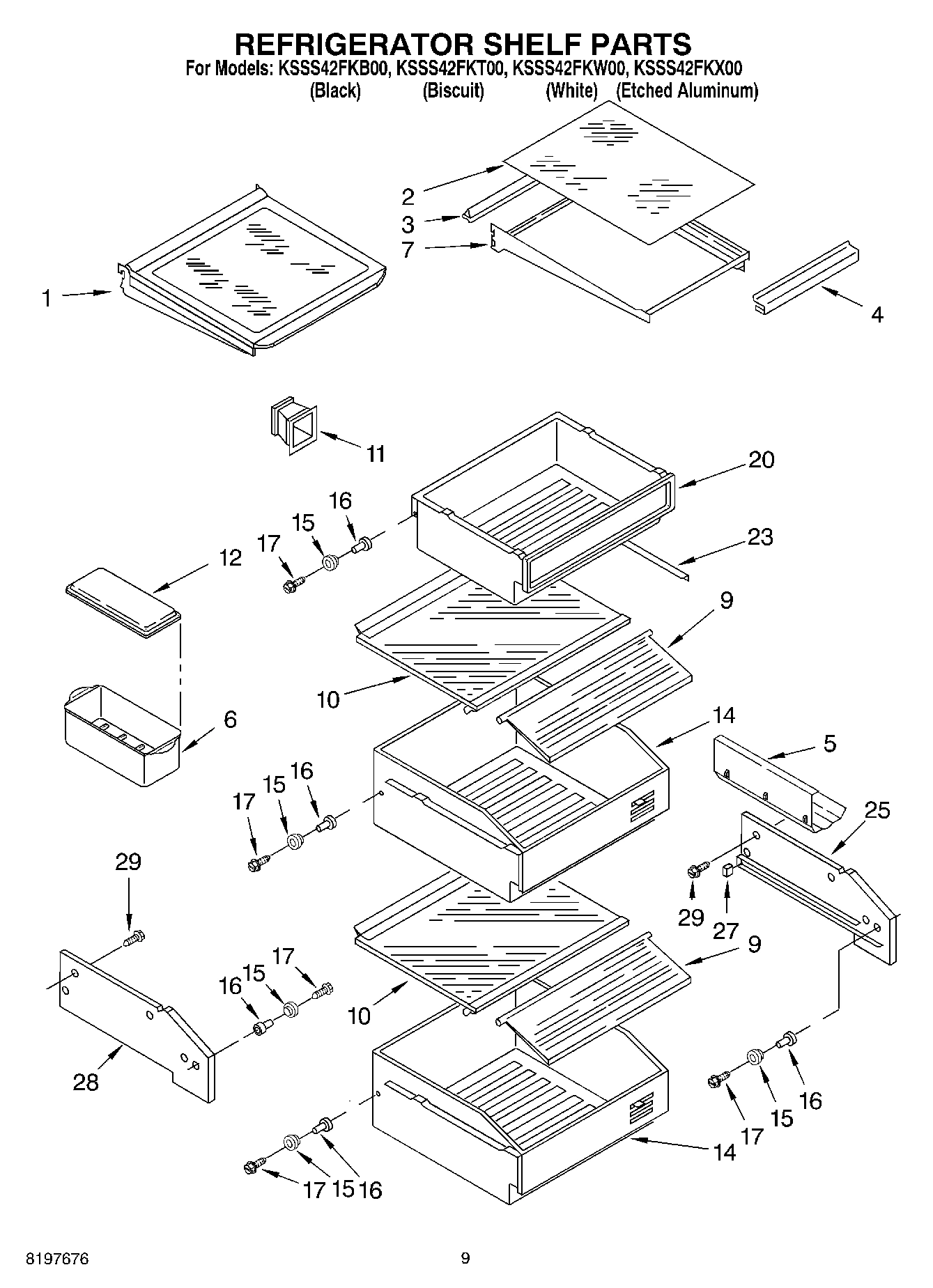

Frame, Shelf WPL 2174403 Contact Us For Availability

1

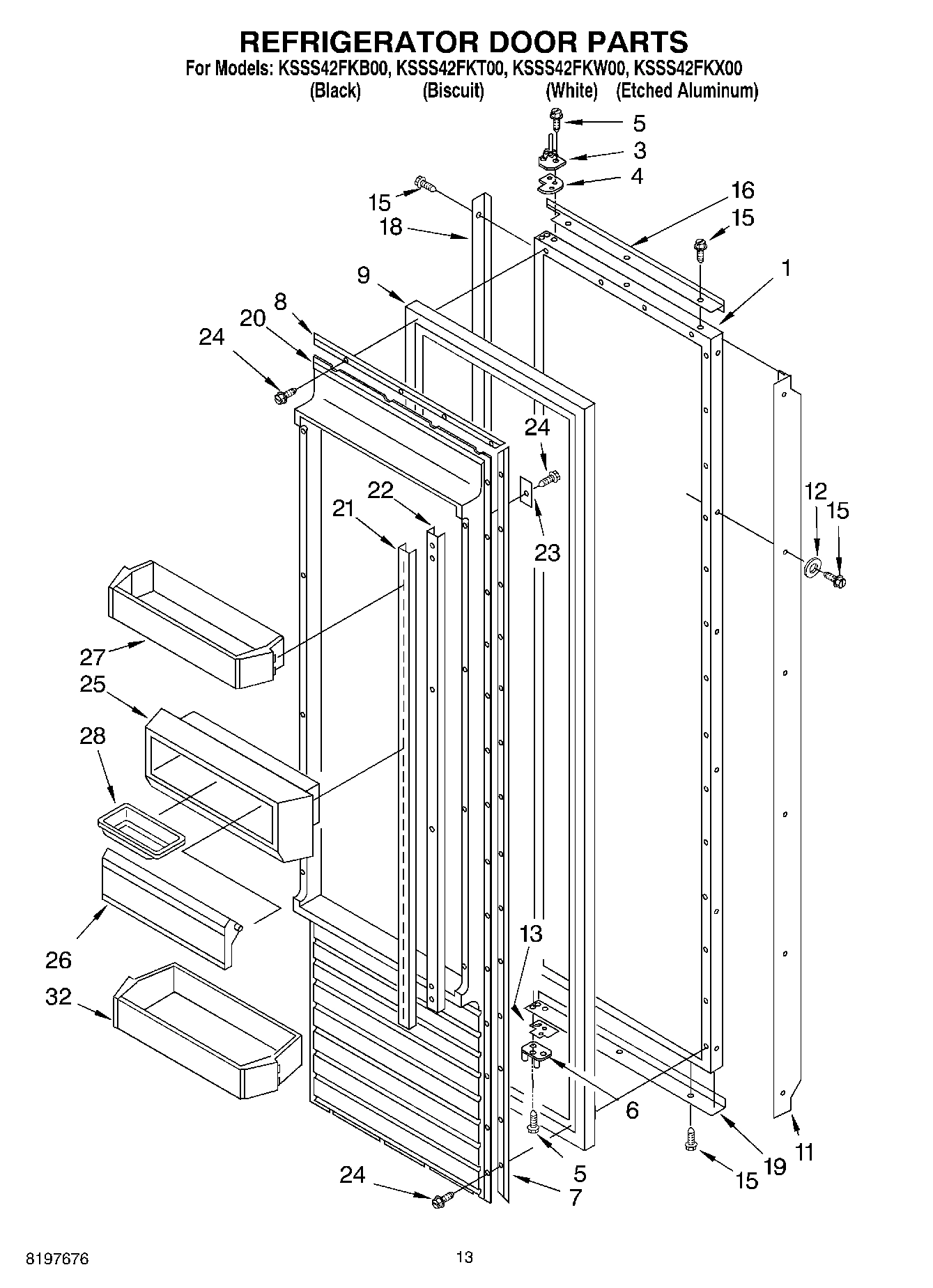

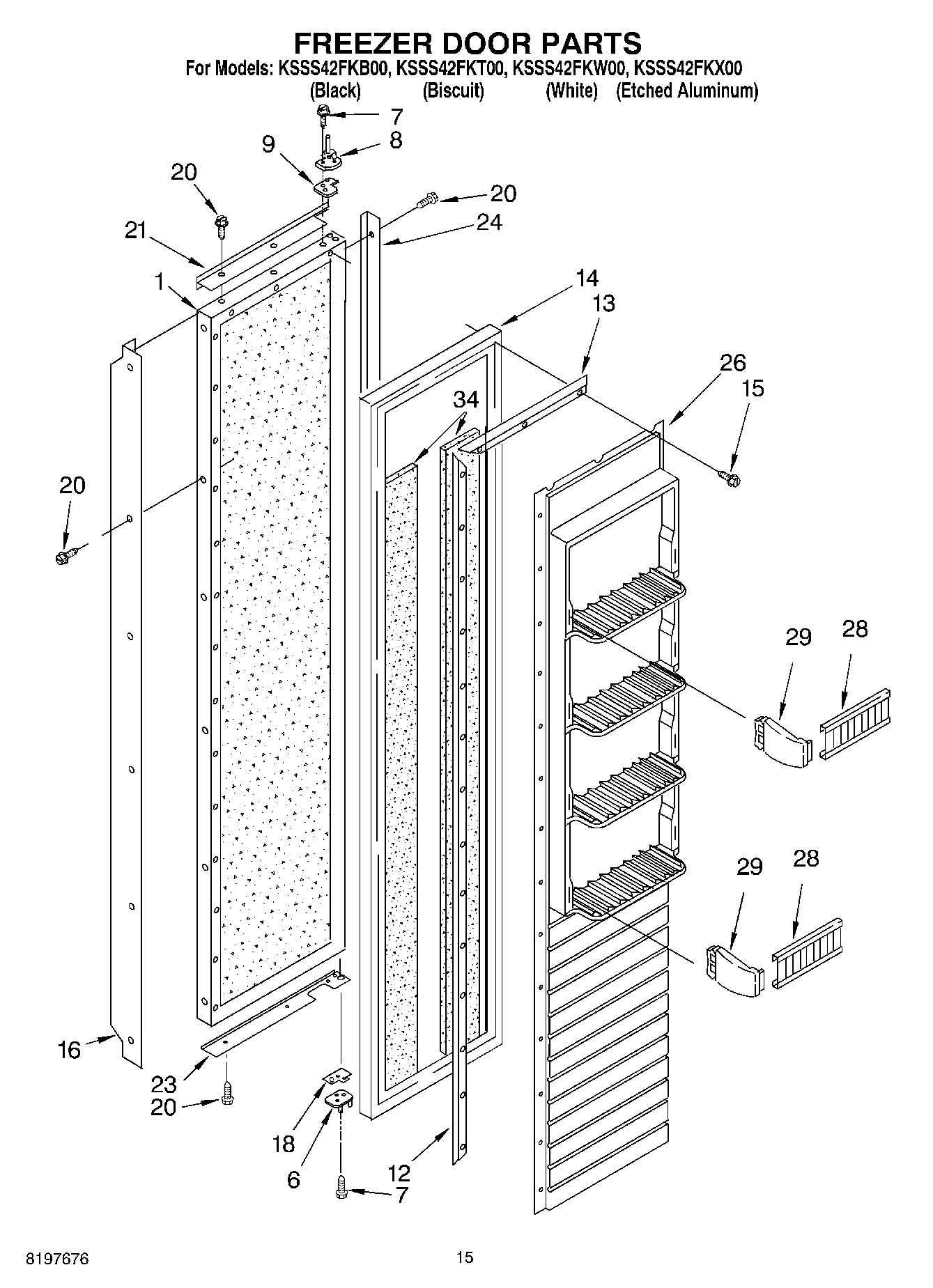

Refrigerator Door Panel (Includes Insulation) WPL 2215988 Contact Us For Availability

2

Cover, Unit WPL 2209490 Contact Us For Availability

2

Wire Harness WPL 2209119 Contact Us For Availability

2

Screw WPL 2003857 Contact Us For Availability

2

Cup, Clearance WPL 2002732 Contact Us For Availability

2

Glass, Shelf WPL 2003376 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $97.38

3

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $413.99

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

3

Plug, Water Valve WPL 2005038 Contact Us For Availability

3

Reflector, Shelf WPL 1113547 Contact Us For Availability

3

Hinge Assembly, Top WPL 2220922 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $210.17

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

4

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

4

Housing, Control Board WPL 2199929 Contact Us For Availability

4

Bracket WPL 2215508 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2209074 Contact Us For Availability

4

Gasket, Glass (2) WPL 1113791 Contact Us For Availability

4

Spacer-Door, Top WPL 2004520 Contact Us For Availability

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

5

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Guard, Wiring WPL 2209492 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

5

Side Support WPL 2209067 Contact Us For Availability

5

Ladder, Shelf (2) WPL 2208975 Contact Us For Availability

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

6

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $102.33

6

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

6

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

6

Suction Tube WPL 2209035 Contact Us For Availability

6

Cabinet, Trim Top WPL 2003646 Contact Us For Availability

6

Hinge Assembly, Bottom WPL 2220809 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.91

7

Wire Assembly, RC/FC Light Switch WPL 2220808 Contact Us For Availability

7

Shroud, Condenser (Right) WPL 2209038 Contact Us For Availability

7

Cabinet Trim (Left Side) (Etched Aluminum) WPL 2215936 Contact Us For Availability

7

Cabinet Trim (Left Side) (Black) WPL 2215936B Contact Us For Availability

7

Cabinet Trim (Left Side) (Biscuit) WPL 2215936T Contact Us For Availability

7

Cabinet Trim (Left Side) (White) WPL 2215936W Contact Us For Availability

7

Screw WPL 488357 Contact Us For Availability

7

Frame, Assembly Meat Pan WPL 2006524 Contact Us For Availability

7

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

8

2003046 Whirlpool Refrigerator Plug Backorder WPL 2003046 $56.37

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

8

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

8

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

8

Baffle-Air, Condenser WPL 2006440 Contact Us For Availability

8

Panel, Condenser Front WPL 2215665 Contact Us For Availability

8

Tube, Connect (Drier) WPL 2209454 Contact Us For Availability

8

Deflector, Air Duct WPL 2003925 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability

9

2003047 Whirlpool Refrigerator Plug Backorder WPL 2003047 $13.04

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $61.35

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

9

WP1113894 Whirlpool Refrigerator Cover Backorder WPL WP1113894 $58.04

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

9

Heater, Drain Pan WPL 2209451 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Tube, Filter Outlet WPL 2209430 Contact Us For Availability

9

Hole Plug WPL 1112257 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188498 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

Ice Container WPL 2208907 Contact Us For Availability

Valve, Solenoid WPL 2006766 Contact Us For Availability

Shroud, Condenser (Left) WPL 2209037 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

Meat Pan, Air Duct Cover WPL 2220888 Contact Us For Availability

Glass, Crisper (Includes No.9) WPL 2003379 Contact Us For Availability

W10823805-includeCORE Whirlpool W10823805 Ref Backorder WPL W10823805-includeCORE $455.09

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Cam, Door Closer WPL 2005783 Contact Us For Availability

Clamp, Nylon WPL 488937 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

Meat Pan, Air Duct WPL 2000337 Contact Us For Availability

Meat Pan, Connector WPL 2000742 Contact Us For Availability

Handle, Door (Etched Aluminum) WPL 2005952 Contact Us For Availability

Handle, Door (White) WPL 2005953 Contact Us For Availability

Handle, Door (Biscuit) WPL 2005955 Contact Us For Availability

Handle, Door (Black) WPL 2005956 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $11.45

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $11.67

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $165.50

Connector Wire WPL 227991 Contact Us For Availability

Sleeve WPL 2002448 Contact Us For Availability

Release Valve WPL 2220993 Contact Us For Availability

Cover WPL 2169935 Contact Us For Availability

Washer WPL 2001230 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $46.45

Water Valve, Harness WPL 2209072 Contact Us For Availability

Tube, Discharge WPL 2209036 Contact Us For Availability

Seal, Air Duct WPL 2001326 Contact Us For Availability

Fastner WPL 1112871 Contact Us For Availability

Door, Spacer Bottom WPL 2004549 Contact Us For Availability

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

Stop, Roller WPL 1113169 Contact Us For Availability

Insert, Tube WPL 1129177 Contact Us For Availability

Screw WPL 486899 Contact Us For Availability

Damper Control, Meat Pan WPL 1112218 Contact Us For Availability

Crisper Pan (2) WPL 2220896 Contact Us For Availability

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $6.99

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

Screw (White) WPL 8281251 Contact Us For Availability

Screw (Biscuit) WPL 8281253 Contact Us For Availability

Control Knob, Meat Pan WPL 2003811 Contact Us For Availability

Deflector, Air Duct WPL 2003928 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $65.16

WP2306093 Whirlpool Evaporator In Stock WPL WP2306093 $252.61

Eyelet, Roller WPL 2174478 Contact Us For Availability

Condenser WPL 2209062 Contact Us For Availability

Retainer, Knob WPL 2003841 Contact Us For Availability

Trim (Top) (Etched Aluminum) WPL 2005011 Contact Us For Availability

Trim (Top) (White) WPL 2005014 Contact Us For Availability

Trim (Top) (Biscuit) WPL 2005757 Contact Us For Availability

Trim (Top) (Black) WPL 2005840 Contact Us For Availability

WP2005378 Whirlpool Refrigerator Screw In Stock WPL WP2005378 $6.84

WP2006750 Whirlpool Refrigerator Heater In Stock WPL WP2006750 $116.48

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Grommet (4) WPL 943447 Contact Us For Availability

Air Baffle Assembly WPL 2208904 Contact Us For Availability

Assembly, Air Duct WPL 2209332 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $7.19

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Jumper, Wire WPL 2221009 Contact Us For Availability

Trim, Side (Etched Aluminum) WPL 2005967 Contact Us For Availability

Trim (Side) (White) WPL 2005968 Contact Us For Availability

Trim (Side) (Biscuit) WPL 2005970 Contact Us For Availability

Trim, Side (Black) WPL 2005971 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $59.00

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $126.77

Screw WPL 487522 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

Trim (Bottom) (Etched Aluminum) WPL 2209418 Contact Us For Availability

Trim (Bottom) (Black) WPL 2209418B Contact Us For Availability

Trim (Bottom) (Biscuit) WPL 2209418T Contact Us For Availability

Trim (Bottom) (White) WPL 2209418W Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $8.99

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Meat Pan WPL 2220902 Contact Us For Availability

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Harness, Wire WPL 2209318 Contact Us For Availability

Panel, Interior Door WPL 1113953 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $4.82

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Diffuser Assembly WPL 2208997 Contact Us For Availability

Liner (Not A Serviceable Part) WPL ARI107155A Contact Us For Availability

Ladder, Shelf (2) WPL 1113951 Contact Us For Availability

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $58.36

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Bushing WPL 2002903 Contact Us For Availability

Gasket, Air Baffle WPL 1112869 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $220.99

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Cover, Air Outlet WPL 2215718 Contact Us For Availability

Strap WPL 851095 Contact Us For Availability

Retainer, Glass WPL 2002181 Contact Us For Availability

Back Up Plate (8) WPL 1112514 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $60.46

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

Blade, Fan WPL 2190685 Contact Us For Availability

Trim (Side) (White) WPL 2005963 Contact Us For Availability

Trim (Side) (Biscuit) WPL 2005965 Contact Us For Availability

Trim (Side) (Black) WPL 2005966 Contact Us For Availability

Grommet, Water Tube WPL 2209444 Contact Us For Availability

Light Shield WPL 2198589 Contact Us For Availability

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $11.41

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $170.91

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

Crisper Spacer, Right Side (2) WPL 2006515 Contact Us For Availability

Orifice, Fan WPL 2003169 Contact Us For Availability

Cover, Evaporator WPL 2208978 Contact Us For Availability

Bin, Utility WPL 1112721 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.90

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

Panel, Interior Door WPL 2209031 Contact Us For Availability

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

Door, Utility Bin WPL 2003464 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.46

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Cement Alumilastic) WPL 542639 Contact Us For Availability

Door Shelf (3) WPL 1113973 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $8.35

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

Crisper Spacer, Left Side (2) WPL 2006516 Contact Us For Availability

Shelf Bin WPL 2188515 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $81.96

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $181.40

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability

Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability

Diffuser, Air Duct WPL 1112852 Contact Us For Availability

30

1112260 Whirlpool EV Support Backorder WPL 1112260 $6.78

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

31

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

Skirt-Grille, Bottom (Black) WPL 2209025B Contact Us For Availability

Sleeve, Condenser WPL 2000645 Contact Us For Availability

Shelf, Gallon Door WPL 2188332 Contact Us For Availability

33

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $63.44

33

Evaporator, Cover Rail (Left Side) WPL 2208979 Contact Us For Availability

33

Evaporator, Cover Rail (Right Side) WPL 2208980 Contact Us For Availability

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $16.21

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

WPL 2209428W WPL 2209428W Contact Us For Availability

Seal WPL 2005610 Contact Us For Availability

35

WPL 2005921 WPL 2005921 Contact Us For Availability

35

Wire, Jumper WPL 2221077 Contact Us For Availability

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $59.47

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

Fitting, Water Tube WPL 2185988 Contact Us For Availability

Cover, Fan WPL 2209495 Contact Us For Availability

37

Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability

37

Cover, Condenser WPL 2215628 Contact Us For Availability

37

Tube, Meat Pan WPL 2209220 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $59.25

38

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $7.60

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.99

39

Service Cord WPL 2003381 Contact Us For Availability

40

Clip, Thermistor WPL 2209204 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $9.15

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $62.93

42

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

43

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

44

Compresion Nut WPL 1129179 Contact Us For Availability

44

Clip, Cord Plug WPL 653035 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2215944 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99

Front Panel Kit (White) WPL 2220853 Contact Us For Availability

Front Panel Kit (Black) WPL 2220856 Contact Us For Availability

Front Panel Kit (Biscuit) Black WPL 2220859 Contact Us For Availability

Front Panel Kit (Stainless Steel) WPL 2220862 Contact Us For Availability

Acrylic Static Cleaner WPL 978849 Contact Us For Availability
