Model Whirlpool KSSP48QFB05 BUILT IN REFRIGERATOR – Common Parts & Diagrams

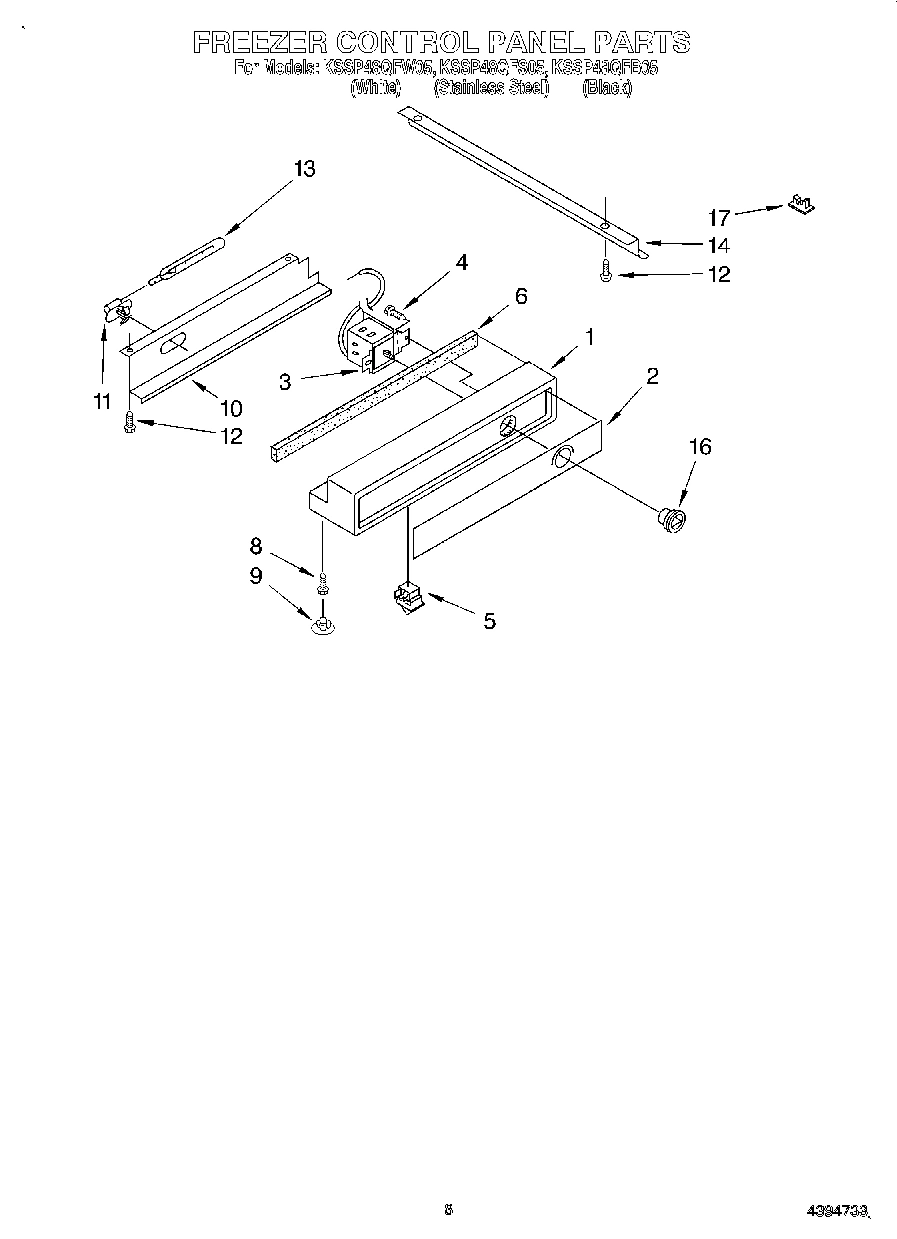

06 - FREEZER CONTROL PANEL

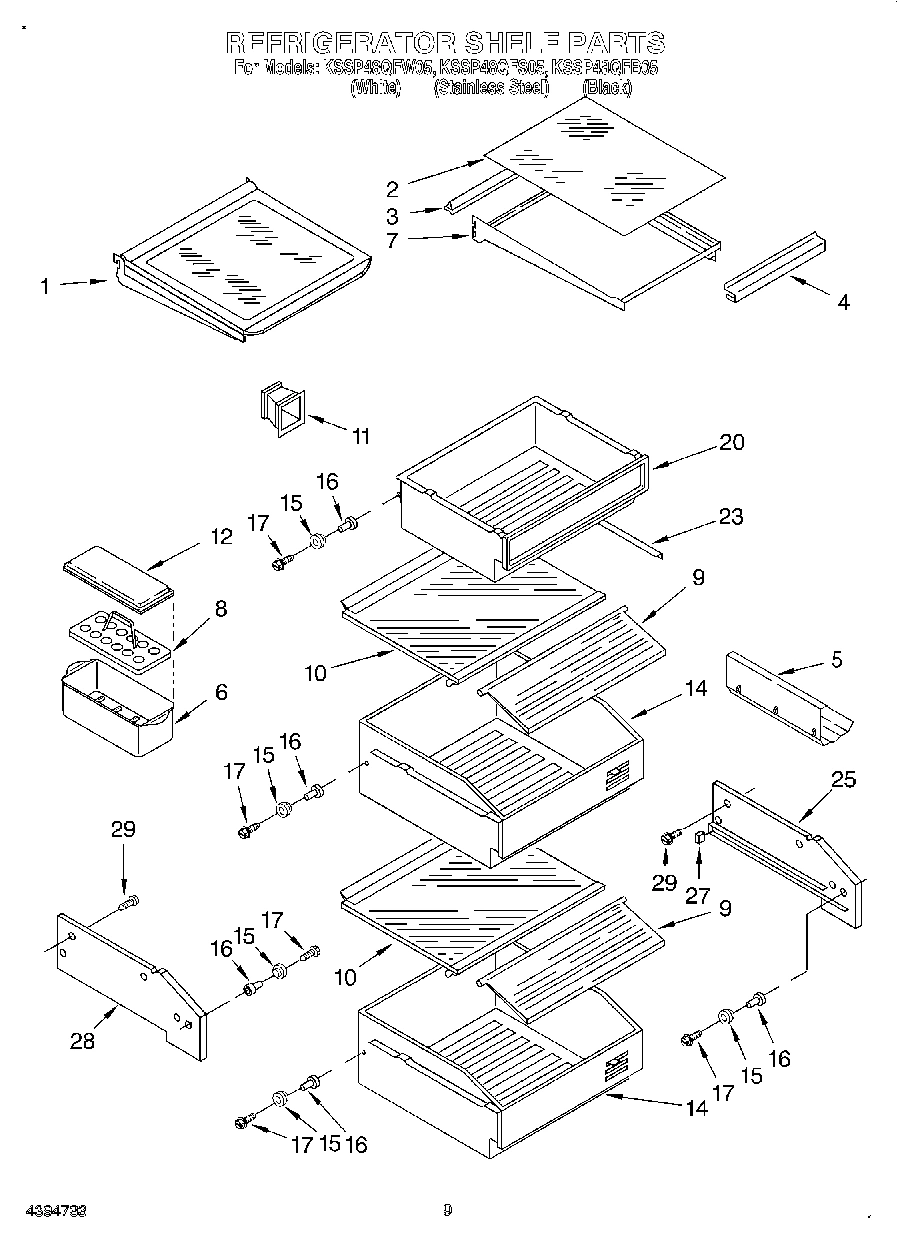

07 - REFRIGERATOR SHELF

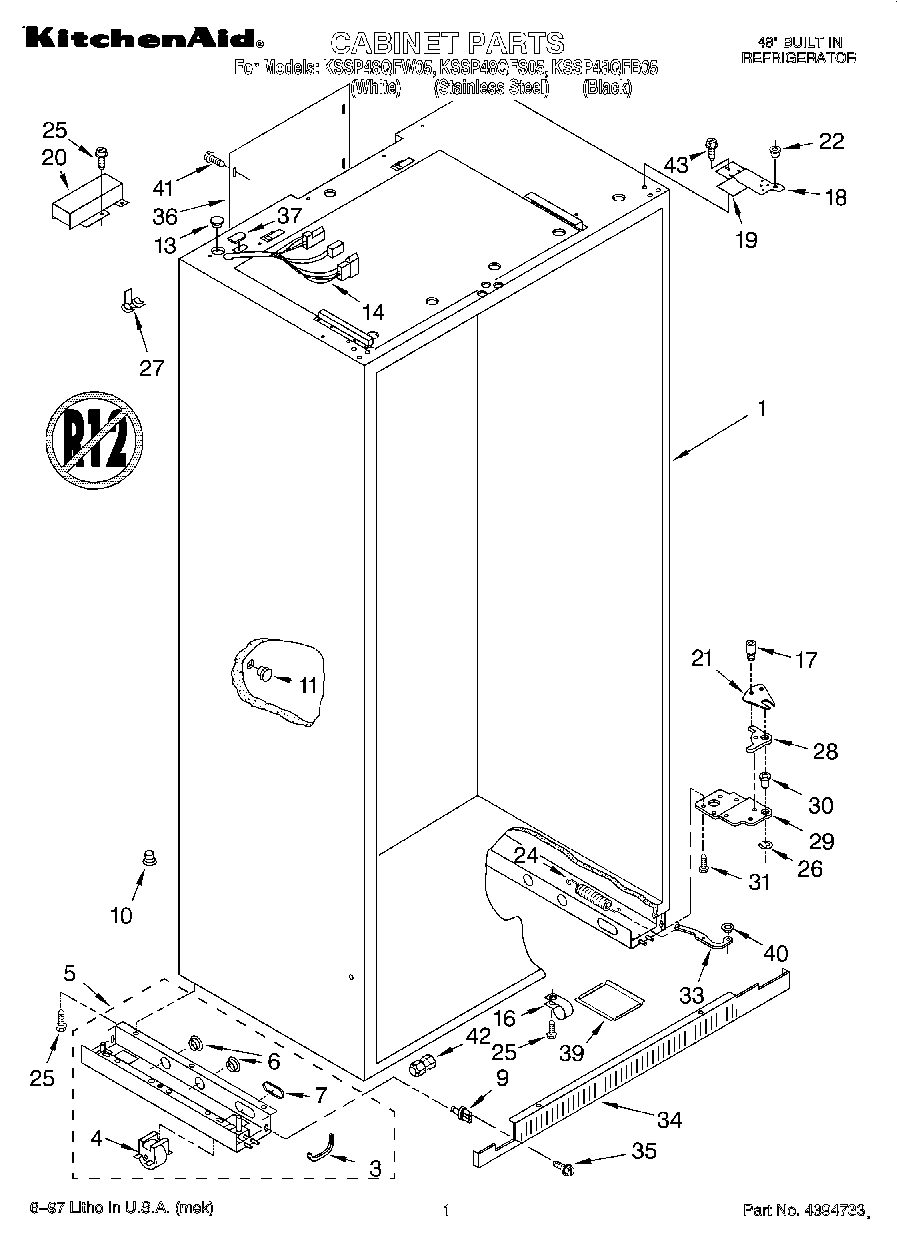

01 - CABINET

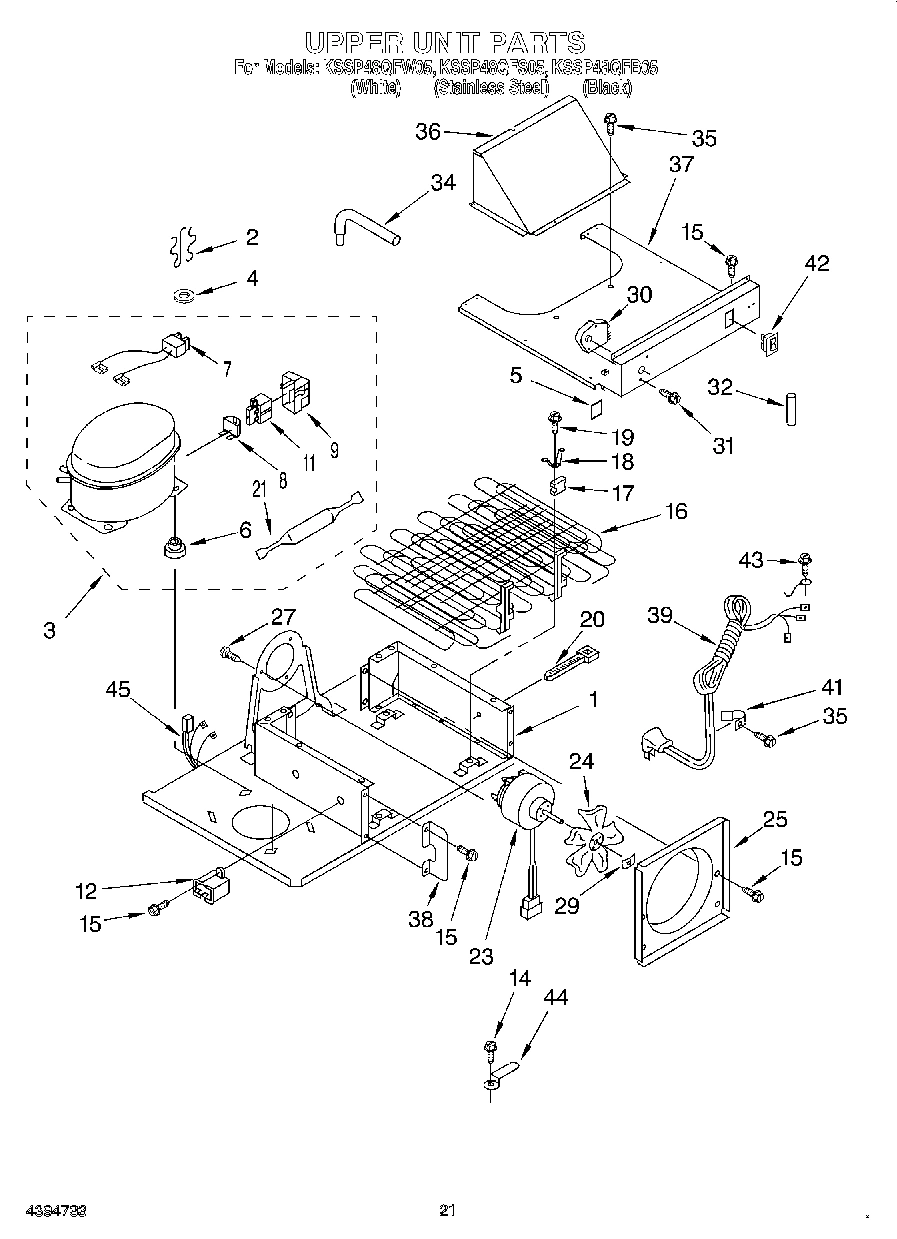

14 - UPPER UNIT

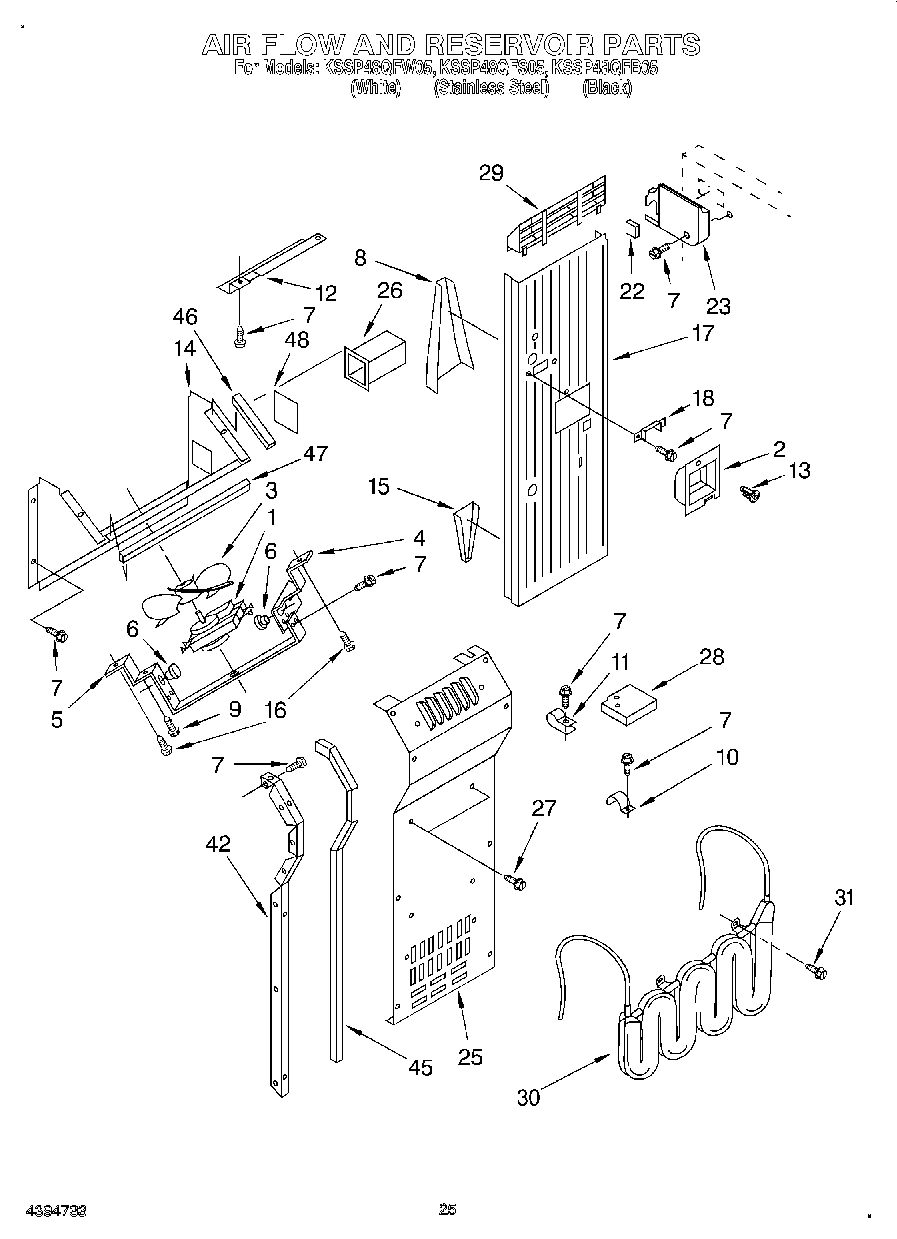

16 - AIR FLOW AND RESERVOIR

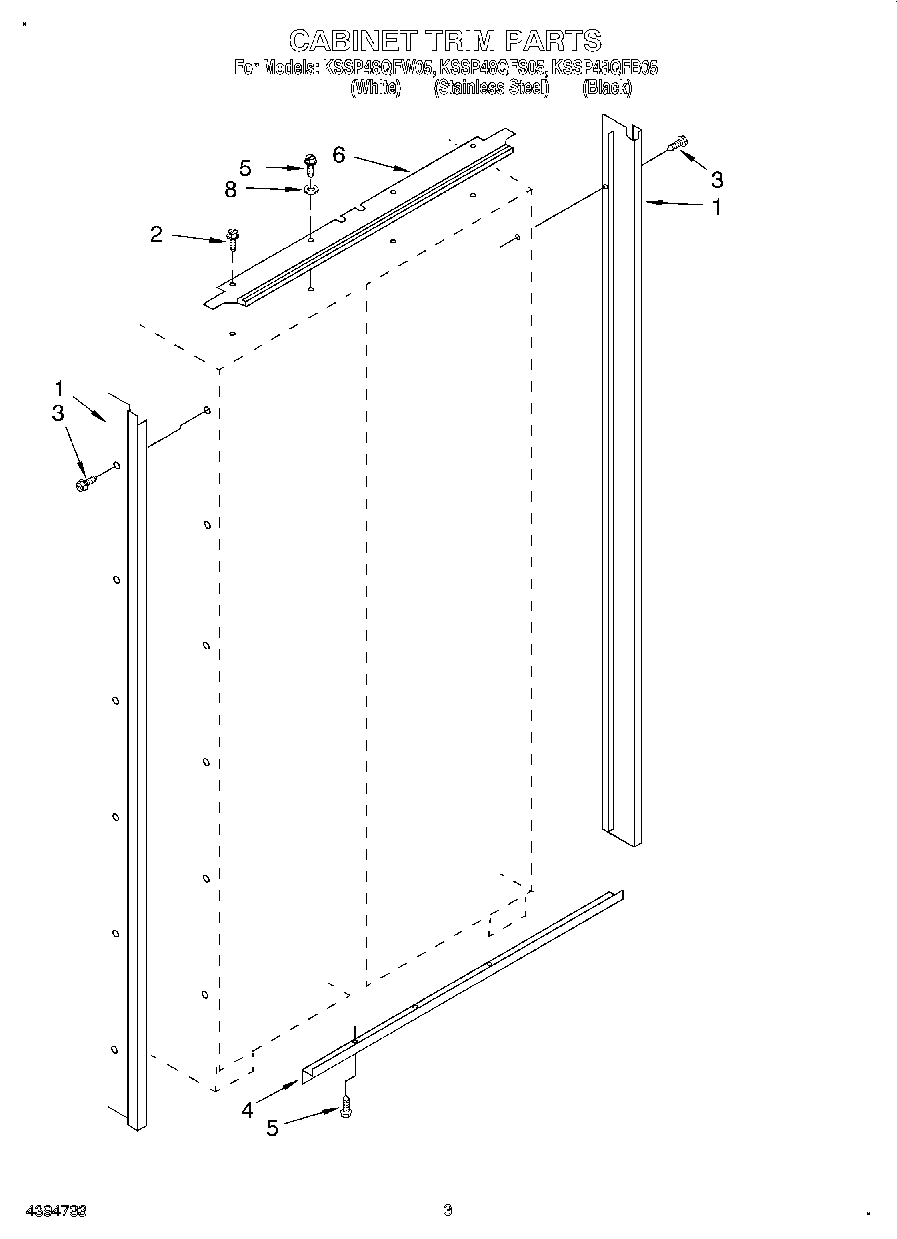

02 - CABINET TRIM

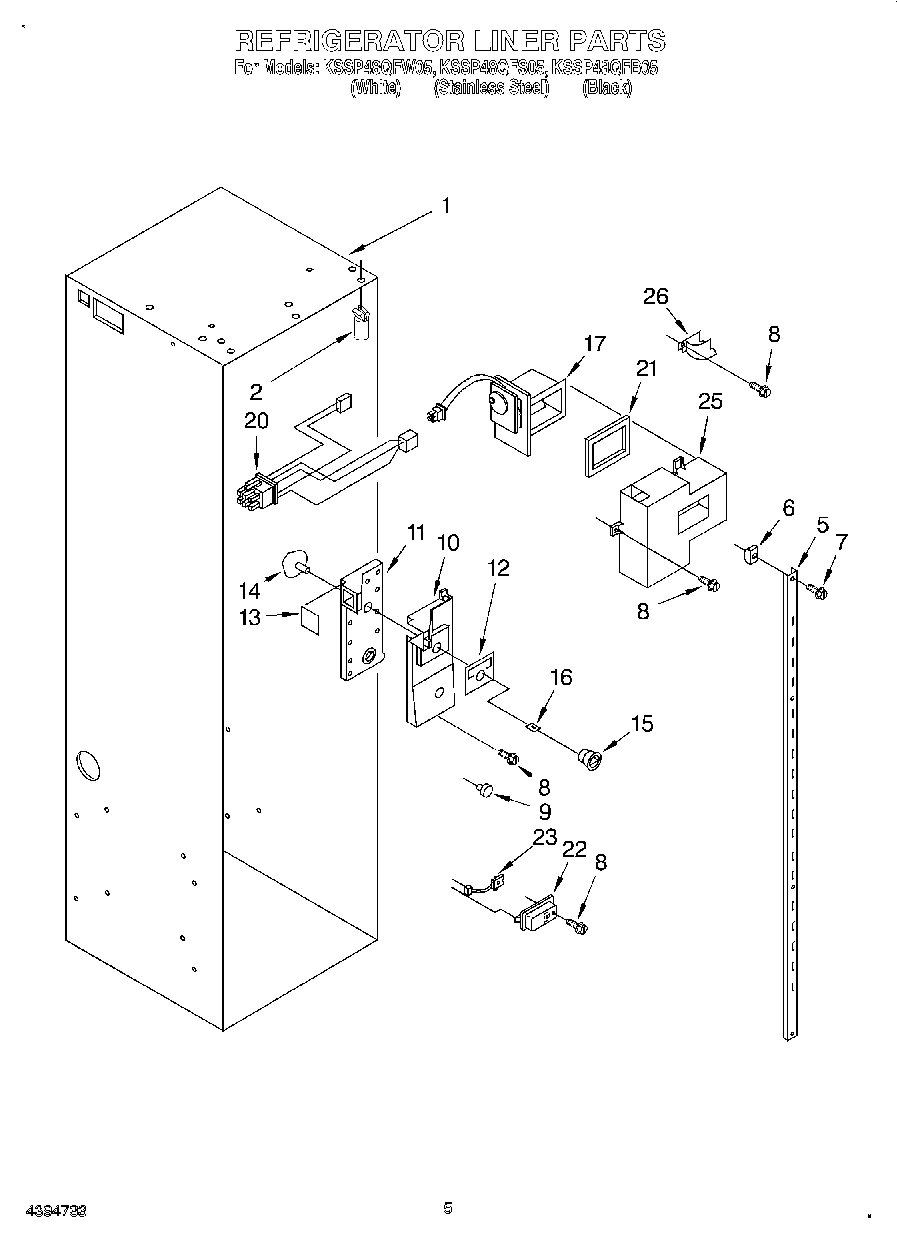

04 - REFRIGERATOR LINER

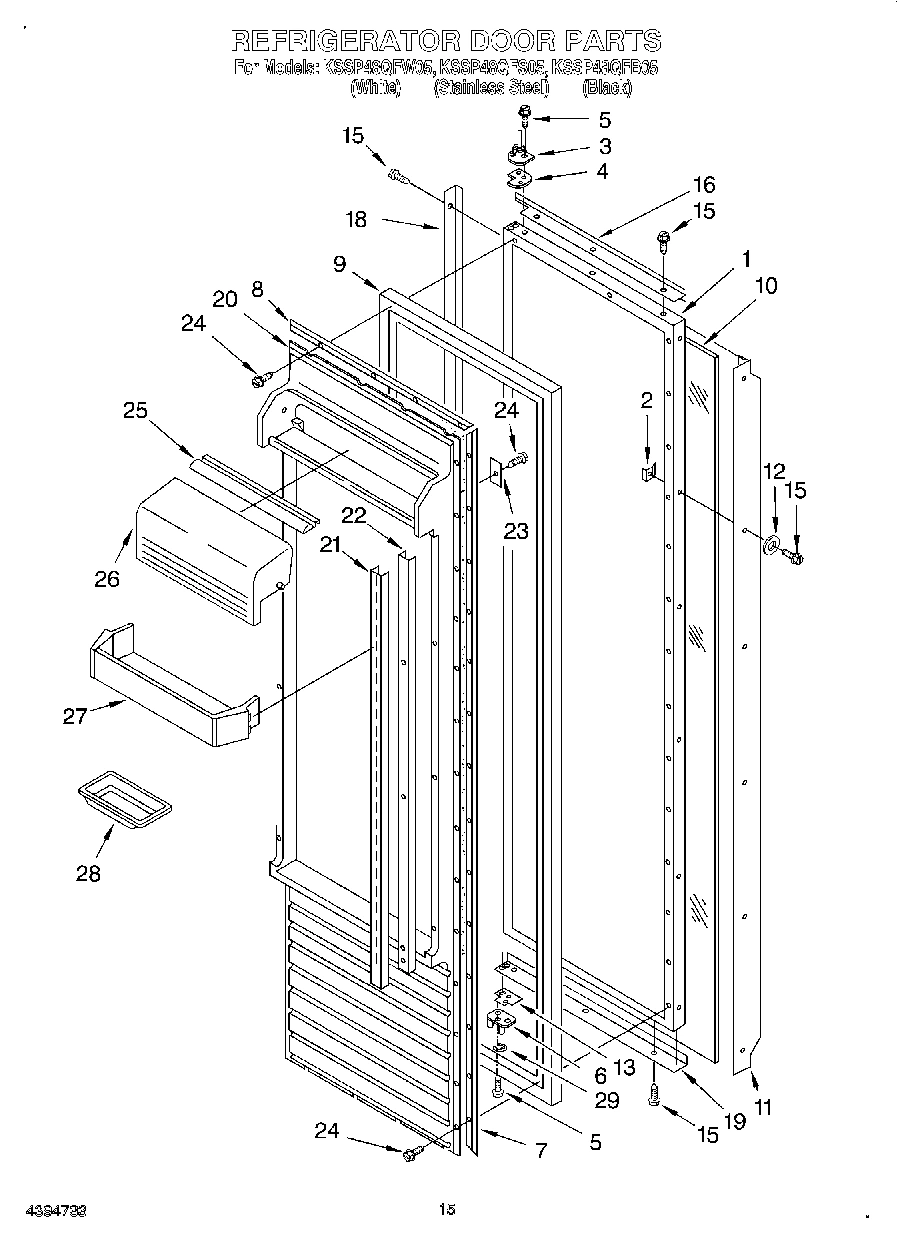

11 - REFRIGERATOR DOOR

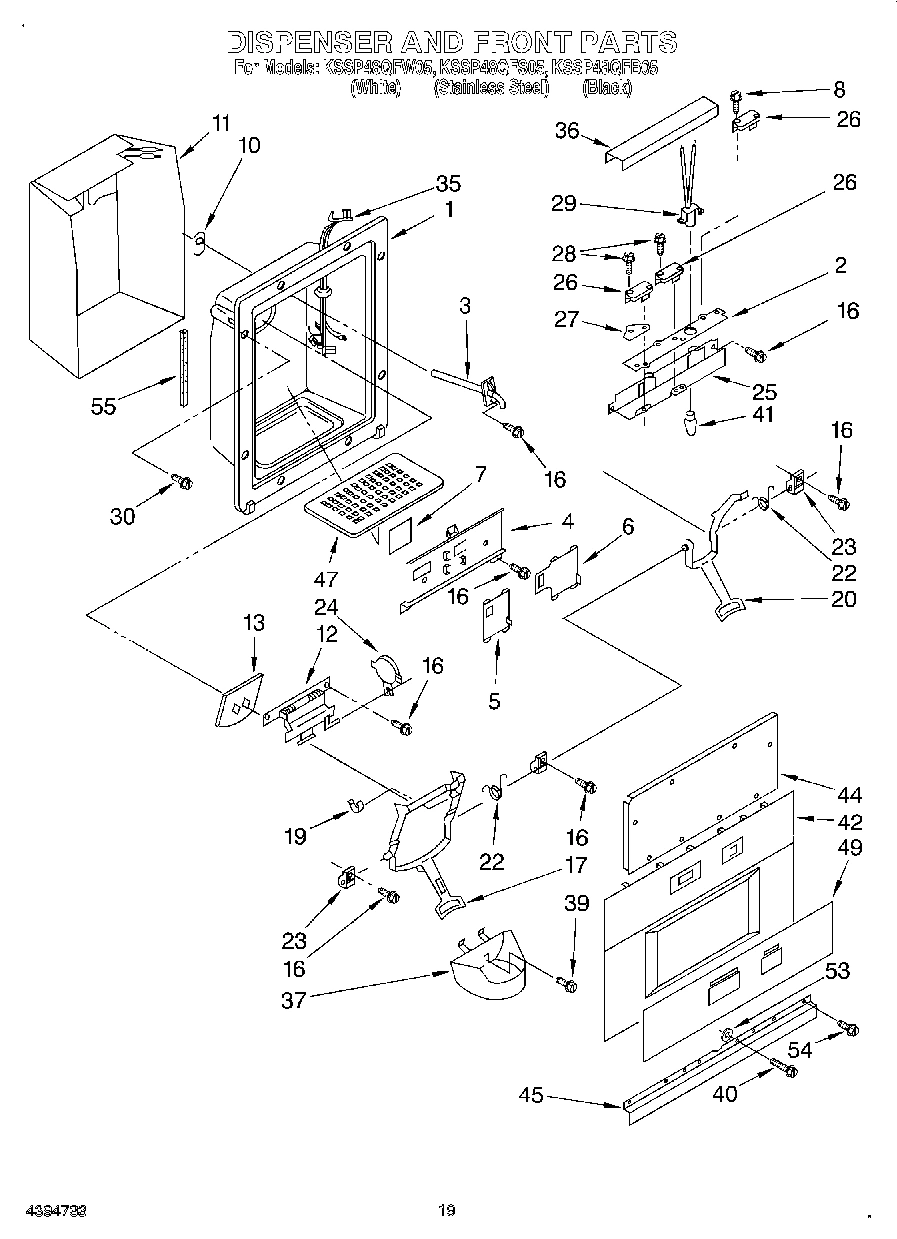

13 - DISPENSER AND FRONT

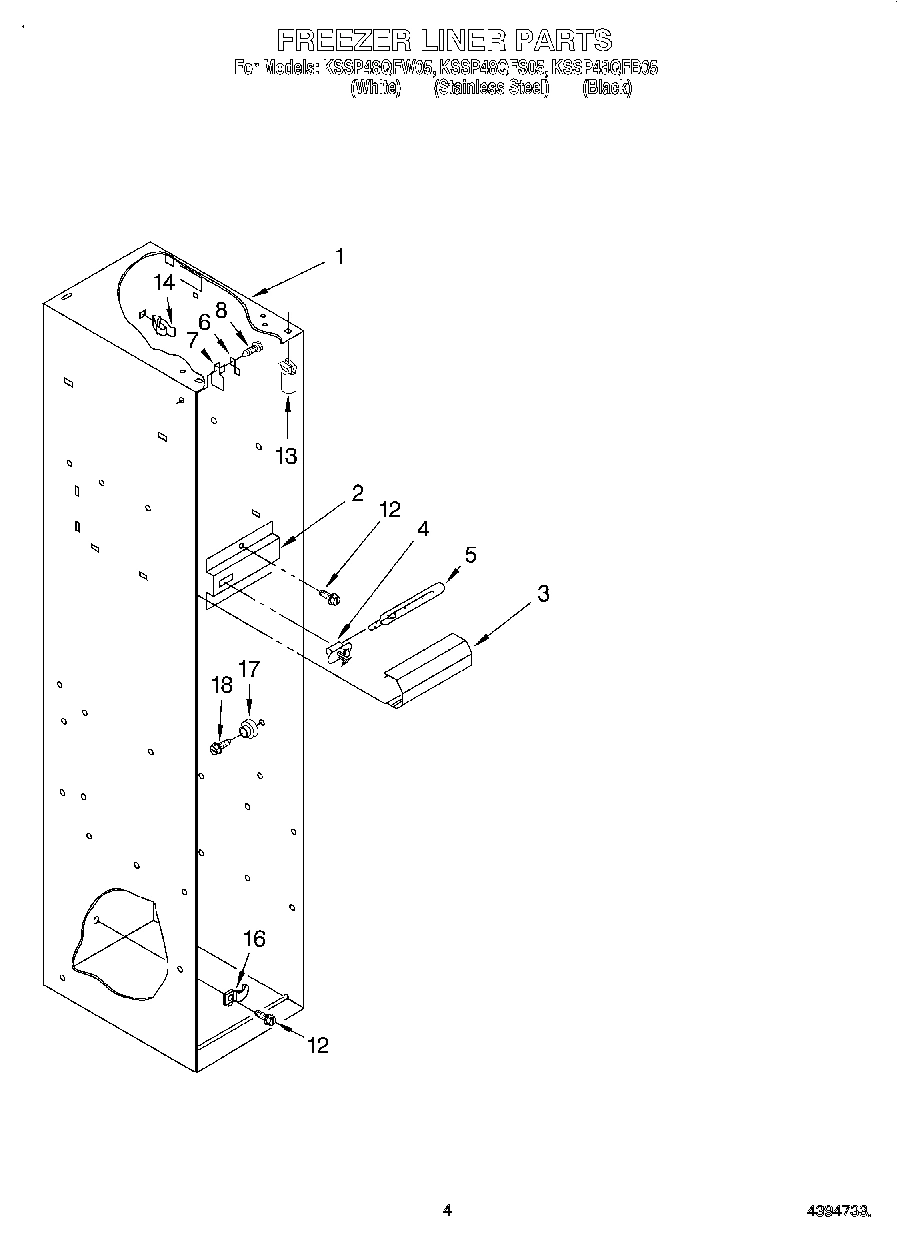

03 - FREEZER LINER

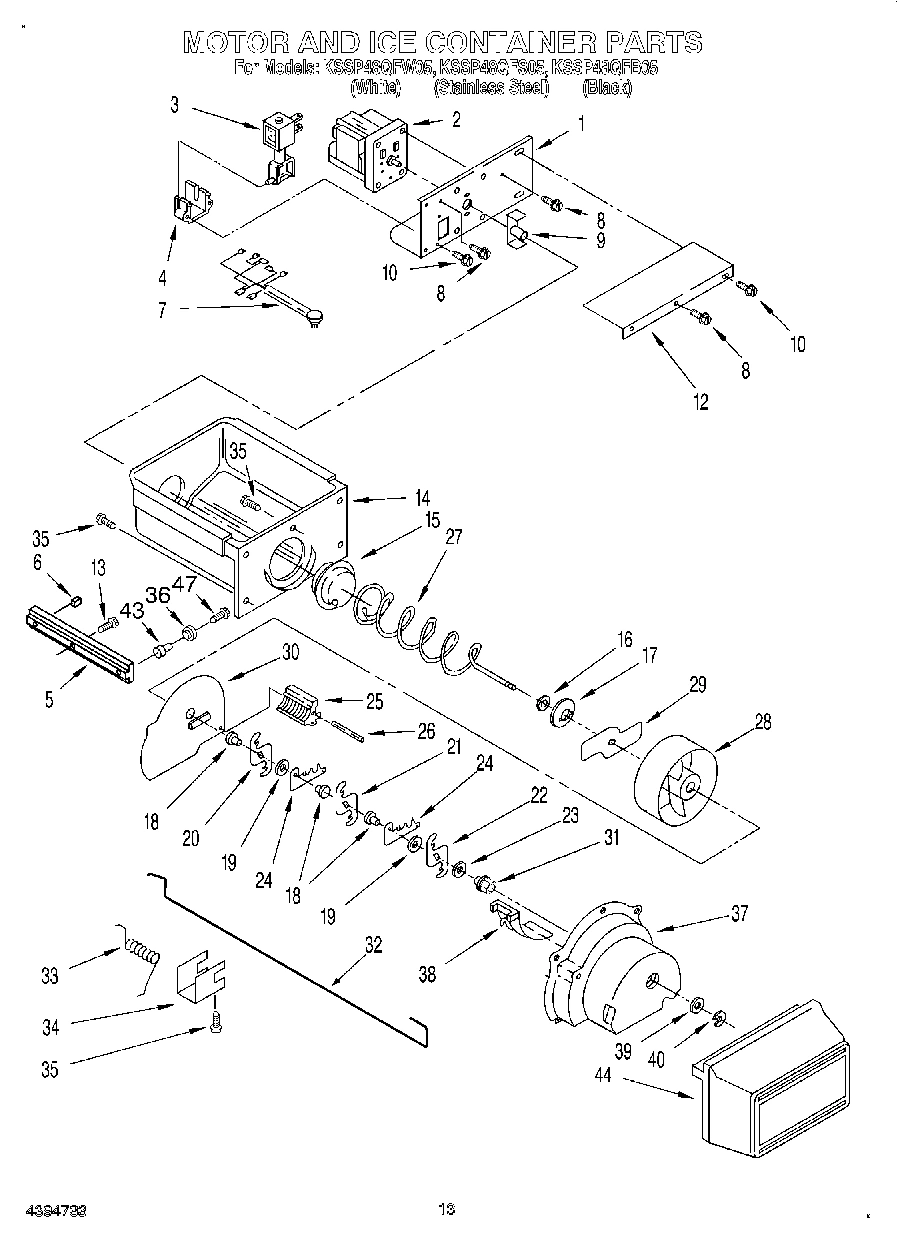

10 - MOTOR AND ICE CONTAINER

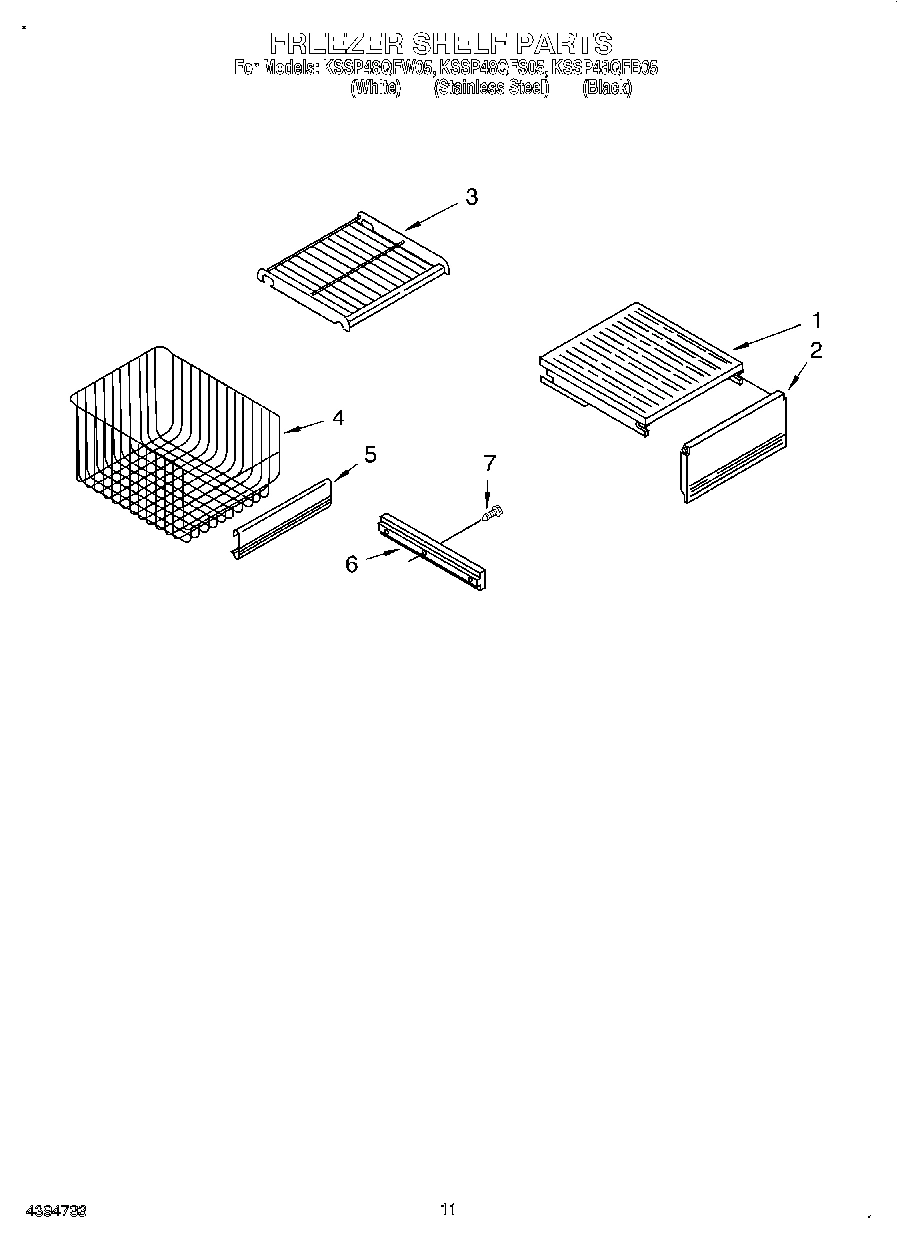

08 - FREEZER SHELF

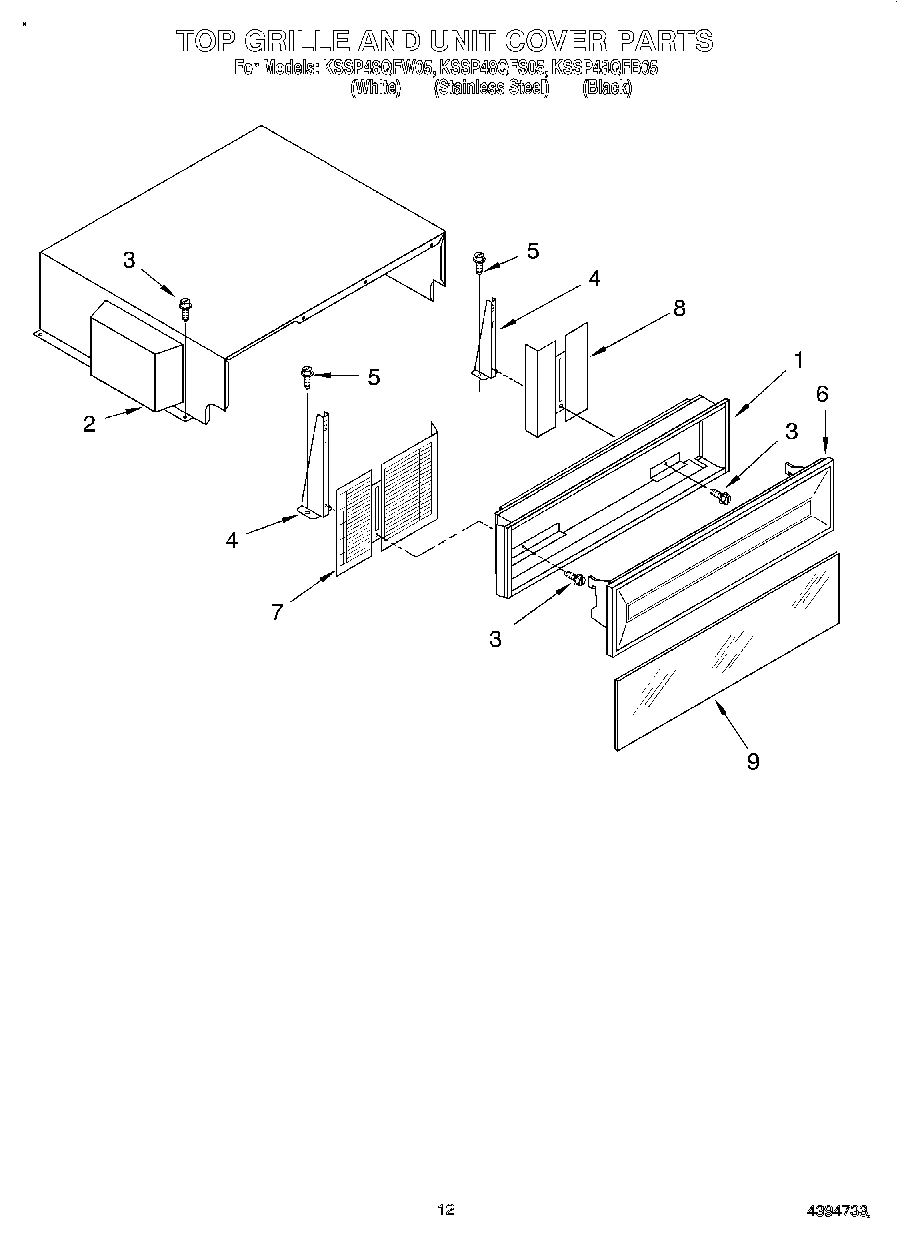

09 - TOP GRILLE AND UNIT COVER

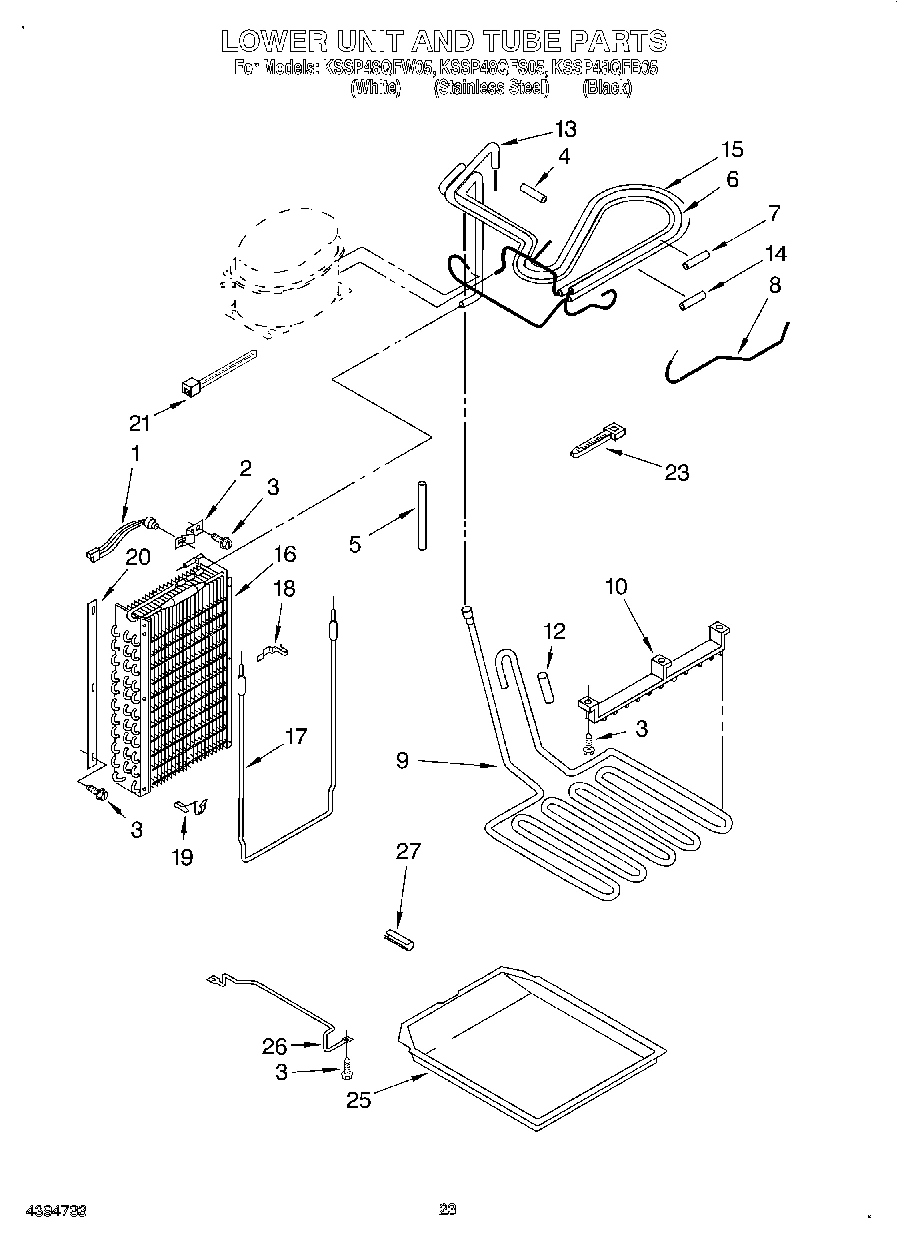

15 - LOWER UNIT AND TUBE

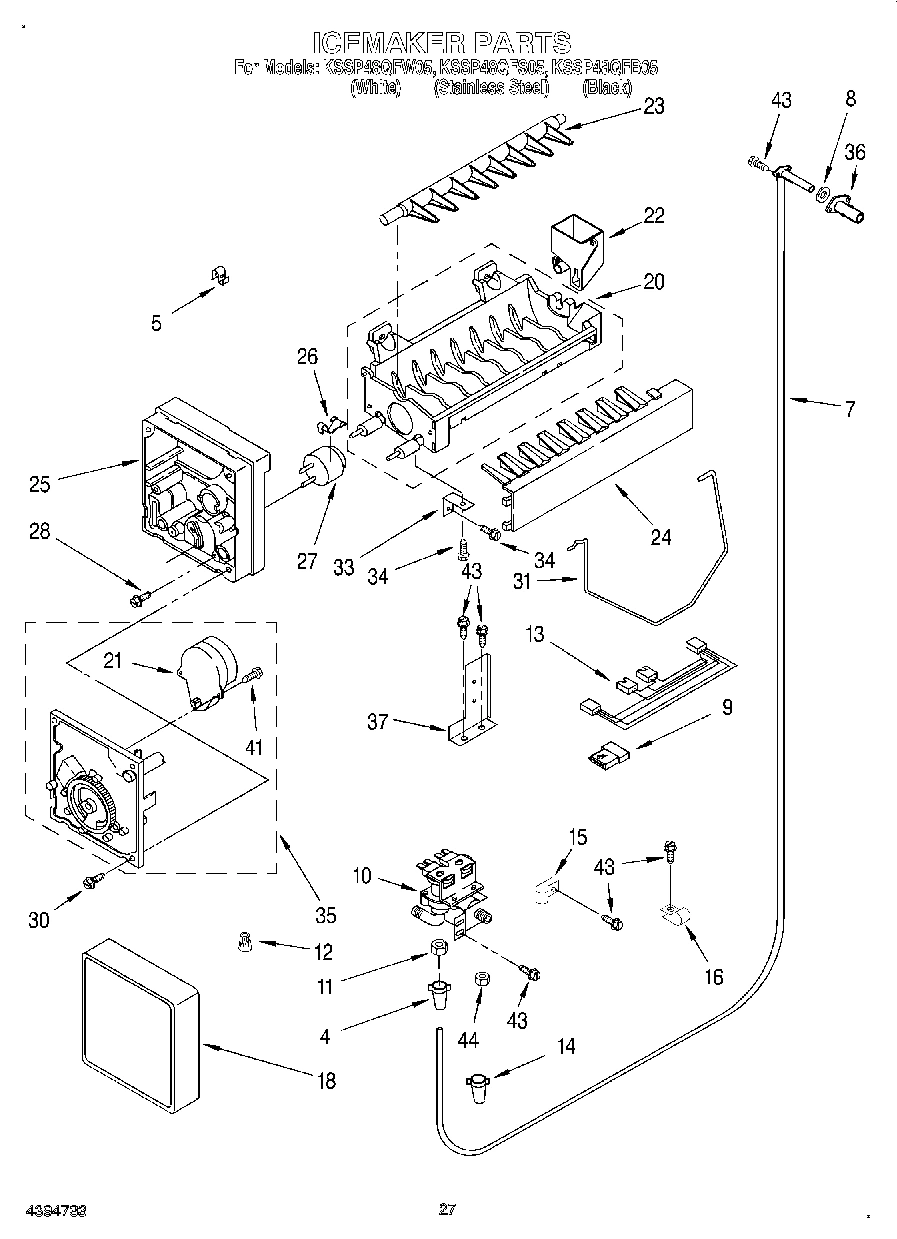

17 - ICEMAKER, LIT/OPTIONAL

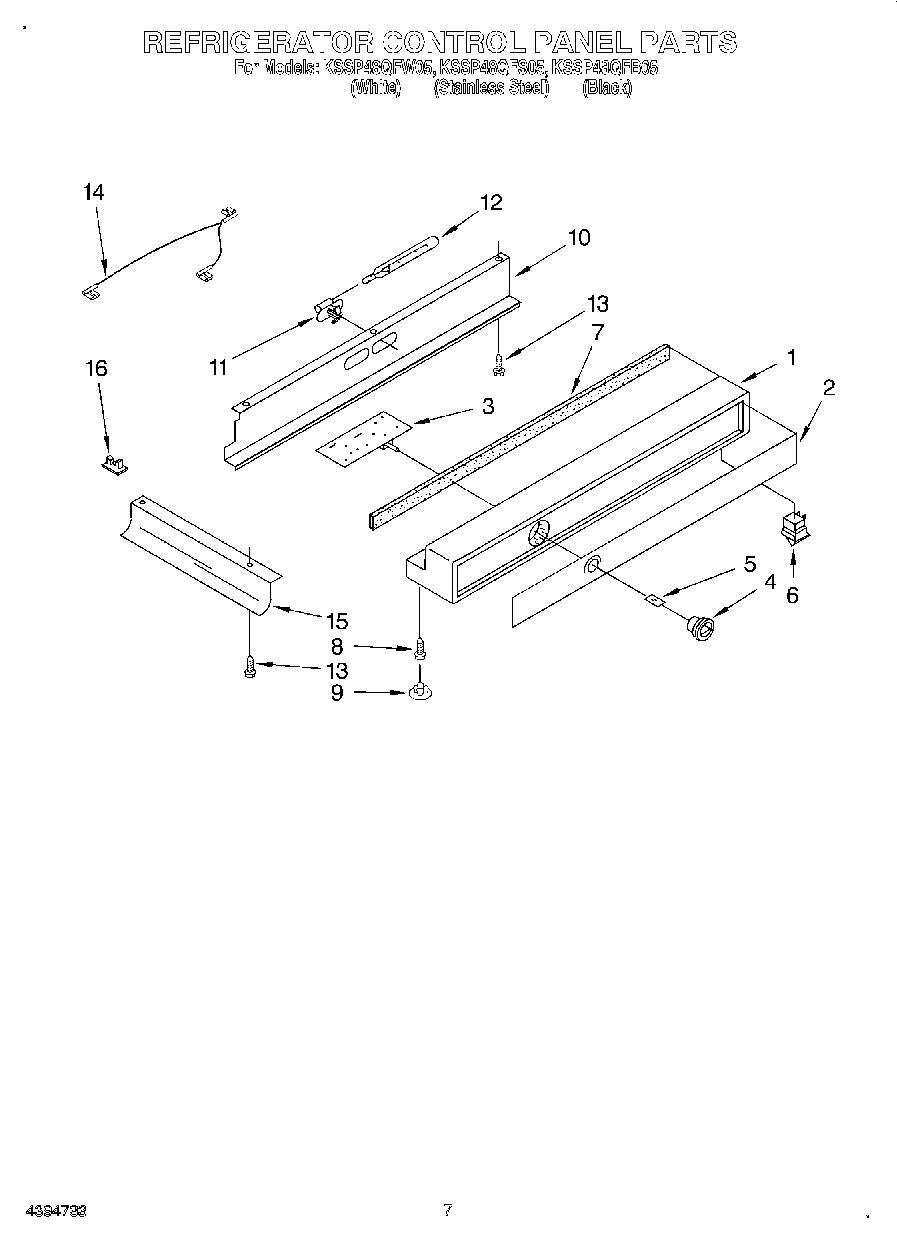

05 - REFRIGERATOR CONTROL PANEL

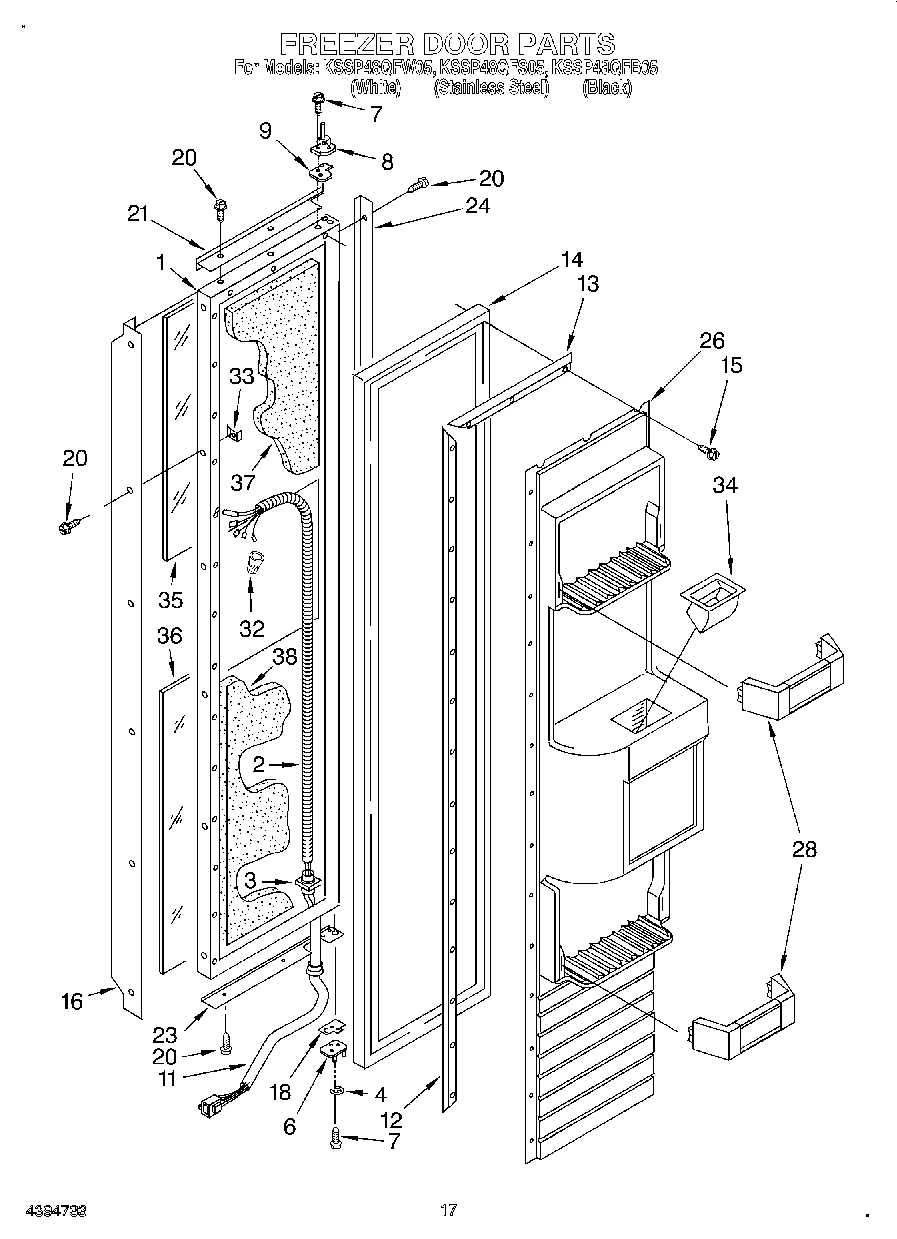

12 - FREEZER DOOR
Common parts from model Whirlpool KSSP48QFB05 BUILT IN REFRIGERATOR
Use & Care Guide WPL LIT2004846 Contact Us For Availability
Service & Wiring Sheet WPL LIT2004863 Contact Us For Availability
Installation Instructions WPL LIT2004864 Contact Us For Availability
Energy Label WPL LIT2004991 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Cabinet, Trim (2) (Black) WPL 2004553 Contact Us For Availability
1
Cabinet, Trim (2) (Stainless Steel) WPL 2004621 Contact Us For Availability
1
Cabinet, Trim (2) (White) WPL 2004668 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106373A Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2003872 Contact Us For Availability
1
Housing, Dispenser (Stainless Steel and Black WPL 1107943 Contact Us For Availability
1
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106372A Contact Us For Availability
1
Bracket, Motor WPL 2003941 Contact Us For Availability
1
Solid Shelf WPL 2003144 Contact Us For Availability
1
Top Grille Assembly (Black) WPL 2003715 Contact Us For Availability
1
Top Grille Assembly (White) WPL 2003718 Contact Us For Availability
1
Top Grille Assembly (Stainless Steel) WPL 2004957 Contact Us For Availability
1
Control Panel WPL 1112642 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) WPL 2004886 Contact Us For Availability
2
Cup, Clearance WPL 2002732 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
2
Insulator, Bracket Control WPL 2147164 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Front, Ice Compartment WPL 2003135 Contact Us For Availability
2
Cover, Unit WPL 2004946 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Inlay, Control Panel WPL 2003303 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Soleniod Assembly WPL 2003979 Contact Us For Availability
3
Shelf, Deep WPL 1112052 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113638 Contact Us For Availability
3
Circuit Board WPL 2004005 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2004538 Contact Us For Availability
4
Retaining Ring, Door-Closure WPL 2004881 Contact Us For Availability
4
Frame, Slides (Stainless Steel and Black Mode WPL 2152716 Contact Us For Availability
4
Frame, Slides (White) WPL 2152717 Contact Us For Availability
4
Basket WPL 2001626 Contact Us For Availability
4
Grille, Bracket WPL 2002484 Contact Us For Availability
4
Control Knob WPL 2003842 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Retainer, Knob WPL 2003841 Contact Us For Availability
5
Slide, Cube/Crush Switch (Stainless Steel and WPL 2152719 Contact Us For Availability
5
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
5
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
5
Trim, Basket WPL 2003114 Contact Us For Availability
5
Sleeve WPL 2002171 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2004523 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Stop, Roller WPL 1113169 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003647 Contact Us For Availability
6
Slide, Light Switch (Stainless Steel and Blac WPL 2152724 Contact Us For Availability
6
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Slide, Basket (Right Side) WPL 2000061 Contact Us For Availability
6
Slide, Basket (Left Side) WPL 2000062 Contact Us For Availability
6
Decortive Panel Assembly (Black) WPL 2003724 Contact Us For Availability
6
Decortive Panel Assembly (White) WPL 2003727 Contact Us For Availability
6
Decortive Panel Assembly (Stainless Steel) WPL 2004960 Contact Us For Availability
6
Hinge, Bottom WPL 2004524 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2005009 Contact Us For Availability
7
Heat Shield, Frame WPL 2147172 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2004006 Contact Us For Availability
7
Guard, Compressor Wiring WPL 2003480 Contact Us For Availability
7
Seal, Control Panel WPL 1113137 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Deflector, Air Duct WPL 2003926 Contact Us For Availability
8
Hinge, Top WPL 2004521 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112542 Contact Us For Availability
8
Screw WPL 488361 Contact Us For Availability
8
Guard, Water Valve Wiring WPL 2003483 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Spacer-Door, Top WPL 2004520 Contact Us For Availability
9
Panel, Decorative Acrylic (Black) WPL 4318649 Contact Us For Availability
9
Panel, Decorative Acrylic (White) WPL 4318657 Contact Us For Availability
9
Panel, Decorative Acrylic (Stainless Steel) WPL 4378763 Contact Us For Availability
9
Connector WPL 2154472 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2003579 Contact Us For Availability
10
Panel, Decorative (Black) WPL 4318646 Contact Us For Availability
10
Panel, Decorative (White) WPL 4318654 Contact Us For Availability
10
Panel, Decorative (Stainless Steel) WPL 4378762 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Valve, Solenoid WPL 2003791 Contact Us For Availability
10
Shield, Control Panel WPL 1113775 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Handle, Door (Black) WPL 2003679 Contact Us For Availability
11
Handle, Door (White) WPL 2003680 Contact Us For Availability
11
Handle, Door (Stainless Steel) WPL 2004636 Contact Us For Availability
11
Heater, Ice Dispenser WPL 2149097 Contact Us For Availability
11
Socket, Light (2) WPL 1112613 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 2004924 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Channel, Wiring WPL 2001145 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Washer WPL 2001230 Contact Us For Availability
12
Cover, Motor WPL 1113130 Contact Us For Availability
12
Sleeve WPL 2002448 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
13
Door, Ice WPL 2147168 Contact Us For Availability
13
Fastner WPL 1112871 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Tube, Discharge WPL 2002995 Contact Us For Availability
13
Water Valve, Harness WPL 2004547 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Ice Container WPL 2002727 Contact Us For Availability
14
Insert, Tube WPL 1129177 Contact Us For Availability
14
Wire, Light WPL 2003758 Contact Us For Availability
15
Heat Exchanger WPL 2003003 Contact Us For Availability
15
Deflector, Air Duct WPL 2003929 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2003811 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
16
Trim (Top) (Black) WPL 2005012 Contact Us For Availability
16
Trim (Top) (White) WPL 2005015 Contact Us For Availability
16
Trim (Top) (Stainless Steel) WPL 2005018 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
16
Handle, Door (Black) WPL 2003681 Contact Us For Availability
16
Handle, Door (White) WPL 2003682 Contact Us For Availability
16
Handle, Door (Stainless Steel) WPL 2004637 Contact Us For Availability
17
Assembly, Air Duct (Also Order Items 8 & 15) WPL 2004907 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Lever, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
17
Lever, Ice Dispenser (Stainless Steel and Bla WPL 1127421 Contact Us For Availability
17
Stud, Shelf (20) WPL 2004068 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
18
Door, Spacer WPL 2004549 Contact Us For Availability
18
Trim (Side) (Black) WPL 2003675 Contact Us For Availability
18
Trim (Side) (White) WPL 2003676 Contact Us For Availability
18
Trim (Side) (Stainless Steel) WPL 2004634 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Trim (Bottom) (Black) WPL 2003665 Contact Us For Availability
19
Trim (Bottom) (White) WPL 2003668 Contact Us For Availability
19
Trim (Bottom) (Stainless Steel) WPL 2004630 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Screw (White) WPL 2001208 Contact Us For Availability
20
Panel, Interior Door WPL 1113950 Contact Us For Availability
20
Lever, Water Dispenser (Stainless Steel and B WPL 2159196 Contact Us For Availability
20
Lever, Water Dispenser (White) WPL 2159197 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113949 Contact Us For Availability
21
Trim (Top) (Black) WPL 2005021 Contact Us For Availability
21
Trim (Top) (White) WPL 2005024 Contact Us For Availability
21
Trim (Top) (Stainless Steel) WPL 2005027 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability
23
Motor, Fan WPL 2169135 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Cover, Air Outlet WPL 2003576 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Strap WPL 851095 Contact Us For Availability
23
Trim (Bottom) (Black) WPL 2004562 Contact Us For Availability
23
Trim (Bottom) (Stainless Steel) WPL 2004633 Contact Us For Availability
23
Trim (Bottom) (White) WPL 2004671 Contact Us For Availability
24
Blade, Fan WPL 1108179 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Trim (Side) (Black) WPL 2003677 Contact Us For Availability
24
Trim (Side) (White) WPL 2003678 Contact Us For Availability
24
Trim (Side) (Stainless Steel) WPL 2004635 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Cover, Evaporator WPL 2005037 Contact Us For Availability
25
Air Baffle Cover WPL 2003578 Contact Us For Availability
25
Gasket WPL 1113955 Contact Us For Availability
25
Bracket, Control WPL 2147163 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000796 Contact Us For Availability
26
Door, Utility Bin WPL 2003465 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Panel, Interior Door WPL 2002840 Contact Us For Availability
27
Insulation, Switch WPL 625834 Contact Us For Availability
27
Door Shelf (4) WPL 2003132 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
28
Shelf Bin (2) WPL 2003129 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Tray, Butter WPL 2165792 Contact Us For Availability
28
Screw, WPL 489155 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112853 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
32
Control Arm WPL 2002728 Contact Us For Availability
32
Wire Connector WPL 547217 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
34
Ice Chute WPL 2002733 Contact Us For Availability
35
Wiring Harness, Door WPL 2147166 Contact Us For Availability
35
Panel, Decorative Upper (White) WPL 4378742 Contact Us For Availability
35
Panel, Decorative Upper (Black) WPL 4378743 Contact Us For Availability
35
Panel, Decorative Upper (Stainless Steel) WPL 4378760 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
36
Shield, Wiring WPL 2147165 Contact Us For Availability
36
Roller WPL 2174388 Contact Us For Availability
36
Heater, Fill Tube WPL 2005034 Contact Us For Availability
36
Panel, Decorative Lower (Black) WPL 4318645 Contact Us For Availability
36
Panel, Decorative Lower (White) WPL 4318653 Contact Us For Availability
36
Panel, Decorative Lower (Stainless Steel) WPL 4318751 Contact Us For Availability
37
Guiding, Ice (White) WPL 1124730 Contact Us For Availability
37
Cover, Condenser WPL 2003355 Contact Us For Availability
37
Guiding, Ice (Stainless Steel and Black Model WPL 1119035 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
37
Insulation WPL 2005063 Contact Us For Availability
38
Air Vane WPL 2003263 Contact Us For Availability
38
Insulation WPL 2005064 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
39
Screw (White) WPL 488892 Contact Us For Availability
39
Screw (Stainless Steel and Black Models) WPL 489197 Contact Us For Availability
40
Bushing, Door Closure WPL 2004565 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
42
Front Cover, Housing (Includes No.49) (Stainl WPL 2002878 Contact Us For Availability
42
WPL 2002881 WPL 2002881 Contact Us For Availability
43
Eyelet, Roller WPL 2174478 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
WPL 2002730 WPL 2002730 Contact Us For Availability
44
Front Cover, Ice Container WPL 2002724 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2003356 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
45
WPL 2003595 WPL 2003595 Contact Us For Availability
45
WPL 2003598 WPL 2003598 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
47
WPL 1126120 WPL 1126120 Contact Us For Availability
47
WPL 2152678 WPL 2152678 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
49
WPL 2002890 WPL 2002890 Contact Us For Availability
49
WPL 2002893 WPL 2002893 Contact Us For Availability
53
WPL 487944 WPL 487944 Contact Us For Availability
55
WPL 482672 WPL 482672 Contact Us For Availability
100
Complete Ice Container Assembly WPL 2002927 Contact Us For Availability
100
Front Panel Kit (White) WPL 4378652 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4378655 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4378658 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4378661 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
