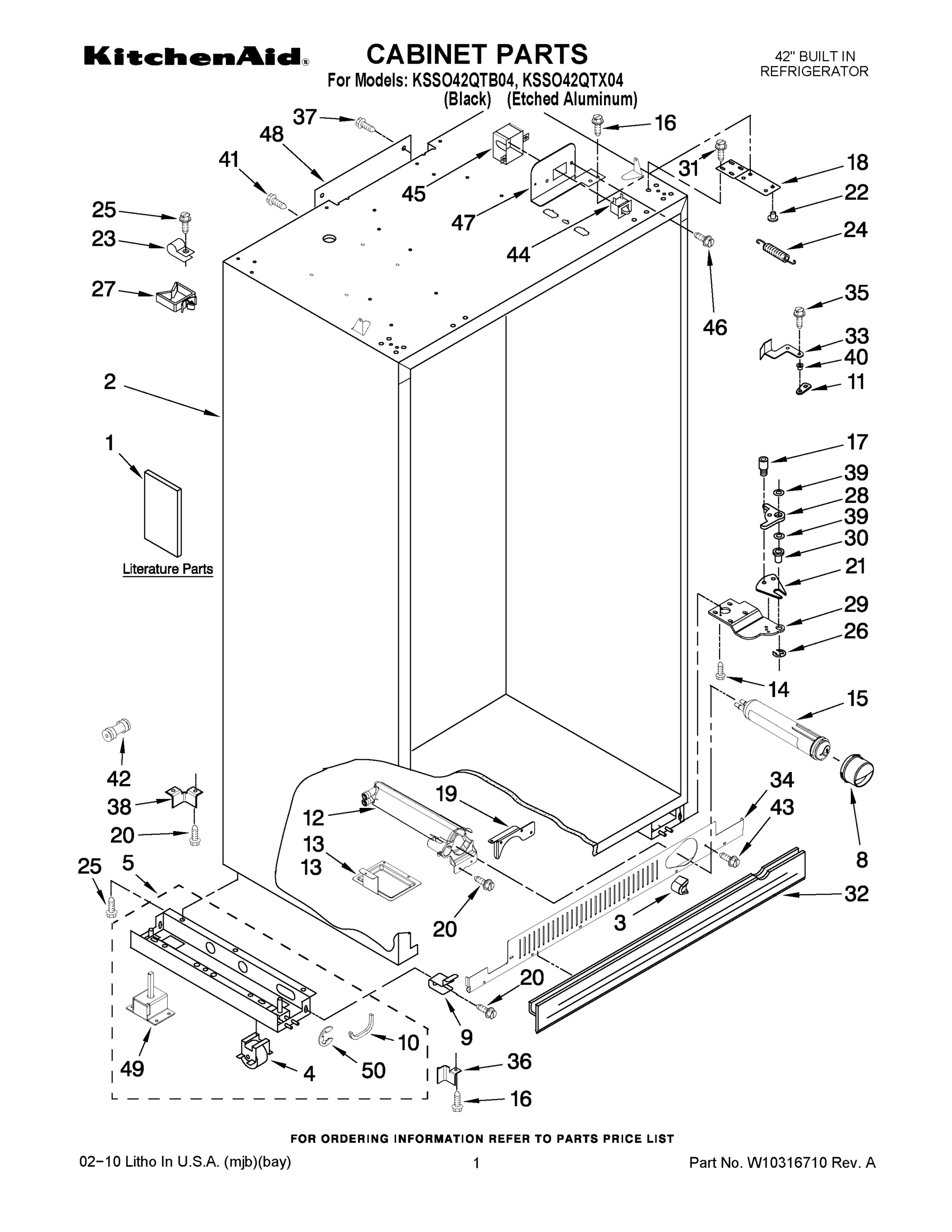

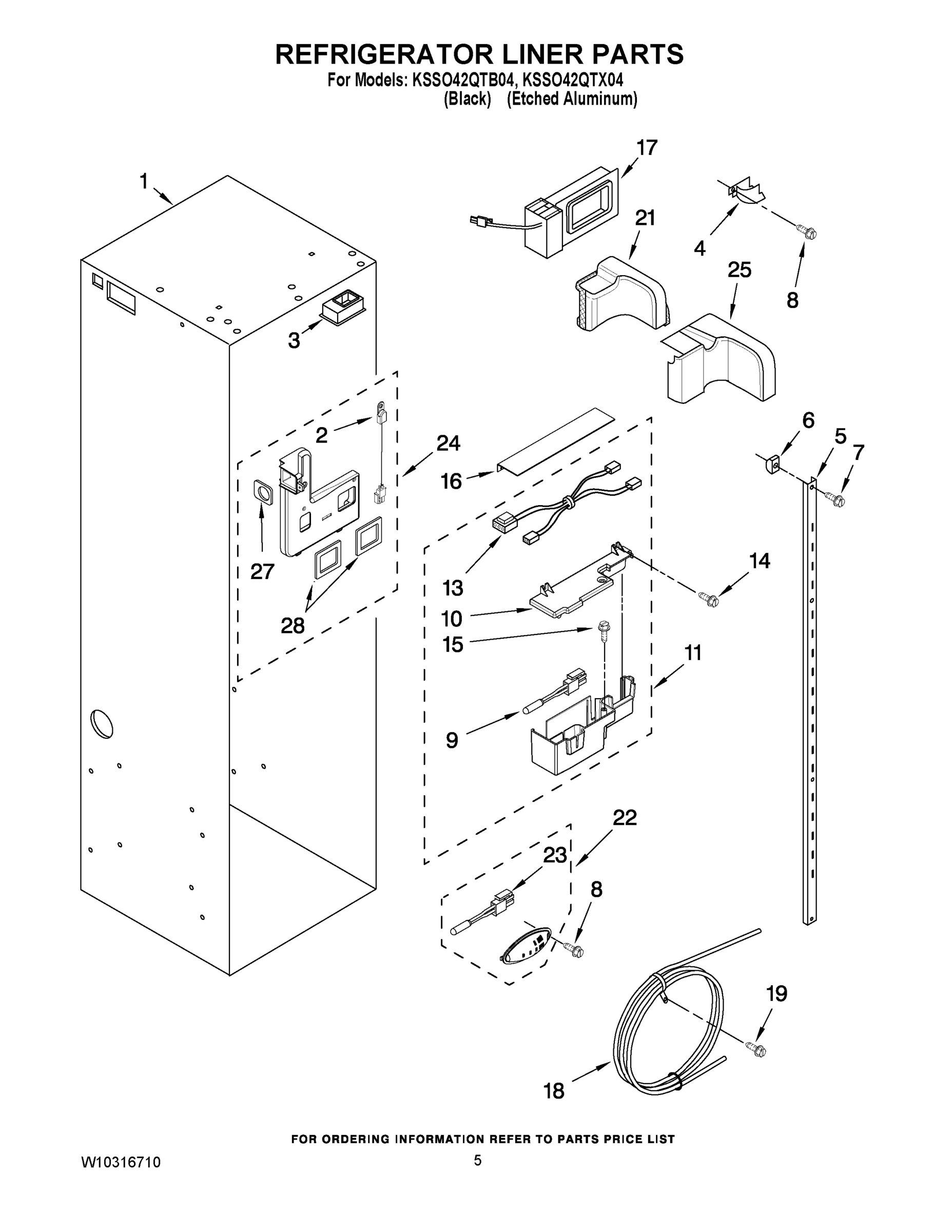

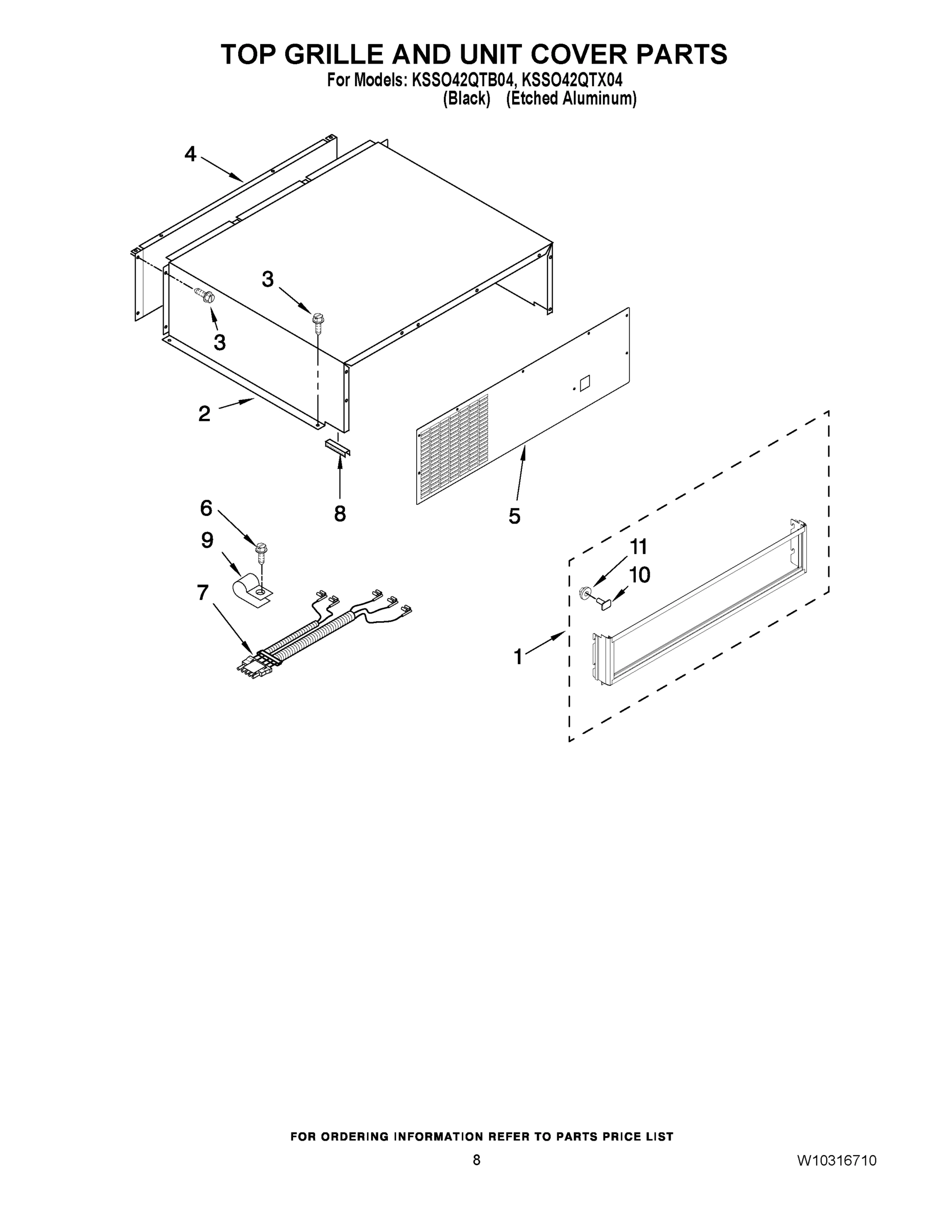

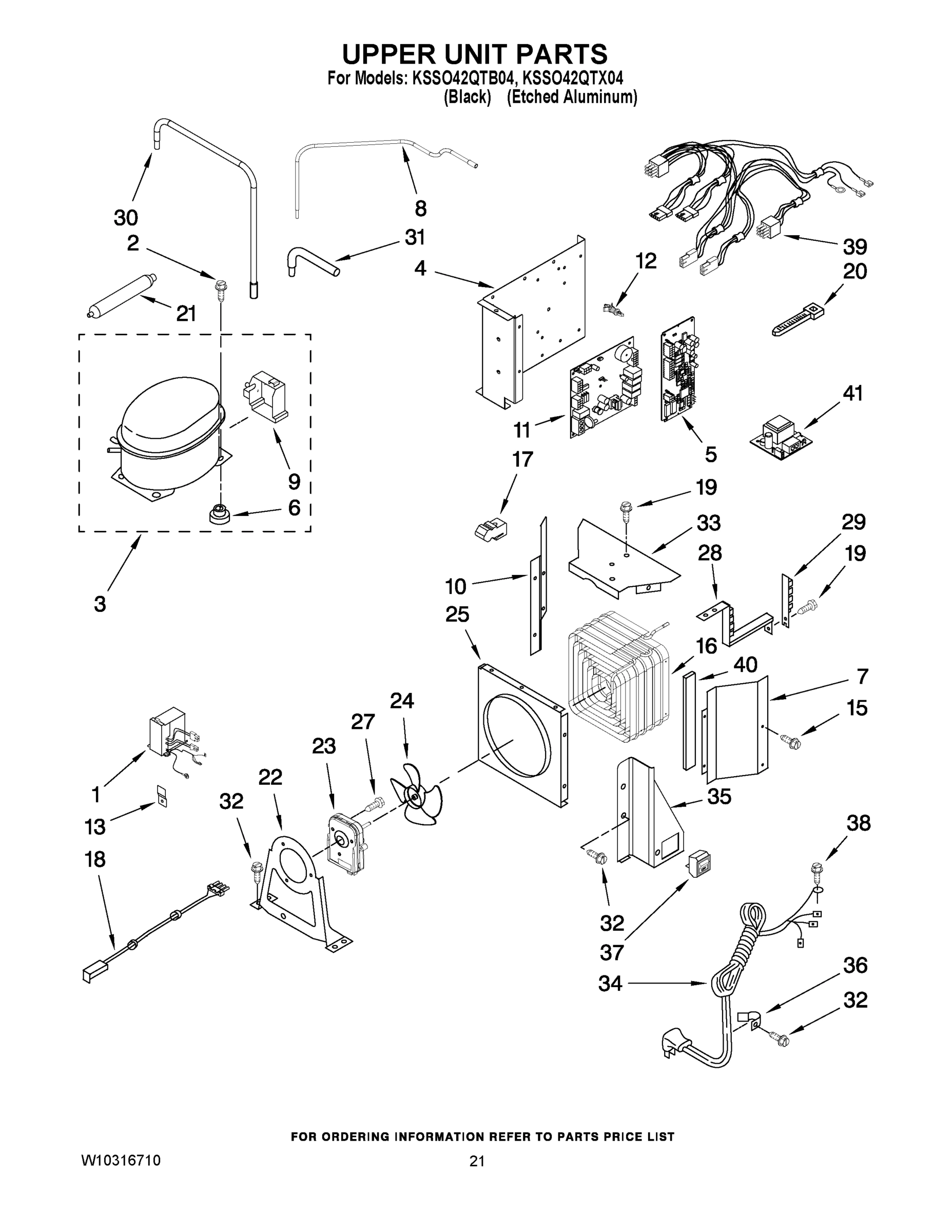

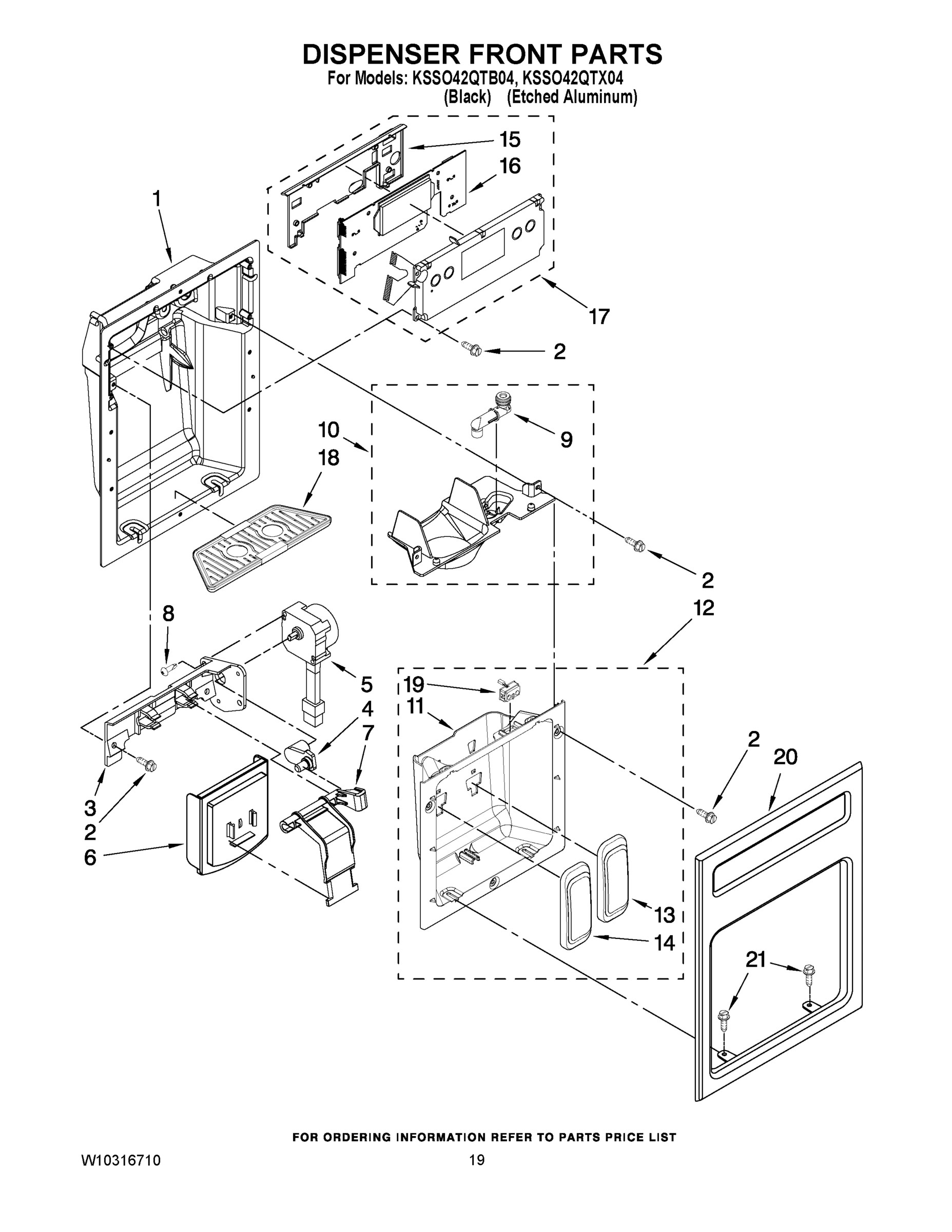

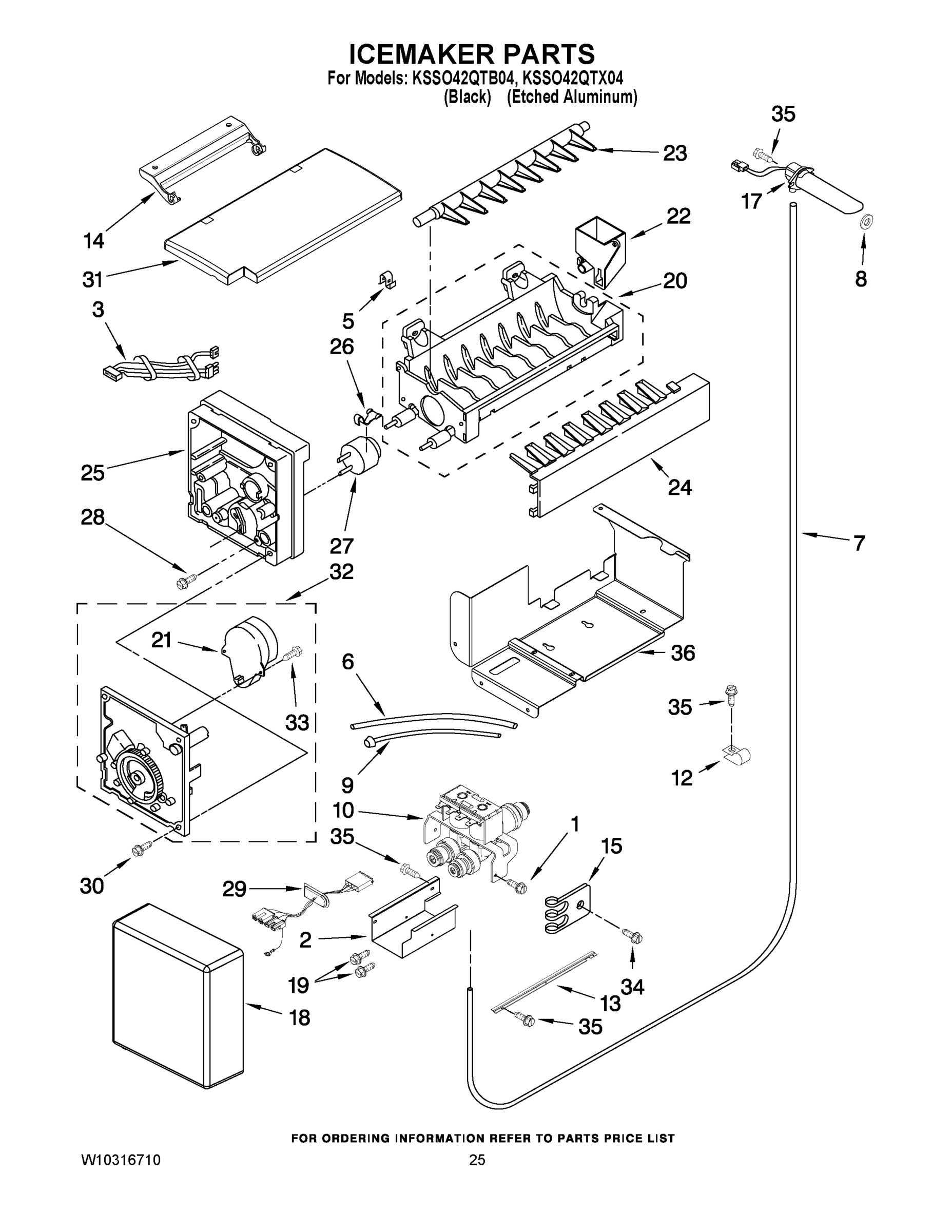

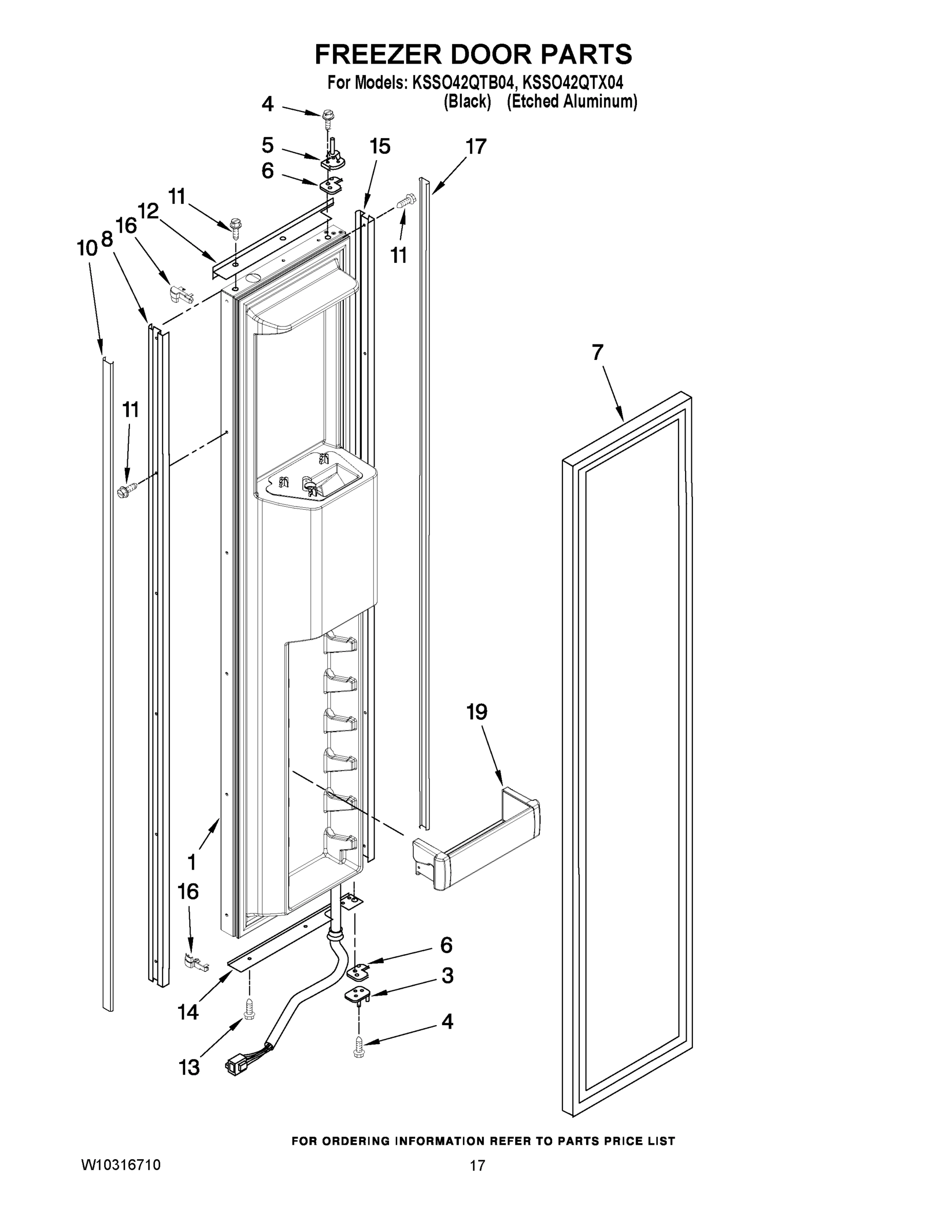

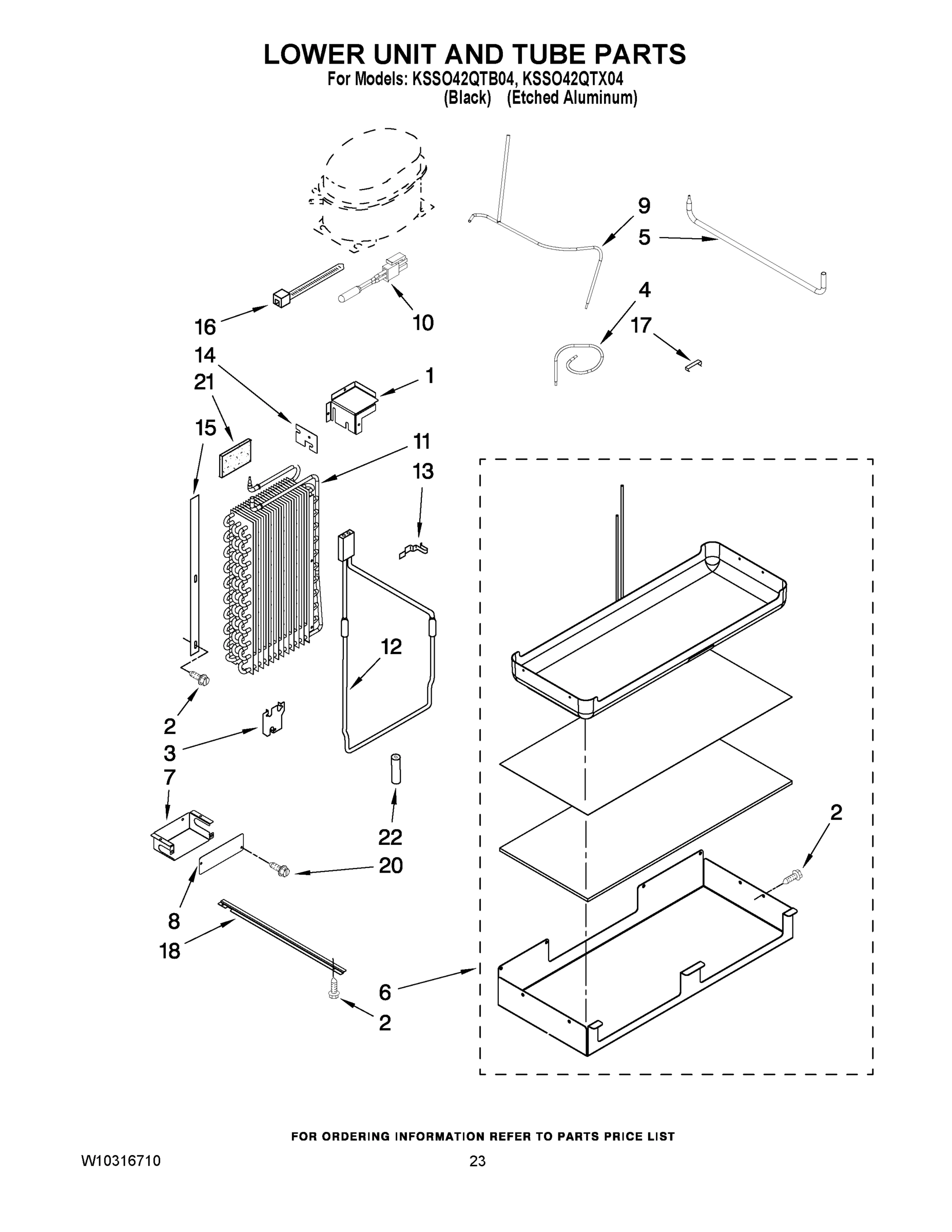

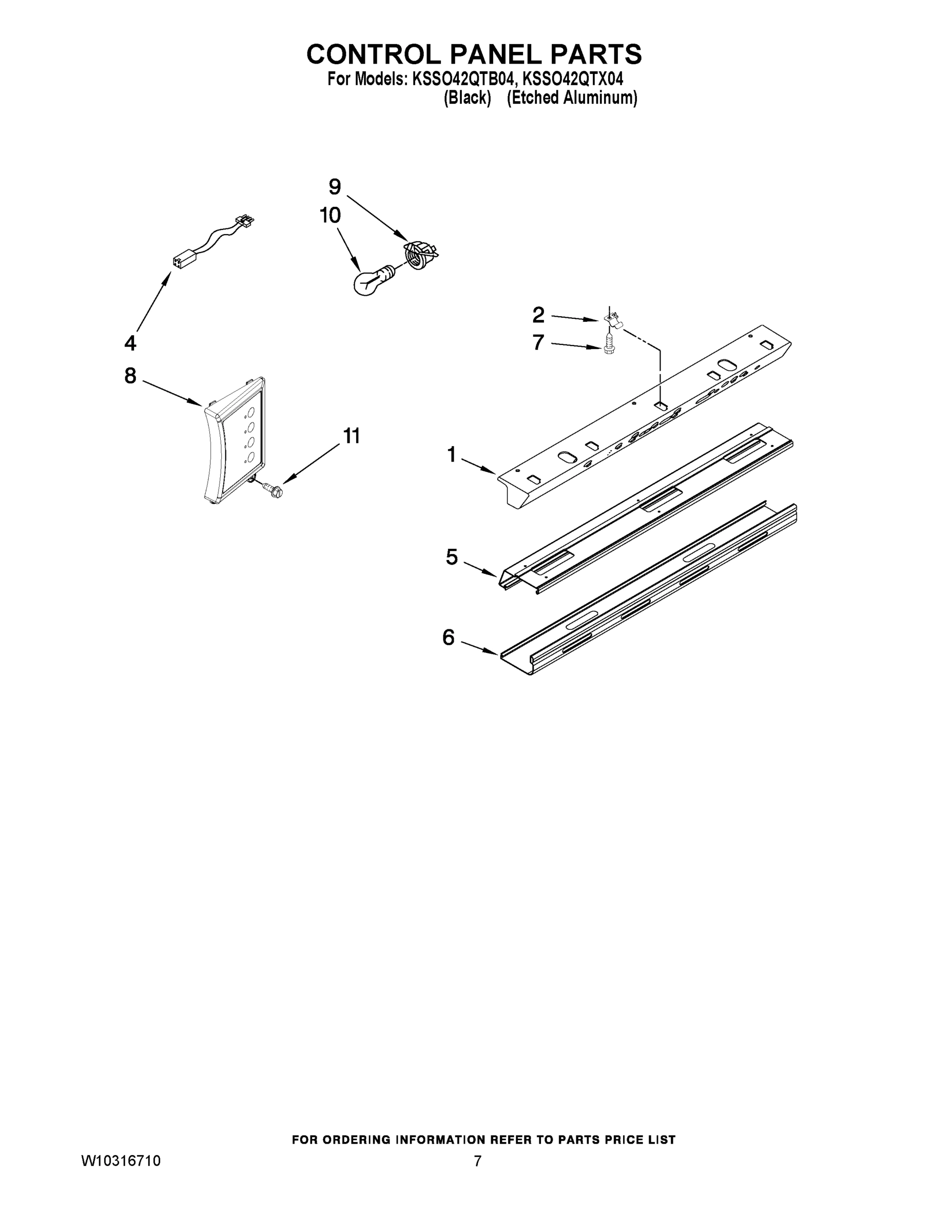

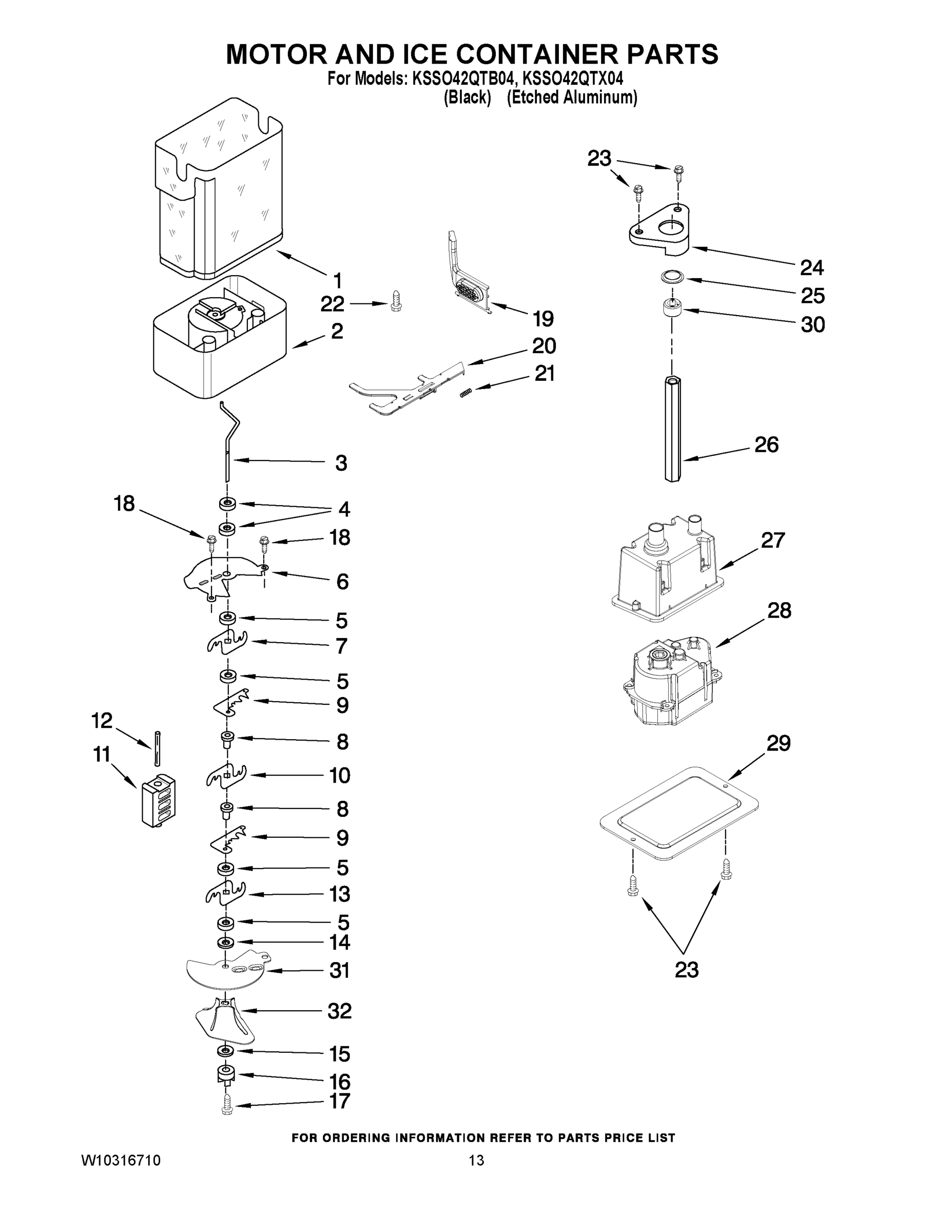

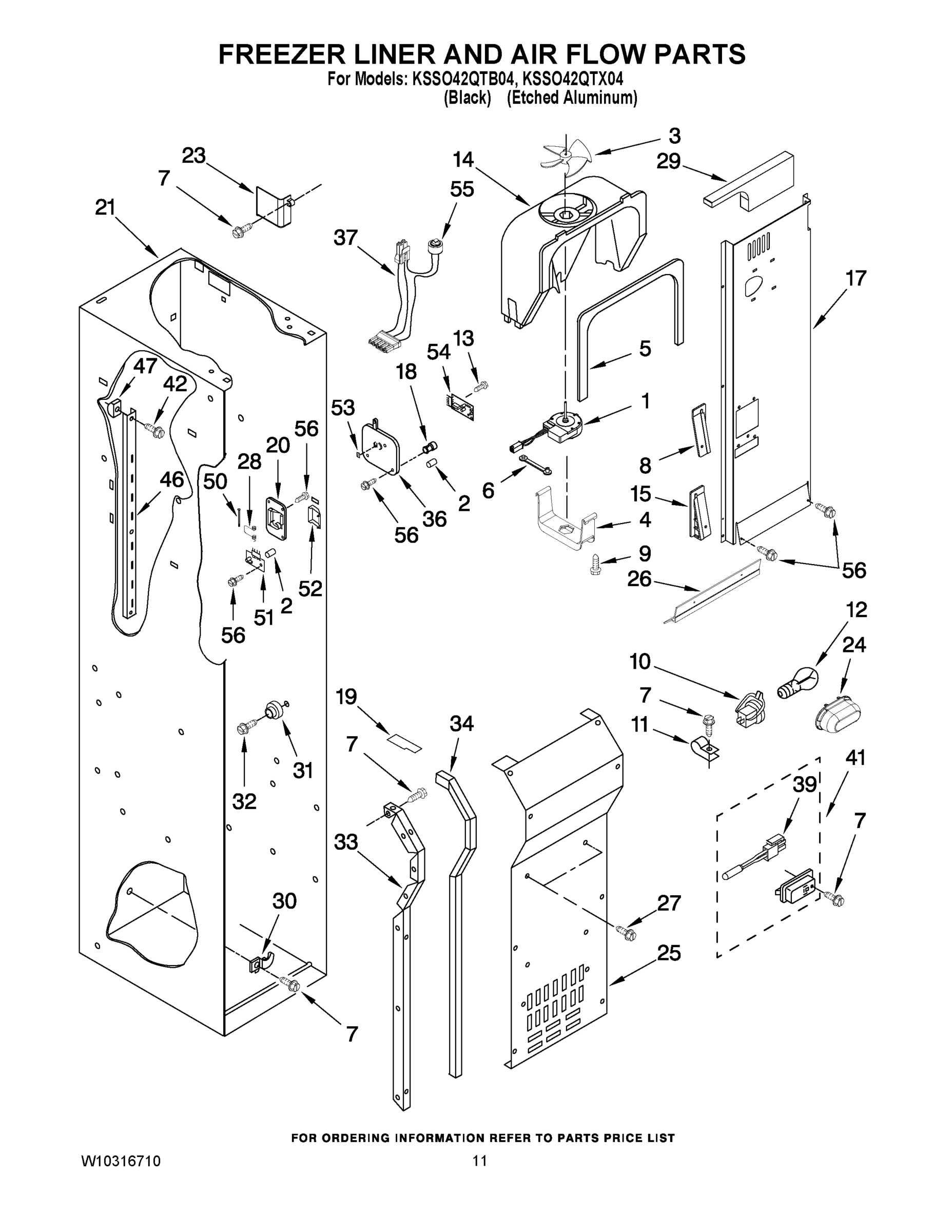

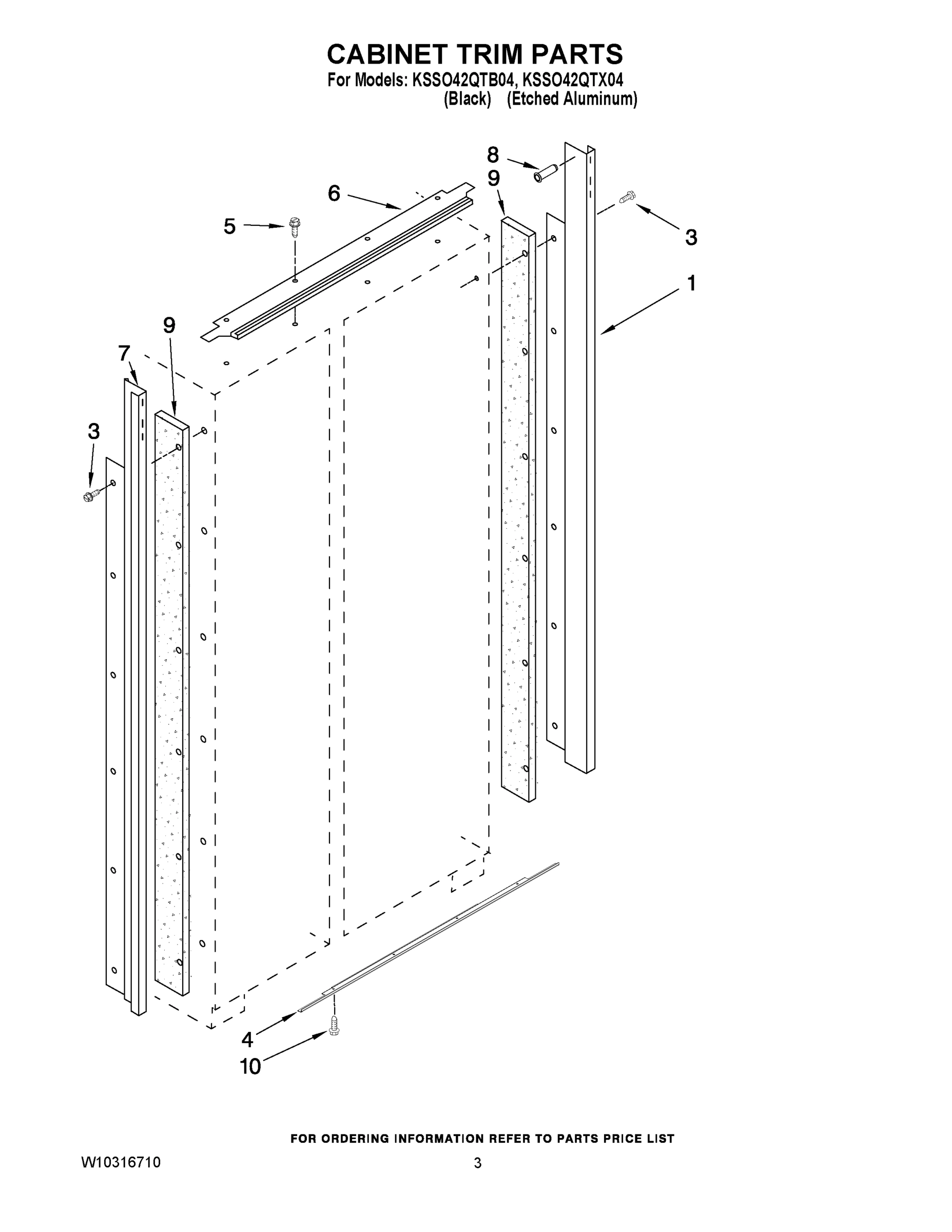

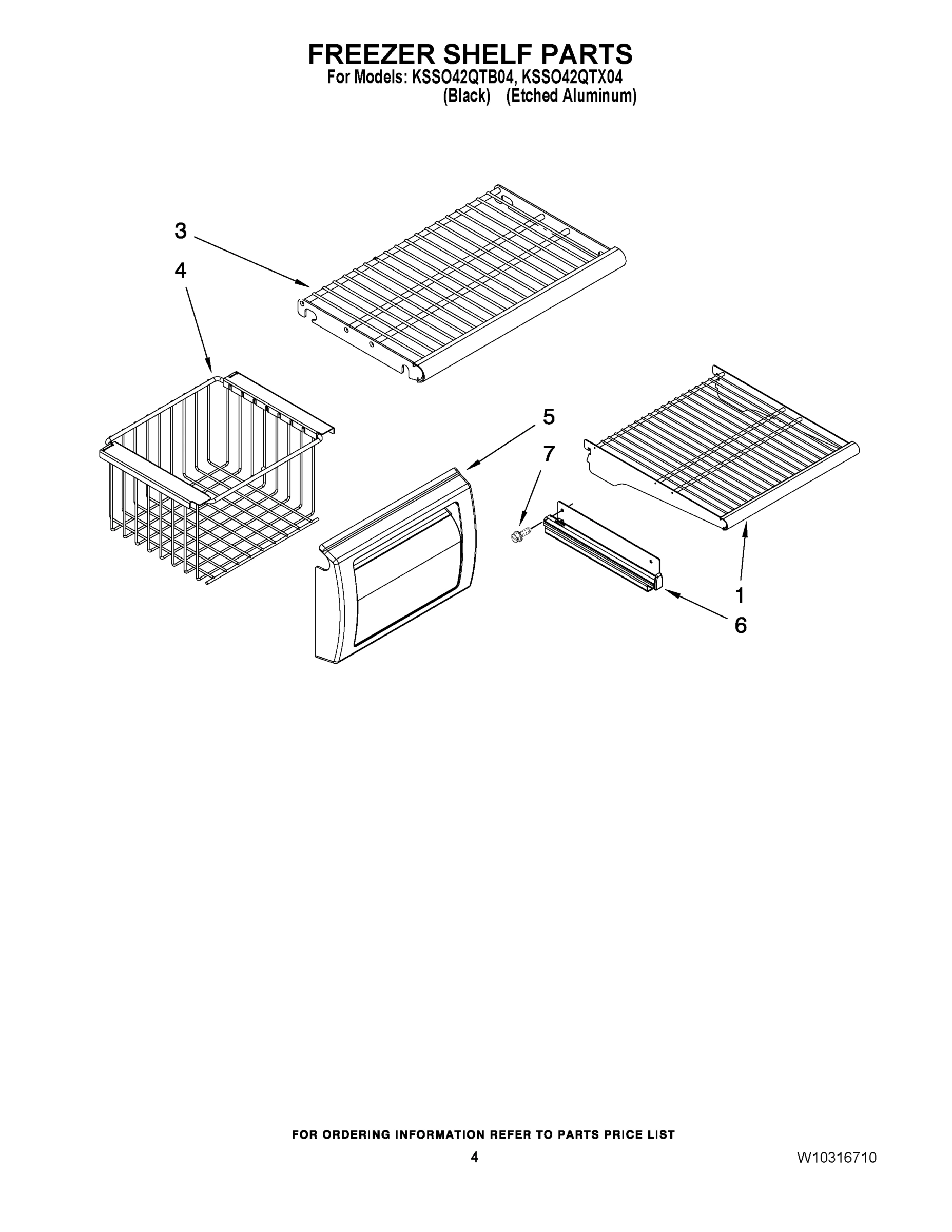

Model Whirlpool KSSO42QTX04 42`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10468940 Whirlpool Refrigerator Control Bo Backorder WPL WPW10468940 $487.98

2

2320601 Whirlpool Refrigerator Shield Backorder WPL 2320601 $81.74

2

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

2

Clip, Box WPL 2317000 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $97.38

3

2252294 Whirlpool Refrigerator Door Hinge Backorder WPL 2252294 $29.57

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $97.81

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

3

Wire Assembly, Icemaker WPL 2310191 Contact Us For Availability

4

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.90

4

2310390 Whirlpool Refrigerator Wire Assembly Backorder WPL 2310390 $90.20

4

W11318848 Whirlpool Refrigerator Freezer Bask Backorder WPL W11318848 $109.20

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $59.99

4

Suction Tube WPL 2309076 Contact Us For Availability

4

Housing, Control Board WPL 2318087 Contact Us For Availability

4

Washer, Auger WPL 2258220 Contact Us For Availability

5

2252295B Whirlpool Refrigerator Door Hinge Backorder WPL 2252295B $25.15

5

W10839856 Whirlpool Refrigerator Front Drawer Backorder WPL W10839856 $65.69

5

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.91

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2318054-includeCORE Whirlpool WP2318054 Ref Backorder WPL WP2318054-includeCORE $266.09

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $67.75

5

Cover, Unit Front WPL W10185625 Contact Us For Availability

5

Hinge, Top (Chrome) WPL 2252295 Contact Us For Availability

5

Bracket, Control Box WPL 2307592 Contact Us For Availability

6

2252293 Whirlpool Refrigerator Door Hinge Backorder WPL 2252293 $58.67

6

2307595 Whirlpool Light Lens Backorder WPL 2307595 $97.27

6

2313961S Whirlpool Refrigerator Cabinet Trim Backorder WPL 2313961S $213.77

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

6

W11565275 Whirlpool Refrigerator Water Tube Backorder WPL W11565275 $39.87

6

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $86.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WPW10281063 Whirlpool Refrigerator Heater Pan In Stock WPL WPW10281063 $216.80

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

7

W11448696 Whirlpool Refrigerator Bin Backorder WPL W11448696 $96.44

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

7

WPW10546285 Whirlpool Refrigerator Motor In Stock WPL WPW10546285 $73.93

7

Water Tube WPL 2320658 Contact Us For Availability

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $62.16

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.99

8

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $226.84

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

8

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $4.82

8

Tube, Tranisiton (Cond/Ht Loop) (Right) WPL 2307693 Contact Us For Availability

8

Gasket, Utility Bin WPL 2222982 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $61.35

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $18.97

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $54.60

9

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $96.66

9

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $7.99

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

SEAL TRIM, SIDE WPL 2005925 Contact Us For Availability

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $13.64

2314003S Whirlpool Refrigerator Trim Cover Backorder WPL 2314003S $108.47

2318017 Whirlpool Refrigerator Separator Backorder WPL 2318017 $79.78

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WPW10159842 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10159842 $243.99

2309497S Whirlpool Refrigerator Door Trim Backorder WPL 2309497S $196.09

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.18

W10219462 Whirlpool Refrigerator Electronic C Backorder WPL W10219462 $248.93

WPW10169528 Whirlpool Refrigerator Diffuser Backorder WPL WPW10169528 $228.05

Cam, Door Closer WPL 2005783 Contact Us For Availability

HOUSING, MIDDLE (NOT AVAILABLE ORDER ITEM 12) WPL NP Contact Us For Availability

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $54.61

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

W10140161 Whirlpool Refrigerator Heater Backorder WPL W10140161 $112.34

W10260620 Whirlpool Refrigerator Front Cover Backorder WPL W10260620 $230.82

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $7.06

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $14.95

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $193.47

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $7.19

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $57.59

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $54.61

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $96.75

BRACKET Backorder WPL 2320559 $60.40

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

W10133603 Whirlpool Refrigerator Dispenser Ac In Stock WPL W10133603 $252.61

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Screw WPL 3400525 Contact Us For Availability

2305219 Whirlpool Refrigerator Cover Backorder WPL 2305219 $60.41

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $8.99

Gasket, Evaporator WPL 2220832 Contact Us For Availability

2207457 Whirlpool Refrigerator Door Trim Backorder WPL 2207457 $38.86

2307998 Whirlpool Refrigerator Condenser Backorder WPL 2307998 $322.99

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.99

WP2321746 Whirlpool Refrigerator Electronic C Backorder WPL WP2321746 $199.99

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $6.99

W10460127 Whirlpool Refrigerator Inlet Tube In Stock WPL W10460127 $155.94

W11769878 Whirlpool Screw Backorder WPL W11769878 $8.39

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $268.89

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

USER INTERFACE, COMPLETE WPL 2318076 Contact Us For Availability

2252291 Whirlpool Refrigerator Door Hinge Backorder WPL 2252291 $48.47

2252292 Whirlpool Refrigerator Door Hinge Backorder WPL 2252292 $53.80

2252292B Whirlpool Refrigerator Door Hinge Backorder WPL 2252292B $55.13

W10645131 Whirlpool Refrigerator Reservoir In Stock WPL W10645131 $176.01

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Cover WPL 2257538 Contact Us For Availability

Tray, Housing (Black) WPL 2318085B Contact Us For Availability

Tray, Housing (Universal Silver) WPL 2318085US Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $59.00

W10222215 Whirlpool Refrigerator Light Indica In Stock WPL W10222215 $101.58

WP2252265 Whirlpool Refrigerator Ice Bin Butt In Stock WPL WP2252265 $19.99

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

TRIM, GLASS WPL 2257611 Contact Us For Availability

W10134783 Whirlpool Refrigerator Bin Latch Backorder WPL W10134783 $65.34

WP2215650 Whirlpool Refrigerator Cover Backorder WPL WP2215650 $132.71

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Front Cover (Universal Silver) WPL 2307321US Contact Us For Availability

Front Cover (Black) WPL 2307321B Contact Us For Availability

21

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

21

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $4.82

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $8.35

W11553221 Whirlpool Refrigerator Door Compres Backorder WPL W11553221 $40.91

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Bushing WPL 2300082 Contact Us For Availability

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $60.06

W11578915 Whirlpool Condenser Motor In Stock WPL W11578915 $54.75

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.99

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $56.99

W10475010 Whirlpool Refrigerator Spacer Backorder WPL W10475010 $198.06

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $54.88

Light Shield WPL 2307751 Contact Us For Availability

25

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $11.41

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

25

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

27

W11404931 Whirlpool Refrigerator Cover In Stock WPL W11404931 $42.48

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

28

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $8.23

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

29

2309471 Whirlpool Refrigerator Door Hinge In Stock WPL 2309471 $99.97

29

2318028 Whirlpool Refrigerator Cover Backorder WPL 2318028 $70.01

29

W10139199 Whirlpool Refrigerator Wire Harness Backorder WPL W10139199 $93.41

2307566 Whirlpool Refrigerator Tube Backorder WPL 2307566 $10.91

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $55.57

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $50.80

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.62

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.89

WPW10504753 Whirlpool Refrigerator Ice Door Backorder WPL WPW10504753 $60.01

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $64.24

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

Skirt-Grille, Bottom (Black) WPL 2209025B Contact Us For Availability

Screw WPL W10191952 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

W11416733 Whirlpool Refrigerator Extension Backorder WPL W11416733 $49.44

W11418227 Whirlpool Refrigerator Extension In Stock WPL W11418227 $49.44

Extension Arm, Door Closer (Right, Black) WPL 2267192B Contact Us For Availability

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $16.21

2310196 Whirlpool Refrigerator Power Cord Backorder WPL 2310196 $60.22

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPL 2325185B WPL 2325185B Contact Us For Availability

35

WPL 2005921 WPL 2005921 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $59.47

36

2252228 Whirlpool Refrigerator Bracket Backorder WPL 2252228 $60.02

36

2259493 Whirlpool Refrigerator Cover Backorder WPL 2259493 $61.06

37

W10139189 Whirlpool Refrigerator Wire Harness Backorder WPL W10139189 $103.82

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $62.93

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $59.25

39

W10178860 Whirlpool Refrigerator Wire Harness Backorder WPL W10178860 $217.22

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $7.60

39

WP2306010 Whirlpool Refrigerator Thermistor In Stock WPL WP2306010 $57.99

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $35.70

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

41

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $100.99

41

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $7.52

42

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $12.58

43

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

49

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $126.45

50

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

52

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

55

WPW10160570 Whirlpool Refrigerator Bimetallic In Stock WPL WPW10160570 $74.99

56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

100

WPW10277448 Whirlpool Icemaker Assembly In Stock WPL WPW10277448 $146.81

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

W10129081 Whirlpool Refrigerator Handle Backorder WPL W10129081 $211.11

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

WPW10395657 Whirlpool Refrigerator Ice Contai Backorder WPL WPW10395657 $117.68

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Cleaner, Stainless Steel WPL 8537055 Contact Us For Availability
