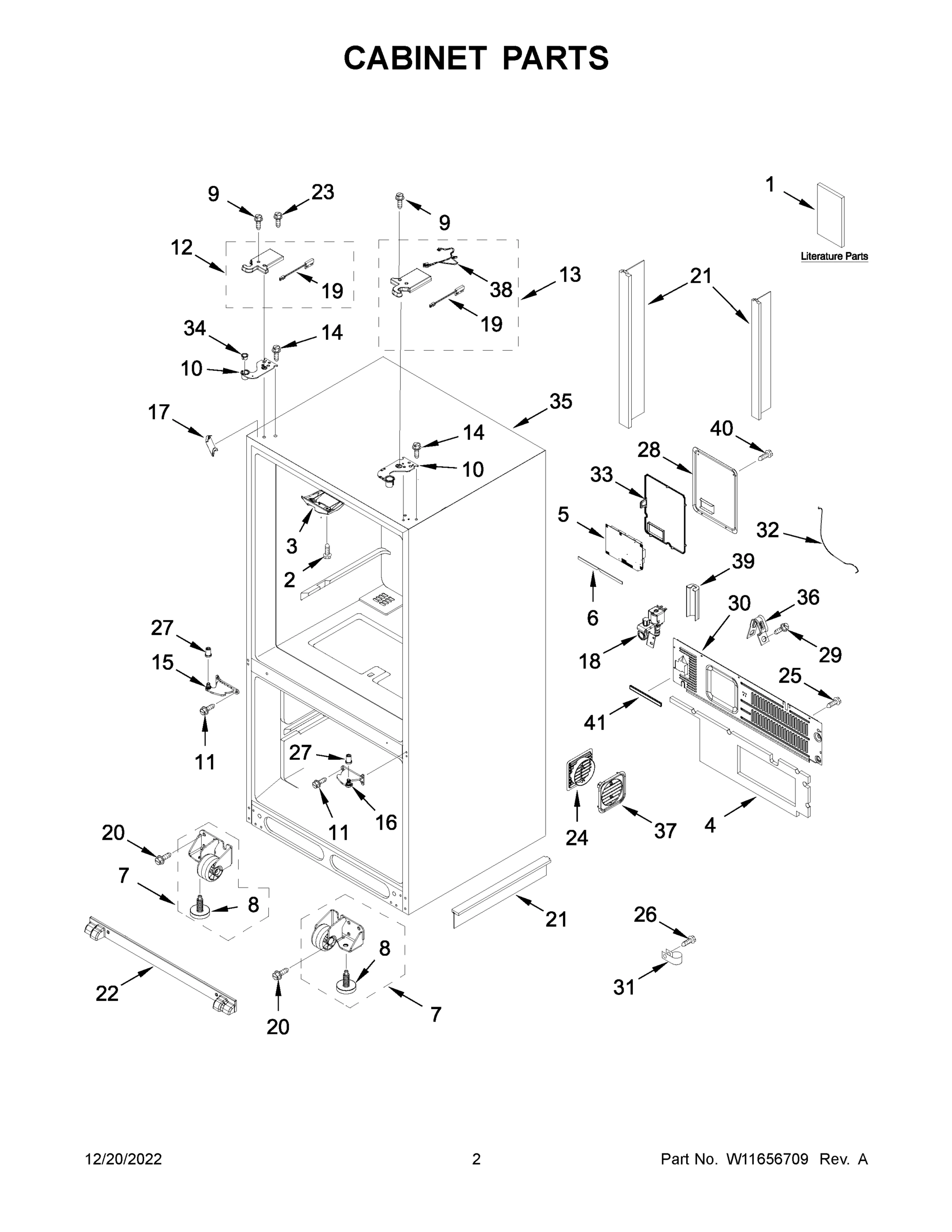

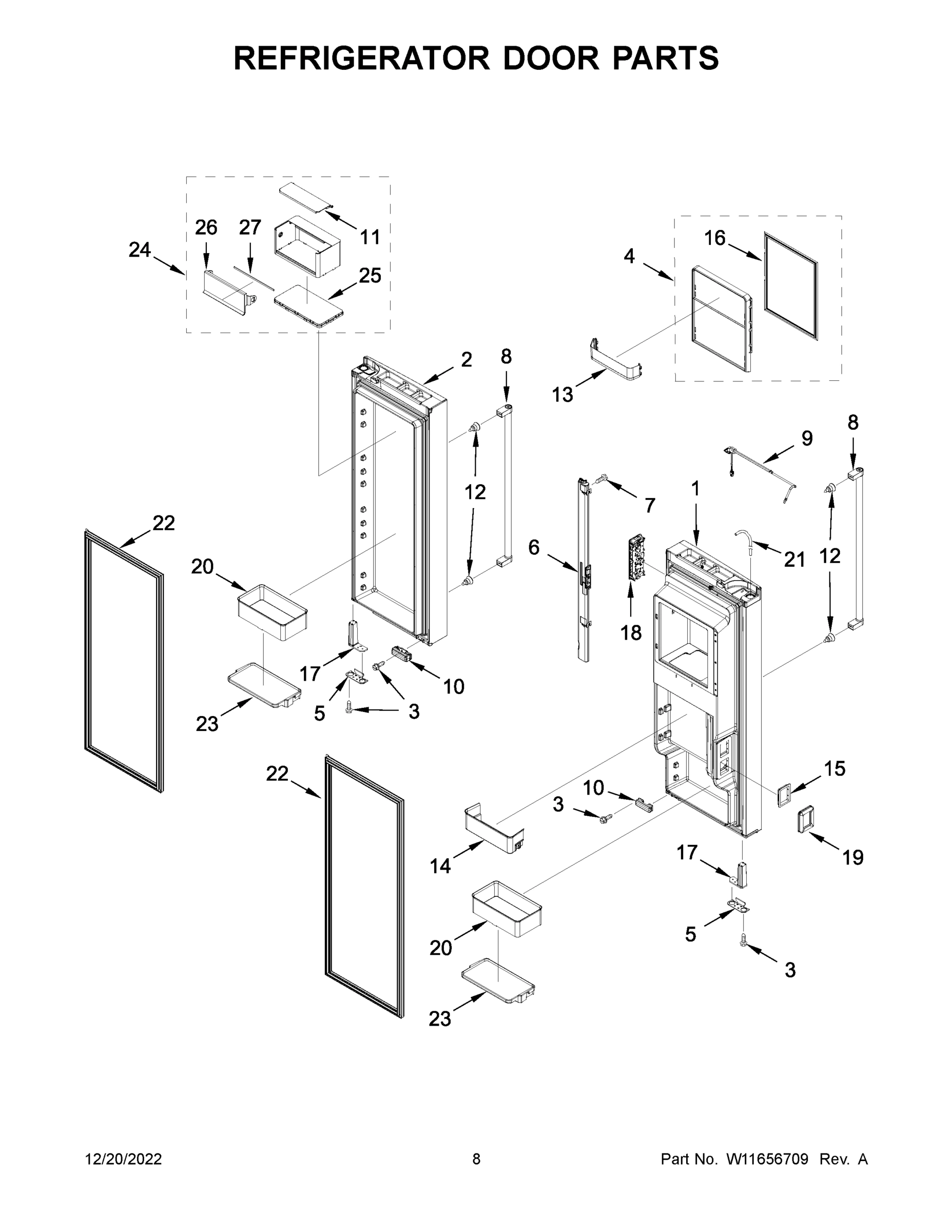

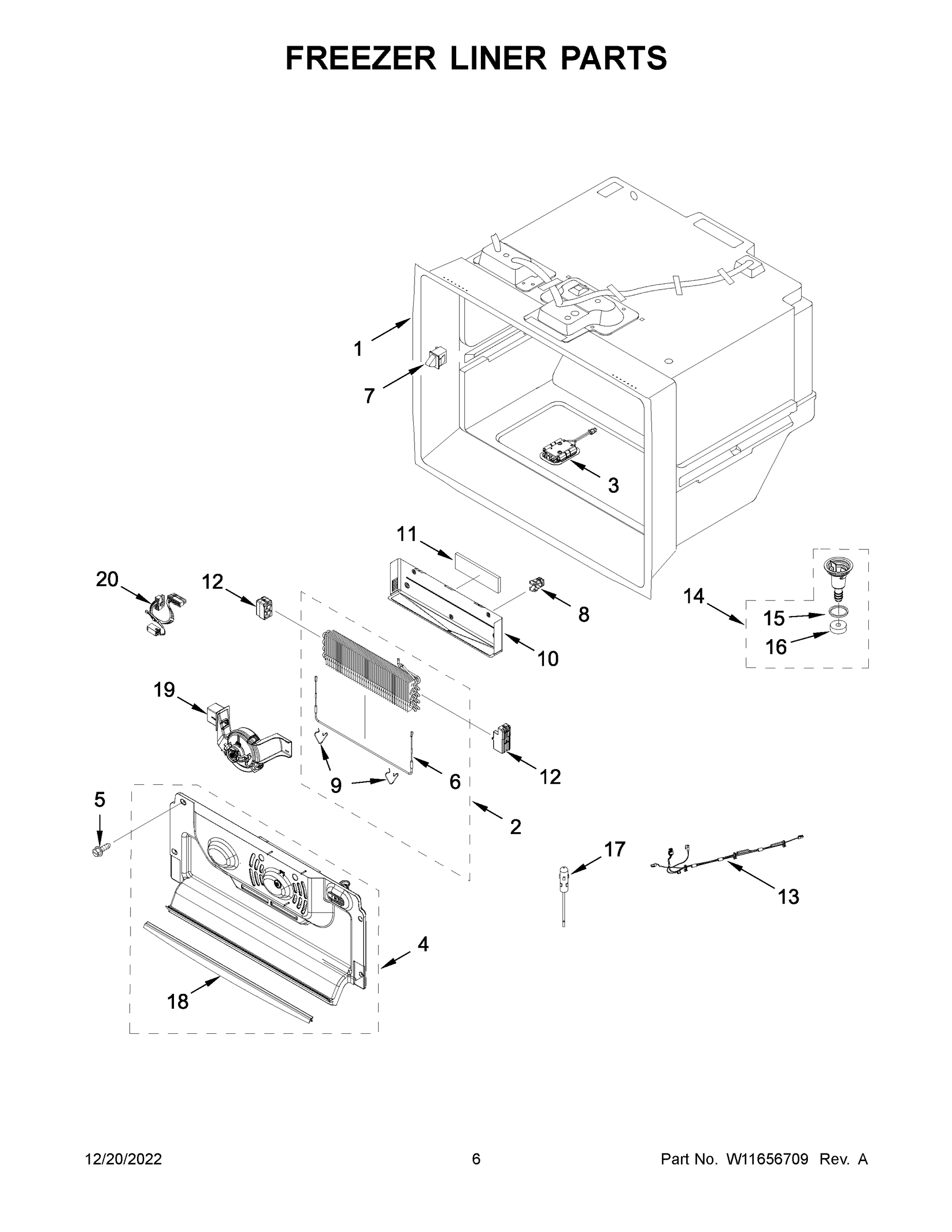

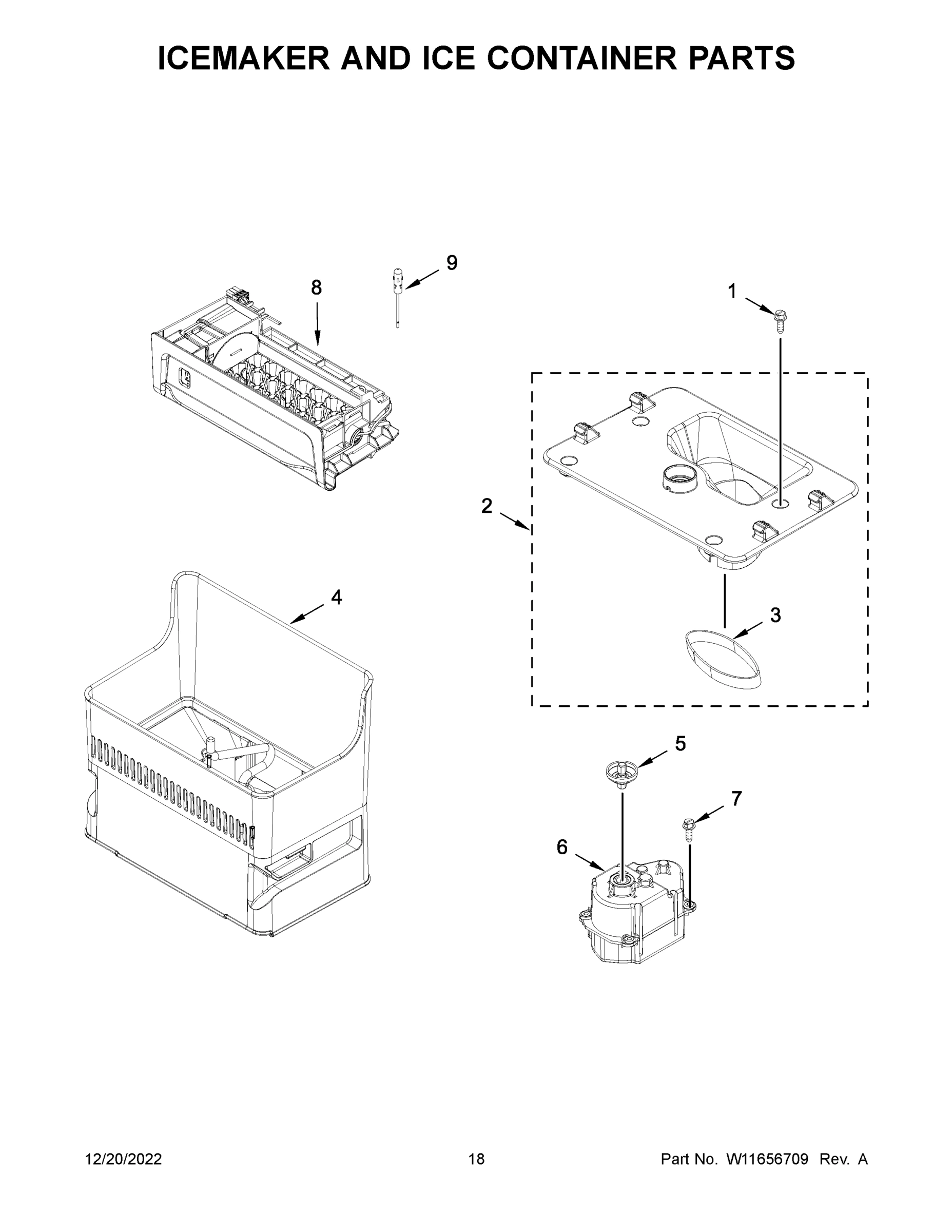

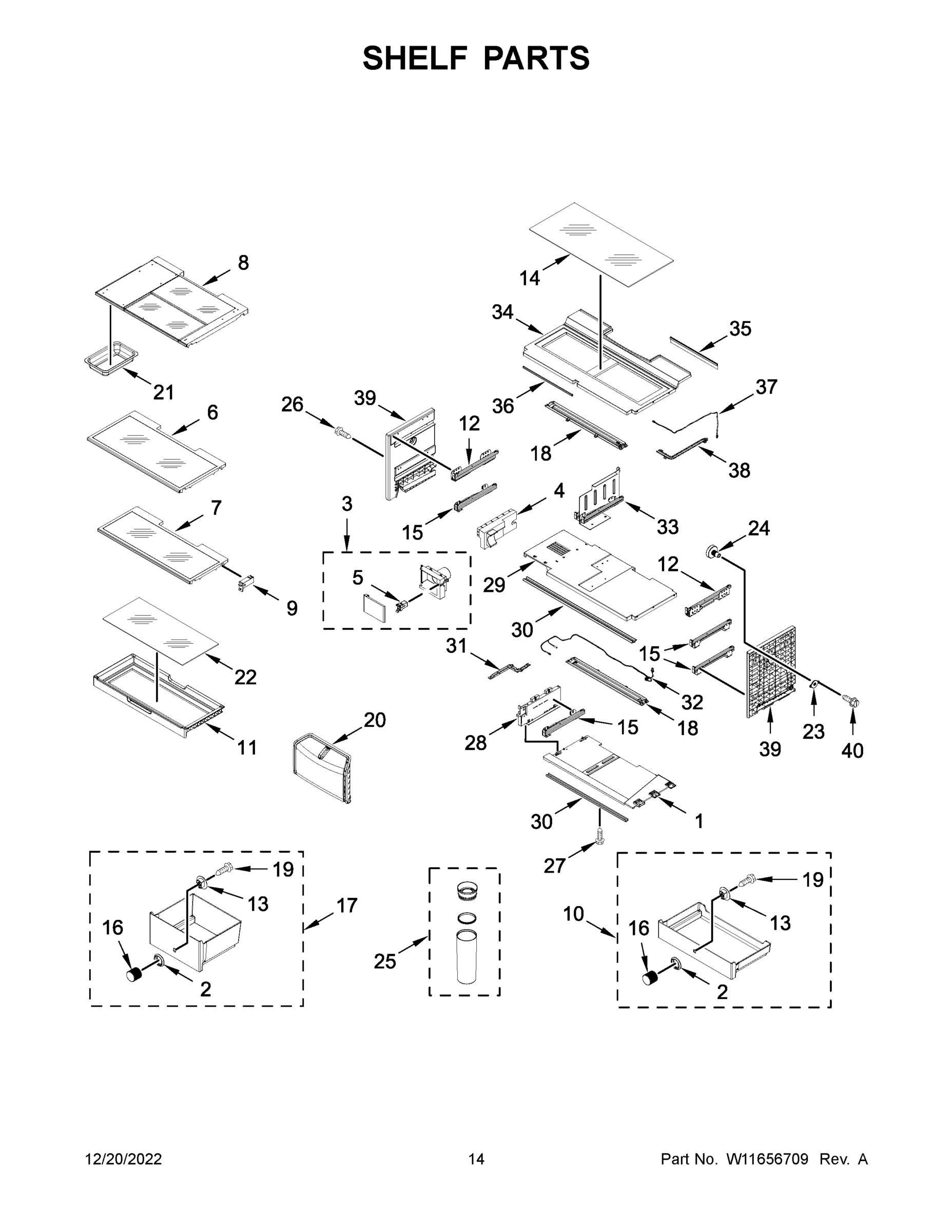

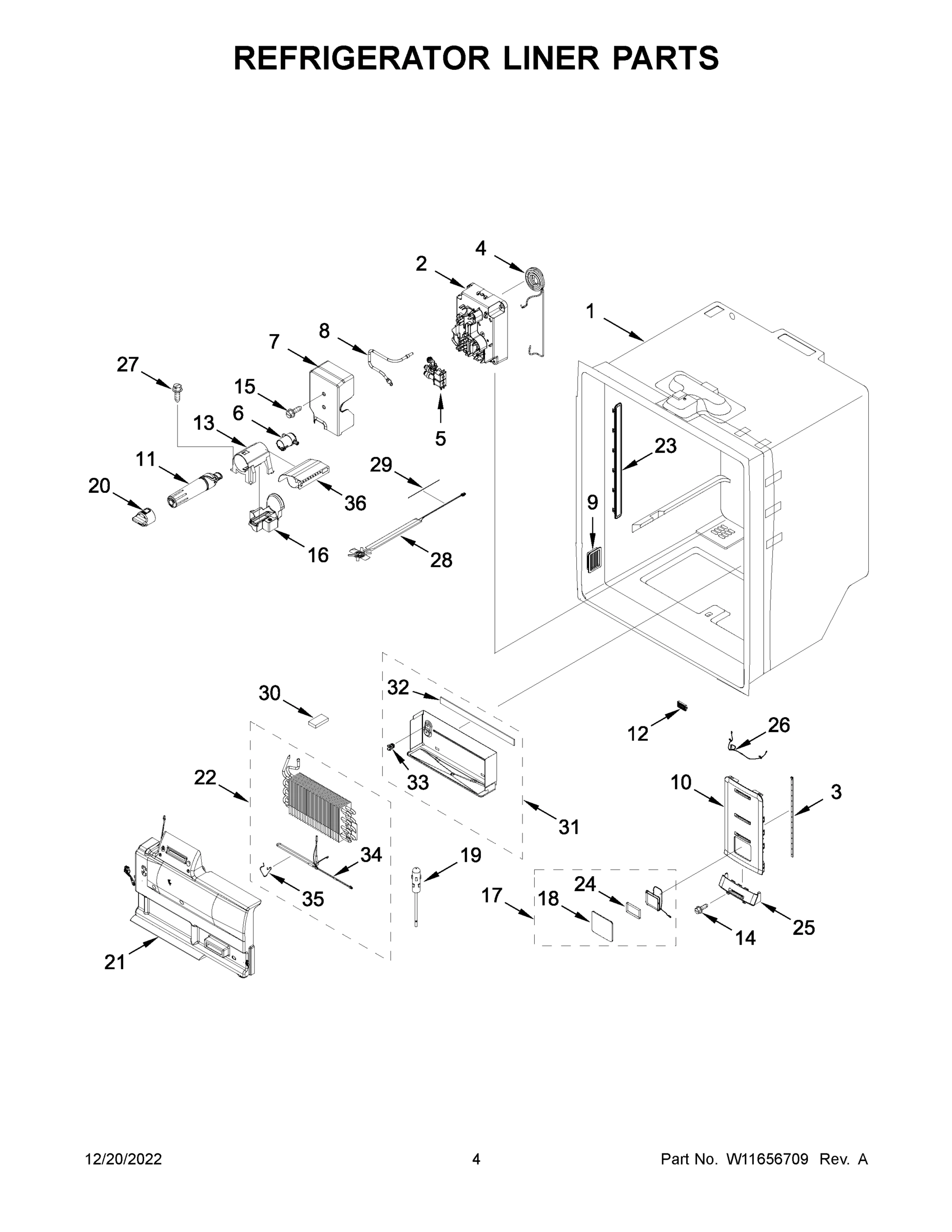

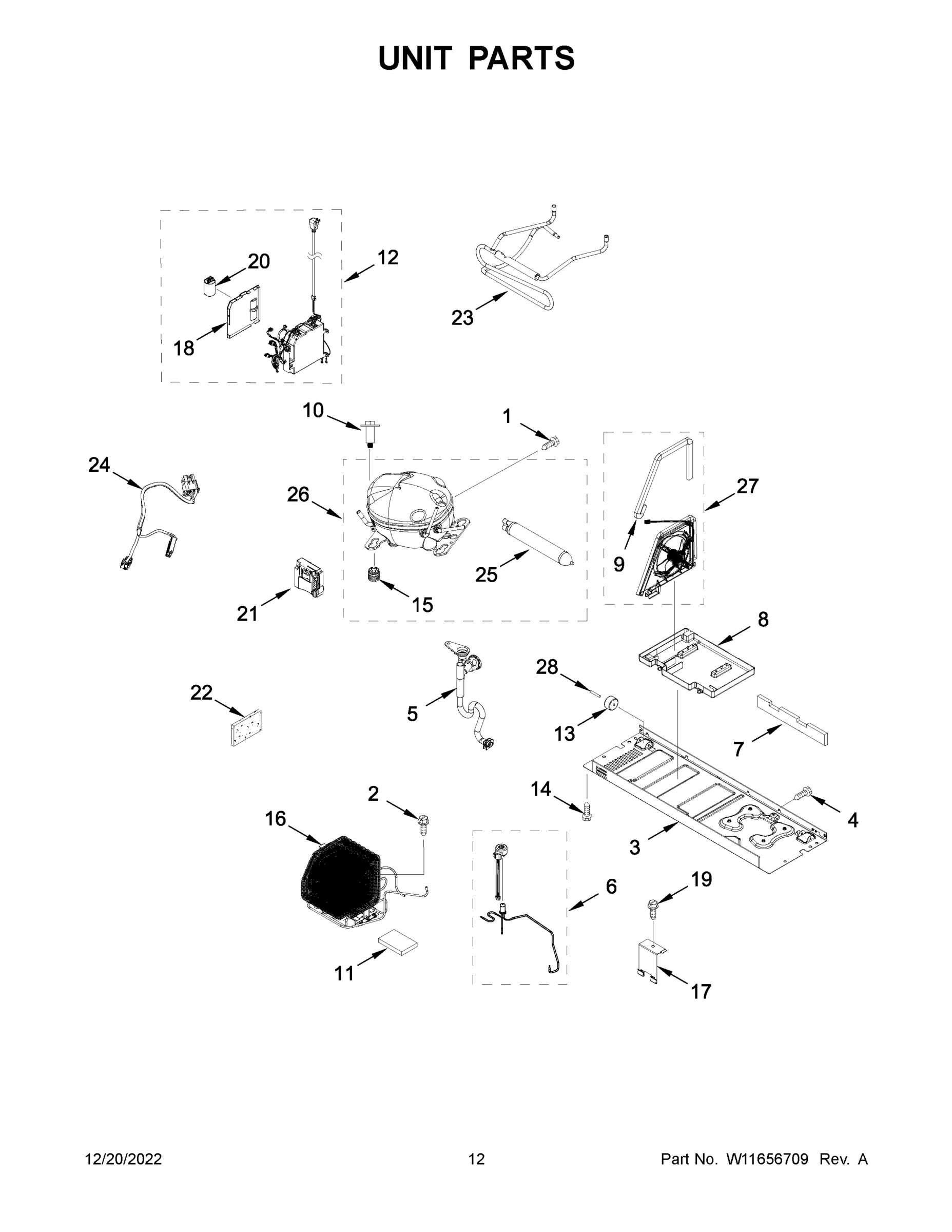

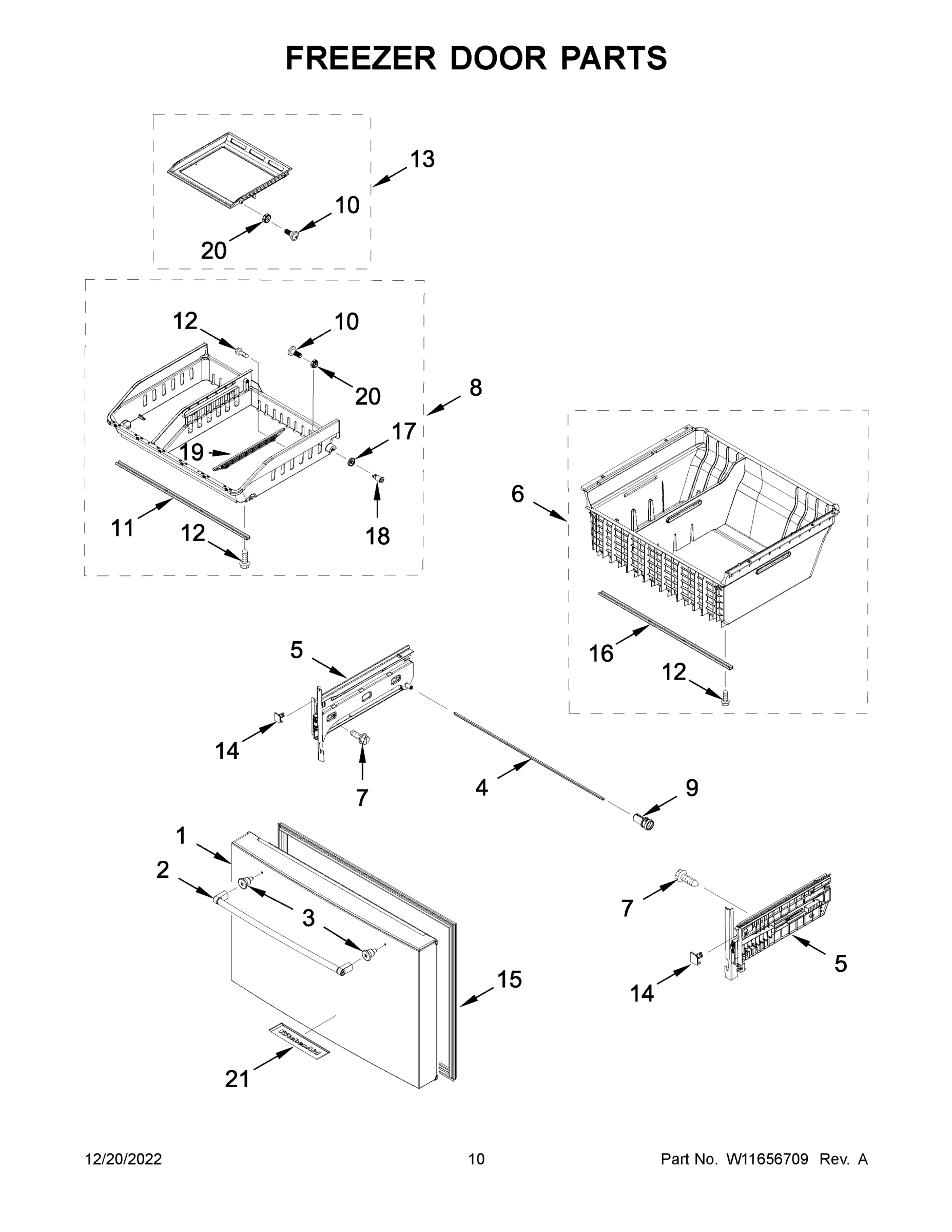

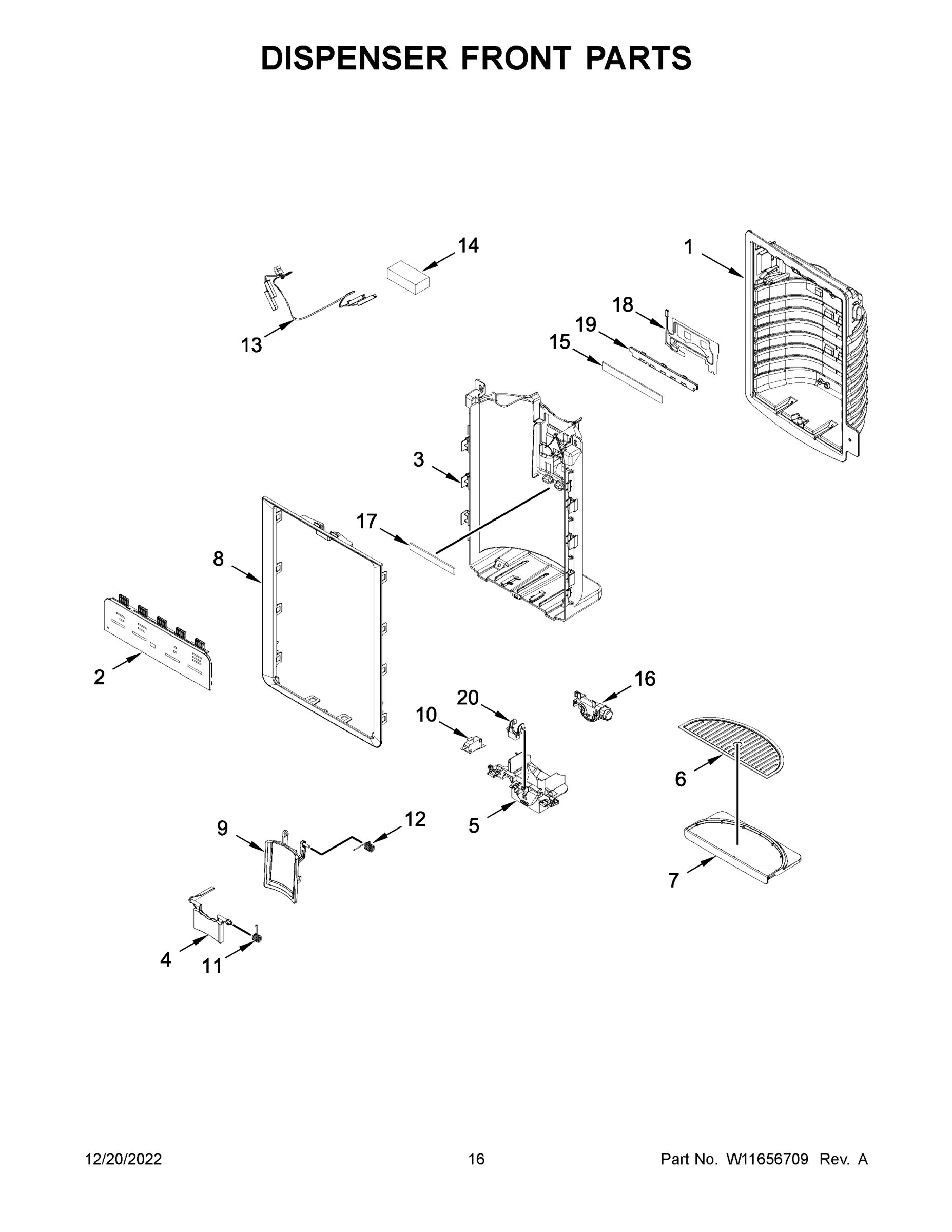

Model Whirlpool KRFC704FPS06 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

1

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

2

W10696184 Whirlpool Refrigerator Ring Backorder WPL W10696184 $17.27

2

W10708473 Whirlpool Refrigerator Housing Backorder WPL W10708473 $65.88

2

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $4.80

2

W11448633 Whirlpool Refrigerator Plate In Stock WPL W11448633 $58.84

2

W11574766-includeCORE Whirlpool W11574766 Ref Backorder WPL W11574766-includeCORE $234.59

2B

W11506620 Whirlpool Refrigerator Coupler In Stock WPL W11506620 $20.45

3

W10840312 Whirlpool Refrigerator Block PIV Backorder WPL W10840312 $15.81

3

W11227946 Whirlpool Refrigerator Shield Backorder WPL W11227946 $31.68

3

W11690901 Whirlpool Housing Backorder WPL W11690901 $74.96

3

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $13.99

4

W11084829 Whirlpool Refrigerator Insulation Backorder WPL W11084829 $21.48

4

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $17.99

4

W11251709 Whirlpool Refrigerator Pad Backorder WPL W11251709 $56.23

4

W11574764 Whirlpool Refrigerator Ice Containe In Stock WPL W11574764 $195.59

5

W11204892 Whirlpool Refrigerator Ice Door In Stock WPL W11204892 $96.99

5

W11228132 Whirlpool Refrigerator Shaft In Stock WPL W11228132 $21.99

5

W11241580 Whirlpool Refrigerator Bracket Backorder WPL W11241580 $127.99

5

W11243377 Whirlpool Refrigerator Door Stop Backorder WPL W11243377 $47.39

5

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $80.99

5

ASSEMBLY, DRAIN EXTENSION WPL W10860180 Contact Us For Availability

5A

W11241268 Whirlpool Refrigerator Bracket Backorder WPL W11241268 $128.60

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $23.40

6

W10795851 Whirlpool Refrigerator Freezer Bin Backorder WPL W10795851 $98.71

6

W10822606 Whirlpool Refrigerator Dispenser Mo In Stock WPL W10822606 $118.99

6

W10887818 Whirlpool Refrigerator Glass Shelf Backorder WPL W10887818 $246.55

6

W11220377 Whirlpool Refrigerator Tray Backorder WPL W11220377 $41.02

6B

W11506625 Whirlpool Refrigerator Coupler Backorder WPL W11506625 $17.55

7

W10900011 Whirlpool Refrigerator Cover Backorder WPL W10900011 $72.04

7

W11252157 Whirlpool Refrigerator Drip Tray Backorder WPL W11252157 $41.02

7

W11284453 Whirlpool Glass Shelf Assembly Backorder WPL W11284453 $178.99

7

W11769880 Whirlpool Roller-Cab Backorder WPL W11769880 $25.41

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

7A

W11763410 Whirlpool Cabinet Roller In Stock WPL W11763410 $25.41

8

W10846099 Whirlpool Refrigerator Leveler Backorder WPL W10846099 $15.04

8

W11102087 Whirlpool Refrigerator Freezer Bin Backorder WPL W11102087 $202.28

8

W11222983 Whirlpool Refrigerator Trim Backorder WPL W11222983 $56.75

8

W11557001 Whirlpool Refrigerator Icemaker In Stock WPL W11557001 $156.99

8

W11563404 Whirlpool Refrigerator Shelf Assemb Backorder WPL W11563404 $432.81

9

W10815345 Whirlpool Refrigerator Pad Backorder WPL W10815345 $65.67

9

W10815965 Whirlpool Refrigerator Cover Backorder WPL W10815965 $72.04

9

W11226828 Whirlpool Refrigerator Shelf Stud Backorder WPL W11226828 $9.27

9

THERMISTOR In Stock WPL W11724692 $19.92

9

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $7.18

9A

W11666273 Whirlpool Refrigerator Shelf Stud Backorder WPL W11666273 $9.27

W10798308 Whirlpool Refrigerator Door Bumper Backorder WPL W10798308 $16.93

W11032616 Whirlpool Refrigerator Door Hinge Backorder WPL W11032616 $47.39

W11087492 Whirlpool Refrigerator Water Dispen In Stock WPL W11087492 $19.94

W11115323 Whirlpool Refrigerator Utility Pan Backorder WPL W11115323 $159.75

W11259417 Whirlpool Refrigerator Air Tower Backorder WPL W11259417 $180.71

10A

W11032620 Whirlpool Refrigerator Door Hinge Backorder WPL W11032620 $47.39

W10795524 Whirlpool Refrigerator Cover Backorder WPL W10795524 $111.76

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

W11563405 Whirlpool Refrigerator Frame Backorder WPL W11563405 $217.44

W11677723 Whirlpool Support Backorder WPL W11677723 $95.76

SPRING, TORSION WPL W10672578 Contact Us For Availability

12

W10843722 Whirlpool Refrigerator Glide Backorder WPL W10843722 $105.03

12

W11109505 Whirlpool Refrigerator Spring In Stock WPL W11109505 $12.54

12

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $11.99

12A

W10668198 Whirlpool Refrigerator Evaporator B Backorder WPL W10668198 $34.11

12A

W10814862 Whirlpool Refrigerator Glide Backorder WPL W10814862 $105.03

W10663641 Whirlpool Refrigerator Spacer Backorder WPL W10663641 $17.86

W10704135 Whirlpool Refrigerator Wire Harness Backorder WPL W10704135 $24.57

W10774846 Whirlpool Refrigerator Cabinet Roll Backorder WPL W10774846 $59.06

W11189600 Whirlpool Refrigerator Bracket Backorder WPL W11189600 $45.11

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $11.21

W10795820 Whirlpool Refrigerator Pan Stop Backorder WPL W10795820 $57.69

W10887837 Whirlpool Refrigerator Glass Shelf Backorder WPL W10887837 $159.29

W10888235 Whirlpool Refrigerator Gasket Backorder WPL W10888235 $17.61

W11126052 Whirlpool Screw Assembly In Stock WPL W11126052 $14.99

14A

W10795822 Whirlpool Refrigerator Stop Pan Backorder WPL W10795822 $57.69

W10696713 Whirlpool Refrigerator Door Gasket Backorder WPL W10696713 $34.52

W10816322 Whirlpool Refrigerator Door Hinge Backorder WPL W10816322 $48.80

W10834282 Whirlpool Refrigerator Retainer Backorder WPL W10834282 $16.91

W10866163 Whirlpool Refrigerator Glide In Stock WPL W10866163 $96.44

15A

W10866166 Whirlpool Refrigerator Glide Backorder WPL W10866166 $96.44

W10816323 Whirlpool Refrigerator Door Hinge Backorder WPL W10816323 $48.80

HANDLE-PAN Backorder WPL W10903881 $125.17

W11189145 Whirlpool Refrigerator Ice Door In Stock WPL W11189145 $85.94

W11567329 Whirlpool Condenser Assembly Backorder WPL W11567329 $142.67

W11625086 Whirlpool Refrigerator Gasket Backorder WPL W11625086 $41.24

W10391376 Whirlpool Bracket Assembly In Stock WPL W10391376 $22.13

W10663699 Whirlpool Refrigerator Gasket Backorder WPL W10663699 $17.23

W11115324 Whirlpool Refrigerator Crisper Pan Backorder WPL W11115324 $109.81

W11163783 Whirlpool Refrigerator Closer In Stock WPL W11163783 $49.99

17A

W11188796 Whirlpool Refrigerator Closer In Stock WPL W11188796 $26.64

W10752689 Whirlpool Refrigerator Heater Backorder WPL W10752689 $79.00

W10770923 Whirlpool Refrigerator Gasket Backorder WPL W10770923 $17.61

W10839803 Whirlpool Refrigerator Axle Backorder WPL W10839803 $29.25

W11252060 Whirlpool Refrigerator Cover Backorder WPL W11252060 $69.95

W11401419 Whirlpool Refrigerator Module Backorder WPL W11401419 $116.69

COVER, HOUSING WPL W11198954 Contact Us For Availability

19

W10757499 Whirlpool Refrigerator Bracket Backorder WPL W10757499 $46.45

19

SCREW WPL W10141645 Contact Us For Availability

19

SCREW WPL W10903879 Contact Us For Availability

EMI-FILTER Backorder WPL W10738041 $35.33

W10809296 Whirlpool Refrigerator Guide Backorder WPL W10809296 $9.48

W10826105 Whirlpool Refrigerator Pro Service Backorder WPL W10826105 $98.89

W10837296 Whirlpool Refrigerator Roller In Stock WPL W10837296 $66.94

W11220375 Whirlpool Refrigerator Filter Cap In Stock WPL W11220375 $43.99

21

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $31.81

21

W11578028 Whirlpool Refrigerator Inverter Box Backorder WPL W11578028 $220.99

21

W11592414 Whirlpool Utility Pan Backorder WPL W11592414 $94.93

22

W10887839 Whirlpool Refrigerator Glass Shelf Backorder WPL W10887839 $159.29

22

W10917313 Whirlpool Refrigerator Door Gasket In Stock WPL W10917313 $171.75

22

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.99

22B

W11506619 Whirlpool Refrigerator Coupler In Stock WPL W11506619 $16.57

23

W11646687 Whirlpool Tube Assembly Backorder WPL W11646687 $63.72

23

FLANGE, SIDE SUPPORT WPL W10840918 Contact Us For Availability

24

W10840920 Whirlpool Refrigerator Knob Backorder WPL W10840920 $32.03

24

W11440595 Whirlpool Wire Harness Backorder WPL W11440595 $67.66

W10795523 Whirlpool Refrigerator Base Backorder WPL W10795523 $89.20

W10815960 Whirlpool Refrigerator Air Tower Backorder WPL W10815960 $120.97

W10882409 Whirlpool Refrigerator Herb Tender Backorder WPL W10882409 $28.65

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $25.50

25A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $18.91

25B

W11506623 Whirlpool Refrigerator Coupler In Stock WPL W11506623 $13.99

26

W10803630 Whirlpool Refrigerator Compressor D Backorder WPL W10803630 $60.02

26

W10848895 Whirlpool Refrigerator Wire Harness Backorder WPL W10848895 $95.36

26

W11578205 Whirlpool Refrigerator Compressor In Stock WPL W11578205 $508.76

26A

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $16.99

26B

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $16.69

26C

W11506621 Whirlpool Refrigerator Coupler In Stock WPL W11506621 $13.99

26D

W11506635 Whirlpool Refrigerator Valve Couple In Stock WPL W11506635 $24.99

27

W10847999 Whirlpool Refrigerator Screw Backorder WPL W10847999 $8.89

27

W11223833 Whirlpool Refrigerator Hinge Bushin In Stock WPL W11223833 $10.45

27

W11574308 Whirlpool Fan Backorder WPL W11574308 $136.00

28

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

28

W10754144 Whirlpool Refrigerator Cover Backorder WPL W10754144 $55.74

28

W10794565 Whirlpool Refrigerator Support In Stock WPL W10794565 $104.78

29

COVER, PANTRY WPL W10794557 Contact Us For Availability

30

W10794250 Whirlpool Support Backorder WPL W10794250 $100.77

30

W10818463 Whirlpool Refrigerator Gasket In Stock WPL W10818463 $17.61

31

W11090564 Whirlpool Refrigerator Shield Backorder WPL W11090564 $42.19

31

COVER, WIRING HARNESS WPL W10834719 Contact Us For Availability

32

W11744510 Whirlpool Wire Harness Backorder WPL W11744510 $66.68

33

W10768379 Whirlpool Refrigerator Cover Backorder WPL W10768379 $54.05

33

W10794550 Whirlpool Refrigerator Support Backorder WPL W10794550 $156.04

34

W10705239 Whirlpool Refrigerator Grommet Backorder WPL W10705239 $33.69

34

W11084821 Whirlpool Refrigerator Frame In Stock WPL W11084821 $133.43

35

W10794336 Whirlpool Refrigerator Gasket Backorder WPL W10794336 $17.09

36

W10794242 Whirlpool Gasket Assembly Backorder WPL W10794242 $86.23

37

W10835866 Whirlpool Wire Harness In Stock WPL W10835866 $88.21

38

W10854845 Whirlpool Appliance Cover Backorder WPL W10854845 $66.60

39

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $56.92

39

W10794553 Whirlpool Refrigerator Support Backorder WPL W10794553 $104.78

39A

W10794555 Whirlpool Refrigerator Support Backorder WPL W10794555 $104.78

40

W10834285 Whirlpool Refrigerator Screw Backorder WPL W10834285 $12.84

40

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.89

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $37.84

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

W10134625 Whirlpool Refrigerator Touch-Up Pai Backorder WPL W10134625 $12.92

NLA:TOUCH-UP Backorder WPL W10917540 $10.38

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
