Model Whirlpool KHMS155LBT2 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

1

Cook Guide Label WPL 8169658 Contact Us For Availability

1

Instructions, Installation WPL 8183878 Contact Us For Availability

1

Use & Care Guide WPL 8184950 Contact Us For Availability

1

Tech Sheet WPL 8205612 Contact Us For Availability

1

Reflector, Lamp WPL 8169652 Contact Us For Availability

2

8204670 Whirlpool Microwave Halogen Lamp 10W In Stock WPL 8204670 $11.99

2

Frame, Inner WPL 8169545 Contact Us For Availability

2

Lens WPL 4393905 Contact Us For Availability

3

6800 Whirlpool Charcoal Filter Kit In Stock WPL 6800 $14.99

3

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $61.99

3

Latch, Door WPL 4393913 Contact Us For Availability

3

Control Panel Assy (White) WPL 8205016 Contact Us For Availability

3

Control Panel Assy (Black) WPL 8205017 Contact Us For Availability

3

Control Panel Assy (Biscuit) WPL 8205019 Contact Us For Availability

4

6802A Whirlpool Grease Filter In Stock WPL 6802A $15.73

4

Body, Door (White) WPL 8169653 Contact Us For Availability

4

Lid, Power Cord WPL 8184313 Contact Us For Availability

4

Bracket, Control WPL 8183821 Contact Us For Availability

5

Glass, Outer WPL 4393725 Contact Us For Availability

5

Thermostat WPL 8183697 Contact Us For Availability

5

Plate, Hinge WPL 8205830 Contact Us For Availability

5

Plate, Bottom WPL 8184307 Contact Us For Availability

6

8169432 Whirlpool Microwave Power Cord Backorder WPL 8169432 $119.60

6

Hook, Rack (4) WPL 8204662 Contact Us For Availability

6

PCB Assembly WPL 8169733 Contact Us For Availability

6

Glass, Lamp WPL 8169564 Contact Us For Availability

7

8169738 Whirlpool Microwave Door Handle In Stock WPL 8169738 $119.73

7

Handle, Door (S.Steel) WPL 8184264 Contact Us For Availability

7

Screw WPL 4393828 Contact Us For Availability

7

Case, Outer (White) WPL 8169660 Contact Us For Availability

7

Case, Outer (Black) WPL 8169661 Contact Us For Availability

7

Case, Outer (Biscuit) WPL 8184315 Contact Us For Availability

7

Holder, Glass WPL 8184308 Contact Us For Availability

8

8184608 Whirlpool Microwave Oven Vent Grille In Stock WPL 8184608 $48.99

8

Turntable WPL 4393799 Contact Us For Availability

8

Grille, Vent (White) WPL 8184148 Contact Us For Availability

8

Grille, Vent (Biscuit) WPL 8184146 Contact Us For Availability

8

Screw WPL 4393346 Contact Us For Availability

8

Guide, Air (Magnetron) WPL 8184309 Contact Us For Availability

9

8206334 Whirlpool Microwave Mounting Bracket In Stock WPL 8206334 $5.54

9

Cover, Fan WPL 8183823 Contact Us For Availability

8184109 Whirlpool Microwave Spacer Backorder WPL 8184109 $4.82

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $52.99

WP4393834 Whirlpool Microwave Screw Backorder WPL WP4393834 $4.82

Frame, Outer (Black) WPL 8184592 Contact Us For Availability

Frame, Outer (White) WPL 8184149 Contact Us For Availability

Frame, Outer (Biscuit) WPL 8184744 Contact Us For Availability

11

Spring, Interlock WPL 8169438 Contact Us For Availability

12

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $88.84

12

Plate, Cam WPL 8183824 Contact Us For Availability

13

8205572 Whirlpool Microwave Interlock In Stock WPL 8205572 $4.82

13

Screw WPL 8169474 Contact Us For Availability

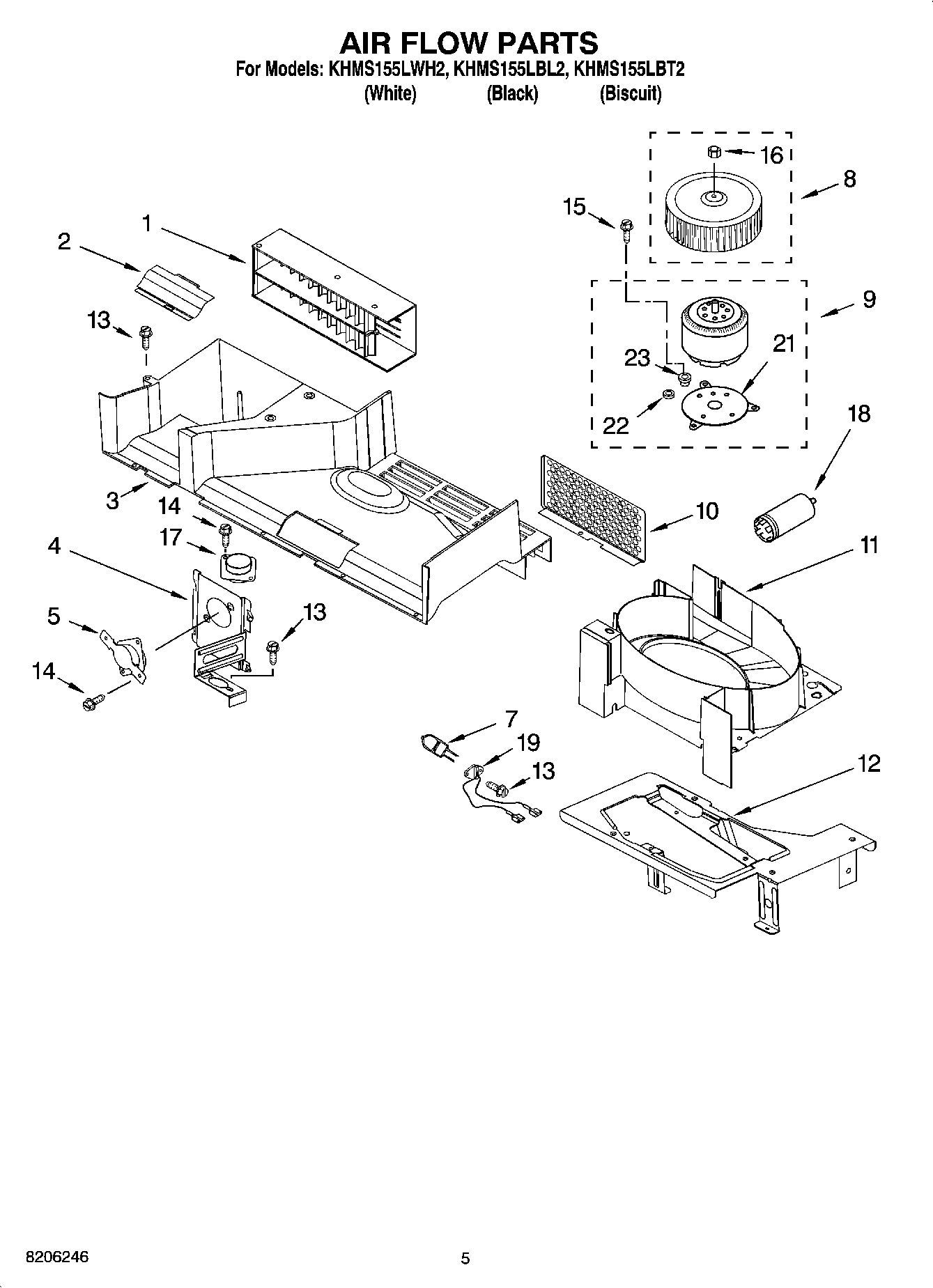

14

Wheel, Fan WPL 8183825 Contact Us For Availability

15

Thermostat WPL 4393943 Contact Us For Availability

15

Housing, Fan WPL 8184310 Contact Us For Availability

16

Motor, Fan WPL 8183826 Contact Us For Availability

17

Chassis WPL 8183827 Contact Us For Availability

WP8169704 Whirlpool Screw In Stock WPL WP8169704 $3.95

Installation, Hardware WPL 8205947 Contact Us For Availability

Screw WPL 4393838 Contact Us For Availability

Plate, Damper WPL 8169697 Contact Us For Availability

Upper Cab Template WPL 8183985 Contact Us For Availability

Rack WPL 8205393 Contact Us For Availability

Ground Wire Assy. WPL 8205635 Contact Us For Availability

H.V. Wire Assy WPL 8205847 Contact Us For Availability

Miscellaneous WPL ARI88555A3 Contact Us For Availability

Holder, Capacitor WPL 8184311 Contact Us For Availability

19

W11256462 Whirlpool Microwave Diode In Stock WPL W11256462 $15.69

20

W10850446 Whirlpool Microwave Magnetron Capac In Stock WPL W10850446 $143.99

20

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $4.99

21

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $8.89

21

Transformer, H.V. WPL 8206250 Contact Us For Availability

22

Plate, Damper WPL 8204674 Contact Us For Availability

22

Plate, Side (R) WPL 4393705 Contact Us For Availability

23

Cushion, Mtr WPL 8169635 Contact Us For Availability

23

Shield, Nomex WPL 8184485 Contact Us For Availability

24

Thermostat/Bracket WPL 8184585 Contact Us For Availability

24

Transformer, L.V. WPL 8185003 Contact Us For Availability

25

Plate, Side (L) WPL 8169470 Contact Us For Availability

26

Capacitor WPL 4393709 Contact Us For Availability

27

Holder, Fuse WPL 8184312 Contact Us For Availability

28

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $23.93

29

Glass, Lamp WPL 8169499 Contact Us For Availability

29

Thermostat WPL 4393710 Contact Us For Availability

30

Frame, Glass WPL 8169646 Contact Us For Availability

31

Clip WPL 8169647 Contact Us For Availability

32

W10748097 Whirlpool Microwave Crisp Pan In Stock WPL W10748097 $48.99

32

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $15.81

33

W10851464 Whirlpool Microwave Handle Panel In Stock WPL W10851464 $17.73

33

Screw WPL 4393833 Contact Us For Availability

34

Screw WPL 8169478 Contact Us For Availability

35

Screw WPL 8169475 Contact Us For Availability

36

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $6.28

38

8169479 Whirlpool Microwave Screw Backorder WPL 8169479 $4.82
