Model Whirlpool KHMS145JWH0 MICROWAVE – Common Parts & Diagrams

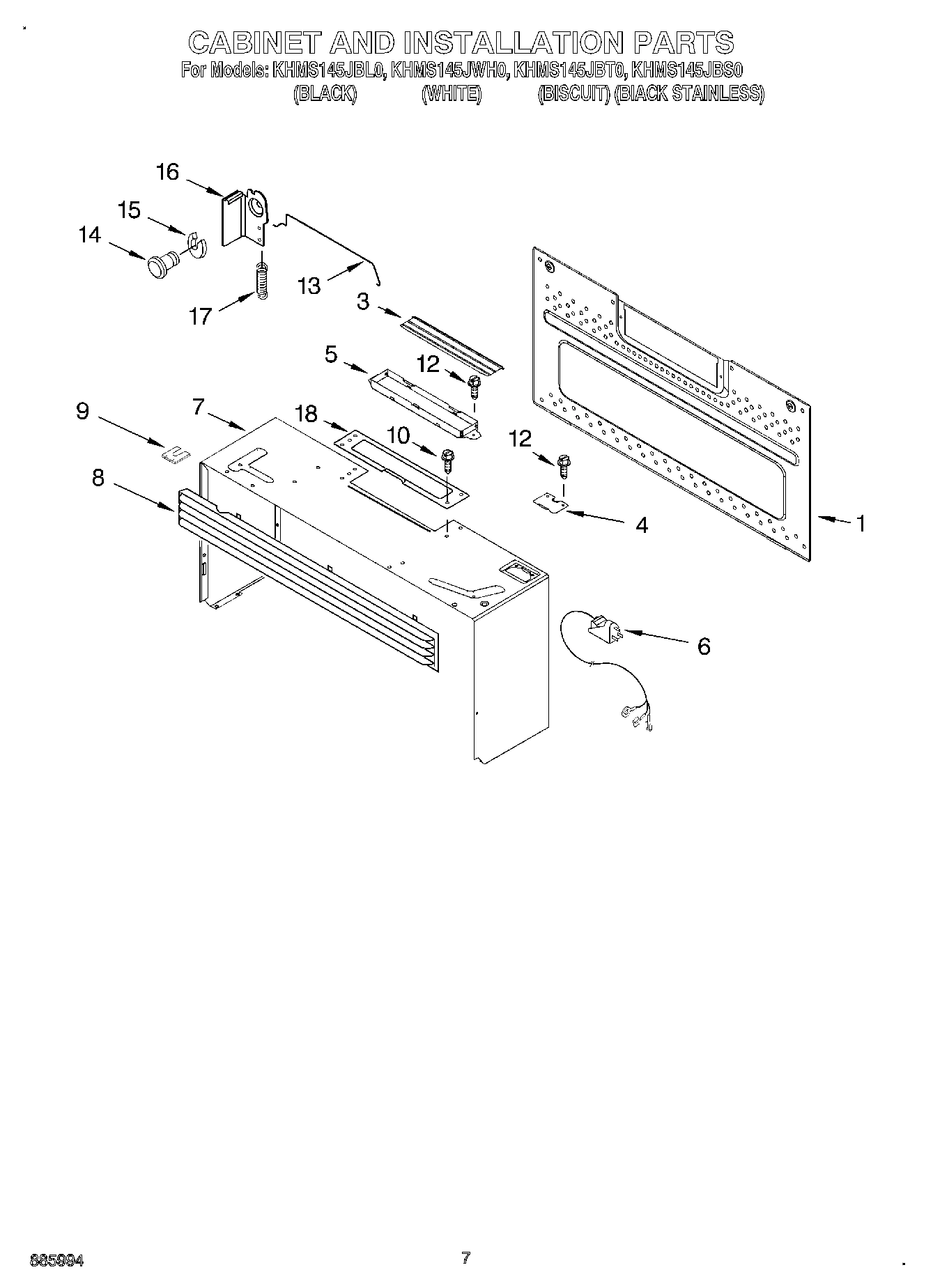

06 - CABINET AND INSTALLATION

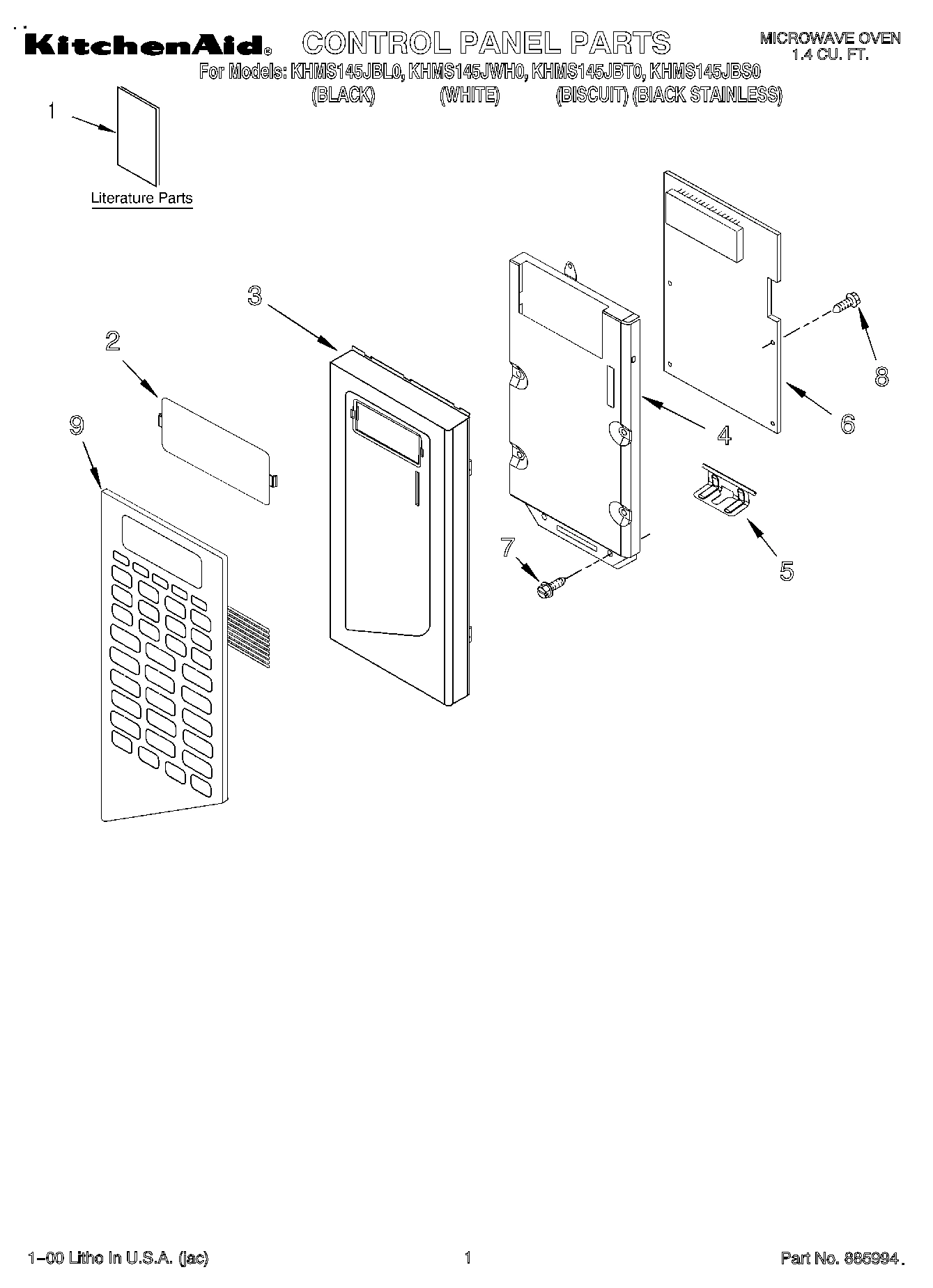

01 - CONTROL PANEL, LITERATURE

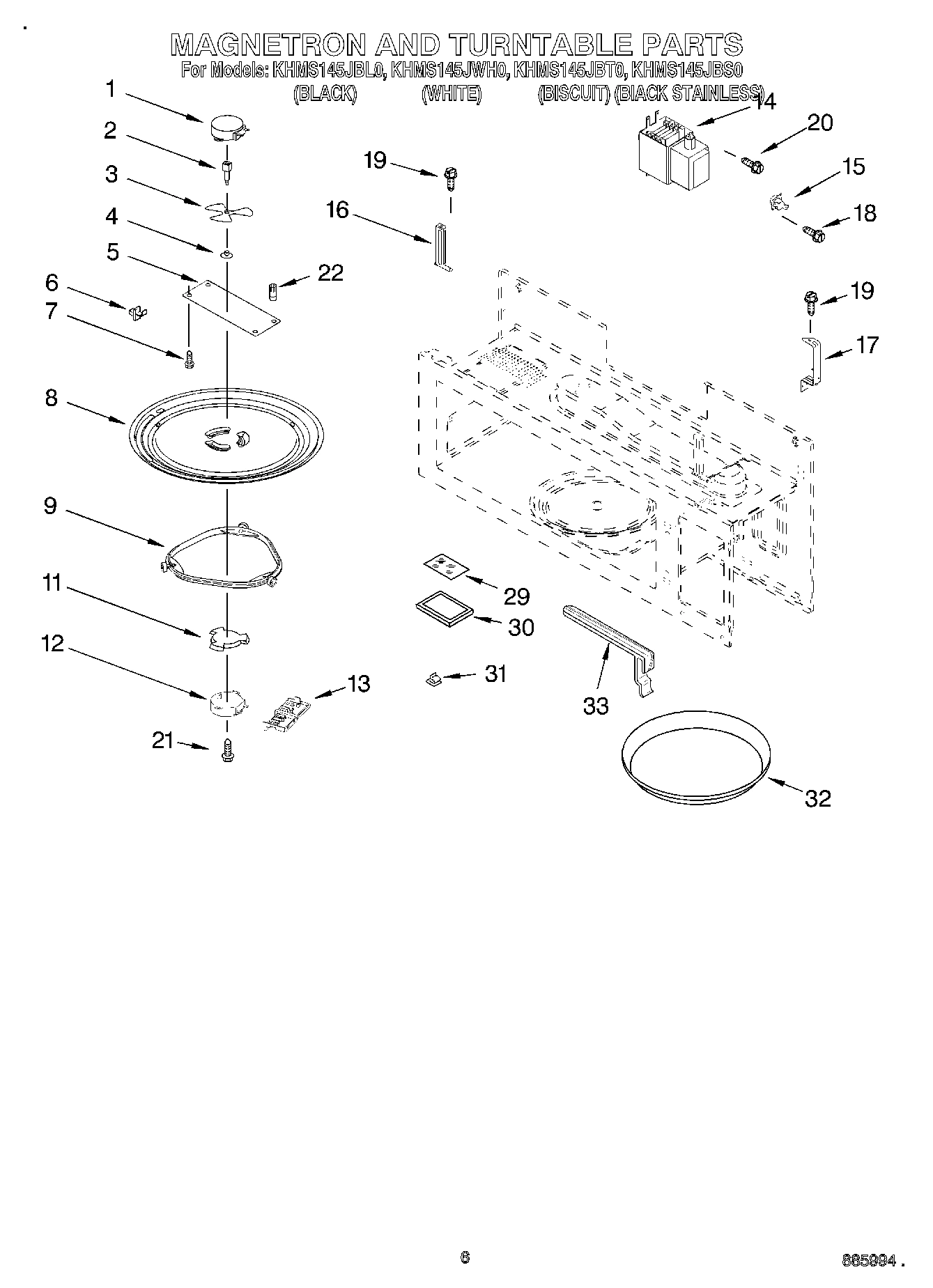

05 - MAGNETRON AND TURNTABLE

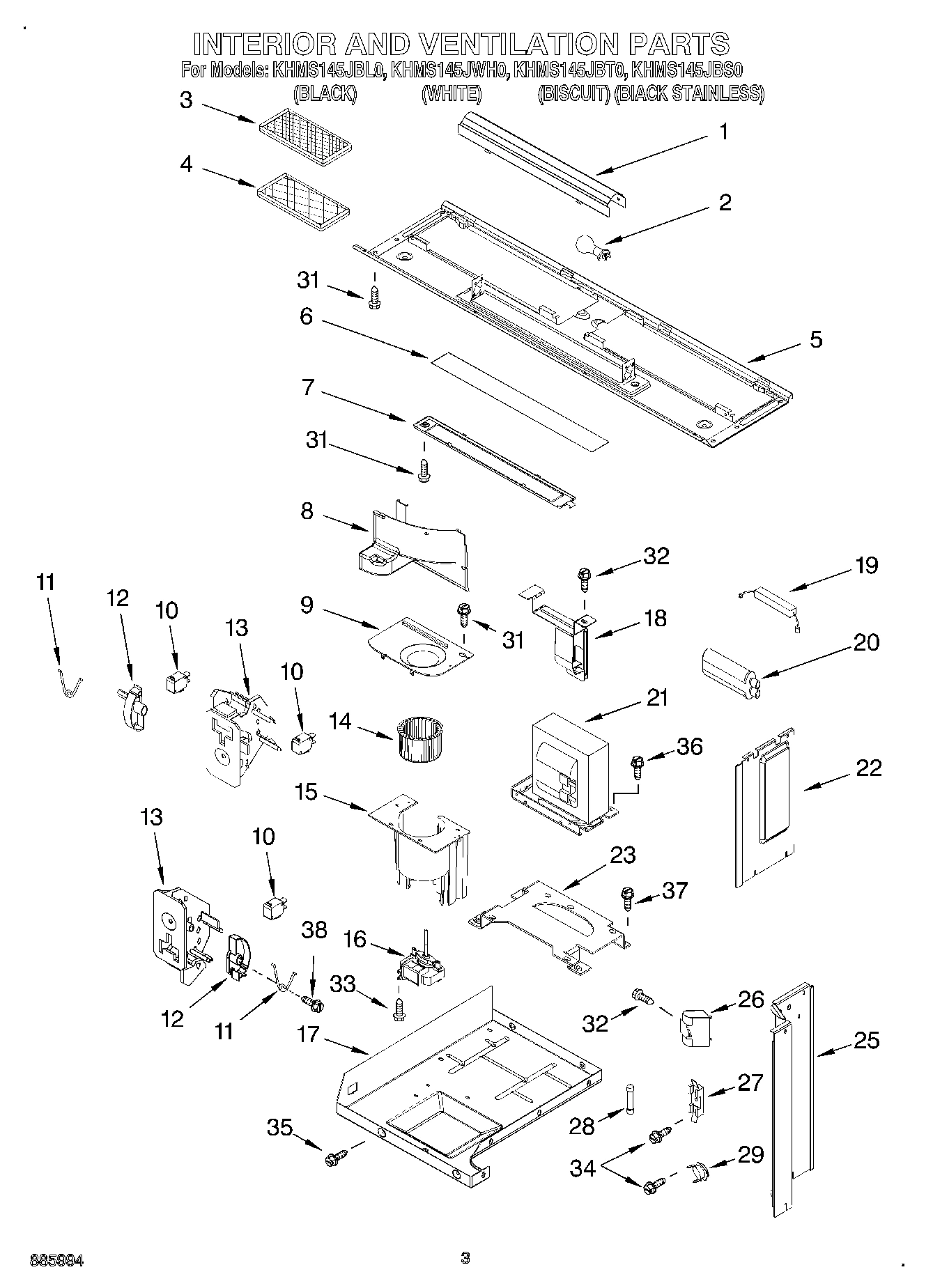

03 - INTERIOR AND VENTILATION

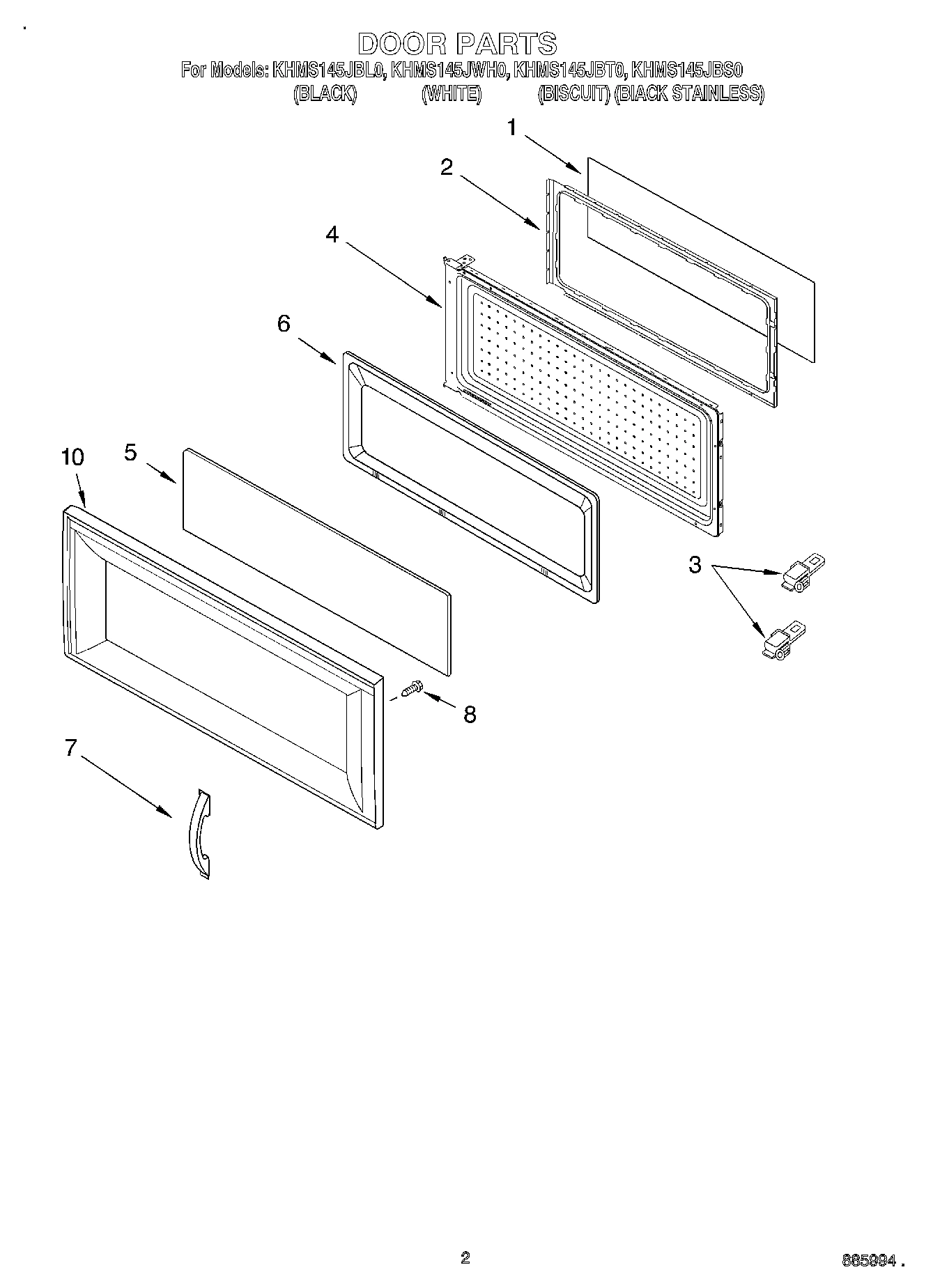

02 - DOOR

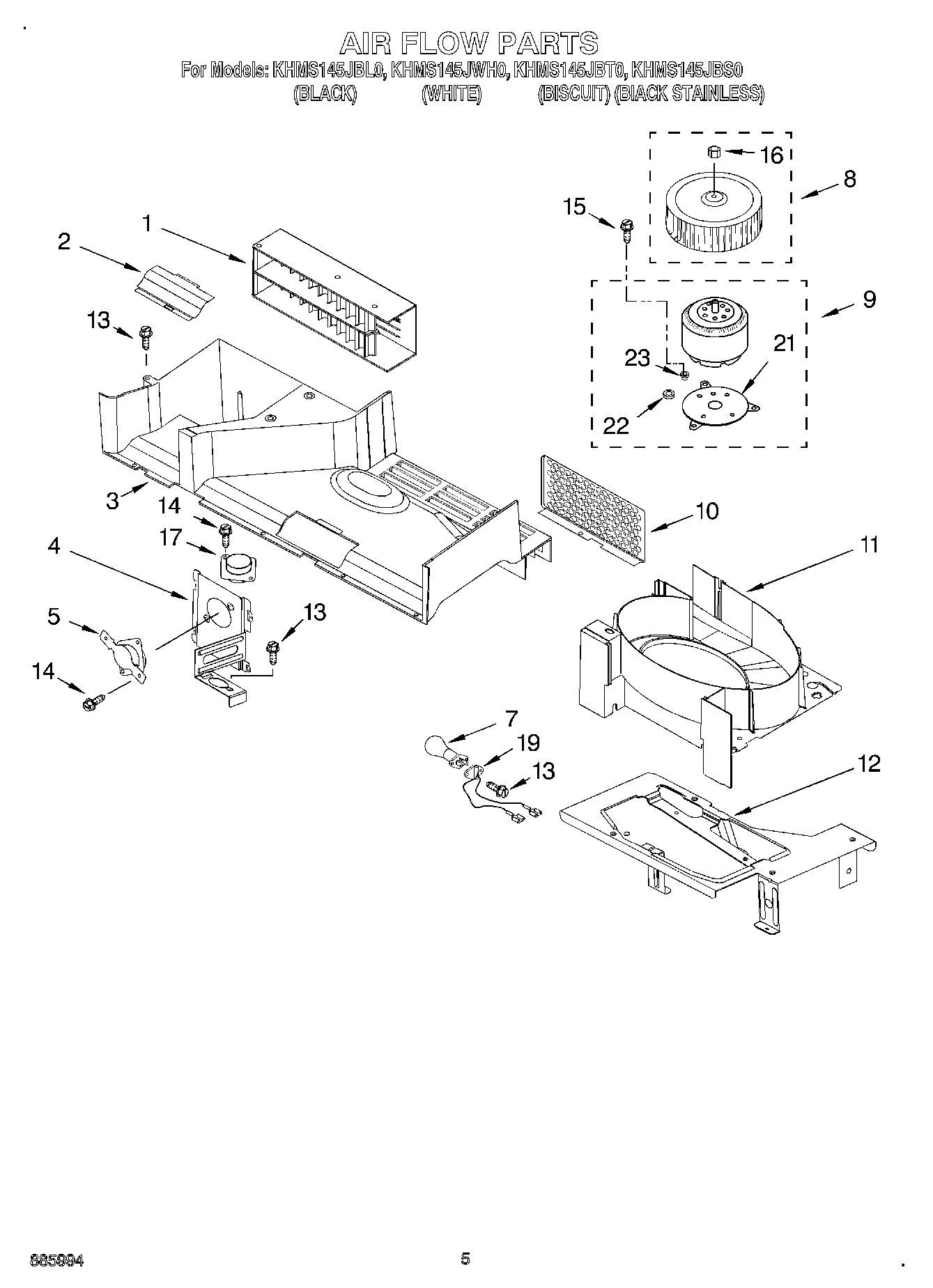

04 - AIR FLOW
Common parts from model Whirlpool KHMS145JWH0 MICROWAVE
1
Literature (Instructions, Installation) WPL LIT8169631 Contact Us For Availability
1
Literature (U & C Guide) WPL LIT8169657 Contact Us For Availability
1
Literature (Cook Guide Label) WPL LIT8169658 Contact Us For Availability
1
Literature (Tech Sheet) WPL LIT8169693 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Reflector, Lamp WPL 8169652 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Deflector, Air WPL 8169651 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Lens WPL 4393905 Contact Us For Availability
2
Shaft, Stirrer WPL 4393794 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (White) WPL 8169729 Contact Us For Availability
3
Panel, Control (Black) WPL 8169730 Contact Us For Availability
3
Panel, Control (Stainless) WPL 8169731 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 8169732 Contact Us For Availability
3
Stirrer WPL 4393748 Contact Us For Availability
3
Duct, Air WPL 8169465 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Bracket, Control WPL 8169706 Contact Us For Availability
4
Guide, Stirrer WPL 4393749 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Body, Door (Biscuit) WPL 8169546 Contact Us For Availability
4
Bracket, Thermostat WPL 8169558 Contact Us For Availability
5
Glass, Outer (Clear (Green Tint)) WPL 4393725 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Cover, Inlet WPL 4393750 Contact Us For Availability
5
Plate, Bottom WPL 8169407 Contact Us For Availability
5
Glass, Outer (Clear) WPL 8169548 Contact Us For Availability
5
Thermostat WPL 4393945 Contact Us For Availability
6
PCB Assembly WPL 8169733 Contact Us For Availability
6
Glass, Lamp WPL 8169499 Contact Us For Availability
6
Panel, Door (White) WPL 8169734 Contact Us For Availability
6
Panel, Door (Black) WPL 8169735 Contact Us For Availability
6
Panel, Door (Biscuit) WPL 8169736 Contact Us For Availability
7
Nail, Plastic WPL 4393291 Contact Us For Availability
7
Holder, Glass WPL 8169316 Contact Us For Availability
7
Handle, Door (White) WPL 8169737 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169739 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Screw WPL 4393833 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
Guide, Air (Magnetron) WPL 8169467 Contact Us For Availability
8
Wheel, Fan WPL 4393960 Contact Us For Availability
9
Switch, Membrane (White) WPL 8169726 Contact Us For Availability
9
Switch, Membrane (Black) WPL 8169727 Contact Us For Availability
9
Switch, Membrane (Biscuit) WPL 8169728 Contact Us For Availability
9
Cover, Fan WPL 8169541 Contact Us For Availability
9
Motor, Fan WPL 8169632 Contact Us For Availability
10
Frame, Outer (White) WPL 8169509 Contact Us For Availability
10
Frame, Outer (Black) WPL 8169510 Contact Us For Availability
10
Frame, Outer (Stainless) WPL 8169511 Contact Us For Availability
10
Frame, Outer (Biscuit) WPL 8169550 Contact Us For Availability
10
Shield WPL 8169559 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8169668 Contact Us For Availability
12
Plate, Cam WPL 8169469 Contact Us For Availability
12
Bracket, Fan (Not Serviceable) WPL ARI88522A9 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Wheel, Fan WPL 8169317 Contact Us For Availability
14
Screw WPL 4393316 Contact Us For Availability
15
Thermostat WPL 4393943 Contact Us For Availability
15
Housing, Fan WPL 8169542 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
16
Motor, Fan WPL 4393700 Contact Us For Availability
16
Nut WPL 8169633 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
17
Chassis WPL 8169740 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Plate, Damper Miscellaneous WPL 8169697 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Holder, Capacitor WPL 4393702 Contact Us For Availability
19
Screw WPL 4393828 Contact Us For Availability
19
Holder, Lamp WPL 8169497 Contact Us For Availability
21
Transformer, H.V. WPL 4393809 Contact Us For Availability
21
Adapter, Motor WPL 8169634 Contact Us For Availability
22
Bushing, Nail WPL 8169630 Contact Us For Availability
22
Plate, Side (R) WPL 4393705 Contact Us For Availability
22
Plate, Damper WPL 4393874 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Bracket, Transformer WPL 4393706 Contact Us For Availability
25
Plate, Side (L) WPL 8169470 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 4393538 Contact Us For Availability
29
Thermostat WPL 4393710 Contact Us For Availability
30
Frame, Glass WPL 8169646 Contact Us For Availability
31
Clip WPL 8169647 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
35
Screw WPL 8169475 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
× ![]()
