KF26M1QGD5

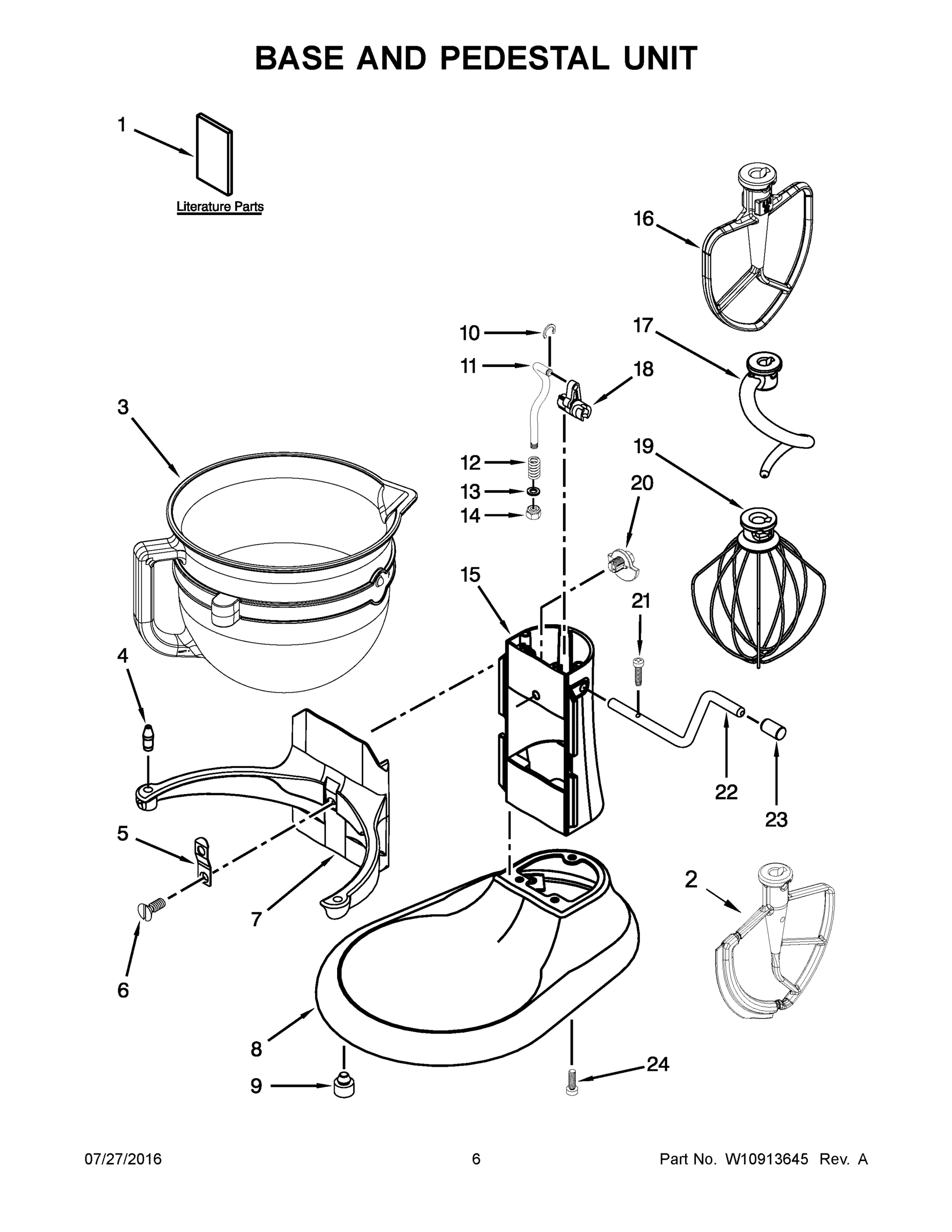

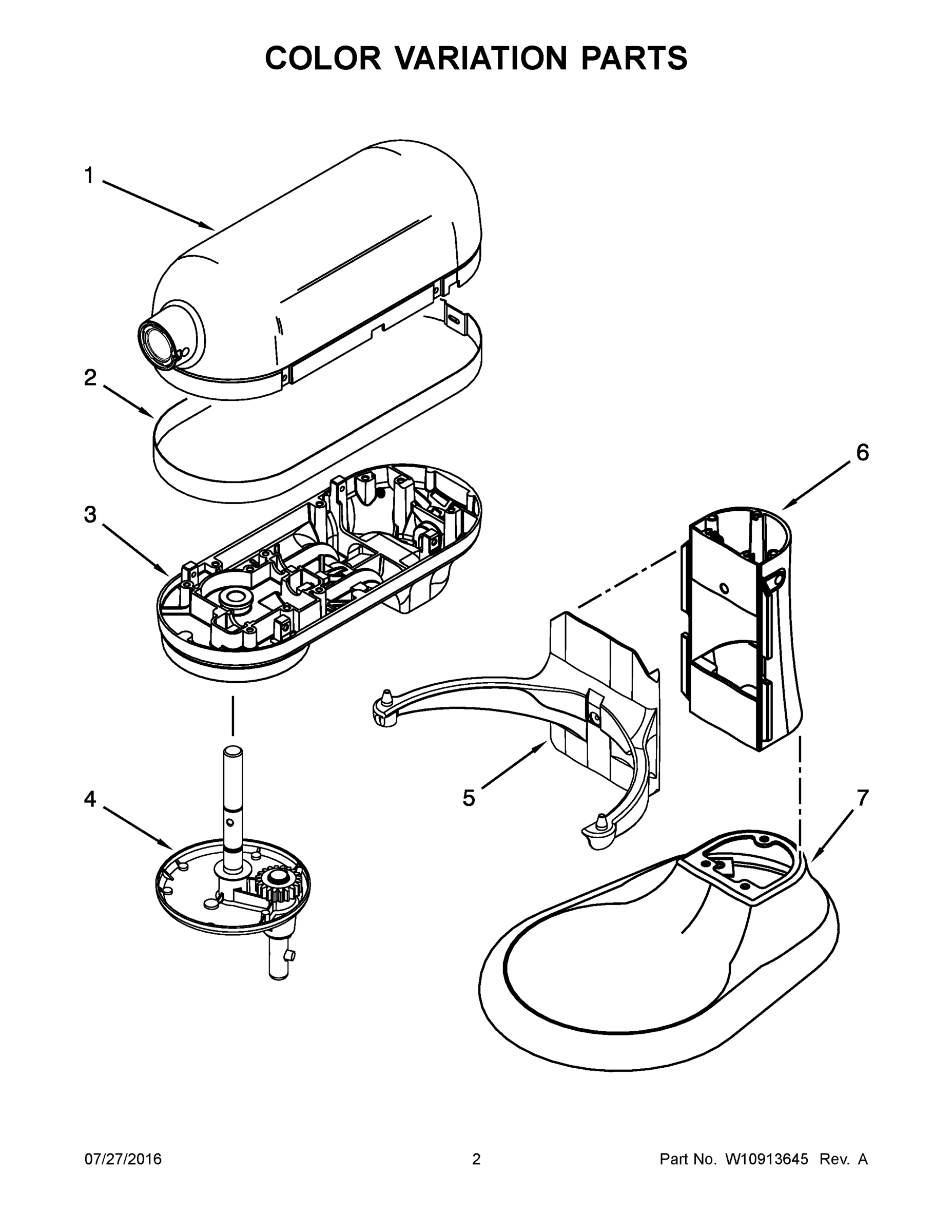

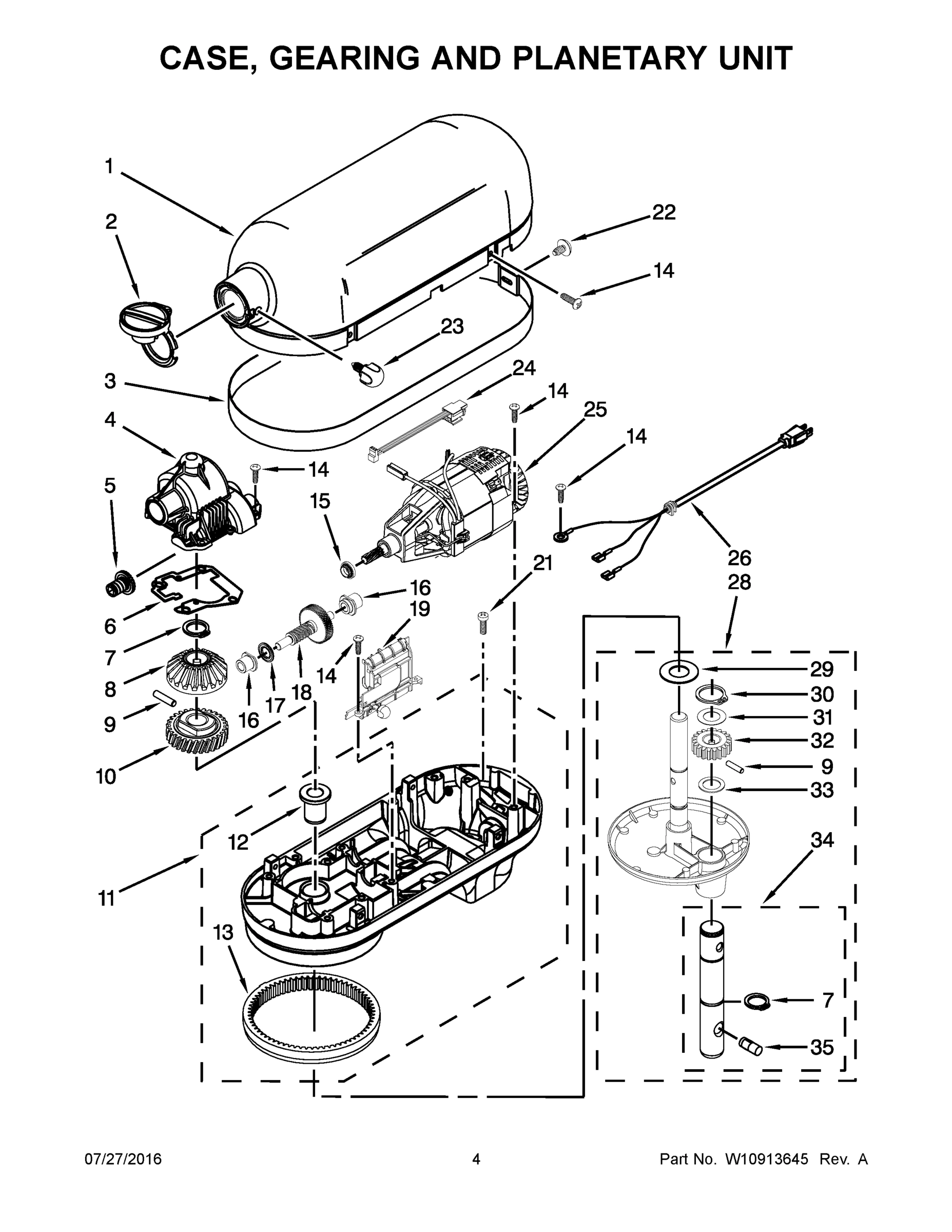

Model KF26M1QGD5 – Common Parts & Diagrams

Common parts from model KF26M1QGD5

W11401152 Whirlpool Hub Cap

W11401152 Whirlpool Hub Cap Out of Stock WPL W11401152 $28.04

9707974 Whirlpool Gearcase

9707974 Whirlpool Gearcase Out of Stock WPL 9707974 $72.19

8212396 Whirlpool Housing

8212396 Whirlpool Housing In Stock WPL 8212396 $58.40

WP240185 Whirlpool Bowl Retaining Pin

WP240185 Whirlpool Bowl Retaining Pin In Stock WPL WP240185 $4.28

WP9707977 Whirlpool Planetary

WP9707977 Whirlpool Planetary Out of Stock WPL WP9707977 $67.37

WP9708175 Whirlpool Planetary

WP9708175 Whirlpool Planetary Out of Stock WPL WP9708175 $67.37

9703397 Whirlpool Support

9703397 Whirlpool Support Out of Stock WPL 9703397 $75.53

WPW10504114 Whirlpool Clip

WPW10504114 Whirlpool Clip In Stock WPL WPW10504114 $4.28

COLUMN

COLUMN Out of Stock WPL 9703349 $82.02

W10861883 Whirlpool Screw

W10861883 Whirlpool Screw Out of Stock WPL W10861883 $4.28

WP9709511 Whirlpool Microwave High Voltage Tr

WP9709511 Whirlpool Microwave High Voltage Tr In Stock WPL WP9709511 $6.61

BASE

BASE Out of Stock WPL 9703346 $78.86

BASE

BASE Out of Stock WPL 9707964 $78.86

WP9703680 Whirlpool Ring Retainer

WP9703680 Whirlpool Ring Retainer In Stock WPL WP9703680 $4.28

W11192795 Whirlpool Gear

W11192795 Whirlpool Gear In Stock WPL W11192795 $19.61

WP9707223 Whirlpool Pin Dowel

WP9707223 Whirlpool Pin Dowel In Stock WPL WP9707223 $4.28

WP9708649 Whirlpool Foot

WP9708649 Whirlpool Foot Out of Stock WPL WP9708649 $4.28

W11086780 Whirlpool Gear

W11086780 Whirlpool Gear In Stock WPL W11086780 $17.56

W11376364 Whirlpool Rod Lift

W11376364 Whirlpool Rod Lift Out of Stock WPL W11376364 $28.64

WP16897 Whirlpool Bearing

WP16897 Whirlpool Bearing In Stock WPL WP16897 $4.28

W11181966 Whirlpool Gear

W11181966 Whirlpool Gear Out of Stock WPL W11181966 $13.00

8533907 Whirlpool Dishwasher Nut

8533907 Whirlpool Dishwasher Nut Out of Stock WPL 8533907 $25.99

WP3400814 Whirlpool Screw

WP3400814 Whirlpool Screw Out of Stock WPL WP3400814 $4.28

WP9706247 Whirlpool Seal

WP9706247 Whirlpool Seal Out of Stock WPL WP9706247 $4.28

W10672615 Whirlpool Mixer Beater

W10672615 Whirlpool Mixer Beater Out of Stock WPL W10672615 $85.84

WPW10170080 Whirlpool Bearing

WPW10170080 Whirlpool Bearing In Stock WPL WPW10170080 $4.28

WPW10170081 Whirlpool Bearing

WPW10170081 Whirlpool Bearing In Stock WPL WPW10170081 $4.28

WP9703445 Whirlpool Thrust Bearing Kit

WP9703445 Whirlpool Thrust Bearing Kit In Stock WPL WP9703445 $8.09

WP9706885 Whirlpool Lift Arm

WP9706885 Whirlpool Lift Arm In Stock WPL WP9706885 $4.28

WP9709231 Whirlpool Gear

WP9709231 Whirlpool Gear In Stock WPL WP9709231 $50.87

W11501449 Whirlpool Handle

W11501449 Whirlpool Handle Out of Stock WPL W11501449 $23.06

WP9709194 Whirlpool Thumb Screw Black

WP9709194 Whirlpool Thumb Screw Black In Stock WPL WP9709194 $18.53

W10913677 Whirlpool Screw

W10913677 Whirlpool Screw Out of Stock WPL W10913677 $4.28

WP9706648 Whirlpool Speed Control

WP9706648 Whirlpool Speed Control In Stock WPL WP9706648 $100.41

WPW10247536 Whirlpool Motor

WPW10247536 Whirlpool Motor In Stock WPL WPW10247536 $98.95

CORD-POWER

CORD-POWER Out of Stock WPL W11728151 $18.81

WP9703438 Whirlpool Snap Retaining Ring

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $3.19

WP9706090 Whirlpool Washer

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $4.28

W11133646 Whirlpool Gear

W11133646 Whirlpool Gear Out of Stock WPL W11133646 $4.37

W10854966 Whirlpool Washer

W10854966 Whirlpool Washer Out of Stock WPL W10854966 $4.28

WP9708191 Whirlpool Shaft Agitator

WP9708191 Whirlpool Shaft Agitator Out of Stock WPL WP9708191 $15.28
