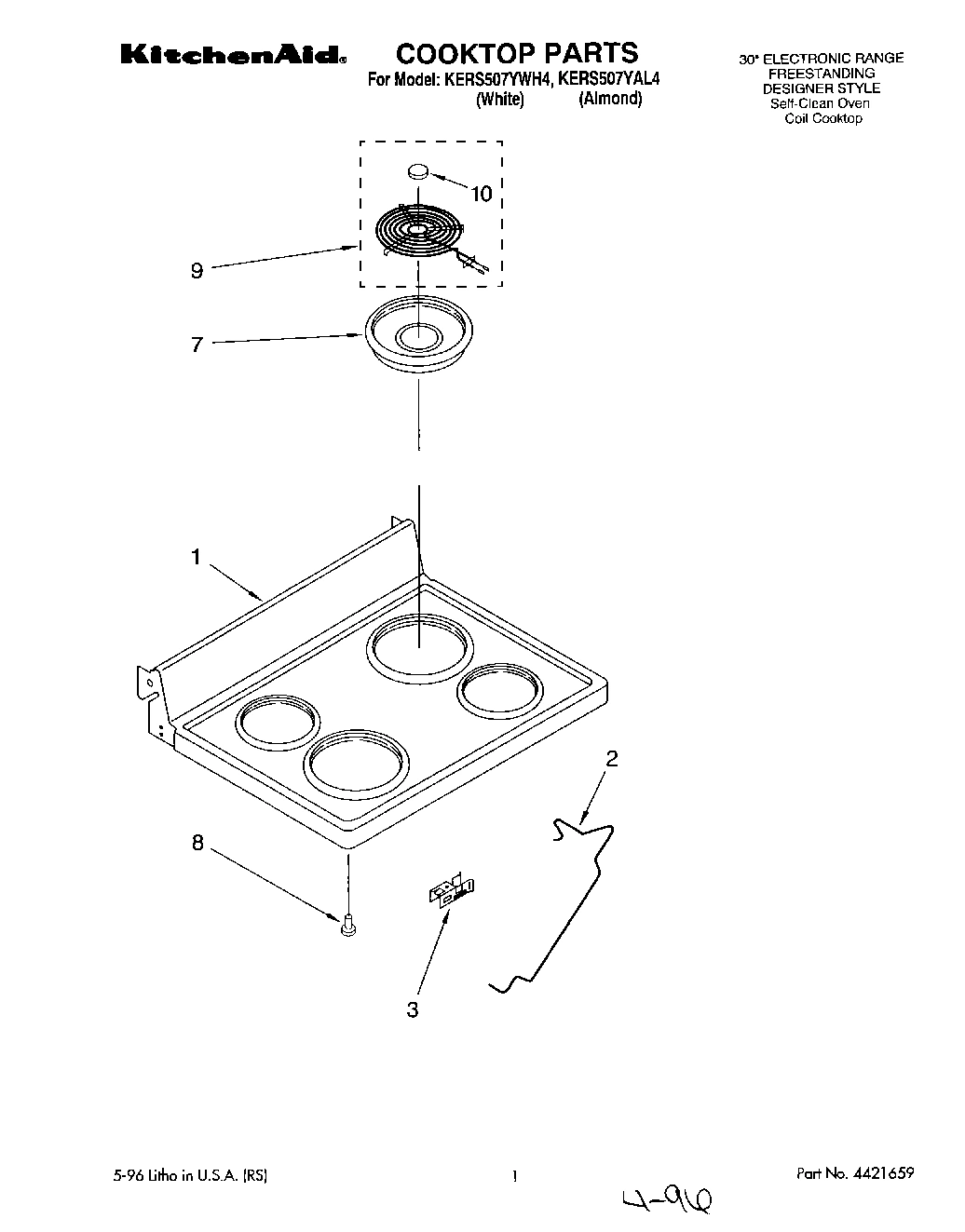

Model Whirlpool KERS507YWH4 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE CONVEC – Common Parts &amp; Diagrams

WPL 9750376 WPL 9750376 Contact Us For Availability

WPL 9751003 WPL 9751003 Contact Us For Availability

WPL 9751014 WPL 9751014 Contact Us For Availability

WPL 9751148 WPL 9751148 Contact Us For Availability

WPL 9752088 WPL 9752088 Contact Us For Availability

WPL 9781212 WPL 9781212 Contact Us For Availability

WPL 9781214 WPL 9781214 Contact Us For Availability

WPL LIT3183987 WPL LIT3183987 Contact Us For Availability

WPL LIT4317161 WPL LIT4317161 Contact Us For Availability

WPL LIT4449066 WPL LIT4449066 Contact Us For Availability

WPL LIT9750520 WPL LIT9750520 Contact Us For Availability

WPL LIT9750876 WPL LIT9750876 Contact Us For Availability

WPL LIT9750877 WPL LIT9750877 Contact Us For Availability

WPL LIT9780689 WPL LIT9780689 Contact Us For Availability

WPL LIT9780934 WPL LIT9780934 Contact Us For Availability

1

Element, Broil WPL 9750967 Contact Us For Availability

1

Lamp Cover (White) WPL 9780580 Contact Us For Availability

1

Lamp Cover (Almond) WPL 9780581 Contact Us For Availability

1

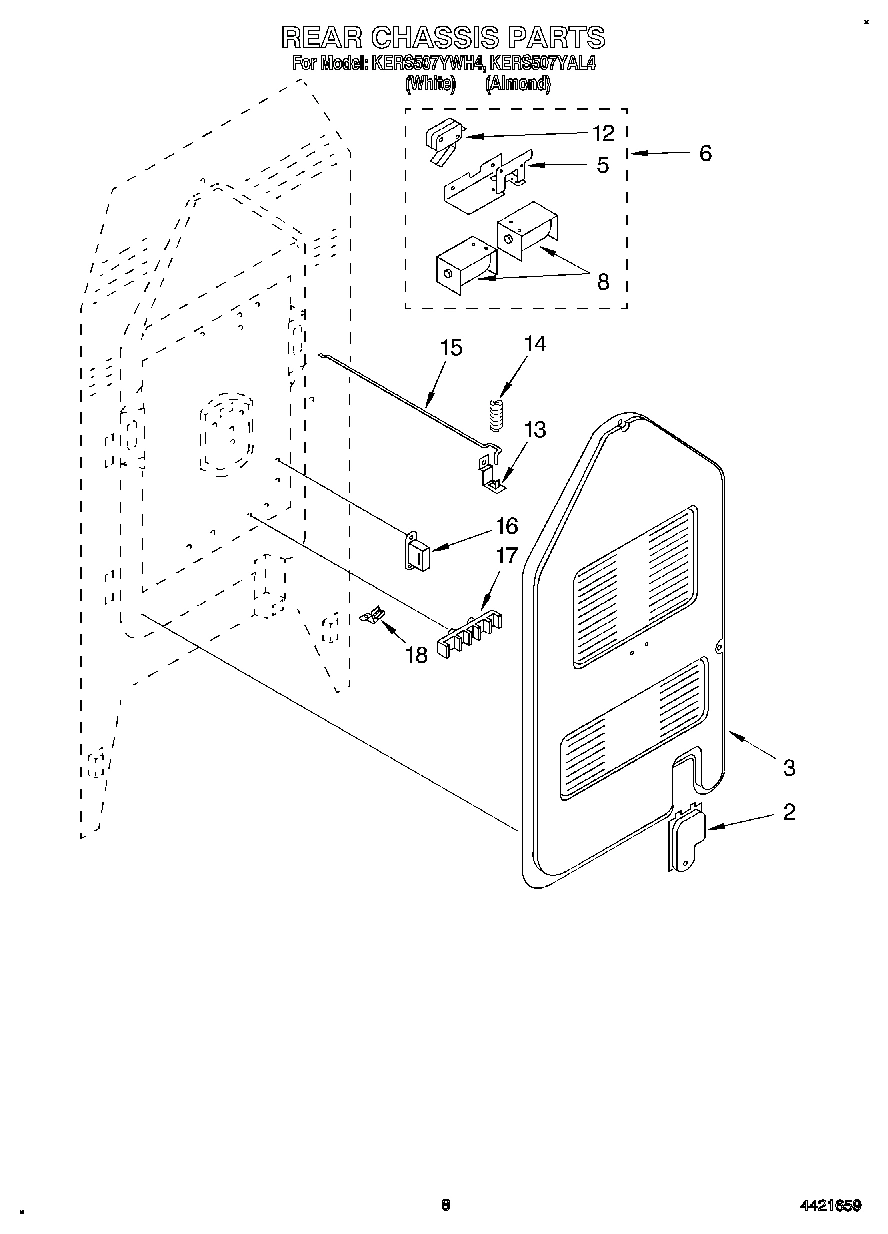

Main Chassis, Back WPL 9750146 Contact Us For Availability

2

WP95292 Whirlpool Fluorescent Light Bulb Backorder WPL WP95292 $95.08

2

ELMNT-BAKE WPL 9750213 Contact Us For Availability

2

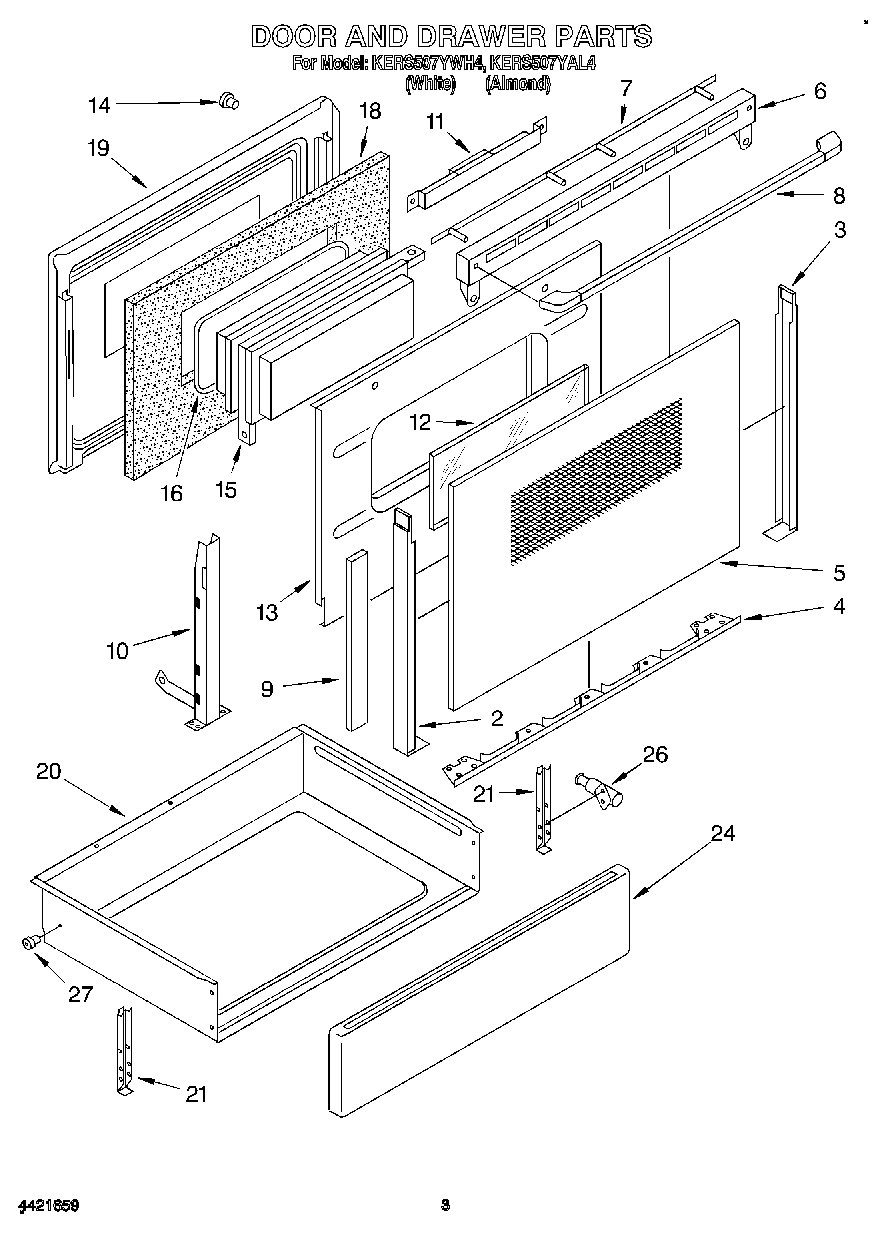

Trim, Door-Left (White) WPL 4211912 Contact Us For Availability

2

Trim, Door-Left (Almond) WPL 4211914 Contact Us For Availability

2

Cover, Rear Access WPL 9750490 Contact Us For Availability

2

Chassis, Front WPL 4212002 Contact Us For Availability

3

Trim, Door-Right (White) WPL 4211910 Contact Us For Availability

3

Trim, Door-Right (Almond) WPL 4211911 Contact Us For Availability

3

Screw, (2) 10 x 3/8 WPL 4211813 Contact Us For Availability

3

Rear Panel WPL 9750245 Contact Us For Availability

3

Insulation, Wrap WPL 9750222 Contact Us For Availability

4

Trim, Door Bottom (White) WPL 4211925 Contact Us For Availability

4

Trim, Door Bottom (Almond) WPL 4211926 Contact Us For Availability

4

End Cap (Almond RH) WPL 4211933 Contact Us For Availability

4

End Cap (White RH) WPL 4211934 Contact Us For Availability

4

End Cap (Almond LH) WPL 4211936 Contact Us For Availability

4

End Cap (White LH) WPL 4211937 Contact Us For Availability

4

Insulation, Rear WPL 9750221 Contact Us For Availability

5

Glass, Door (White) WPL 9780314 Contact Us For Availability

5

Glass, Door (Almond) WPL 9780328 Contact Us For Availability

5

Bracket, Lock WPL 9750526 Contact Us For Availability

5

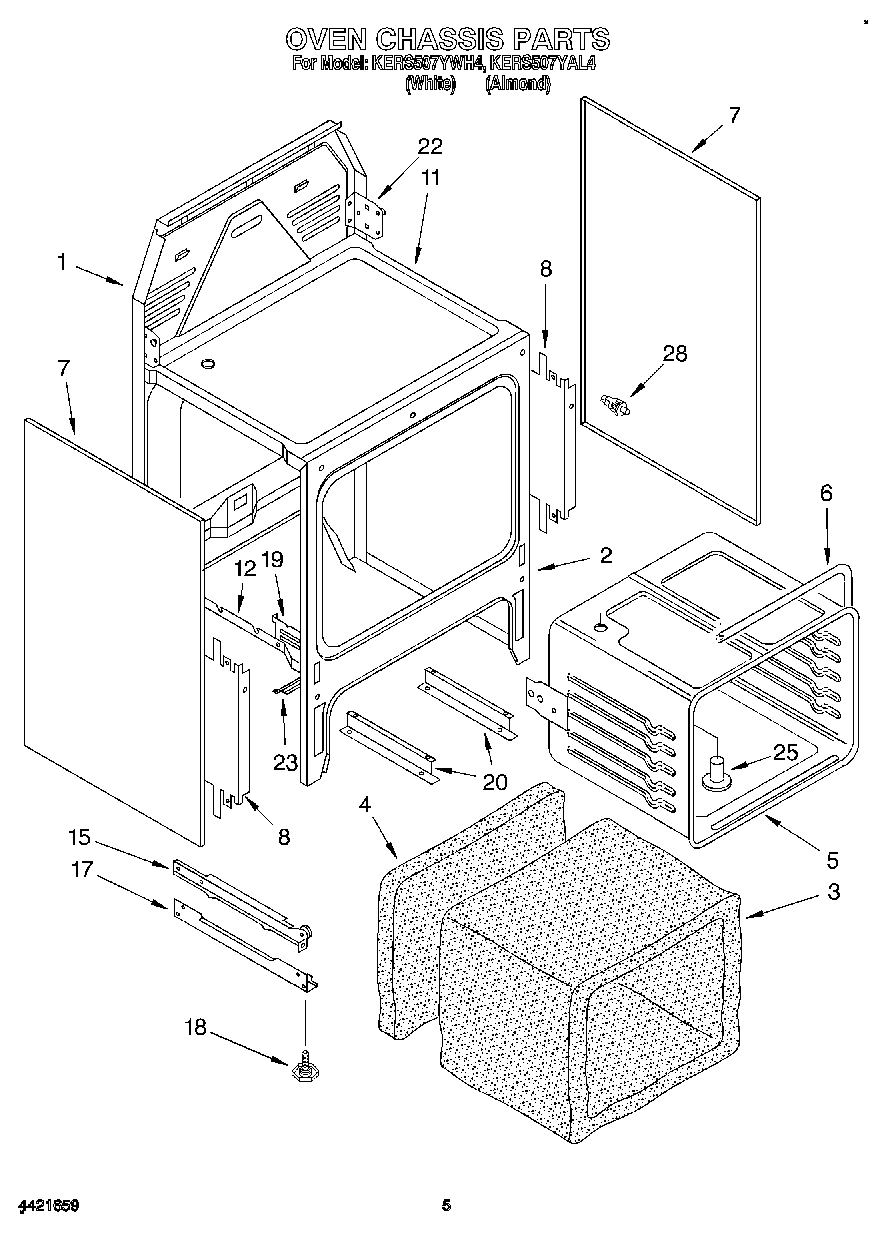

Oven Liner WPL 9781292GM Contact Us For Availability

6

Vent, Door (Screw (2) 10AB x 1/2) WPL 3149333 Contact Us For Availability

6

Vent, Door (Almond) WPL 9781166GT Contact Us For Availability

6

Vent, Door (White) WPL 9781166GW Contact Us For Availability

6

Oven Lock Assembly WPL 9750522 Contact Us For Availability

6

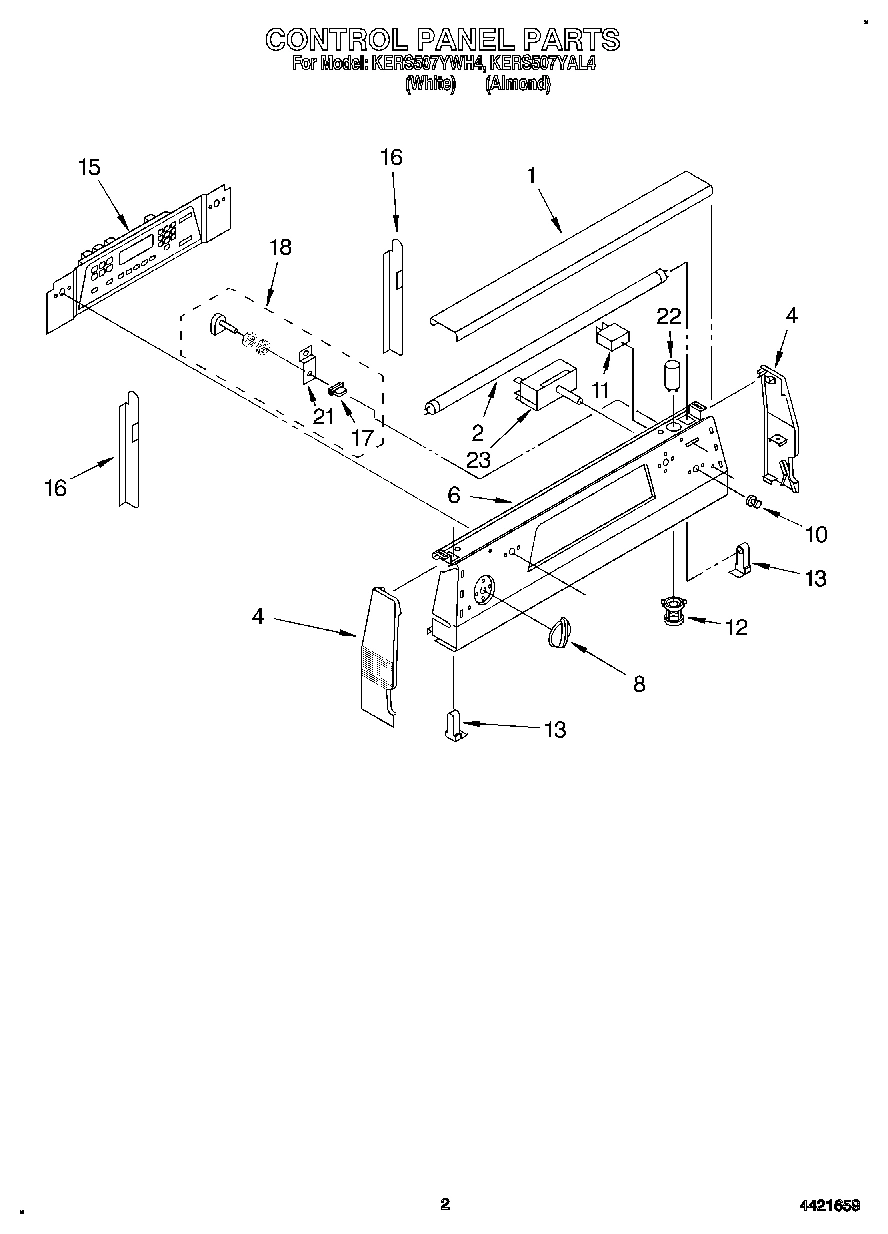

Panel, Control (White) WPL 9780293 Contact Us For Availability

6

Panel, Control (Almond) WPL 9780329 Contact Us For Availability

6

Panel, Control (Screw, (2) 8 x 3/8) WPL 9780852 Contact Us For Availability

6

Gasket Oven WPL 9750247 Contact Us For Availability

7

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $5.99

7

WPW10290353 Whirlpool Drip Bowl 6" ClimaTek In Stock WPL WPW10290353 $14.99

7

Cover, Vent WPL 9750898 Contact Us For Availability

7

Side Panel, Oven (White) WPL 4211896 Contact Us For Availability

7

Side Panel, Oven (Almond) WPL 4211897 Contact Us For Availability

8

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

8

WP9750372FW Whirlpool Knob Assembly In Stock WPL WP9750372FW $13.40

8

WPW10001180 Whirlpool Refrigerator Screw Backorder WPL WPW10001180 $4.55

8

Knobs, Control (Almond) WPL 4211913 Contact Us For Availability

8

Handle, Door (White) WPL 4212234 Contact Us For Availability

8

Handle, Door (Almond) WPL 4212235 Contact Us For Availability

8

Screw, (2) 10-32 x 5/16 WPL 4211945 Contact Us For Availability

8

Solenoid WPL 9750524 Contact Us For Availability

8

Shield, Insulation WPL 9780664 Contact Us For Availability

9

WPW10259865 Whirlpool Range 8" Surface Elemen In Stock WPL WPW10259865 $141.99

9

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $121.99

9

Gasket, Door Glass WPL 9750694 Contact Us For Availability

10

WP9750343 Whirlpool Light Lens Backorder WPL WP9750343 $3.48

10

WP9782033 Whirlpool Door Hinge Backorder WPL WP9782033 $164.99

10

Medallion, (4) WPL 4211952 Contact Us For Availability

Channel, Heat WPL 9750693 Contact Us For Availability

Light Module WPL 9750964 Contact Us For Availability

Burner Box WPL 4211949 Contact Us For Availability

Washer, (3) WPL 4212071 Contact Us For Availability

Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability

Baffle, Glass WPL 9750634 Contact Us For Availability

Screw, (2) WPL 9750887 Contact Us For Availability

Nut (2) WPL 9750888 Contact Us For Availability

Switch, Interlock WPL 9750965 Contact Us For Availability

Starter, Holder WPL 9750866 Contact Us For Availability

Oven Bottom WPL 9750142 Contact Us For Availability

13

Shield, Door WPL 9750233 Contact Us For Availability

13

Bracket, Spring WPL 9750834 Contact Us For Availability

13

Receptacle, Lamp WPL 9750273 Contact Us For Availability

14

Spring, Door Lock WPL 9750833 Contact Us For Availability

Rail, Drawer (Right) WPL 9750224 Contact Us For Availability

Window Pack Assy. WPL 9751245 Contact Us For Availability

Rod, Lock WPL 9750523 Contact Us For Availability

Oven Control Assembly (Almond) WPL 9750699 Contact Us For Availability

Oven Control Assembly (White) WPL 9750700 Contact Us For Availability

Drawer Rail, Left WPL 9750223 Contact Us For Availability

Seal, Window WPL 9751135 Contact Us For Availability

Screw (2) 8 x 1/4 WPL 9780271 Contact Us For Availability

Washer WPL 4211875 Contact Us For Availability

Ballast, Lamp WPL 9780881 Contact Us For Availability

Brace, Control Pnl WPL 9780655 Contact Us For Availability

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

Probe WPL 3150144 Contact Us For Availability

Screw, (2) 10-16 x 1 WPL 98884 Contact Us For Availability

Button, Light (White) WPL 4212112 Contact Us For Availability

Button, Light (Almond) WPL 4212113 Contact Us For Availability

Bottom Rail (2) WPL 9750147 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $46.71

WPL W10355051 No Longer Available

WA906B Whirlpool Cooktop Glass Scraper In Stock WPL WA906B $4.99

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.98

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $56.69

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 308498 WPL 308498 Contact Us For Availability

WPL 313660 WPL 313660 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 9780633 WPL 9780633 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Switch, Light WPL 9751110 Contact Us For Availability

19

Liner, Door WPL 9781197GM Contact Us For Availability

19

Hinge Receiver WPL 9750149 Contact Us For Availability

19

Screw (2) 8 x 3/8 WPL 9780270 Contact Us For Availability

20

Drawer & Roller WPL 9750257 Contact Us For Availability

20

Support Rail, Pan WPL 421771 Contact Us For Availability

21

Bracket, Drawer WPL 9750169 Contact Us For Availability

21

Bracket, Switch WPL 9750721 Contact Us For Availability

22

Starter, Light WPL 9781118 Contact Us For Availability

22

Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability

22

Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability

WP9750638 Whirlpool Infinite Switch Backorder WPL WP9750638 $112.28

WP9750641 Whirlpool Infinite Switch Backorder WPL WP9750641 $114.33

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $71.27

Screw, (2) 10 x 3/8 WPL 9780272 Contact Us For Availability

Infinite Switch (Screw (8) 8-32 x 3/16) WPL 9780268 Contact Us For Availability

Bracket, Power Cord WPL 9750491 Contact Us For Availability

24

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $5.99

24

Front, Drawer (White) WPL 4211992 Contact Us For Availability

24

Front, Drawer (Almond) WPL 4211993 Contact Us For Availability

25

Vent Tube 10 x 3/8 WPL 9750736 Contact Us For Availability

26

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

26

Latch, Drawer WPL 9751248 Contact Us For Availability

26

Screw WPL 9780806 Contact Us For Availability

27

814229 Whirlpool Primary Roller In Stock WPL 814229 $55.91

28

Door Switch WPL 9750897 Contact Us For Availability
