Model Whirlpool KERC500YWH2 – Common Parts & Diagrams

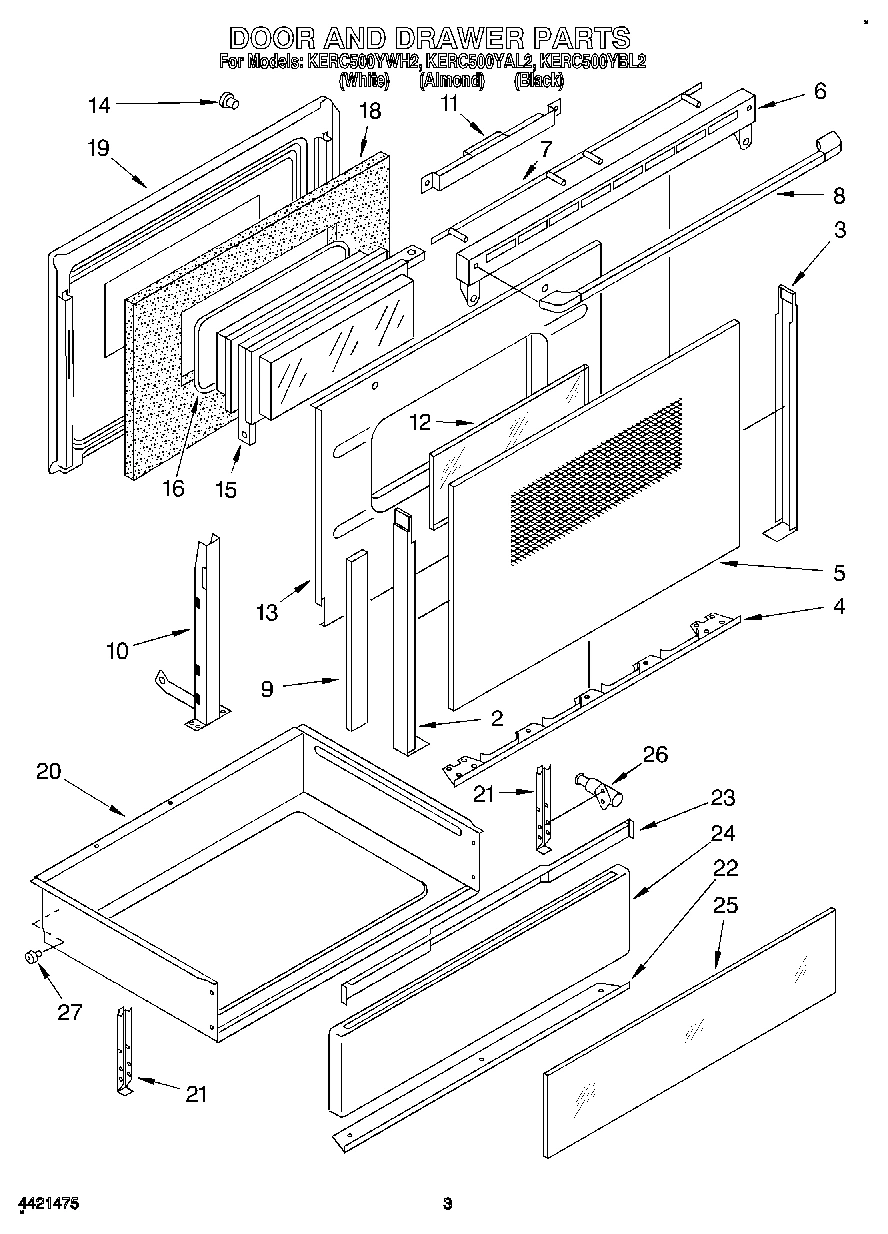

03 - DOOR AND DRAWER

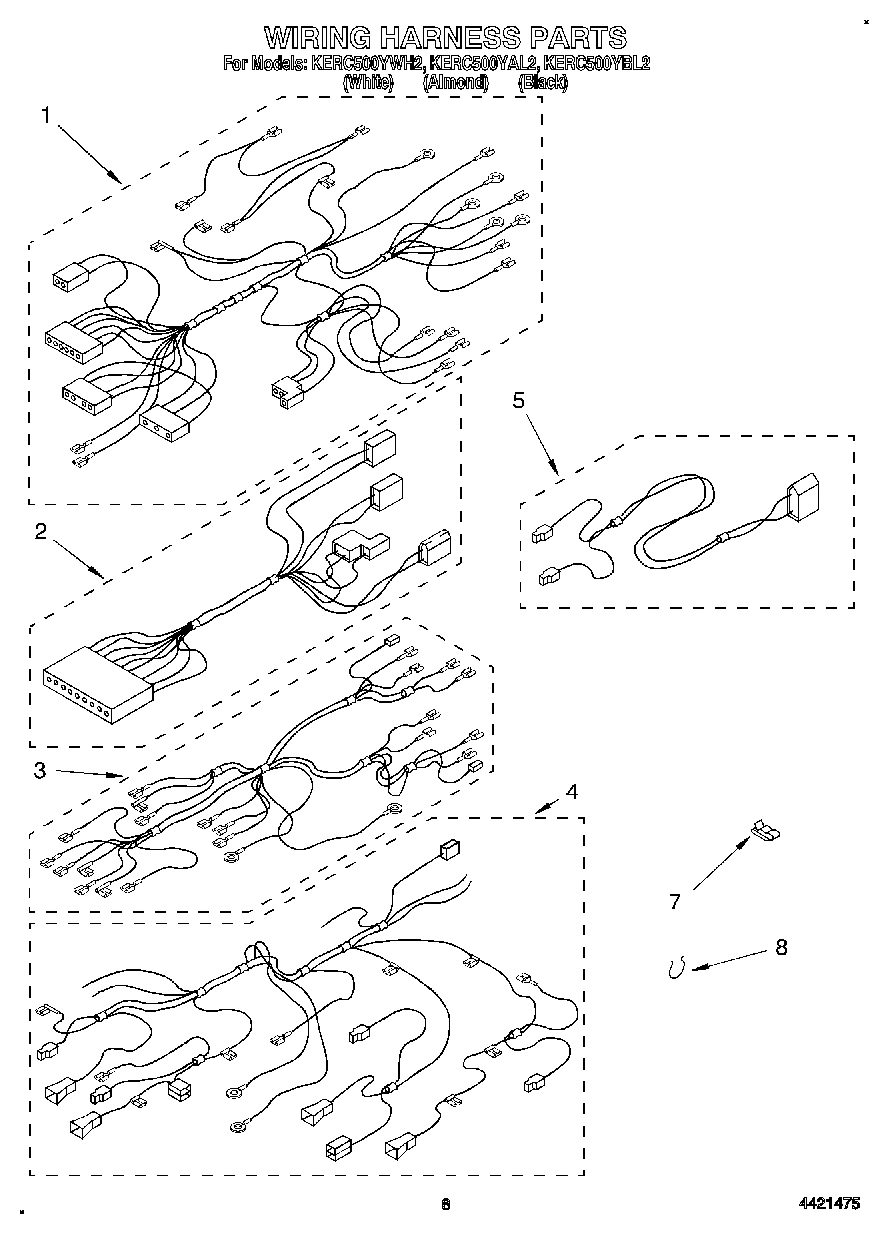

06 - WIRING HARNESS

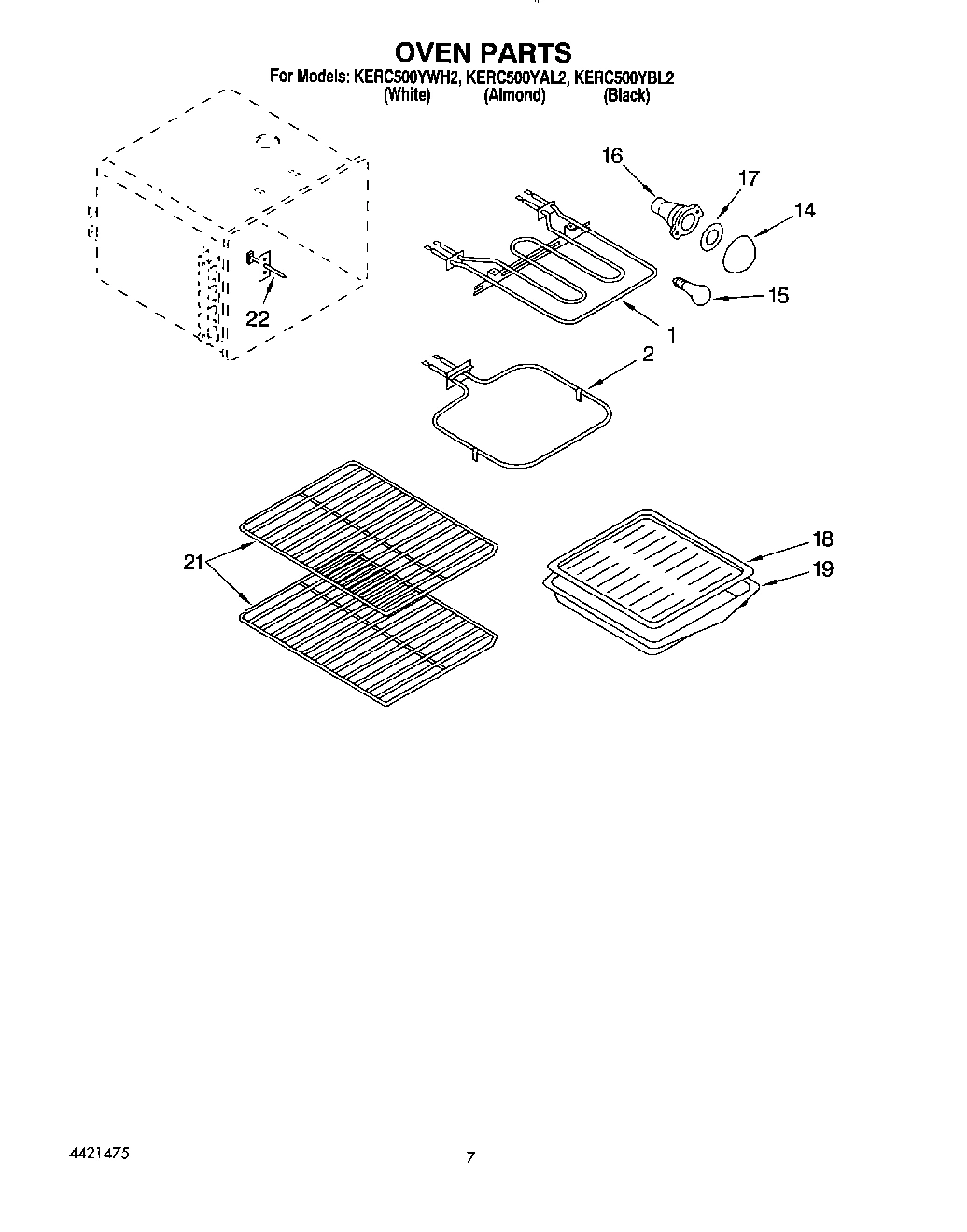

05 - OVEN

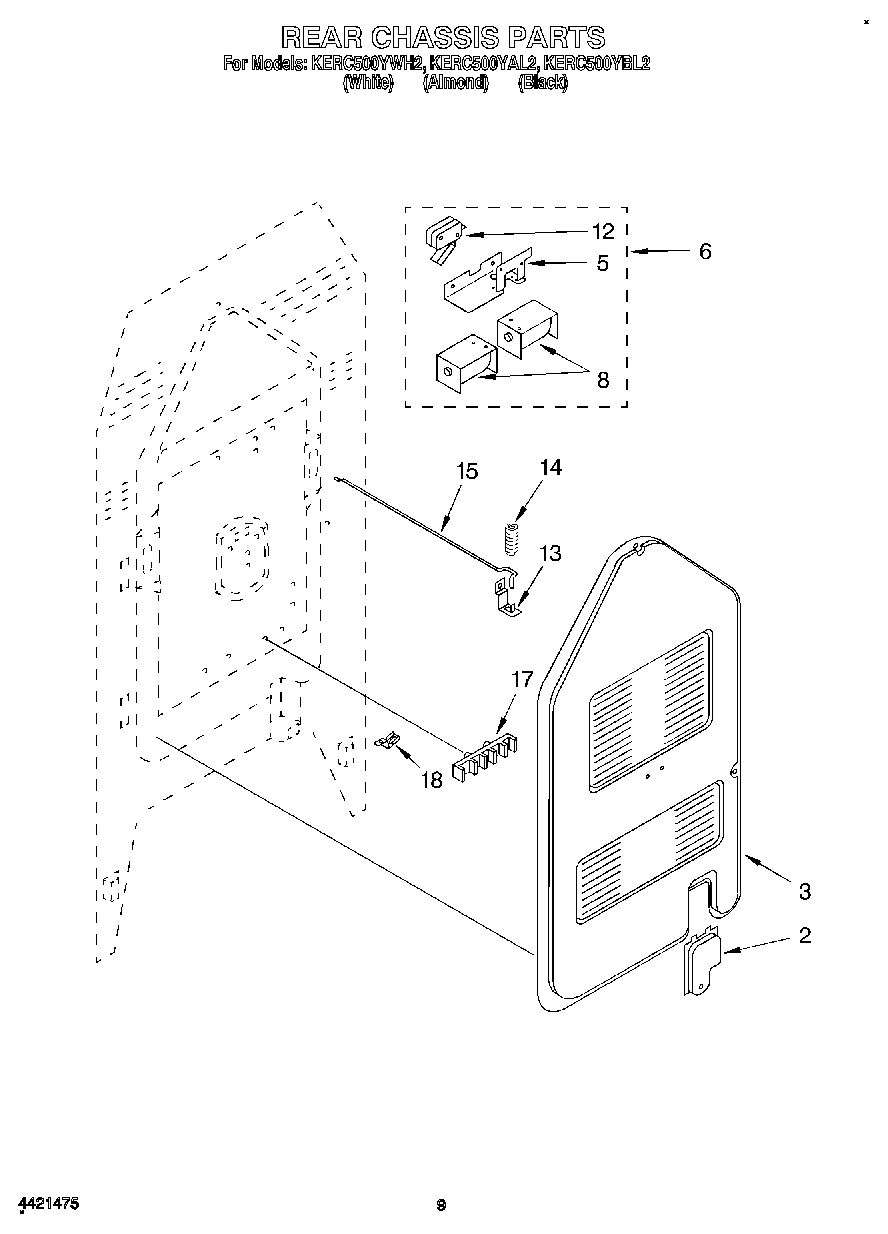

07 - REAR CHASSIS, OPTIONAL

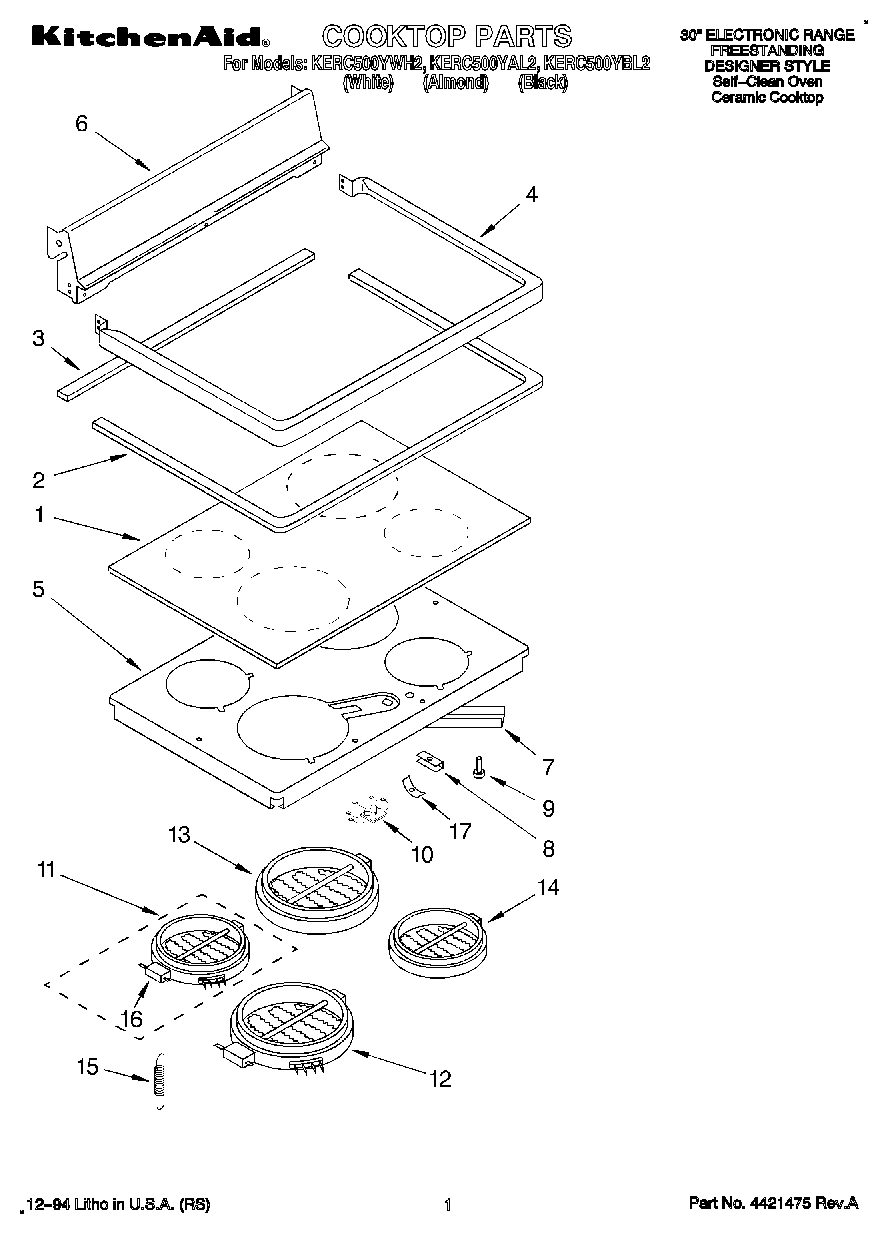

01 - COOKTOP, LITERATURE

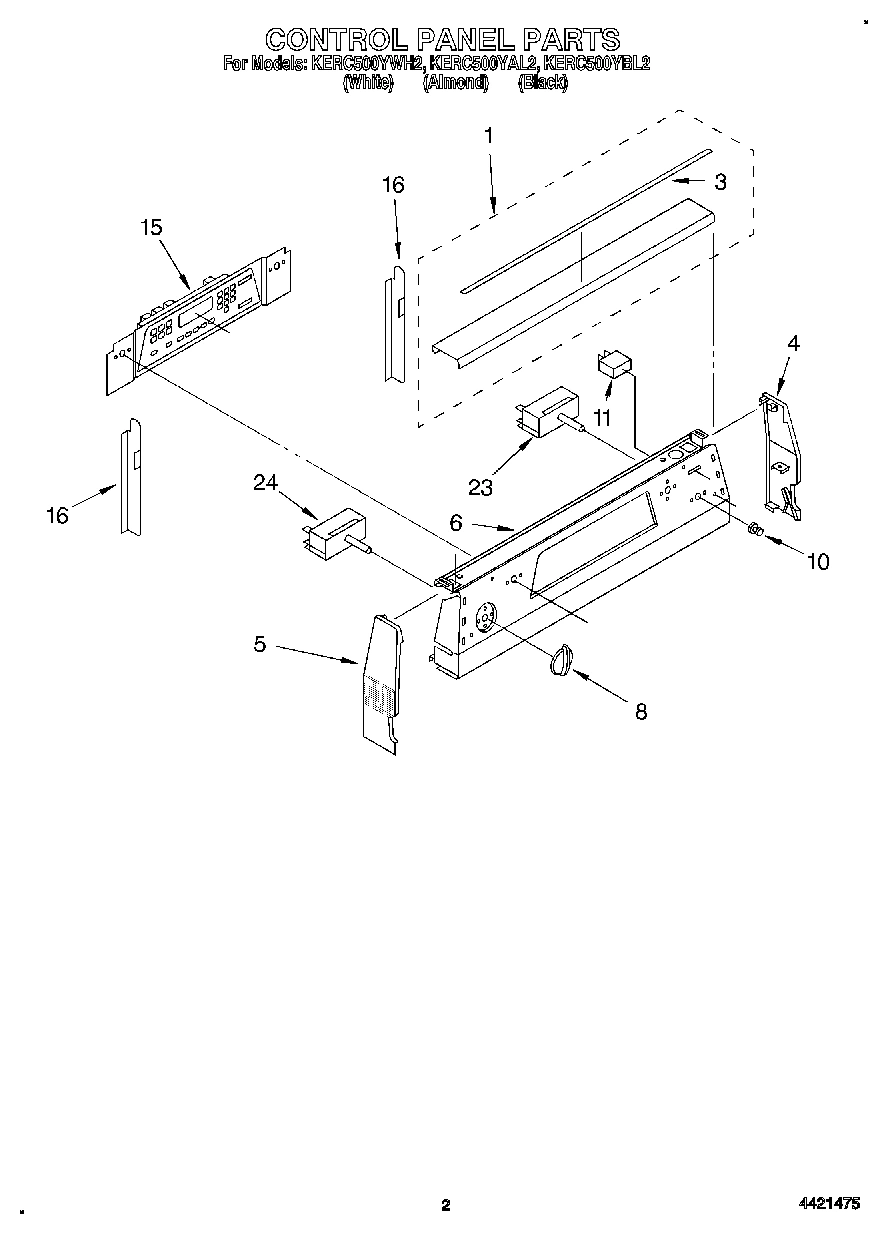

02 - CONTROL PANEL

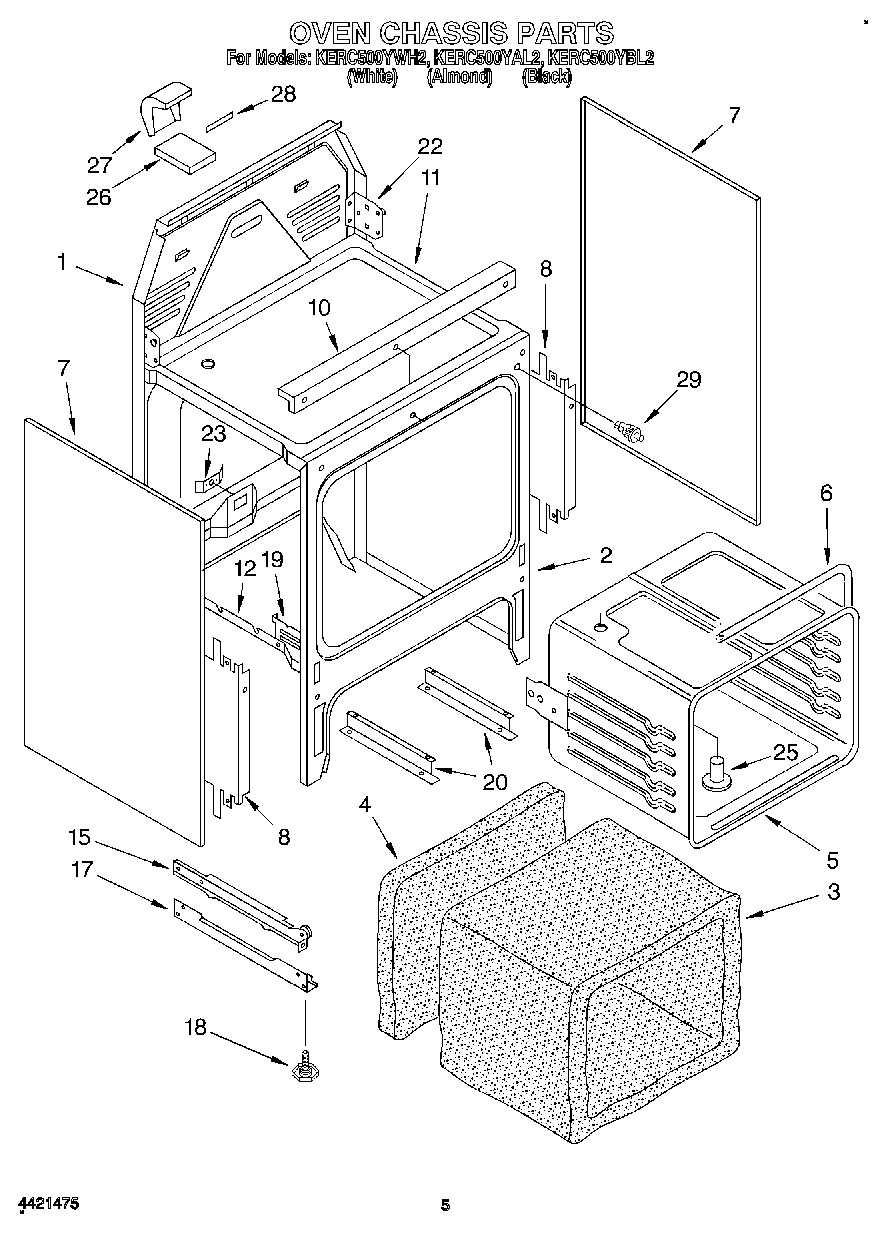

04 - OVEN CHASSIS
Common parts from model Whirlpool KERC500YWH2
Instructions, Installation WPL LIT9750520 Contact Us For Availability
Wiring Diagram WPL LIT9750876 Contact Us For Availability
Tech Sheet-K/A WPL LIT9750877 Contact Us For Availability
Quick Set (oven) WPL LIT9780689 Contact Us For Availability
Use And Care Guide WPL LIT9780933 Contact Us For Availability
Label, User Tip`s (Lamp Cover) WPL LIT9780944 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Harness, (Oven/With Fuse) WPL 9751153 Contact Us For Availability
1
Cooktop, Ceran (White Mdl.) WPL 9780853 Contact Us For Availability
1
Cooktop, Ceran (Almond/Black Mdl.) WPL 9781060 Contact Us For Availability
1
Lamp Cover (Black) WPL 9780579 Contact Us For Availability
1
Lamp Cover (White) WPL 9780732 Contact Us For Availability
1
Lamp Cover (Almond) WPL 9780733 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Harness, (Lock Switch) WPL 9751155 Contact Us For Availability
2
Cover, Rear Access WPL 9750490 Contact Us For Availability
2
Chassis, Front WPL 4211893 Contact Us For Availability
3
Harness, (Cooktop) WPL 9751111 Contact Us For Availability
3
Screw, (2) 10 x 3/8 WPL 4211813 Contact Us For Availability
3
Rear Panel WPL 9750245 Contact Us For Availability
3
Rear Gasket WPL 9780742 Contact Us For Availability
3
Lamp Cover Insert (Black) WPL 9750529 Contact Us For Availability
3
Lamp Cover Insert (White) WPL 9780729 Contact Us For Availability
3
Lamp Cover Insert (Almond) WPL 9780730 Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
4
Harness, Wire (Control) WPL 9750910 Contact Us For Availability
4
Frame, Cooktop (White) WPL 4211918 Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 4211919 Contact Us For Availability
4
Frame, Cooktop (Black) WPL 4211920 Contact Us For Availability
4
End Cap R.H. (Almond) WPL 4211933 Contact Us For Availability
4
End Cap R.H. (White) WPL 4211934 Contact Us For Availability
4
End Cap R.H. (Black) WPL 4211935 Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
5
Harness, (Door) WPL 9750376 Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
5
Support, Element WPL 9750455 Contact Us For Availability
5
End Cap L.H. (Almond) WPL 4211936 Contact Us For Availability
5
End Cap L.H. (White) WPL 4211937 Contact Us For Availability
5
End Cap L.H. (Black) WPL 4211938 Contact Us For Availability
5
Oven Liner WPL 4211948 Contact Us For Availability
6
Vent, Door (Screw (2) 10AB x 1/2) WPL 3149333 Contact Us For Availability
6
Oven Lock Assembly WPL 9750522 Contact Us For Availability
6
Back Splash (White) WPL 4211921 Contact Us For Availability
6
Back Splash (Almond) WPL 4211922 Contact Us For Availability
6
Back Splash (Black) WPL 4211923 Contact Us For Availability
6
Panel, Control (Black) WPL 9780516 Contact Us For Availability
6
Panel, Control (White) WPL 9780727 Contact Us For Availability
6
Panel, Control (Almond) WPL 9780728 Contact Us For Availability
6
Panel, Control (Screw, (2) 8 x 3/8) WPL 9780852 Contact Us For Availability
6
Gasket Oven WPL 9750247 Contact Us For Availability
7
Brace, Support WPL 422404 Contact Us For Availability
7
Oven , Side L or R (Black) WPL 4211895 Contact Us For Availability
7
Oven , Side L or R (White) WPL 4211896 Contact Us For Availability
7
Oven , Side L or R (Almond) WPL 4211897 Contact Us For Availability
8
Knobs, Control (Almond) WPL 4211913 Contact Us For Availability
8
Hanger, Cable WPL 9750984 Contact Us For Availability
8
Washer WPL 4211875 Contact Us For Availability
8
Screw, (2) 10-32 x 5/16 WPL 4211945 Contact Us For Availability
8
Solenoid WPL 9750524 Contact Us For Availability
8
Screw, (4) 10PH-B x 3/4 WPL 423248 Contact Us For Availability
8
Support Clip (4) WPL 9750821 Contact Us For Availability
8
Knobs, Control (Black) WPL 4211901 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
10
Hot Light Element, Surface WPL 9780931 Contact Us For Availability
10
Screw, Anchor (2) WPL 915720 Contact Us For Availability
10
Guard, Wire WPL 9780585 Contact Us For Availability
11
6`` L.R. WPL 9750752 Contact Us For Availability
11
Light Module WPL 9750964 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Screw, (2) WPL 9750887 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
12
9`` L.F. WPL 9750755 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
13
Bracket, Spring WPL 9750834 Contact Us For Availability
13
8`` - RR WPL 9750754 Contact Us For Availability
14
Spring, Door Lock WPL 9750833 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Spring (12) WPL 9780679 Contact Us For Availability
15
Oven Control Assembly (Black) WPL 9750716 Contact Us For Availability
15
Oven Control Assembly (Almond) WPL 9750918 Contact Us For Availability
15
Oven Control Assembly (White) WPL 9750919 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Limiter Temp. (8`` - RR) WPL 3149123 Contact Us For Availability
16
Limiter, Temp. (9`` L.F.) WPL 3149124 Contact Us For Availability
16
Limiter, Temp. (6`` L.R.) WPL 3149129 Contact Us For Availability
16
Limiter Temp. (7`` - RF) WPL 3183972 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
17
Screw, (2) 10-16 x 1 WPL 98884 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 799344 WPL 799344 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Toast WPL 285365 Contact Us For Availability
18
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
18
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
18
Platinum (Uncut) WPL 285368 Contact Us For Availability
18
Ground St WPL 308498 Contact Us For Availability
18
WPL 313660 WPL 313660 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Liner, Door WPL 4212163 Contact Us For Availability
19
Screw (2) 8 x 3/8 WPL 9780270 Contact Us For Availability
19
Hinge, Receiver (2) WPL 9750149 Contact Us For Availability
20
Drawer & Roller WPL 9750257 Contact Us For Availability
20
Support Rail, Pan WPL 421771 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
22
Trim, Drawer Bottm. (Black) WPL 4211902 Contact Us For Availability
22
Trim, Drawer Bottm. (White) WPL 4211905 Contact Us For Availability
22
Trim, Drawer Bottm. (Almond) WPL 4211906 Contact Us For Availability
22
Screw, (1) 8-32 x 3/8 WPL 9780269 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
23
Trim, Drawer Top (Black) WPL 4211930 Contact Us For Availability
23
Trim, Drawer Top (White) WPL 4211931 Contact Us For Availability
23
Trim, Drawer Top (Almond) WPL 4211932 Contact Us For Availability
23
Bracket, Power Cord WPL 9750491 Contact Us For Availability
24
Front, Drawer (Black) WPL 4211915 Contact Us For Availability
24
WPL 4211916 WPL 4211916 Contact Us For Availability
24
WPL 4211917 WPL 4211917 Contact Us For Availability
24
Infinite Switch (Screw (8) 8-32 x 3/16) WPL 9780268 Contact Us For Availability
25
WPL 9750611 WPL 9750611 Contact Us For Availability
25
WPL 9750612 WPL 9750612 Contact Us For Availability
25
WPL 9780326 WPL 9780326 Contact Us For Availability
25
Vent Tube WPL 9750736 Contact Us For Availability
26
WPL 9751248 WPL 9751248 Contact Us For Availability
26
WPL 9780806 WPL 9780806 Contact Us For Availability
26
Cover, Vent WPL 9750393 Contact Us For Availability
27
Back, Vent WPL 9750394 Contact Us For Availability
28
Vent Gasket WPL 9750767 Contact Us For Availability
29
Cleaner, Glass WPL W10355051 No Longer Available
29
Switch, Door WPL 9750897 Contact Us For Availability
× ![]()
