Model Whirlpool KERC500HWH3 COOKTOP – Common Parts & Diagrams
03 - DOOR AND DRAWER

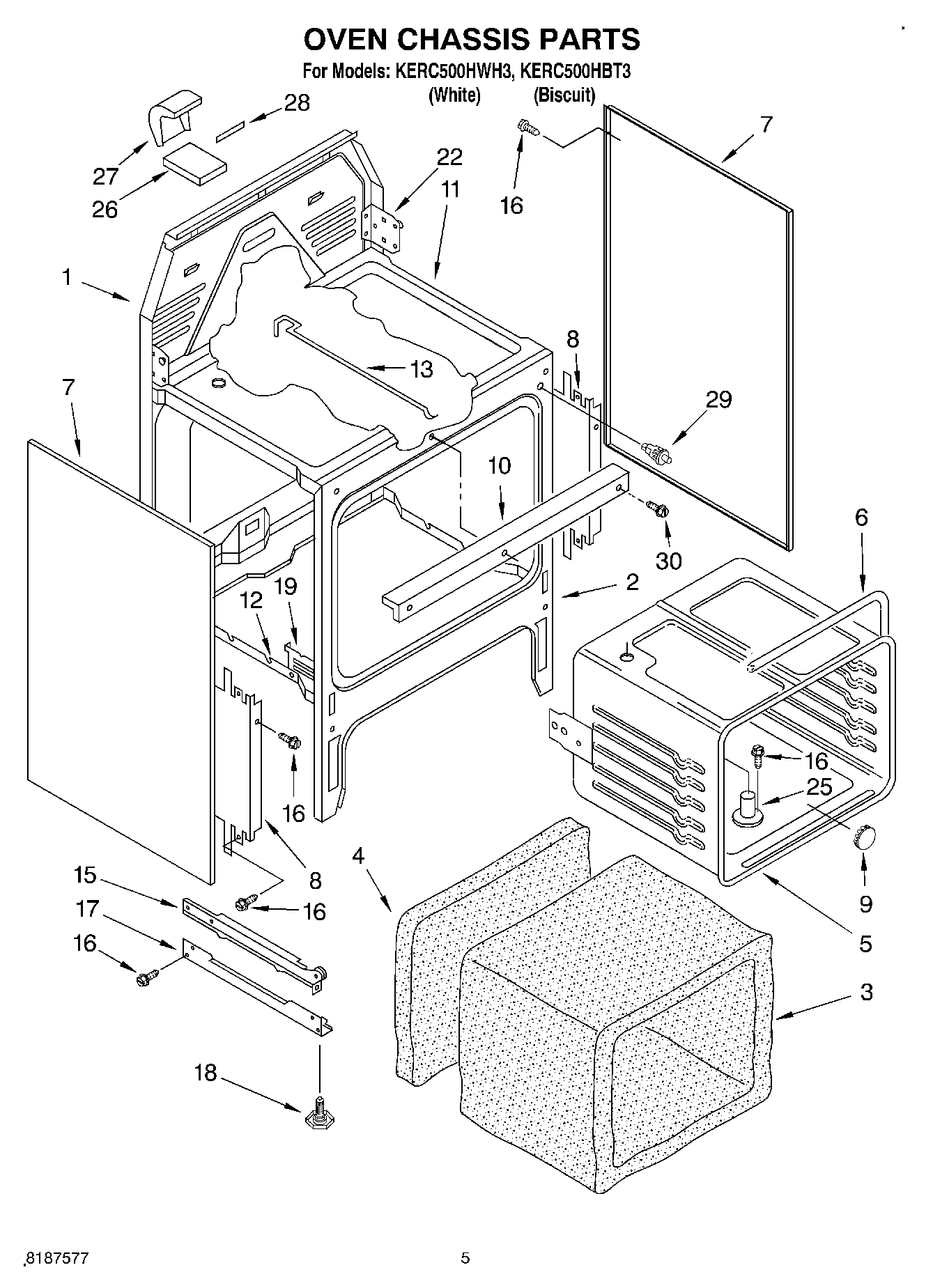

04 - OVEN CHASSIS

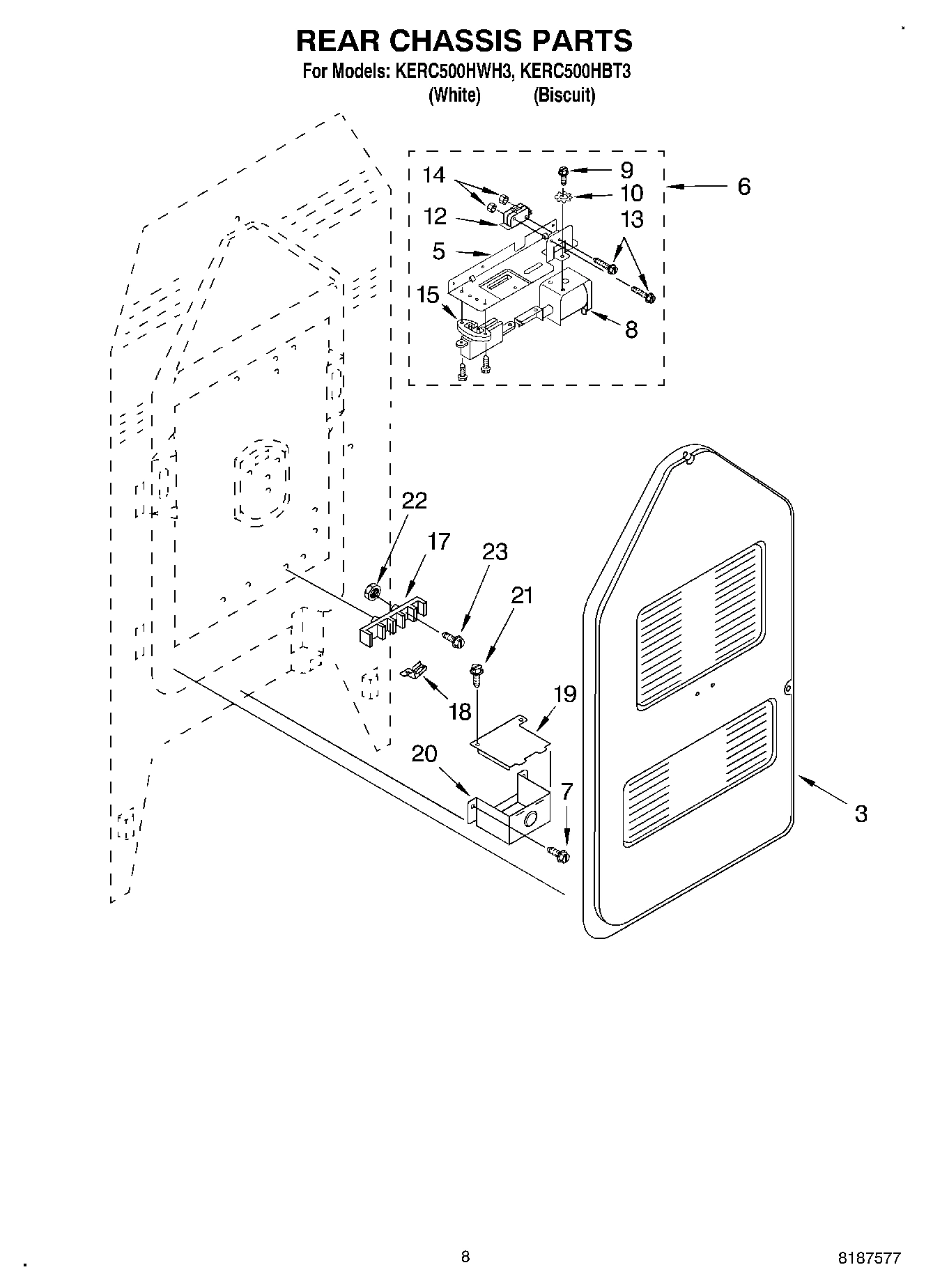

06 - REAR CHASSIS, OPTIONAL

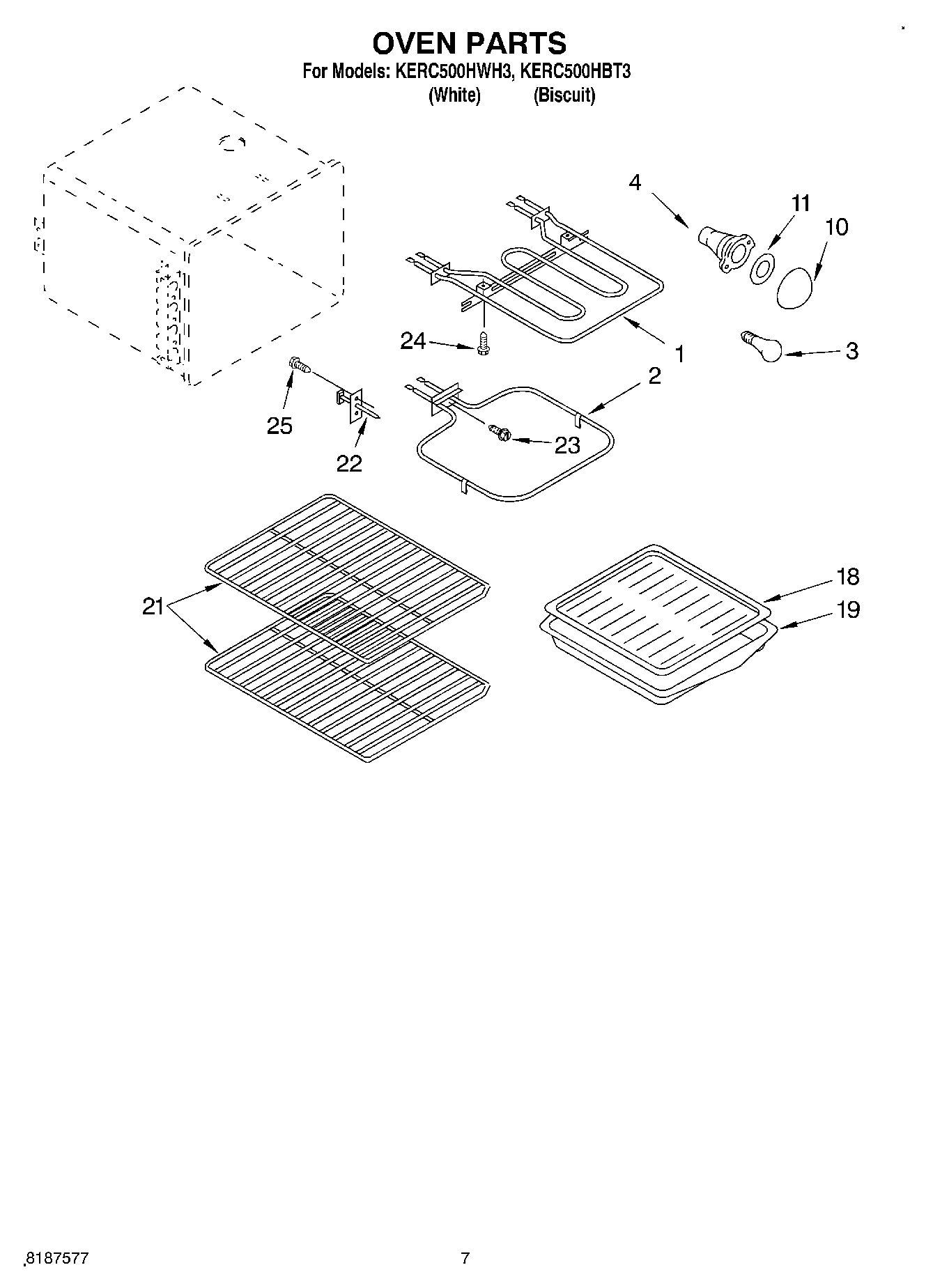

05 - OVEN

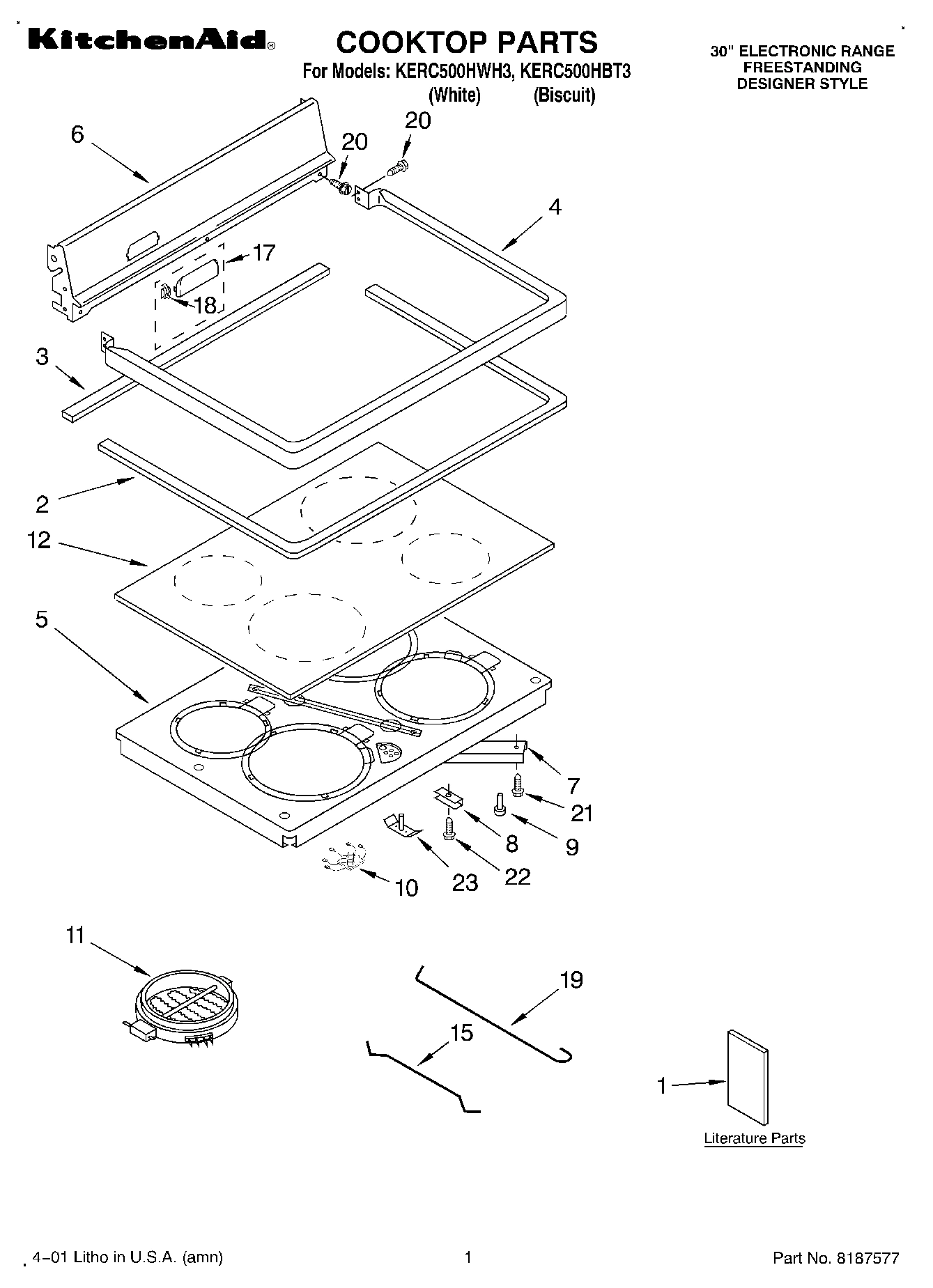

01 - COOKTOP, LITERATURE

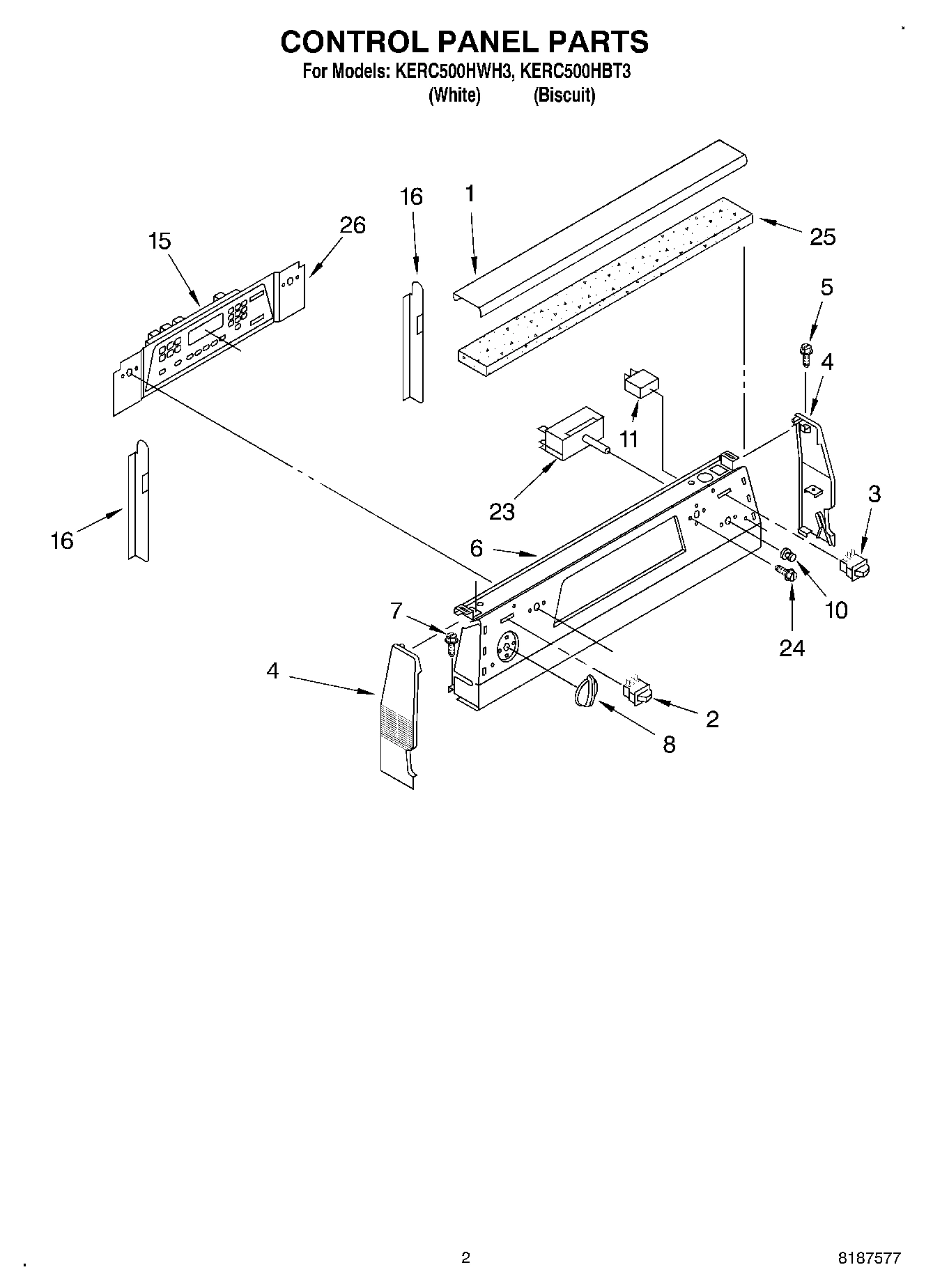

02 - CONTROL PANEL
Common parts from model Whirlpool KERC500HWH3 COOKTOP
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752387 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752776 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9753844 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9782236 Contact Us For Availability
1
Lamp Cover (Biscuit) WPL 9753156PC Contact Us For Availability
1
Lamp Cover (White) WPL 9753156PW Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Switch, Warm Zone (Biscuit) WPL 9753692FC Contact Us For Availability
2
Switch, Warm Zone (White) WPL 9753692FW Contact Us For Availability
3
Panel, Rear WPL 9750150 Contact Us For Availability
3
Rear Gasket WPL 9781614 Contact Us For Availability
3
Switch, Oven Light (White) WPL 9753261FW Contact Us For Availability
4
Frame, Cooktop (Biscuit) WPL 9750456PC Contact Us For Availability
4
Frame, Cooktop (White) WPL 9750456PW Contact Us For Availability
4
End Cap (Left Hand) (Biscuit) WPL 9750366FC Contact Us For Availability
4
End Cap (Left Hand) (White) WPL 9750366FW Contact Us For Availability
4
End Cap (Right Hand) (Biscuit) WPL 9750367FC Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9750367FW Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
5
Support, Element WPL 9753674 Contact Us For Availability
6
Oven Lock Assembly WPL 9752404 Contact Us For Availability
6
Back Splash (Biscuit) WPL 9752337GC Contact Us For Availability
6
Back Splash (White) WPL 9752337GW Contact Us For Availability
6
Panel, Control (Biscuit) WPL 9753724PC Contact Us For Availability
6
Panel, Control (White) WPL 9753724PW Contact Us For Availability
7
Brace, Support WPL 9753675 Contact Us For Availability
7
Screw, (2) 8 x 3/8 WPL 9780852 Contact Us For Availability
8
Solenoid WPL 9752409 Contact Us For Availability
8
Support Clip (4) WPL 9753691 Contact Us For Availability
9
Button, Plug WPL 9780578 Contact Us For Availability
9
Screw,10-32 x 5/16 WPL 422222 Contact Us For Availability
10
Guard, Wire WPL 9780585 Contact Us For Availability
10
Washer, No.10 Lock WPL 424238 Contact Us For Availability
10
Hot Light WPL 9781935 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Light Module (2) WPL 9753422 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
12
Cooktop, Ceran (Almond/Biscuit) WPL 9753710CT Contact Us For Availability
12
Cooktop, Ceran (White) WPL 9753710CW Contact Us For Availability
13
Rod, Lock WPL 9750523 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Single Position Device (Not Serviced) WPL 9752462 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
15
Oven Control Assembly (Biscuit) WPL 9782086CC Contact Us For Availability
15
Oven Control Assembly (White) WPL 9782086CW Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Cover, Vent (Biscuit) WPL 9753040CC Contact Us For Availability
17
Cover, Vent (White) WPL 9753040CW Contact Us For Availability
18
Clip, Vent Cover WPL 3149190 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Receiver (2) WPL 9782005 Contact Us For Availability
19
Cover, Terminal Box WPL 9752345 Contact Us For Availability
19
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
20
Screw, 10AB x 1/2 WPL 3149333 Contact Us For Availability
20
Box, Terminal WPL 9752344 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Screw, 10 x 3/4 WPL 9780272 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
22
Screw, 10PHB x 3/4 WPL 423248 Contact Us For Availability
23
WPL W10355051 No Longer Available
23
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
23
WPL 799344 WPL 799344 Contact Us For Availability
23
WPL 9751745 WPL 9751745 Contact Us For Availability
23
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
23
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
23
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
23
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
23
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
23
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
23
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
23
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
23
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
23
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
23
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
23
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
23
Grease WPL 261582 Contact Us For Availability
23
Clip, Ground WPL 313660 Contact Us For Availability
23
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
23
WPL 799832 WPL 799832 Contact Us For Availability
23
WPL 9750744 WPL 9750744 Contact Us For Availability
23
WPL 9752771 WPL 9752771 Contact Us For Availability
23
WPL 9753680 WPL 9753680 Contact Us For Availability
23
WPL 9753682 WPL 9753682 Contact Us For Availability
23
WPL 9753687 WPL 9753687 Contact Us For Availability
23
WPL 9781903 WPL 9781903 Contact Us For Availability
23
WPL 9781930 WPL 9781930 Contact Us For Availability
23
WPL 9782137 WPL 9782137 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
23
WPL 98884 WPL 98884 Contact Us For Availability
23
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
23
Spring, Warm Zone WPL 9753677 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Insulation, Control WPL 9754008 Contact Us For Availability
26
Cover, Vent WPL 9750393 Contact Us For Availability
26
Bracket, Timer WPL 9753690 Contact Us For Availability
27
Back, Vent WPL 9750394 Contact Us For Availability
28
Vent Gasket WPL 9750767 Contact Us For Availability
29
Switch, Door WPL 9781580 Contact Us For Availability
30
Screw, 8-32 x 3/8 WPL 9780269 Contact Us For Availability
× ![]()
