Model Whirlpool KE6533 WASHER – Common Parts & Diagrams

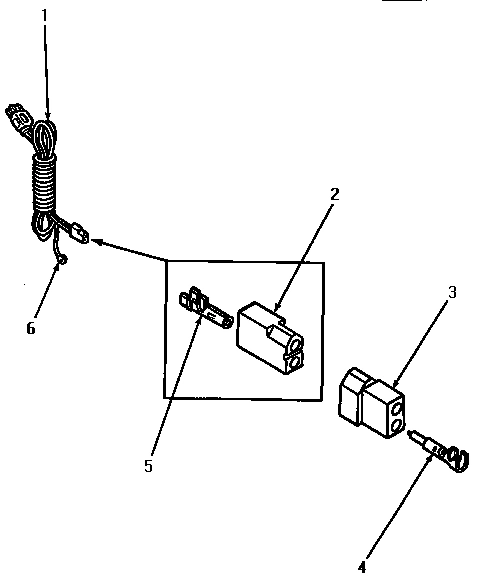

09 - POWER CORD

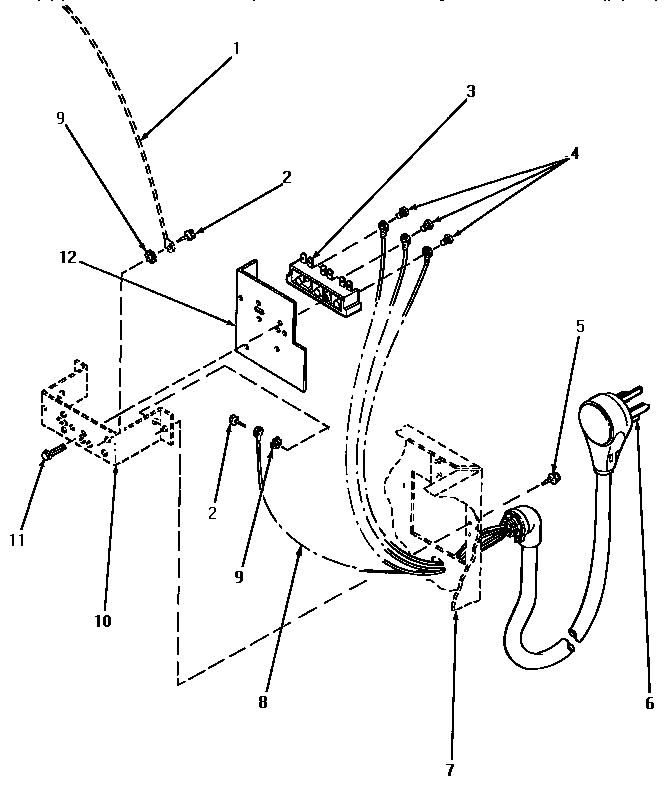

11 - TERMINAL BLOCK (STARTING SN S6271976XG)

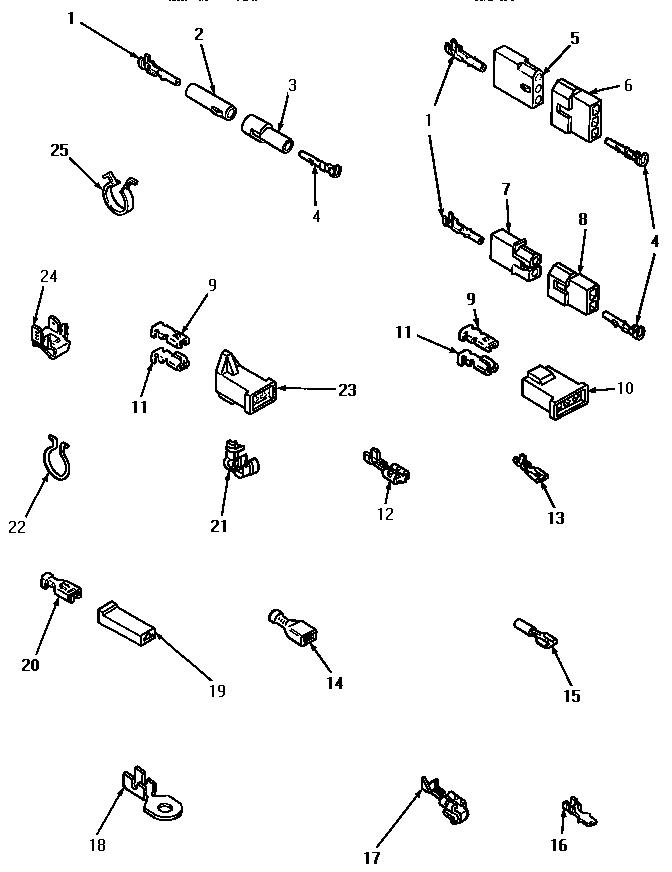

13 - TERMINALS

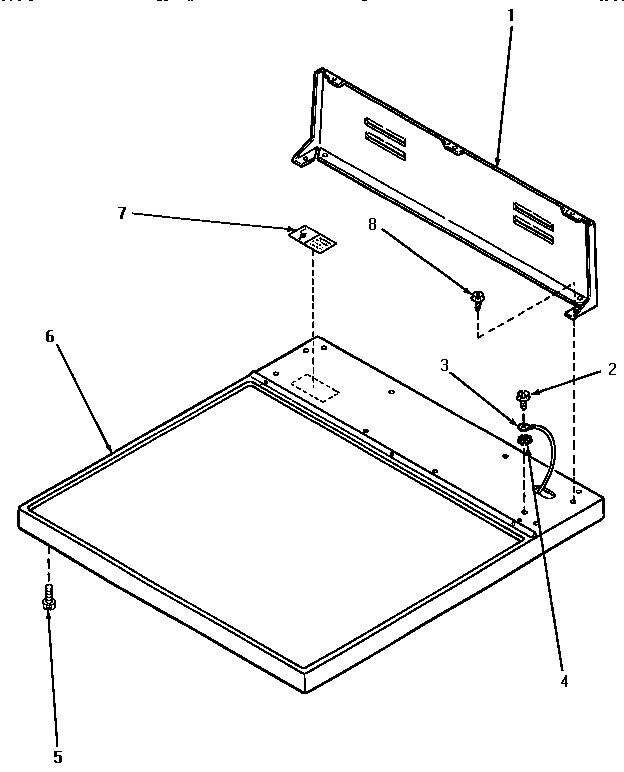

01 - CABINET TOP & CONTROL HOOD REAR PANEL

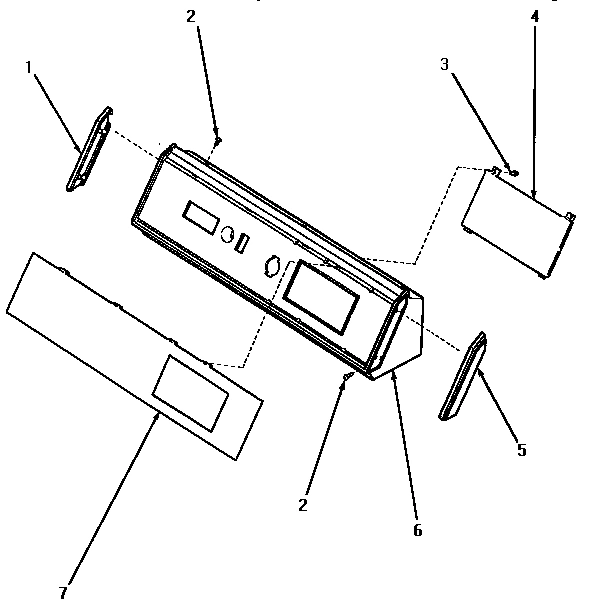

04 - GRAPHICS PANEL, CONTROL HOOD & CONTROLS
10 - REAR BLKHD, FELT SEAL & CYLINDER ROLLER

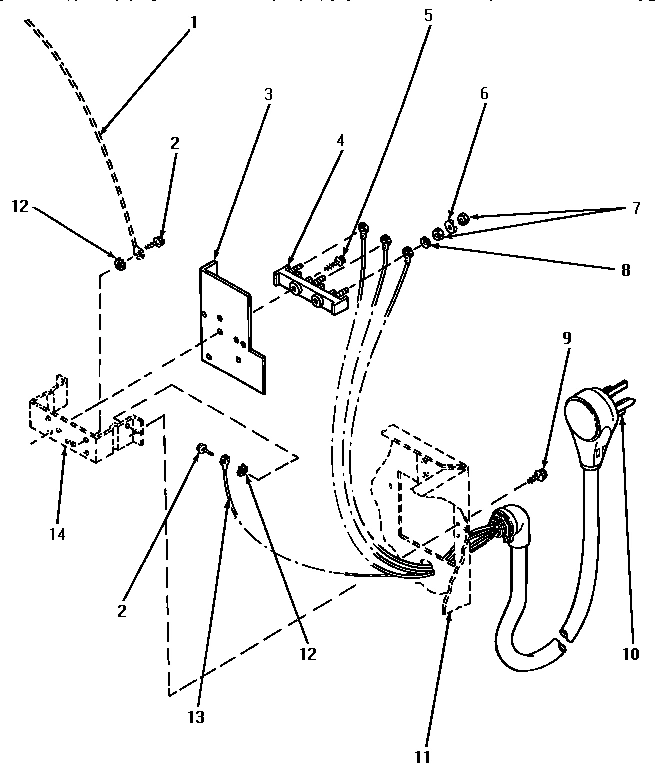

12 - TERMINAL BLOCK (THRU SN S6271975XG)

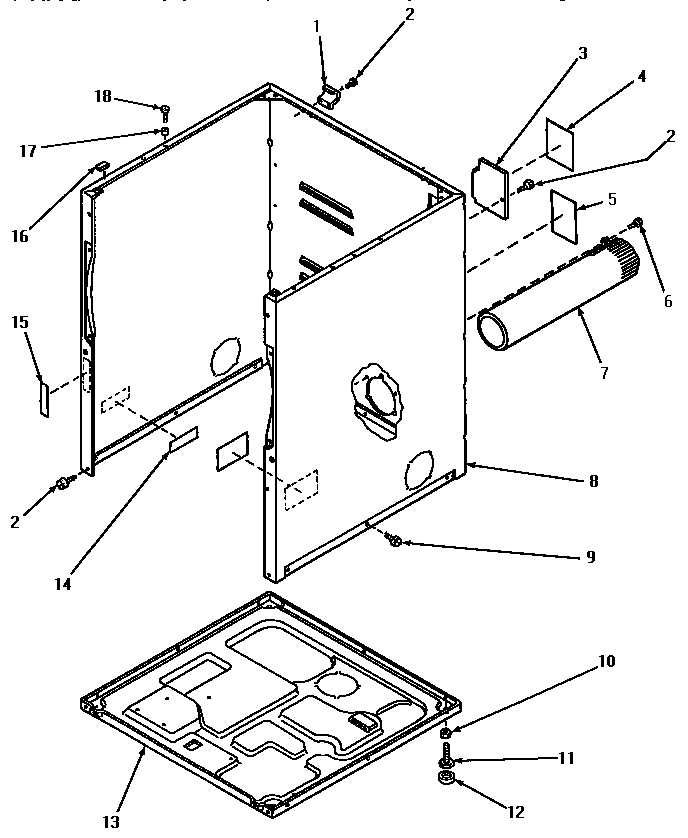

02 - CABINET, EXHAUST DUCT & BASE

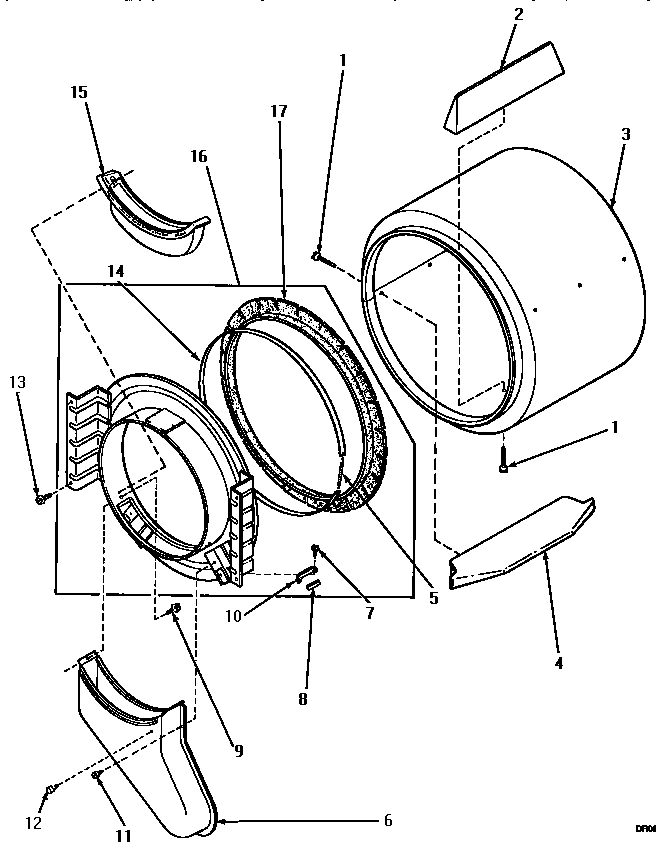

03 - FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

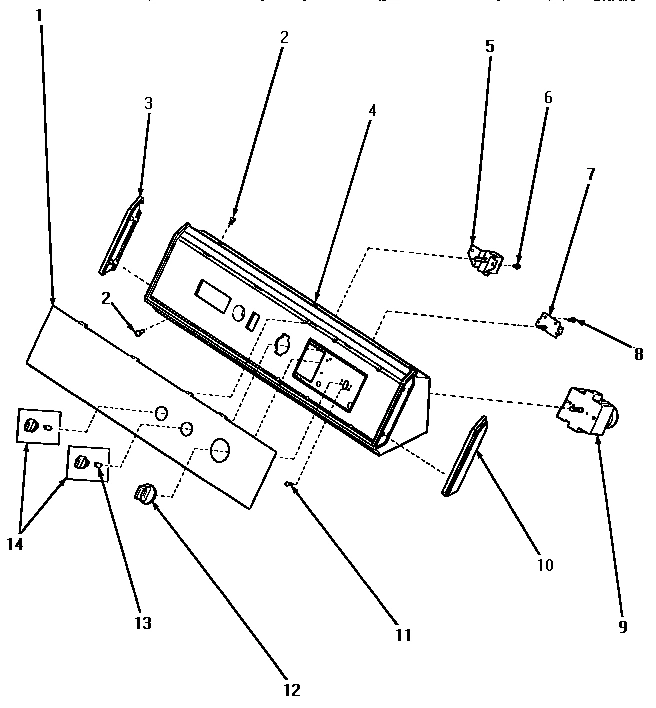

05 - GRAPHICS PANEL, CONTROL HOOD & CONTROLS

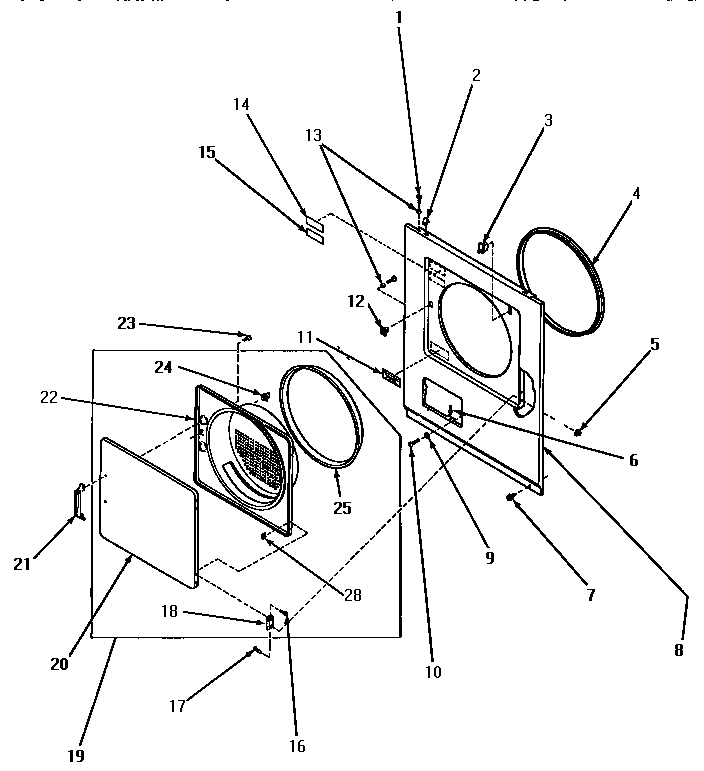

07 - LOADING DOOR, FRONT PANELS & ACCESS DOOR

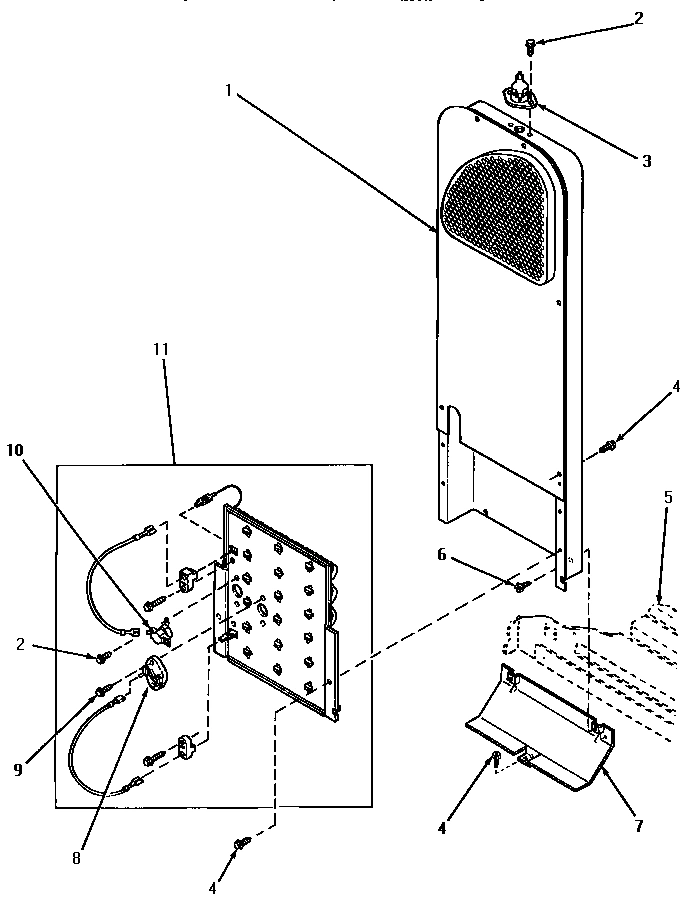

06 - HEATER BOX

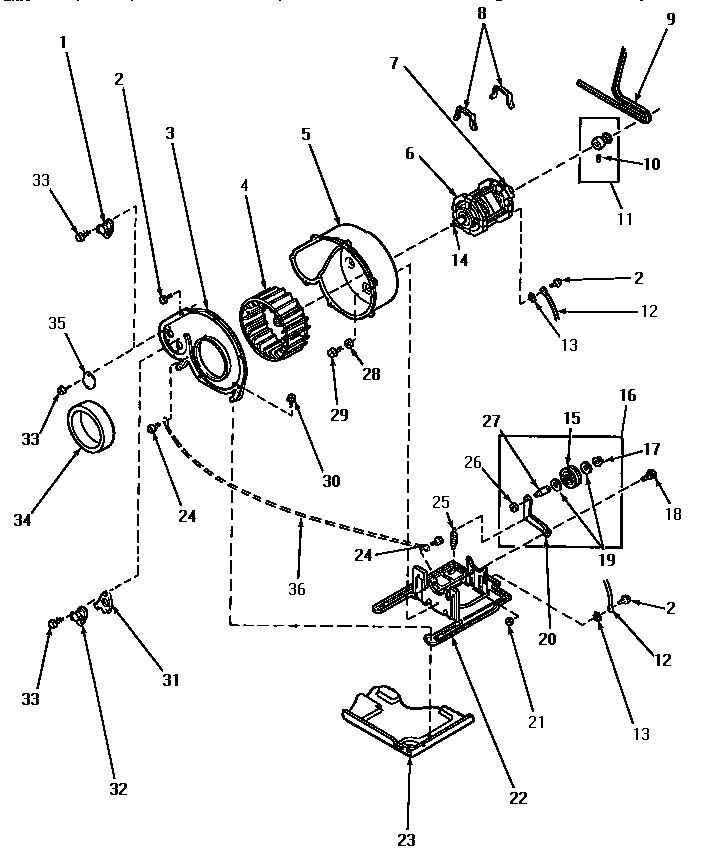

08 - MOTOR, EXHAUST FAN & BELT
Common parts from model Whirlpool KE6533 WASHER
ORDER GRAPHICS PANEL FROM THE SOURCE WHERE TH WPL NOTE Contact Us For Availability
1
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
1
CONTROL HOOD, REAR PANEL WPL 59970 Contact Us For Availability
1
ASSY, REAR BULKHEAD/BRKT WPL Y61127 Contact Us For Availability
1
SCREW,10BT X 1 TAPPING WPL 56131 Contact Us For Availability
1
HINGE, TOP WPL 60826 Contact Us For Availability
1
HEATER BOX WPL 61161P Contact Us For Availability
1
ASSY,HEAT DUCT-CANADA WPL 61162P Contact Us For Availability
2
RECEPTACLE,MOLEX WPL 26301 Contact Us For Availability
2
SCREW,No.8ABX3/4 POZIDRI WPL 31752 Contact Us For Availability
2
M400664 WPL 56078 Contact Us For Availability
2
BAFFLE,CYLINDER-SHORT- WPL 56013 Contact Us For Availability
2
BAFFLE,CYLINDER-SHORT- WPL Y61399 Contact Us For Availability
3
BLOCK, TERMINAL WPL 61923 Contact Us For Availability
3
SHIELD,TERMINAL BLOCK WPL 56087 Contact Us For Availability
3
PLUG,1 CIRCUIT WPL 26302 Contact Us For Availability
3
CAP,END-L.H.-CHROME WPL 31249 Contact Us For Availability
3
TERMINAL BLOCK BRACKET WPL 60823 Contact Us For Availability
3
ACESS COVER WPL 60821 Contact Us For Availability
3
ASSY,CYLINDER-WHITE WPL 61073P Contact Us For Availability
3
THERMOSTAT,SPST WPL 57239 Contact Us For Availability
3
COVER,BLOWER HOUSING xREPLACE WPL 60818 Contact Us For Availability
4
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
4
ELECTRICAL CONTROL KIT WPL 59609 Contact Us For Availability
4
TERMINAL BLOCK WPL 58555 Contact Us For Availability
4
STICKER,SAFETY-DISCONN WPL 58871 Contact Us For Availability
4
BAFFLE,CYLINDER-EXTEND WPL Y61027 Contact Us For Availability
4
ASSY,HOOD & MOUNTING P WPL 59955 Contact Us For Availability
4
FRONT PANEL SEAL WPL 56091 Contact Us For Availability
5
TERMINAL,PIN-1/8 FEMAL WPL 00130 Contact Us For Availability
5
RECEPTACLE,3 CIRCUIT WPL 23039 Contact Us For Availability
5
SPRING WPL 52310 Contact Us For Availability
5
STICKER,WARNING-GROUND WPL 58866 Contact Us For Availability
5
SIGNAL,ROTARY WPL 59447 Contact Us For Availability
5
NUT K WPL 51236 Contact Us For Availability
5
HOUSING, BLOWER WPL 56020 Contact Us For Availability
6
PLUG, 3 CIRCUIT WPL 23040 Contact Us For Availability
6
ASSY,TOP PANEL-DOMESTI WPL 60815H Contact Us For Availability
6
CABINET TOP, ALMOND WPL 60815L Contact Us For Availability
6
ASSY, TOP & CARTON WPL 60815W Contact Us For Availability
6
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
6
HOOD,DRYER-BLACK WPL 59606 Contact Us For Availability
6
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
6
WASHER,13/64IDX1/2ODX. WPL 51474 Contact Us For Availability
6
ASSY,AIR DUCT-FRONT WPL 60786 Contact Us For Availability
6
BARREL,SUPPORT WPL 56534 Contact Us For Availability
6
MOTOR,1SP-120/60 WPL Y58044 Contact Us For Availability
7
RECEPTACLE,2 CIRCUIT WPL 56451 Contact Us For Availability
7
BRACKET,BULKHEAD-REAR WPL 56055 Contact Us For Availability
7
NUT WPL Q6163 Contact Us For Availability
7
ASSY, EXHAUST DUCT WPL 56118 Contact Us For Availability
7
SWITCH,ROTATE-TO-START WPL 59450 Contact Us For Availability
7
SHIELD,HEAT DUCT WPL 60952 Contact Us For Availability
7
SWITCH,MOTOR WPL 53226 Contact Us For Availability
7
SWITCH WPL 53249 Contact Us For Availability
7
MOTOR SWITCH, INTERNAL MOUNTED WPL 59895 Contact Us For Availability
8
PLUG 2 CIRCUIT WPL 56448 Contact Us For Availability
8
LOCKWASHER WPL 56552 Contact Us For Availability
8
ASSY,DRYER CABINET WPL 60813H Contact Us For Availability
8
xxxASSY,DRYER CABINET xREPLACE WPL 60813L Contact Us For Availability
8
CABINET, WHITE WPL 60813W Contact Us For Availability
8
PAD,THIN WPL 58049 Contact Us For Availability
8
FRONT PANEL, HARVEST GOLD WPL 60791H Contact Us For Availability
8
PANEL,FRONT-ELEC xREPLACE WPL 60791L Contact Us For Availability
8
PANEL,FRONT-ELEC xREPLACE WPL 60791W Contact Us For Availability
9
TERMINAL,SPADE WPL Y00189 Contact Us For Availability
9
TIMER,5 CYCLE WPL 61402 Contact Us For Availability
9
WASHER,11/64IDX1/16ODX WPL 21147 Contact Us For Availability
9
SCREW,No.6-20X.44/.41 IN WPL 56693 Contact Us For Availability
10
ASSY,LEAD-IN CORD WPL 57637 Contact Us For Availability
10
CONNECTOR,3 CIRCUIT WPL 58800 Contact Us For Availability
10
CAP,END-R.H.-CHROME WPL 31248 Contact Us For Availability
10
GLIDE,CYLINDER-RULON F WPL 61448 Contact Us For Availability
10
SCREW,8AB X 1 TRUSS HD WPL Y57444 Contact Us For Availability
10
SETSCREW WPL 52906 Contact Us For Availability
11
SCREW WPL Y61200 Contact Us For Availability
11
CONNECTOR,RECEPTACLE WPL Y00190 Contact Us For Availability
11
BRACKET,CYLINDER ROLLER WPL 56042 Contact Us For Availability
11
SCREW,8-18 X 3/8 TAPPI WPL 56392 Contact Us For Availability
11
STICKER WPL 56542 Contact Us For Availability
11
HEATER ASSEMBLY 208V WPL 61928 Contact Us For Availability
11
MOTOR PULLEY ASSEMBLY WPL 59173 Contact Us For Availability
12
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
12
SPADE TERMINAL(12 GAUGE) WPL Y00121 Contact Us For Availability
12
BUMPER WPL 56938 Contact Us For Availability
12
ASSY,TIMER KNOB & SKIR WPL 59791 Contact Us For Availability
13
LOCKWASHER,No.10 EXT SHK WPL 03815 Contact Us For Availability
13
TERMINAL,SPADE-3/16 FE WPL Y00124 Contact Us For Availability
13
TERMINAL,3/16 SPADE WPL Y00209 Contact Us For Availability
13
WASHER,.578IDX1.25ODX1 WPL 23886 Contact Us For Availability
13
ASSY,BASE-COMPLETE WPL 60811 Contact Us For Availability
13
LOCATER, PANEL WPL 56079 Contact Us For Availability
13
RETAINER WPL 10519 Contact Us For Availability
14
CYLINDER ROLLER WPL 56457 Contact Us For Availability
14
SEAL STRAP WPL Y56090 Contact Us For Availability
14
STICKER WPL 61294 Contact Us For Availability
14
ASSY,KNOB-ROTARY-BLK/O WPL 31286 Contact Us For Availability
14
STICKER WPL 55480 Contact Us For Availability
14
NEVER-SEEZE 1 OZ TUBE WPL 27604P Contact Us For Availability
15
TERMINAL,1/4 SPADE PRE WPL Y00214 Contact Us For Availability
15
TERMINAL,1/4 SPADE PRE WPL Y00215 Contact Us For Availability
15
STICKER WPL 28328 Contact Us For Availability
15
FILTER,LINT-WHITE W/INST. WPL 57024 Contact Us For Availability
15
FILTER,LINT-WHITE W/INST. WPL 61376P Contact Us For Availability
15
STICKER,CAUTION WPL 55481 Contact Us For Availability
16
TERMINAL,TAB 1/4 MALE WPL Y00138 Contact Us For Availability
16
MALE TAB TERMINAL(12 GAUGE) WPL Y00139 Contact Us For Availability
16
PAD, BUMPER WPL Y56128 Contact Us For Availability
16
ASSY,BULKHEAD-FRONT WPL 61835H Contact Us For Availability
16
ASSY,BULKHEAD-FRONT xREPLACE WPL 61835L Contact Us For Availability
16
ASSY,BULKHEAD-FRONT WPL 61835W Contact Us For Availability
16
SCREW, 8B-16X5/8 TAP WPL 52864 Contact Us For Availability
17
TERMINAL,SPADE-1/4 FEM WPL Y00114 Contact Us For Availability
17
SCREW,8-32 X 13/32 FL WPL 22649 Contact Us For Availability
18
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
18
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
18
HINGE (DRYER) WPL 56045 Contact Us For Availability
18
SCREW,1/4-20 HEX HD SH WPL 56587 Contact Us For Availability
19
CONNECTOR WPL 90789 Contact Us For Availability
19
ASSY,DOOR WPL 60885H Contact Us For Availability
19
DOOR ASSEMBLY, ALMOND WPL 60885L Contact Us For Availability
19
DOOR ASSEMBLY, WHITE WPL 60885W Contact Us For Availability
20
TERMINAL,SPADE-1/4 FEM WPL 00122 Contact Us For Availability
20
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
20
OUTER DOOR PANEL, HARVEST GOLD WPL 60770H Contact Us For Availability
20
OUTER DOOR PANEL, ALMOND WPL 60770L Contact Us For Availability
20
OUTER DOOR PANEL, WHITE WPL 60770W Contact Us For Availability
20
LEVER,IDLER WPL 56057 Contact Us For Availability
21
STRAIN RELIEF WPL 21903 Contact Us For Availability
21
PULL,DOOR WPL 54068P Contact Us For Availability
22
CLIP,WIRE WPL 51291 Contact Us For Availability
22
INNER DOOR PANEL, HARVEST GOLD WPL 60668H Contact Us For Availability
22
INNER DOOR PANEL, ALMOND WPL 60668L Contact Us For Availability
22
INNER DOOR PANLE, WHITE WPL 60668W Contact Us For Availability
22
MOTOR MOUNTING BRACKET WPL Y60816 Contact Us For Availability
23
CONNECTOR,2 CIRCUIT WPL 58799 Contact Us For Availability
23
SCREW, THERMOSTAT WPL 52150 Contact Us For Availability
24
GROUND CLIP WPL Y00161 Contact Us For Availability
25
CLIP,WIRE WPL 61510 Contact Us For Availability
25
DOOR SEAL WPL 61379 Contact Us For Availability
26
NUT, 3/8-16 SERRATED WPL 56156 Contact Us For Availability
28
NUT,SPEED-8A TINN C15 WPL 23407 Contact Us For Availability
28
WASHER WPL 20492 Contact Us For Availability
31
THERMOSTAT HEATER WPL 61401 Contact Us For Availability
32
THERMOSTAT WPL 56471 Contact Us For Availability
32
ASSY,THERMISTOR WPL 59500 Contact Us For Availability
32
THERMOSTAT WPL Y61372 Contact Us For Availability
34
SEAL WPL 56065 Contact Us For Availability
35
COVER PLATE WPL 61203 Contact Us For Availability
36
SEE NOTE GREEN GROUND WIRE -- (THROUGH SERIAL WPL Y00000000 Contact Us For Availability
× ![]()
