Model GE JTP85WW2WW – Common Parts & Diagrams

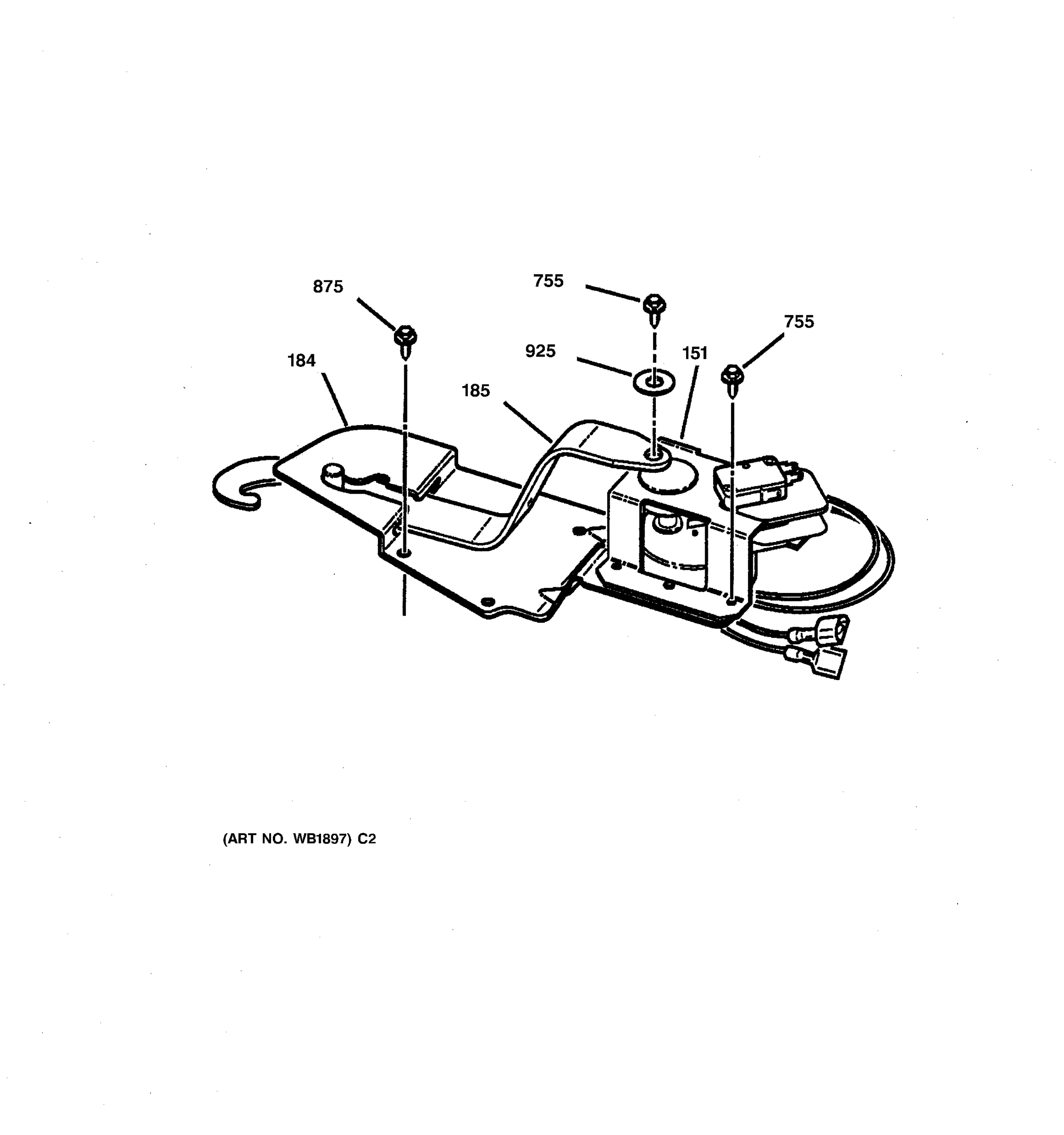

DOOR LOCK

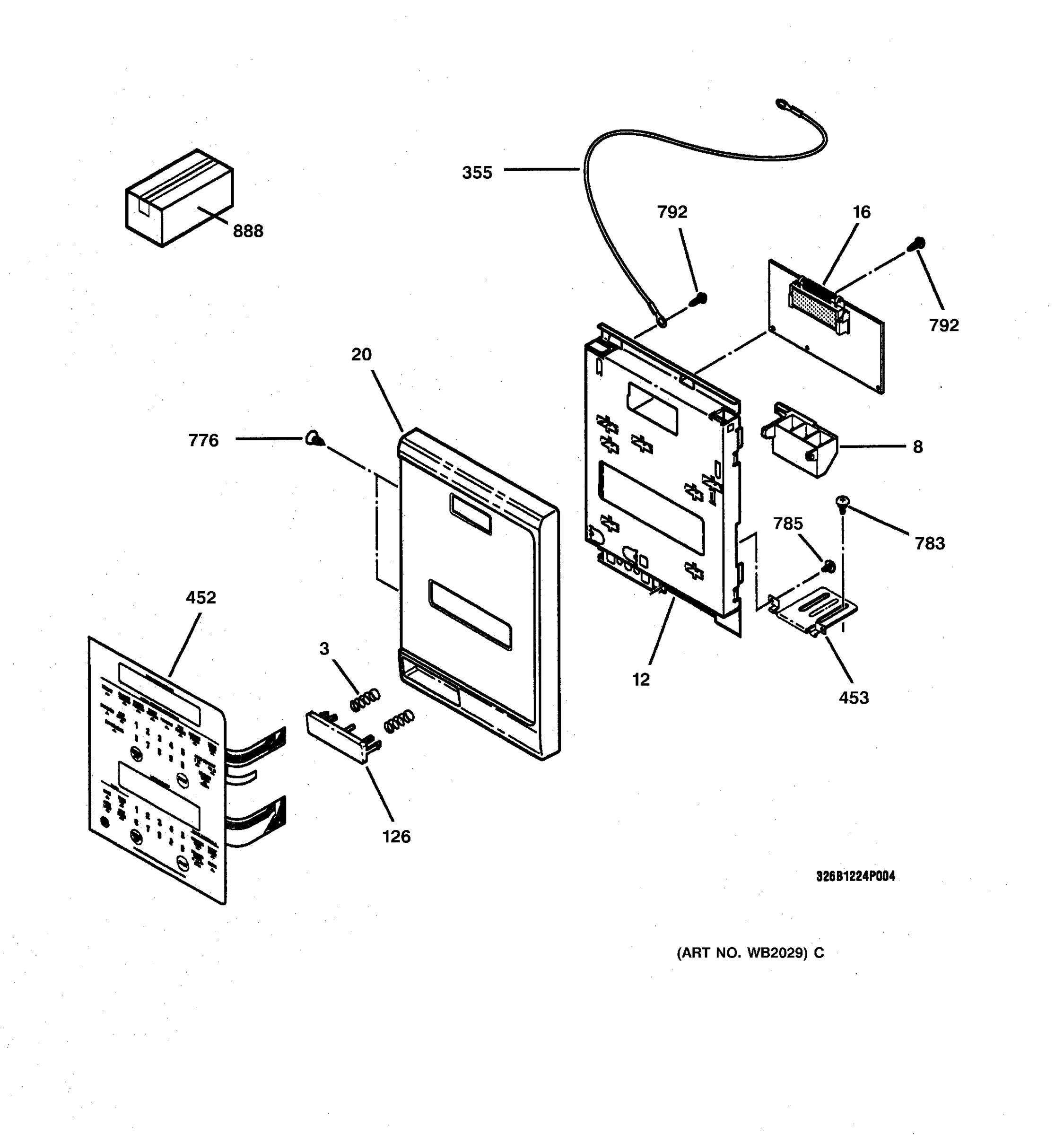

ESCUTCHEON BASE ASSEMBLY

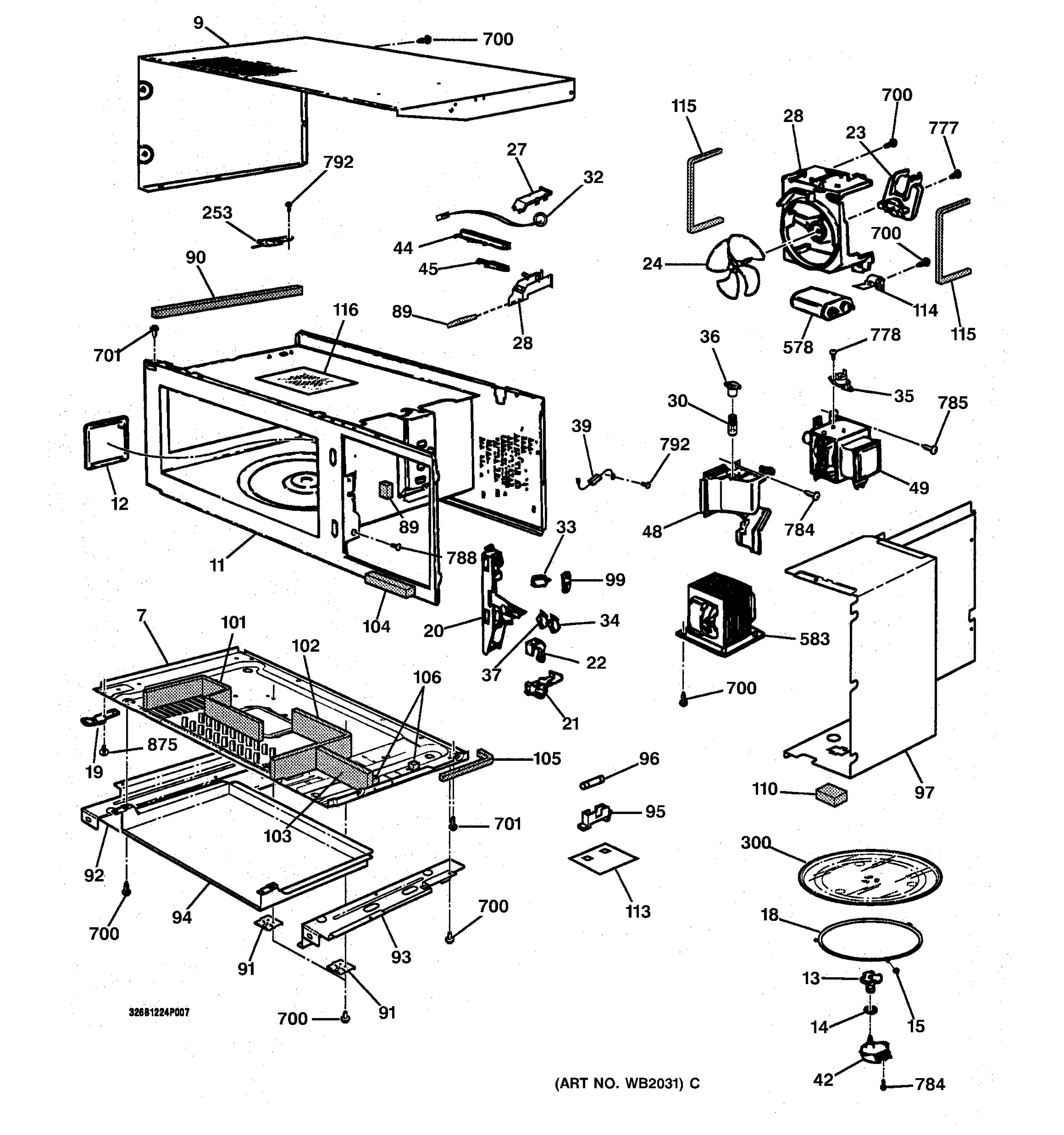

MICROWAVE BODY PARTS

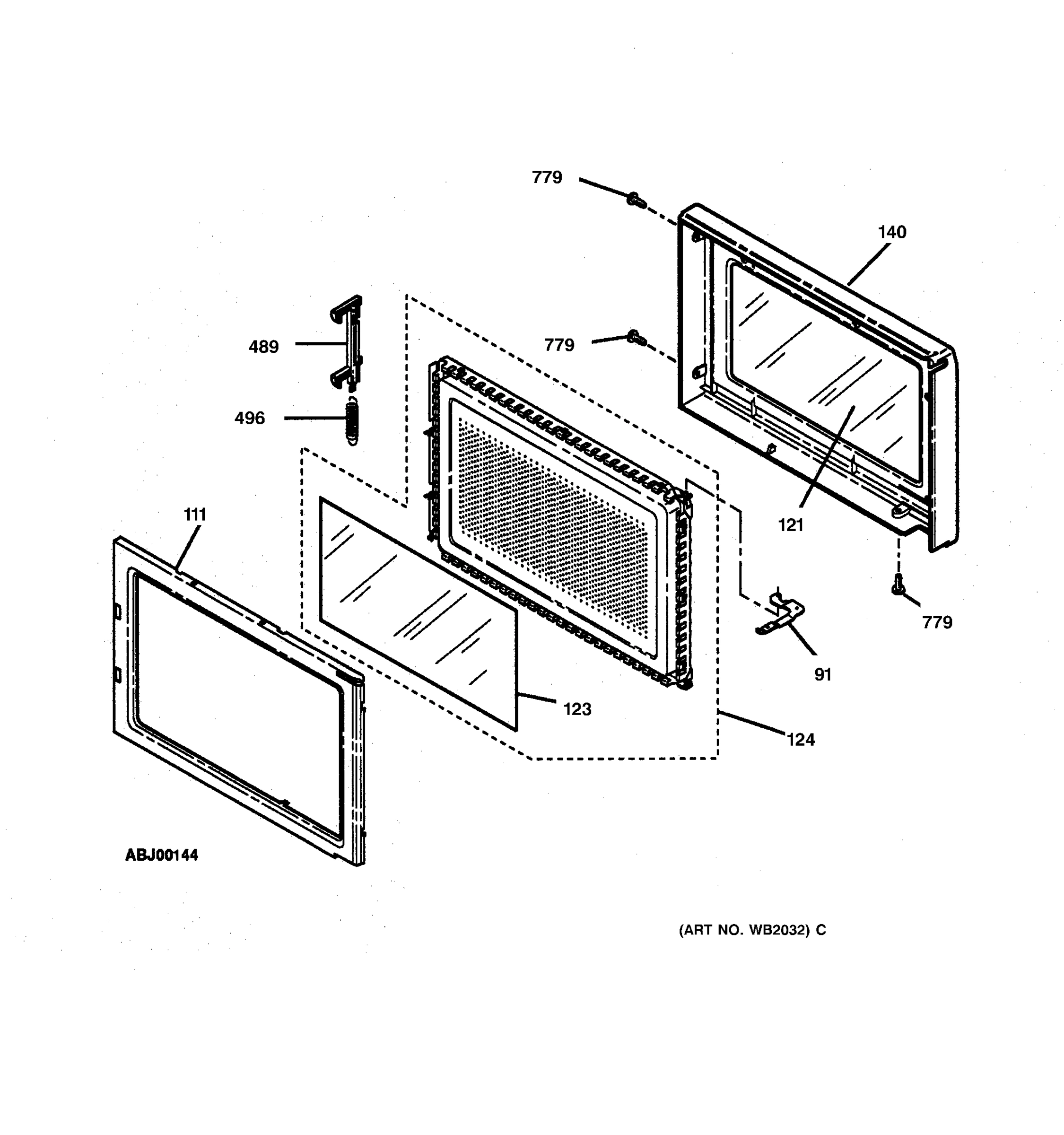

MICROWAVE DOOR

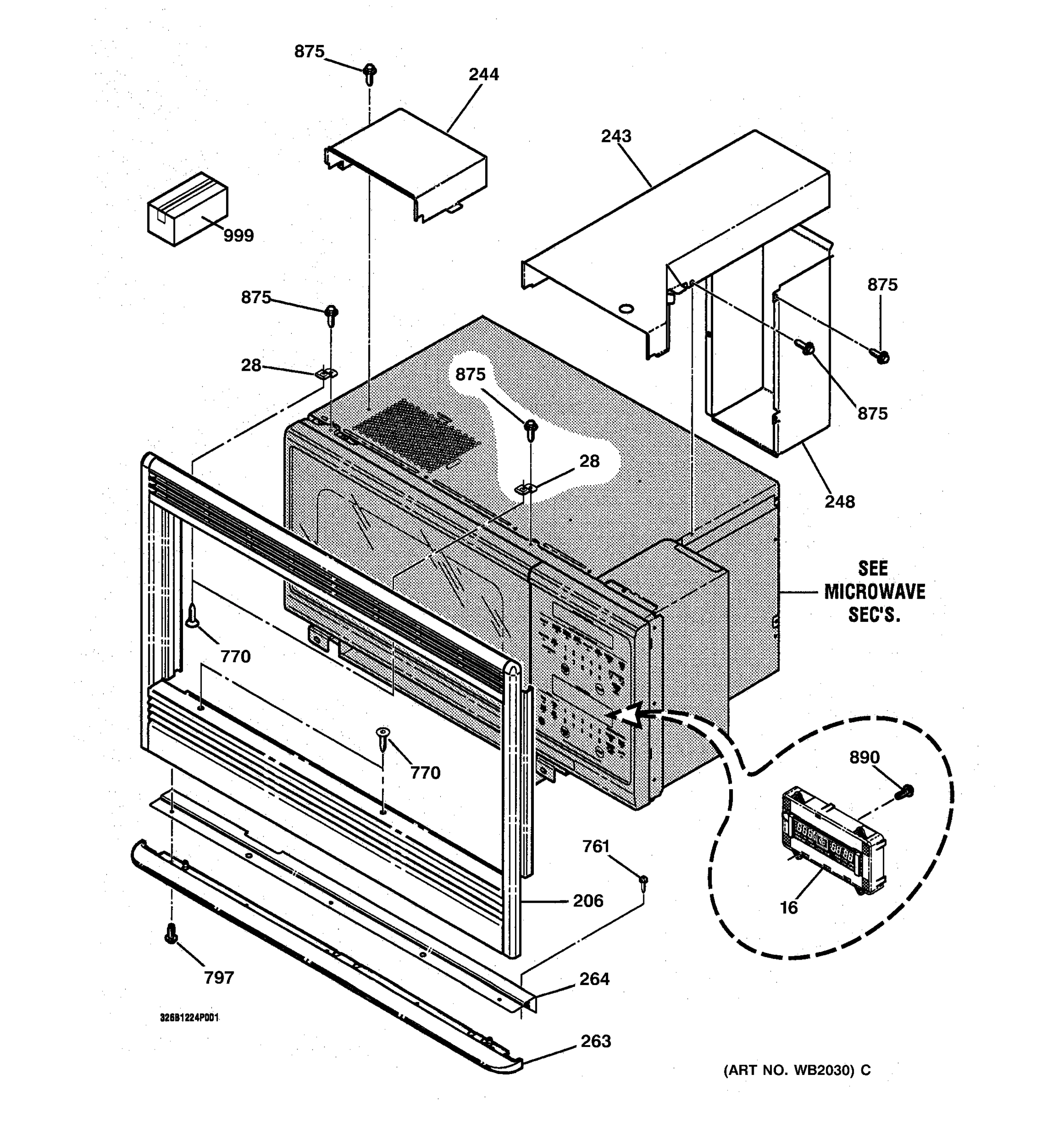

MICROWAVE INCLOSURE SECTION

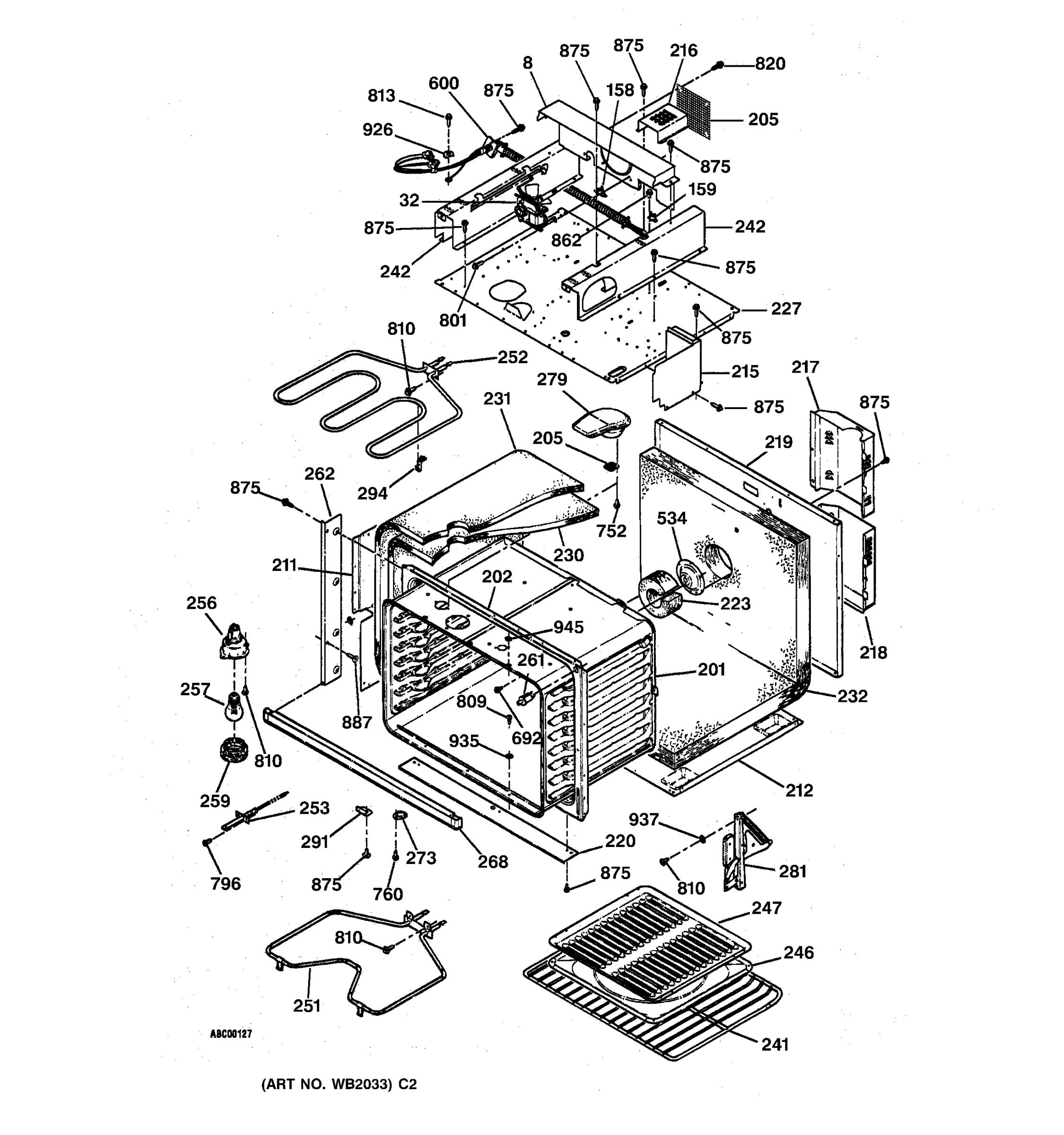

OVEN BODY

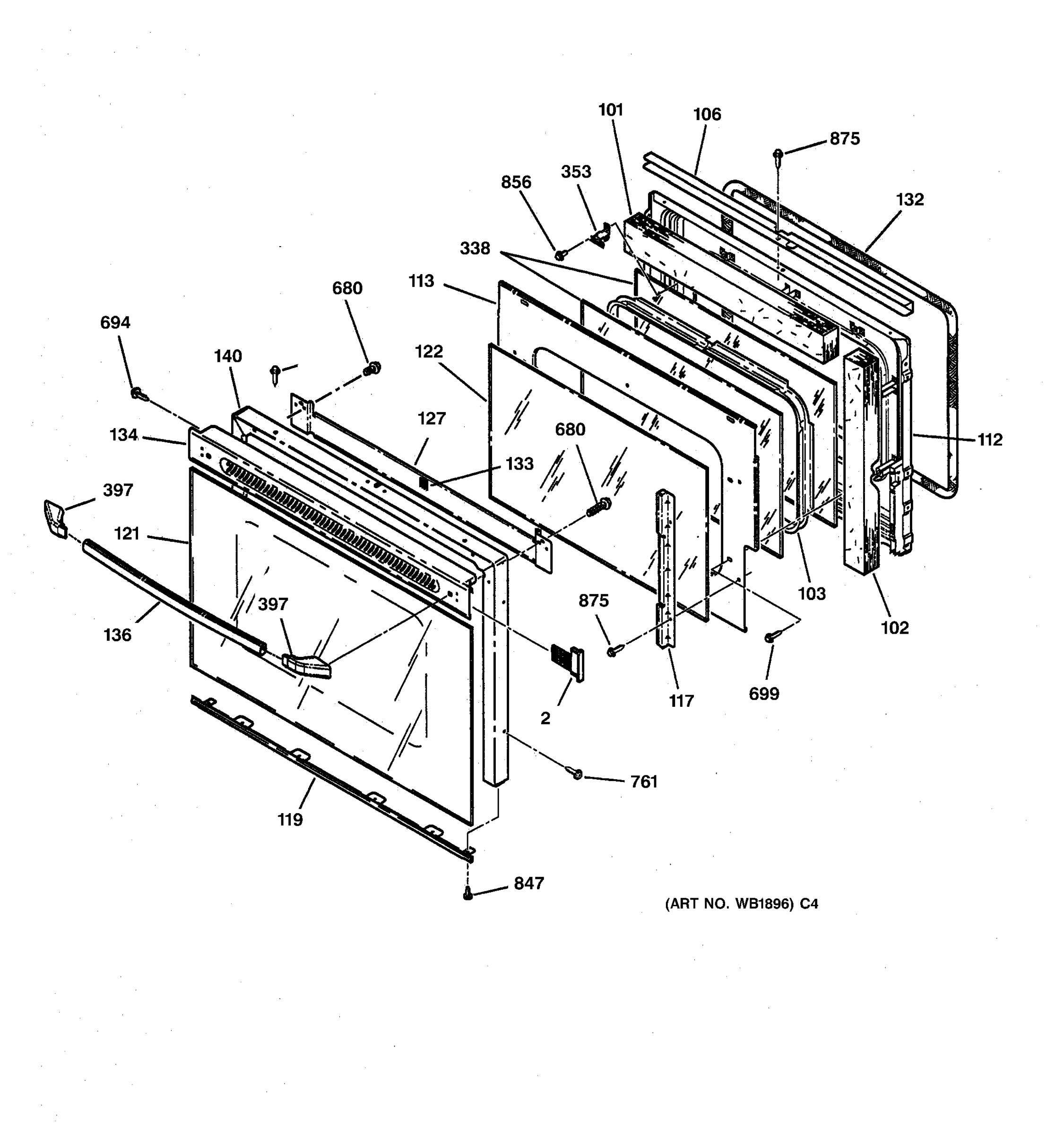

OVEN DOOR
Common parts from model GE JTP85WW2WW
2
GEN WB07K5314 GEN WB07K5314 Contact Us For Availability
2
GEN WB07K5315 GEN WB07K5315 Contact Us For Availability
7
M/W BASE GEN WB63K5205 Contact Us For Availability
8
GEN WB02K5386 GEN WB02K5386 Contact Us For Availability
8
GEN WB06K5063 GEN WB06K5063 Contact Us For Availability
9
M/W OUTER PANEL GEN WB63K5203 Contact Us For Availability
11
M/W OVEN BODY GEN WB63K5202 Contact Us For Availability
12
M/W CEILING COVER PLATE GEN WB02K5398 Contact Us For Availability
12
GEN WB06K5049 GEN WB06K5049 Contact Us For Availability
13
M/W PULLEY SHAFT GEN WB26K5064 Contact Us For Availability
14
M/W PULLEY WASHER GEN WB01K5205 Contact Us For Availability
15
M/W ROLLER GEN WB26K5066 Contact Us For Availability
16
GEN WB27K5309 GEN WB27K5309 Contact Us For Availability
16
CLOCK/OVEN CONTROL GEN WB27K5311 Contact Us For Availability
18
M/W ROLLER RING GEN WB26K5065 Contact Us For Availability
19
M/W HINGE B GEN WB10K5020 Contact Us For Availability
20
GEN WB02K5412 GEN WB02K5412 Contact Us For Availability
20
GEN WB10K5023 GEN WB10K5023 Contact Us For Availability
21
GEN WB02K5416 GEN WB02K5416 Contact Us For Availability
22
GEN WB02K5417 GEN WB02K5417 Contact Us For Availability
23
M/W FAN MOTOR GEN WB26K5073 Contact Us For Availability
24
M/W FAN BLADE GEN WB02K5400 Contact Us For Availability
27
GEN WB02K5414 GEN WB02K5414 Contact Us For Availability
28
GEN WB02K5388 GEN WB02K5388 Contact Us For Availability
28
M/W ORIFICE GEN WB02K5401 Contact Us For Availability
28
GEN WB02K5415 GEN WB02K5415 Contact Us For Availability
30
M/W OVEN LAMP GEN WB08K5048 Contact Us For Availability
32
GEN WB20K5045 GEN WB20K5045 Contact Us For Availability
33
GEN WB24X5214 GEN WB24X5214 Contact Us For Availability
34
SWITCH GEN WB24K5138 Contact Us For Availability
35
M/W THERMAL CUT OUT GEN WB24K5140 Contact Us For Availability
36
M/W LAMP HOLDER GEN WB08K5049 Contact Us For Availability
37
GEN WB24K5139 GEN WB24K5139 Contact Us For Availability
39
M/W DIODE GEN WB08K5050 Contact Us For Availability
42
M/W GLASS TRAY MOTOR GEN WB26K5067 Contact Us For Availability
44
M/W SENSOR COVER-UPPER GEN WB02K5404 Contact Us For Availability
45
M/W SENSOR COVER-LOWER GEN WB02K5405 Contact Us For Availability
48
AIR GUIDE A GEN WB02K5418 Contact Us For Availability
49
M/W MAGNETRON GEN WB27K5310 Contact Us For Availability
89
GEN WB06K5053 GEN WB06K5053 Contact Us For Availability
90
GEN WB06K5054 GEN WB06K5054 Contact Us For Availability
91
M/W BASE PLATE GEN WB02K5397 Contact Us For Availability
91
M/W HINGE-UPPER GEN WB10K5021 Contact Us For Availability
92
M/W SLIDE RAIL-LT GEN WB63K5207 Contact Us For Availability
93
M/W SLIDE RAIL-RT GEN WB63K5206 Contact Us For Availability
94
M/W EXHAUST COVER GEN WB38K5059 Contact Us For Availability
95
M/W FUSE HOLDER GEN WB02K5399 Contact Us For Availability
97
M/W SIDE PANEL GEN WB63K5204 Contact Us For Availability
99
M/W SENSOR MTG PLATE GEN WB02K5396 Contact Us For Availability
101
GEN WB06K5055 GEN WB06K5055 Contact Us For Availability
102
GEN WB06K5056 GEN WB06K5056 Contact Us For Availability
103
GEN WB02K5321 GEN WB02K5321 Contact Us For Availability
103
CUSHION GEN WB06K5057 Contact Us For Availability
104
GEN WB06K5058 GEN WB06K5058 Contact Us For Availability
105
GEN WB06K5059 GEN WB06K5059 Contact Us For Availability
106
GEN WB06K5060 GEN WB06K5060 Contact Us For Availability
106
GEN WB07T10036 GEN WB07T10036 Contact Us For Availability
110
GEN WB06K5061 GEN WB06K5061 Contact Us For Availability
111
GEN WB55K5088 GEN WB55K5088 Contact Us For Availability
112
GEN WB55T10017 GEN WB55T10017 Contact Us For Availability
113
GEN WB02K5322 GEN WB02K5322 Contact Us For Availability
113
FUSE INSULATOR GEN WB35K5070 Contact Us For Availability
114
M/W GROUNDING PLATE CAP GEN WB06K5062 Contact Us For Availability
115
GEN WB06K5052 GEN WB06K5052 Contact Us For Availability
116
M/W COVER SHEET GEN WB34K5261 Contact Us For Availability
119
GEN WB07T10114 GEN WB07T10114 Contact Us For Availability
121
GEN WB57T10092 GEN WB57T10092 Contact Us For Availability
121
GEN WB57K5338 GEN WB57K5338 Contact Us For Availability
123
M/W DOOR SCREEN GEN WB57K5314 Contact Us For Availability
124
GEN WB55K5087 GEN WB55K5087 Contact Us For Availability
127
GEN WB34K5197 GEN WB34K5197 Contact Us For Availability
132
GEN WB32K5039 GEN WB32K5039 Contact Us For Availability
133
FELT PAD GEN WB01K5115 Contact Us For Availability
134
GEN WB07K5318 GEN WB07K5318 Contact Us For Availability
136
GEN WB15T10031 GEN WB15T10031 Contact Us For Availability
140
GEN WB55K5043 GEN WB55K5043 Contact Us For Availability
140
GEN WB56K5167 GEN WB56K5167 Contact Us For Availability
151
GEN WB26K5036 GEN WB26K5036 Contact Us For Availability
158
GEN WB24K5127 GEN WB24K5127 Contact Us For Availability
159
GEN WB24K5135 GEN WB24K5135 Contact Us For Availability
185
GEN WB15K5075 GEN WB15K5075 Contact Us For Availability
201
GEN WB63T10014 GEN WB63T10014 Contact Us For Availability
202
GEN WB63T10015 GEN WB63T10015 Contact Us For Availability
205
GEN WB06K5041 GEN WB06K5041 Contact Us For Availability
206
GEN WB07K5420 GEN WB07K5420 Contact Us For Availability
211
SIDE INSULATION RETAINER GEN WB02K5306 Contact Us For Availability
212
GEN WB02K5305 GEN WB02K5305 Contact Us For Availability
215
GEN WB34K5233 GEN WB34K5233 Contact Us For Availability
216
GEN WB34K5234 GEN WB34K5234 Contact Us For Availability
217
GEN WB34K5193 GEN WB34K5193 Contact Us For Availability
218
GEN WB34K5192 GEN WB34K5192 Contact Us For Availability
219
GEN WB02K5307 GEN WB02K5307 Contact Us For Availability
220
GEN WB34K5195 GEN WB34K5195 Contact Us For Availability
227
GEN WB02K5387 GEN WB02K5387 Contact Us For Availability
230
GEN WB35K5118 GEN WB35K5118 Contact Us For Availability
231
GEN WB35K5119 GEN WB35K5119 Contact Us For Availability
242
GEN WB02K5384 GEN WB02K5384 Contact Us For Availability
242
GEN WB02K5385 GEN WB02K5385 Contact Us For Availability
243
GEN WB38K5055 GEN WB38K5055 Contact Us For Availability
244
GEN WB38K5056 GEN WB38K5056 Contact Us For Availability
247
GEN WB48T10008 GEN WB48T10008 Contact Us For Availability
248
GEN WB38K5057 GEN WB38K5057 Contact Us For Availability
253
M/W SENSOR GEN WB20K5048 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
262
GEN WB07K5517 GEN WB07K5517 Contact Us For Availability
262
GEN WB07K5518 GEN WB07K5518 Contact Us For Availability
263
GEN WB07K5364 GEN WB07K5364 Contact Us For Availability
264
VENT TRIM-INNER-BLK-UPPR GEN WB07K5308 Contact Us For Availability
268
GEN WB07K5468 GEN WB07K5468 Contact Us For Availability
273
GEN WB02K5365 GEN WB02K5365 Contact Us For Availability
279
GEN WB38K5028 GEN WB38K5028 Contact Us For Availability
281
GEN WB14K5014 GEN WB14K5014 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
300
M/W GLASS TRAY GEN WB57K5313 Contact Us For Availability
338
GEN WB56K0020 GEN WB56K0020 Contact Us For Availability
453
ESCUT SLIDE ASS Y GEN WB02X7729 Contact Us For Availability
489
M/W DOOR KEY GEN WB10K5022 Contact Us For Availability
496
M/W DOOR KEY SPRING GEN WB09K5023 Contact Us For Availability
534
GEN WB26K5062 GEN WB26K5062 Contact Us For Availability
534
SUPPORT OVN CAVITY GEN WB26T10003 Contact Us For Availability
578
M/W CAPACITOR GEN WB08K5055 Contact Us For Availability
583
GEN WB20K5047 GEN WB20K5047 Contact Us For Availability
600
GEN WB18K5628 GEN WB18K5628 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
700
GEN WB01K5218 GEN WB01K5218 Contact Us For Availability
701
M/W SCREW GEN WB01K5219 Contact Us For Availability
761
GEN WB01K5185 GEN WB01K5185 Contact Us For Availability
770
GEN WB01T10011 GEN WB01T10011 Contact Us For Availability
776
GEN WB01K5091 GEN WB01K5091 Contact Us For Availability
777
M/W SCREW GEN WB01X1051 Contact Us For Availability
778
GEN WB01K5217 GEN WB01K5217 Contact Us For Availability
779
GEN WB01X1275 GEN WB01X1275 Contact Us For Availability
783
SCREW GEN WB01K5097 Contact Us For Availability
784
GEN WB01K5098 GEN WB01K5098 Contact Us For Availability
785
GEN WB01K5099 GEN WB01K5099 Contact Us For Availability
788
SCREW GEN WB01K5101 Contact Us For Availability
792
GEN WB01K5104 GEN WB01K5104 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
888
WIRE HARNESS GEN WB18K5654 Contact Us For Availability
888
GEN WB18K5655 GEN WB18K5655 Contact Us For Availability
888
GEN WB18K5656 GEN WB18K5656 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
937
GEN WB01X1140 GEN WB01X1140 Contact Us For Availability
999
GEN 31-10198 GEN 31-10198 Contact Us For Availability
999
GEN 31-13253 GEN 31-13253 Contact Us For Availability
999
GEN 31-13275 GEN 31-13275 Contact Us For Availability
999
USE CARE MANUAL GEN 49-8691 Contact Us For Availability
× ![]()
